Pneumatic Push Fit Connectors — Reliable Air Line Fittings for Every Routing Challenge
Whether you're building a workshop compressor setup, routing air lines through a machine enclosure, or repairing a pneumatic system, finding a push fit connector that holds pressure without leaking is non-negotiable. Loose or mismatched fittings waste compressed air, cause pressure drops, and create safety hazards — problems that DIYers, mechanics, and small-shop operators deal with constantly.
This listing covers a complete range of pneumatic push fit connectors available in three fitting types — L Shape (90° elbow), straight inline Connector, and Bulkhead Connector — across four material options: standard brass, copper nickel-plated, and stainless steel. Fitting sizes range from 4mm (≈5/32") to 16mm (≈5/8"), compatible with standard metric OD pneumatic tubing. Quantities are available from 1 to 10 pieces per order.
Typical use cases include routing compressed air lines around cabinet corners with the L shape elbow fitting, passing air lines through panel walls using the bulkhead push fit connector, and creating leak-free inline tube joins in pneumatic automation systems, spray booths, and air-powered workshop tools.
ℹ️
Compatibility Note: These fittings are designed for metric OD pneumatic tubing (nylon, polyurethane, or polyethylene). Select the fitting size that matches your tube's outer diameter. Not suitable for imperial (inch) tubing without verifying the OD in millimeters first.
✅ Key Features of These Pneumatic Push Fit Connectors
-
🔧Tool-Free Tube Connection — Push the tube in to connect; press the collet ring to release. No thread-cutting, no sealant tape needed for the tube end.
-

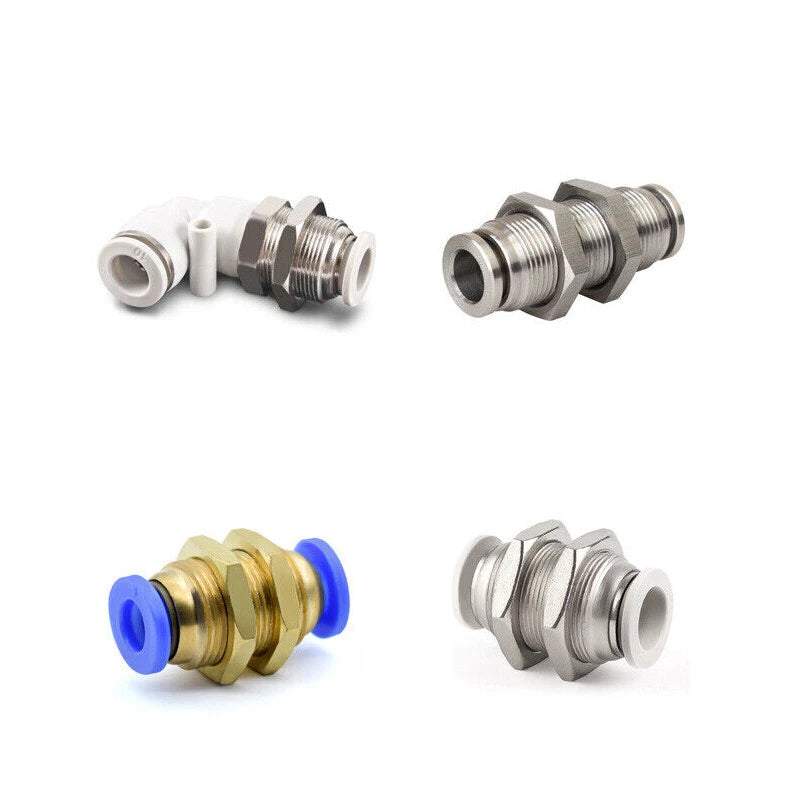

📐Three Fitting Geometries — L shape elbow for 90° direction changes, straight connector for inline joins, and bulkhead connector for panel pass-through installations.
-
⚙️Wide Size Range (4mm–16mm) — Covers the most common metric pneumatic tubing outer diameters used in workshop, industrial, and automation air line systems.
-

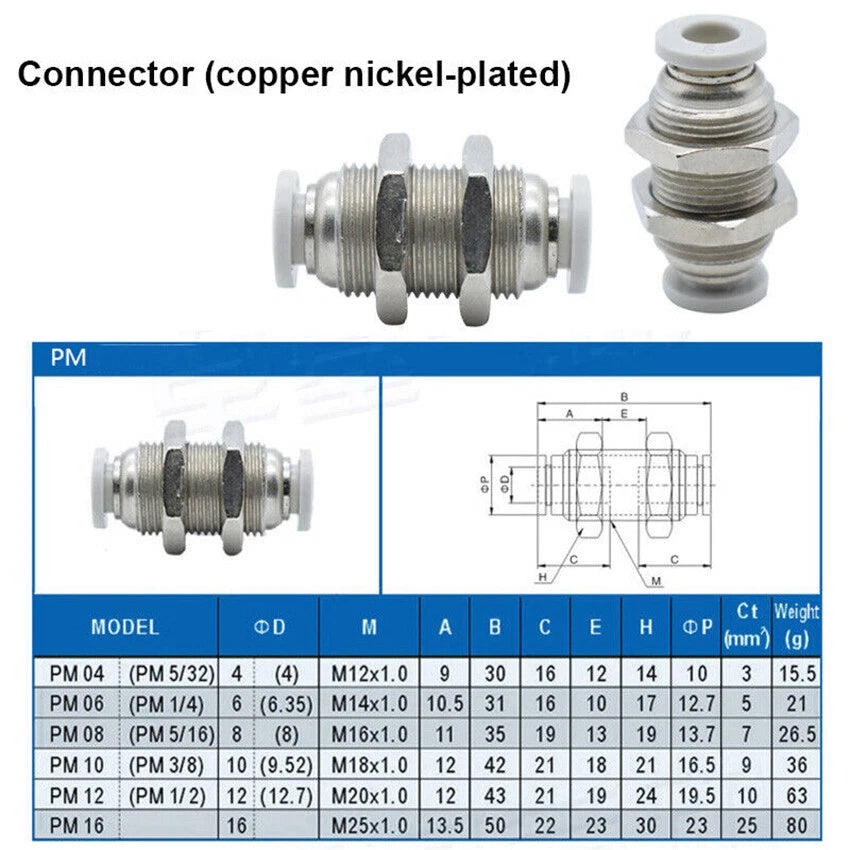

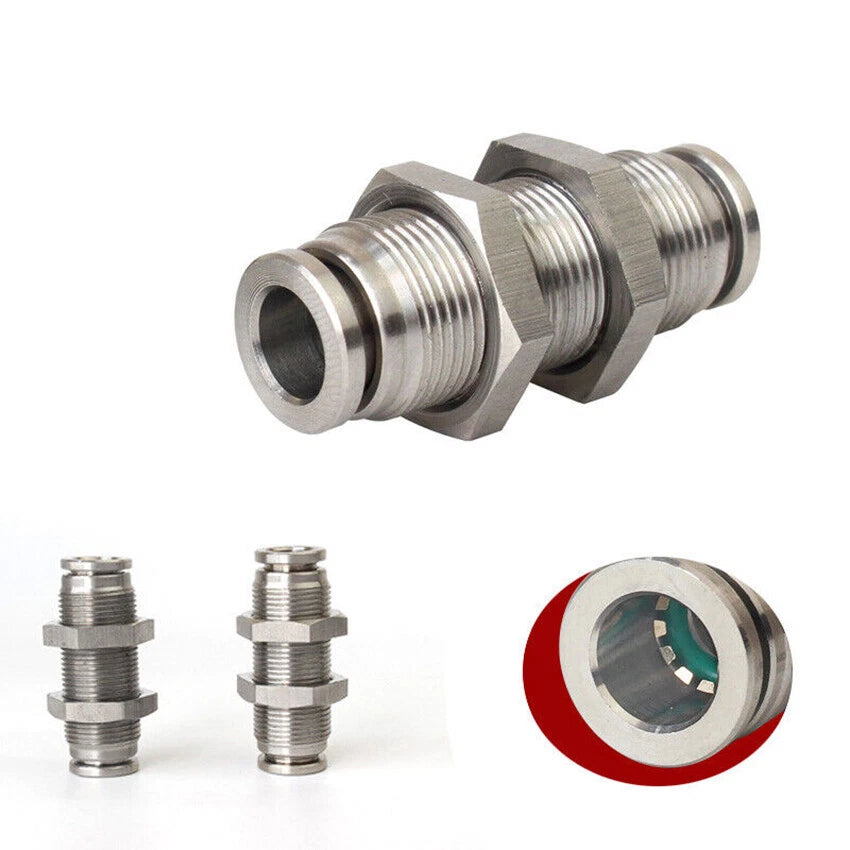

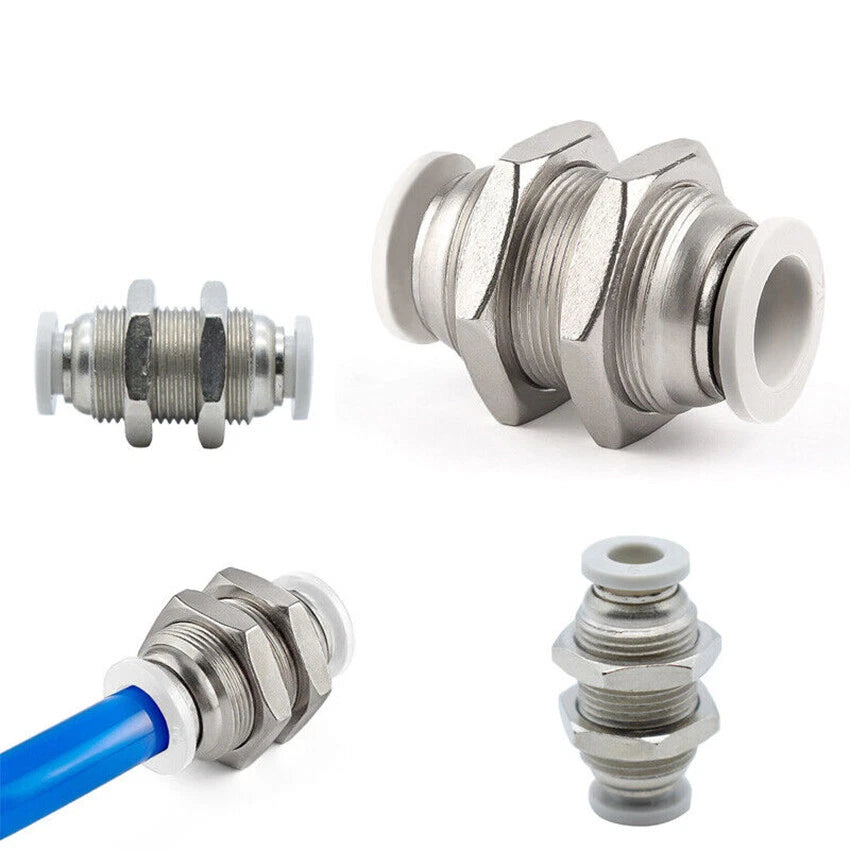

🛡️Three Material Options — Standard brass for general indoor use, copper nickel-plated for improved corrosion resistance, and stainless steel for outdoor, marine, or chemically demanding environments.
-
💨Secure Collet Grip — The internal collet mechanism grips the tube OD firmly under pressure, reducing the risk of blow-out during normal pneumatic system operation.
-
📦Flexible Quantity Options — Order 1, 2, 3, 5, or 10 pieces per SKU to match your project scope without overstocking or making multiple orders.
📐 Technical Specifications — Pneumatic Push Fit Connectors
| Fitting Types |
L Shape (90° elbow), Straight Connector, Bulkhead Connector |
| Material Options |
Brass; Copper Nickel-Plated Brass; Stainless Steel |
| Tube OD Sizes |
4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈1/2"), 14mm (≈9/16"), 16mm (≈5/8") |
| Compatible Tubing |
Standard metric OD pneumatic tubing — nylon, polyurethane (PU), polyethylene (PE) |
| Connection Method |
Push-to-connect (push fit); collet release |
| Working Pressure |
Typically up to 150 PSI (≈10 bar) — contact us to confirm for your specific variant |
| Thread Standard (Bulkhead) |
See variant options |
| Quantities Available |
1, 2, 3, 5, or 10 pieces per order |
| Finish |
Natural brass / Nickel-plated / Brushed stainless |
| Application |
Compressed air systems, pneumatic automation, workshop air lines, spray booths |
⚠️
Spec Confirmation: Thread dimensions and exact pressure ratings vary by size and material. If you are installing these in a safety-critical or high-cycle pneumatic system, please contact us to confirm specifications before ordering.
❓ Frequently Asked Questions
How do I choose the right fitting size?
Match the fitting size to your tubing's outer diameter (OD). For example, if your air line tubing has a 6mm OD, select the 6mm fitting. Sizes in this listing range from 4mm (≈5/32") to 16mm (≈5/8"). When in doubt, measure your tube OD with calipers before ordering — using a fitting that is too small will prevent insertion, and one that is too large will not grip the tube securely.
What is the difference between the L Shape and the Connector fitting types?

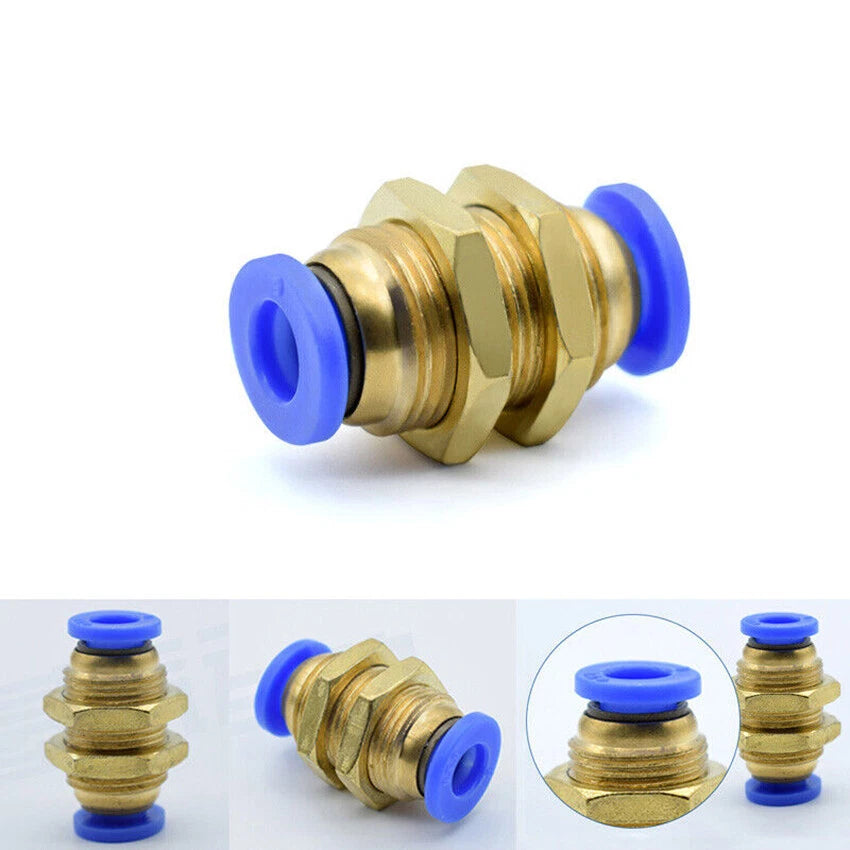

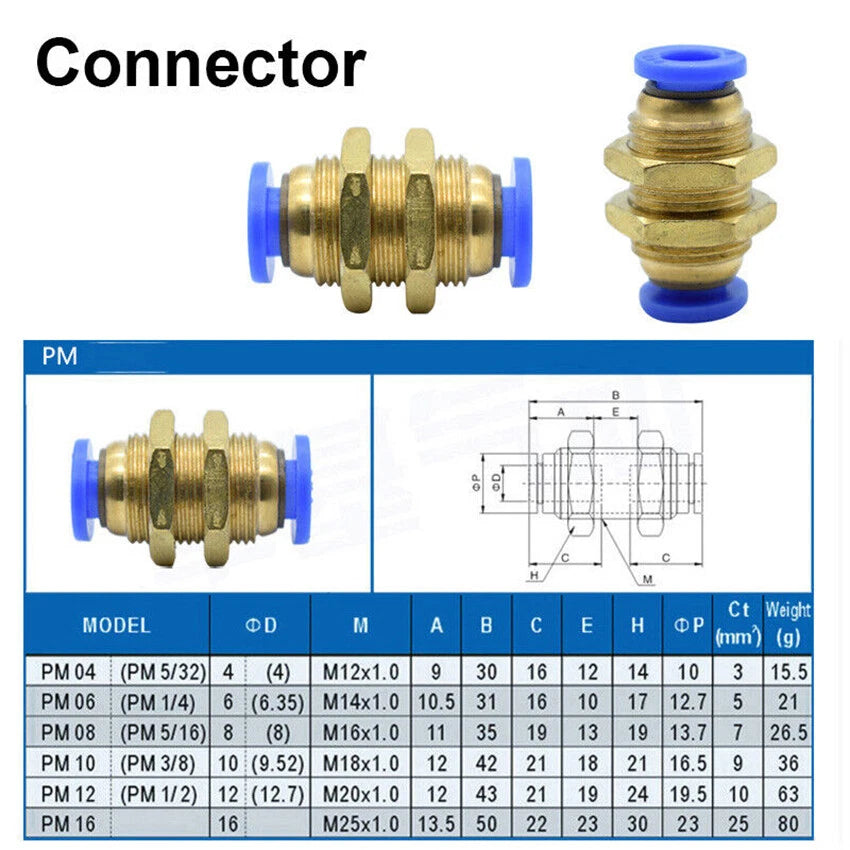

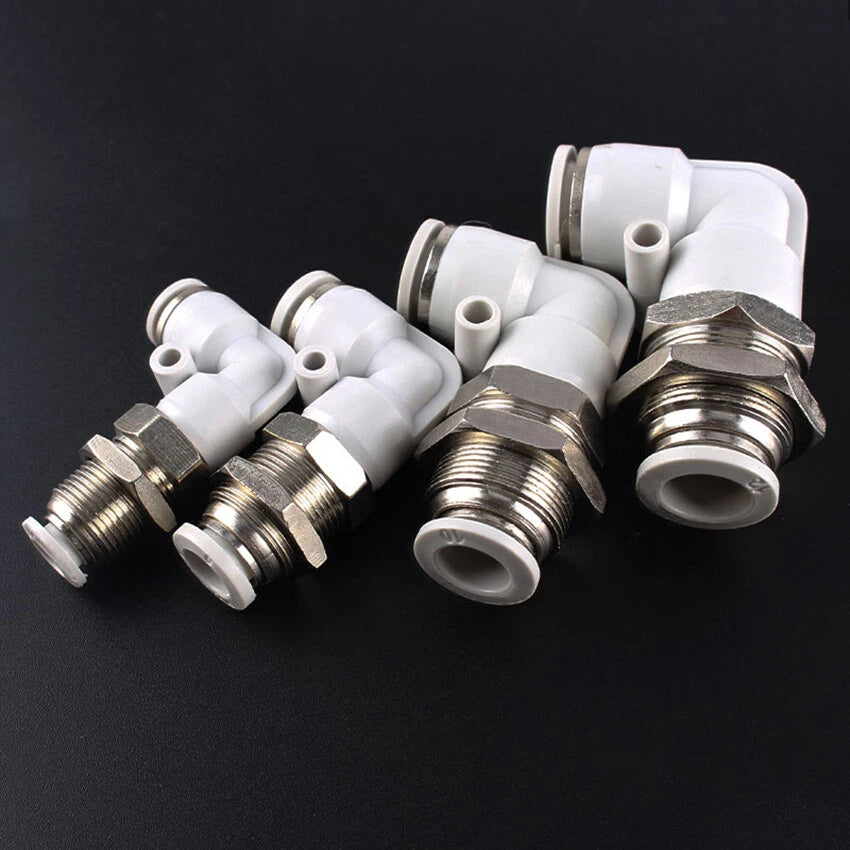

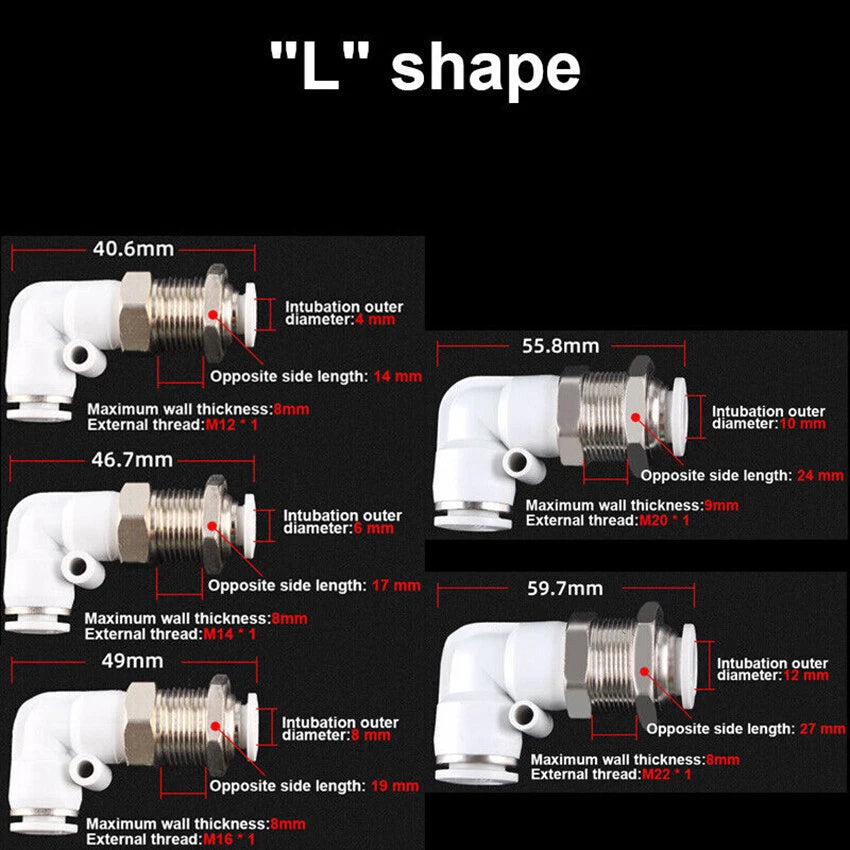

The L Shape (elbow) fitting redirects airflow 90°, making it ideal for routing tubing around corners or in tight enclosures without kinking the tube. The straight Connector joins two tubes in-line. The Bulkhead Connector is designed to pass through a panel or enclosure wall, with a locknut securing it on each side — commonly used in control cabinets and machine frames.
Which material should I choose — brass, copper nickel-plated, or stainless steel?
Standard brass connectors suit most indoor pneumatic systems in dry environments. Copper nickel-plated fittings offer improved corrosion resistance for moderately humid or mildly corrosive conditions. Stainless steel fittings are generally recommended for outdoor, marine, food-processing, or chemically aggressive applications where long-term corrosion resistance is critical. When in doubt, stainless steel is the more durable choice.
Can these fittings be used outdoors or in wet environments?
For outdoor or wet environments, we recommend the stainless steel variant, which typically provides superior resistance to rust and oxidation. The copper nickel-plated option may also be suitable for mildly humid conditions. Standard brass fittings are best kept in dry, indoor settings to avoid premature corrosion.
What is the maximum working pressure these connectors can handle?
Push fit pneumatic connectors of this type are generally rated for working pressures up to approximately 150 PSI (≈10 bar), though the exact rating depends on the specific material and tube size selected. Please contact us to confirm the rated pressure for your chosen variant before use in high-pressure or safety-critical systems.
Are these fittings compatible with standard pneumatic tubing?
Yes. These push fit connectors are designed to work with standard metric OD pneumatic tubing — including nylon, polyurethane (PU), and polyethylene (PE) — in the corresponding size. They are not designed for imperial (inch) tubing. If you use inch-sized tubing, verify the OD in millimeters before ordering to ensure a proper fit.
Do I need any tools to install these push fit connectors?
No tools are required for tube insertion. Simply push the tube firmly and squarely into the fitting until it seats fully — you will typically feel or hear a click. To release, press the collet ring inward while pulling the tube out. For bulkhead connectors, a wrench is generally needed to tighten the panel locknut during installation.
🛒 Select your fitting type, size, and quantity above, then add to cart — ships from our US warehouse.
