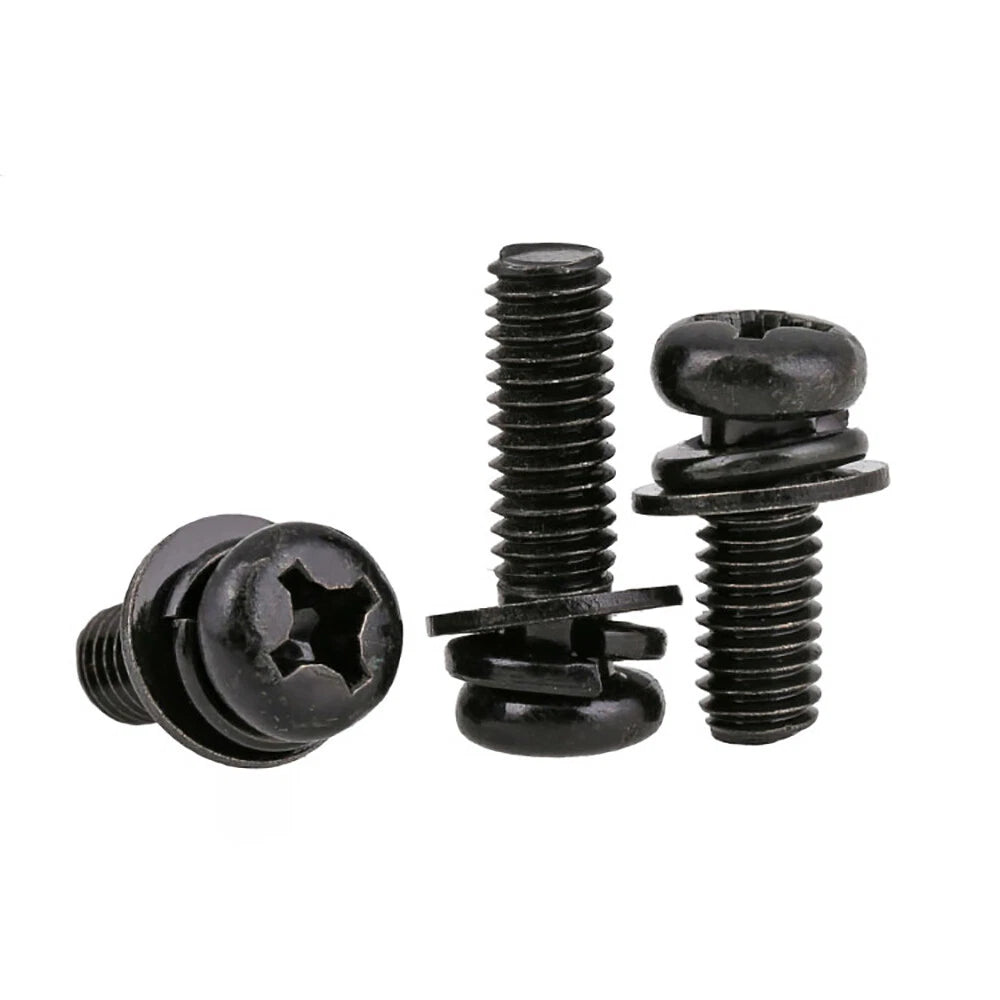

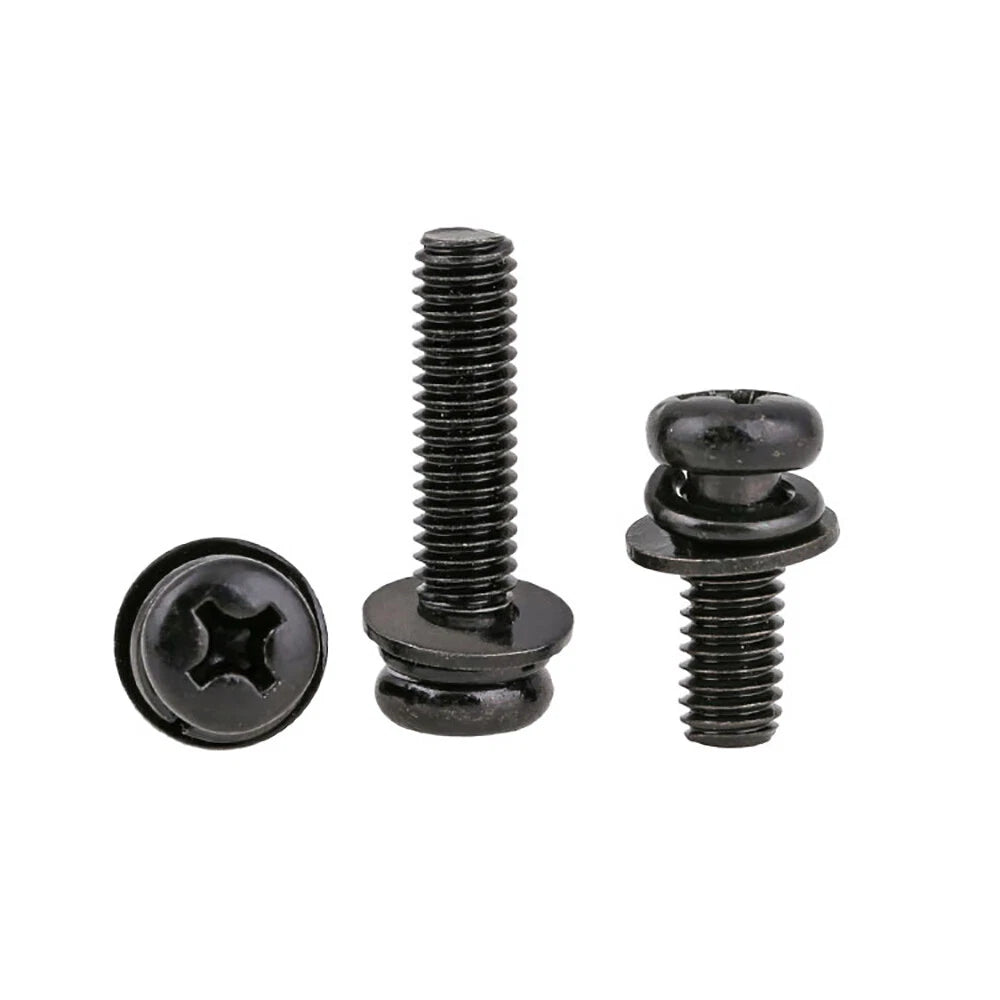

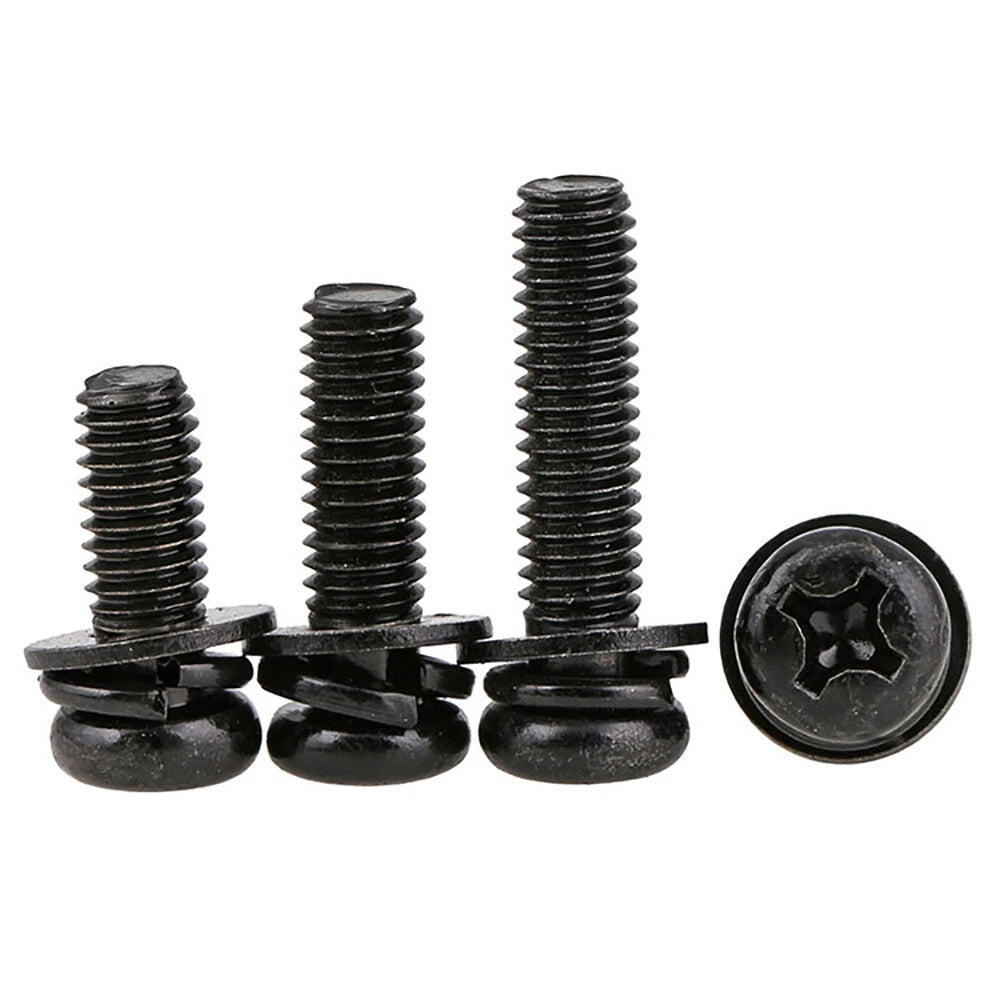

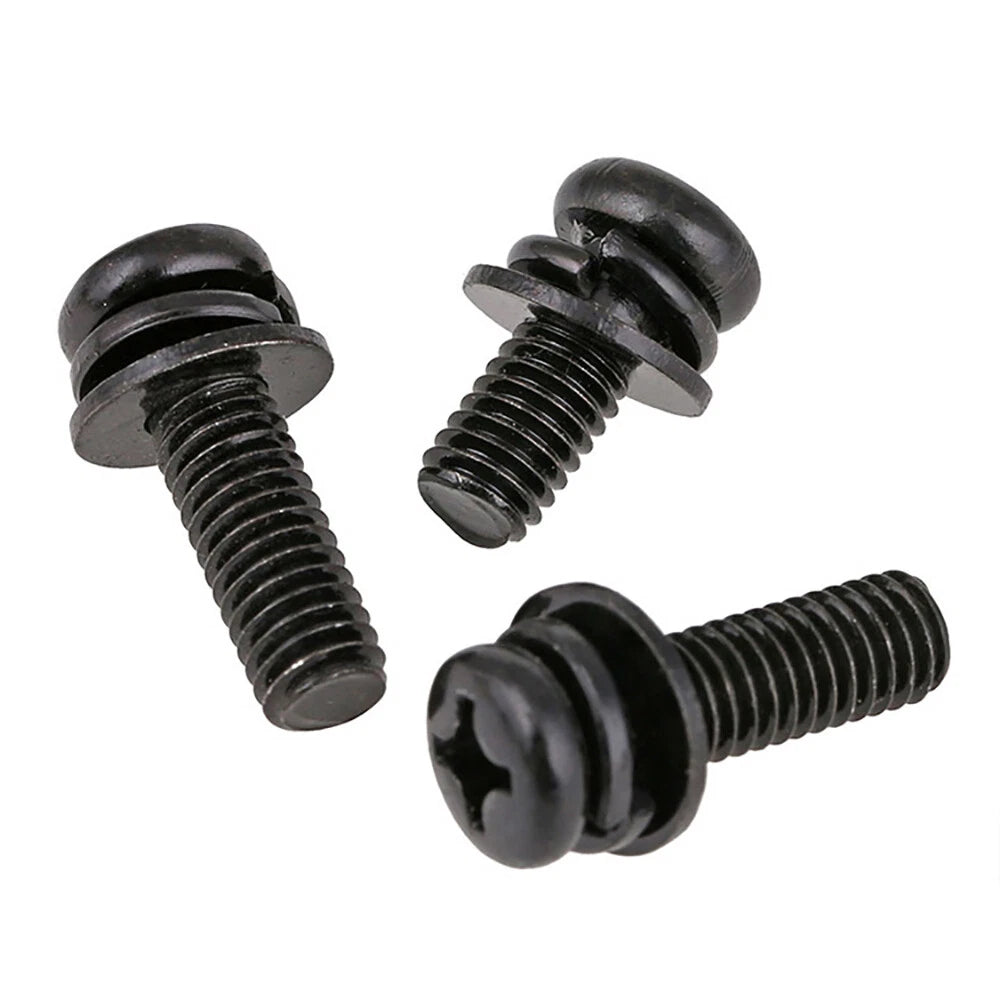

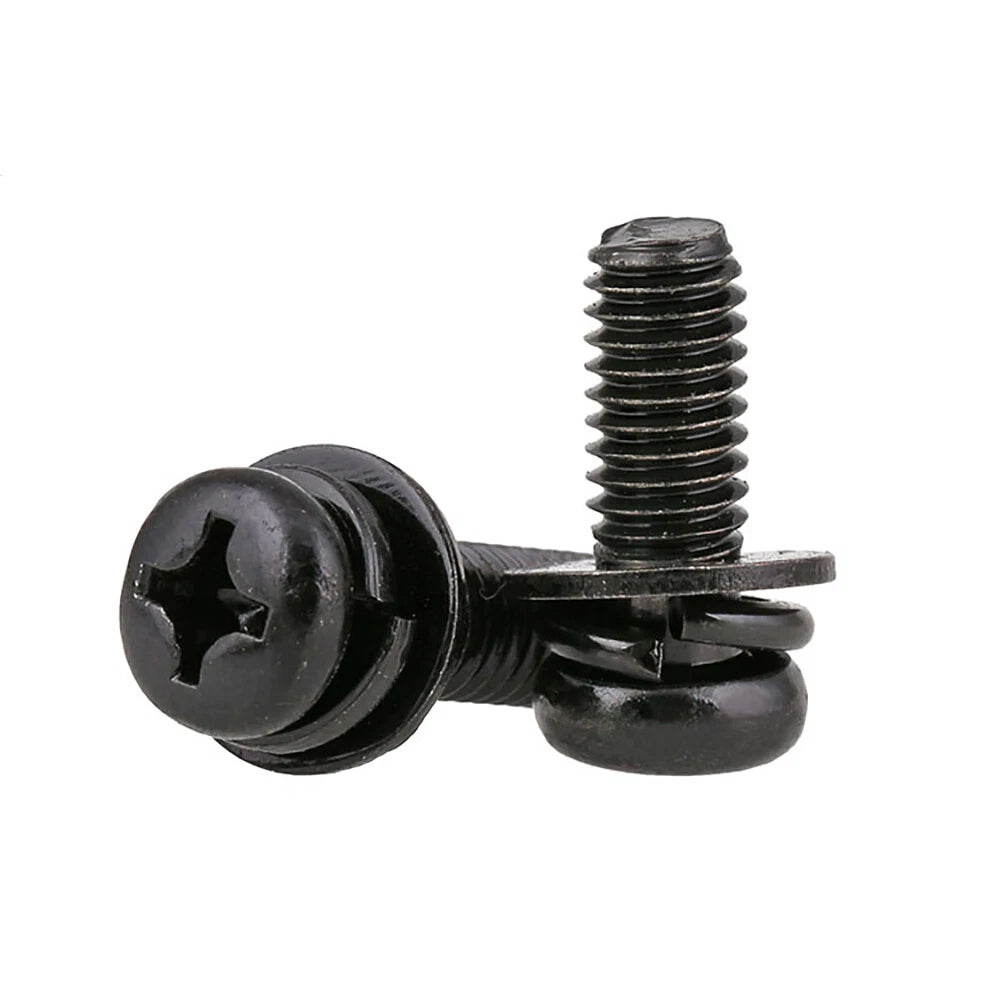

You’re tired of hunting for a separate washer every time you fasten a screw – and you know that a spring washer is essential to stop vibration loosening. These pan head machine screws come as a complete set: each screw is pre‑assembled with a flat washer and a spring (split lock) washer. The flat washer spreads the load, the spring washer prevents back‑out, and the Pozi (Pozidriv) cross recess gives you a secure, non‑cam‑out drive. Made from carbon steel with a black zinc finish, they resist rust for indoor and light outdoor use. Available in M2, M2.5, M3, and M4 diameters with lengths measured under the head. Fully threaded. Perfect for machinery, electronics, appliances, and any assembly where vibration is a concern.

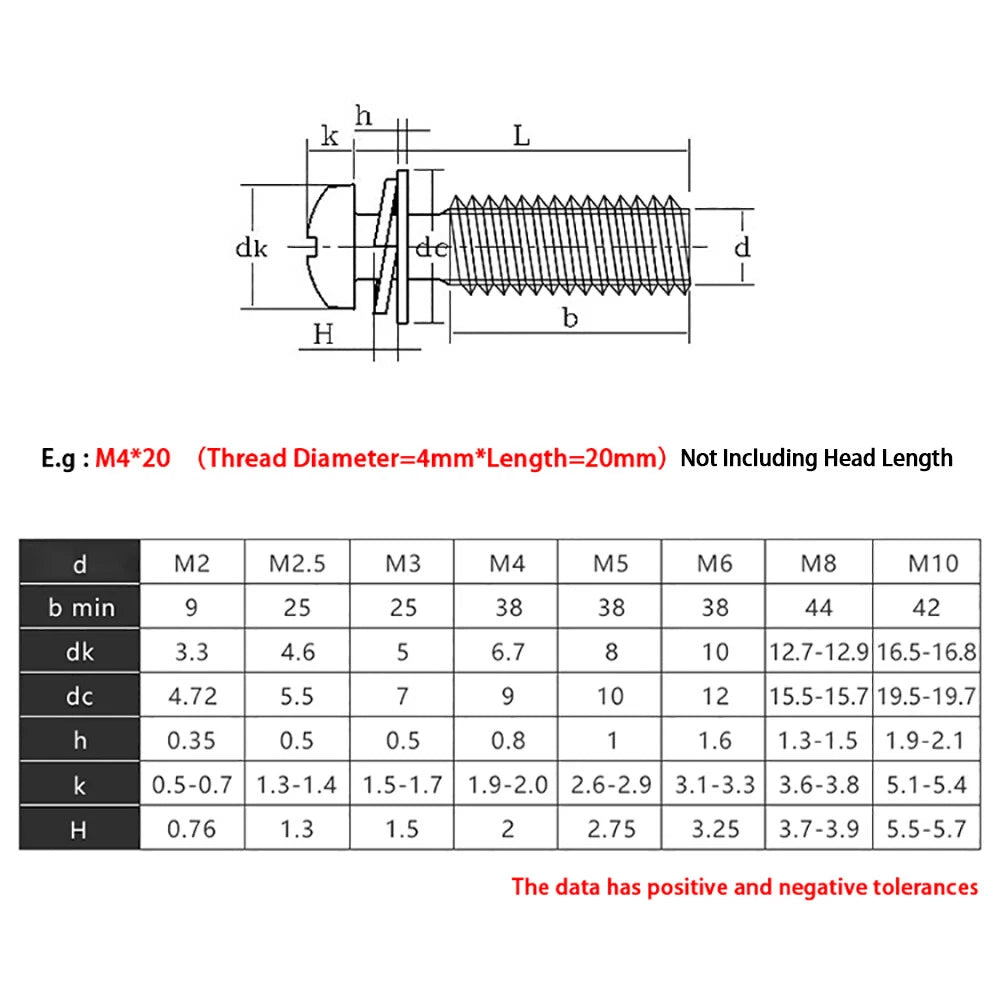

| Thread Diameter | Typical Lengths (mm, under head) * | Thread Pitch (mm) | Included Washers | Head Style | Material / Finish |
|---|---|---|---|---|---|
| 📐 Length measured from underside of head to tip. Fully threaded. Select exact size from dropdown.夹 | |||||
| M2 | 4, 5, 6, 8, 10, 12, 16, 20 | 0.4 |
Flat washer + spring (split) lock washer |
Pan head (Pozidriv) |
Carbon steel / Black zinc |
| M2.5 | 4, 5, 6, 8, 10, 12, 16, 20, 25 | 0.45 | |||
| M3 | 4, 5, 6, 8, 10, 12, 16, 20, 25, 30 | 0.5 | |||
| M4 | 5, 6, 8, 10, 12, 16, 20, 25, 30, 35, 40 | 0.7 | |||
* Lengths are typical – exact availability may vary. Please allow minor manual measurement errors. Washers are assembled on the screw and will spin freely but won't come off under normal use.

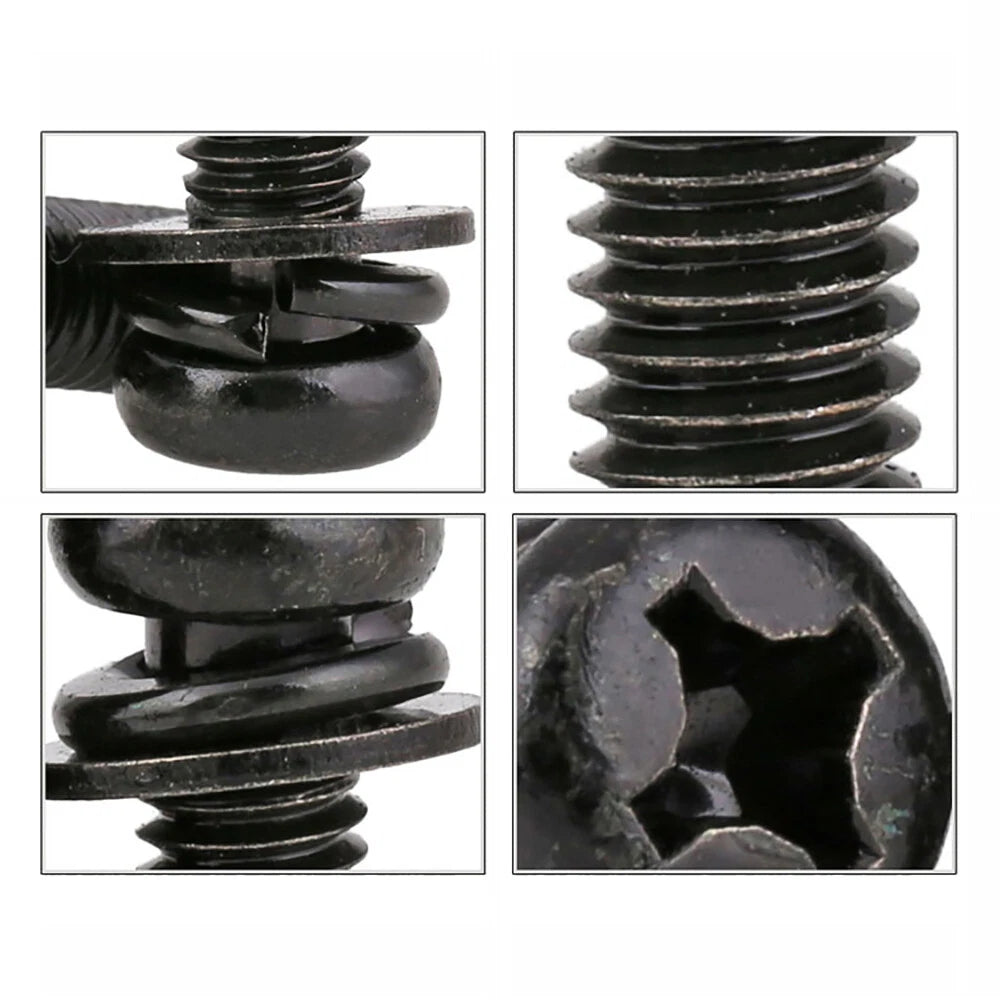

| Washer Type | Function | Benefit |
|---|---|---|
| Flat washer | Wide ring that sits under the head | Spreads clamping load over a larger area – prevents pull‑through in soft materials like plastic or thin metal. |
| Spring (split) washer | Split ring with sharp edges | Provides tension to prevent screws from loosening due to vibration. Essential for moving machinery and appliances. |
1. Are the washers removable? Can I use the screw without them?
The washers are pre‑assembled but can be removed if needed. However, they are designed to stay on the screw for convenience. If you remove them, they can be reused, but the assembly may not stay together as tightly.
2. What’s the difference between Pozi and Phillips? Which driver do I need?
Pozi (Pozidriv) has additional small ribs between the cross arms, allowing better bit engagement and reduced cam‑out. A standard Phillips driver will work, but for best results use a Pozi bit (marked PZ). For M2–M4, a PZ1 or PH1 size is typical.
3. Are these screws fully threaded? How do I measure length?
Yes – fully threaded from under the head to the tip. Length is measured from the underside of the head (excluding the head itself) to the tip. So an “M3 x 10mm” screw has a 10mm threaded shaft under the head.
4. Will the black zinc finish rust? Can I use these outdoors?
Black zinc provides moderate corrosion resistance – fine for indoor use and occasional light outdoor exposure (e.g., covered patio, workshop). For continuous outdoor or marine use, choose stainless steel. For most appliances, furniture, and indoor machinery, black zinc is perfectly adequate.
5. What size nut fits these screws? Do I need nuts?
These are machine screws – use standard metric nuts of the same thread size (M2, M2.5, M3, or M4 nut). They can also thread into pre‑tapped holes. For wood or plastic, use a threaded insert or a nut on the back.
6. Do you offer these screws in M5 or M6 sizes?
This listing covers M2–M4. We carry larger sizes with the same washer combo in our store – please check other listings or contact us.
