1. Product core introduction

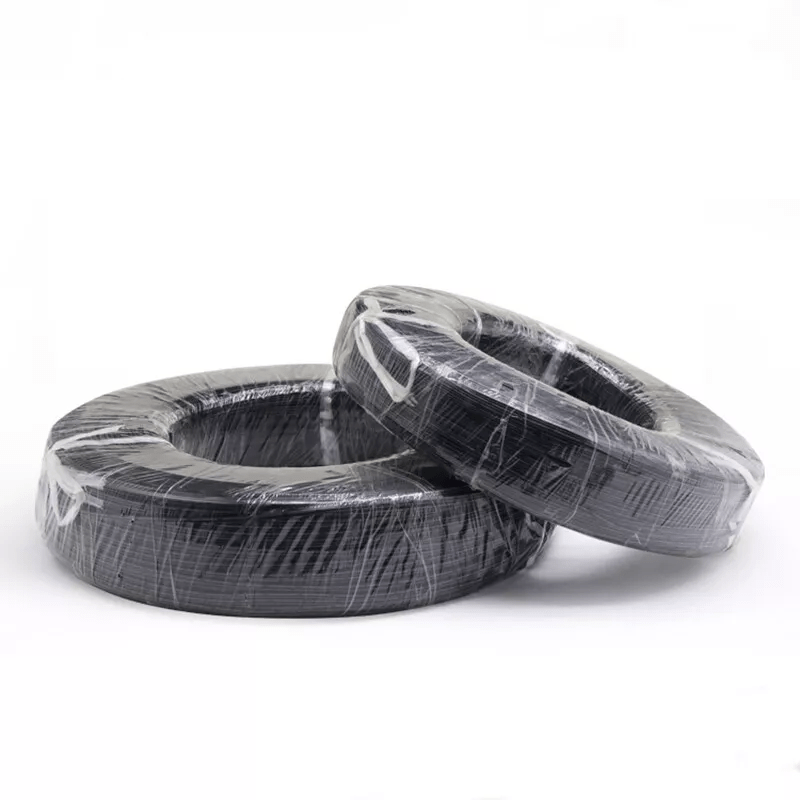

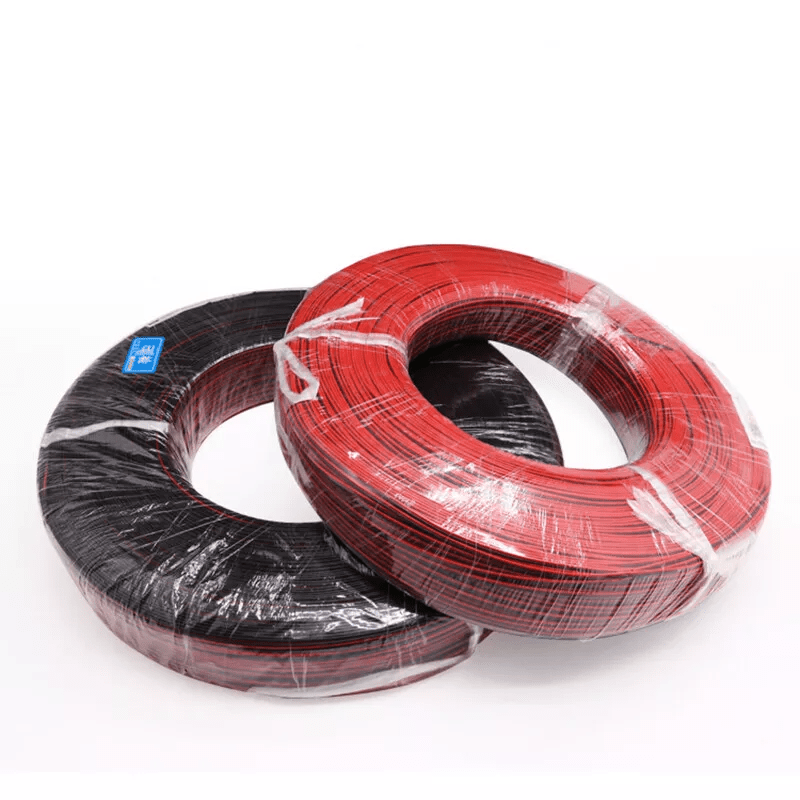

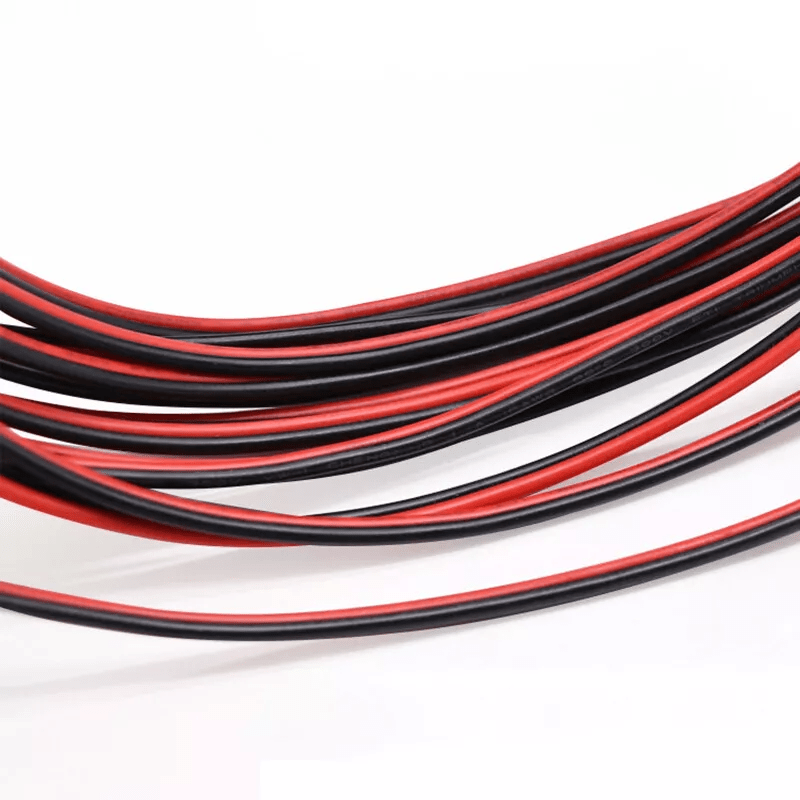

HomeDIYer brand PVC 2-conductor twisted pair cable in red, black and white is designed for audio appliances, toys and all kinds of equipment with rated voltage up to 300 V. The combination of black/white wires provides clear identification and a variety of choices for electrical connections, whether you are constructing a home audio system or carrying out a DIY toy project, it is a reliable partner for the transmission of power and signals. Whether you are building a home audio system or carrying out a DIY toy project, it is your reliable electrical connection partner.
2. The main characteristics of the product
Dual-colour identification is clear: the use of black / white dual-colour wires makes it easy for users to clearly differentiate between the functions of different wires during wiring and connection, reduces the risk of misconnection, and improves the accuracy and efficiency of the installation, which is especially suitable for complex electrical connection scenarios, such as multi-device connection of the audio system or toy circuits with multiple functional modules.

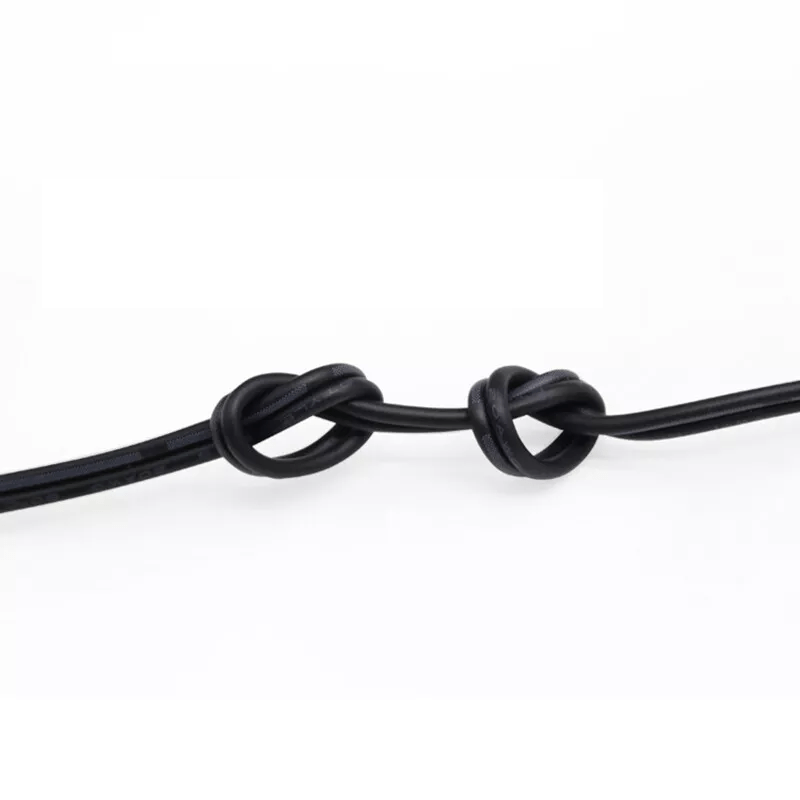

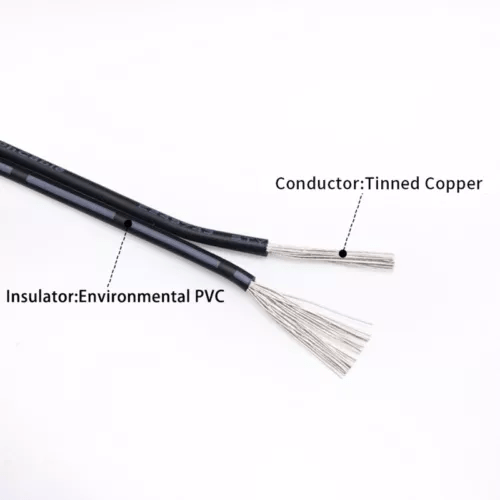

Durable PVC material: High-quality PVC insulation and sheath material with good abrasion resistance, corrosion resistance and insulation properties, can effectively protect the internal wire core, so that it can be used stably for a long period of time in different environmental conditions, reducing the damage and failure of wires due to external factors, prolonging the service life of the cables, and reducing the maintenance costs.
2-core twisted design: the twisted structure helps to reduce electromagnetic interference (EMI) and crosstalk, to ensure the stability and purity of the signal transmission, especially in the audio signal transmission, can effectively avoid noise and distortion, to provide clear, high-quality audio effects. At the same time, the 2-core design meets the basic power and signal transmission needs of most audio appliances and small devices, simple and practical.
Rated Voltage 300V: With a rated voltage of 300V, it is suitable for a variety of common household and small commercial electrical equipment, and is able to stably carry the voltage required by the equipment to ensure the normal operation of the equipment, which provides users with a wider range of application options without having to worry about the voltage adaptation problem.
3. Product use scene
Home audio system construction: used to connect speakers, amplifiers, DVD players, TVs and other audio devices, the clear identification of black/white wires facilitates users to accurately connect in complex wiring environments, ensures the stable transmission of audio signals, and allows users to enjoy high-quality music, film and game sound at home, enhancing the home entertainment experience.
Children's toy production and repair: The safety and ease of use of this cable makes it an ideal choice for connecting the circuits of DIY children's toys, such as electric toy cars, robotic toys, light-up sound toys, and so on. Its durable PVC material resists pulling and bumping during children's play, while the two-coloured wires help beginners easily understand and complete the circuit connections, and make it easy for parents to quickly troubleshoot when repairing toys.
ASSEMBLY OF SMALL ELECTRONIC DEVICES: For some small electronic devices, such as homemade electronic clocks, small radios, electronic thermometers, etc., this cable can provide stable power supply and signal transmission. Its compact 2-core structure and flexible PVC jacket can adapt to the limited space inside the device, helping DIY enthusiasts to successfully complete the assembly of electronic devices and realise their creative ideas.
Circuit connection for teaching experiments: Students can use this cable to build circuits and perform experiments during electronics teaching experiments in schools. The black/white dual-colour wires make it easy for students to identify and differentiate the different wires in the circuit, which helps them to better understand the circuit principles and grasp the knowledge of electronic technology, while its safety and reliability can also ensure the smooth operation of the experiment.
4. Product use instructions
Preparation before installation:
Check the appearance of the cable for defects such as breakage, scratches, flaking insulation, etc., to ensure that the cable is intact. If problems are found, contact the supplier for replacement.
Determine the required cable length according to the actual use scenario and equipment requirements, and prepare the necessary installation tools such as wire strippers, crimpers, electrician's knife, insulating tape, etc. to ensure the safety and applicability of the tools.
Cabling and connection:
During the wiring process, the cable should be avoided from excessive stretching, bending or twisting, so as not to damage the internal wire core.
When connecting the cable to the equipment, use wire strippers to carefully strip the insulation from the end of the cable to expose the appropriate length of the wire core (generally 5 mm), and then insert the wire core into the connection terminal of the equipment and use crimping pliers to firmly press it, to ensure that the connection is tight, reliable and in good contact. After the connection is completed, use insulating tape to properly insulate the connection to prevent leakage and short-circuit accidents.
Precautions for use:
The rated voltage of this cable is 300V, and it is strictly prohibited to use it in an environment exceeding this voltage, so as to avoid electrical safety accidents, damage to equipment and endangerment of personal safety.
Avoid contacting the cable with high temperature, open fire, humidity, corrosive chemicals and other harsh environmental conditions. If the cables need to be used in special environments, such as outdoor or humid places, appropriate protective measures should be taken, such as the use of waterproof, sunscreen, corrosion-resistant wire troughs or casings to protect the cables.
Regularly check the connecting parts and overall appearance of the cable to see if there is any looseness, oxidation, breakage and so on. If problems are found, they should be repaired or replaced in a timely manner to ensure the normal operation and electrical safety of the cable. At the same time, in the process of use, pay attention to avoid children touching the cable to prevent accidents.
