PVC BSP Female Ends Solvent Weld Pipe Fittings Various Sizes 3 Color 1 2" - 4"

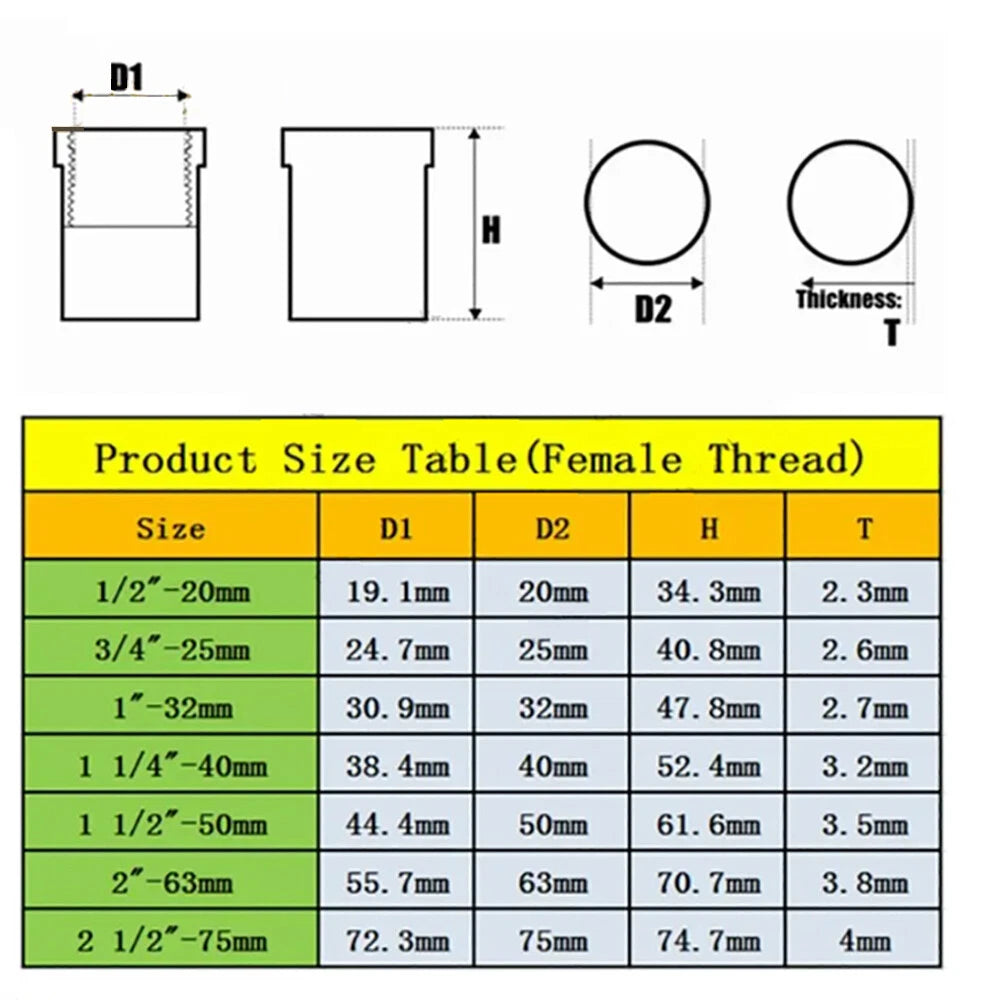

Match the fitting size to the nominal outer diameter of your existing PVC pipe. For example, if your pipe measures approximately 20mm OD, select the 20mm (½") variant. The size labels on this product include both the metric measurement and the imperial BSP equivalent (e.g., 25mm = ¾") to help you cross-reference with your existing fittings or pipe markings.

No. Rigid PVC is rated for cold-water applications, typically up to 60°C (140°F) at low pressure. These fittings are not suitable for hot-water heating systems, steam lines, or any application where sustained temperatures exceed this threshold. For hot-water use, consider CPVC or copper fittings instead.

Use a PVC-compatible solvent cement (also called PVC glue or solvent weld adhesive) rated for the pipe diameter you are joining. Apply a thin, even coat to both the pipe end and the inside of the fitting socket, push firmly together with a slight twist, and hold for 30 seconds. Allow the joint to cure fully before pressurizing — typically 15–30 minutes for light handling and 24 hours for full pressure.

Yes. PVC is inherently non-corrosive and resistant to a wide range of chemicals including chlorinated water, mild acids, and common household cleaning agents. This makes these BSP female solvent weld pipe fittings a reliable long-term choice for both indoor plumbing and outdoor irrigation systems exposed to fertilizers or pool chemicals.

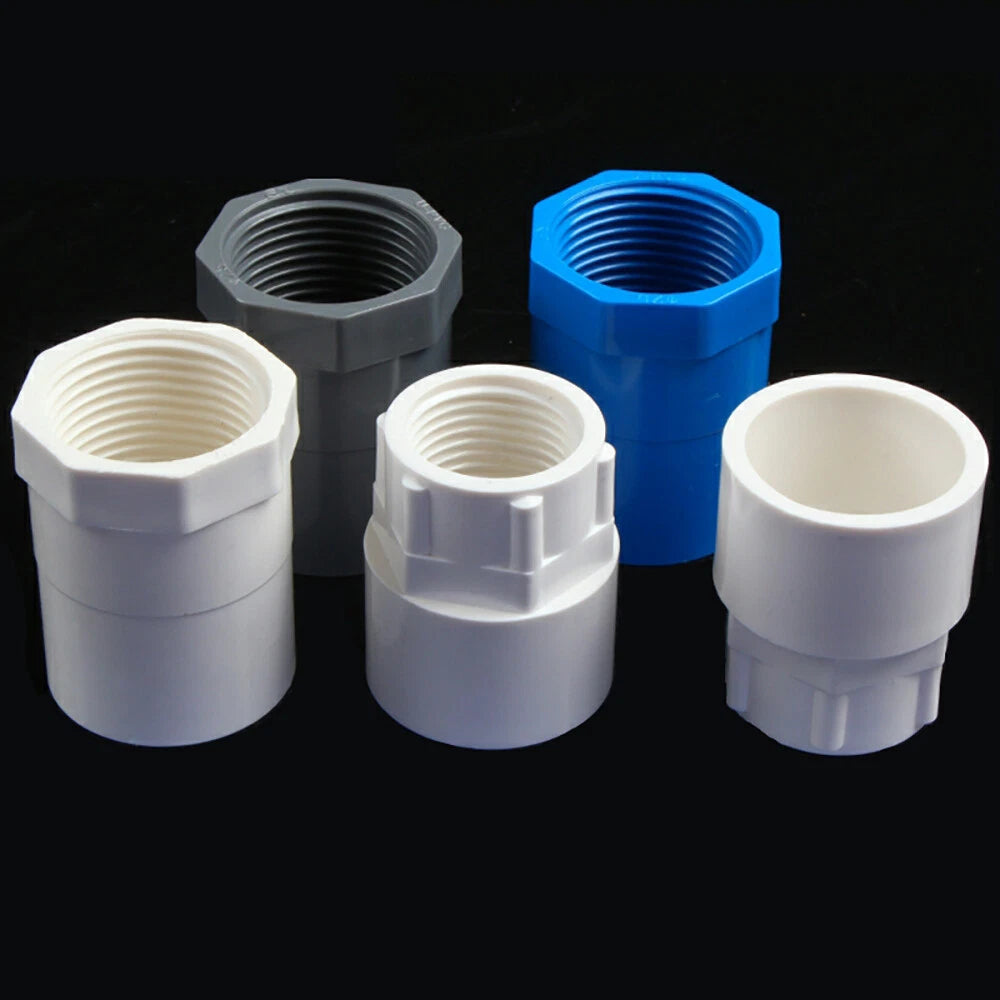

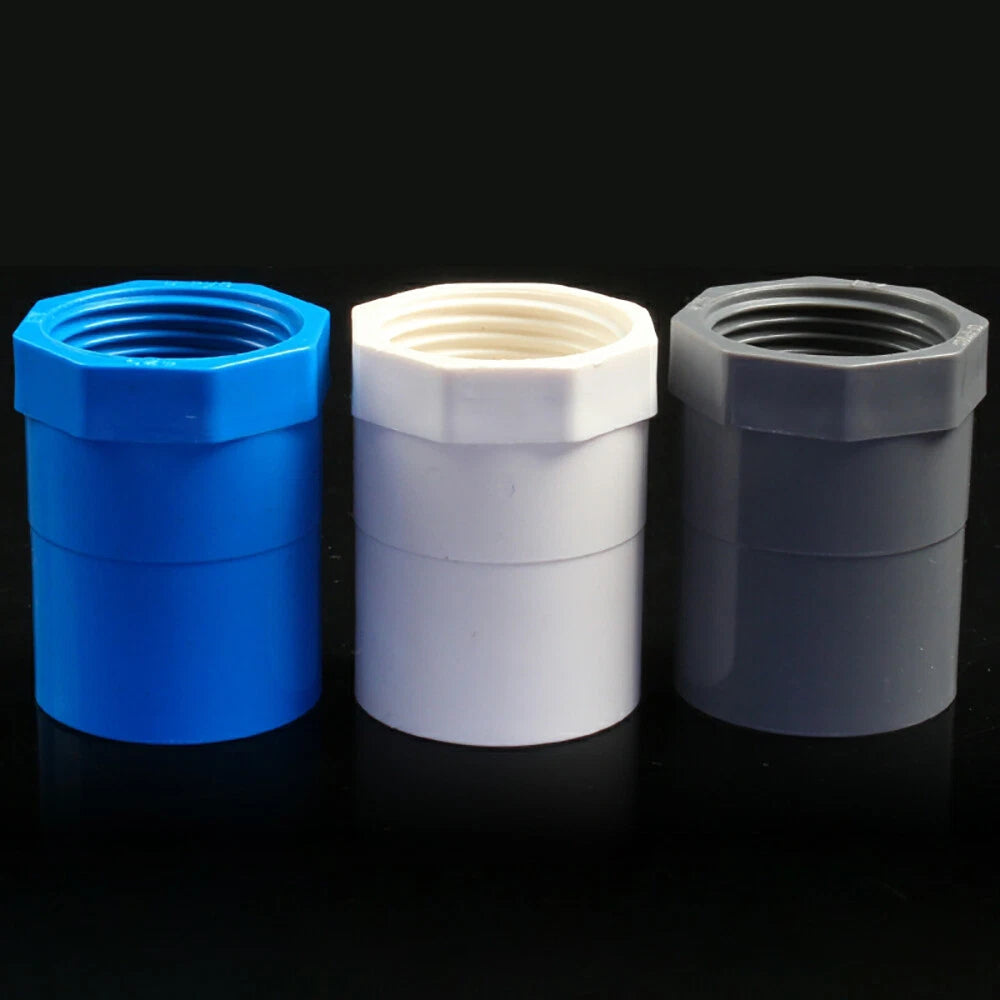

The three colors are functionally identical — the difference is purely visual. Many installers use color coding to distinguish pipe circuits at a glance: for example, White for cold water supply, Blue for irrigation or treated water, and Grey for drainage or waste lines. Choose the color that matches your existing pipework or your preferred color-coding convention.

PVC is generally suitable for buried and outdoor applications as it does not rust or corrode. However, prolonged direct UV exposure can cause surface degradation over time. For above-ground outdoor use, consider wrapping exposed sections with UV-protective tape or paint. For underground use, ensure the pipe and fittings are rated for the burial depth and soil conditions in your area.

No power tools are required. You will need a pipe cutter or hacksaw to cut the pipe square, fine-grit sandpaper or a deburring tool to smooth the cut end, PVC primer (recommended for a stronger bond), and PVC solvent cement. The solvent weld process is a straightforward DIY task — no heat gun, press tool, or compression ring is needed.

If you are making a single repair or replacing one fitting, the 1-piece pack is the most economical choice. If you are building a manifold, running a new branch line, or working on a larger irrigation project where multiple fittings of the same size are needed, the 5-piece pack offers a lower per-unit cost and ensures you have spares on hand in case of a miscut or dry-fit adjustment.
