When a leaking joint or a mismatched fitting derails your plumbing project, the fix starts with the right connector. These PVC equal tee fittings are designed for DIYers, plumbers, and irrigation installers who need a dependable, pressure-rated socket coupling that goes together cleanly and stays sealed under load.

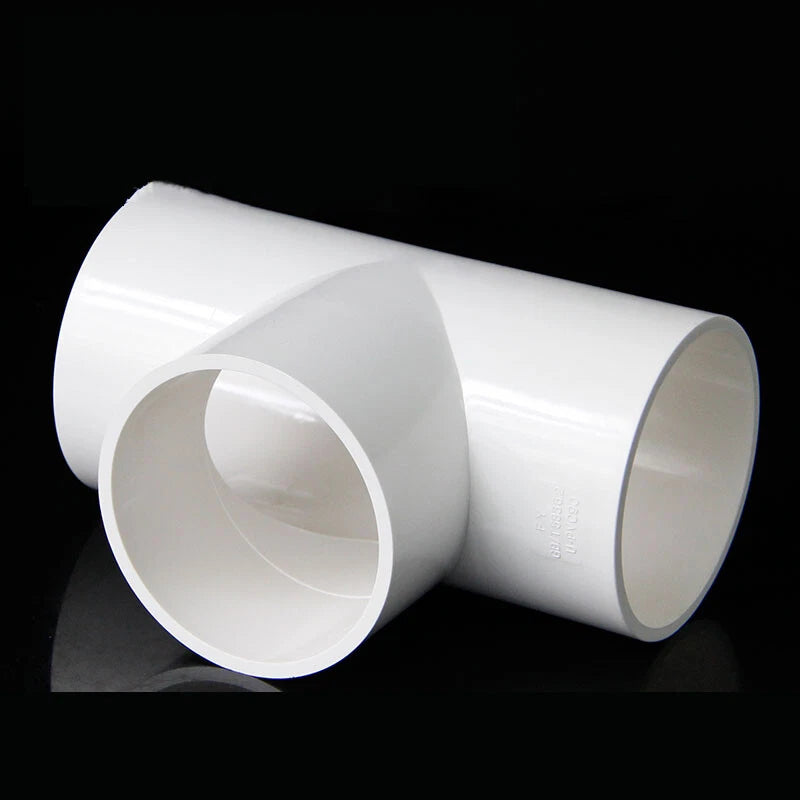

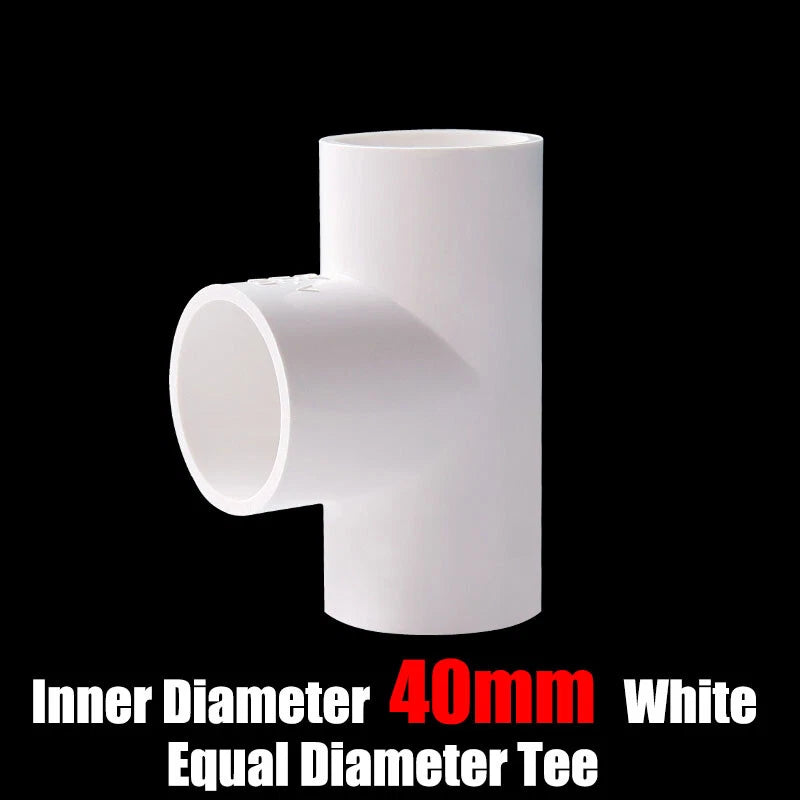

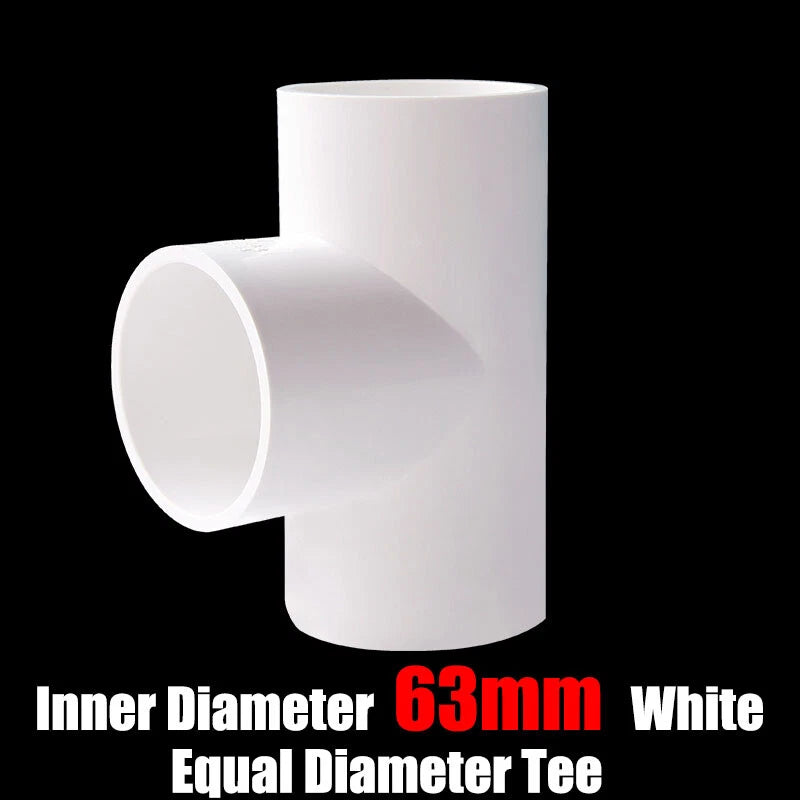

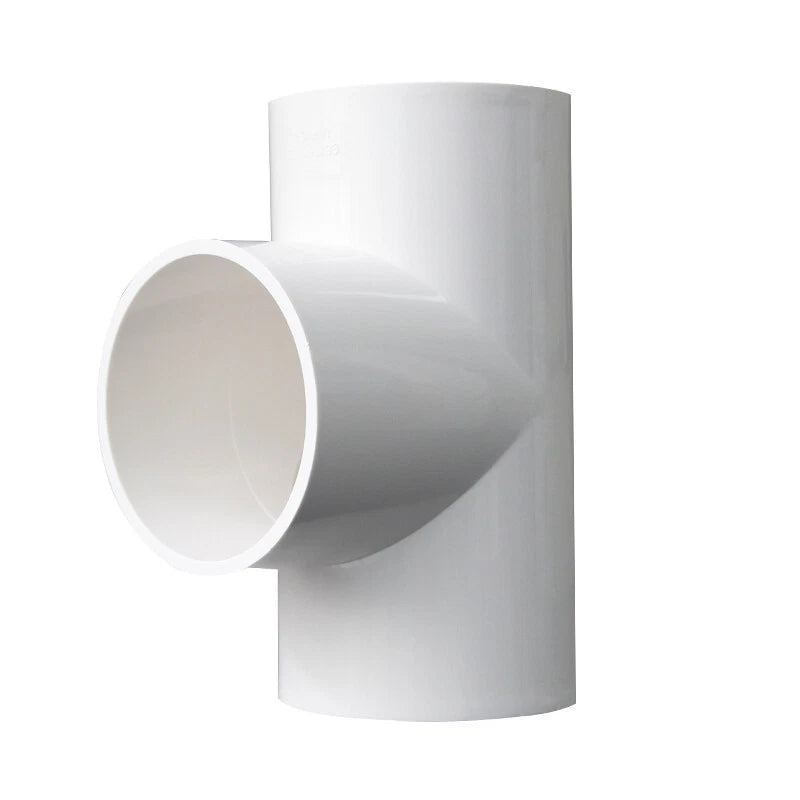

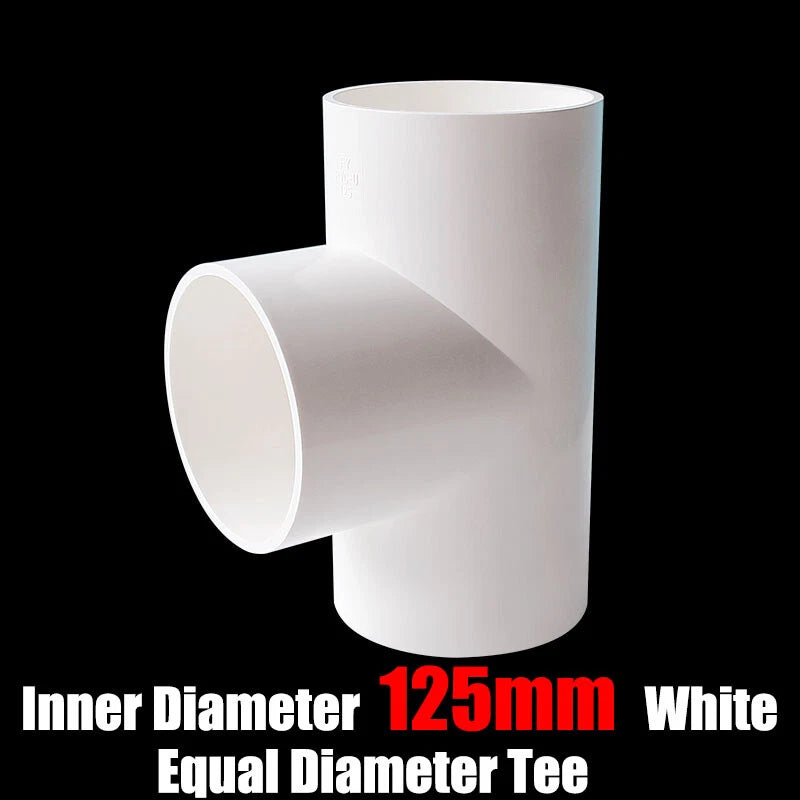

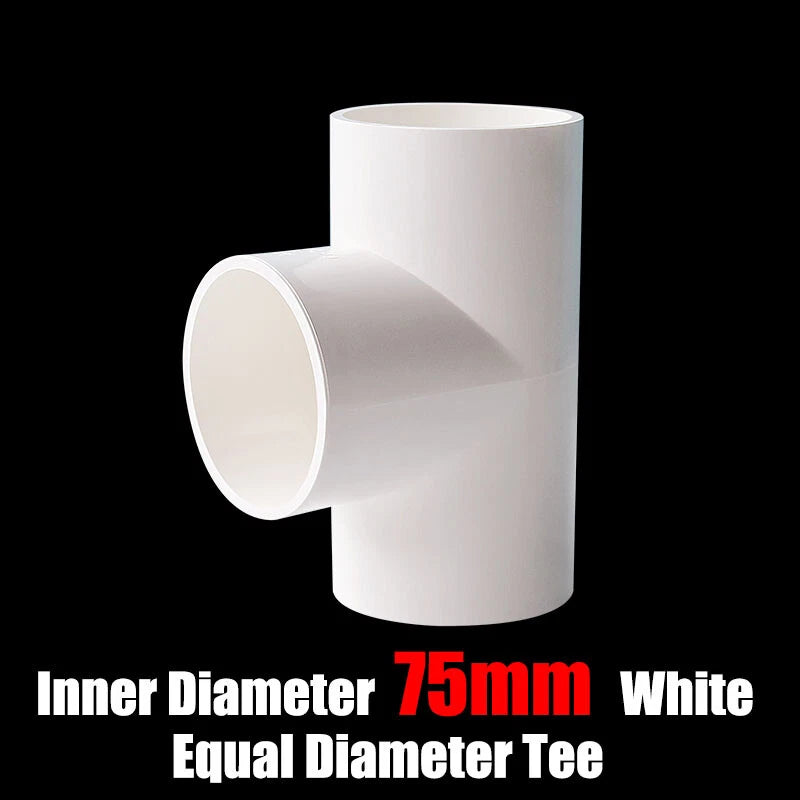

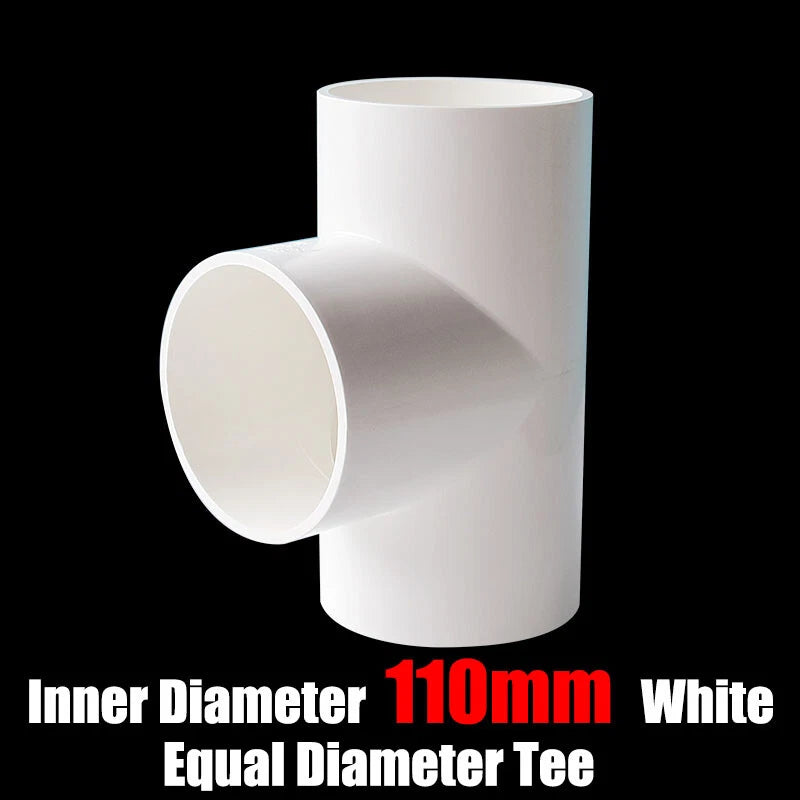

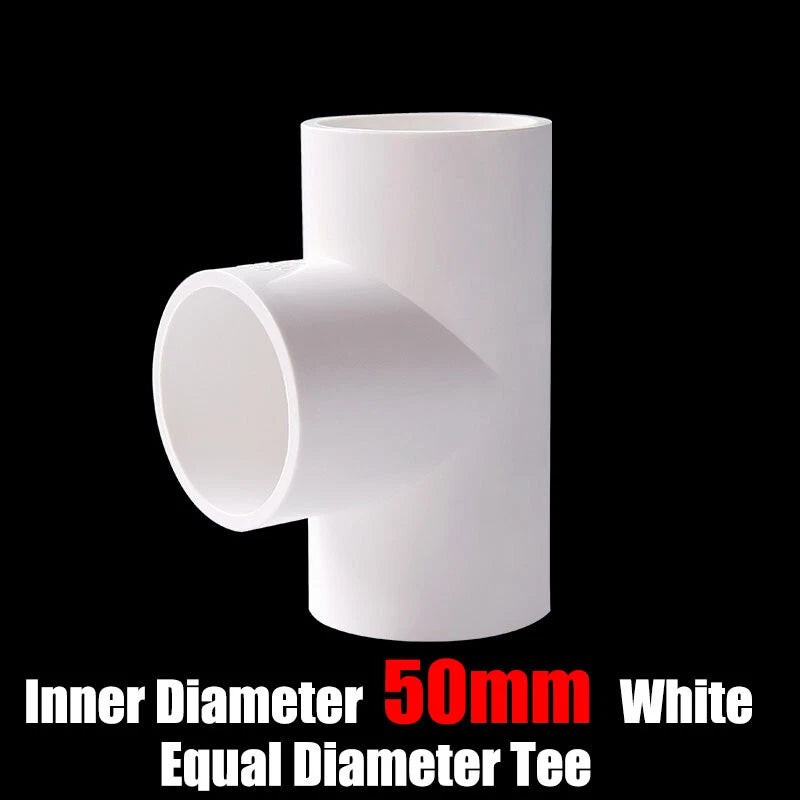

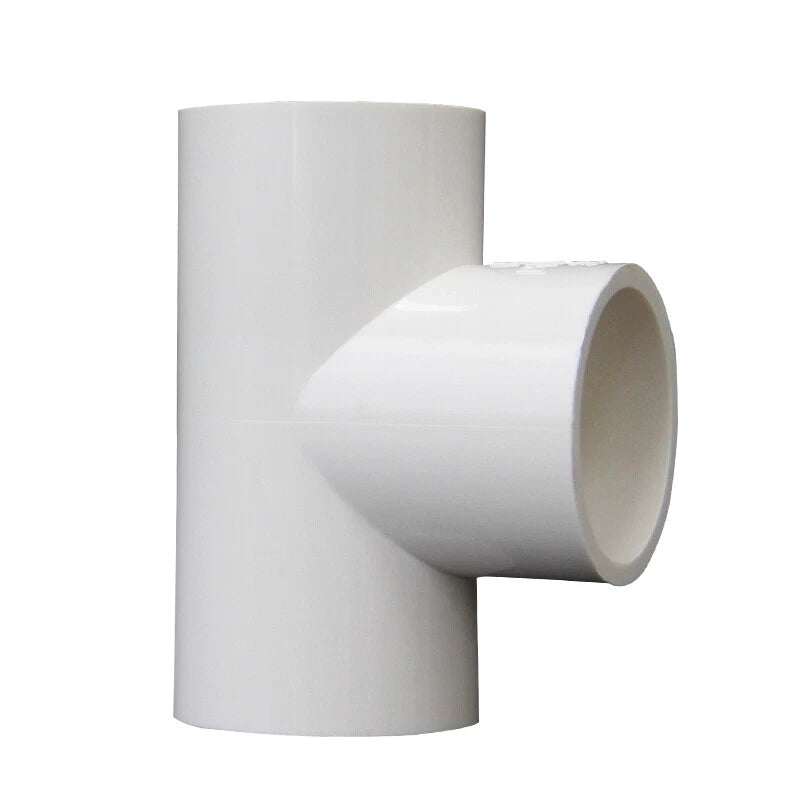

Each fitting is made from Polyvinyl Chloride (PVC) and features a uniform three-way equal tee configuration with smooth socket ends for solvent-cement joining. Inner diameters span 16 mm (approx. 5/8 in) through 125 mm (approx. 4-15/16 in), with wall thickness and pressure ratings scaled to each size. The white finish resists UV discoloration in exposed installations.
Typical applications include residential cold-water supply lines, drip and sprinkler irrigation manifolds, pool and spa plumbing branch connections, and workshop compressed-air distribution networks where PVC pressure fittings are code-permitted.
| Material | Polyvinyl Chloride (PVC) |
|---|---|
| Fitting Type | Equal Tee (3-way, all ports same diameter) |
| Connection Method | Socket / Solvent-cement (slip fit) |
| Inner Diameter Range | 16 mm – 125 mm (approx. 5/8 in – 4-15/16 in) |

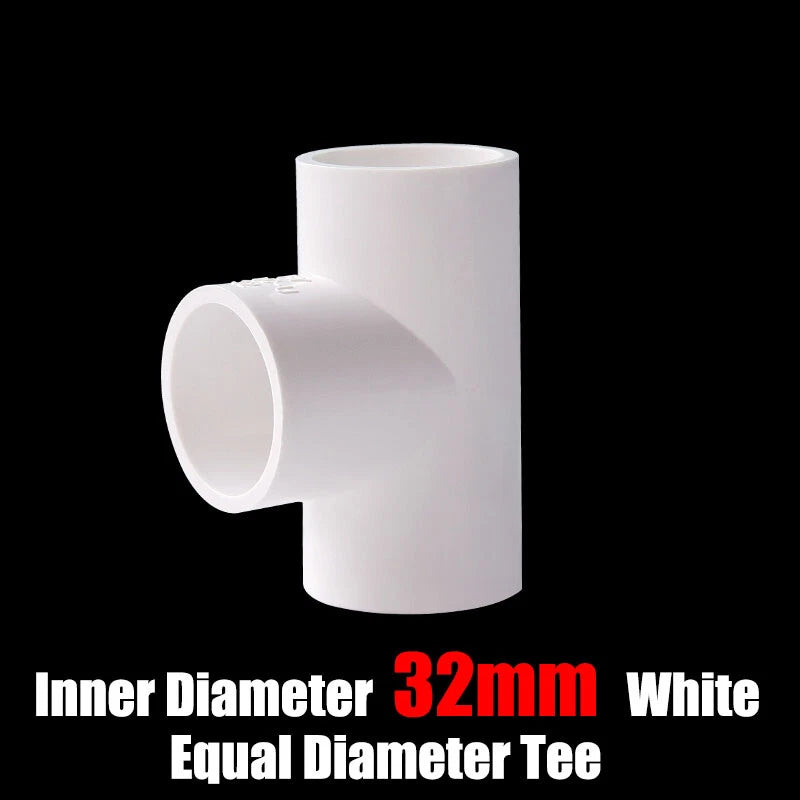

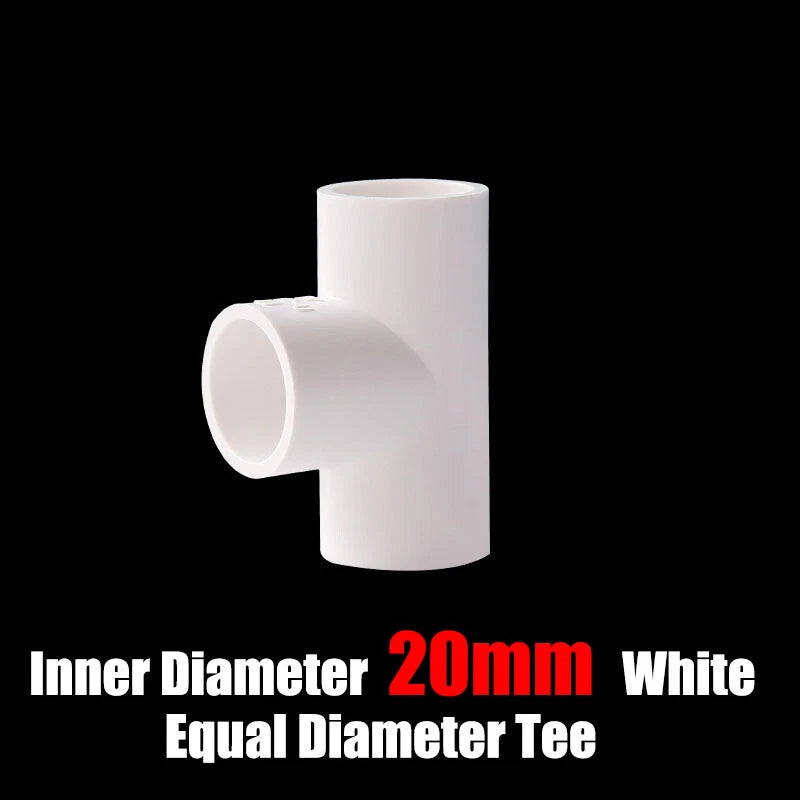

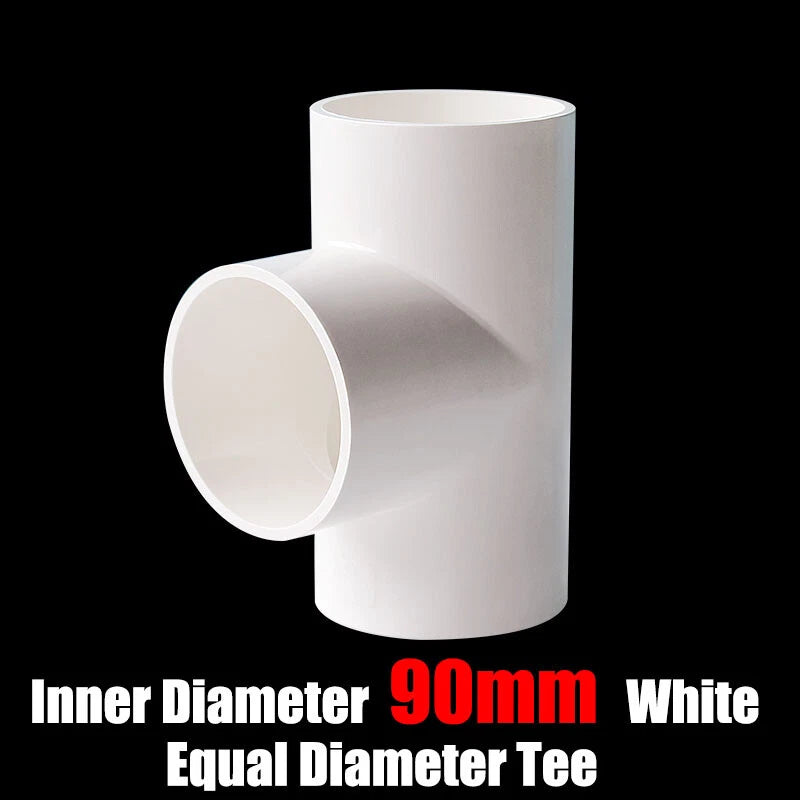

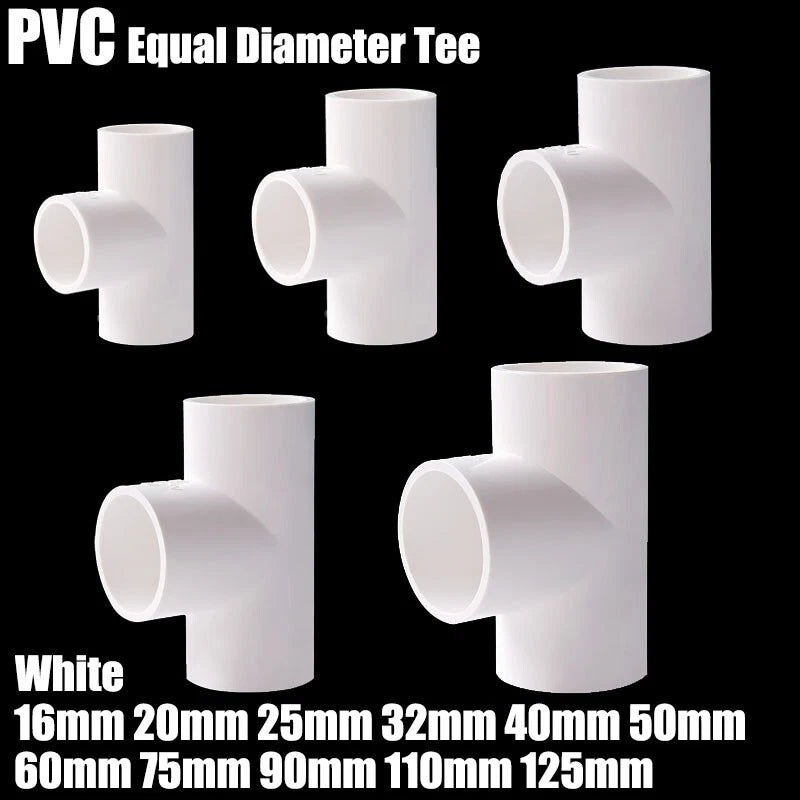

| Available Sizes (Inner Dia.) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110, 125 mm |
| Color / Finish | White |
| Pressure Rating | See variant options |

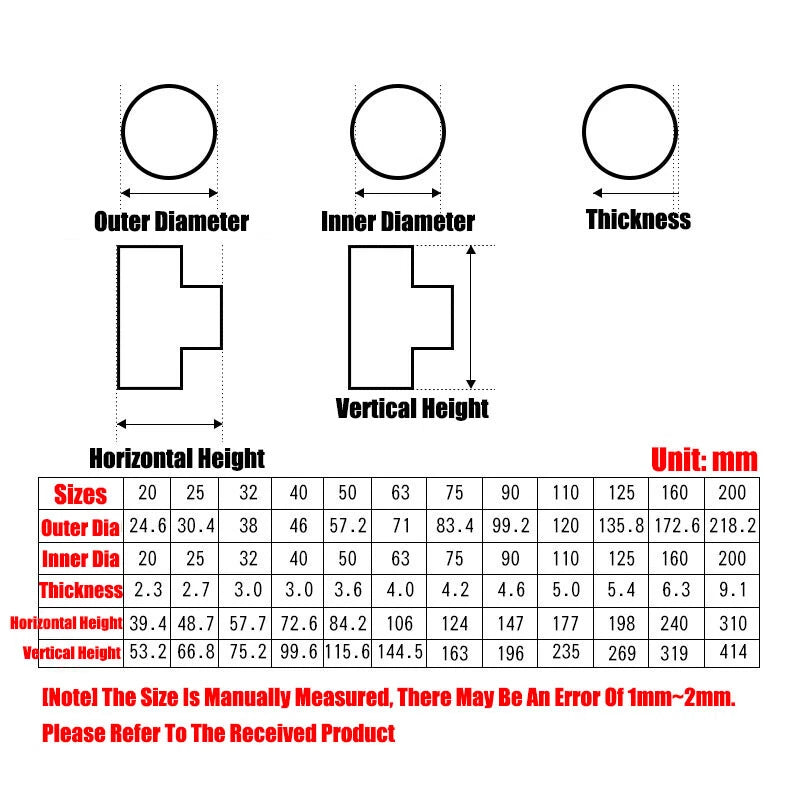

| Wall Thickness | See variant options |
| Temperature Rating | Cold water service (typically up to 60 °C / 140 °F) |
| Packing Quantity Options | 1, 2, 3, 4, 5, 8, 10, 15, 20 Pcs |
| Application | Water supply, irrigation, pool/spa plumbing, compressed-air (PVC-rated) |

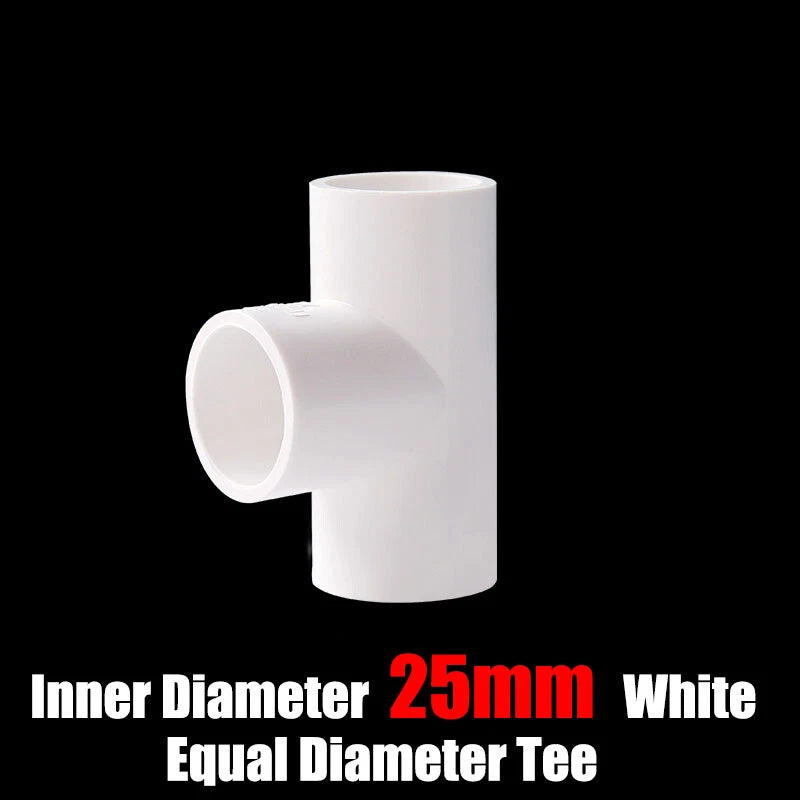

Match the inner diameter (ID) of the fitting to the outer diameter (OD) of your pipe. For example, a 25 mm fitting accepts a standard 25 mm OD PVC pressure pipe. If you are unsure, measure the outside of your existing pipe with calipers and select the matching size from the variant dropdown above.
These PVC equal tee fittings are rated for cold-water pressure service. PVC softens at elevated temperatures, so they are not recommended for continuous hot-water supply lines. For hot water applications, consider CPVC or brass fittings instead.
Use a PVC solvent cement formulated for pressure pipe (e.g., medium-body or heavy-body PVC cement with a PVC primer). Apply primer to both the pipe end and the fitting socket, then apply cement and push the pipe firmly into the socket with a slight twist. Allow the joint to cure per the cement manufacturer's instructions before pressurizing.
Yes. PVC is corrosion-resistant and compatible with soil contact and common fertilizer solutions, making these tee fittings well-suited for drip irrigation manifolds, sprinkler branch lines, and buried cold-water runs. Ensure the pipe and fittings are rated for the working pressure of your system.
PVC pressure fittings offer a strong strength-to-weight ratio for cold-water service and resist corrosion that can weaken metal fittings over time. However, PVC is more susceptible to impact damage and UV degradation than metal. For applications requiring high mechanical strength or elevated temperatures, consult a licensed plumber about appropriate materials.
No power tools are required. You will need a PVC pipe cutter or hacksaw to cut the pipe square, sandpaper or a deburring tool to smooth the cut end, and PVC primer and solvent cement for bonding. A clean rag and gloves are also recommended. The socket-slip design means no threading or compression tools are needed.
Multi-piece packs offer a lower per-unit cost and ensure you have spares on hand for future repairs or extensions — avoiding a second order delay mid-project. For irrigation manifolds or multi-branch plumbing runs, ordering a 10- or 20-piece pack upfront is typically more economical than purchasing singles.
