PVC Heat Shrink Tubing for RC Battery Packs — 7mm to 125mm Wide, Multiple Colors

HomeDIYer
No reviews

By HomeDIYer®

Price:
$1.48 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Amazon American Express Apple Pay Bancontact Diners Club Discover Google Pay iDEAL Wero Mastercard PayPal Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion
🎯 BULK DISCOUNT: Buy More, Save More!
Buy 2 Items
5% OFF
Buy 4 Items
10% OFF
Buy 6 Items
15% OFF
✅ Auto-discount • 🔄 Mix & match
Expert

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM
WhatsApp WhatsApp Email
⚡
24-Hour Fast Ship
🚚
Arrives in 3-14 days
🌍
Global Reach
↩️
30-Day Returns
🌱 1 tree planted with every purchase

Description

PVC Heat Shrink Tubing for RC Battery Packs — Clean Wraps, Clear Color Coding

If you've ever mixed up a charged pack with a depleted one mid-session, or dealt with a battery wrap that split at the seams, you know how much a reliable sleeve matters. This PVC heat shrink tubing is designed for RC hobbyists, DIY electronics builders, and workshop technicians who need a consistent, snug wrap for LiPo, NiMH, and NiCd battery packs without fuss.

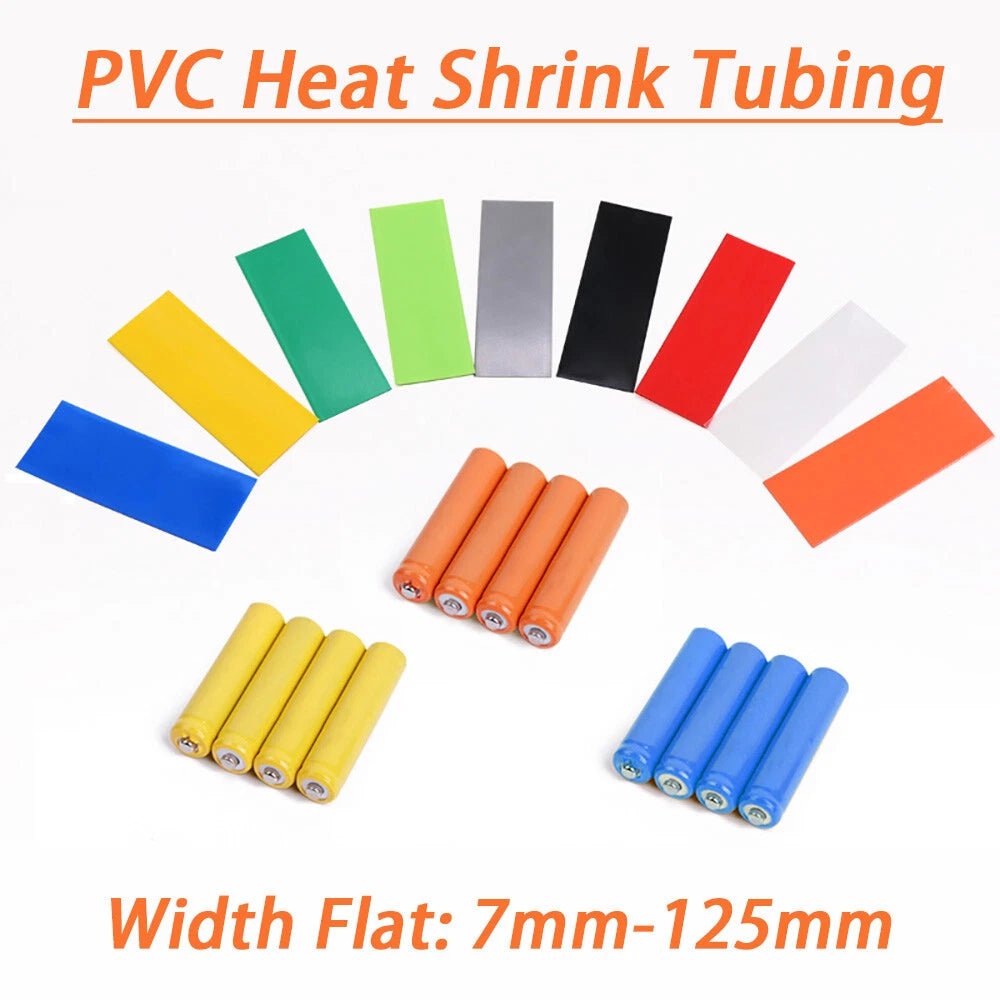

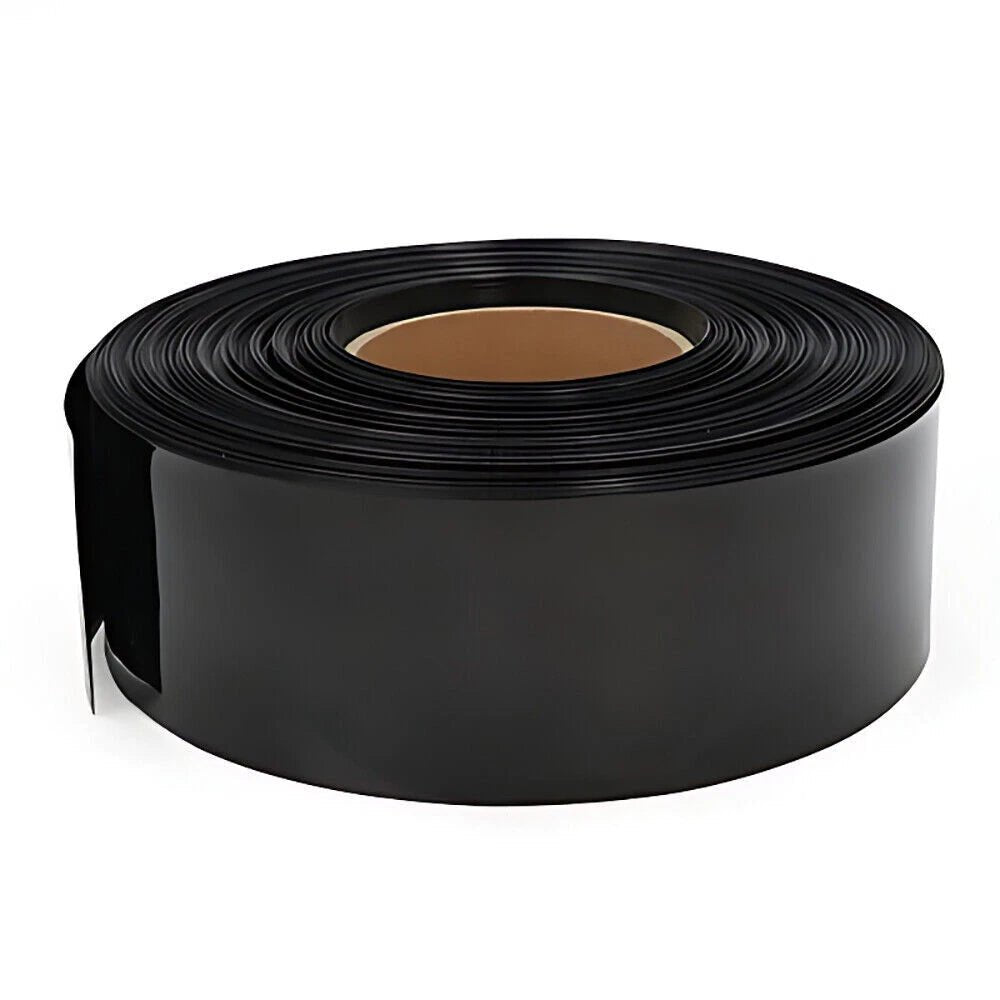

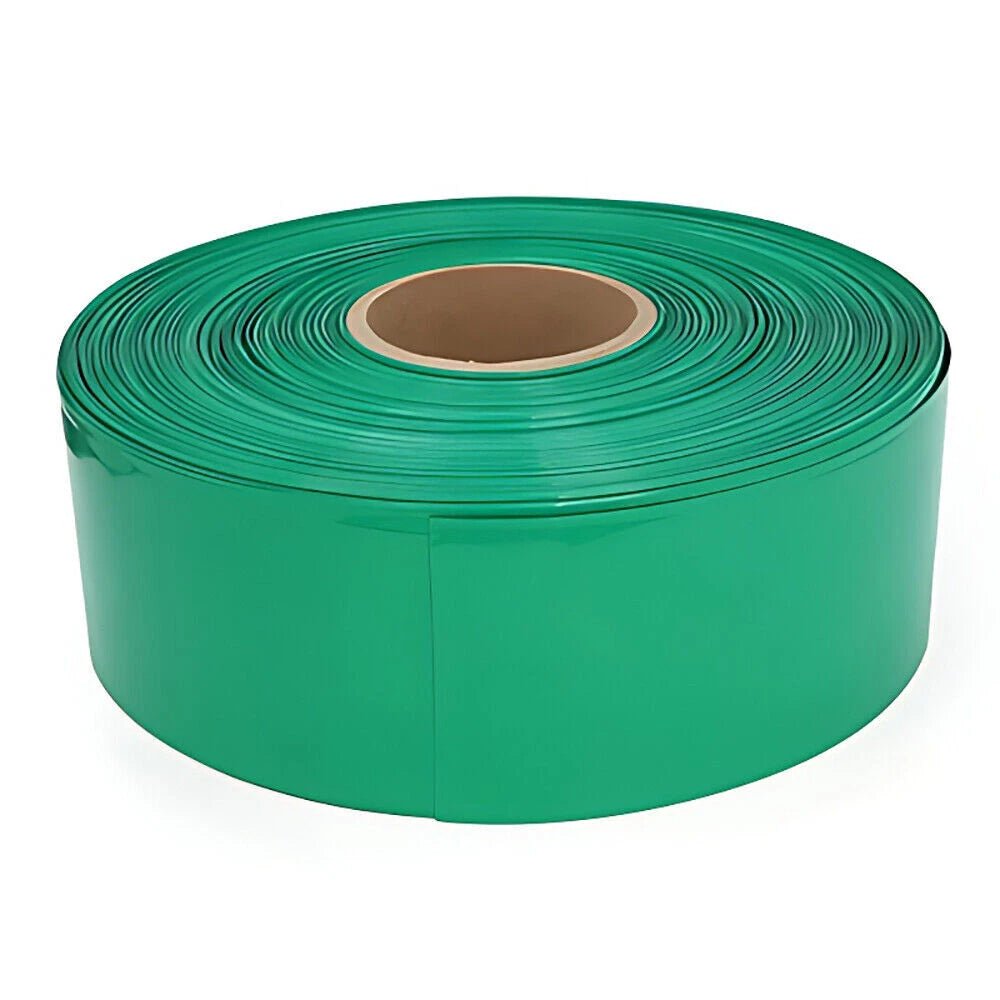

Each unit is sold as 1 meter (≈39.4") of PVC heat shrink tubing. Flat widths range from 7mm (≈9/32") to 125mm (≈4-15/16"), with recovered diameters (Ø) from 4mm (≈5/32") to 80mm (≈3-1/8") — covering everything from thin single-cell sticks to large multi-cell saddle packs. Twelve color options let you color-code packs by cell count, charge state, or owner. Typical shrink ratio is 2:1; activation temperature is generally 70°C–90°C (158°F–194°F).

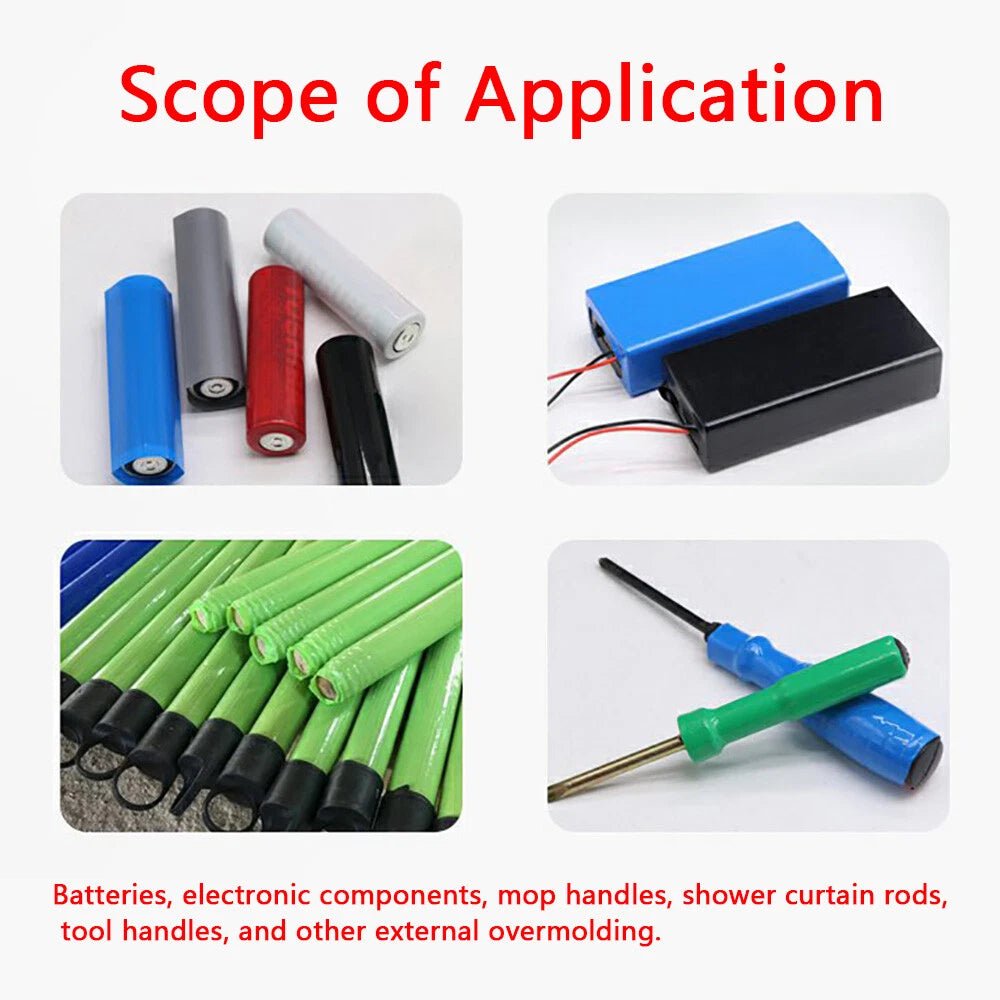

Typical use cases include wrapping replacement RC battery packs, re-sleeving damaged or worn cell wraps, bundling wire harnesses in FPV builds, and color-coding tool batteries in a shared workshop. The wide size range also makes it a practical choice for labeling and insulating cable assemblies in low-voltage DC electronics projects.

🔋 Compatibility: Suitable for LiPo, LiIon, NiMH, and NiCd RC battery packs. Select the flat width whose recovered diameter (Ø) is closest to — but slightly larger than — your pack's outer diameter. Each variant label shows both dimensions for easy matching.
⚠️ Size tip: If your pack diameter falls between two listed sizes, choose the next size up. A slightly loose fit before shrinking is normal — the tubing will conform snugly once heat is applied.

✅ Key Features of These PVC Heat Shrink Tubing Sleeves

  • 📐Wide Size Range — Flat widths from 7mm to 125mm (recovered Ø 4mm–80mm) cover single-cell sticks through large multi-cell RC battery packs in one product line.

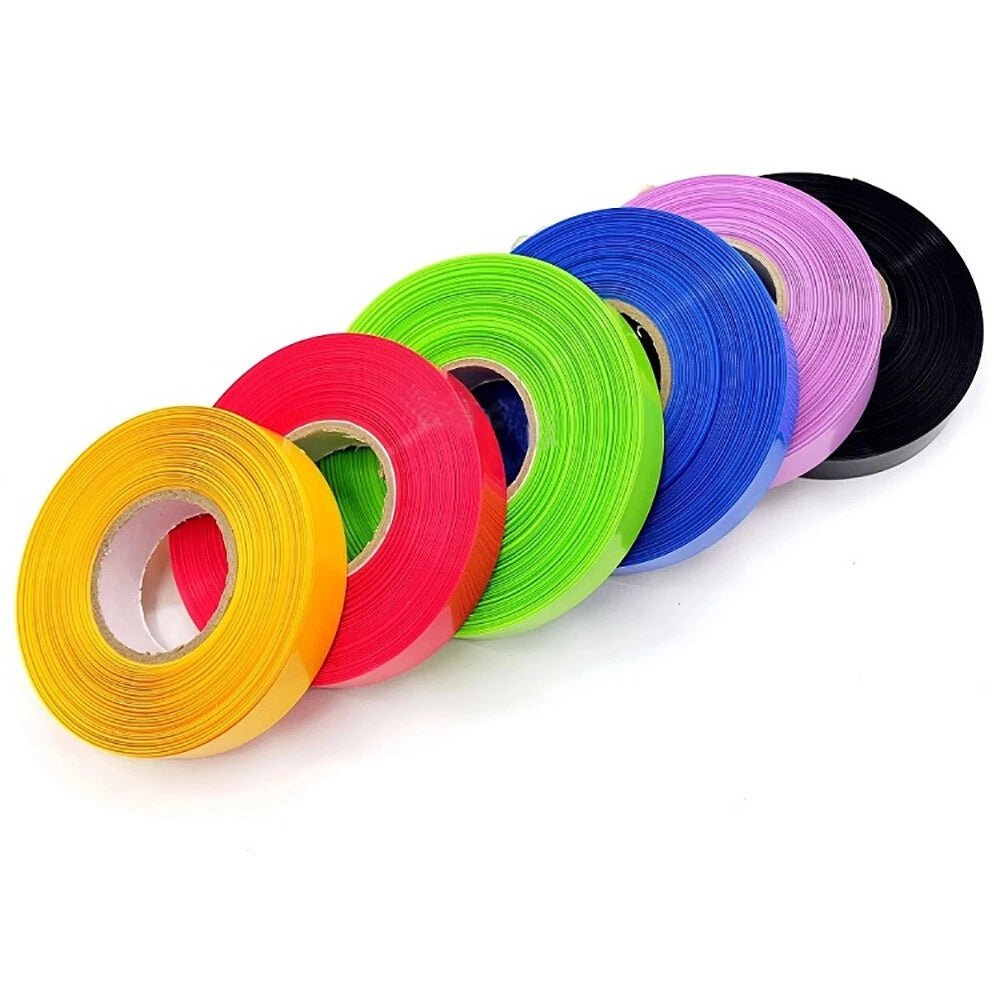

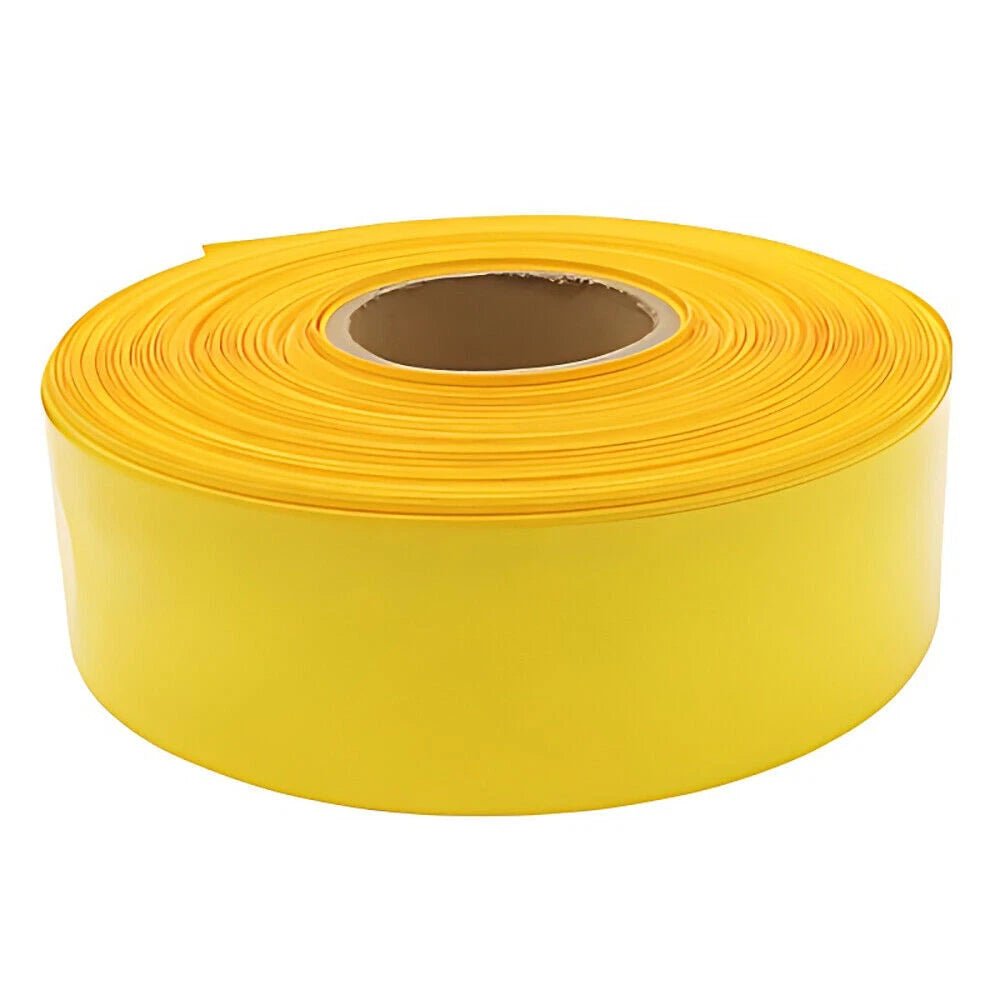

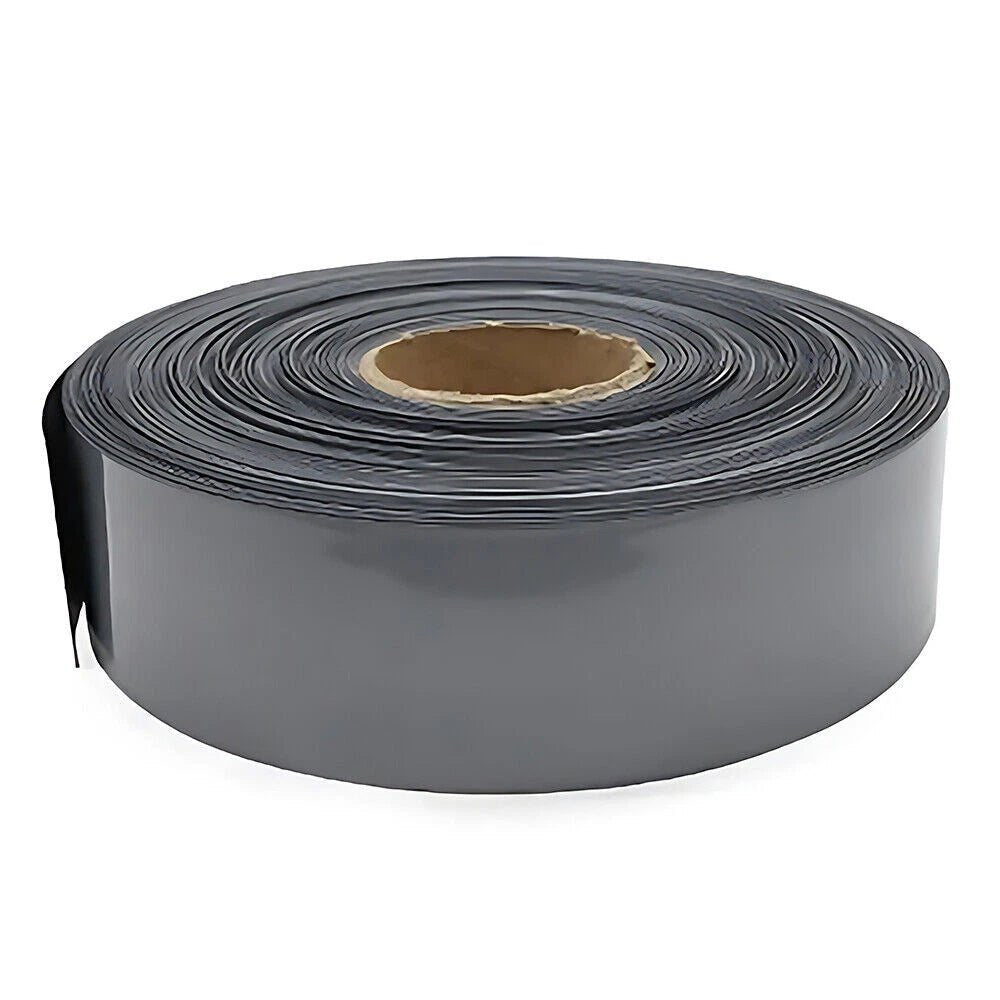

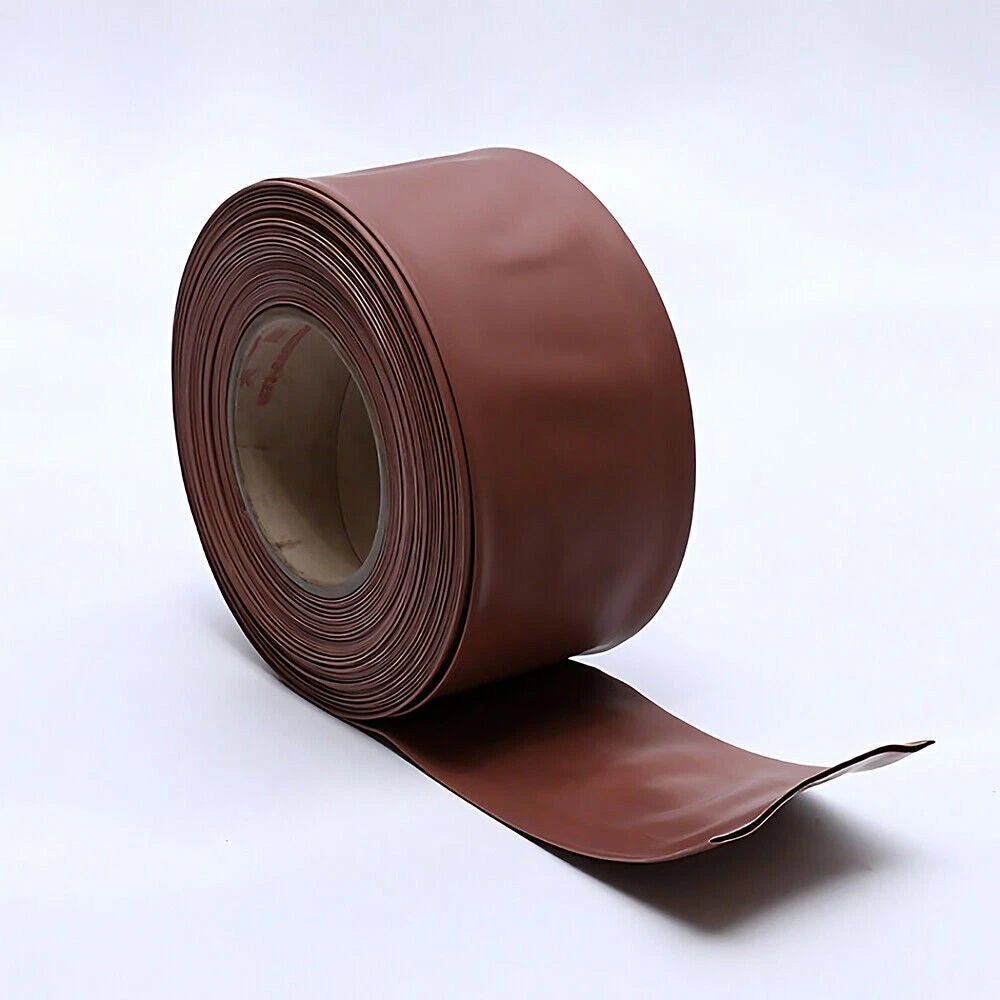

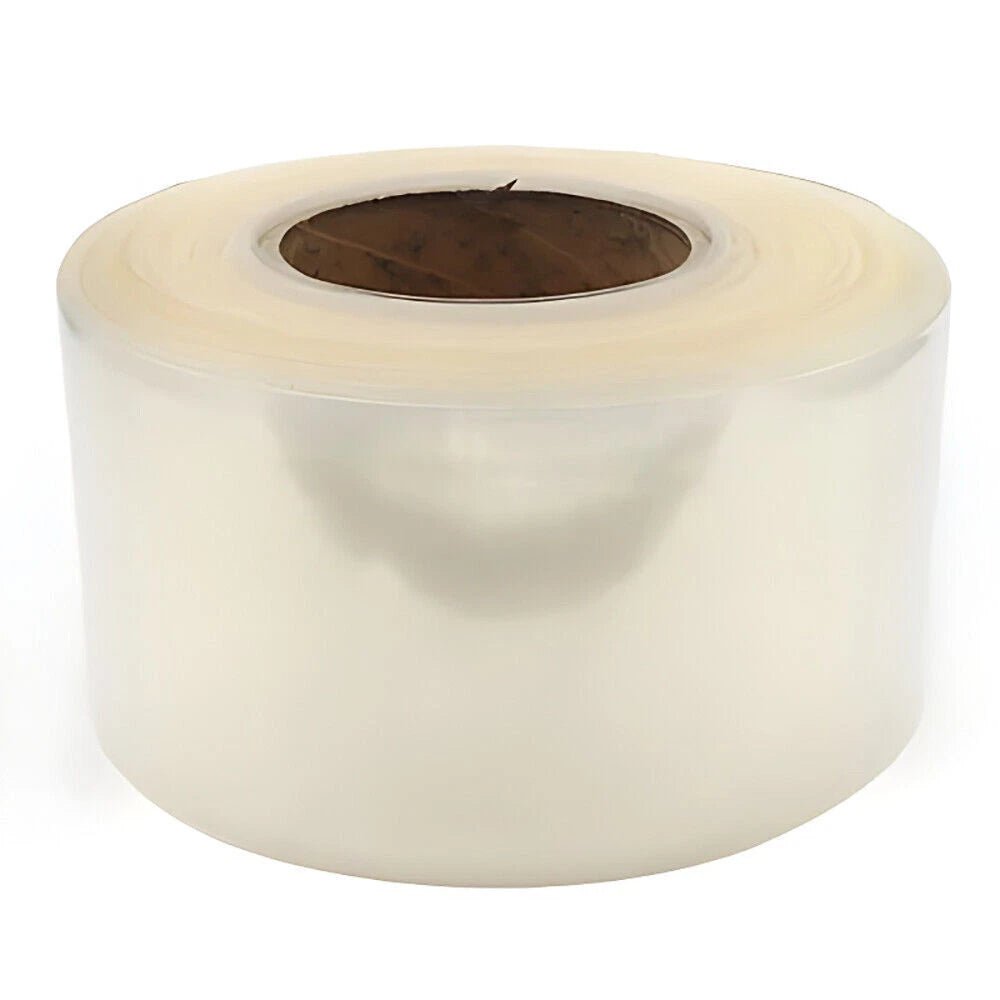

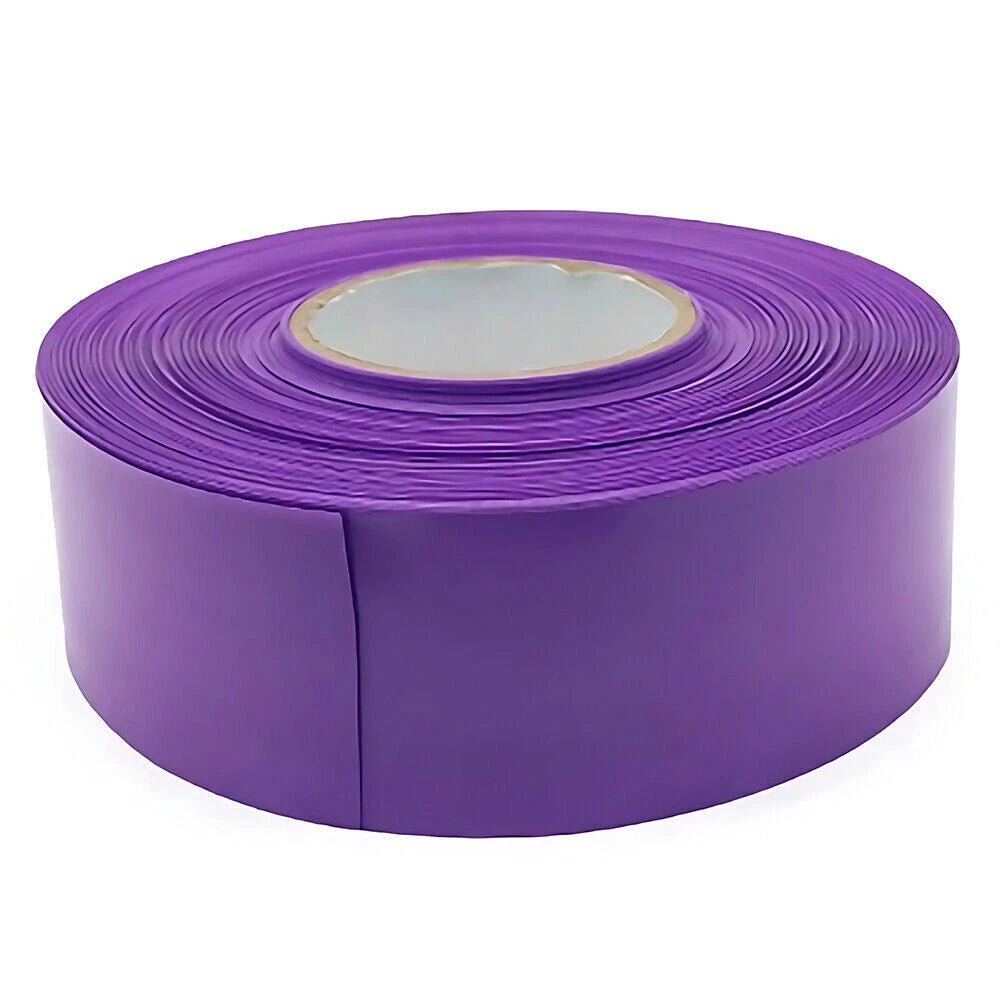

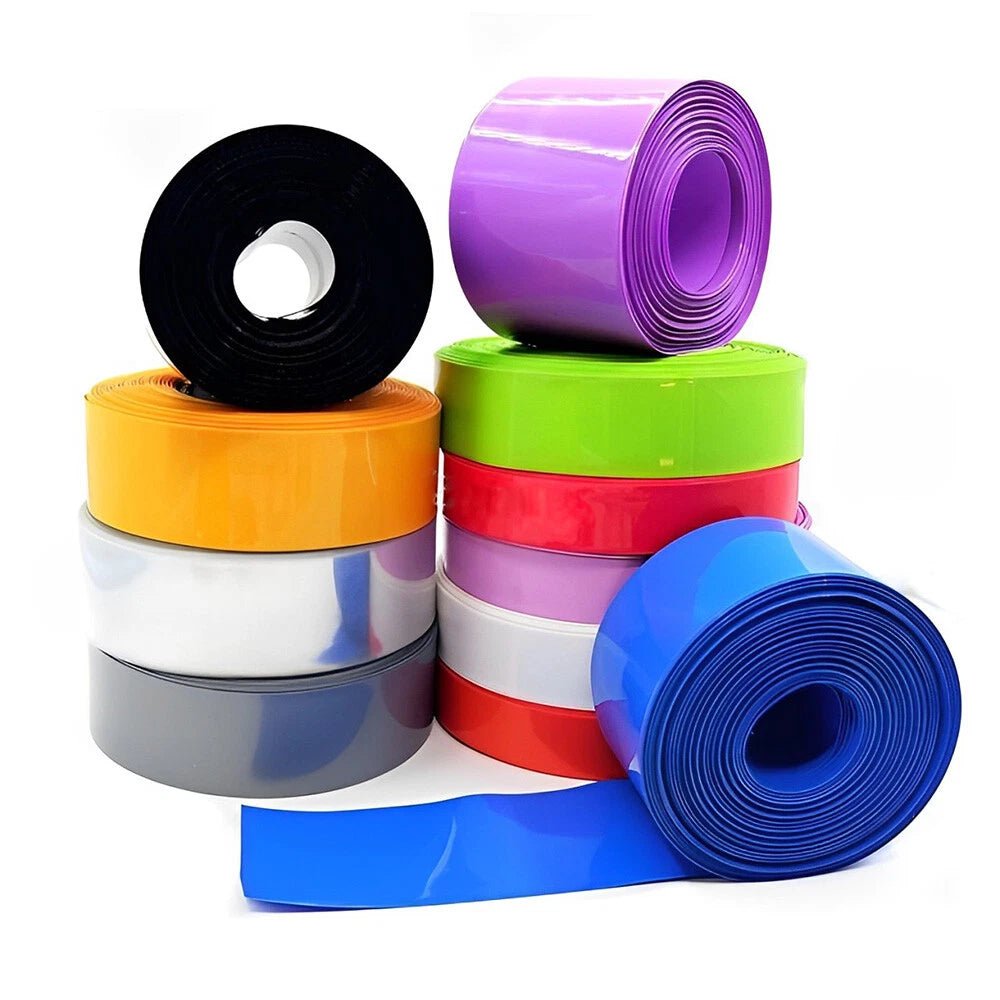

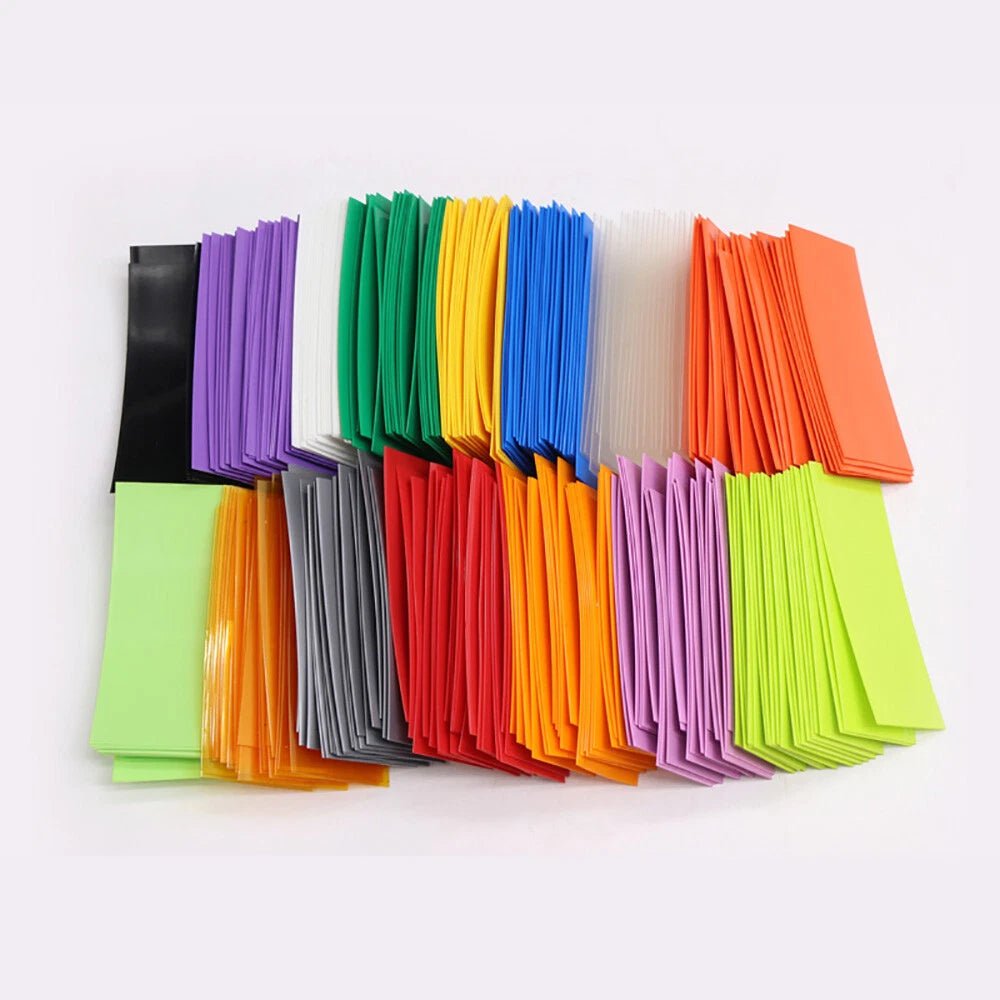

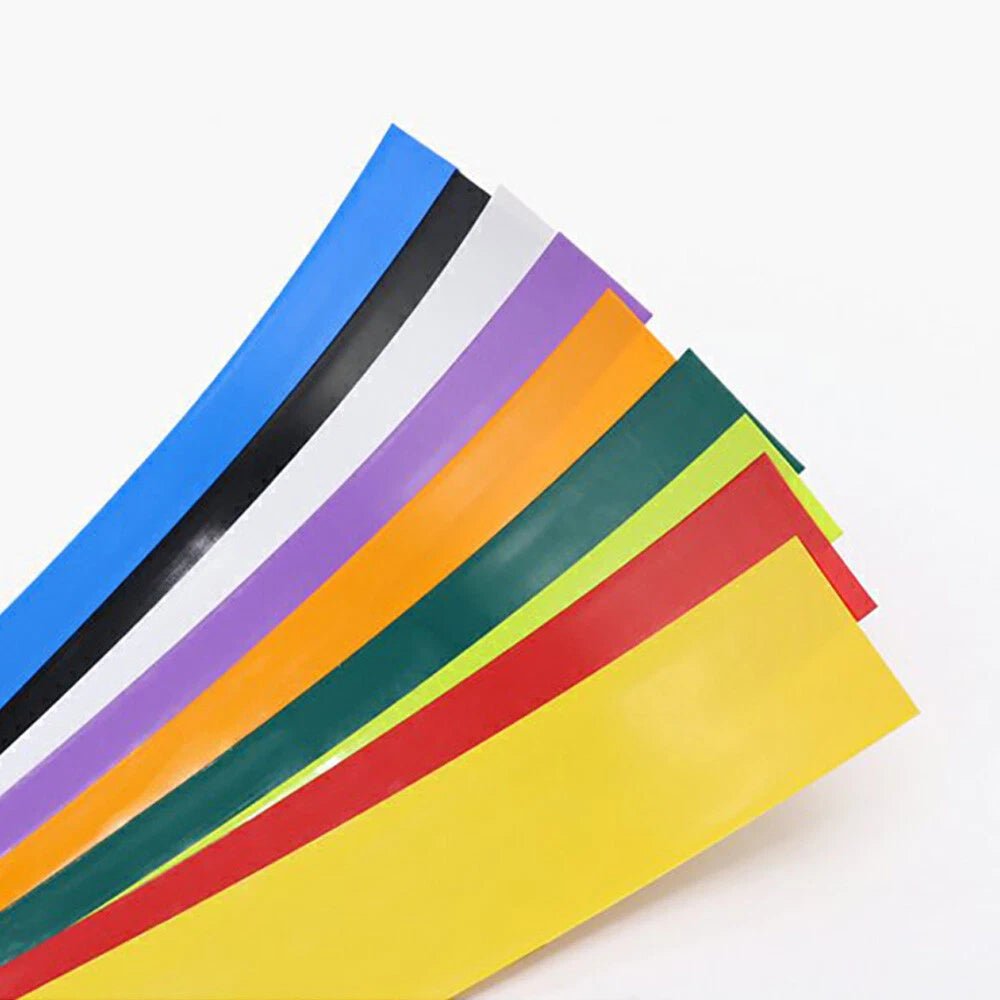

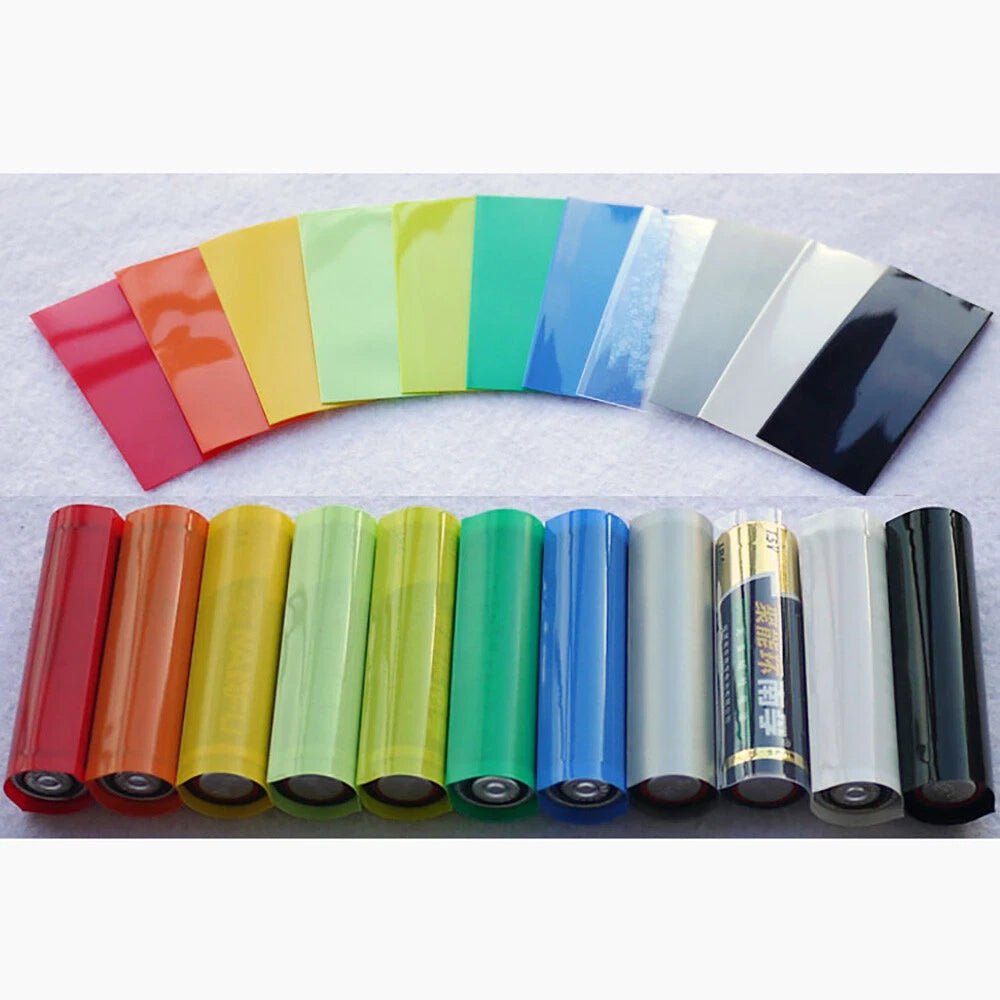

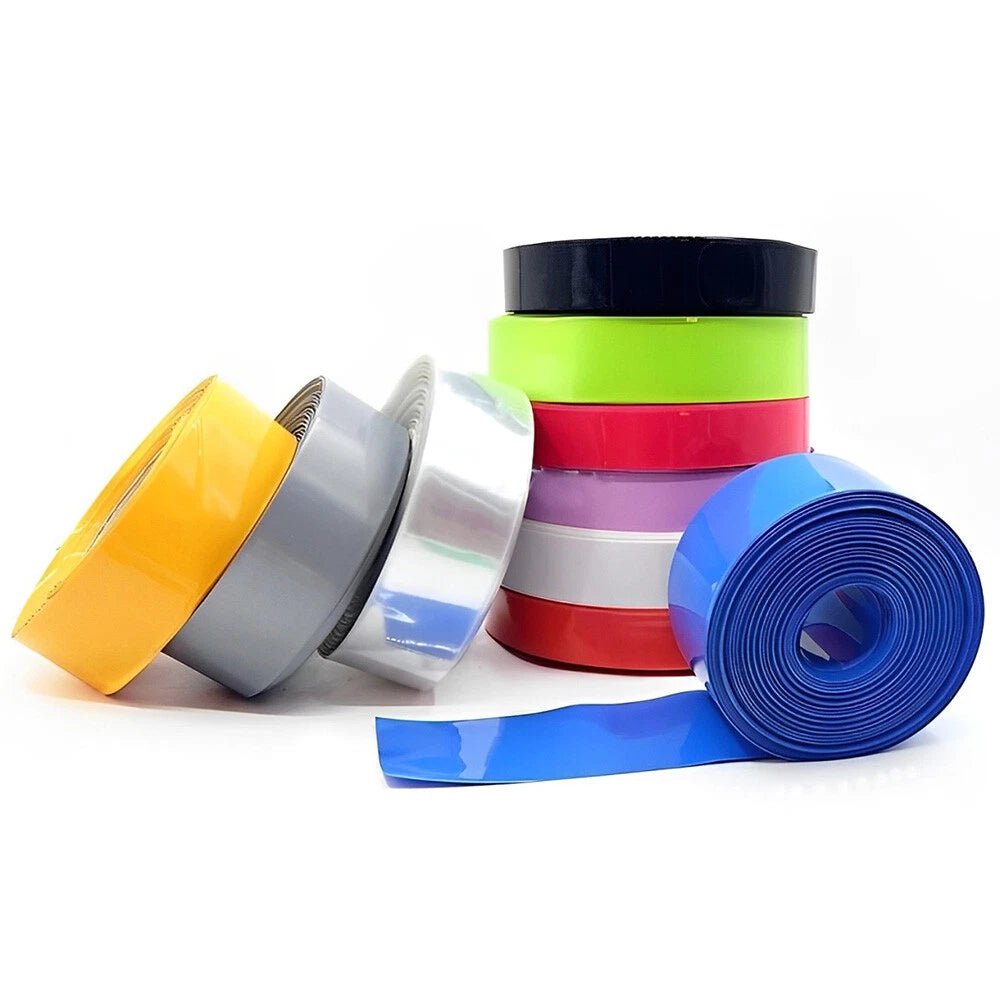

  • 🎨12 Color Options — Black, White, Blue, Red, Green, Yellow, Transparent, Brown, Orange, Light Green, Silver Gray, and Purple let you color-code packs by voltage, capacity, or user without extra labels.
  • 🔥Low Activation Temperature — Shrinks at approximately 70°C–90°C (158°F–194°F), so a standard heat gun on a low setting is all you need — no open flame required.
  • ⚡Snug, Abrasion-Resistant Sleeve — Once shrunk, the PVC tubing forms a tight, smooth wrap that protects battery cells from minor abrasion and contact damage during handling and storage.
  • ✂️Cut-to-Length Flexibility — Sold by the meter, each piece can be cut to the exact length needed for your pack, reducing waste compared to fixed-length pre-cut sleeves.
  • 🔌Versatile Beyond RC Packs — Also used for wire bundling, cable labeling, and light electrical insulation in low-voltage DC builds, FPV drone harnesses, and DIY power tool battery rebuilds.

📐 Technical Specifications — PVC Heat Shrink Tubing

Material PVC (Polyvinyl Chloride)
Shrink Ratio Typically 2:1
Activation Temperature Generally 70°C–90°C (158°F–194°F)
Flat Width Range 7mm (≈9/32") to 125mm (≈4-15/16")
Recovered Diameter (Ø) Range 4mm (≈5/32") to 80mm (≈3-1/8")
Length per Unit 1 m (≈39.4")
Available Colors Black, White, Blue, Red, Green, Yellow, Transparent, Brown, Orange, Light Green, Silver Gray, Purple
Compatible Battery Types LiPo, LiIon, NiMH, NiCd RC packs
Voltage Rating See variant options / Contact us to confirm
Wall Thickness (before shrink) See variant options
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right flat width for my battery pack?

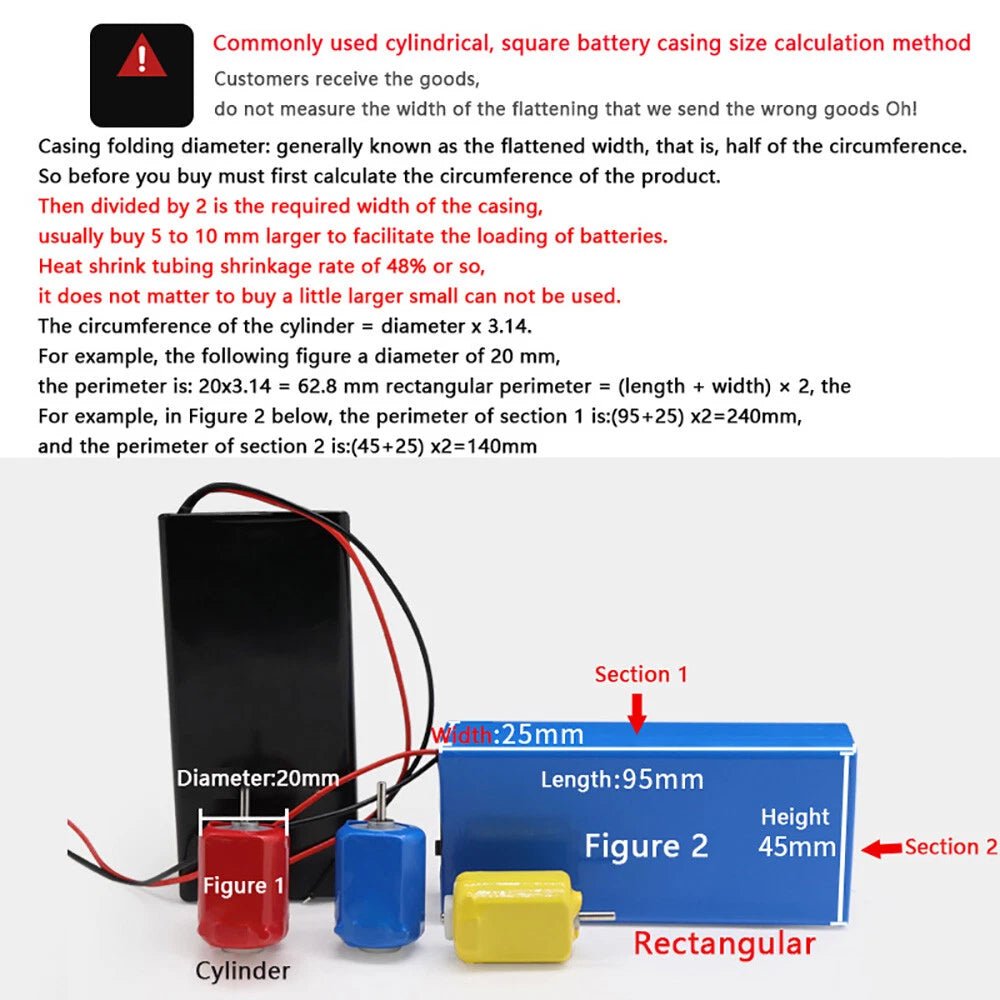

Measure the circumference of your battery pack, then divide by 2 to get the approximate flat width you need. For example, a pack with a 50mm circumference needs roughly 25mm flat width. Each variant in this listing shows both the flat width and the recovered diameter (Ø) — match the Ø value to your pack's outer diameter, choosing the next size up if you fall between two options. A slightly loose fit before shrinking is normal and expected.

What shrink ratio does this PVC tubing have, and how much will it shrink?

This tubing typically has a 2:1 shrink ratio, meaning it shrinks to approximately half its original flat width when heat is applied. The recovered diameter (Ø) listed in each variant reflects this final size. For example, the 7mm flat width variant recovers to approximately Ø4mm. In most cases, the tubing will conform snugly to your pack without leaving excess material.

What temperature do I need to shrink this tubing, and what tool should I use?

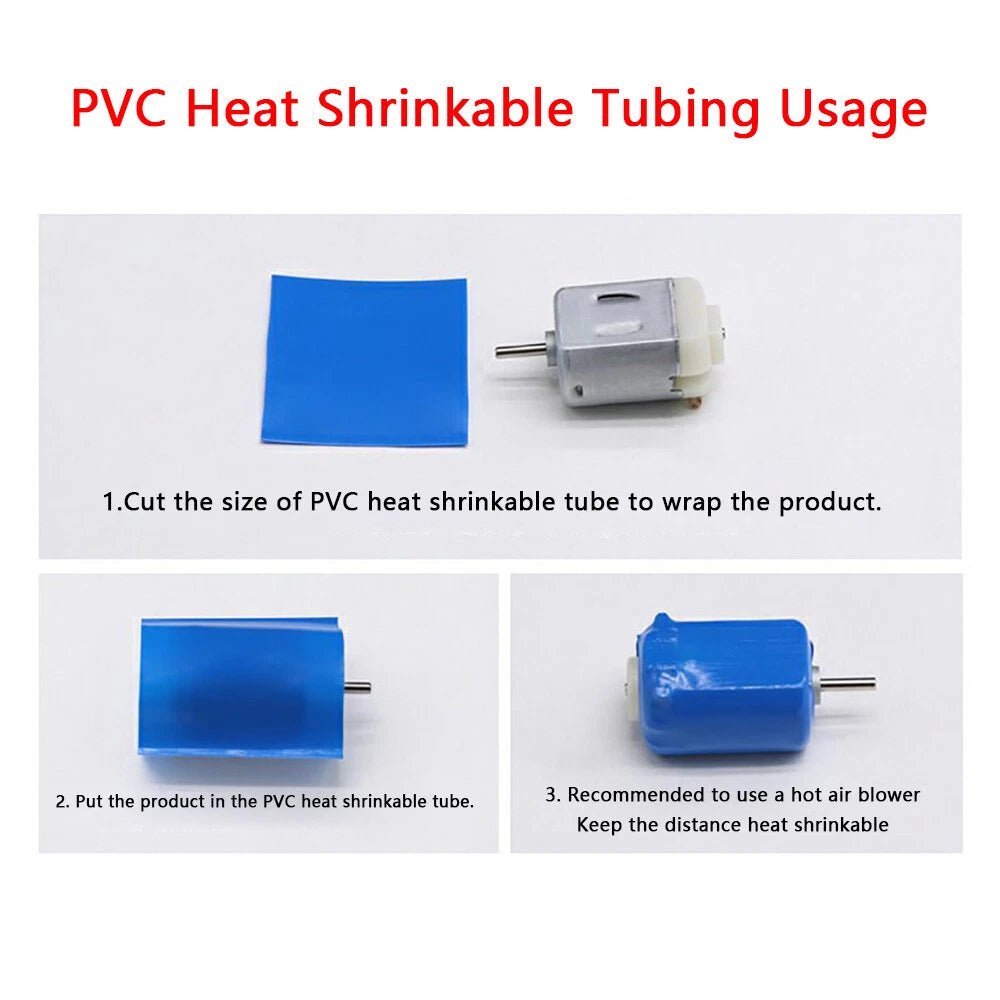

PVC heat shrink tubing generally activates at 70°C–90°C (158°F–194°F). A standard heat gun on a low or medium setting works well. Move the heat gun steadily along the tubing to shrink evenly from one end to the other. Avoid using an open flame — it can scorch or melt the PVC unevenly and may damage the cells underneath.

Is this tubing waterproof or suitable for outdoor use?

Standard PVC heat shrink tubing provides basic moisture resistance and is generally suitable for indoor use and light outdoor exposure. It is not an adhesive-lined, dual-wall waterproof tubing. If your application requires a fully sealed, waterproof wrap — such as for marine RC boats or outdoor power installations — consider an adhesive-lined heat shrink alternative instead.

Is this compatible with LiPo, NiMH, and NiCd battery packs?

Yes. This PVC heat shrink tubing is widely used to wrap and color-code LiPo, NiMH, and NiCd RC battery packs. It provides a snug protective sleeve that helps identify packs by color and protects cells from minor abrasion during handling, storage, and transport. It is also compatible with LiIon cylindrical cell packs of matching diameter.

Can I use this for wire bundling or electrical insulation — not just battery packs?

Yes. PVC heat shrink tubing is commonly used for wire bundling, cable labeling, and light electrical insulation in low-voltage DC applications such as FPV drone harnesses, RC receiver wiring, and DIY electronics projects. For high-voltage or high-temperature environments, a polyolefin or adhesive-lined alternative is generally recommended.

How much tubing do I receive per unit, and can I order more than 1 meter?

Each unit contains 1 meter (≈39.4 inches) of tubing. You can add multiple units to your cart to cover longer packs or multiple packs in one order. The tubing can be cut to any length with scissors or a utility knife before or after shrinking.

🛒 Select your width, color, and quantity above, then add to cart — ships from our US warehouse.
