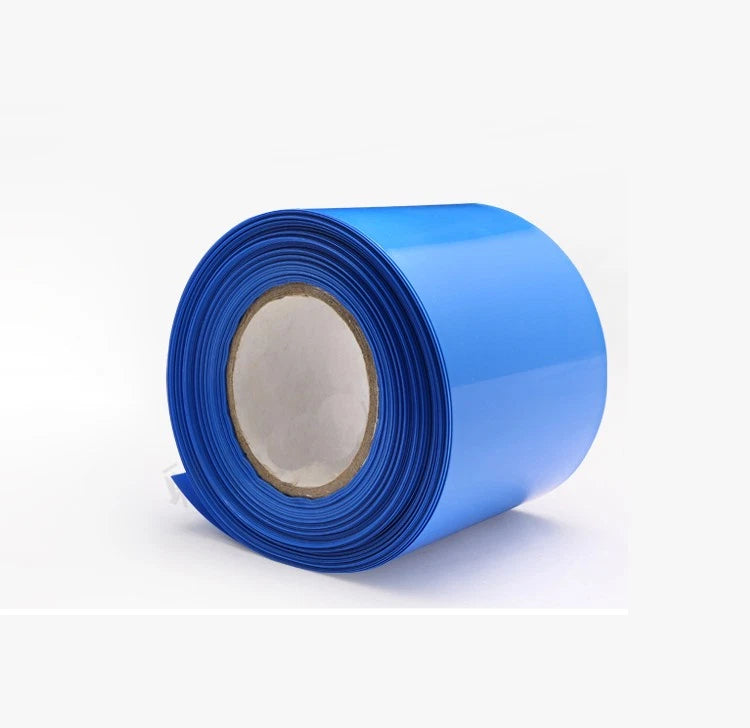

PVC Heat Shrink Tubing for RC Battery Packs & Wire Wrapping — 83mm to 625mm Flat Width, 1m Length

Measure the circumference of your battery pack or cable bundle, then divide by 2 to get the required flat width. For example, a pack with a 170mm circumference needs approximately an 85mm flat-width tube. Always size up slightly — the tubing shrinks to roughly half its flat width when heat is applied at a 2:1 ratio. If your pack measures 160mm around, the 83mm or 85mm flat-width options are typically the right starting point.

This tubing has a 2:1 shrink ratio, meaning it will shrink to approximately half its original flat (recovered) diameter when heated. In practice, an 85mm flat-width tube will recover to roughly 42–43mm in diameter. This is the standard ratio for general-purpose wire and battery wrapping applications and works well for most RC pack sizes.

PVC heat shrink tubing generally provides a degree of moisture resistance suitable for indoor and light-duty outdoor use. It is not typically rated for full submersion or prolonged exposure to standing water. For fully waterproof applications, an adhesive-lined (dual-wall) heat shrink tubing is generally recommended instead.

PVC heat shrink tubing typically begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low or medium is the recommended tool. Move the heat gun steadily along the tubing to avoid hot spots. Avoid open flames, which can scorch or unevenly shrink the material.

Yes. This large-diameter PVC heat shrink tubing is commonly used to rewrap LiPo, NiMH, and Li-ion RC battery packs after cell replacement or capacity upgrades. Select the flat width that matches your pack's circumference divided by 2. The tubing provides a snug, protective outer shell once shrunk and is a standard approach in the RC hobby community.

Each piece is supplied as a 1m (≈39.4") length. Cut to your desired length with scissors or a utility knife before applying heat. Cut slightly longer than your target — typically 5–10mm extra — to allow for any end pull-back during shrinking. The cut ends can be trimmed flush after shrinking if needed.

Thickened variants (such as Blue Thickened and Transparent Thick) have a greater wall thickness than the standard options. They are generally chosen for applications requiring additional abrasion resistance, mechanical protection, or a more rigid outer shell after shrinking. Standard variants are sufficient for most battery rewrapping and cable sleeving tasks.
