When a branch line needs to be sealed off or a pipe run left ready for future extension, an ill-fitting or brittle cap can cause slow leaks that go unnoticed for weeks. These PVC stop end caps with female thread are designed for DIY plumbers, irrigation installers, and maintenance crews who need a dependable, watertight seal the first time — without special tools or adhesives.

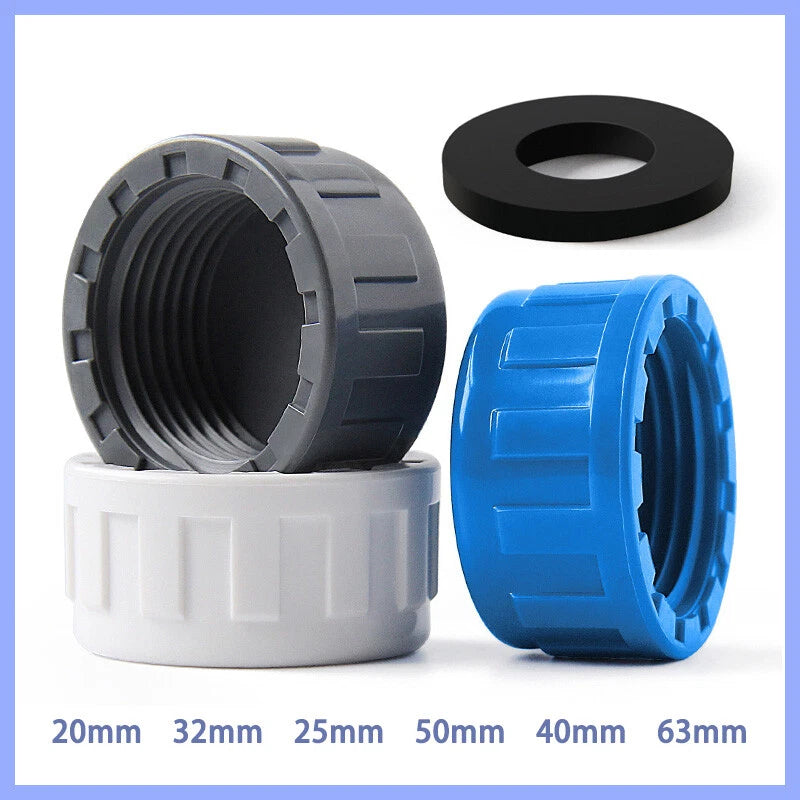

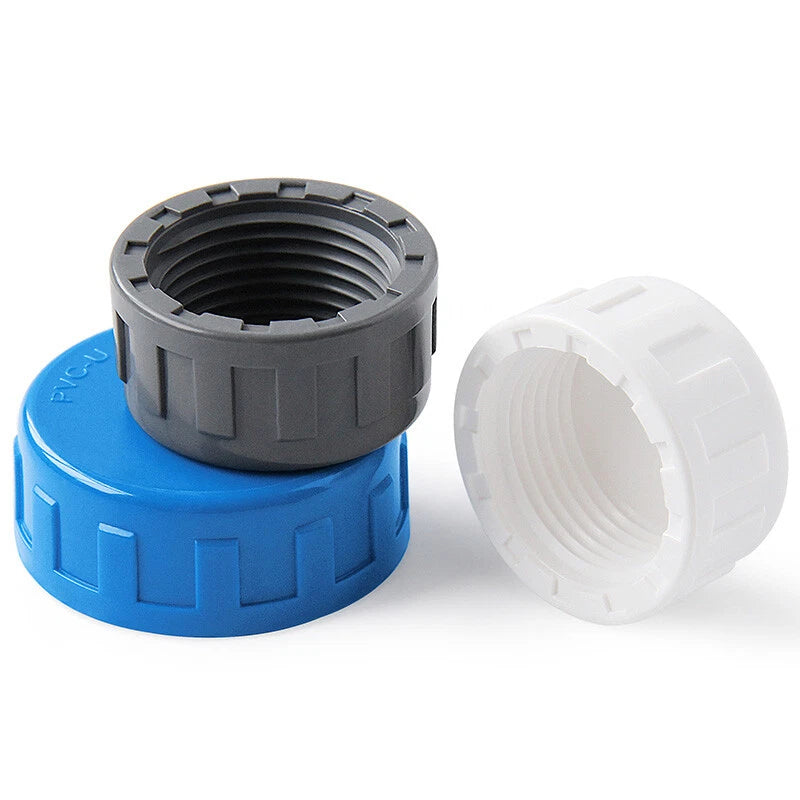

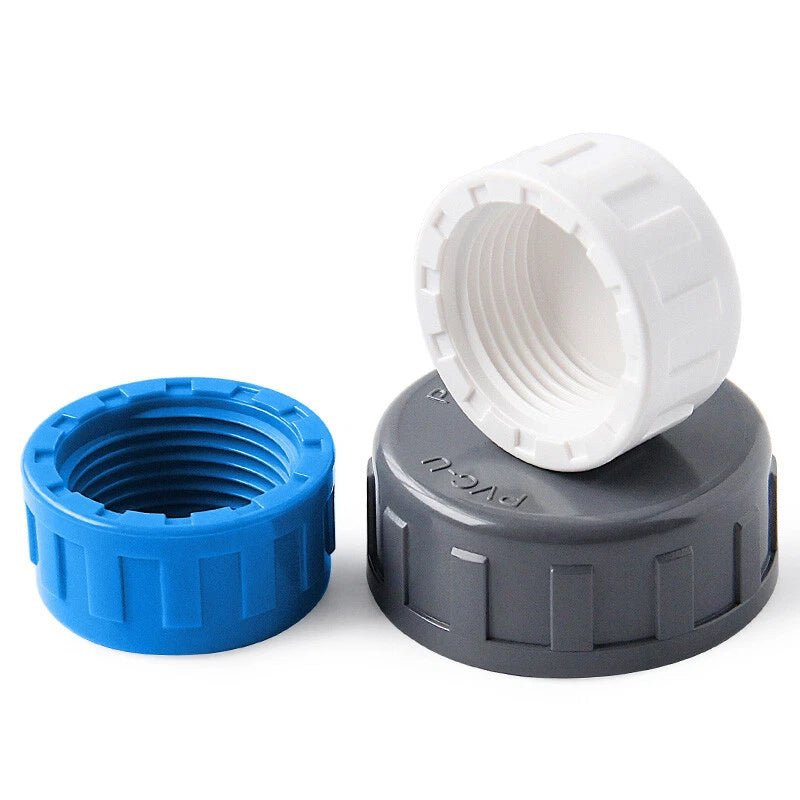

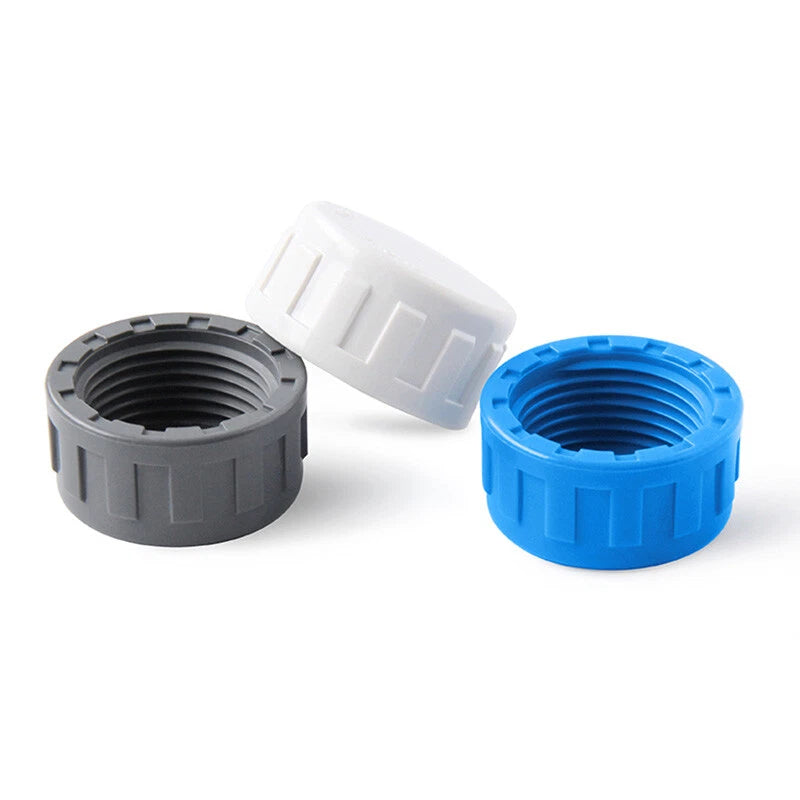

Each fitting is moulded from rigid PVC (polyvinyl chloride) and features a female-threaded socket that screws directly onto a male-threaded pipe end. Available in six pipe sizes — 20 mm (approx. ¾ in), 25 mm (approx. 1 in), 32 mm (approx. 1¼ in), 40 mm (approx. 1½ in), 50 mm (approx. 2 in), and 63 mm (approx. 2½ in) — and in three colour options: Blue End Cap, Grey End Cap, and White End Cap. Flat rubber gaskets are also available in the same size range for use as sealing washers or replacement gaskets.
Typical applications include capping off cold-water supply lines in residential plumbing, sealing irrigation lateral pipes in garden drip systems, blanking unused ports on PVC manifolds, and temporarily closing pipe ends during staged construction projects. Long-tail use cases: "PVC female thread pipe plug for irrigation", "stop end cap for 50mm water pipe", "plastic pipe blanking plug with thread".
Screws directly onto a standard male-threaded pipe end for a secure, hand-tightenable connection — no solvent cement required for temporary sealing.
Available in 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, and 63 mm to match the most common PVC pipe diameters used in residential and light commercial plumbing.
Choose Blue, Grey, or White end caps to match your existing pipework colour coding or system aesthetics. Gaskets are also available as a separate type.
The threaded engagement combined with an optional gasket creates a reliable seal suitable for cold-water supply and irrigation pressure ranges.
Moulded from rigid PVC for corrosion resistance, chemical stability in water systems, and long service life in both indoor and outdoor installations.
Order 1, 2, 5, 10, or 20 pieces per pack — ideal for single repairs, small projects, or stocking a maintenance kit without over-ordering.

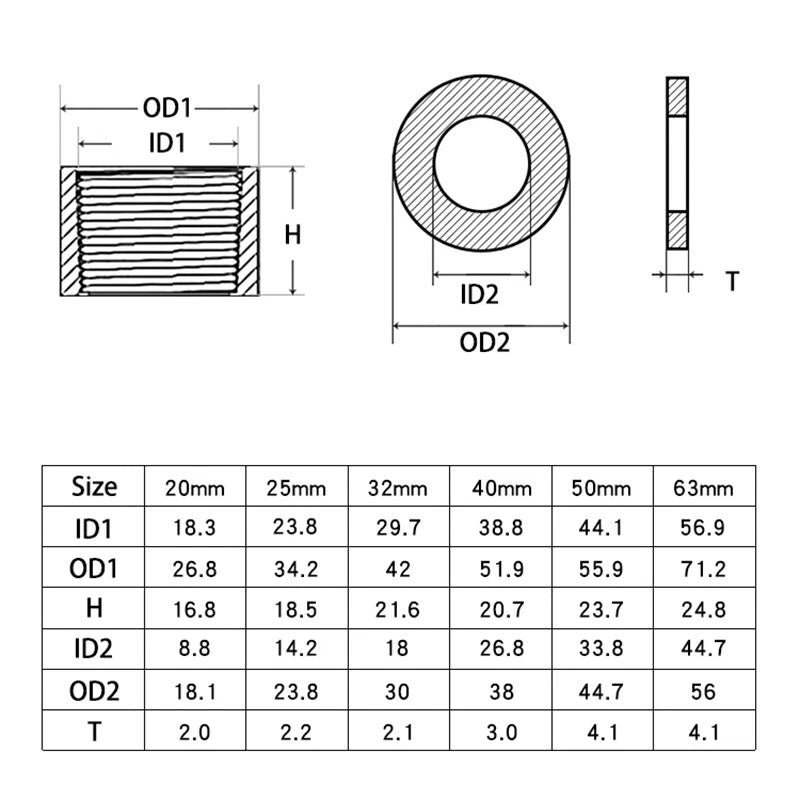

| Material | Rigid PVC (Polyvinyl Chloride) |
|---|---|
| Connection Type | Female Thread (BSP-compatible) |
| Available Sizes | 20 mm / 25 mm / 32 mm / 40 mm / 50 mm / 63 mm |
| Colour Options | Blue, Grey, White (End Cap); also available as Gasket |
| Pack Quantities | 1 / 2 / 5 / 10 / 20 pcs |
| Wall Thickness | See variant options |
| Pressure Rating | See variant options |
| Temperature Range | Suitable for cold water (up to approx. 60 °C); not for hot water or steam |
| Surface Finish | Smooth moulded PVC |
| Application | Cold-water supply, irrigation, drainage blanking |
Match the cap size to the outer diameter of your male-threaded pipe end. Common sizes are 20 mm (¾"), 25 mm (1"), 32 mm (1¼"), 40 mm (1½"), 50 mm (2"), and 63 mm (2½"). If you are unsure, measure the thread diameter with a calliper or check the pipe manufacturer's markings before ordering.

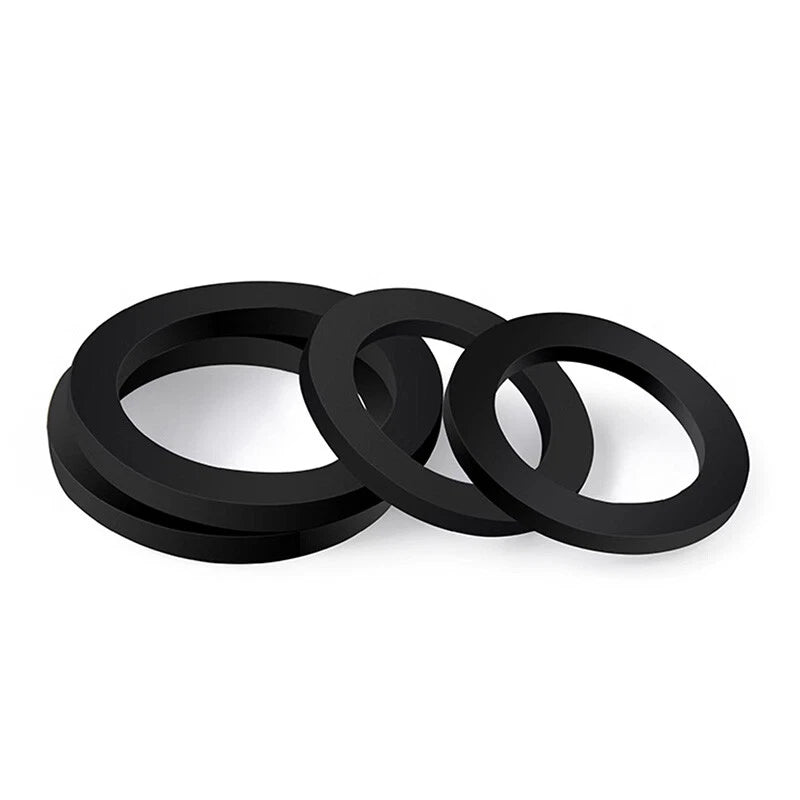

The End Cap (Blue, Grey, or White) is a solid threaded plug that screws onto a male pipe end to seal it completely. The Gasket is a flat rubber sealing ring used inside a fitting or union to create a watertight face seal — it is not a standalone pipe cap. Choose the End Cap to blank off a pipe; choose the Gasket as a replacement sealing washer for an existing fitting.
For a temporary or removable seal, hand-tightening alone may be sufficient for low-pressure applications. For a permanent or higher-pressure installation, wrapping 2–3 layers of PTFE thread tape (plumber's tape) onto the male thread before fitting the cap is recommended to ensure a leak-free joint.
These PVC end caps are designed for cold-water supply and irrigation systems, typically rated up to approximately 60 °C. They are not suitable for hot-water heating systems, steam lines, or applications exceeding the PVC temperature rating. For outdoor use, standard rigid PVC performs well in most climates, though prolonged UV exposure may cause surface discolouration over time.
Yes. Threaded PVC caps can generally be removed and refitted multiple times, provided the threads are not cross-threaded or over-torqued during installation. Inspect the threads for damage before reuse. If PTFE tape was used, remove the old tape and apply fresh tape before reinstalling for the best seal.
The colour choice is primarily aesthetic and for system identification. Blue is commonly used to indicate cold-water lines, grey is a neutral option that blends with many pipe systems, and white matches white PVC pipework used in many domestic plumbing installations. All three colours are the same material and offer the same performance.
For a single pipe cap-off, a quantity of 1 or 2 is sufficient. For irrigation system installations with multiple lateral ends, packs of 5 or 10 are more economical. Maintenance teams or contractors who regularly stock fittings may prefer the 20-piece pack for the best per-unit value.
