Metric Ring Spanner Wrench 5.5–36mm — Deep Double Offset for Recessed Fasteners
When standard wrenches can't reach a recessed bolt or a nut buried deep in an engine bay, most DIYers and mechanics find themselves stuck — reaching for a workaround that risks rounding the fastener. These DISEN metric ring spanner wrenches are built for exactly those situations, giving automotive technicians, plumbers, and machinery maintenance workers a reliable grip at depth without sacrificing torque.
Each wrench features a fully enclosed ring head in a deep double offset profile, machined from drop-forged alloy steel with a chrome vanadium finish. Sizes span 5.5 mm through 36 mm (~0.22 in to ~1.42 in), covering the most common metric fastener dimensions used in European and Japanese vehicles, industrial equipment, and plumbing fixtures. The double offset angle — typically 15° — raises the handle above the work surface, providing knuckle clearance in tight spaces.
Typical use cases include torquing cylinder head bolts on compact engines, tightening recessed pipe fittings in confined utility spaces, and servicing agricultural or construction machinery where deep-set fasteners are standard. Whether you're doing a weekend brake job or maintaining a production line, these ring spanners deliver the reach and leverage the job demands.
🔧 Compatible with standard metric fasteners (DIN/ISO). Verify bolt head size before ordering — see variant options for available sizes.
✅ Key Features of These Metric Ring Spanner Wrenches
🔩Deep Double Offset Ring Head
The 15° double offset angle lifts the handle clear of the work surface, protecting knuckles and enabling torque in recessed or flush-mounted fastener positions.
⚙️Drop-Forged Alloy Steel Construction
Each wrench is forged — not cast — from alloy steel, delivering the structural integrity needed for high-torque applications without flex or fracture risk.
✨Chrome Vanadium Finish
The polished chrome vanadium surface resists corrosion from oils, coolants, and moisture, keeping the tool serviceable in workshop and outdoor environments.
📏Wide Size Range: 5.5 mm to 36 mm
19 size options from 5.5 mm to 36 mm cover the full spectrum of metric fasteners found in automotive, plumbing, and industrial machinery applications.
🎯Fully Enclosed Ring Profile
The closed ring head grips all six faces of a hex fastener simultaneously, distributing load evenly and reducing the risk of rounding under sustained torque.
🛠️Versatile Cross-Trade Application
Suited for automotive repair, HVAC installation, plumbing rough-in, and general machinery maintenance — anywhere metric fasteners need a deep-reach solution.

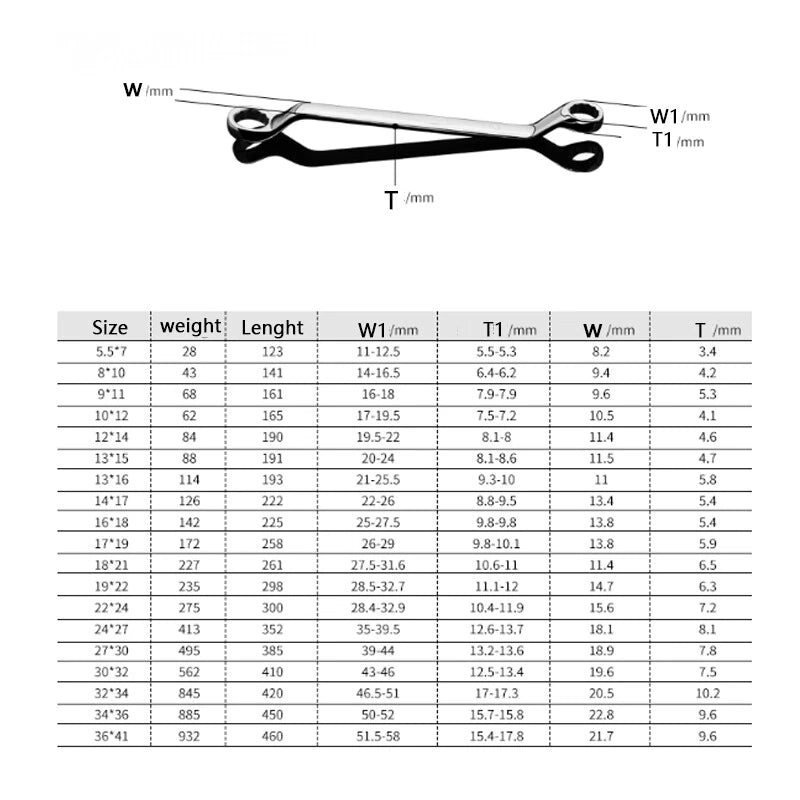

📐 Technical Specifications — Metric Ring Spanner Wrench
| Type |
Ring Spanner Wrench (Double Offset) |
| Size Range |
5.5 mm – 36 mm (approx. 0.22 in – 1.42 in) |
| Number of Sizes |
19 variants |
| Head Style |
Fully enclosed ring, deep profile |
| Offset Angle |
Typically 15° double offset |
| Material |
Drop-forged alloy steel |
| Finish |
Chrome vanadium (polished) |
| Drive Standard |
Metric (DIN/ISO compatible) |
| Weight |
See variant options |
| Quantity per Order |
1 piece (single wrench per size) |
❓ Frequently Asked Questions
How do I choose the right size ring spanner for my fastener?
Measure the across-flats (AF) dimension of the bolt head or nut using a caliper or a known reference wrench. Match that measurement to the corresponding size variant. For example, a bolt head measuring 13 mm AF requires the 13 mm ring spanner. When in doubt, size down — a wrench that's too large will slip and round the fastener.
What does "double offset" mean, and why does it matter?
Double offset means the ring head is angled both vertically and horizontally relative to the handle — typically at 15°. This raises the handle above the work surface when the wrench is flat on a fastener, giving your knuckles clearance and making it possible to work in recessed or obstructed areas where a flat wrench would jam against surrounding components.
Are these wrenches suitable for automotive use?
Yes. The deep double offset profile is particularly useful for engine bay work — cylinder head bolts, suspension components, and brake caliper bolts are common applications. The size range of 5.5 mm to 36 mm covers the majority of metric fasteners found on European and Japanese vehicles.
How corrosion-resistant is the chrome vanadium finish?
Chrome vanadium (Cr-V) plating provides solid resistance to rust, oil, and coolant exposure under normal workshop conditions. For long-term storage, wipe the wrench with a light machine oil after use. Avoid prolonged submersion in water or exposure to harsh chemical solvents, which can degrade the finish over time.
Can I use this wrench with a torque wrench or extension?
Ring spanners are designed for direct hand torque — they do not have a square drive socket, so they cannot be attached to a torque wrench extension bar. For torque-spec applications, use a combination wrench with a box end or a dedicated socket set. These ring spanners are best used for final tightening and loosening where a torque reading is not required.
What is the difference between a ring spanner and a combination spanner?
A ring spanner has a closed ring head on both ends (or one end), while a combination spanner has a ring head on one end and an open-jaw on the other. Ring spanners provide a more secure grip on all six faces of a hex fastener and are less likely to slip under high torque. Combination spanners offer more versatility for quick access. For deep-reach, high-torque work, the ring spanner is the better choice.
Is this a single wrench or a set?
Each order is for one (1) individual wrench in the size you select. If you need multiple sizes, add each size separately to your cart. This allows you to purchase only the sizes you actually need rather than paying for a full set with sizes you may never use.
🛒 Select your size above, then add to cart.
