Description

696ZZ Nylon U-Groove Pulley Guide Wheels — Smooth, Quiet Rolling for DIY Automation

When your rope, cable, or belt keeps slipping off track or generating unwanted noise, the culprit is usually a poorly matched guide wheel. Makers, hobbyists, and small-workshop builders who need reliable, low-friction routing in tight spaces will find these 696ZZ nylon U-groove pulley guide wheels an ideal drop-in solution.

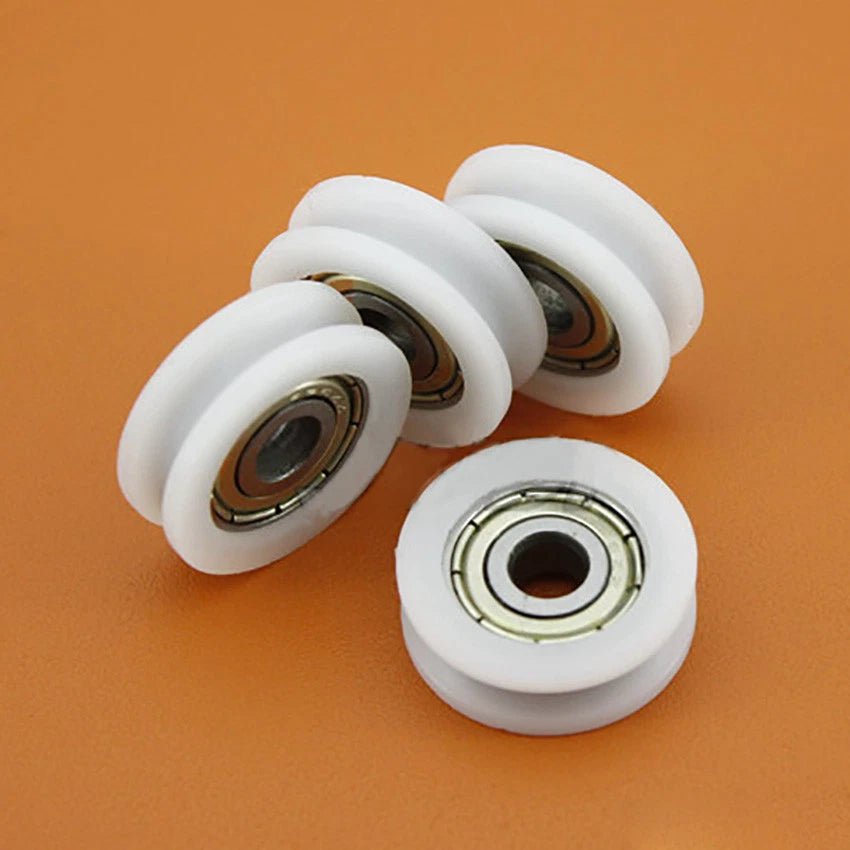

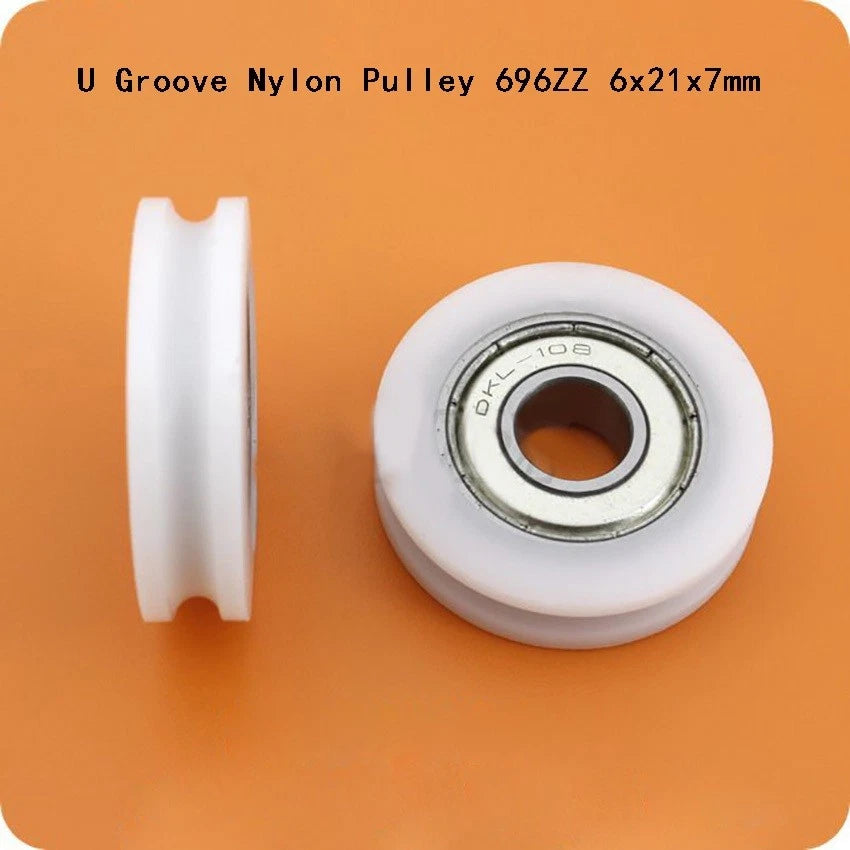

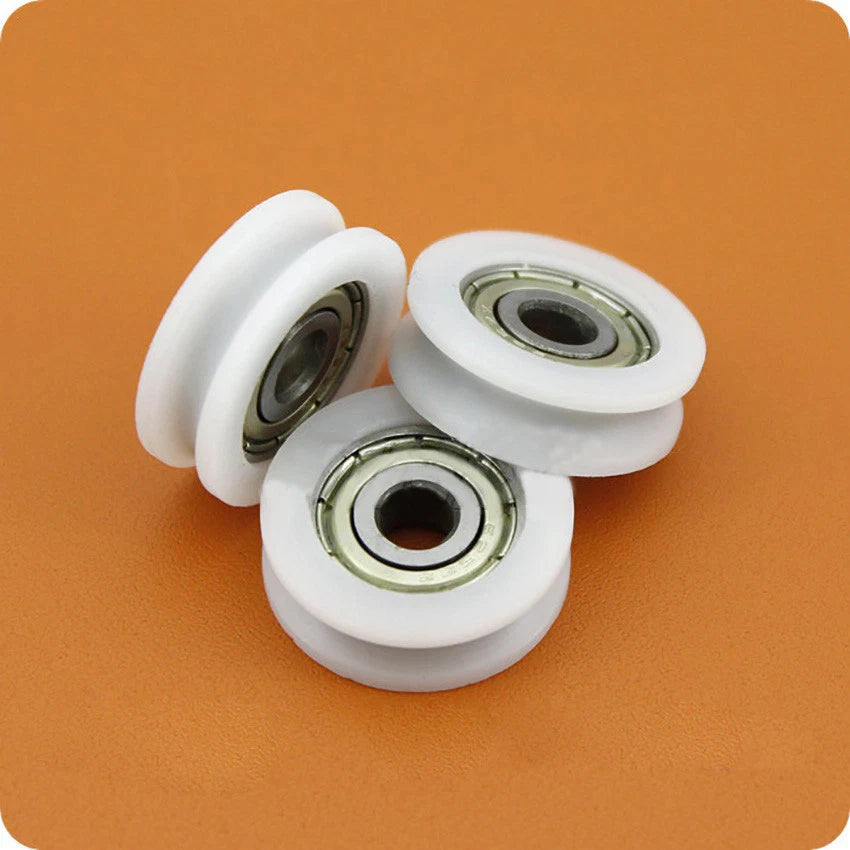

Each wheel is constructed from a durable nylon outer shell with a U-shaped groove profile, press-fitted over a 696ZZ radial ball bearing (6 mm bore × 21 mm outer diameter × 7 mm width). The compact 6×21×7 mm footprint makes them easy to mount in confined assemblies, and the nylon material keeps rolling noise to a minimum compared to all-metal alternatives.

These guide wheels are well-suited for 3D printer filament guide paths, DIY CNC router cable management, rope pulley systems in workshop jigs, and light-duty conveyor or sliding-door track applications where a smooth, U-groove contact surface is required.

⚙️ Compatibility: Fits standard M6 shoulder bolts or 6 mm axle shafts. U-groove profile suits round ropes, cables, and cords typically 3–8 mm in diameter. Verify your axle diameter and groove width before ordering.

✅ Key Features of These 696ZZ Nylon U-Groove Pulley Guide Wheels

🔵 696ZZ Ball Bearing Core
Pre-installed 696ZZ shielded radial bearing delivers smooth, low-friction rotation and protects internal races from dust and debris.
🔵 Nylon Outer Shell with U-Groove Profile
The molded nylon rim provides a defined U-shaped channel that keeps ropes, cables, and cords centered and on track during operation.
🔵 Compact 6×21×7 mm Dimensions
6 mm bore, 21 mm outer diameter, and 7 mm width allow installation in space-constrained brackets, frames, and custom mounts.
🔵 Quiet, Low-Vibration Rolling
Nylon construction absorbs minor vibrations and reduces operational noise — a practical advantage in workshop and maker environments.
🔵 Corrosion-Resistant Materials
Nylon outer shell resists moisture and mild chemicals; the shielded bearing limits exposure to contaminants, extending service life in typical indoor DIY conditions.
🔵 Available in Multi-Pack Quantities
Choose 1, 4, or 10 pieces to match your project scale — whether you need a single replacement or a full set for a new build.

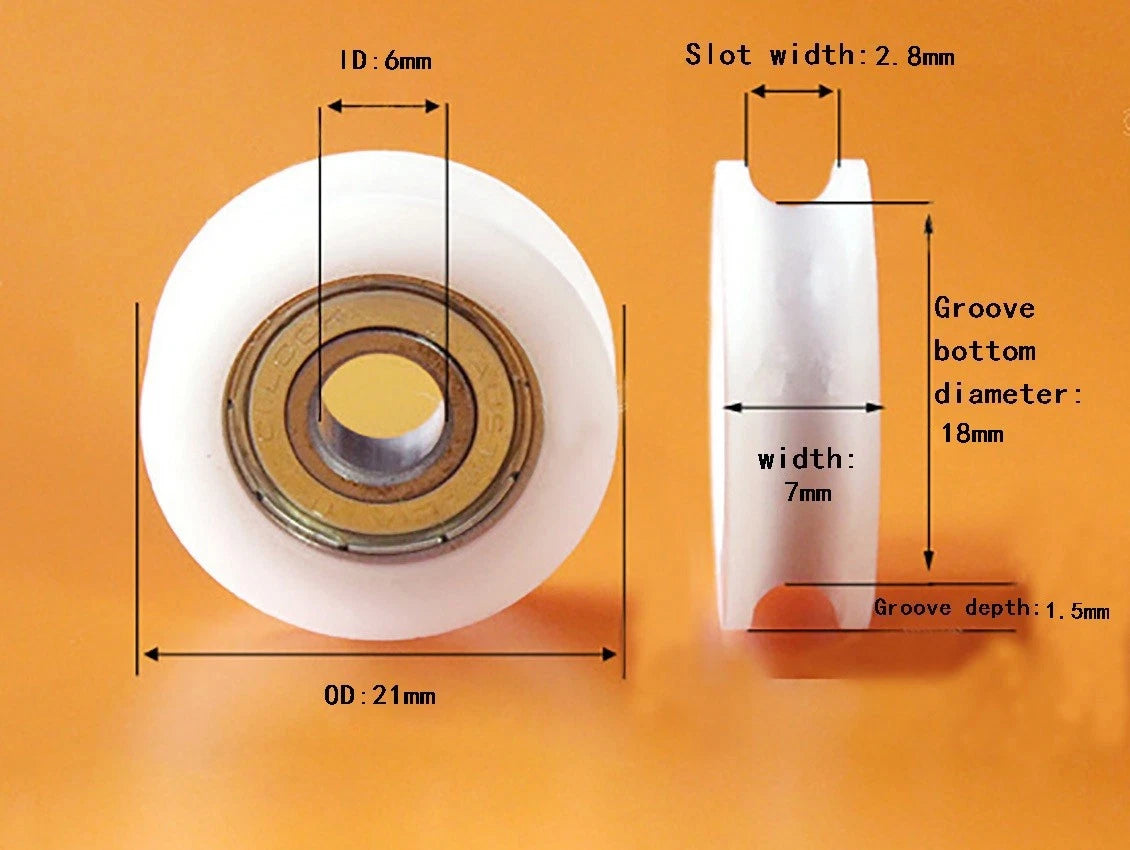

📐 Technical Specifications — U-Groove Nylon Pulley Guide Wheel

Bearing Model 696ZZ
Bore Diameter (Inner) 6 mm (0.236 in)
Outer Diameter 21 mm (0.827 in)
Width / Thickness 7 mm (0.276 in)
Groove Profile U-Groove (Round)
Outer Shell Material Nylon
Bearing Type Shielded Radial Ball Bearing (ZZ)
Suitable Rope / Cable Diameter Typically 3–8 mm (contact us to confirm)
Axle / Bolt Compatibility M6 shoulder bolt or 6 mm axle shaft
Load Capacity See variant options
Color / Finish See variant options
Available Quantities 1 Pcs / 4 Pcs / 10 Pcs

❓ Frequently Asked Questions

How do I choose the right quantity for my project?

Select 1 Pcs if you need a single replacement wheel. Choose 4 Pcs for small assemblies such as a two-axis CNC router or a compact rope pulley rig. The 10 Pcs pack is ideal for larger builds, full machine kits, or keeping spares on hand for ongoing projects.

What axle or bolt size does this wheel require?

The 696ZZ bearing has a 6 mm bore, so it fits a standard M6 shoulder bolt or any 6 mm diameter axle shaft. Make sure your mounting hardware matches this bore size for a secure, wobble-free fit.

What rope or cable diameter fits the U-groove?

The U-groove profile is designed to guide round ropes and cables typically ranging from 3 mm to 8 mm in diameter. For best tracking, the rope or cable should sit snugly in the groove without excessive play. If you are unsure, contact us with your cable diameter before ordering.

Is the nylon shell strong enough for continuous use?

Nylon is a well-established engineering plastic with good tensile strength and wear resistance for light-to-medium duty guide wheel applications. These wheels are suited for DIY automation, 3D printers, CNC cable routing, and similar tasks. For heavy industrial loads or high-speed continuous operation, please contact us to confirm suitability.

Will these wheels corrode or degrade in damp workshop conditions?

The nylon outer shell is inherently resistant to moisture and mild chemicals, making it suitable for typical indoor workshop environments. The 696ZZ bearing uses metal shields (ZZ designation) that limit water ingress. Avoid prolonged submersion or exposure to harsh solvents to maintain bearing performance.

Are these compatible with 3D printer or CNC router builds?

Yes. The 6×21×7 mm form factor and 6 mm bore are commonly used in DIY 3D printer filament guide assemblies and CNC router cable management systems. Verify that your frame or bracket accepts a 21 mm outer diameter wheel and uses an M6 or 6 mm axle before purchasing.

Can I use these as belt tensioner idler wheels?

These wheels feature a U-groove profile designed for round ropes and cables rather than flat or toothed belts. For GT2 or HTD timing belt tensioning, a smooth-rim or toothed idler pulley is a better match. Contact us if you need guidance on selecting the right idler for your belt drive system.

🛒 Select your quantity (Amount) above, then add to cart.
