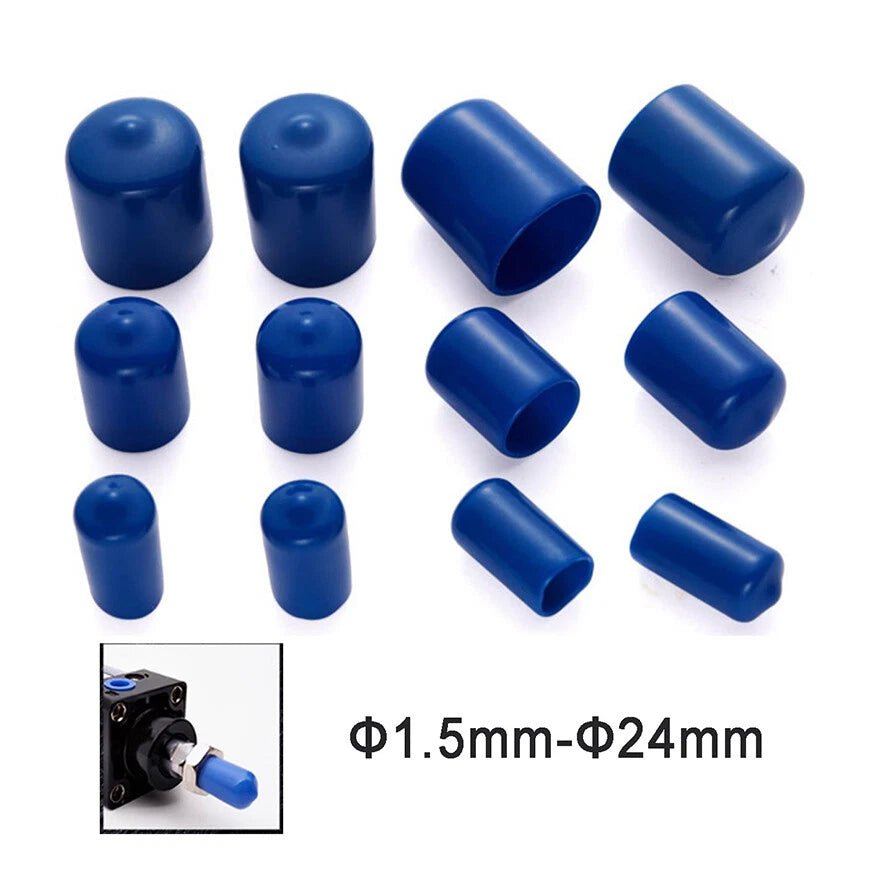

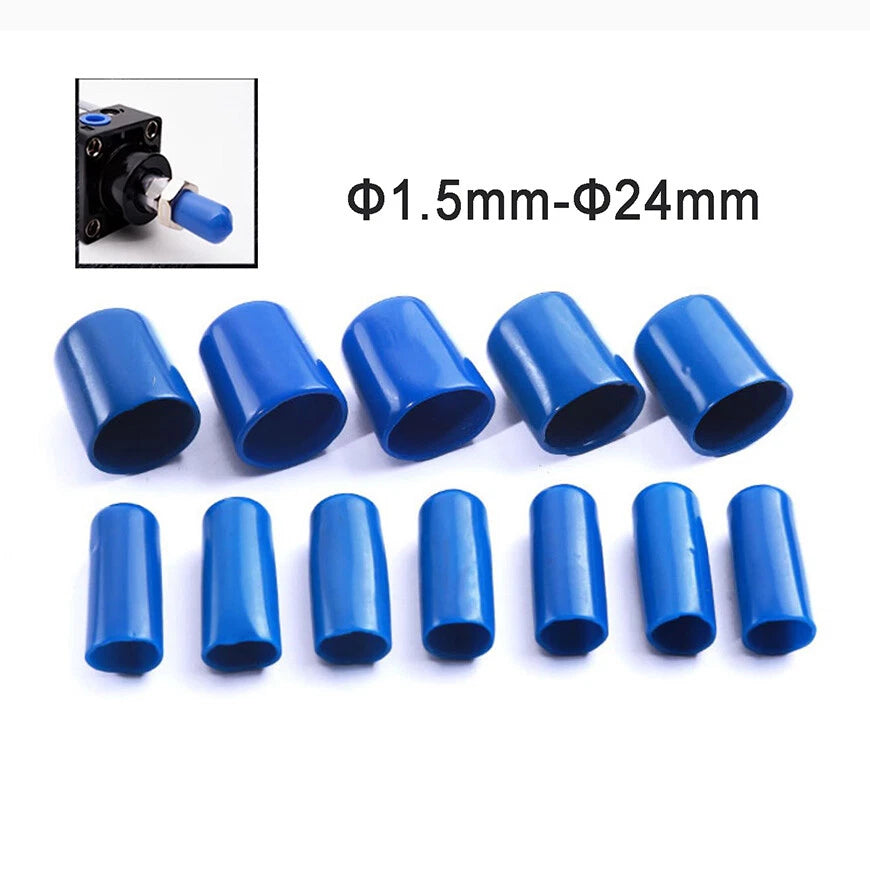

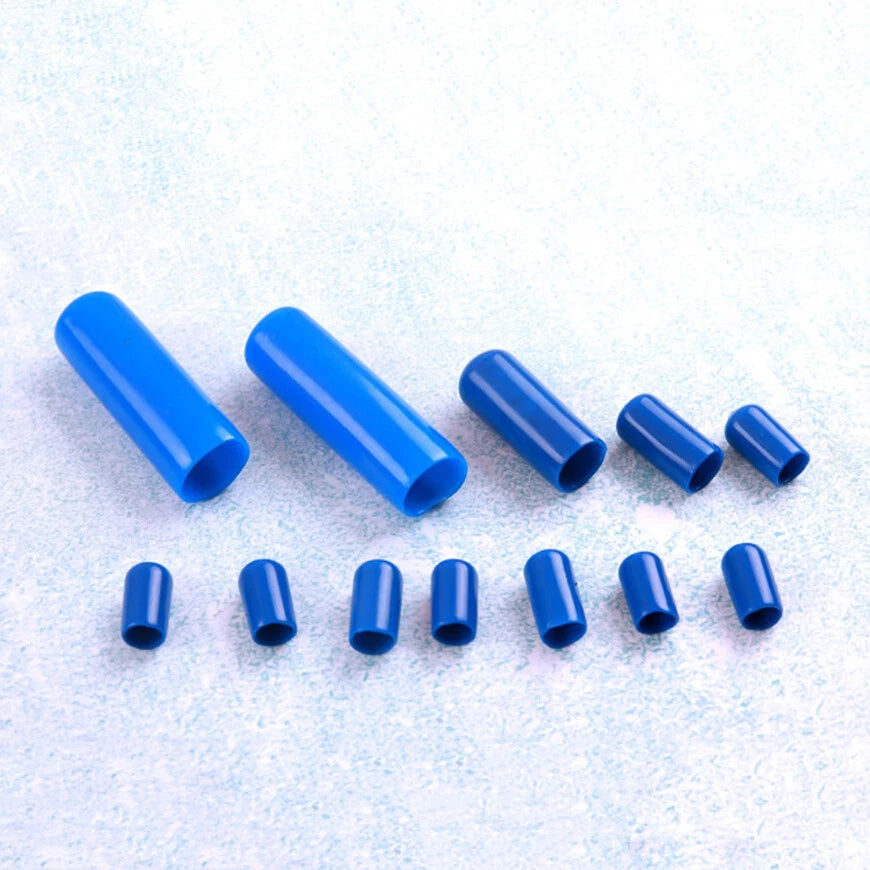

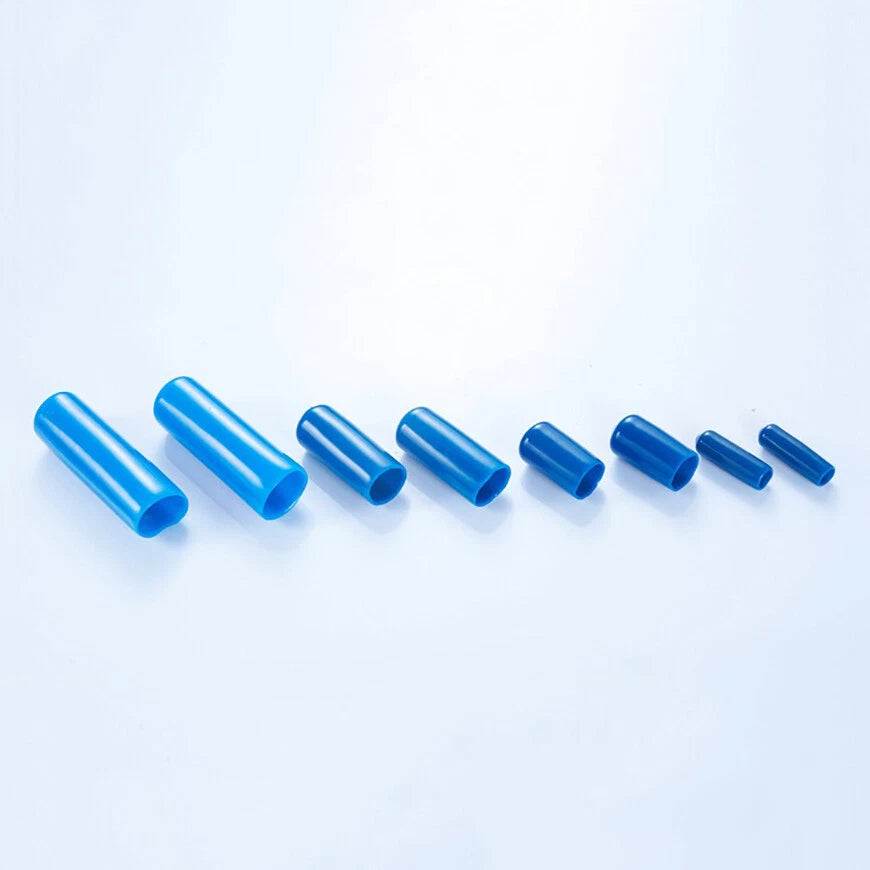

🔘 Vinyl Rubber Thread Cover Caps – Protect Rod Ends & Screw Threads (Φ1.5mm to Φ24mm)
If you’ve ever scratched a freshly machined thread or stuffed tape over a hydraulic fitting to keep dust out, these vinyl rubber thread cover caps are a much cleaner solution. They slip right over bolt ends, rod bars, pipe nipples, or any external thread from 1.5mm up to 24mm in diameter. The soft rubber material cushions the tip, prevents corrosion, and gives a finished look to exposed hardware. I use them on threaded rod sticking out of furniture, on hydraulic fittings in my shop, and even on the ends of shelf brackets to avoid snagged sleeves. Pick your color (blue, black, red, white, clear, yellow, or green) – this listing focuses on blue, but other shades are available.
✨ Why These Thread Protector Caps Work So Well
📏 36 inner diameters – from tiny to large – Covers Φ1.5mm up to Φ24mm in 0.5mm or 1mm steps. One source for almost any plastic thread cover cap size you need.
🛡️ Durable rubber with high hardness – Tough enough to resist wear, yet flexible enough to snap on easily. No cracking or tearing under normal use.
✨ Smooth, shiny surface – No rough edges or slipping once seated. The cap distributes pressure evenly so it won’t loosen on the thread.
🧪 Wear & corrosion resistant in harsh environments – These vinyl rubber end caps hold up to dust, moisture, and mild chemicals – perfect for workshops, garages, or outdoor equipment.
🌈 Multiple color options – Blue shown, but black, red, white, clear, yellow, and green are also available. Contact us if you need a specific color for coding or aesthetics.
🔧 Wide application – Works on hydraulic pipe joints, transition fittings, oil cylinders, valves, flanges, threaded rod ends, and even furniture hardware.

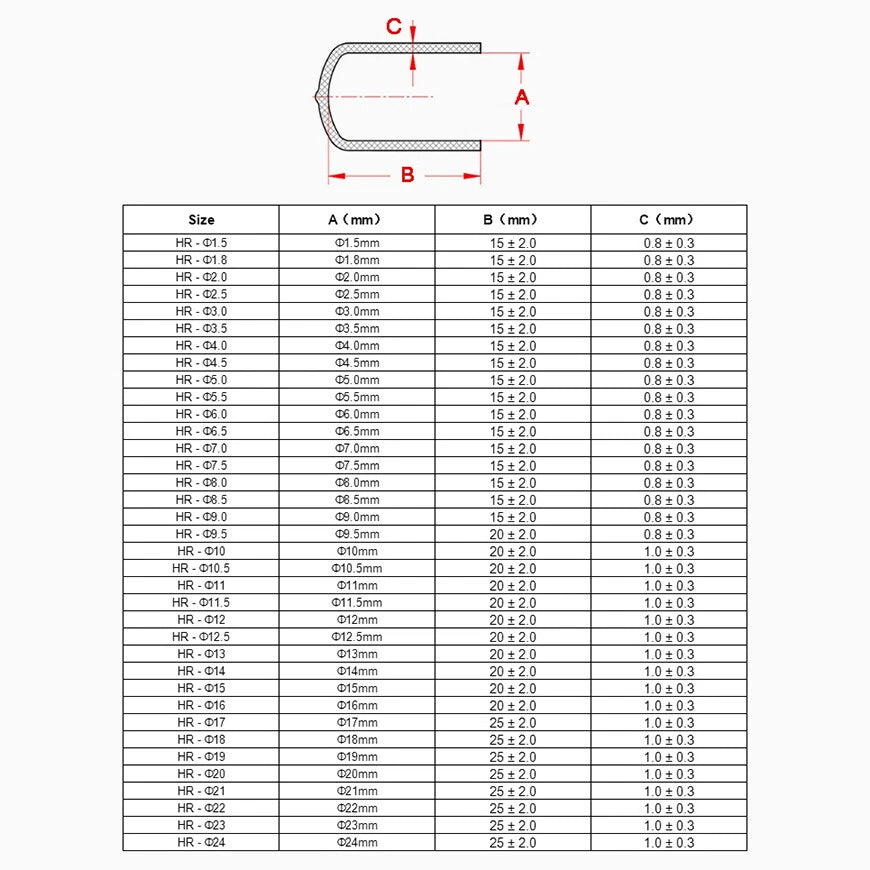

📏 Technical Specifications – Rubber Thread Cover Caps
| Product Model |
PVC Rubber Thread Cover Caps (Vinyl rubber) |
| Material |
Rubber / Vinyl (flexible plastic-type rubber) |
| Inner Diameter Range |
Φ1.5mm, Φ1.8mm, Φ2.0mm, Φ2.5mm, Φ3.0mm, Φ3.5mm, Φ4.0mm, Φ4.5mm, Φ5.0mm, Φ5.5mm, Φ6.0mm, Φ6.5mm, Φ7.0mm, Φ7.5mm, Φ8.0mm, Φ8.5mm, Φ9.0mm, Φ9.5mm, Φ10mm, Φ10.5mm, Φ11mm, Φ11.5mm, Φ12mm, Φ12.5mm, Φ13mm, Φ14mm, Φ15mm, Φ16mm, Φ17mm, Φ18mm, Φ19mm, Φ20mm, Φ21mm, Φ22mm, Φ23mm, Φ24mm |
| Colors Available |
Black, Red, White, Clear, Blue, Yellow, Green (other colors available on request) |
| Primary Use |
Protecting external threads, circular pipe openings, dust-proofing, and decorative finishing |
| Key Properties |
High hardness, strong toughness, wear-resistant, corrosion-resistant, smooth surface, non-slip thread grip |
❓ Frequently Asked Questions – Thread Protector Caps
🔘 How do I choose the correct inner diameter for my screw or rod?
Measure the outside diameter of the thread or rod. Pick a cap with an inner diameter slightly smaller (about 0.2–0.5mm less) for a snug fit. For example, a 6mm threaded rod should use a Φ6.0mm cap or sometimes a 5.5mm if you want a very tight grip. The rubber is flexible, so it will stretch a little. When in doubt, order a size that matches your rod diameter exactly.
🌧️ Can these caps be used outdoors or in wet environments?
Yes. The rubber material is resistant to moisture, dust, and mild weathering. They work well on outdoor equipment, garden tools, or marine fittings as long as they are not fully submerged for long periods. For constant underwater use, a more specialized cap would be needed, but for rain, splashes, and humidity, these are perfectly fine.
🎨 I need a specific color – can I get something other than blue?
Absolutely. While this listing shows blue caps, we also stock black, red, white, clear, yellow, and green. If you need a different color or a custom mix, just contact us before ordering. We can often accommodate small‑batch color requests. Color coding threads can be very handy for hydraulic lines or organization.
🔧 Will these caps stay on if the threaded rod vibrates (e.g., on machinery)?
The caps fit snugly and have a smooth inner surface that grips the thread crests. For light to moderate vibration (like on a small engine or a pump), they stay put. For high‑vibration industrial equipment, we recommend adding a dab of adhesive or using a cap with a longer skirt. But for most DIY, workshop, and light commercial uses, they work fine without extra help.
📦 Do you sell these individually or in mixed size packs?
We offer both. You can purchase a single size in bulk, or you can contact us to create a custom assortment. The listing here is per size – simply select the inner diameter you need from the dropdown. If you require a variety pack for a project, send us a message and we’ll build a set that works for you.
