When your motion system demands slip-free synchronization and repeatable positioning, a mismatched or worn pulley becomes the weakest link in the chain. Engineers, CNC builders, and robotics makers who need a reliable S3M 10mm timing belt drive pulley will find this series covers the full range of common tooth counts and bore sizes in a single listing — eliminating the frustration of sourcing multiple part numbers across different suppliers.

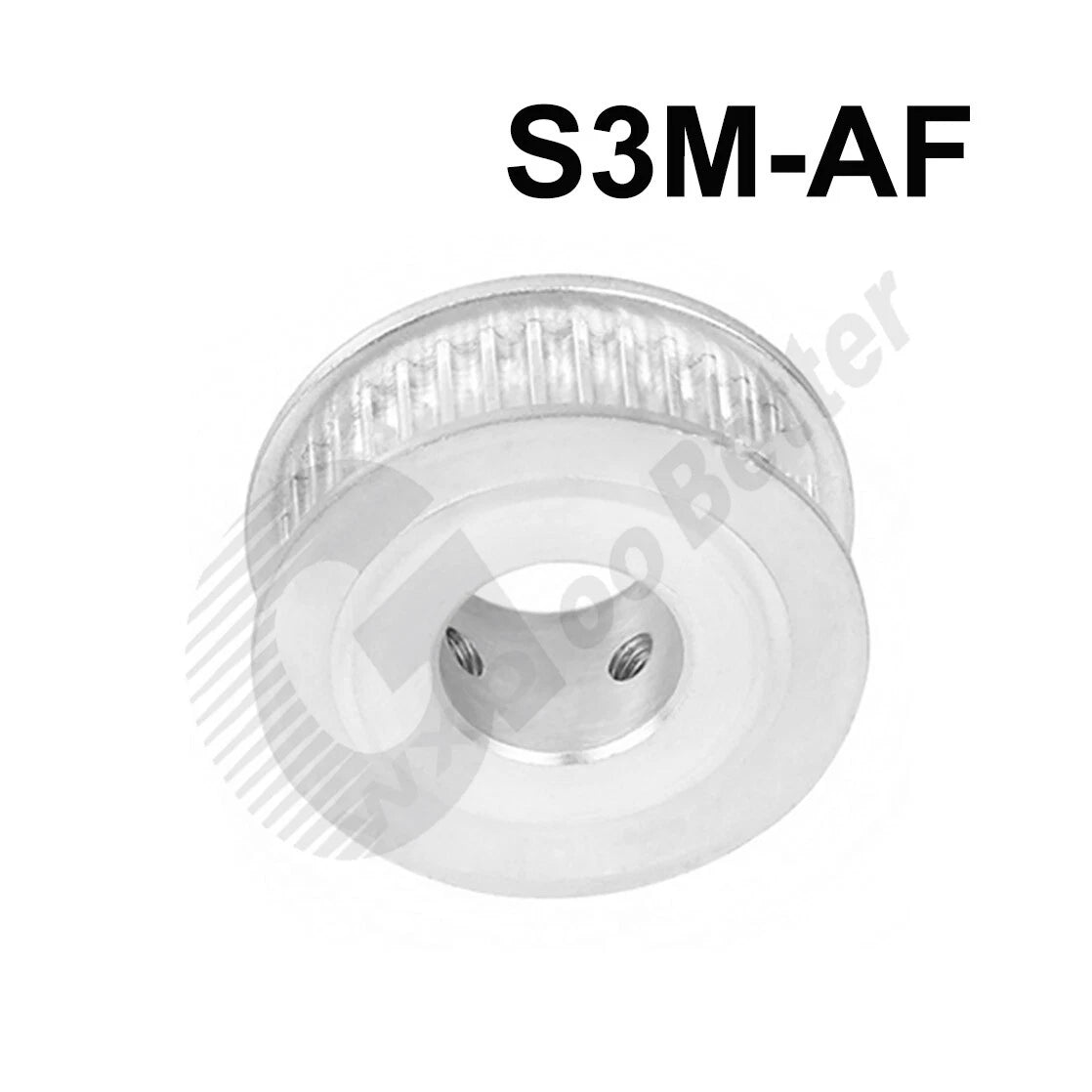

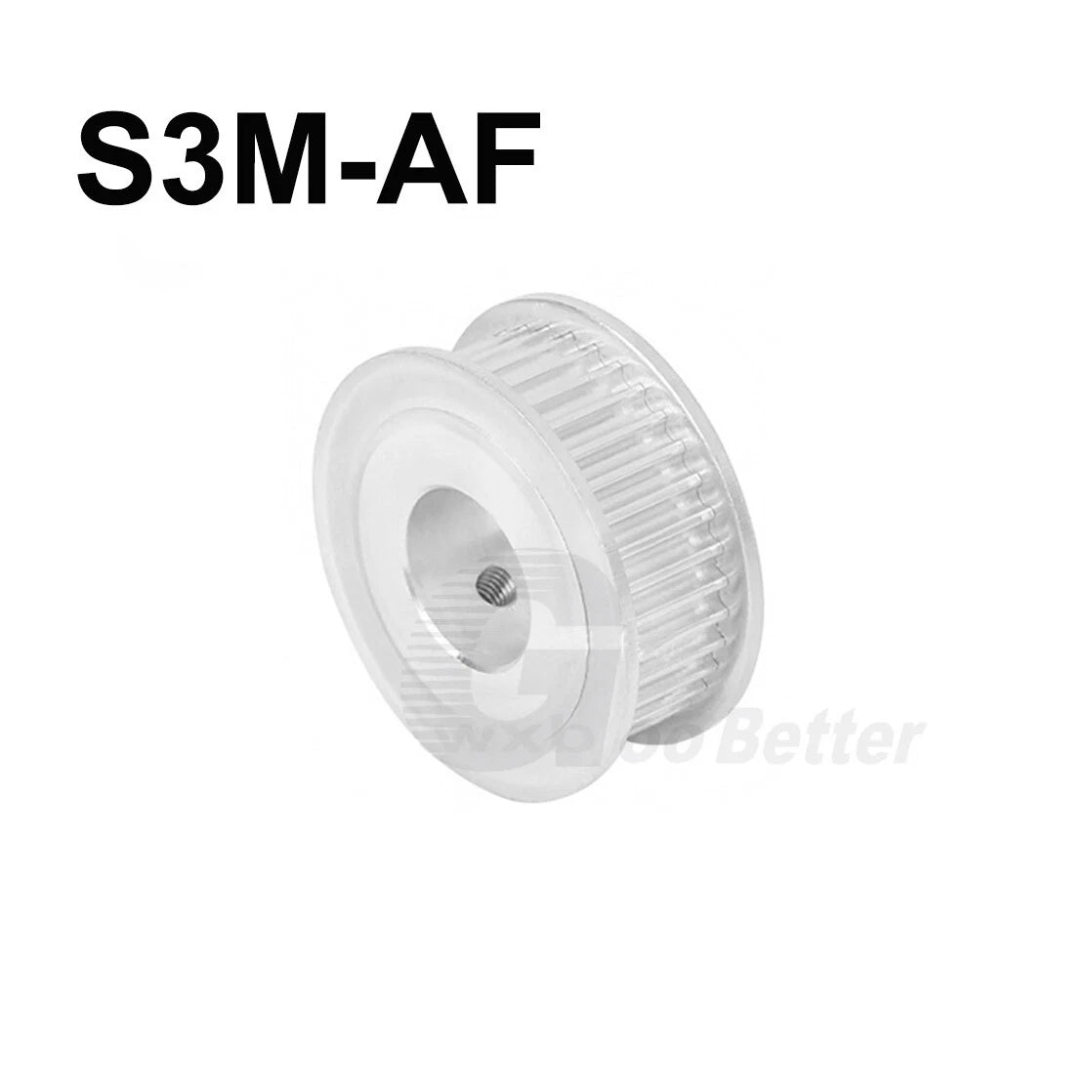

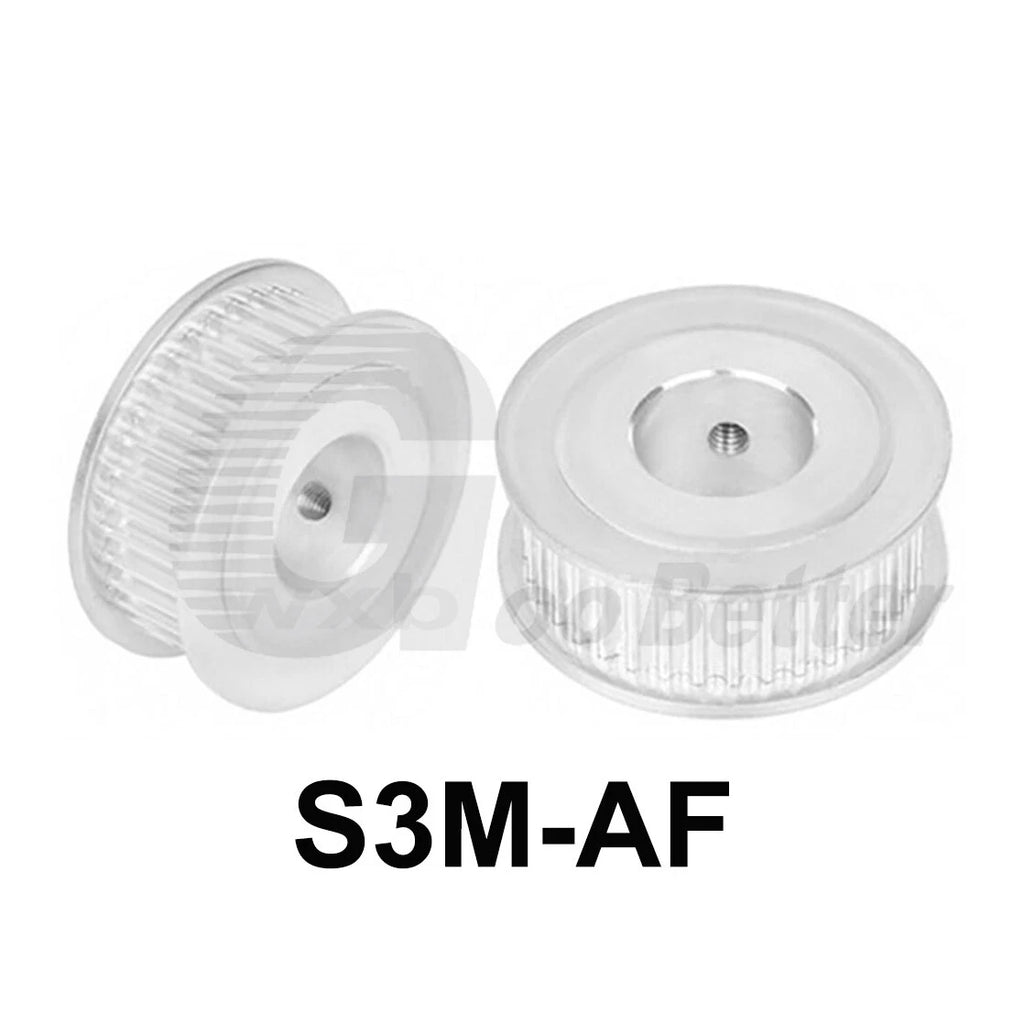

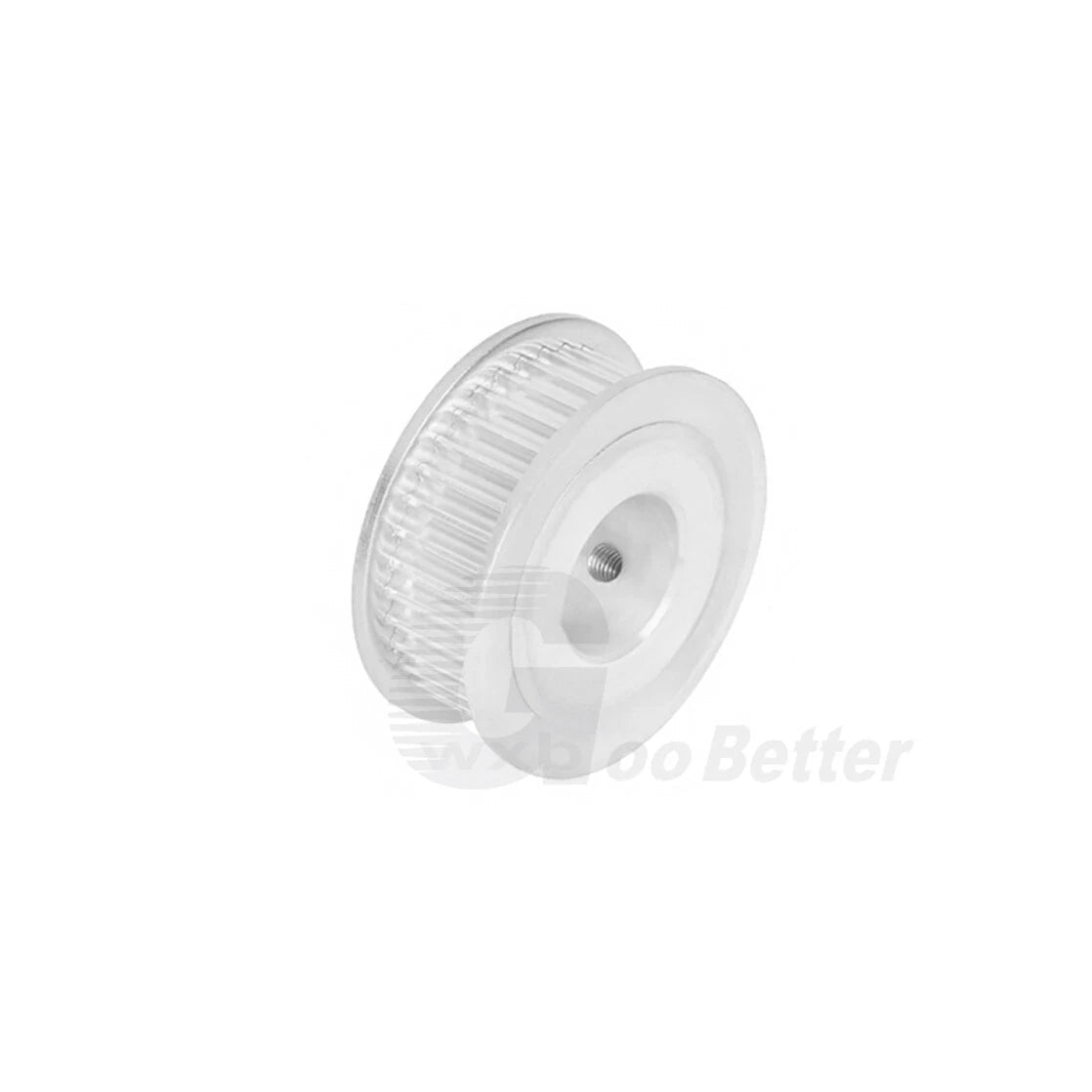

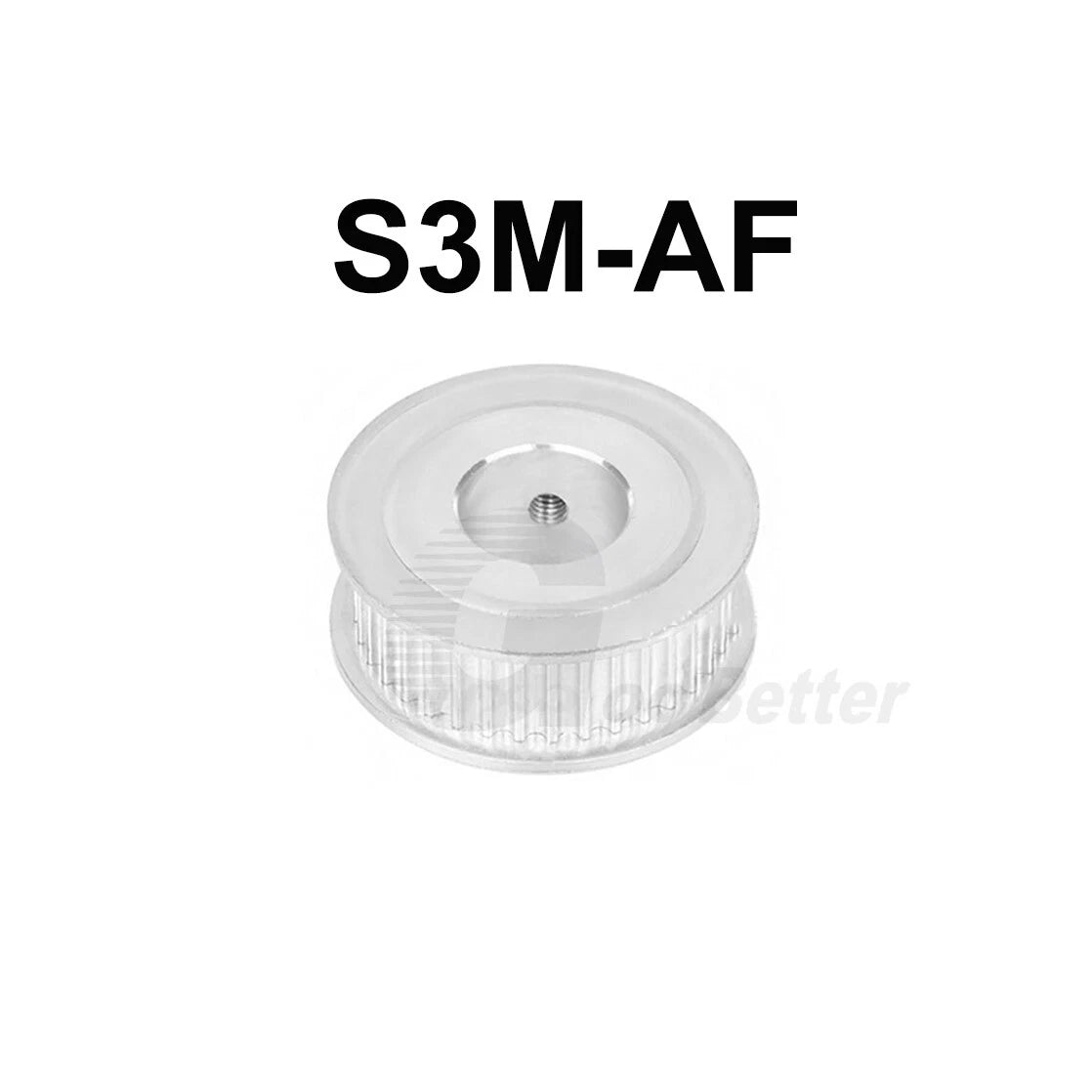

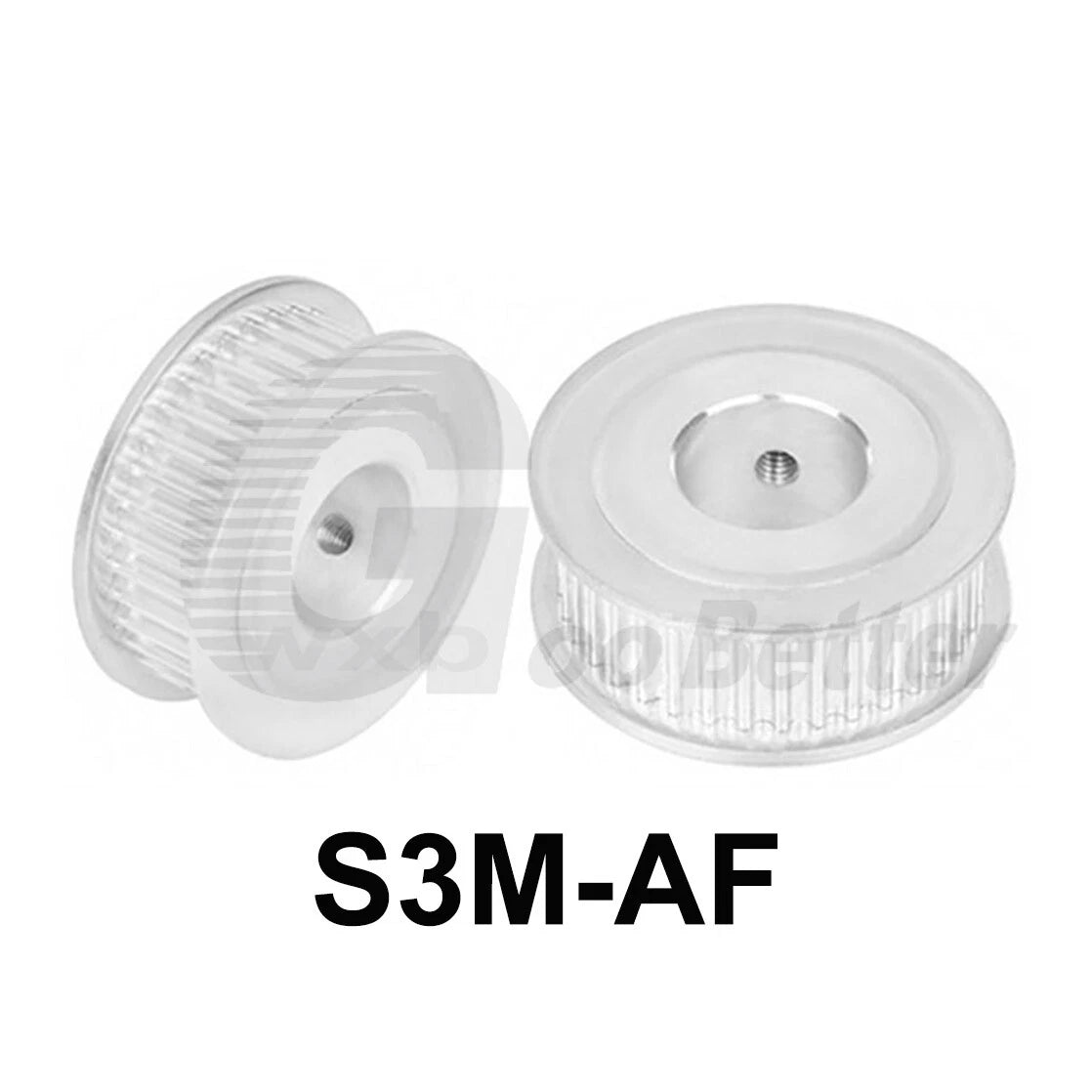

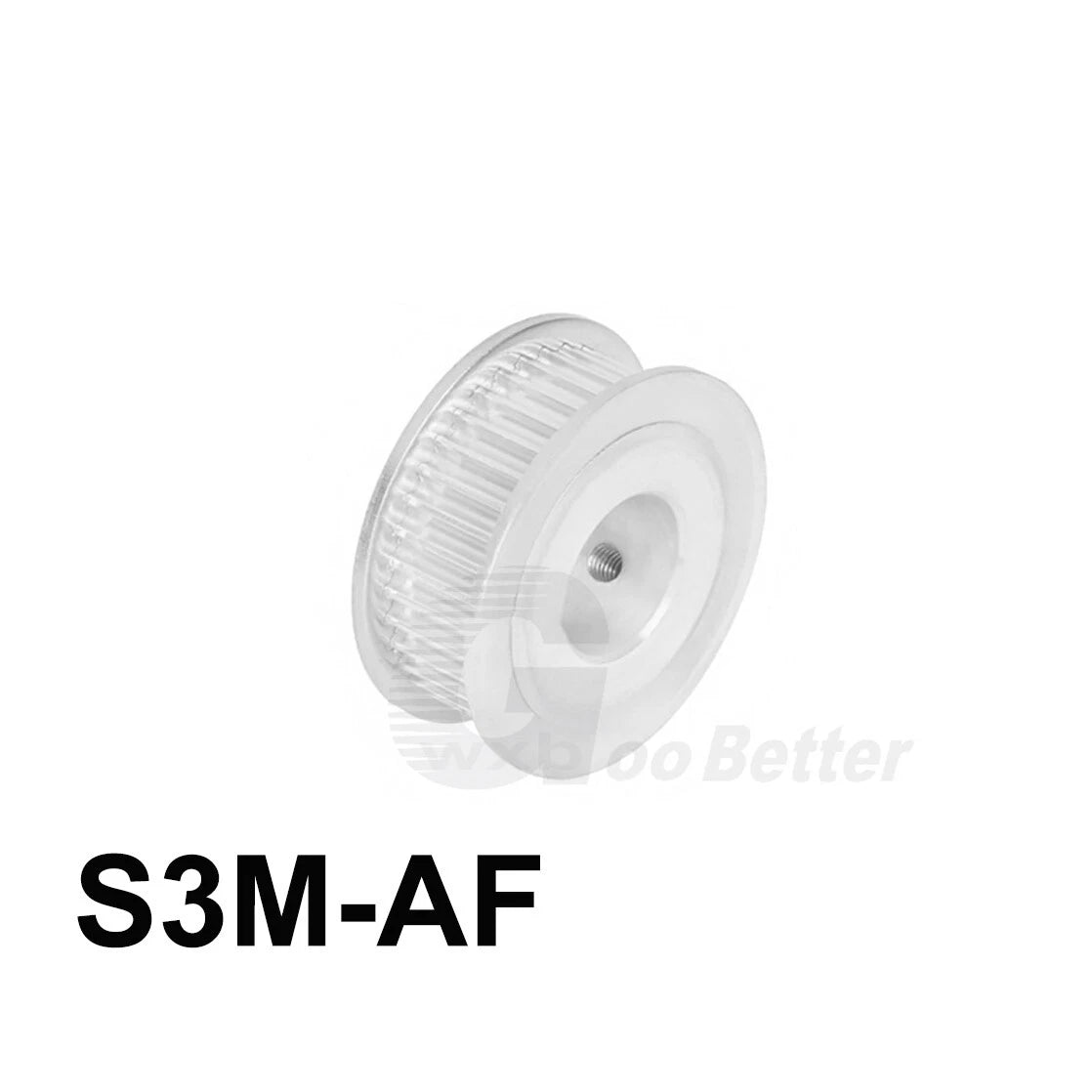

Each pulley is machined from aluminum alloy with a natural or anodized finish and is designed to mesh with standard S3M (3mm pitch) synchronous belts with a 10mm belt width. Tooth counts span 42T through 68T, and bore diameters range from 5mm to 25mm (approximately 0.197" to 0.984"). Keyway options (3mm, 4mm, 5mm, 6mm, or 8mm) are available on select bore/tooth combinations for positive shaft engagement.
Typical use cases include CNC router X/Y axis drives, desktop 3D printer extruder and motion systems, light-duty conveyor indexing, and small-format robotic arm joints — all applications where an S3M synchronous belt pulley with a configurable bore is essential for accurate, repeatable motion.
Available in 42T, 44T, 45T, 46T, 48T, 50T, 52T, 54T, 56T, 58T, 60T, 65T, and 68T to match your gear ratio and pitch diameter requirements.
Bore options from 5mm to 25mm (including 6.35mm and 12.7mm inch-standard sizes) accommodate a broad range of motor and shaft diameters.
Select variants include a precision-cut keyway (3mm, 4mm, 5mm, 6mm, or 8mm) for positive torque transmission without relying solely on set screws.
The smooth-tooth (trapezoidal) S3M profile ensures consistent belt engagement, low backlash, and quiet operation in positioning and indexing applications.
Lightweight yet rigid aluminum body keeps rotational inertia low — critical for high-acceleration servo and stepper motor drive systems.
Standard S3M tooth geometry and hub dimensions make these pulleys interchangeable with other S3M-compatible drive components in existing assemblies.

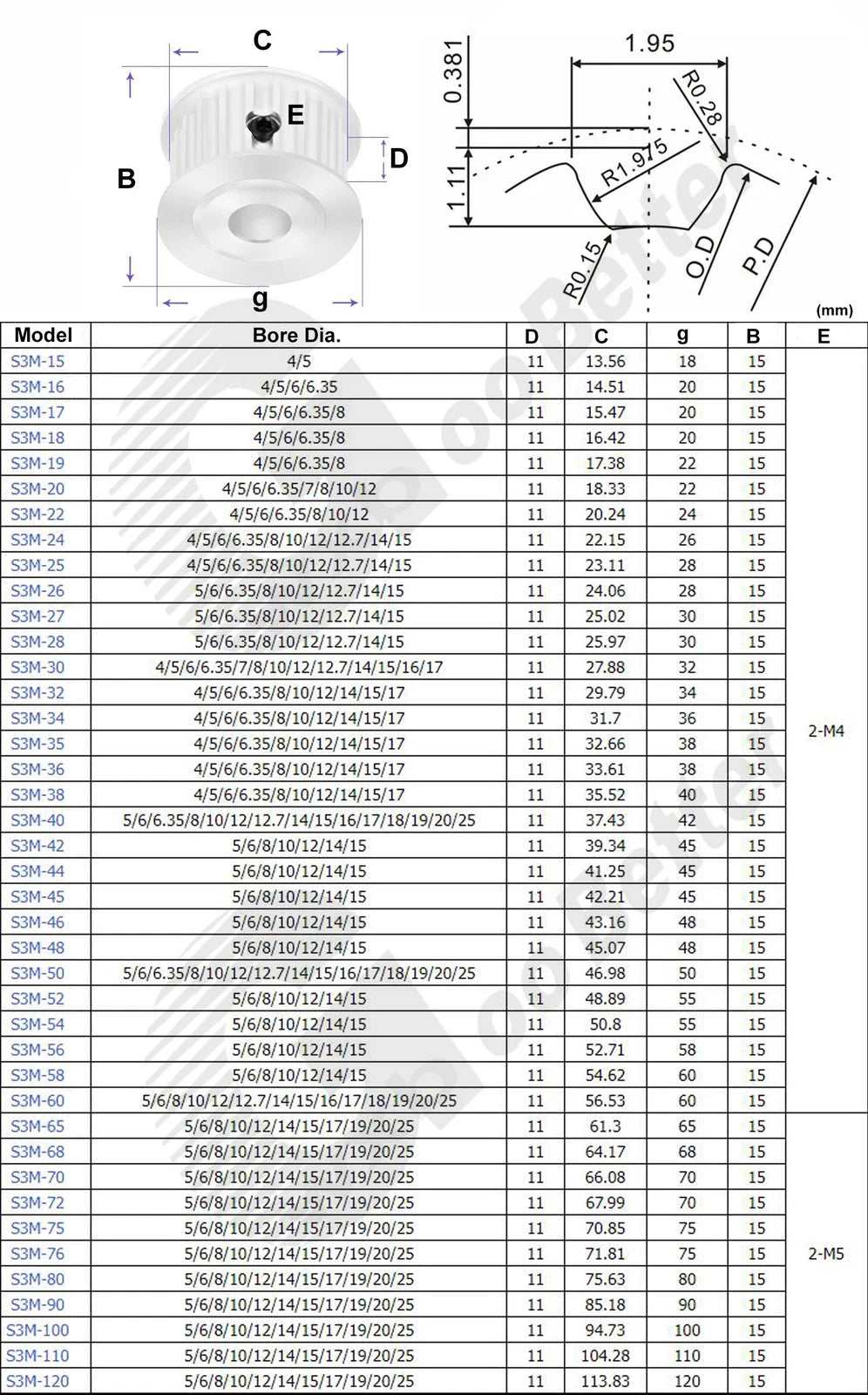

| Belt Profile | S3M (Trapezoidal, 3mm pitch) |
|---|---|
| Belt Width | 10mm (0.394") |
| Tooth Count Options | 42T, 44T, 45T, 46T, 48T, 50T, 52T, 54T, 56T, 58T, 60T, 65T, 68T |
| Bore Diameter Range | 5mm – 25mm (0.197" – 0.984"); includes 6.35mm and 12.7mm |
| Keyway Options | Without keyway / 3mm / 4mm / 5mm / 6mm / 8mm (availability varies by bore) |
| Material | Aluminum alloy |
| Pitch Diameter (42T) | Approx. 40.1mm (1.579") |
| Pitch Diameter (60T) | Approx. 57.3mm (2.256") |
| Hub / Flange | See variant options |
| Weight | See variant options |
| Finish | Natural aluminum / anodized (varies by batch) |
| Quantity per Order | 1 piece |
Tooth count determines the pitch diameter and, combined with your motor pulley tooth count, sets the drive ratio. A higher tooth count gives a larger pitch diameter and lower belt tension for the same torque. For CNC and 3D printer motion systems, 40T–60T driven pulleys paired with a smaller motor pulley (e.g., 20T) are common. Calculate your required ratio first, then select the tooth count that fits your available center distance and belt length.
Measure your motor or drive shaft diameter precisely with calipers. Select the bore that matches your shaft — common metric sizes are 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, and 20mm. If you have an imperial shaft (e.g., 1/4" = 6.35mm or 1/2" = 12.7mm), those bore options are available in the 50T and 60T variants. A bore that is too large will require a bushing; a bore that is too small cannot be installed.

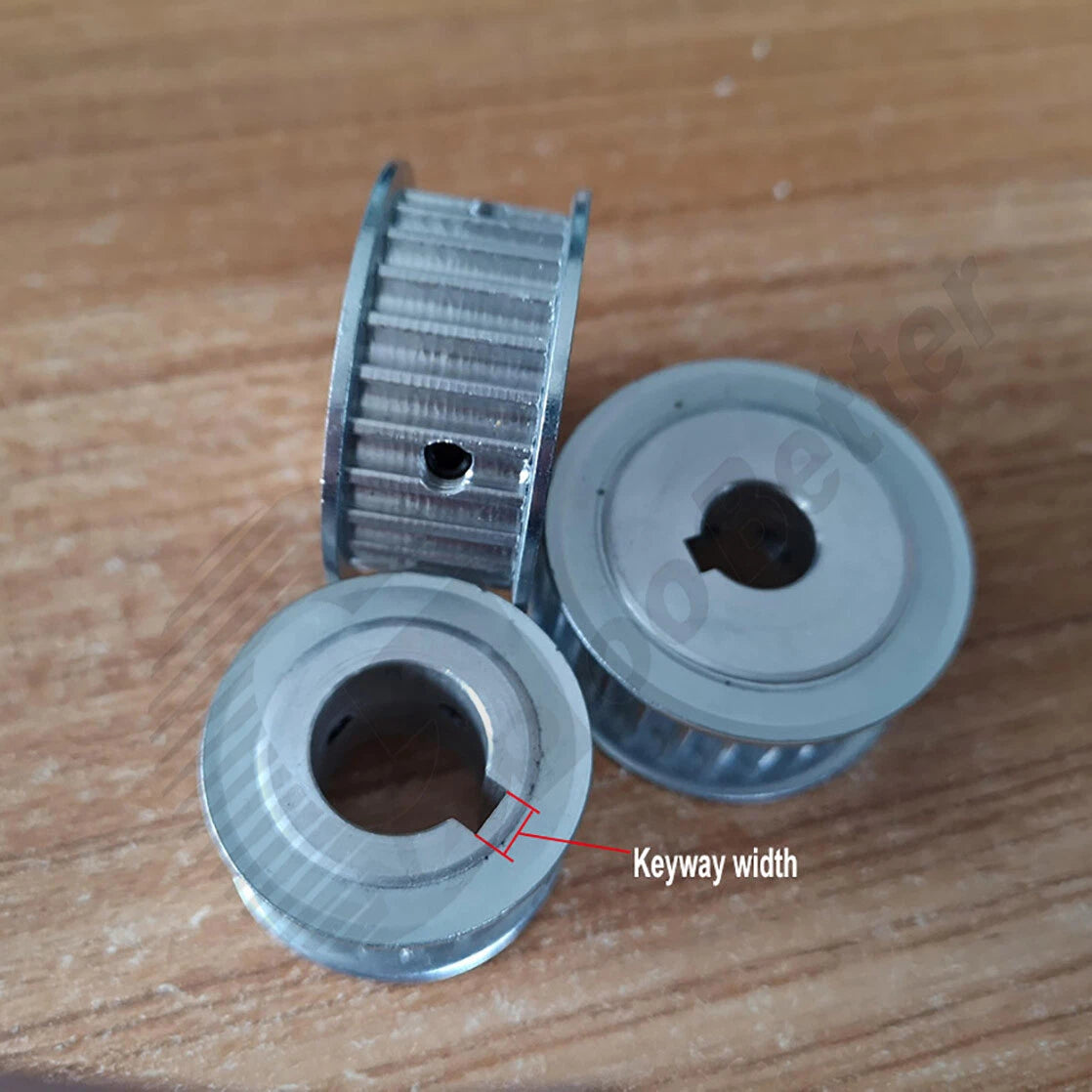

A keyway provides positive torque transmission and prevents the pulley from spinning on the shaft under load — recommended for higher-torque or high-cycle applications. Keyway width is typically matched to the shaft diameter per DIN 6885 standards: 3mm key for 8–10mm shafts, 4mm key for 12mm shafts, 5mm key for 14–15mm shafts, 6mm key for 18–20mm shafts, and 8mm key for 25mm shafts. Confirm your shaft's existing keyway dimensions before ordering.
Yes — these pulleys are designed for standard S3M (3mm pitch, trapezoidal tooth profile) synchronous belts with a 10mm belt width. They are not compatible with HTD 3M (round tooth), GT2 3mm, or other 3mm-pitch profiles that use a different tooth geometry. Check your belt's part number or tooth profile before ordering to confirm compatibility.
Aluminum alloy pulleys are well-suited for light-to-medium duty synchronous drive applications such as CNC routers, 3D printers, and small robotic joints. For continuous high-torque or heavy industrial loads, verify that the belt tension and transmitted torque remain within the rated limits of both the belt and the pulley bore/keyway. In most maker and automation applications, aluminum S3M pulleys perform reliably over extended service life.
Aluminum alloy naturally forms a protective oxide layer that resists corrosion in typical indoor environments. No lubrication is required or recommended for the pulley itself — synchronous belt drives are designed to run dry. If operating in humid or mildly corrosive environments, an anodized finish provides additional protection. Avoid prolonged exposure to strong acids, alkalis, or salt spray without additional protective coating.
In most cases, yes — provided the tooth count, bore diameter, keyway dimensions, and hub width match your existing pulley. Measure your current pulley's tooth count, bore, and overall width before ordering. The standard S3M tooth geometry ensures interchangeability with other S3M-profile pulleys. If your machine uses a flanged pulley, confirm whether flanges are required for belt tracking in your specific assembly.
