When your motion control project demands slip-free synchronous power transmission, a mismatched or poorly machined pulley becomes the weakest link in the chain. Engineers, robotics builders, and CNC hobbyists who rely on 3M pitch belt drives need a pulley that holds tight tolerances, fits a range of shaft sizes, and stays true under load. These S3M timing belt pulleys are designed for exactly that — delivering consistent, backlash-free rotation across a wide selection of tooth counts and bore configurations.

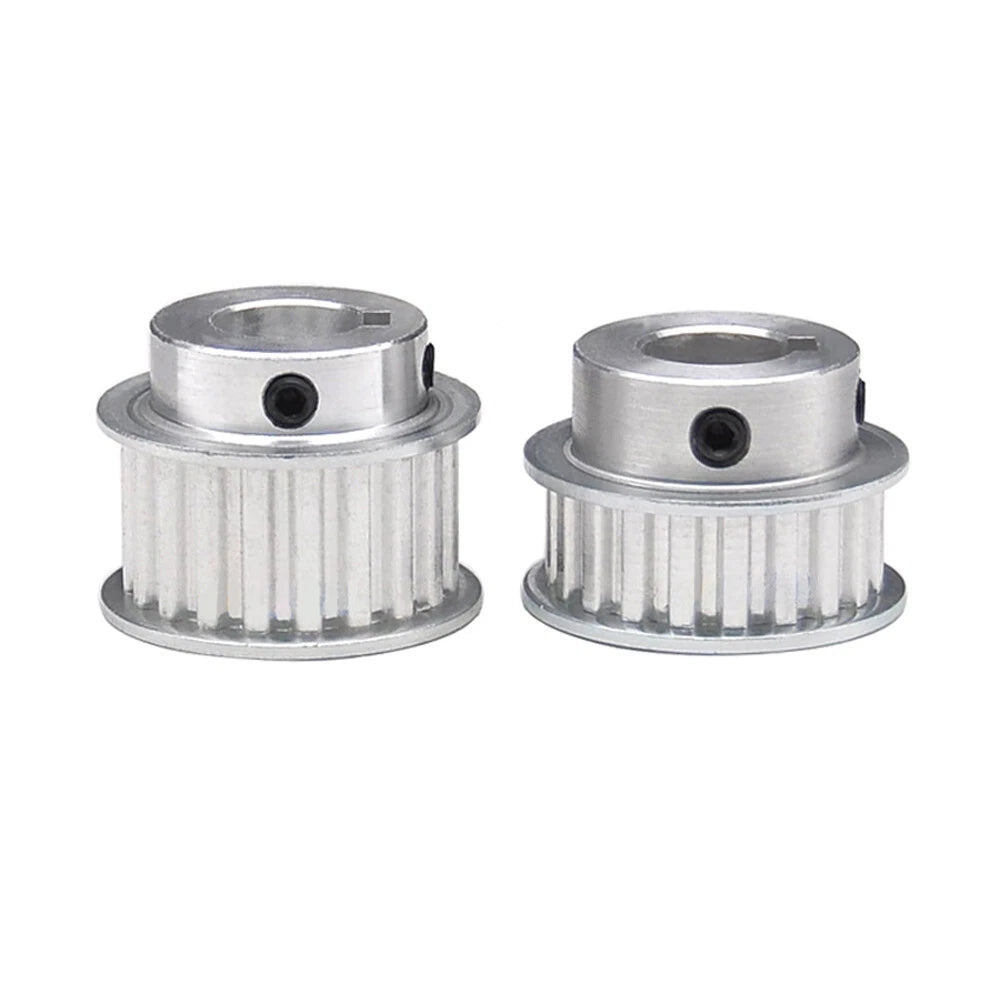

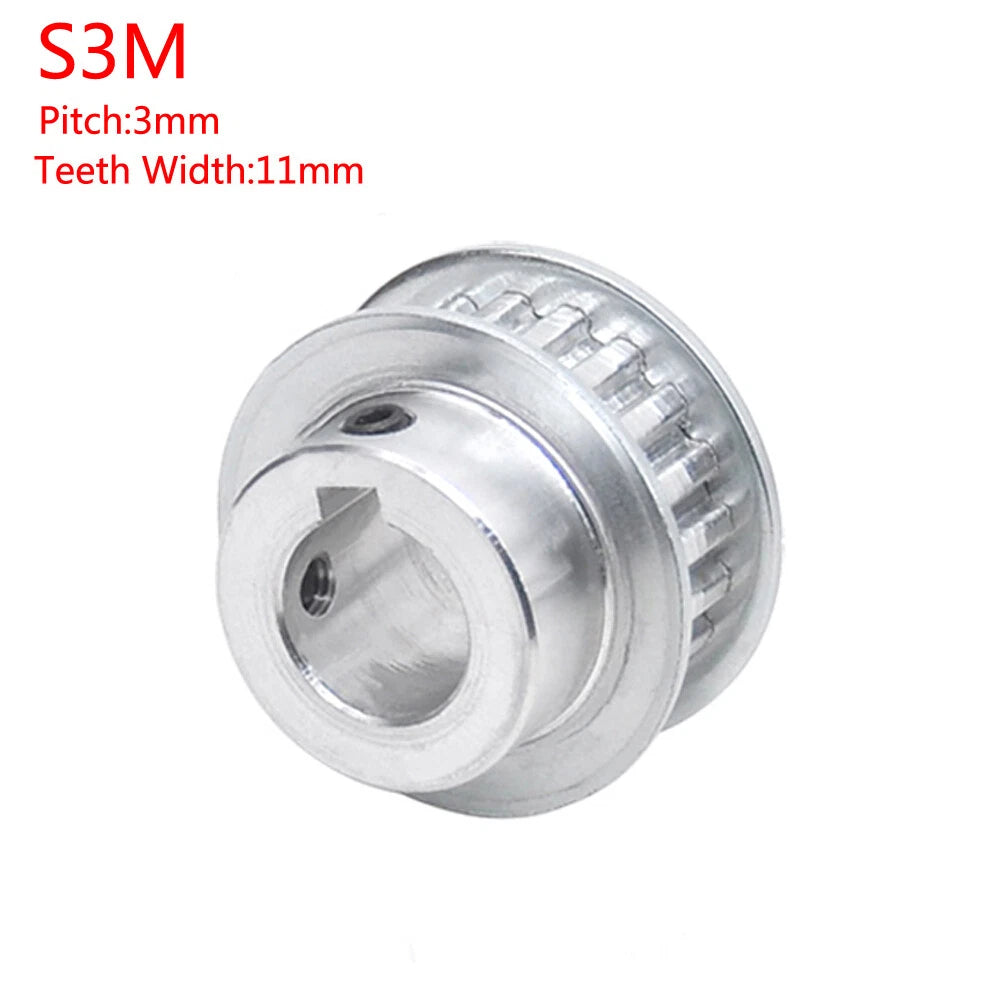

Each S3M timing belt pulley features a 3mm pitch tooth profile machined to match standard S3M synchronous belts. The pulley body width is 11mm, with bore diameters ranging from 8mm to 25mm (approximately 0.31" to 0.98") and tooth counts spanning 14T to 150T. Keyway dimensions vary by bore size: 3×1.4mm, 4×1.8mm, 5×2.3mm, 6×2.8mm, and 8×3.3mm. Two flange configurations are available — K-type (with flanges) and BF-type (flange on one side, suitable for belt-edge guidance).
These S3M drive pulleys are well-suited for 3D printer X/Y axis drives, small CNC router feed systems, robotic arm joint actuators, and conveyor indexing mechanisms where precise positioning and repeatable motion are required. The standardized S3M tooth profile ensures compatibility with any commercially available 3M pitch synchronous belt.
| Belt Pitch | 3mm (S3M) |
|---|---|
| Pulley Width | 11mm (0.43") |
| Tooth Count Range | 14T – 150T |
| Bore Diameter Range | 8mm – 25mm (0.31" – 0.98") |
| Keyway Options | 3×1.4mm / 4×1.8mm / 5×2.3mm / 6×2.8mm / 8×3.3mm |
| Flange Type | K-type (both sides) / BF-type (one side) |
| Compatible Belt | S3M synchronous timing belt (3mm pitch) |
| Material | See variant options |
| Finish / Color | See variant options |
| Weight | See variant options |
The tooth count determines the pulley's pitch diameter and affects your drive ratio. For a given belt pitch (3mm), a higher tooth count means a larger pulley diameter and lower output speed at the same RPM. Match the tooth count to your required gear ratio: divide the driven pulley teeth by the driving pulley teeth to get the reduction ratio. For 3D printers and CNC routers, common driving pulleys range from 14T to 30T.

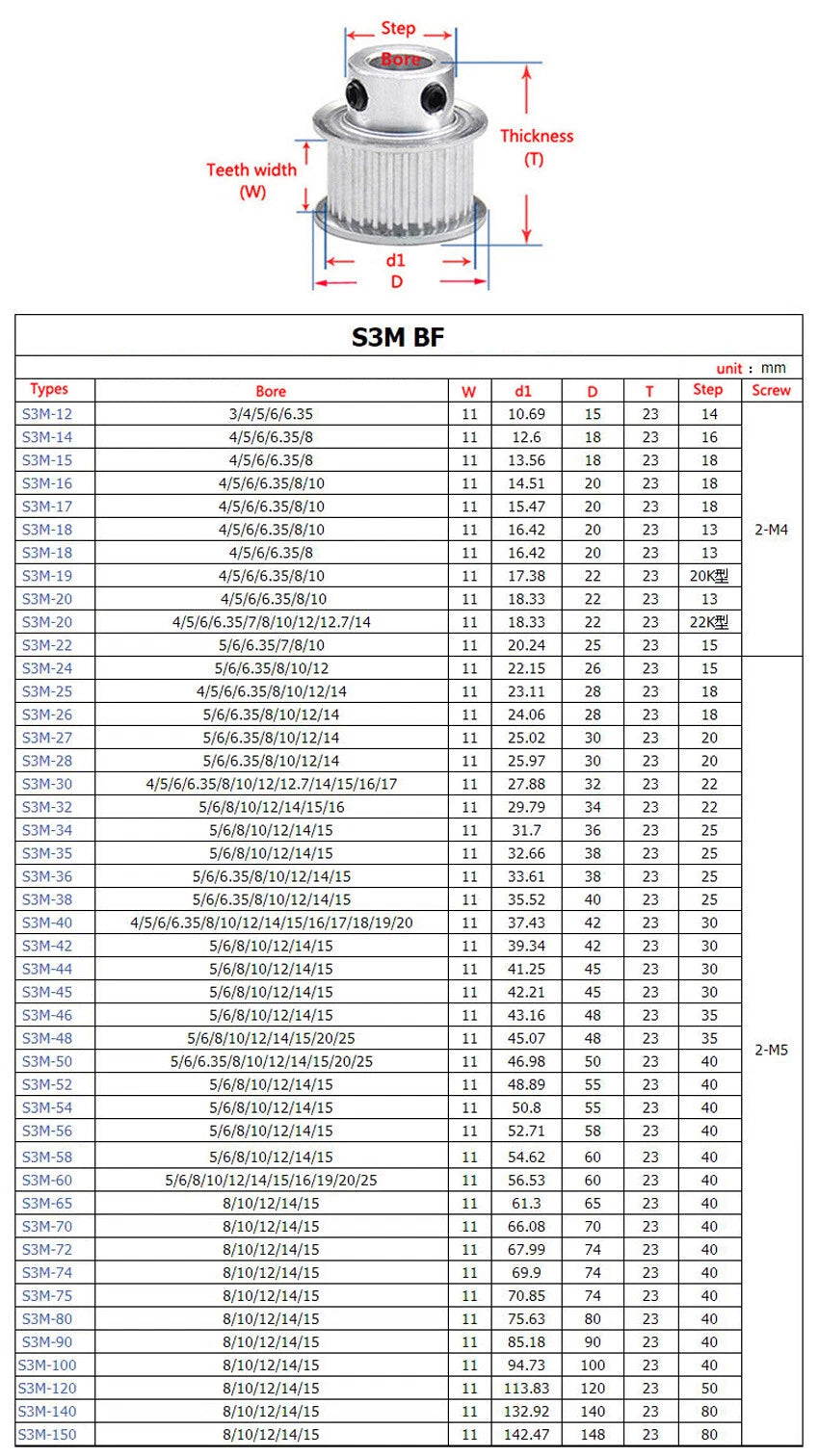

Measure your motor or drive shaft diameter precisely with calipers. Select the bore size that matches your shaft (e.g., 8mm shaft → 8mm bore). The keyway must match the key already cut into your shaft — check the key width and depth. Standard pairings on this product: 8–10mm bore uses 3×1.4mm or 4×1.8mm keyway; 12–15mm bore uses 4×1.8mm or 5×2.3mm; 16–20mm bore uses 5×2.3mm or 6×2.8mm; 25mm bore uses 8×3.3mm.

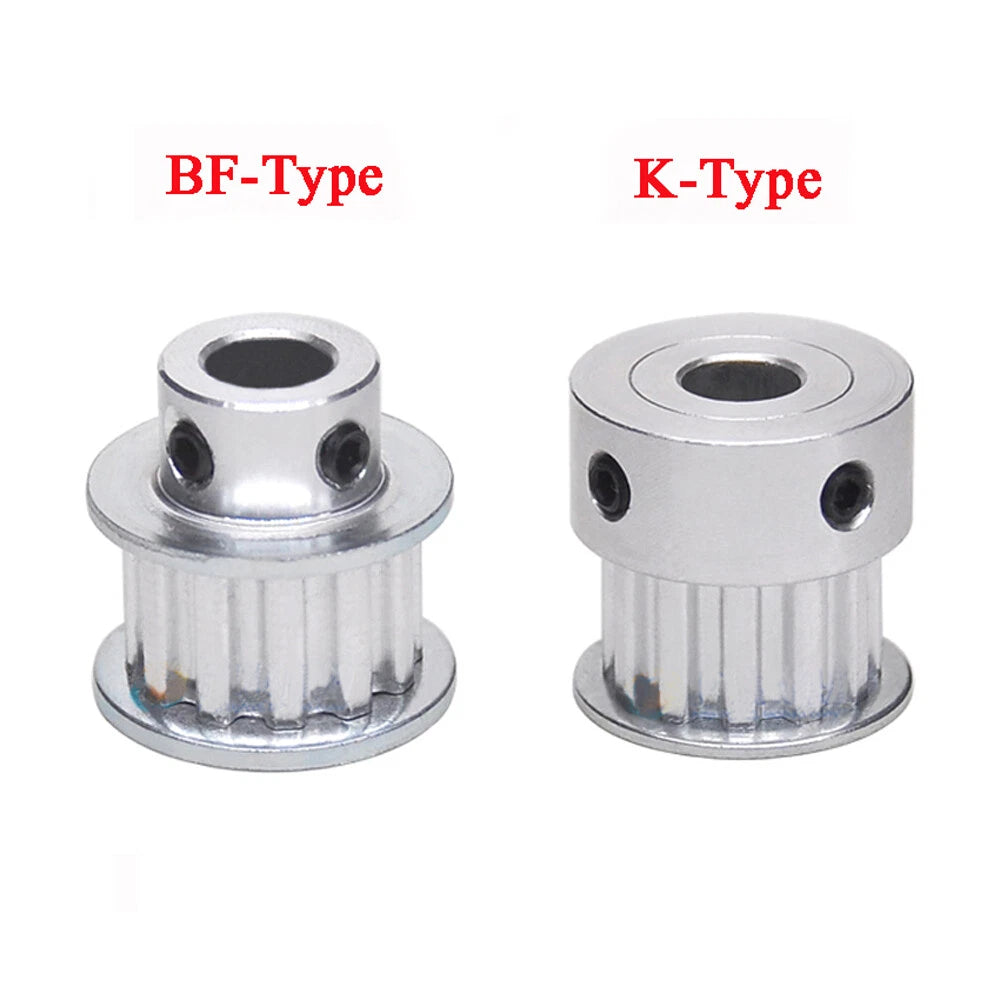

K-type pulleys have flanges on both sides of the tooth profile, which keeps the belt centered and prevents it from walking off the pulley — ideal for most standard drive setups. BF-type pulleys have a flange on one side only, which is useful when the belt needs to be guided from one direction or when the assembly requires lateral adjustment. For most 3D printer and CNC applications, K-type is the standard choice.
Yes — as long as your belt has a 3mm pitch (S3M profile), this pulley will mesh correctly. Verify that your belt width is 11mm or narrower to fit within the pulley body. The S3M tooth profile is an industry-standard synchronous belt specification, so any belt labeled S3M or 3M pitch from any manufacturer should be compatible.
The load capacity depends on the tooth count, bore size, and the torque transmitted through the keyway connection. For light-to-medium duty applications such as 3D printers, small CNC routers, and robotics joints, these pulleys are well-suited for continuous operation. For heavy industrial loads or high-shock applications, confirm the material specification matches your torque and speed requirements before ordering — contact us to confirm material details for your specific variant.
Corrosion resistance depends on the material and finish of the specific variant. If your application involves moisture, humidity, or outdoor exposure, contact us to confirm the material and surface treatment for the variant you are considering. For indoor dry environments such as 3D printers and enclosed CNC machines, standard variants are suitable for long-term use without corrosion concerns.

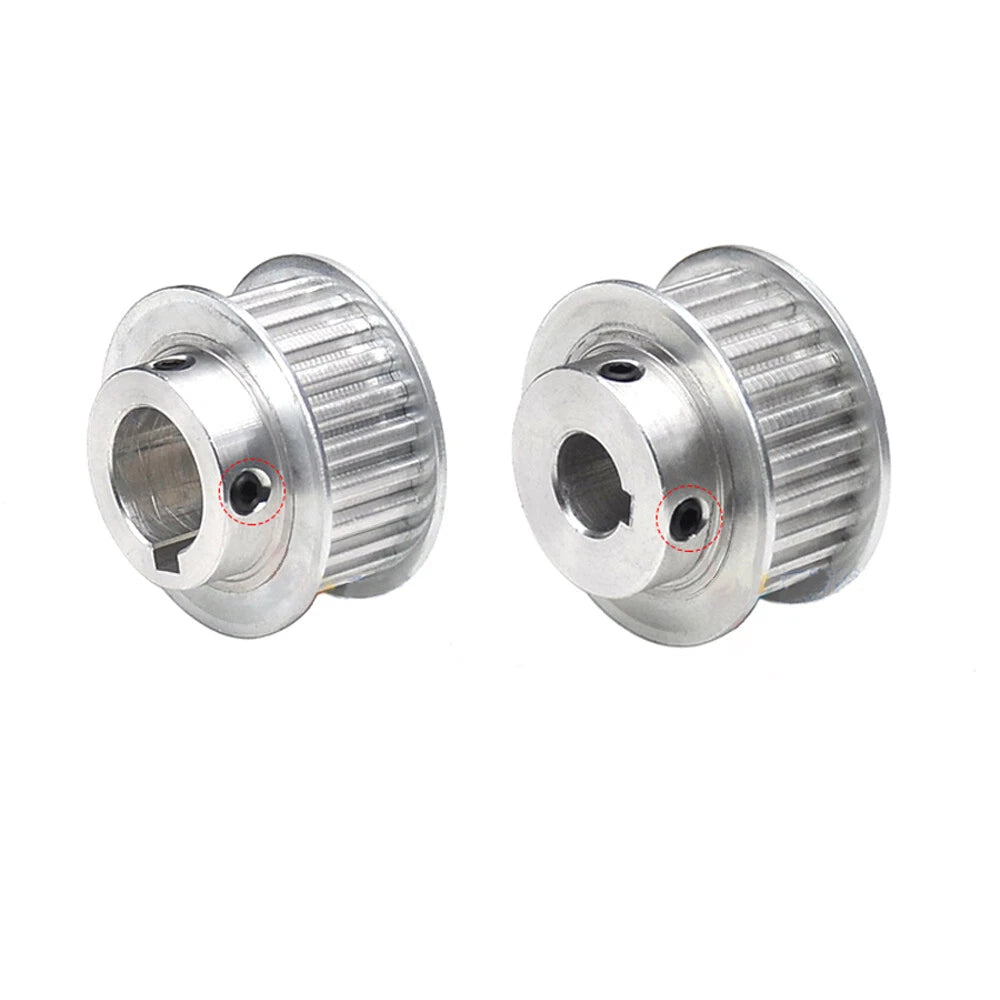

The pulley is designed with a keyway for positive torque transmission via a key. While a set screw alone can work for very low-torque applications, it is not recommended for applications where the shaft reverses direction or experiences shock loads, as the set screw may slip over time. For reliable performance, use the keyway with a properly fitted key and supplement with a set screw if needed.
