Engineers and makers working with S3M synchronous belt drives often struggle to find pulleys that combine dimensional accuracy with a broad bore selection in a single listing. This S3M 15mm timing belt smooth tooth drive pulley is designed for hobbyists, robotics builders, CNC machine assemblers, and small-equipment manufacturers who need a reliable, drop-in drive component without custom machining.

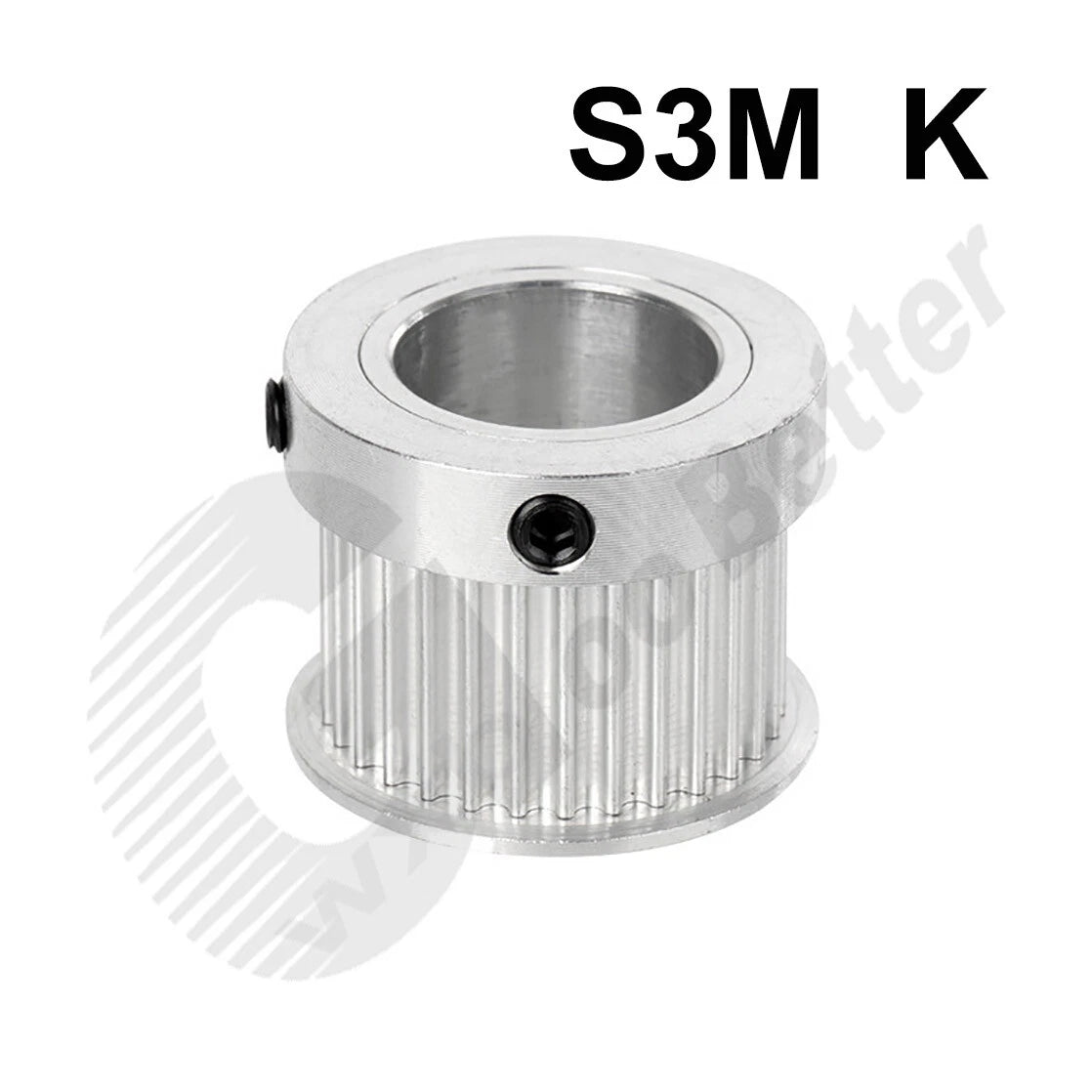

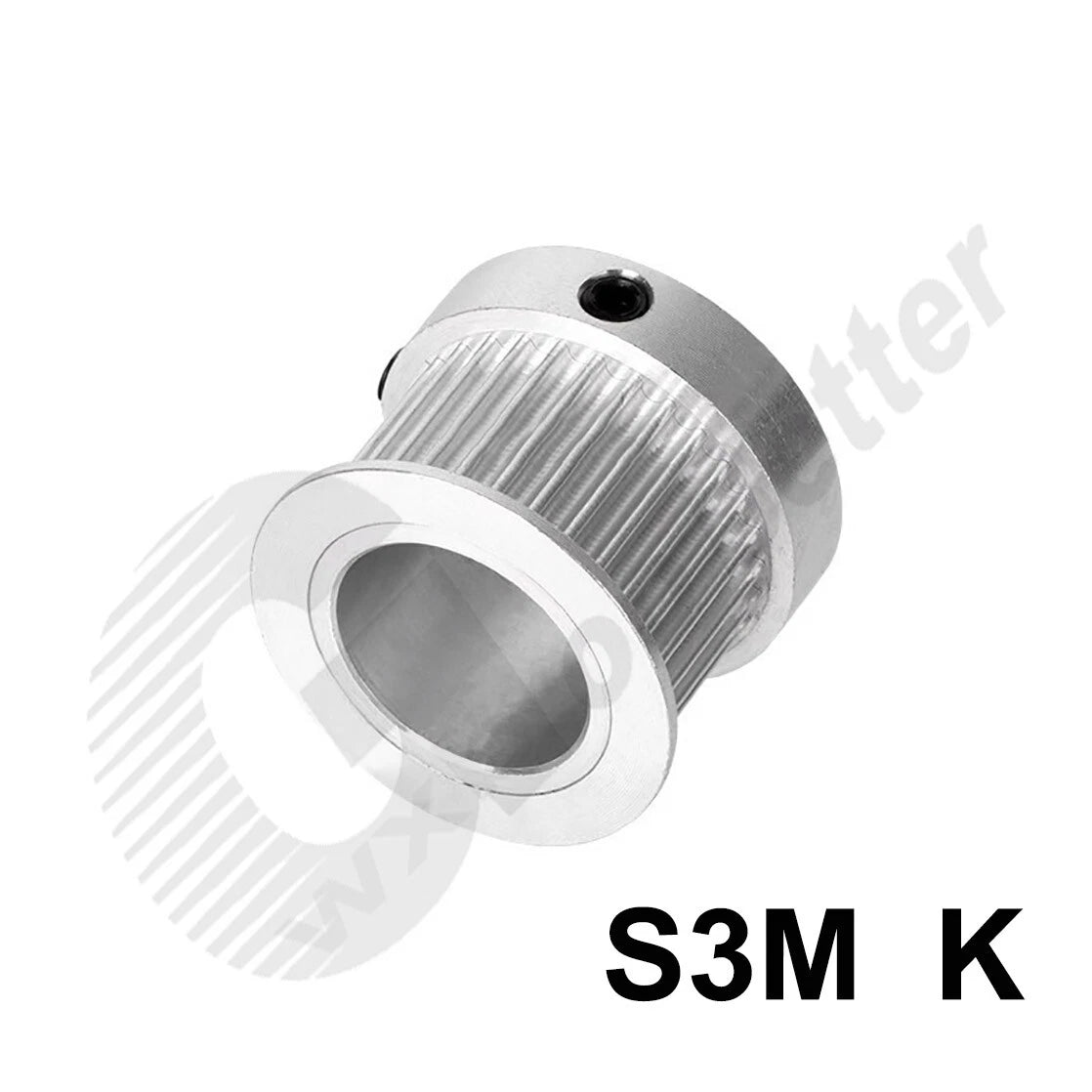

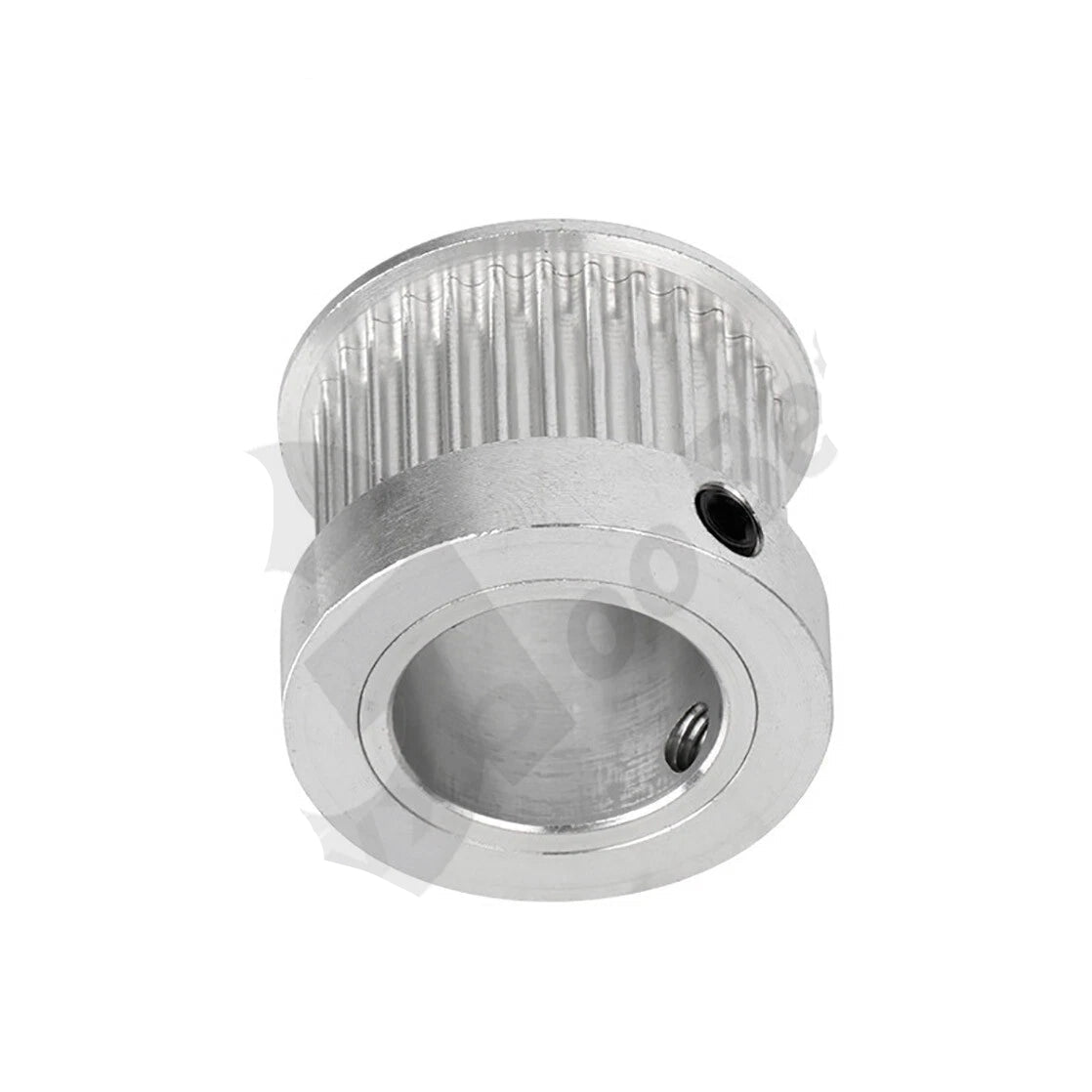

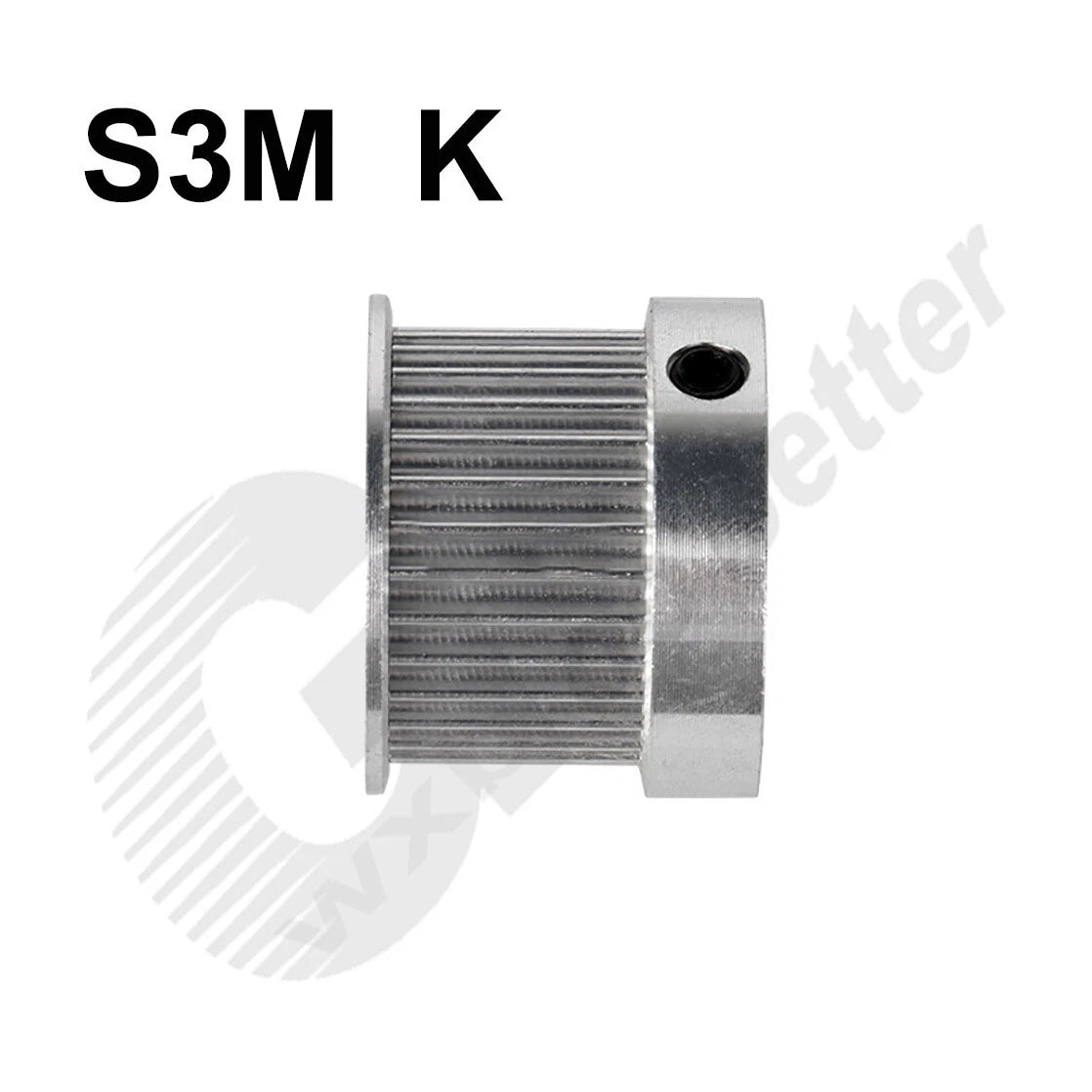

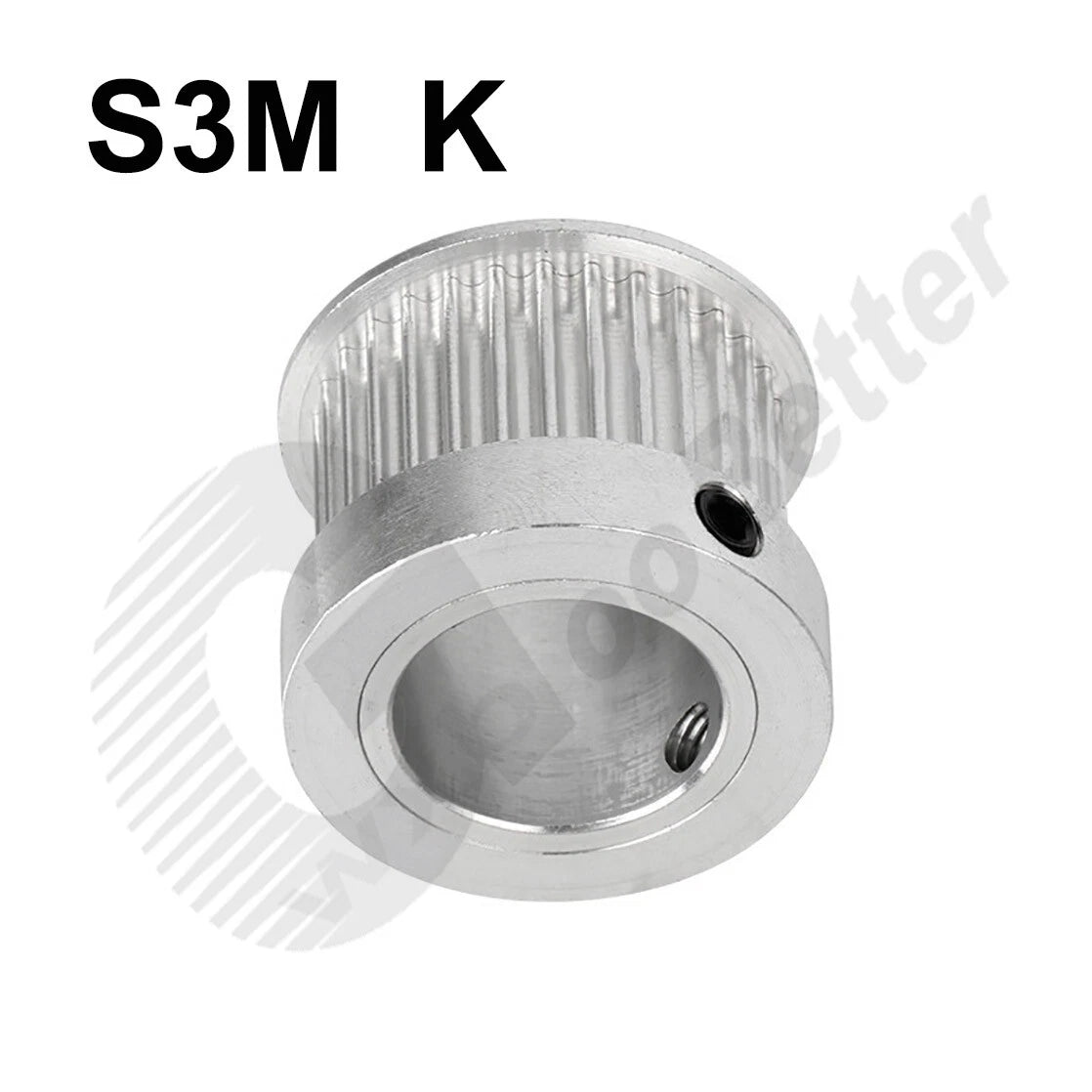

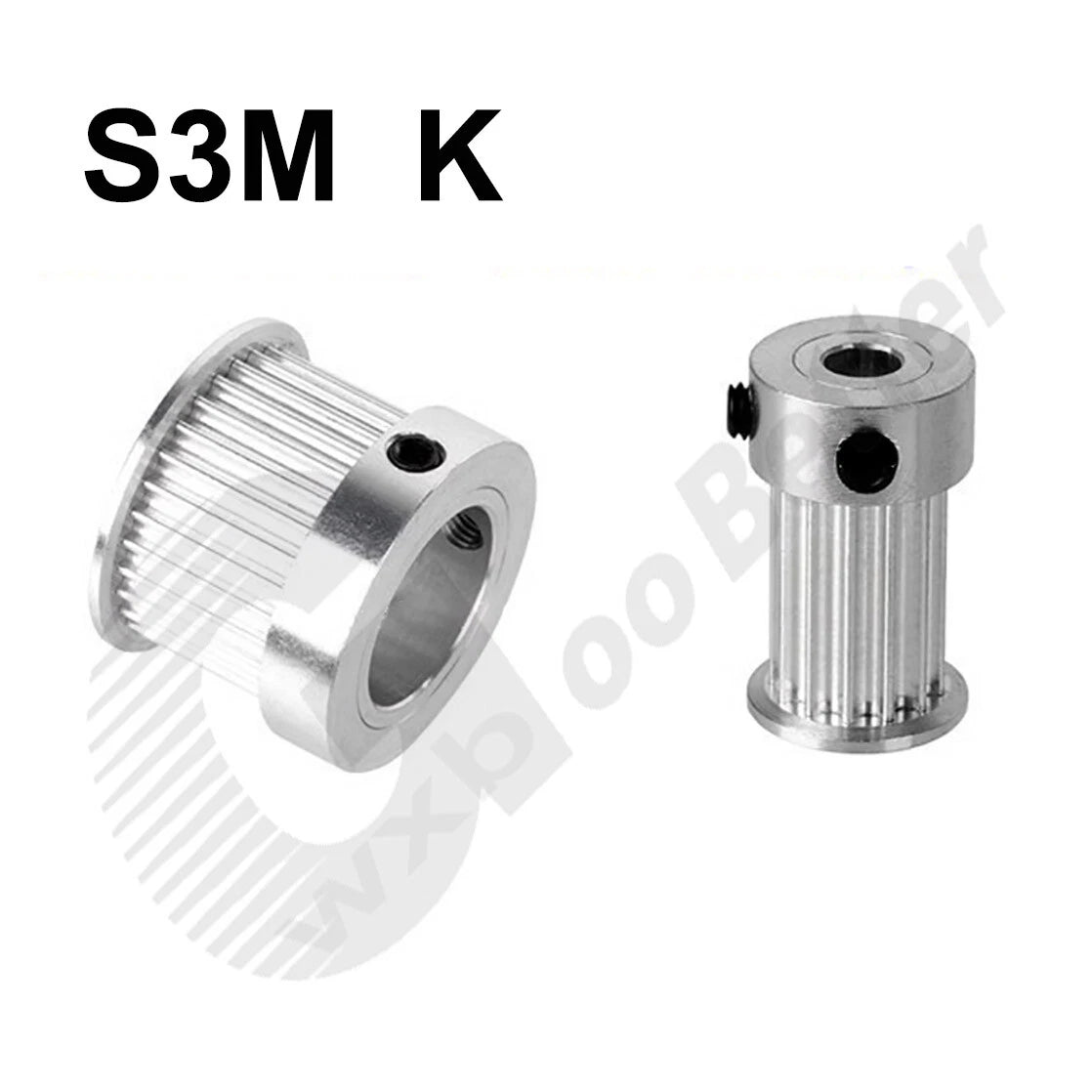

Each pulley is machined from aluminum alloy to suit S3M (3mm pitch) timing belts with a 15mm belt width. Tooth count ranges from 12 T to 30 T, and bore diameter options span 5 mm to 20 mm (approximately 0.197 in to 0.787 in), with select variants available with a precision keyway (3 mm, 4 mm, 5 mm, or 6 mm) for positive shaft engagement. Available in quantities of 1 or 2 pieces per order.
Typical use cases include 3D printer X/Y axis drives requiring S3M 15mm belt pulleys, compact conveyor systems needing synchronous drive pulleys with keyway, and DIY CNC router Z-axis assemblies using 3mm pitch aluminum timing pulleys.

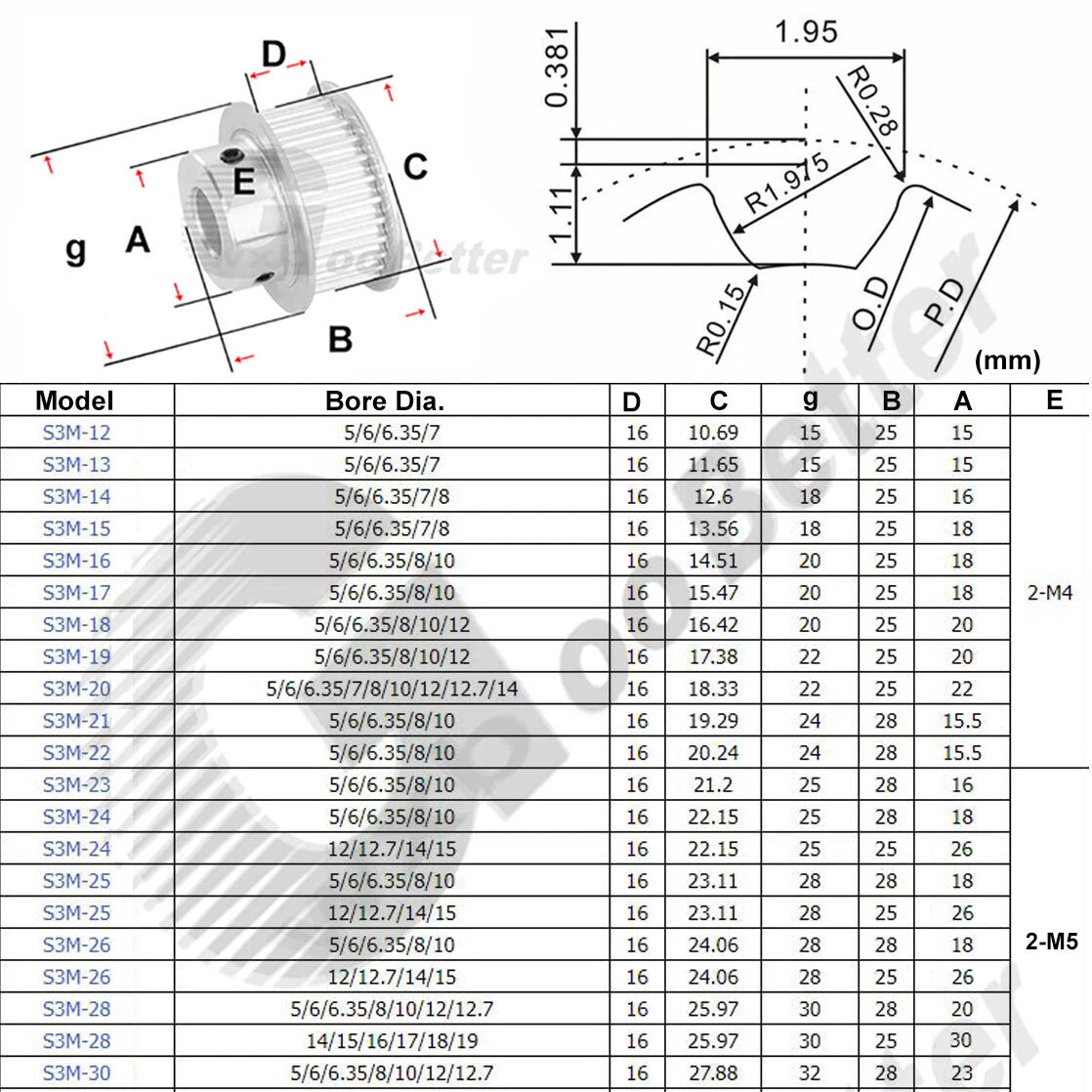

| Belt Standard | S3M (Synchronous 3mm pitch) |
|---|---|
| Belt Width | 15 mm (0.591 in) |
| Tooth Pitch | 3 mm |
| Number of Teeth | 12 T – 30 T (see variant options) |
| Bore Diameter | 5 mm – 20 mm (see variant options) |
| Keyway Width | Without keyway / 3 mm / 4 mm / 5 mm / 6 mm (see variant options) |
| Quantity per Order | 1 pc or 2 pcs (see variant options) |
| Material | Aluminum alloy |
| Tooth Profile | Smooth tooth (S3M standard) |
| Hub Width | 16 mm (nominal, consistent across variants) |
| Outer Diameter | See variant options |
| Surface Finish | See variant options |
The tooth count determines your drive ratio. Divide the driven pulley teeth by the drive pulley teeth to get the ratio. For example, a 12 T drive pulley paired with a 24 T driven pulley gives a 2:1 reduction. Choose a tooth count that achieves your target speed or torque ratio while keeping the belt wrap angle above 90° on the smaller pulley.
Measure your motor or drive shaft diameter precisely with calipers. Select the bore that matches exactly — a bore that is too large will cause runout and slippage. Common stepper motor shaft sizes are 5 mm and 6.35 mm (1/4"); servo motors often use 8 mm or 10 mm shafts. If your shaft is imperial (e.g., 1/2"), select the 12.7 mm bore option.
A keyway is recommended for applications with significant torque, reversing loads, or where shaft slippage is unacceptable (e.g., CNC axes, conveyor drives). The keyway width must match the key stock on your shaft. Standard metric key widths for common bore sizes: 8 mm bore → 3 mm key; 10 mm bore → 3 mm key; 12–14 mm bore → 4–5 mm key; 15–20 mm bore → 5–6 mm key. Confirm against your shaft specification before ordering.
This pulley is designed for 15mm wide S3M belts. While the 3mm tooth pitch is the same across all S3M belt widths, using a narrower belt on a 15mm pulley will reduce load capacity and may cause belt tracking issues. For 6mm or 9mm S3M belts, use a pulley with a matching hub width. Do not use this pulley with S2M (2mm pitch) or HTD 3M belts — the tooth profiles are not interchangeable.
Aluminum alloy pulleys are well-suited for light-to-medium duty synchronous drive applications such as 3D printers, CNC routers, pick-and-place machines, and small conveyors. For heavy industrial loads, high-shock environments, or continuous high-torque operation, consider whether a steel pulley is more appropriate. The S3M belt itself is typically the limiting factor in load capacity before the aluminum pulley becomes a concern.
Aluminum alloy naturally forms a protective oxide layer that resists corrosion in typical indoor environments. No lubrication is required or recommended for the pulley-belt interface — synchronous timing belts are designed to run dry. If operating in a humid or mildly corrosive environment, an anodized finish provides additional protection. Avoid prolonged exposure to salt spray or strong acids.
Yes. The 2-piece quantity option is specifically intended for paired drive/driven configurations where both pulleys share the same tooth count (1:1 ratio) or where you need two identical pulleys. If you require different tooth counts for a speed reduction or increase, order the appropriate tooth count variants separately.
