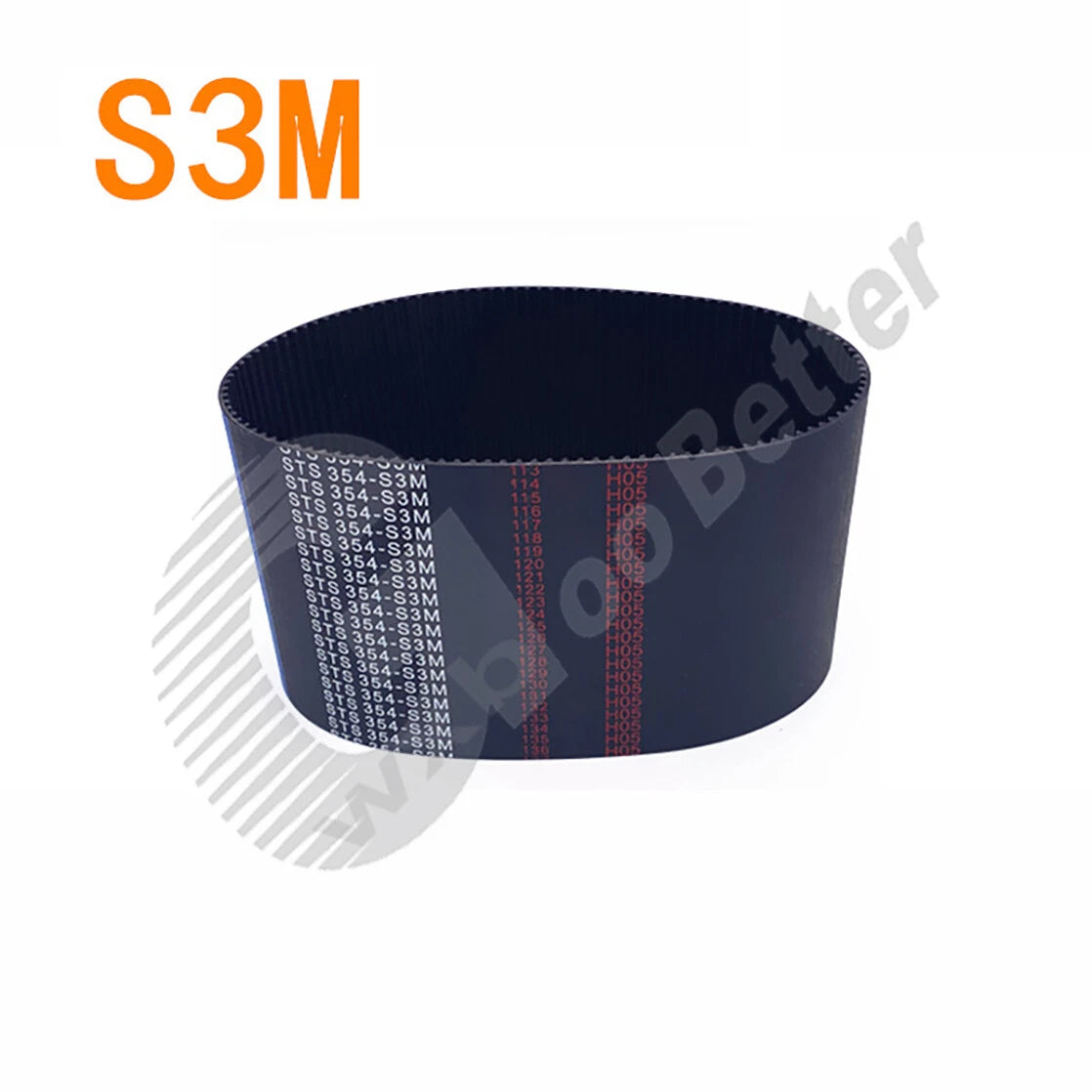

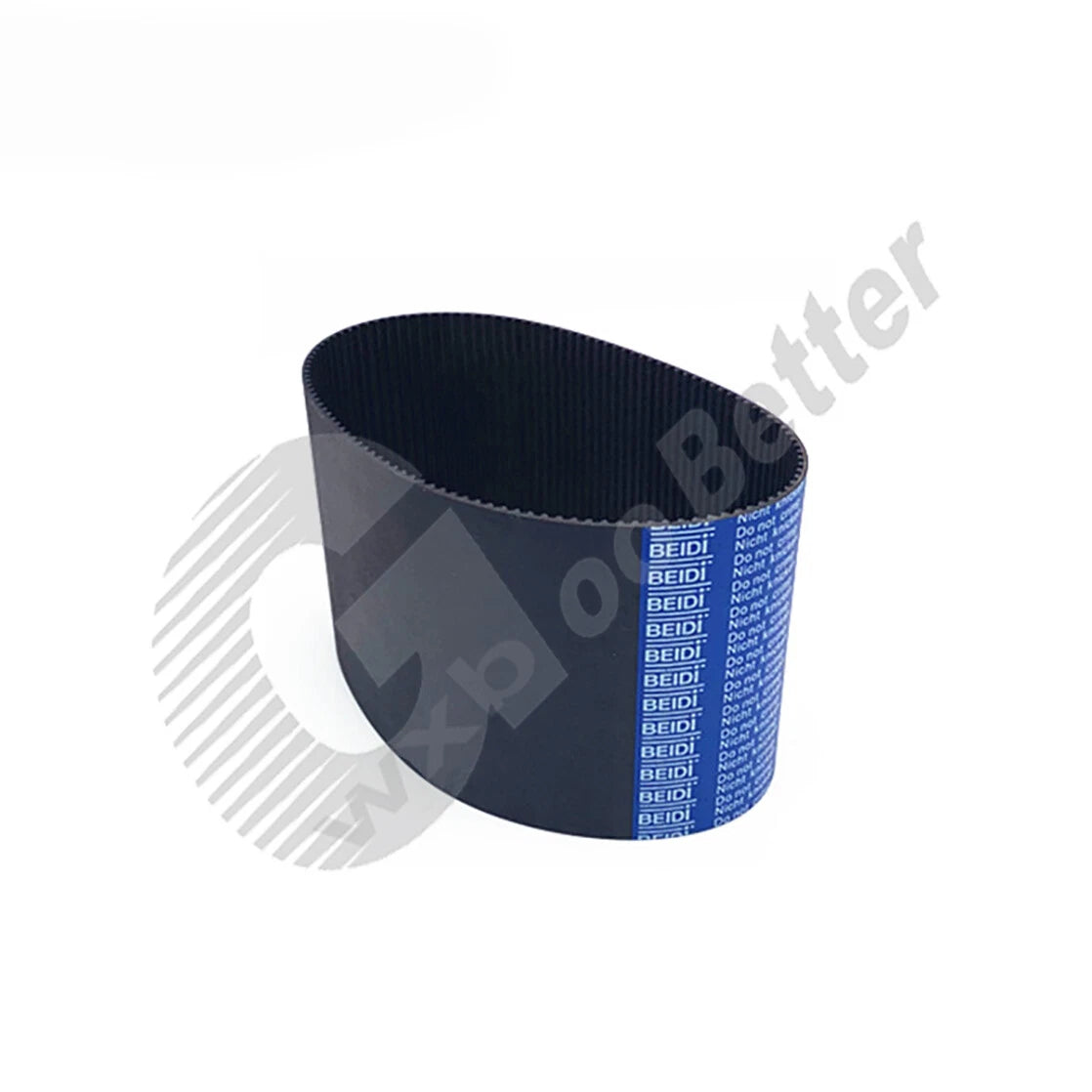

S3M Timing Belt 6mm Wide Closed Loop Synchronous Drive Belt for Pulleys — 402mm to 4500mm

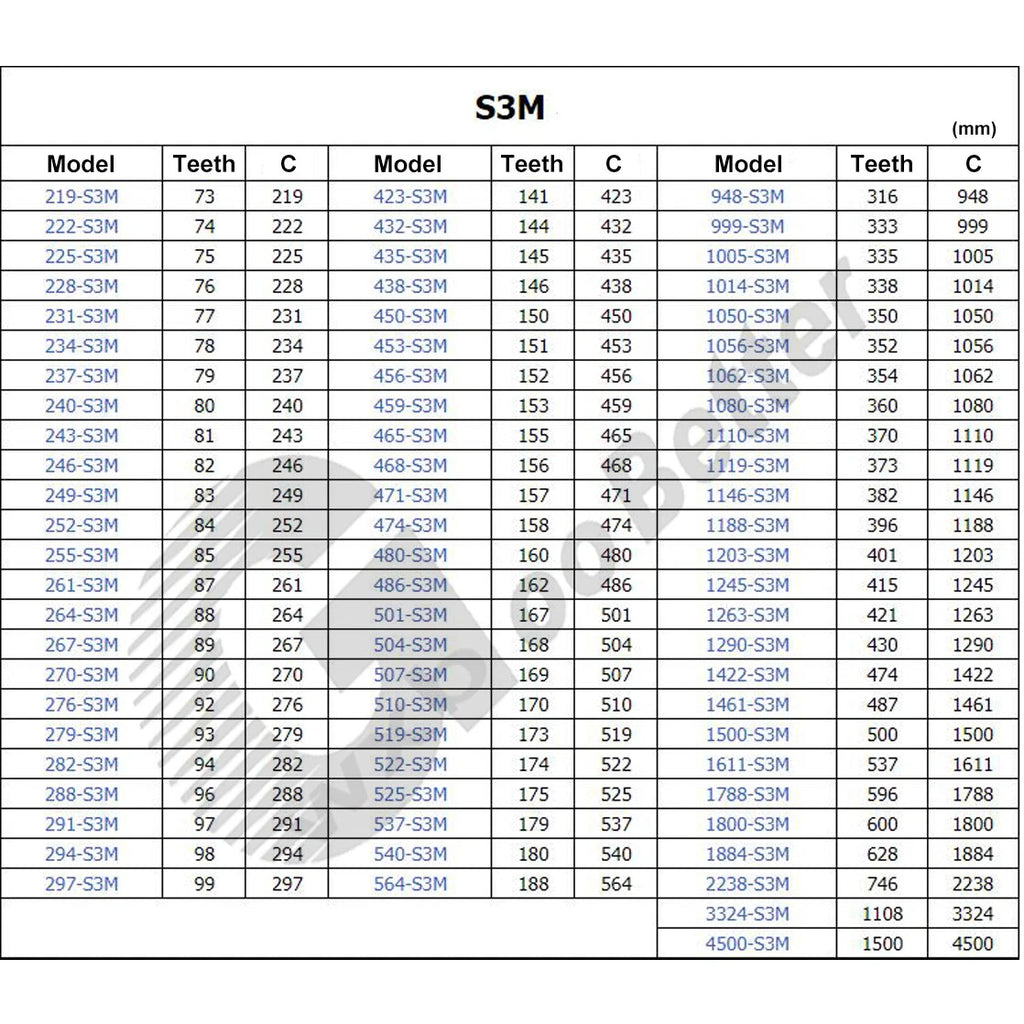

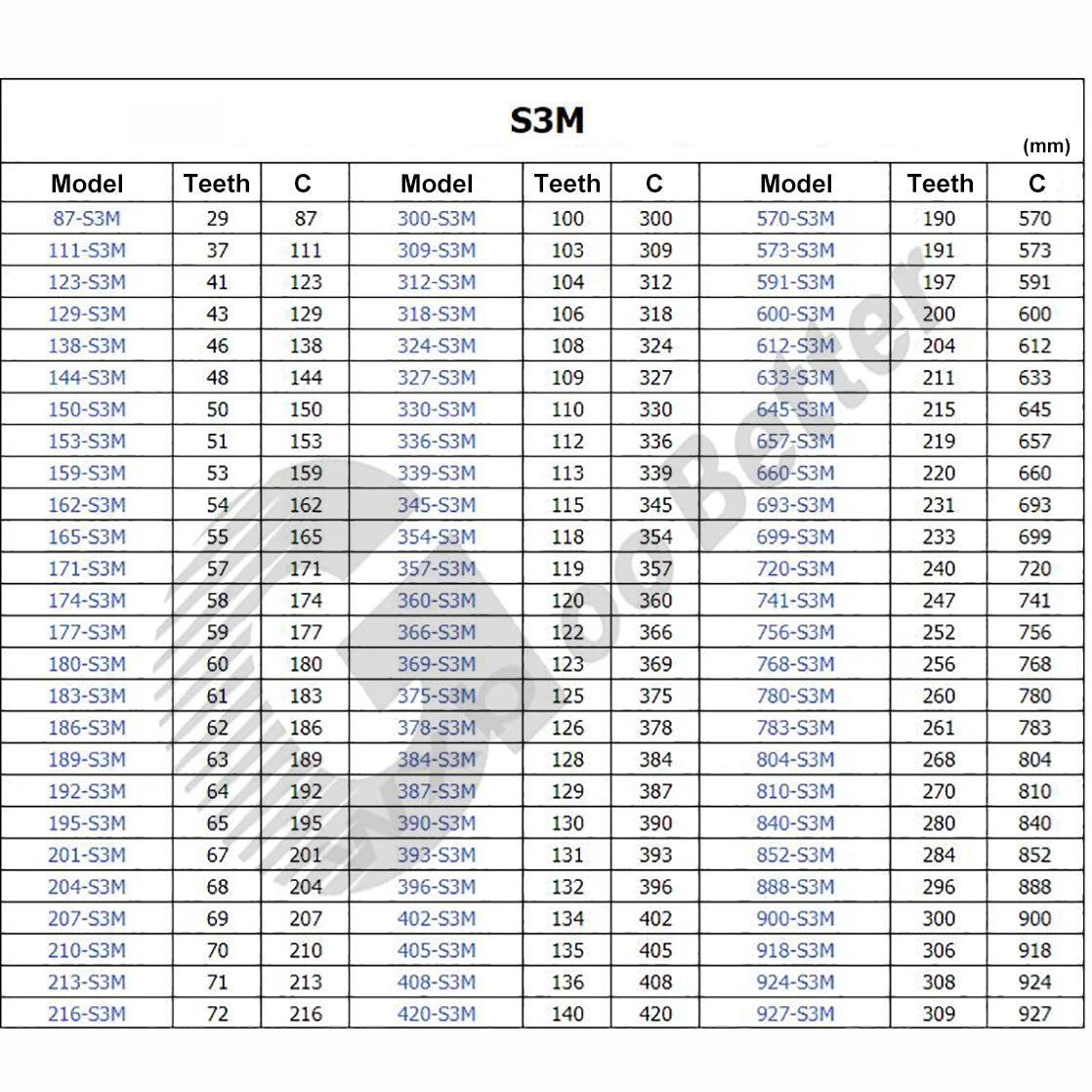

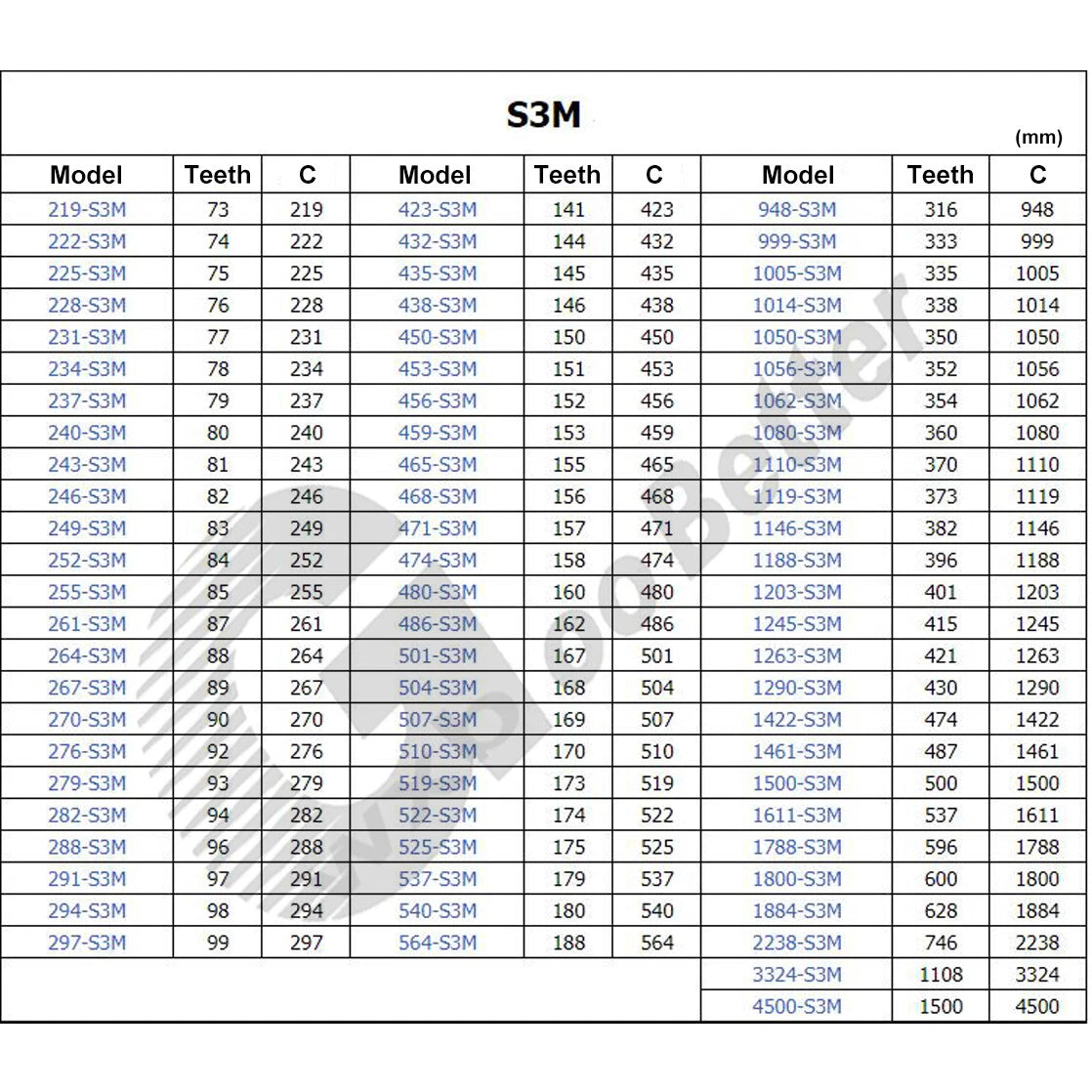

Measure the center-to-center distance between your two pulleys, then use the belt length formula: L = 2C + π(D1+D2)/2. For a quick field measurement, wrap a string around both pulleys and measure the total loop length. Belt sizes are listed in mm — to convert to inches, divide by 25.4 (e.g., 402mm ≈ 15.8", 600mm ≈ 23.6", 1000mm ≈ 39.4"). Always select the closest available size that meets or slightly exceeds your calculated length.

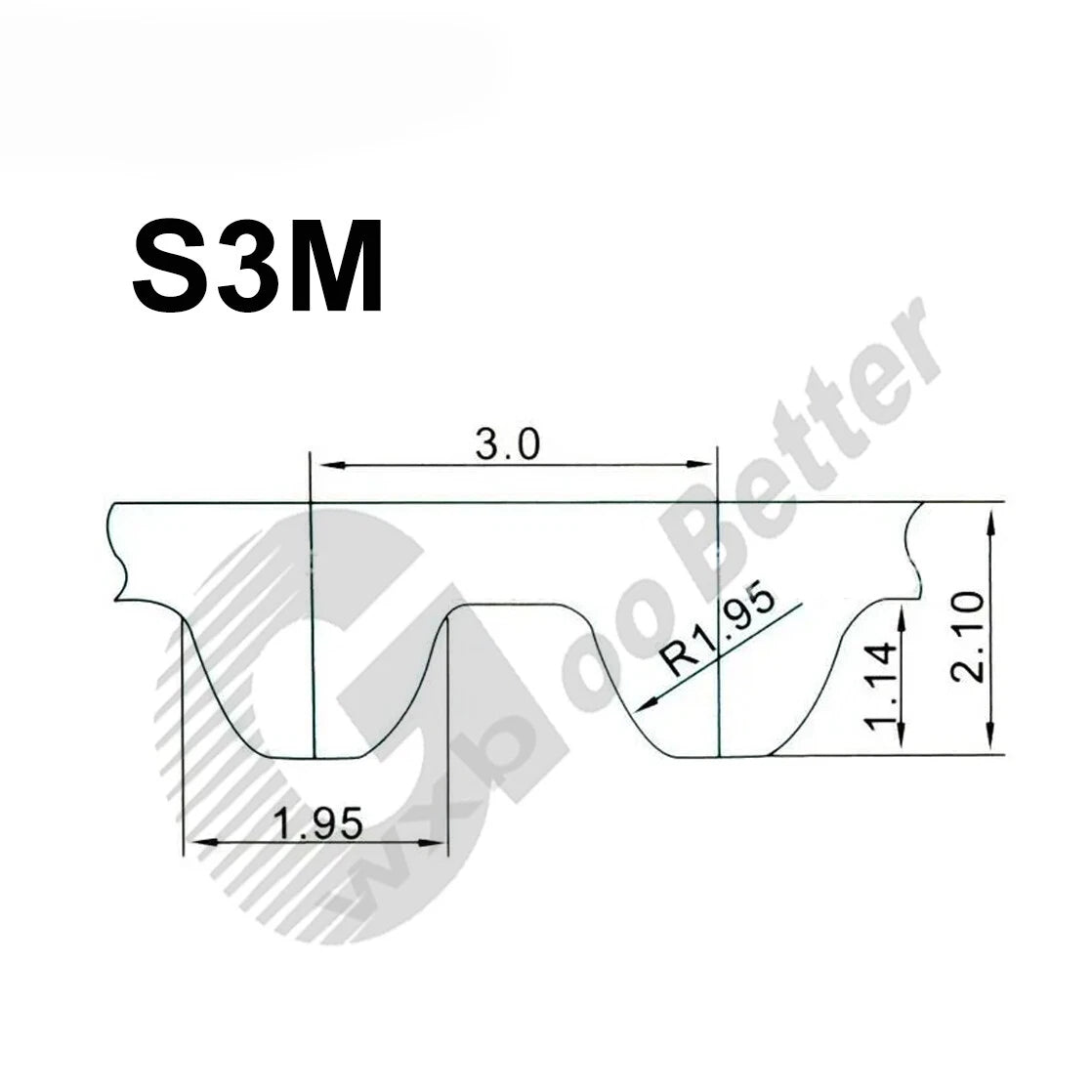

This belt uses the S3M pitch standard — 3mm tooth pitch with a trapezoidal tooth profile. Pitch must match your pulley exactly. Using a mismatched pitch (e.g., GT2 at 2mm or HTD3M) will cause poor meshing, noise, and premature wear. Always verify your pulley is labeled S3M before ordering.

S3M belts at 6mm width are generally suited for light-to-medium duty applications. Typical use cases include 3D printer axis drives, small CNC routers, and light conveyor systems. Actual load capacity depends on pulley diameter, belt speed, and wrap angle. For heavy industrial loads, a wider belt or higher-pitch series (e.g., S5M or HTD5M) is typically recommended.

Neoprene rubber timing belts are generally resistant to moderate moisture and dust. However, prolonged exposure to UV radiation, petroleum-based oils, or extreme temperatures (typically outside –20°C to +80°C / –4°F to +176°F) may reduce belt life. For outdoor or harsh-environment installations, consider adding a protective cover and inspect the belt periodically for cracking or glazing.

No. S3M belts use a trapezoidal tooth profile that is specific to the S-series standard. GT2 belts use a curvilinear (rounded) tooth profile, and HTD belts use a round-root tooth form. These profiles are not interchangeable. Using an S3M belt on a GT2 or HTD pulley will result in poor engagement and potential belt skipping.

Check your pulley's datasheet or label for the designation S3M, a tooth pitch of 3mm, and a trapezoidal tooth form. The pulley groove width should be at least 6mm to accommodate this belt. If you're unsure, contact us with your pulley model number or a photo and we'll help confirm compatibility before you order.

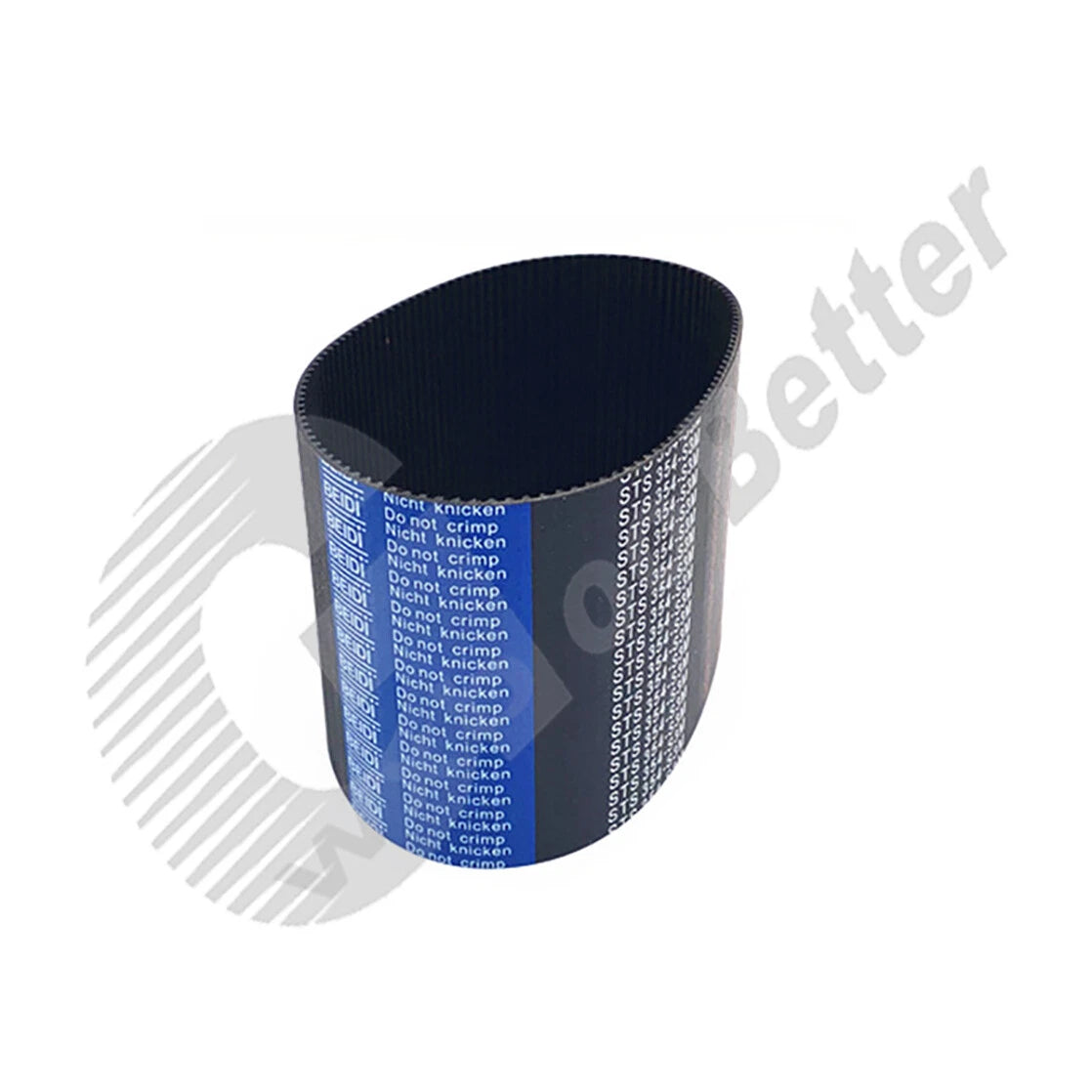

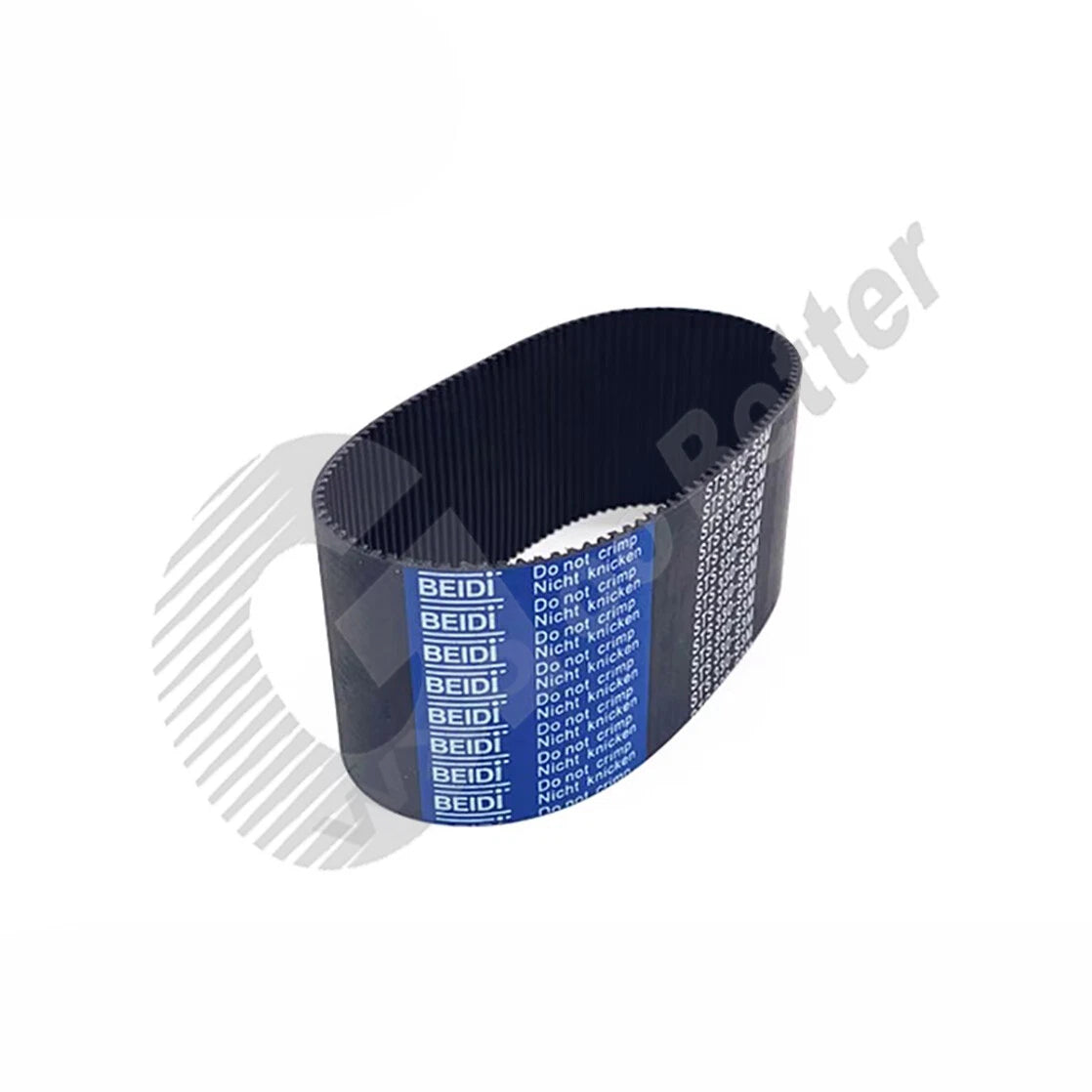

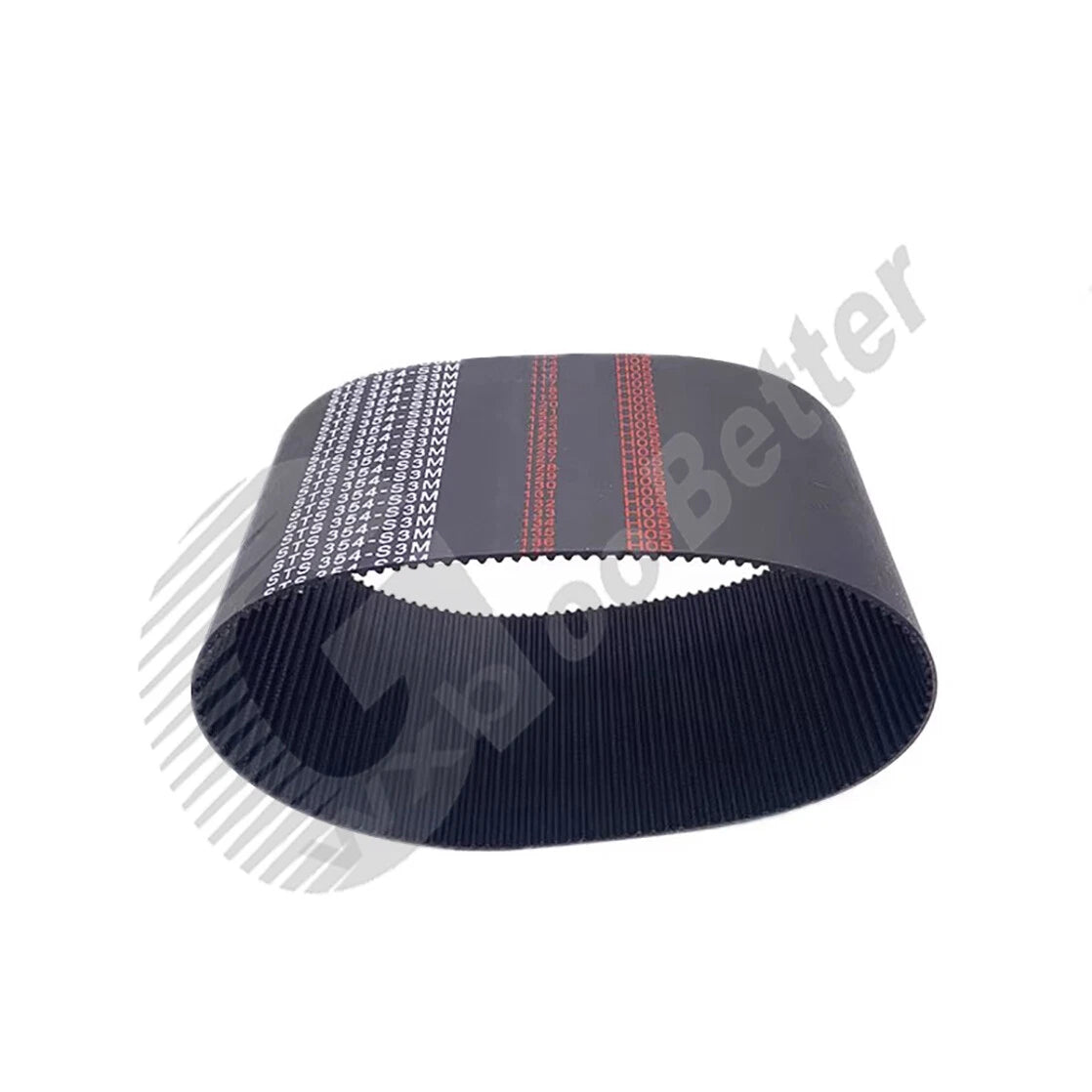

S3M timing belts are typically constructed from neoprene rubber with an internal fiberglass or steel cord tensile layer. The neoprene body provides flexibility and resistance to repeated bending, while the cord reinforcement prevents elongation under load — critical for maintaining accurate positioning in CNC and 3D printer applications.
