S3M Timing Belt Pulley 3mm Pitch — Reliable Drive for DIY Automation Projects
When your automation build demands consistent, slip-free power transfer, a mismatched or worn pulley becomes the weakest link in the entire drivetrain. Makers, hobbyists, and small-workshop engineers who rely on S3M timing belts need a pulley that holds tight tolerances and fits their shaft without play. This S3M timing belt pulley with 3mm pitch is engineered for exactly that — giving you a dependable, drop-in drive component for your next project.

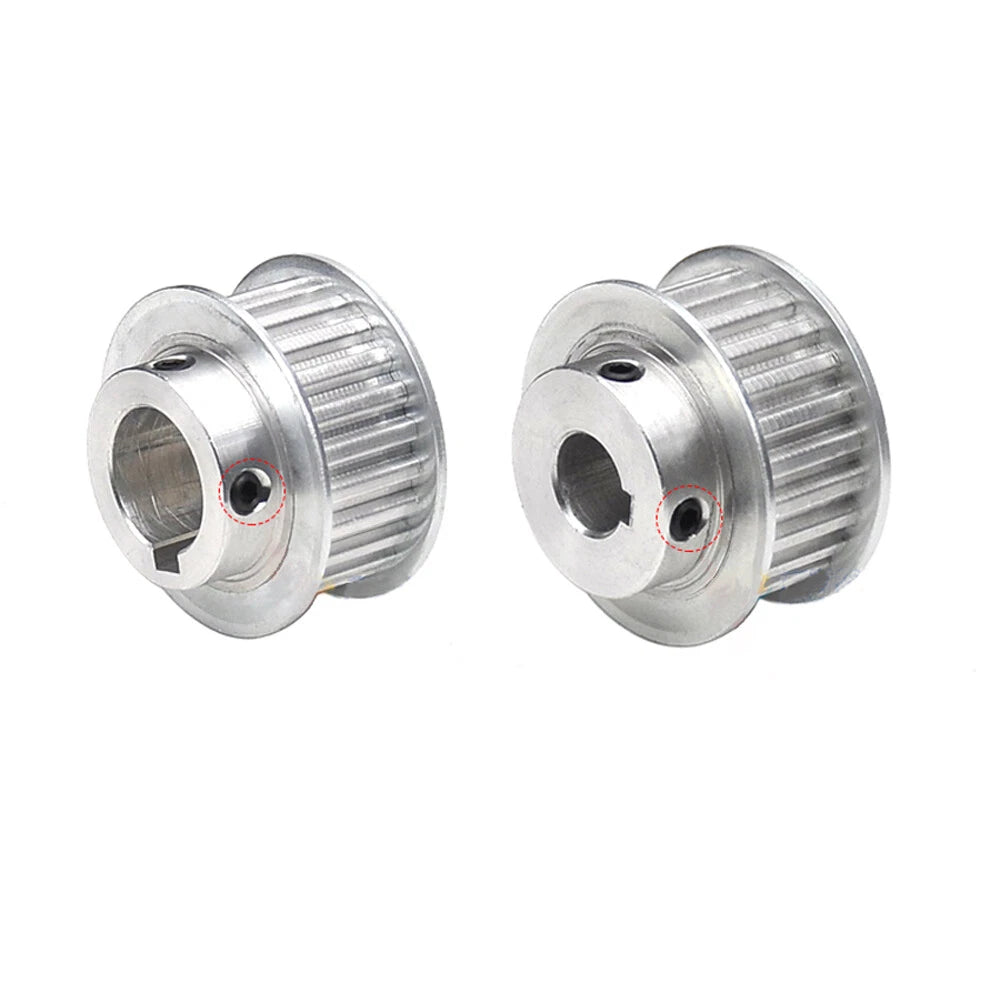

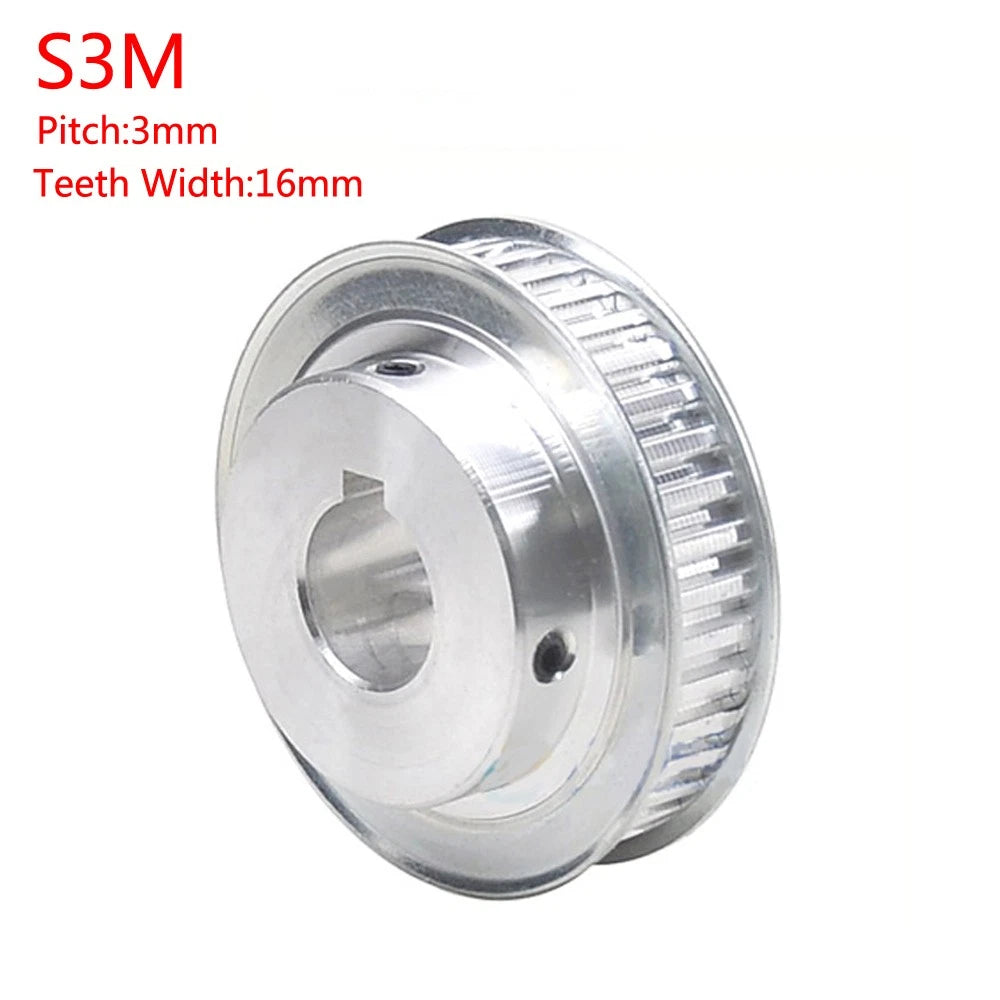

Each pulley is machined from aluminum alloy, featuring a 16mm belt-contact width (16mm / 0.63 in) and a 3mm tooth pitch conforming to the S3M profile. Tooth counts span 14T through 60T, with bore diameters ranging from 8mm to 25mm (0.31–0.98 in). Two hub styles are available: K-type (with step hub) and BF-type (flanged hub). Keyway slots are pre-cut to standard DIN dimensions — 3×1.4mm, 4×1.8mm, 5×2.3mm, 6×2.8mm, or 8×3.3mm depending on bore size — for secure shaft locking without additional machining.
Typical use cases include 3D printer X/Y axis drives using S3M timing belt pulley 3mm pitch, CNC router stepper motor drive pulleys with keyway, and small conveyor or pick-and-place automation systems requiring a flanged BF-type S3M pulley 16mm wide.
⚙️ Compatible with: S3M open-end and closed-loop timing belts, 3mm pitch, belt width up to 16mm. Verify bore diameter and keyway dimensions match your shaft before ordering.
✅ Key Features of These S3M Timing Belt Pulleys
🔩 3mm S3M Tooth Profile
Precision-cut S3M teeth ensure positive engagement with standard 3mm pitch timing belts, eliminating belt slip under load.
📐 Wide Tooth Count Range (14T–60T)
Choose from 14 to 60 teeth to dial in your exact gear ratio for stepper motors, servo drives, or conveyor systems.
🔧 Pre-Cut Keyway Slot
Standard DIN keyway (3×1.4mm to 8×3.3mm) machined to match bore size — no additional milling required for shaft locking.
🏗️ K-Type & BF-Type Hub Options

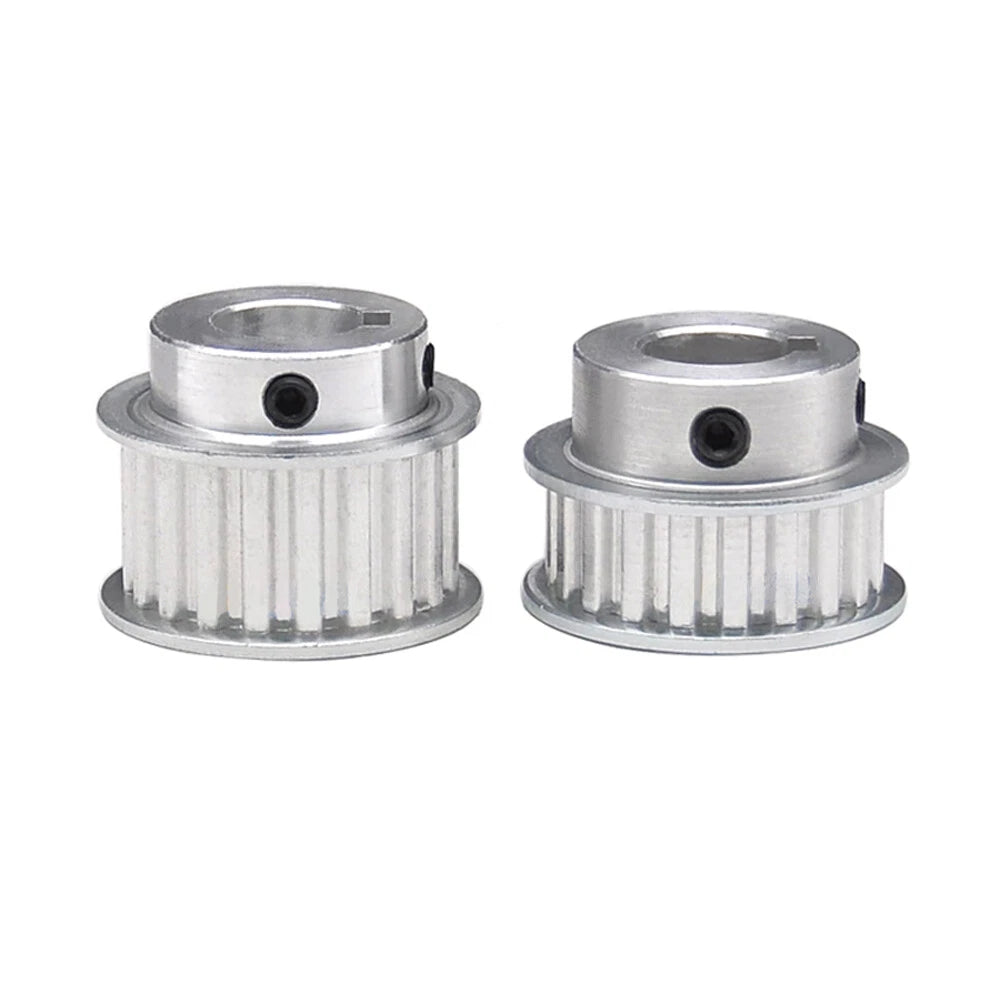

K-type step hub suits compact motor shafts; BF-type flanged hub provides belt retention and is ideal for open-belt runs.
⚖️ Aluminum Alloy Construction
Lightweight yet rigid aluminum alloy body keeps rotational inertia low — critical for high-acceleration stepper and servo applications.
📏 16mm Belt-Contact Width
Consistent 16mm (0.63 in) pulley width matches standard S3M belt widths, ensuring full tooth engagement across the belt face.
📐 Technical Specifications — S3M Timing Belt Pulley
| Belt Profile |
S3M (3mm pitch) |
| Pulley Width |
16mm (0.63 in) |
| Number of Teeth |
14T – 60T (see variant options) |
| Bore Diameter |
8mm – 25mm (see variant options) |
| Keyway Dimensions |
3×1.4mm / 4×1.8mm / 5×2.3mm / 6×2.8mm / 8×3.3mm (see variant options) |
| Hub Type |
K-type (step hub) or BF-type (flanged hub) |
| Material |
Aluminum alloy |
| Quantity per Order |
1 piece |
| Tooth Pitch |
3mm |
| Set Screw |
See variant options |
❓ Frequently Asked Questions
How do I choose the right number of teeth for my application?
The tooth count determines your drive ratio. Divide the driven pulley teeth by the drive pulley teeth to get the ratio. For example, a 20T drive pulley paired with a 40T driven pulley gives a 2:1 reduction. Match the tooth count to your required speed and torque output. If you are unsure, start with a 20T or 30T pulley as a common mid-range choice for 3D printers and CNC routers.
What bore diameter and keyway should I select?

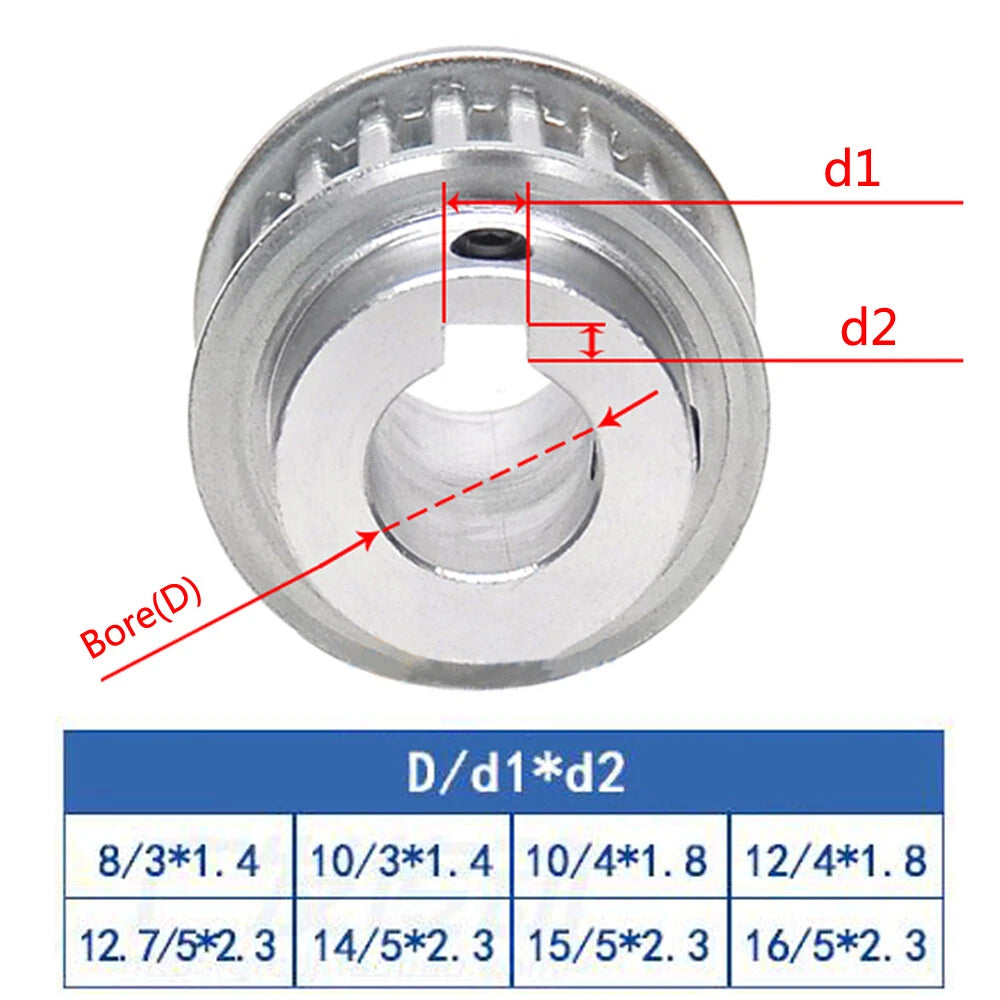

Measure your motor or shaft diameter precisely with calipers before ordering. The bore must match the shaft OD. The keyway is pre-cut to a standard DIN size that corresponds to the bore — for example, an 8mm bore uses a 3×1.4mm keyway, while a 14mm bore typically uses a 5×2.3mm keyway. Check the variant options table for the exact keyway paired with each bore size.

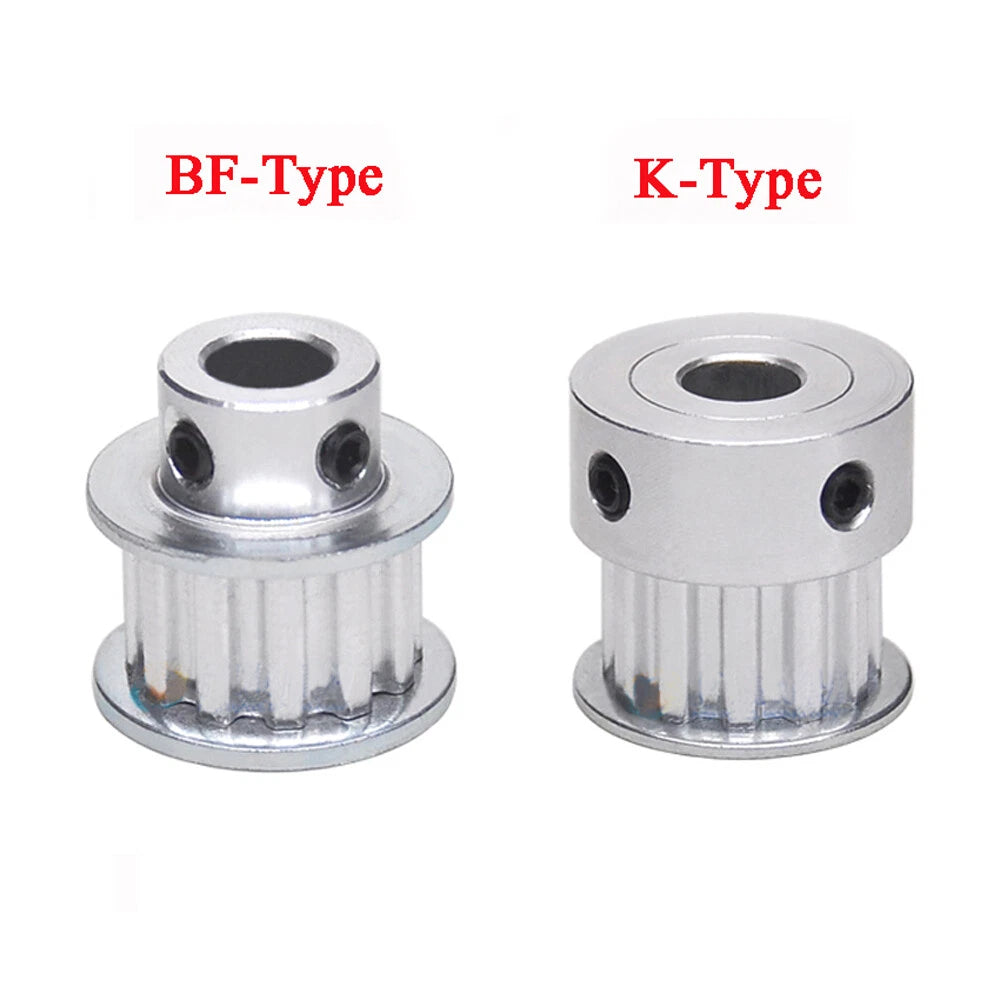

What is the difference between K-type and BF-type pulleys?
K-type pulleys have a step hub (plain cylindrical hub with keyway and set screw) and are the standard choice for most motor shaft applications. BF-type pulleys have a flanged hub that adds a lip on one or both sides of the belt contact surface, helping to keep the belt tracking on open-belt runs. Choose BF-type when your belt path is long or when the belt tends to walk laterally.
Are these pulleys compatible with all S3M timing belts?
Yes — these pulleys are designed for standard S3M profile timing belts with a 3mm tooth pitch. They are compatible with both open-end S3M belts and closed-loop S3M belts up to 16mm wide. Ensure the belt width does not exceed 16mm for full tooth engagement. They are not compatible with GT2, HTD, or other non-S3M belt profiles.
How strong are aluminum alloy pulleys for my application?
Aluminum alloy pulleys are well-suited for light-to-medium duty automation, 3D printing, CNC routing, and conveyor applications where rotational inertia must be kept low. For heavy industrial loads or high-torque applications exceeding the belt's rated tension, consider whether a steel pulley would be more appropriate. For the vast majority of DIY and maker applications, aluminum alloy provides more than adequate strength.
Do I need to do any additional machining after receiving the pulley?
No additional machining is required for standard installations. The bore is finished to tolerance and the keyway is pre-cut. Simply slide the pulley onto your shaft, align the keyway with your shaft key, and tighten the set screw. If your shaft requires a custom bore size or non-standard keyway, contact us to confirm before ordering.
Will these pulleys corrode or oxidize over time?
Aluminum alloy naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor environments. For applications exposed to moisture, cutting fluids, or outdoor conditions, consider applying a light coat of machine oil or using an anodized variant if available. Avoid prolonged contact with strong acids or alkalis.
🛒 Select your Number of Teeth & Bore, Keyway, and Type above, then add to cart.
