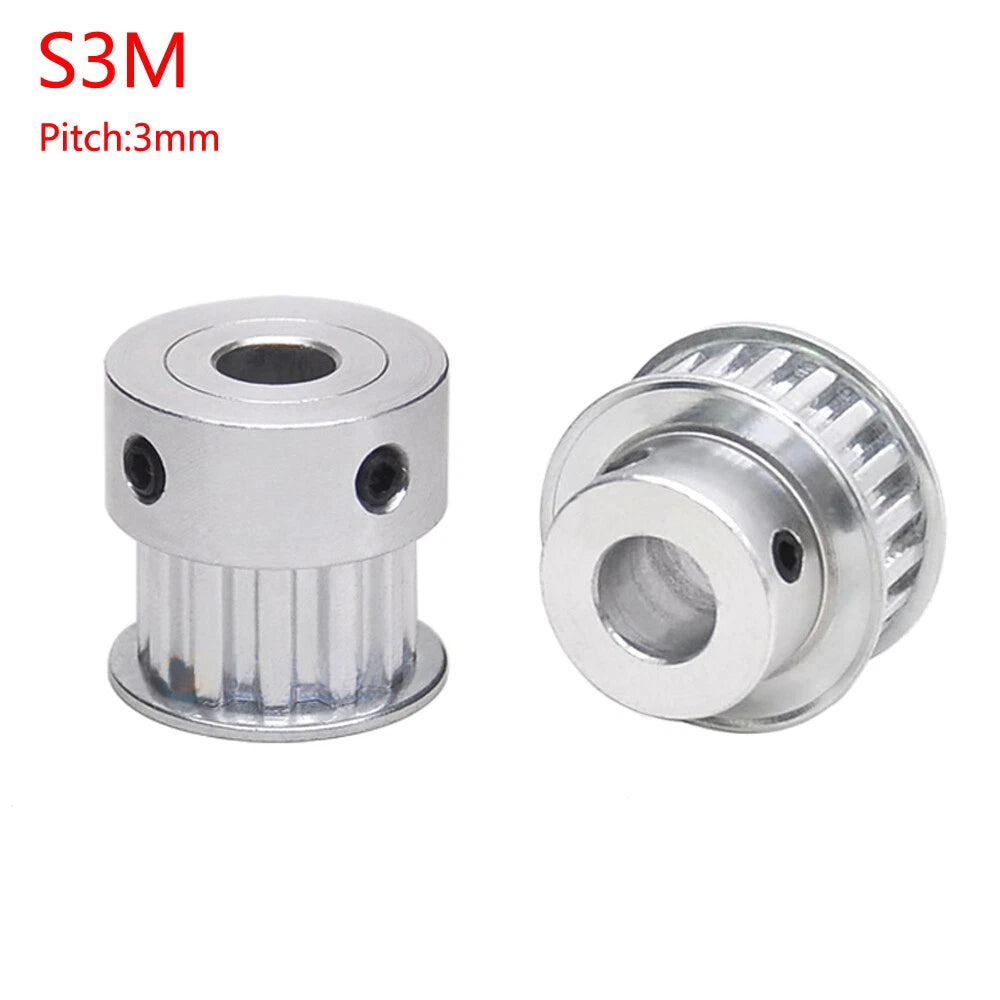

S3M Timing Belt Pulleys with 3mm Pitch — Precision CNC Drive Components for Makers and Engineers

When your CNC router, 3D printer, or robotics build demands repeatable, slip-free motion, the wrong pulley becomes the weakest link in your drivetrain. Engineers and makers who need consistent tooth engagement across a wide range of shaft sizes rely on S3M timing belt pulleys that match their belt pitch exactly — without compromise.

These S3M timing belt pulleys feature a 3mm pitch (S3M standard), a 7mm belt width, and are available in tooth counts from 12T to 40T. Bore options range from 4mm to 15mm (approximately 0.16 in to 0.59 in), covering the most common motor and shaft diameters used in CNC and automation builds. Two flange configurations are offered: K-type (single-side step flange) and BF-type (double-side flange), both machined to maintain belt tracking under load.

Typical applications include CNC router X/Y axis drives using S3M belts, desktop 3D printer extruder and motion systems requiring 3mm pitch pulleys, and lightweight robotics or automation rigs where a compact S3M timing belt pulley keeps the footprint small without sacrificing torque transfer accuracy.

⚙️ Compatible with standard S3M synchronous timing belts (3mm pitch, 7mm width). Verify bore diameter and tooth count before ordering.

✅ Key Features of These S3M Timing Belt Pulleys

📐 3mm Pitch S3M Standard

Engineered to the S3M synchronous belt profile for precise tooth meshing and zero-slip power transmission in motion control systems.

🔩 Wide Bore Range: 4mm–15mm

Fits the most common stepper motor and servo shaft diameters used in CNC, 3D printing, and robotics — from 4mm (0.16 in) up to 15mm (0.59 in).

🦷 12T to 40T Tooth Count Selection

Choose from 15 tooth count options to dial in your drive ratio. Smaller pulleys (12T–18T) suit high-speed, low-torque runs; larger pulleys (20T–40T) increase torque output.

🔄 K-type & BF-type Flange Configurations

K-type features a single-side step flange for space-constrained assemblies; BF-type offers double-side flanges for superior belt retention under dynamic loads.

📏 7mm Belt Width — Compact Footprint

The 7mm working width keeps the pulley narrow for tight axis spacing in desktop CNC machines and compact robotic arms without sacrificing belt contact area.

🏭 CNC-Machined for Dimensional Accuracy

Each pulley is machined to consistent tooth geometry and bore concentricity, reducing vibration and backlash in precision motion applications.

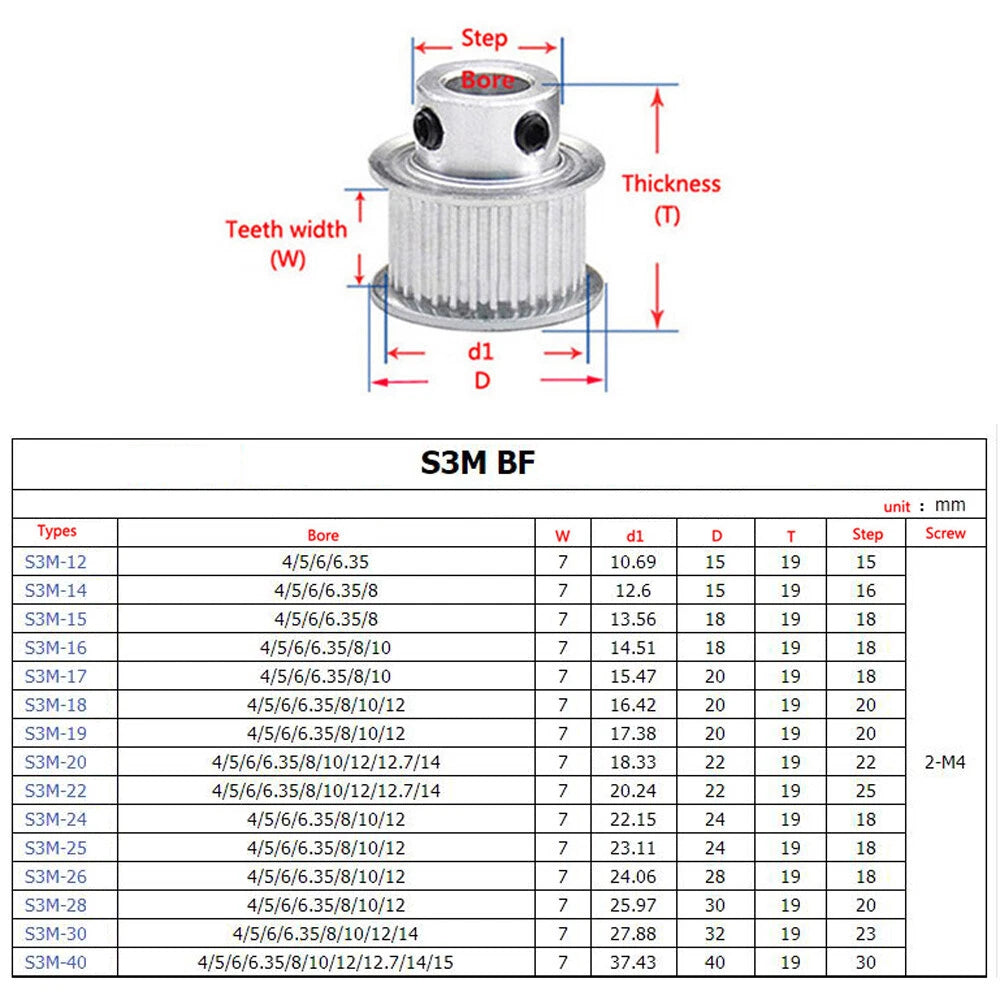

📐 Technical Specifications — S3M Timing Belt Pulley

Belt Profile S3M (Synchronous 3mm Pitch)
Pitch 3mm
Belt Width 7mm
Number of Teeth 12T, 14T, 15T, 16T, 17T, 18T, 19T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 40T
Bore Diameter 4mm, 5mm, 6mm, 6.35mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 15mm
Flange Type K-type (single-side step) / BF-type (double-side)
Material See variant options
Finish / Color See variant options
Weight (per piece) See variant options
Compatible Belt S3M synchronous timing belt, 7mm width

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines your drive ratio. Pair a smaller pulley (e.g., 12T–18T) on the motor shaft with a larger pulley on the driven shaft to increase torque and reduce speed. For 1:1 drives, use matching tooth counts on both ends. Common CNC setups use 20T pulleys for a balanced speed-torque trade-off with S3M belts.

Which bore size should I select for my stepper motor shaft?

Match the bore to your motor or shaft diameter. NEMA 17 steppers typically use a 5mm shaft; NEMA 23 steppers commonly use 6.35mm or 8mm shafts. For imperial shafts, 6.35mm (1/4 in) and 12.7mm (1/2 in) options are available. Always measure your shaft with calipers before ordering.

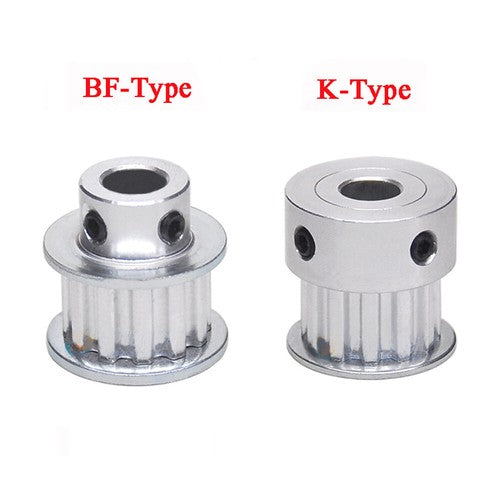

What is the difference between K-type and BF-type pulleys?

K-type pulleys have a single-side step flange, which guides the belt on one side and is suited for assemblies where space is limited or the belt is constrained by a frame on the other side. BF-type pulleys have flanges on both sides, providing full belt retention and reducing the risk of the belt walking off the pulley under lateral load or vibration.

Are these pulleys compatible with any S3M timing belt?

Yes — these pulleys are designed for standard S3M synchronous timing belts with a 3mm pitch and 7mm width. Ensure your belt matches both the pitch (S3M / 3mm) and the width (7mm) for correct engagement. Using a wider or narrower belt will result in poor tracking or belt damage.

How strong are these pulleys under continuous load?

Load capacity depends on the material, tooth count, and belt tension. For typical CNC and 3D printer motion systems operating at low-to-moderate belt tensions, S3M pulleys in this tooth range handle continuous duty reliably. For high-torque or high-speed industrial applications, confirm the material specification matches your load requirements before ordering.

Do these pulleys require a set screw or keyway for shaft retention?

Shaft retention method varies by variant. Many S3M pulleys in this series include a set screw for securing the pulley to the shaft. Check the variant detail or contact us to confirm whether a set screw, keyway, or other retention feature is included for your selected bore and tooth count combination.

Can I use these pulleys in a 3D printer or laser cutter?

Yes. S3M timing belt pulleys with 3mm pitch are widely used in desktop 3D printers, laser cutters, and CNC routers for X/Y axis motion. Select the tooth count and bore that match your existing belt and motor shaft. The 7mm belt width is a standard size for these machine types.

🛒 Select your Number of Teeth, Bore, and Type above, then add to cart.
