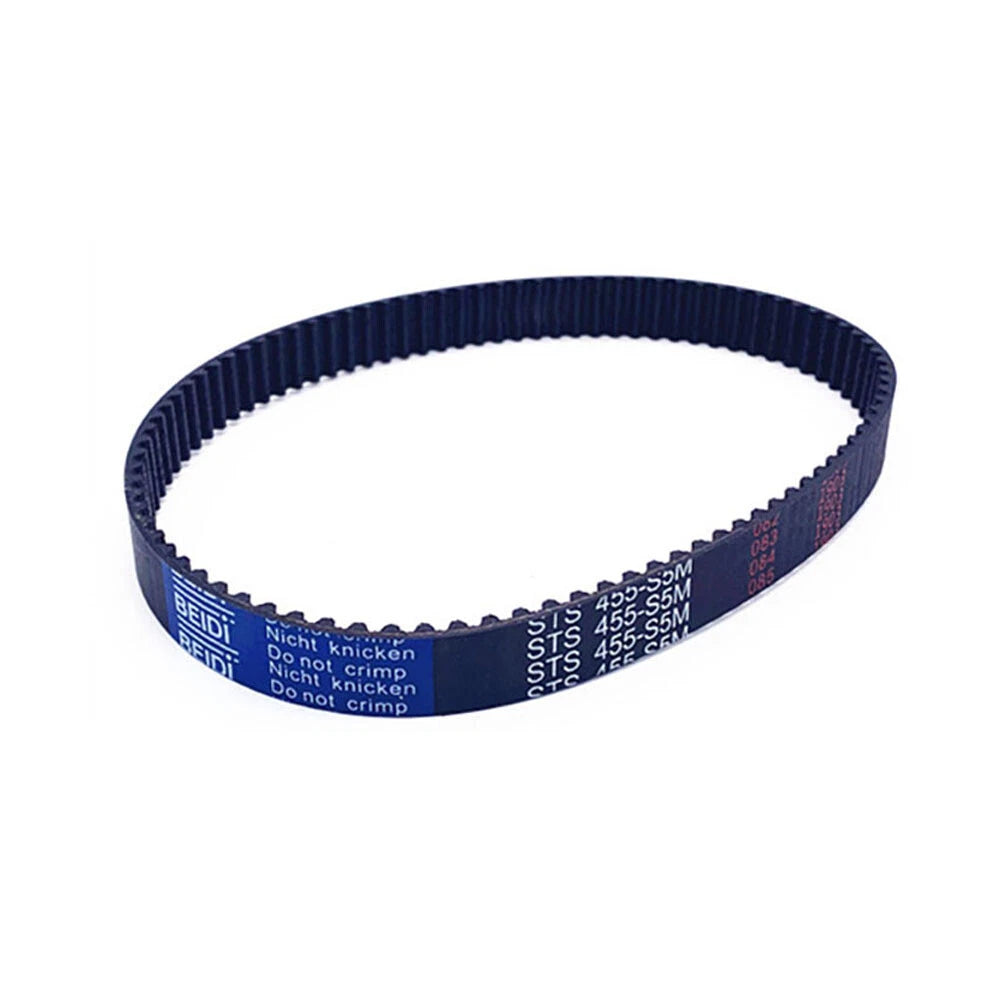

S5M Closed Loop Rubber Timing Belt — Precise Power Transmission for CNC, 3D Printers & Motor Drives

When a slipping or mismatched drive belt causes your CNC router to lose position, your 3D printer to skip layers, or your automation system to fall out of sync, the root cause is almost always the wrong belt specification. Engineers, makers, and machine builders who need repeatable, slip-free motion rely on synchronous timing belts — and getting the pitch, width, and circumference right the first time is what separates a smooth-running machine from a frustrating one.

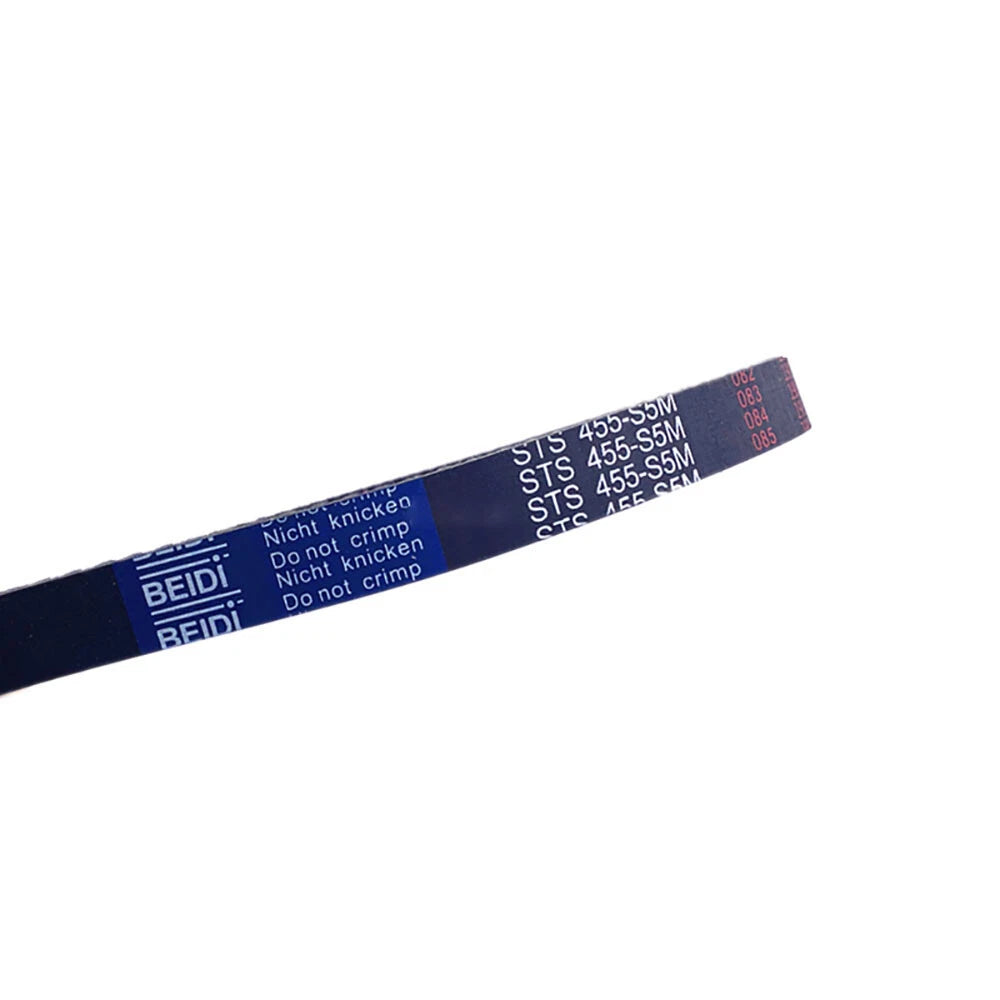

Each belt in this listing is a closed-loop (endless) rubber timing belt following the S5M standard — 5mm tooth pitch, available in 10mm (≈3/8") or 15mm (≈19/32") belt width, with loop circumferences ranging from 180mm (≈7.1") to 4000mm (≈157.5"). The rubber compound provides flexibility and grip across the tooth profile, while the internal tensile cords maintain dimensional stability under load. Select your exact loop circumference and belt width from the variant options above.

Typical use cases include CNC router and laser cutter axis drives, 3D printer X/Y motion systems, conveyor and indexing table drives, and servo motor coupling in light industrial automation — anywhere a synchronous, no-slip closed-loop drive belt with 5mm pitch is specified.

ℹ️ Compatibility: These belts are designed for use with S5M-standard pulleys and sprockets (5mm tooth pitch). Verify your pulley's pitch designation before ordering. Belt width (10mm or 15mm) must be equal to or narrower than your pulley's belt-contact groove width.
⚠️ Size confirmation: Loop circumference is measured as the total inner loop length. If you are replacing an existing belt, measure the old belt's circumference directly or calculate from your pulley center distance. Contact us to confirm if you are unsure which size fits your application.

✅ Key Features of These S5M Closed Loop Rubber Timing Belts

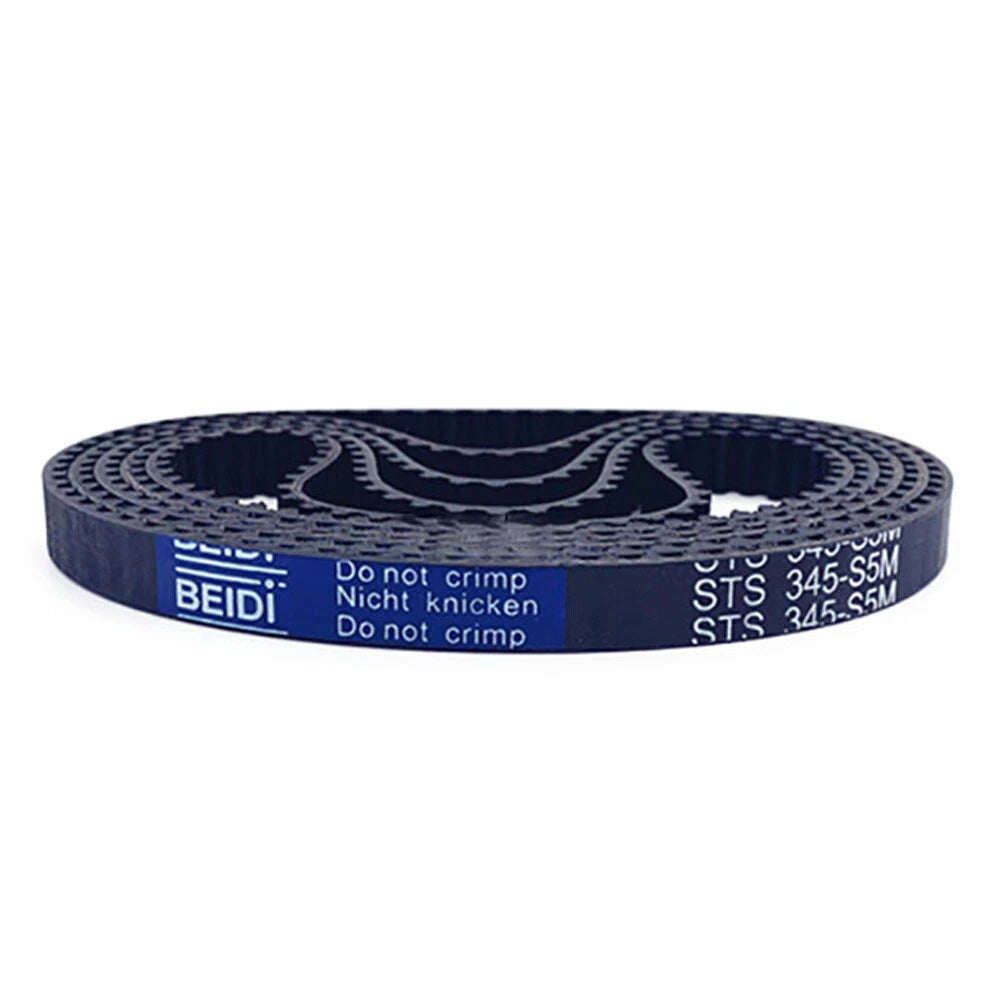

  • 🔁Endless Closed-Loop Construction — No splice point or joint means consistent tension distribution and smooth, vibration-free operation throughout the full loop circumference.
  • ⚙️5mm S5M Tooth Pitch — Matches S5M-standard pulleys for positive, slip-free synchronous power transmission — critical for position-accurate drives like CNC axes and 3D printer motion systems.
  • 📏Wide Size Range (180mm–4000mm) — Over 130 loop circumference options in 5mm–25mm increments let you find the exact fit for your drive geometry without custom cutting or splicing.

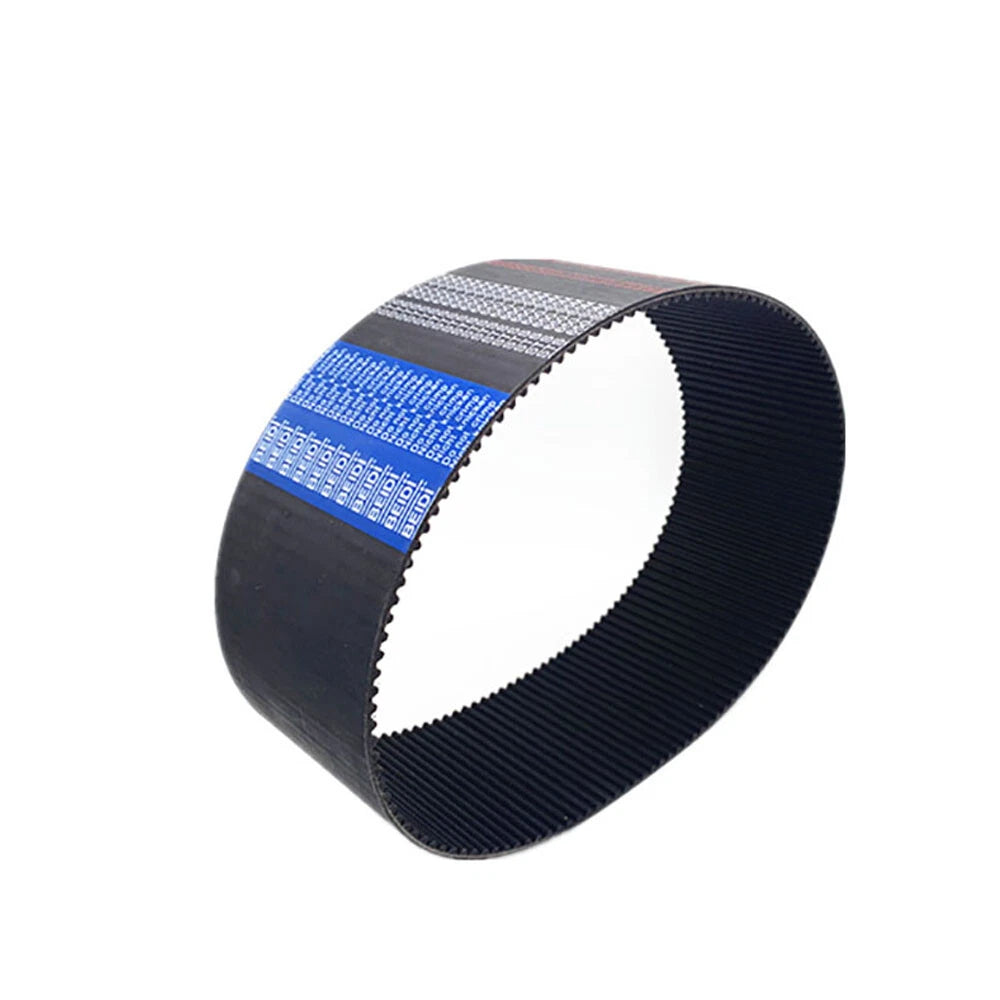

  • ↔️Two Width Options (10mm & 15mm) — Choose the narrower 10mm width for compact drives and hobby-scale machines, or the wider 15mm for higher-torque industrial and automation applications.
  • 🧱Rubber Body with Internal Tensile Cords — The rubber compound conforms to pulley tooth profiles for positive engagement, while internal cords resist elongation and maintain belt length under sustained load.
  • 🔧Drop-In Replacement Geometry — Follows the established S5M dimensional standard, making these belts a straightforward replacement for worn or broken closed-loop timing belts in existing drive systems.

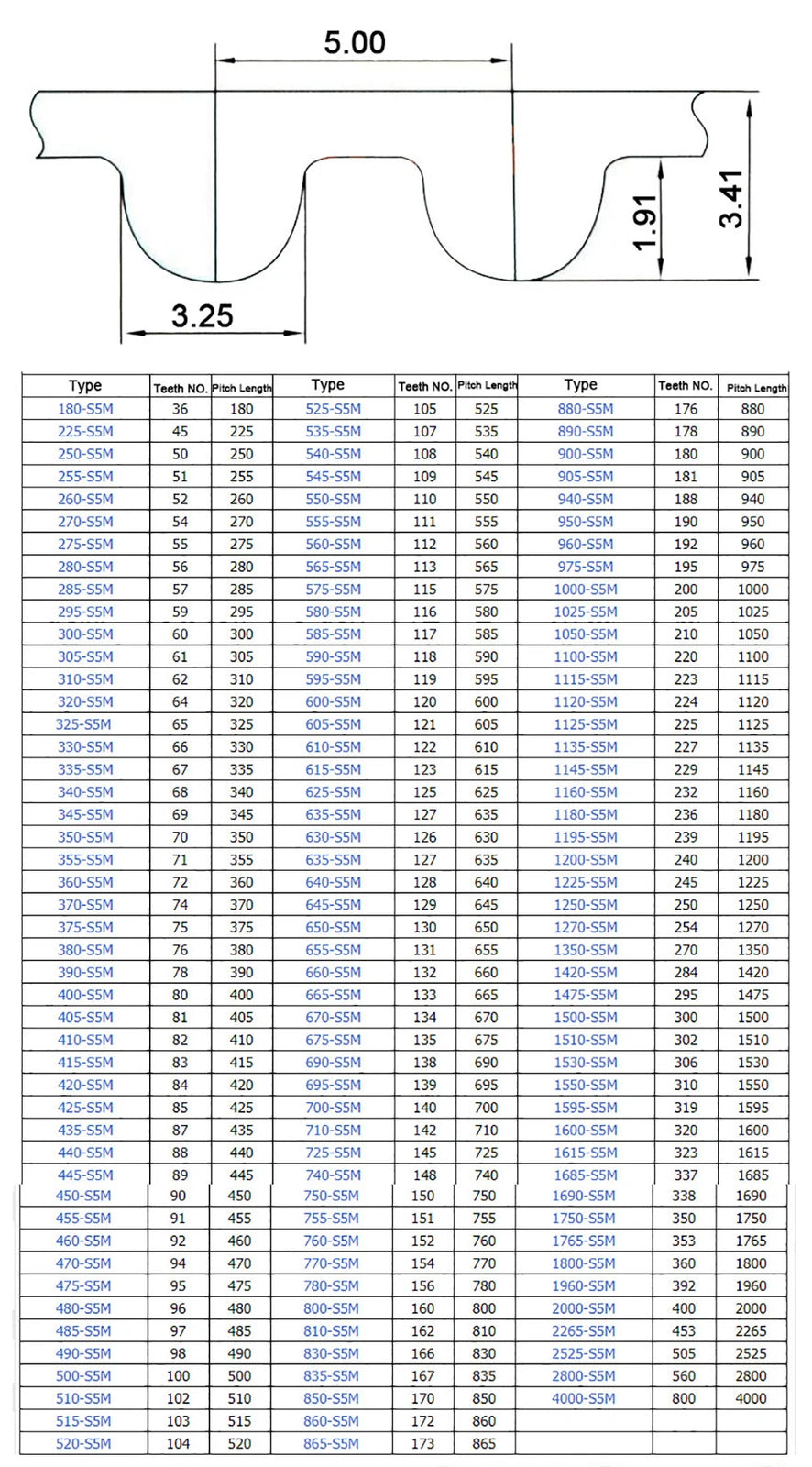

📐 Technical Specifications — S5M Closed Loop Rubber Timing Belt

Belt Type Closed Loop (Endless) Synchronous Timing Belt
Pitch Designation S5M (5mm tooth pitch)
Tooth Profile S-curve / curvilinear (S5M standard)
Belt Material Rubber (neoprene-type compound)
Internal Reinforcement Tensile cord (typically fiberglass or steel — see variant options)

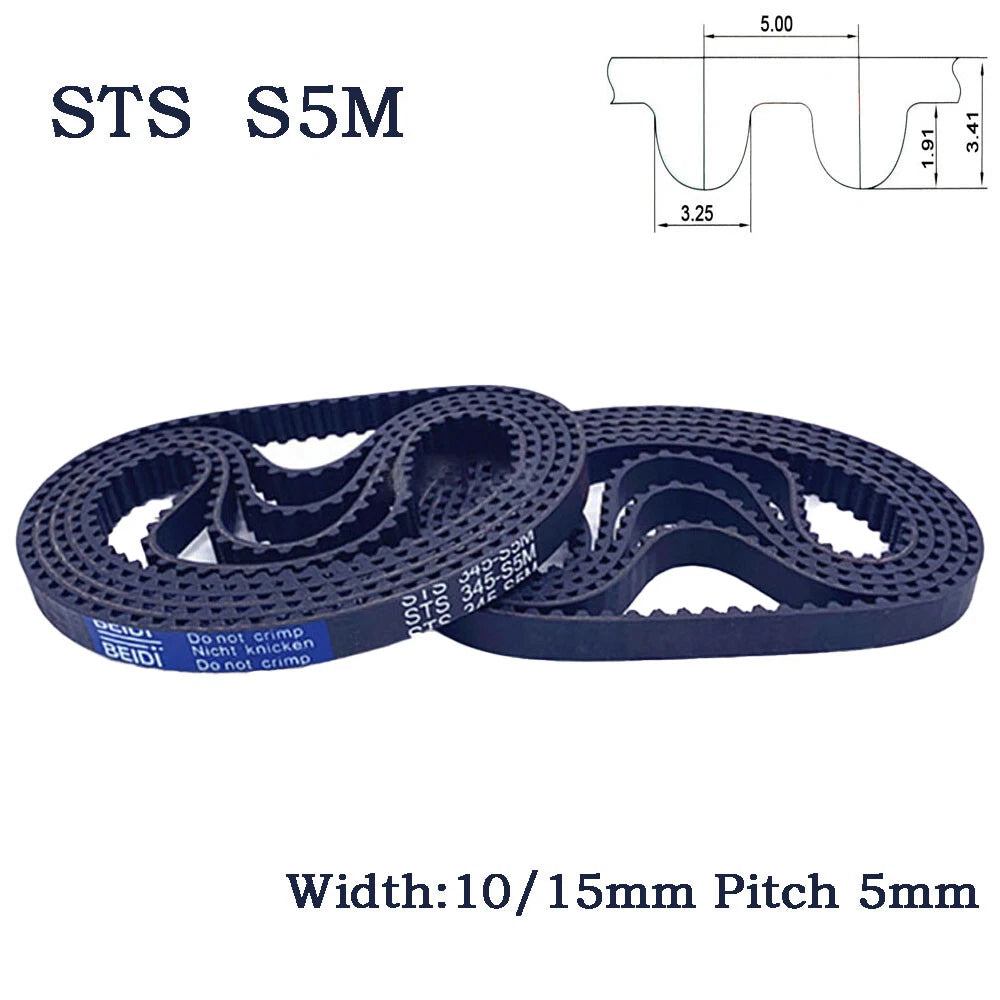

Belt Width Options 10mm (≈3/8") / 15mm (≈19/32")
Loop Circumference Range 180mm (≈7.1") to 4000mm (≈157.5")
Pitch (tooth-to-tooth) 5mm (0.197")
Compatible Pulley Standard S5M
Typical Operating Temperature See variant options / Contact us to confirm
Color / Finish Black (standard rubber)
Quantity per Order 1 belt per variant selected

❓ Frequently Asked Questions

How do I choose the right loop circumference for my application?

Measure the center-to-center distance between your two pulleys, then use the formula: Loop Circumference ≈ 2 × center distance + (π × pulley pitch diameter). For example, if your center distance is 100mm and each pulley has a 30mm pitch diameter, you'd need approximately 200 + 94 = 294mm — so the 295mm variant would be the closest match. Always round up to the nearest available size to avoid over-tensioning. If replacing an existing belt, measure the old belt's circumference directly.

What does '5mm pitch' mean and why does it matter?

Pitch is the distance from one tooth center to the next. The S5M designation means each tooth is spaced 5mm apart. This must match your pulley's tooth pitch exactly — a 5mm pitch belt will only work correctly with S5M-compatible pulleys. Mismatched pitch causes skipping, noise, and premature wear. Common equivalent designations include HTD 5M (note: HTD and S5M have slightly different tooth profiles — confirm compatibility before substituting).

How much load or torque can these belts handle?

Load capacity depends on belt width and the number of teeth in mesh. Generally, a 10mm-wide S5M belt can handle light-to-medium duty applications, while the 15mm width provides greater tensile strength for higher-torque drives. For precise load ratings, consult your drive system's engineering specifications, as operating speed and pulley diameter also affect capacity. Contact us to confirm suitability for your specific application.

Can these timing belts be used outdoors or in wet environments?

These belts are made from rubber and can generally tolerate occasional moisture exposure. However, prolonged submersion, direct UV exposure, or contact with oils and solvents may degrade the rubber over time. For outdoor or harsh-environment applications, inspect the belt periodically for cracking, hardening, or tooth wear. If chemical resistance is a primary requirement, contact us to confirm the specific compound used.

Are these belts compatible with standard S5M pulleys and sprockets?

Yes. These closed-loop belts follow the S5M (synchronous 5mm pitch) standard and are designed to mesh with any S5M-compatible pulley or sprocket. Verify that your pulley's tooth profile matches the S5M standard before ordering. The belt width (10mm or 15mm) should also match or be narrower than your pulley's belt-contact width. Note that HTD 5M pulleys have a slightly different tooth profile and may not be fully interchangeable — confirm with your pulley supplier.

Should I choose 10mm or 15mm belt width?

Choose 10mm for lighter-duty applications such as small CNC routers, 3D printers, and hobby servo drives where space is limited. Choose 15mm when you need higher torque transmission, greater lateral stability, or are driving heavier loads such as in industrial automation or larger CNC machines. Always match the width to your pulley's groove width — a belt wider than the pulley groove will not seat correctly.

What is the difference between a closed-loop belt and an open-end belt?

A closed-loop (endless) belt is a continuous loop with no seam or joint — it runs smoothly without vibration from a splice point and is generally preferred for precision drives. An open-end belt is a straight strip that must be cut to length and joined with a connector or clamp. Closed-loop belts offer consistent tension and no weak splice point, making them the standard choice for CNC, 3D printing, and synchronous drive applications.
