S5M Closed Loop Timing Belt — Reliable 5mm Pitch Drive for Precision Motion Systems

When a slipping or mismatched drive belt causes positioning errors in your CNC router, laser cutter, or automated conveyor, the entire workflow grinds to a halt. Engineers, machine builders, and serious DIYers who need consistent, slip-free power transmission rely on S5M closed loop timing belts to keep their systems running accurately shift after shift.

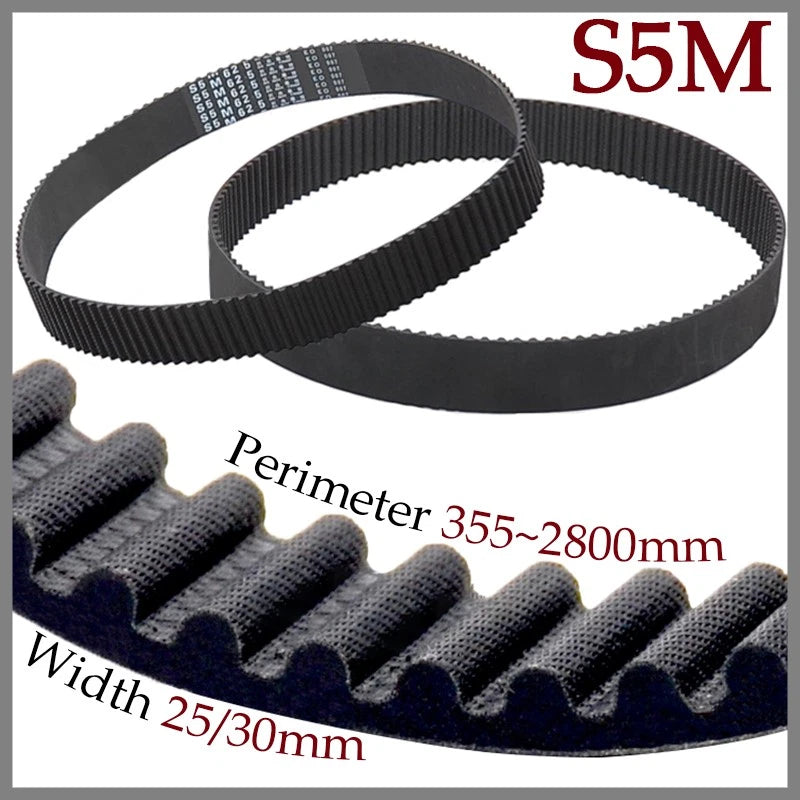

Each belt in this listing is a single closed-loop (endless) S5M synchronous timing belt made from black rubber compound reinforced with tensile cords for dimensional stability. The tooth pitch is 5mm (S5M standard). Belt width is available in 25mm or 30mm, and circumference options range from 355mm (≈14.0\") to 2800mm (≈110.2\") — select your exact model from the variant dropdown above.

These S5M timing belts are well suited for CNC router axis drives, industrial conveyor synchronization, robotic arm joint drives, and any closed-loop power transmission application where tooth engagement accuracy and low backlash are critical. Long-tail use cases include replacement belts for automated packaging lines and precision indexing tables.

ℹ️ Compatibility Notice: S5M belts require S5M-profile pulleys with a 5mm tooth pitch. This profile is not interchangeable with HTD5M, T5, AT5, or other 5mm-pitch profiles. Verify your pulley designation before ordering.

✅ Key Features of These S5M Closed Loop Timing Belts

  • 🔁Closed-Loop (Endless) Construction — No splice or joint means uniform tension distribution around the full circumference, reducing vibration in high-speed S5M timing belt drive systems.

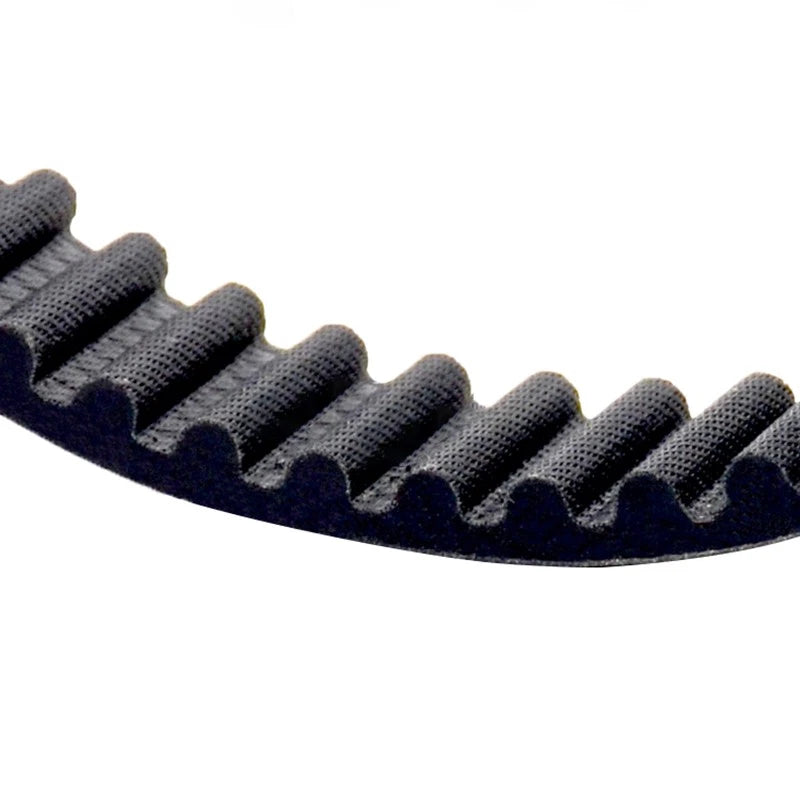

  • 📐5mm S5M Tooth Pitch — Trapezoidal tooth profile engages S5M pulleys with low backlash, making these belts suitable for precision positioning and synchronization tasks.
  • 📏Two Width Options — Available in 25mm and 30mm widths to match your pulley groove; the wider 30mm variant generally supports higher torque transmission capacity.
  • 🔩Tensile Cord Reinforcement — Internal cord construction resists elongation under load, maintaining consistent center distance in closed-loop belt drive replacements.
  • 🖤Black Rubber Compound — Resists light oil splash and dust typical of workshop and light industrial environments; maintains flexibility across a broad operating temperature range.
  • 📦Wide Size Selection in One Listing — Circumferences from 355mm to 2800mm available as individual variants, so you can order the exact replacement S5M belt length without cutting or splicing.

📐 Technical Specifications — S5M Synchronous Timing Belt

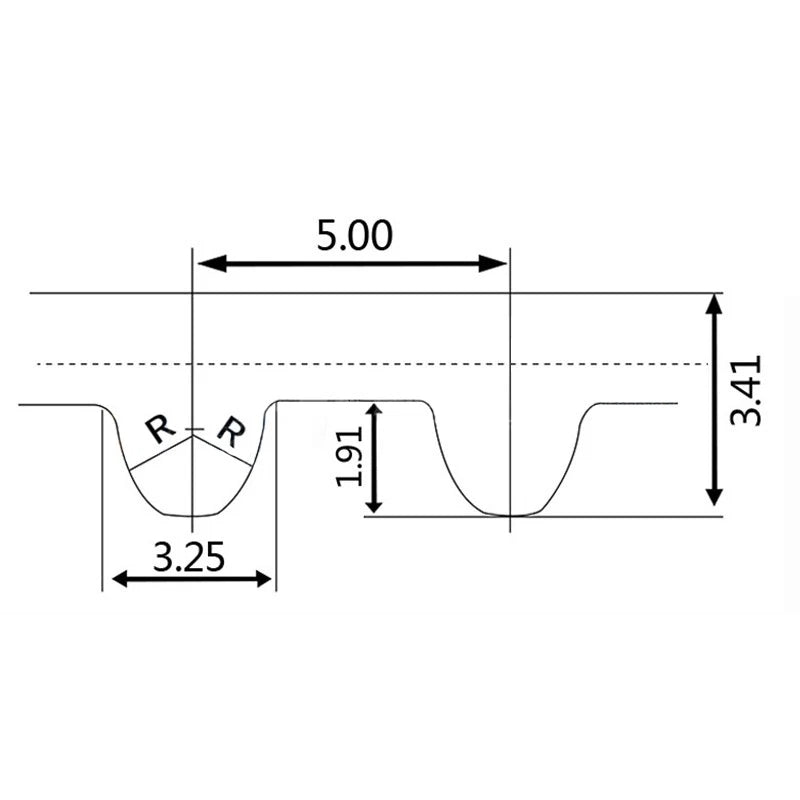

Belt Profile S5M (trapezoidal tooth, 5mm pitch)
Tooth Pitch 5mm
Belt Type Closed Loop (Endless / No Splice)
Color Black
Available Widths 25mm / 30mm (select via Belt Width option)
Circumference Range 355mm (≈14.0\") – 2800mm (≈110.2\")
Material Rubber compound with tensile cord reinforcement
Compatible Pulley Profile S5M only (not HTD5M, T5, or AT5)
Operating Temperature See variant options / Contact us to confirm
Max Torque Rating See variant options — depends on width and pulley diameter
Quantity per Order 1 belt per unit

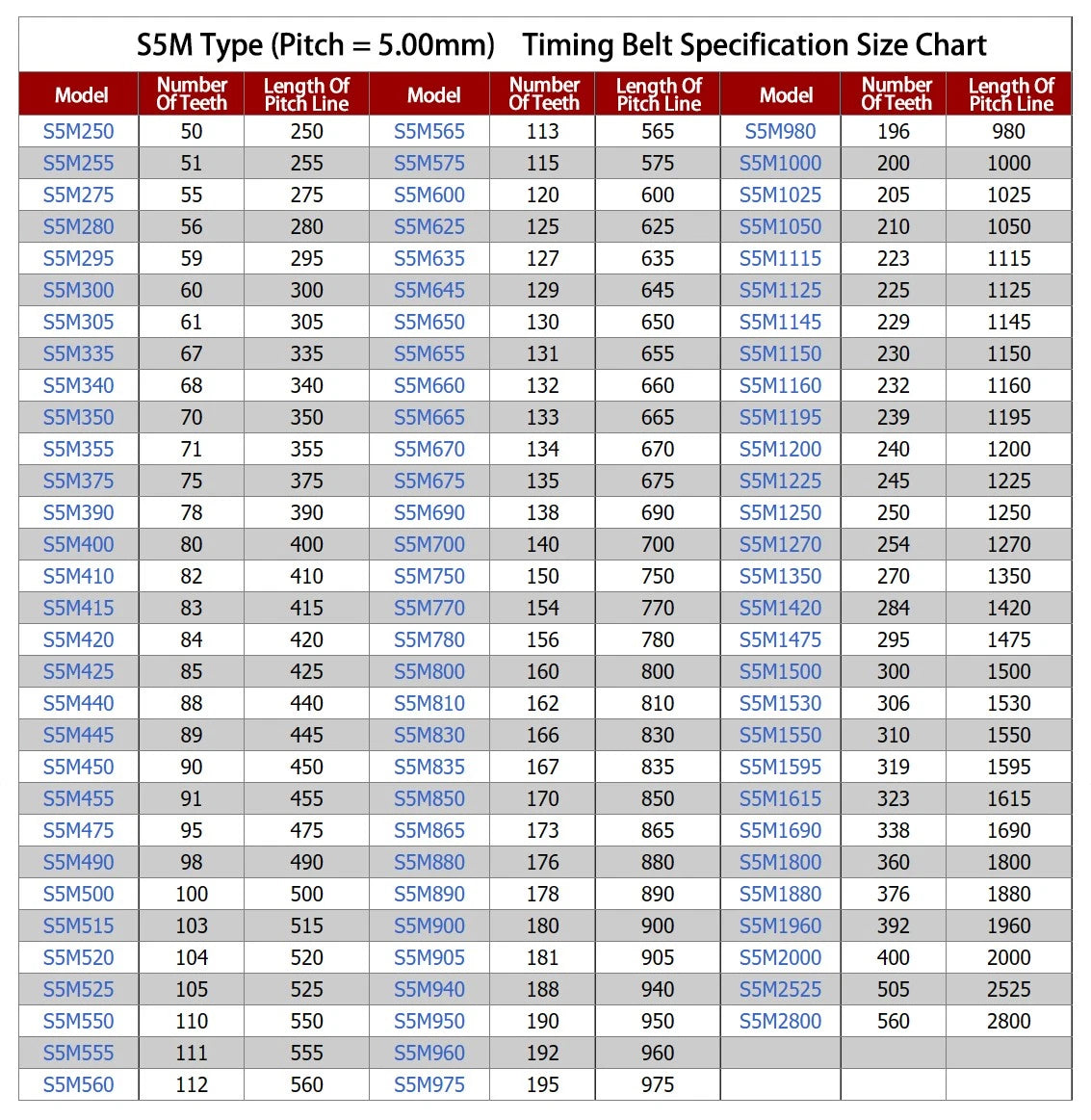

⚠️ Sizing Tip: The model number equals the belt's inner circumference. Example: S5M-1000mm = 1000mm (≈39.4\") inner circumference. Measure your existing belt or calculate from your pulley center distance before selecting a variant.

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

The model number tells you the circumference directly — for example, S5M-1000mm means the belt's inner circumference is 1000mm (≈39.4\"). Measure your existing belt or calculate: center distance × 2 plus the circumferences of both pulleys. When in doubt, size up slightly rather than forcing a shorter belt onto your pulleys.

What load or torque can these belts handle?

S5M belts are generally rated for moderate-to-high torque in light industrial and precision motion applications. Actual capacity depends on belt width, pulley diameter, and operating speed. The 30mm width variant typically handles higher torque than the 25mm version. Contact us to confirm suitability for your specific load requirements.

Can these belts be used outdoors or in wet environments?

The rubber compound is generally resistant to light moisture and dust common in workshop settings. Prolonged exposure to UV radiation, oils, or standing water may reduce service life. For outdoor or wash-down environments, a polyurethane-jacketed belt is typically a better choice. Contact us to confirm compatibility with your conditions.

What pulleys are compatible with S5M timing belts?

S5M belts require pulleys with the S5M tooth profile and a 5mm pitch. They are not interchangeable with HTD5M, T5, AT5, or other profiles — even if the pitch measurement appears similar. Always verify the pulley profile designation (look for "S5M" stamped or listed in the pulley specs) before ordering.

Which width should I choose — 25mm or 30mm?

Choose the width that matches your pulley's belt groove width. A 25mm belt requires a pulley with at least a 25mm groove; a 30mm belt requires a 30mm groove. If your application involves higher torque or heavier loads, the 30mm width generally provides greater power transmission capacity. Do not run a wider belt on a narrower pulley groove.

Is this belt suitable for 3D printers and CNC routers?

S5M closed loop timing belts are commonly used in CNC routers, laser cutters, and industrial automation systems requiring precise, repeatable motion. For most desktop 3D printers, the smaller GT2 or T2.5 profile is more common — verify your machine's belt profile specification before ordering to ensure compatibility.

What is the difference between S5M and HTD5M belts?

Both profiles share a 5mm pitch, but the tooth shape differs. S5M uses a trapezoidal tooth, while HTD5M uses a rounded curvilinear profile. The two are not interchangeable — using the wrong belt on a mismatched pulley will cause tooth skipping or accelerated wear. Always match belt profile to pulley profile.

🛒 Select your model (circumference) and belt width above, then add to cart — ships from our US warehouse.
