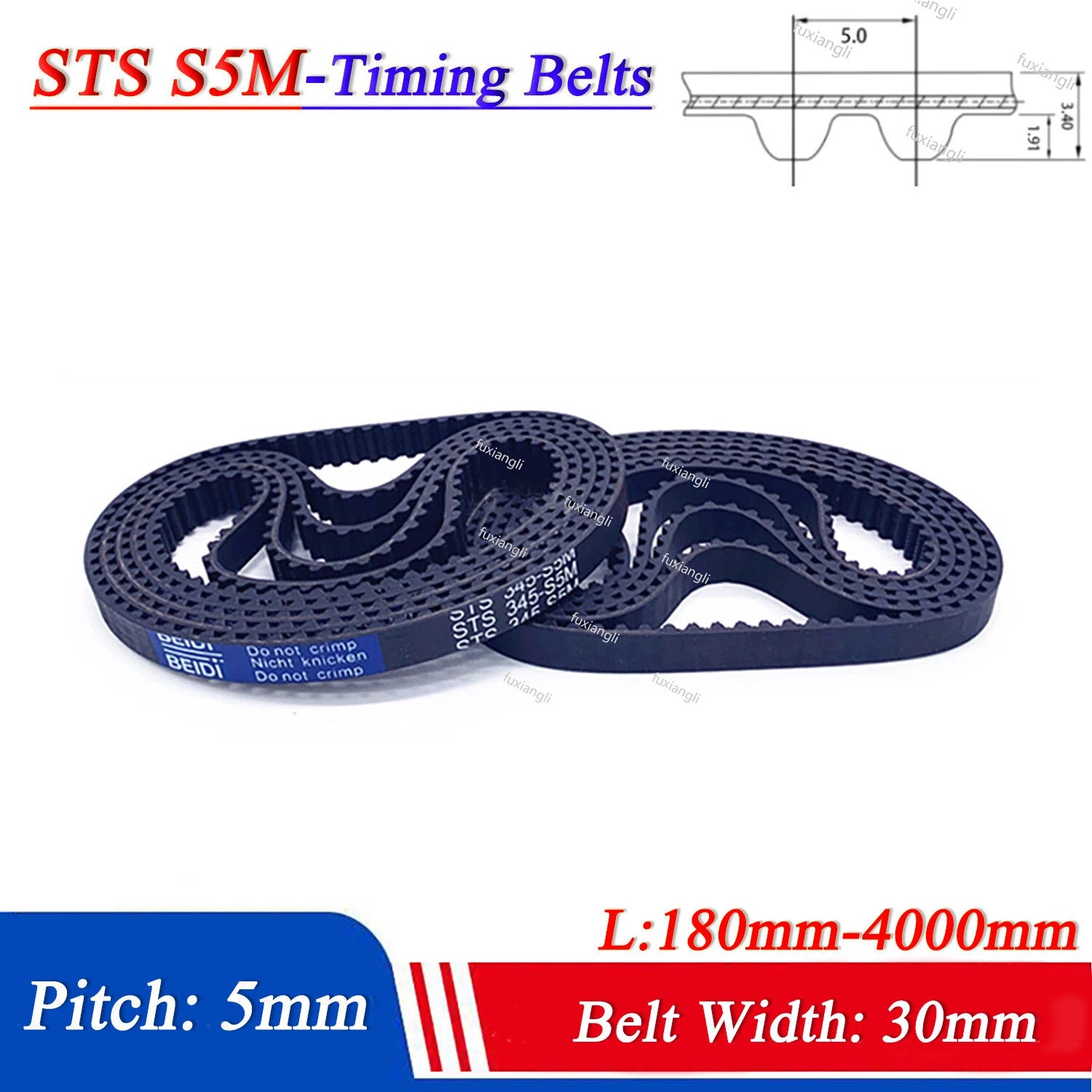

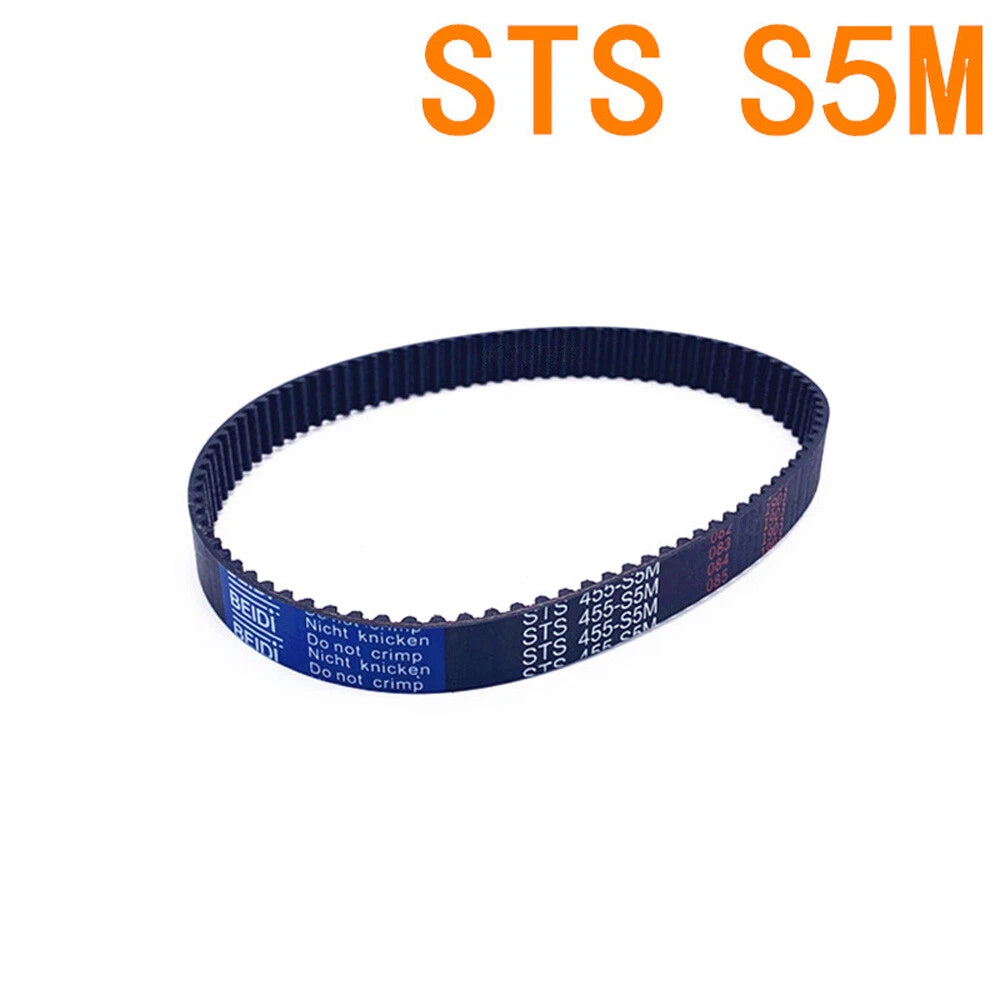

S5M Closed-Loop Rubber Timing Belt — 5mm Pitch, 30mm Wide, 138 Sizes

When a slipping or stretched drive belt throws off your CNC axis positioning or causes layer shifts in your 3D printer, the fix starts with the right synchronous belt. Engineers, makers, and machine builders who need a reliable closed-loop rubber timing belt in a precise perimeter size — without waiting weeks for a custom order — will find exactly what they need here.

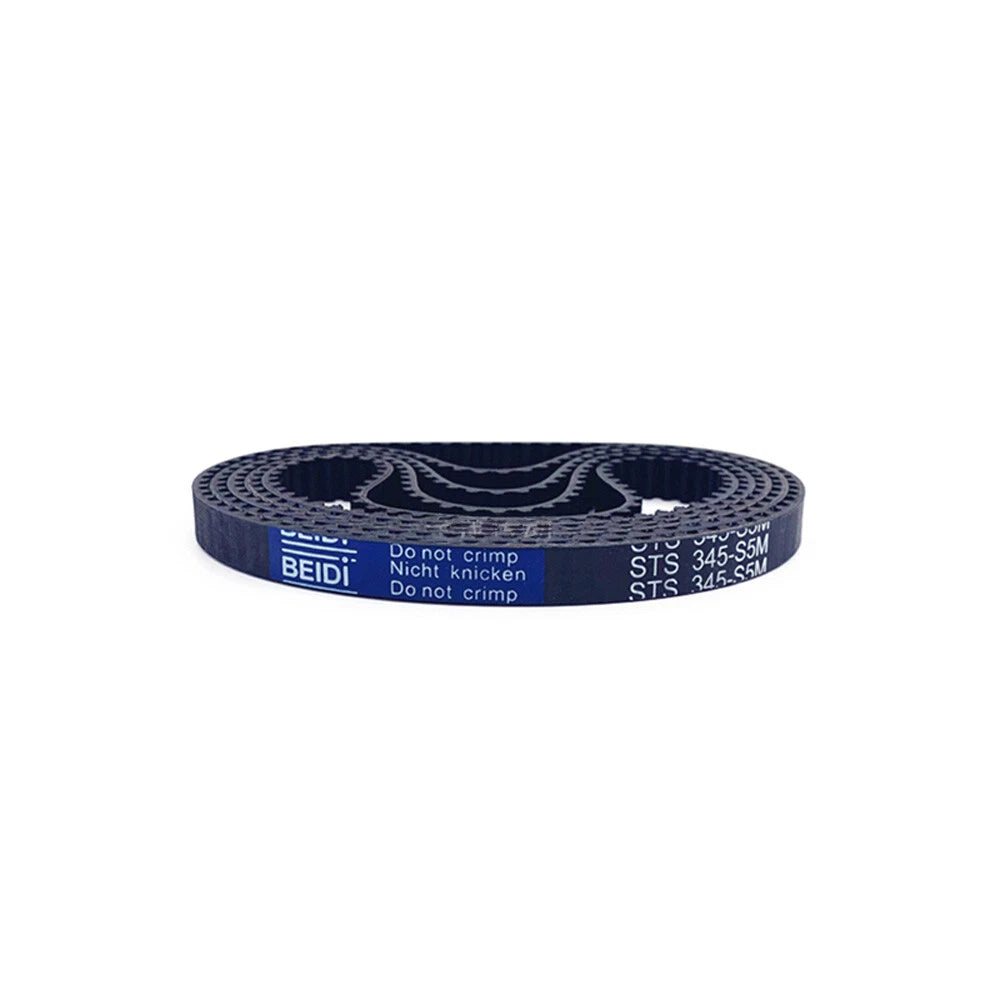

Each belt in this listing is a single closed-loop S5M synchronous belt with a 5mm pitch and 30mm (≈1.18") width. Perimeters range from 180mm (≈7.1") to 4000mm (≈157.5"), with 138 individual size options available. The belt body is neoprene rubber reinforced with tension cord, featuring molded curvilinear S5M tooth geometry on the inner surface for positive, slip-free engagement.

Typical use cases include CNC router drive axes, 3D printer X/Y motion systems, laser engraver gantries, conveyor indexing drives, and light industrial automation equipment where a closed-loop rubber synchronous belt with consistent pitch is required.

🔗 Compatibility: Designed for standard S5M and HTD 5M pulleys. Requires pulleys with ≥30mm usable flange width. Verify perimeter and tooth count against your machine spec before ordering.

✅ Key Features of These S5M Closed-Loop Rubber Timing Belts

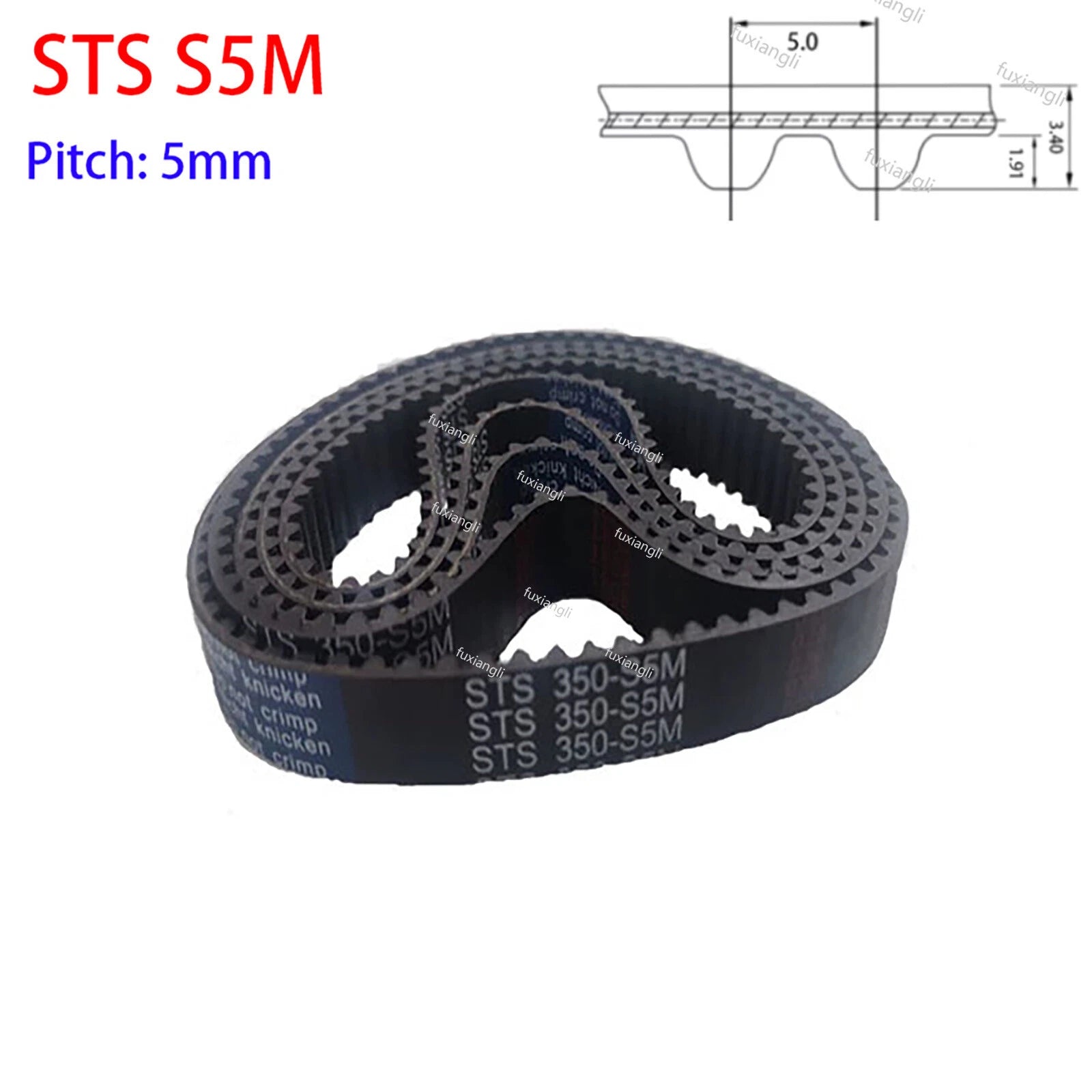

  • 📐5mm Curvilinear Tooth Pitch — S5M profile tooth geometry provides positive engagement with standard S5M and HTD 5M pulleys, reducing backlash in CNC router drive systems and precision motion stages.

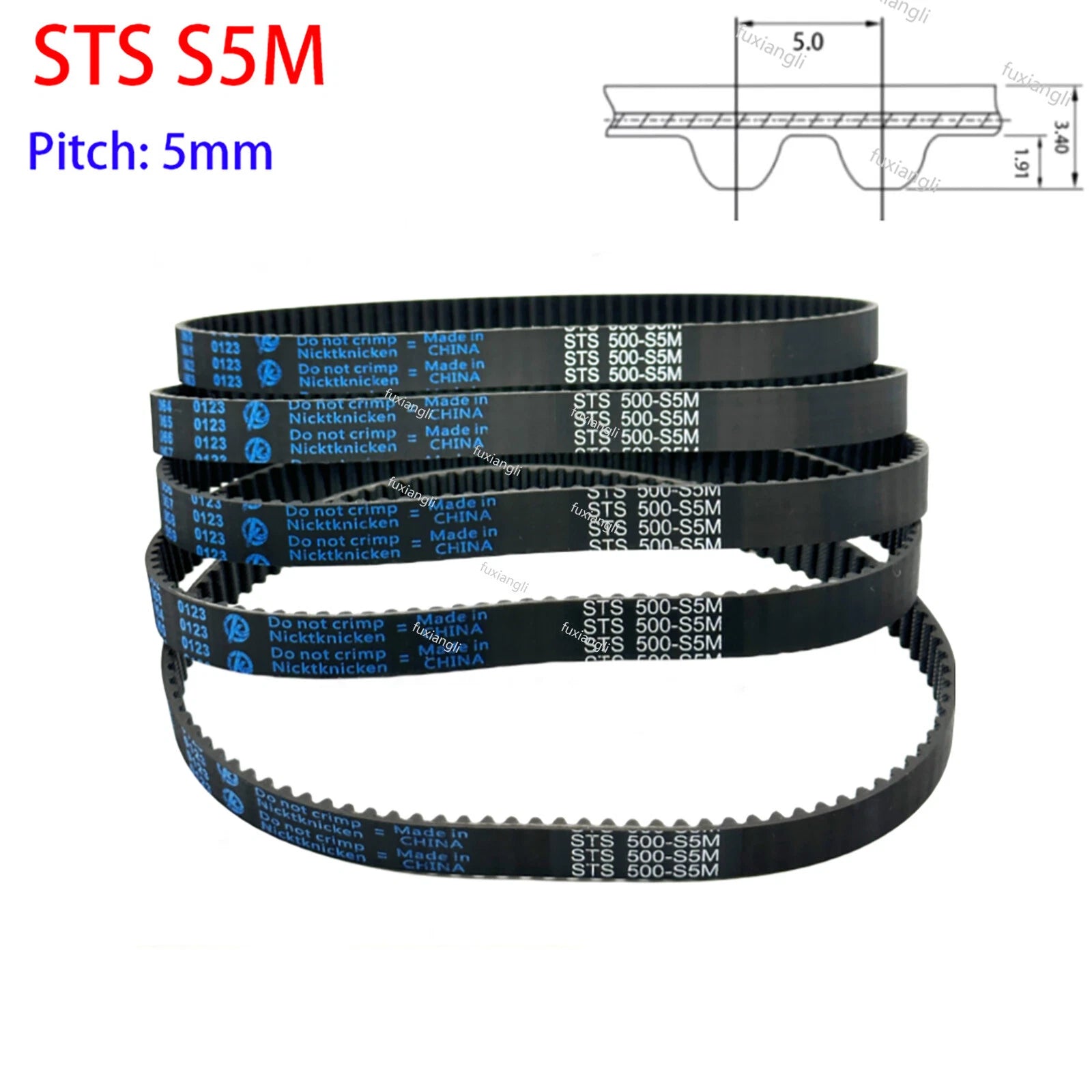

  • 📏138 Perimeter Sizes — From 180mm (≈7.1") to 4000mm (≈157.5"), this listing covers an unusually wide range of closed-loop belt lengths, eliminating the need for custom fabrication in most retrofit and repair scenarios.

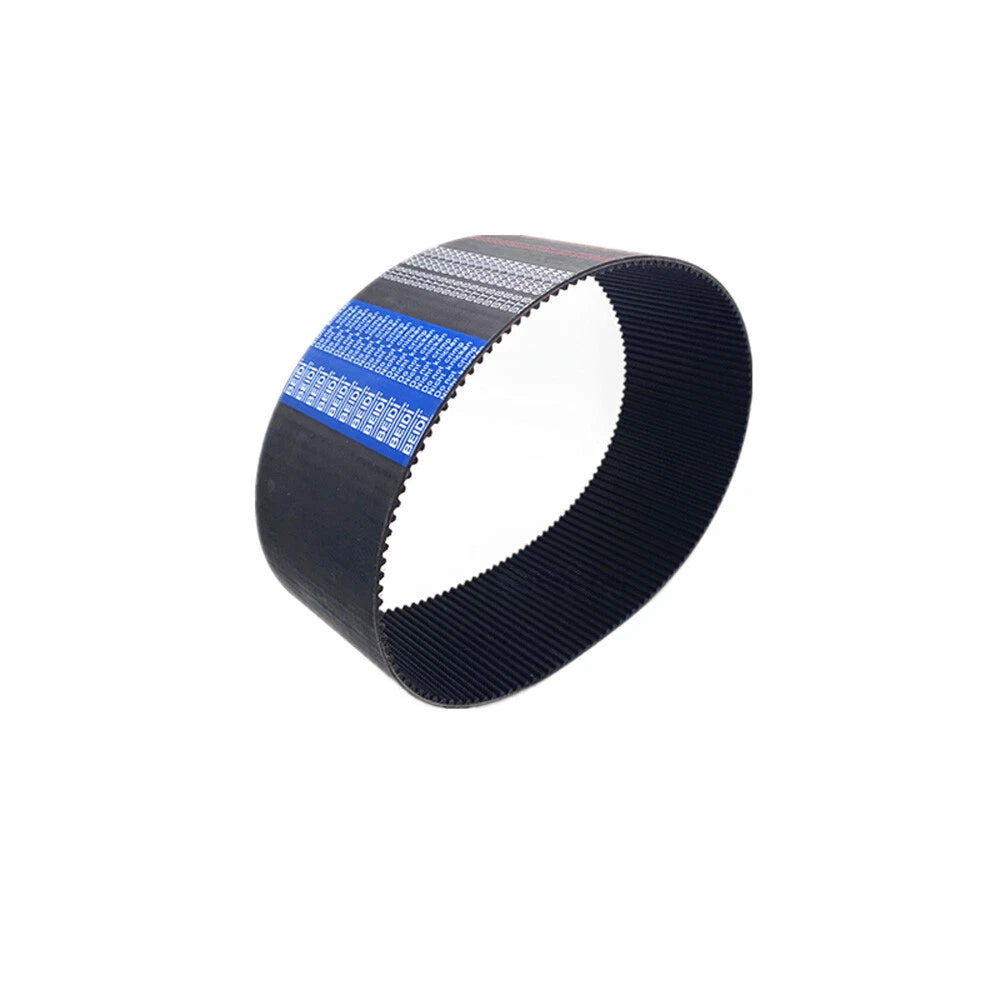

  • ⚙️30mm Consistent Belt Width — The uniform 30mm (≈1.18") width across all sizes simplifies pulley selection and ensures consistent tooth engagement width for torque transmission in automation drives.
  • 🧱Neoprene Rubber Construction — The neoprene body resists oil, moderate moisture, and temperatures typically from -20°C to +80°C (-4°F to 176°F), making it suitable for enclosed machine enclosures and light industrial environments.

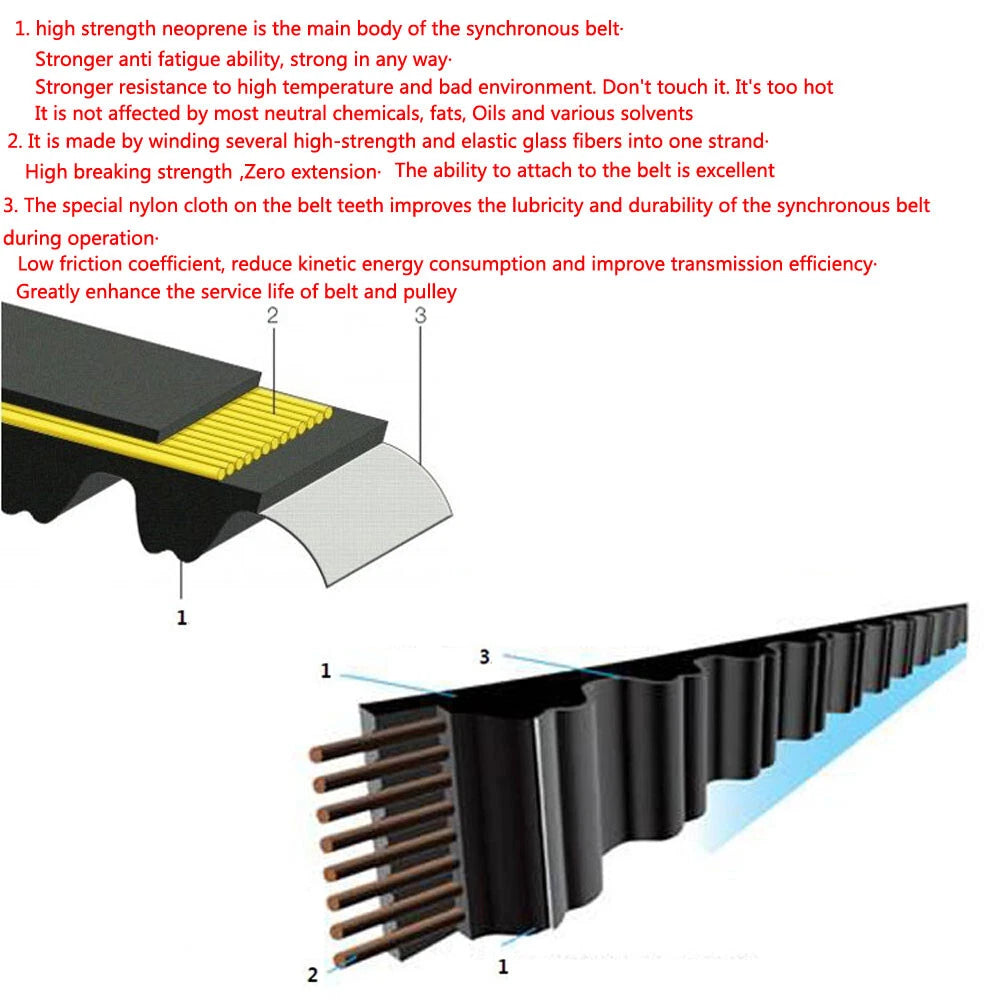

  • 🔩Tension Cord Reinforcement — Embedded tension cord (typically fiberglass) limits belt elongation under cyclic load, maintaining consistent axis positioning in 3D printer motion systems and CNC synchronous belt drives.
  • 🚀Drop-In Replacement Fit — Manufactured to S5M dimensional standards, these belts are direct replacements for worn or broken OEM belts on common CNC platforms, laser cutters, and conveyor indexing systems without modification.

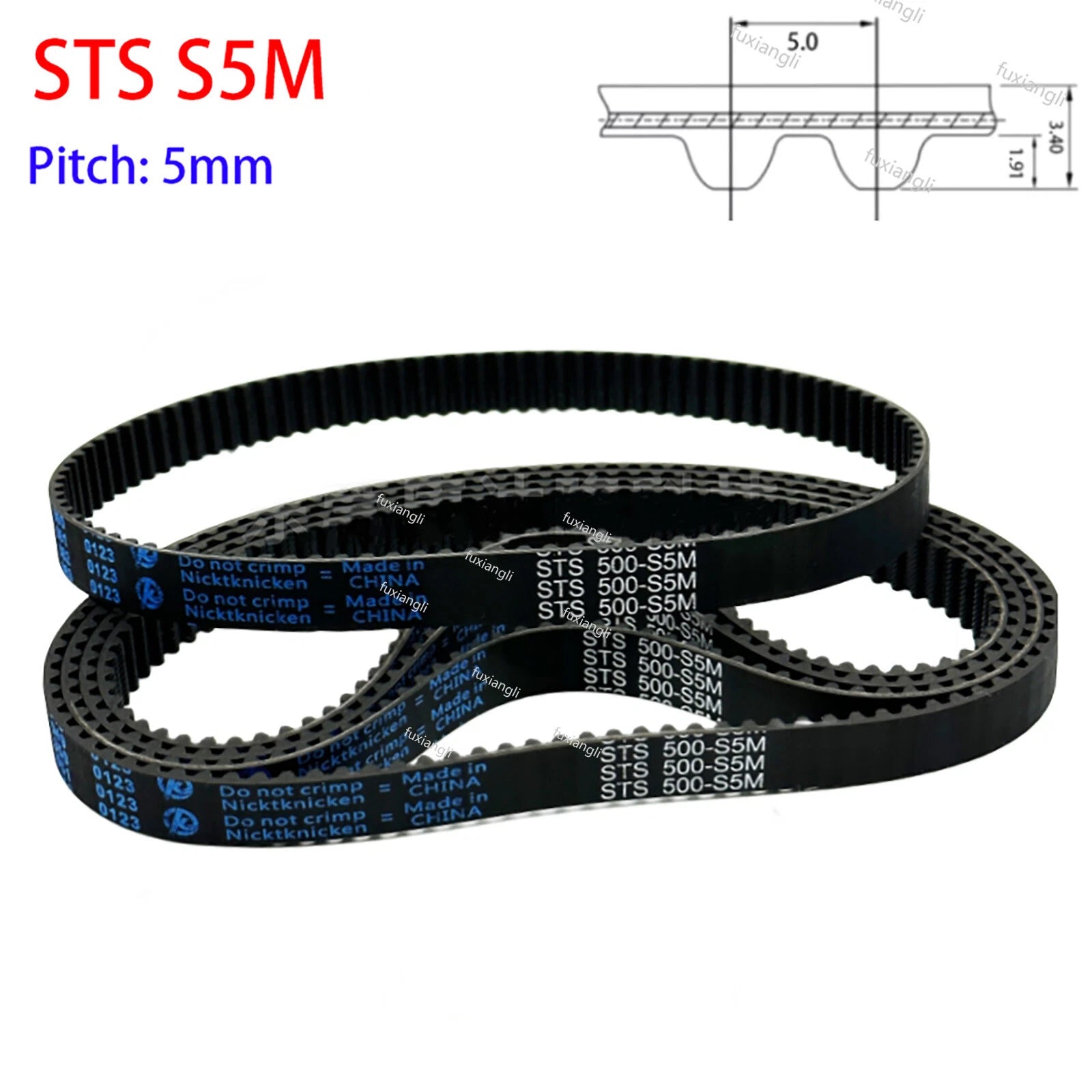

📐 Technical Specifications — S5M Synchronous Timing Belt

Belt Profile S5M (Curvilinear / HTD-compatible)

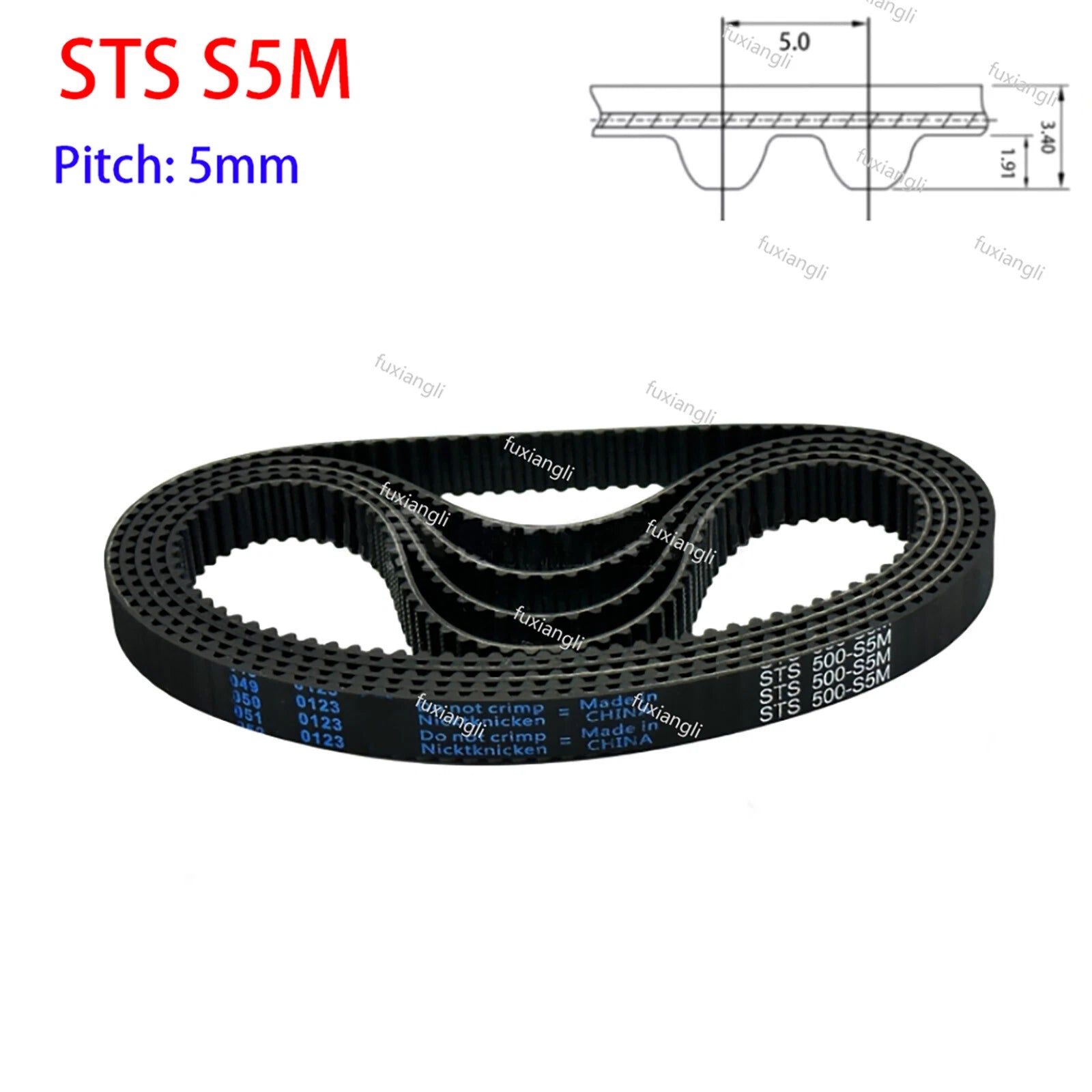

Pitch 5mm (≈0.197")
Belt Width 30mm (≈1.18")
Perimeter Range 180mm (≈7.1") – 4000mm (≈157.5")
Number of Sizes 138 options (see variant selector)
Belt Type Closed loop (endless)
Body Material Neoprene rubber
Reinforcement Tension cord (typically fiberglass) — contact us to confirm
Tooth Profile Curvilinear (S5M standard)
Operating Temp. Typically -20°C to +80°C (-4°F to 176°F)
Quantity per Order 1 piece per variant
Compatible Pulleys S5M / HTD 5M, ≥30mm flange width
Typical Applications CNC routers, 3D printers, laser engravers, conveyor drives
Country of Origin See variant options

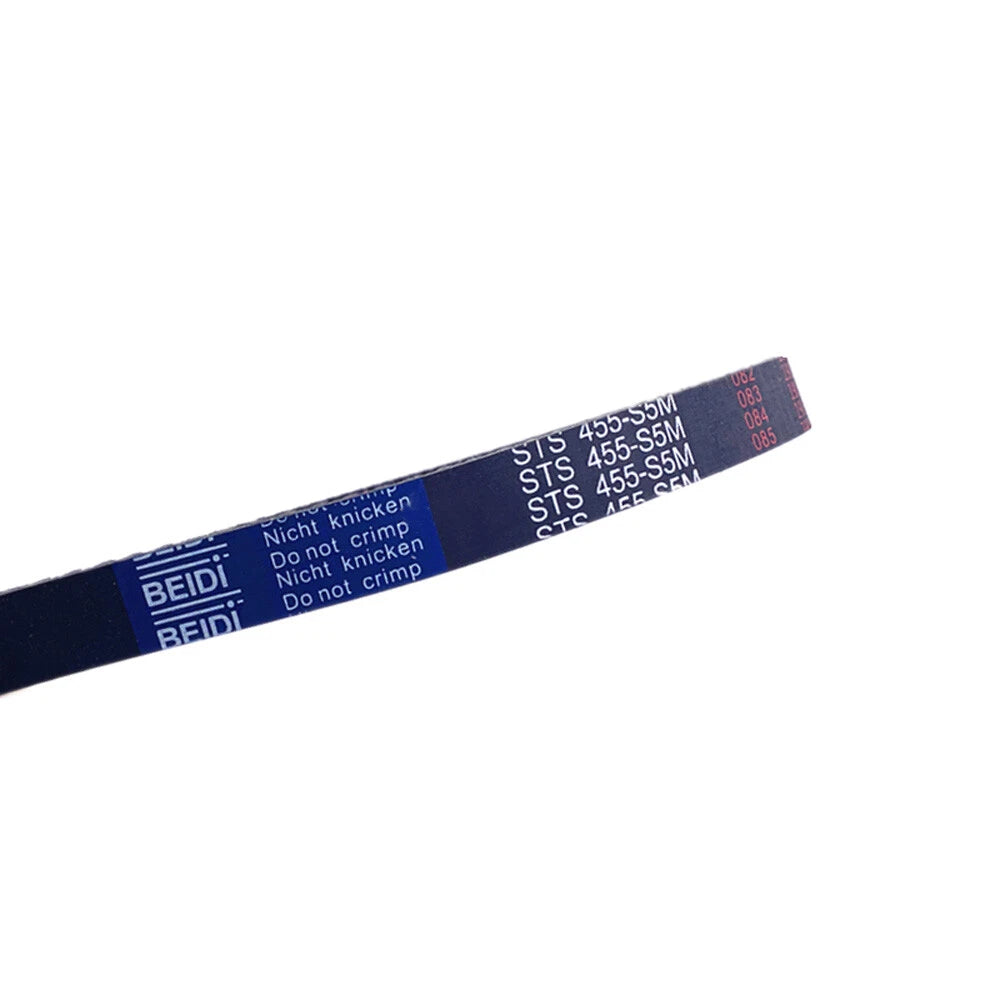

⚠️ Size Tip: The perimeter listed is the outer circumference of the closed loop. If replacing an existing belt, measure the old belt's outer circumference or check the belt markings (e.g., "500-S5M-30" = 500mm perimeter, S5M profile, 30mm wide).

❓ Frequently Asked Questions

How do I choose the right S5M timing belt length?

The perimeter listed is the outer circumference of the closed loop. Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C-to-C + (π × pulley pitch diameter). For example, a 500mm perimeter belt is approximately 19.7". Always verify against your machine's spec sheet or existing belt markings before ordering.

What does S5M mean, and how does it differ from HTD 5M?

S5M is a curvilinear-tooth synchronous belt profile with a 5mm pitch. It is generally interchangeable with HTD 5M belts in most applications, as both share the same pitch and tooth geometry. However, always confirm pulley compatibility before substituting, as minor tooth-profile differences can affect engagement under high load.

What is the load capacity of this timing belt?

Load capacity depends on belt length, pulley diameter, and operating speed. For a 30mm-wide S5M belt, typical rated tensile strength is generally in the range of 500–900 N depending on the specific perimeter and reinforcement cord. For precision power-transmission applications, consult your drive system's torque requirements and apply an appropriate service factor.

Can this belt be used outdoors or in wet environments?

The neoprene rubber body provides good resistance to oil, moderate moisture, and temperatures typically from -20°C to +80°C (-4°F to 176°F). It is not rated for continuous submersion. For harsh outdoor or chemical-exposure environments, verify suitability with your application engineer before installation.

Is this belt compatible with standard S5M pulleys and sprockets?

Yes. This belt follows the S5M standard profile (5mm pitch, curvilinear tooth) and is designed to mesh with any standard S5M or HTD 5M pulley. The 30mm belt width requires pulleys with a usable flange width of at least 30mm. Always confirm pulley tooth count and pitch diameter match your drive ratio requirements.

How do I decide between different perimeter sizes for my CNC or 3D printer?

For CNC routers and 3D printers, the belt perimeter is determined by axis travel distance and pulley placement. Most desktop CNC machines use belts in the 400mm–1000mm range, while larger gantry systems may require 1200mm–2000mm. Check your machine's BOM or measure the existing belt's outer circumference directly. When in doubt, size up — a slightly longer belt can be tensioned; a too-short belt cannot be installed.

What reinforcement cord does this belt use?

S5M timing belts in this series typically use fiberglass tension cord embedded in the neoprene body, providing low stretch and good dimensional stability under cyclic loading. Some variants may use steel cord for higher-load applications. Contact us to confirm the specific cord type for your selected size.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
