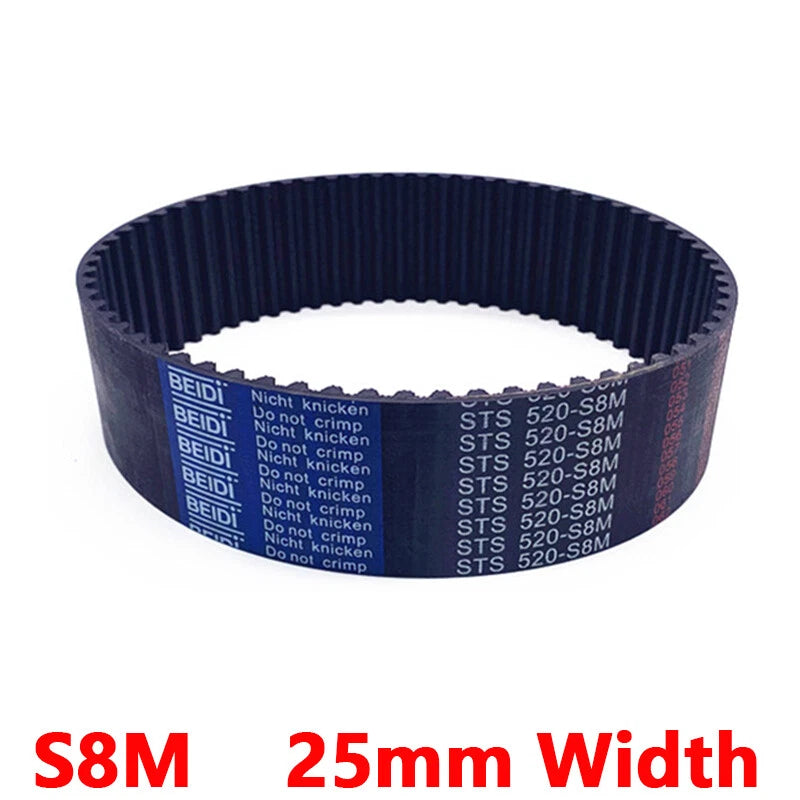

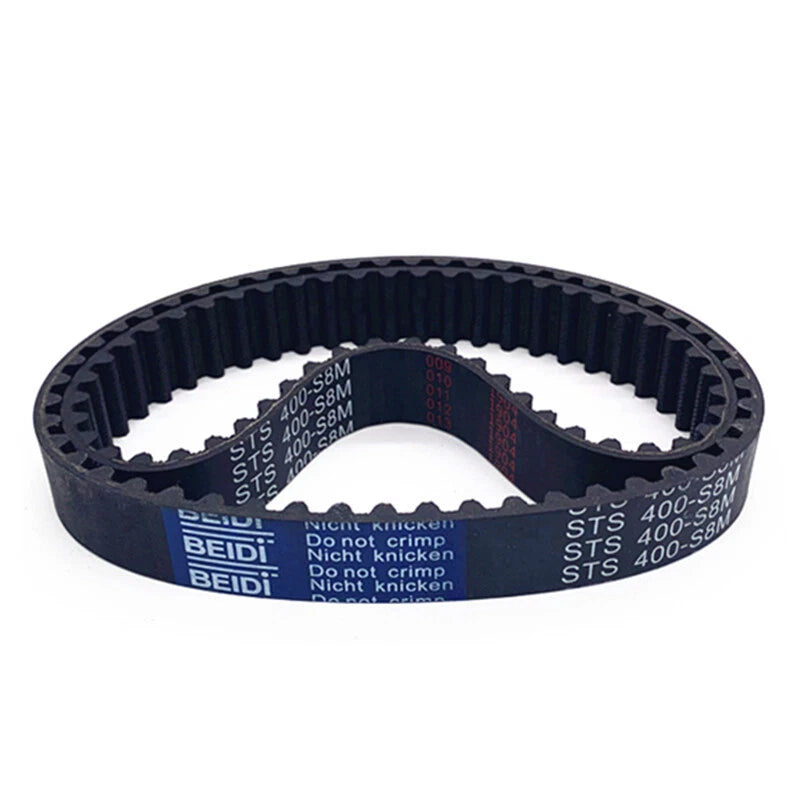

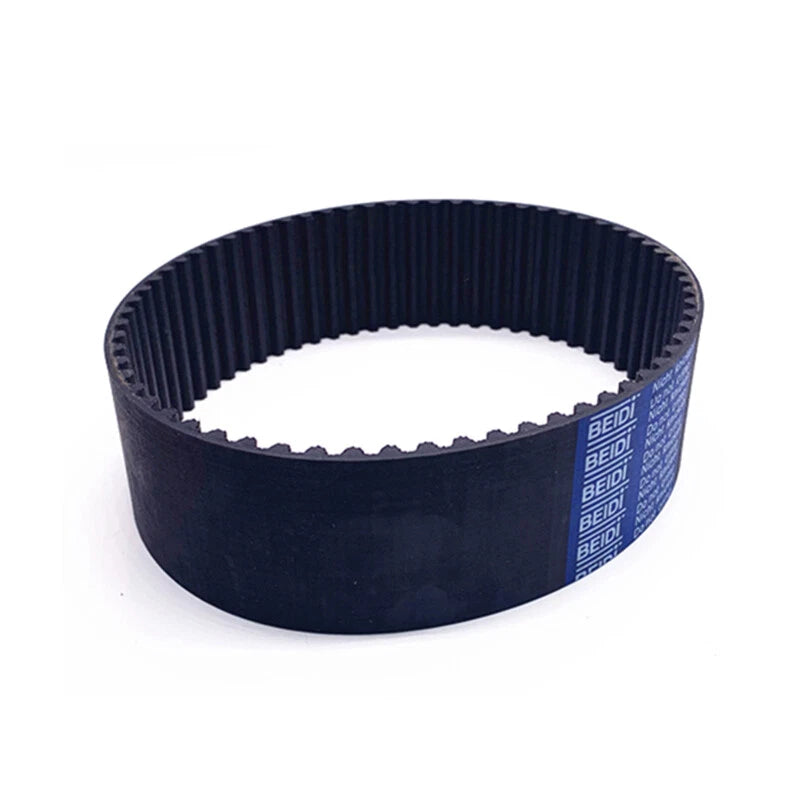

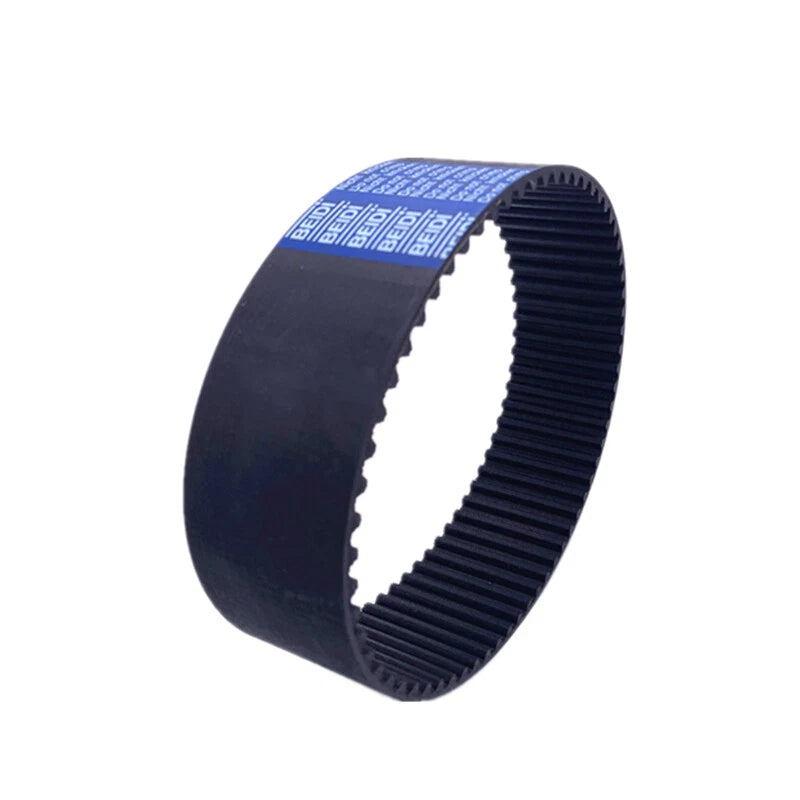

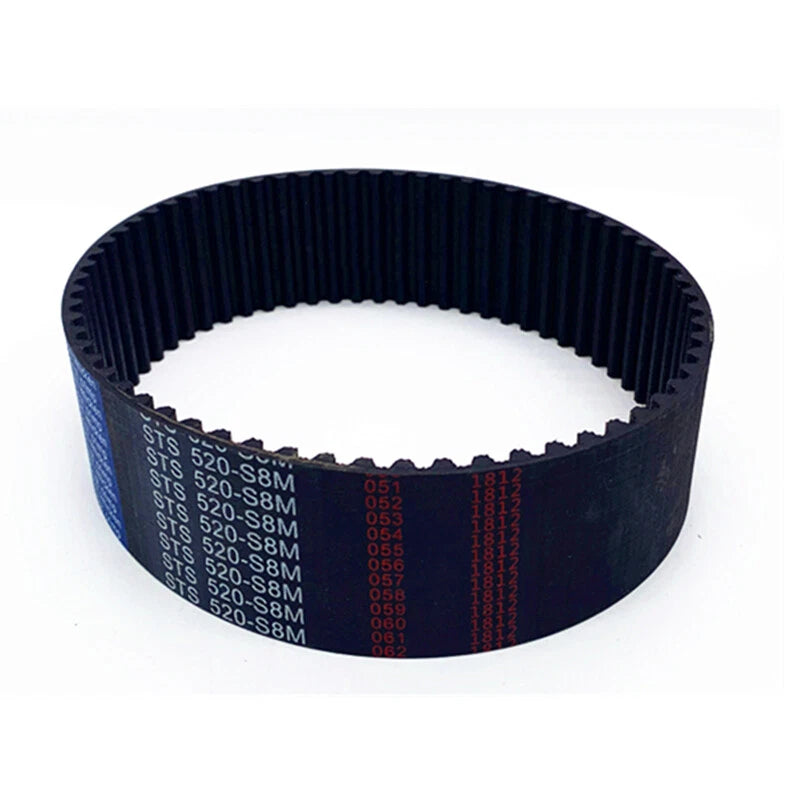

S8M HTD Timing Belt — Reliable Closed Loop Synchronous Drive for Precision Machinery

When a slipping or mismatched drive belt causes downtime on your CNC router, conveyor, or automation rig, finding an exact-fit S8M HTD timing belt fast is critical. Engineers, machine builders, and DIY fabricators who need a closed loop synchronous timing belt with an 8mm pitch and 25mm width will find this listing covers 160+ size options — from compact 352mm (≈13.9") loops up to heavy-duty 4400mm (≈173.2") runs — so you can match your existing drive system without custom fabrication.

Each belt is a single closed loop synchronous timing belt with an 8mm pitch (S8M / HTD 8M profile), 25mm (≈1") width, and a curvilinear tooth design that seats firmly into S8M pulleys. The rubber body is reinforced with tensile cords — typically fiberglass or steel — for dimensional stability under load. Available circumferences range from 352mm (≈13.9") to 4400mm (≈173.2"), with tooth counts spanning 44 to 550 teeth depending on the selected size.

Typical use cases include CNC router X/Y axis drives, 3D printer bed and extruder motion systems, laser cutter gantry drives, light conveyor belt replacements, and general industrial automation where a synchronous closed loop timing belt with 8mm pitch is specified. The 25mm width makes this belt well-suited for medium-duty power transmission where a wider contact patch reduces tooth load per unit area.

🔗 Compatibility: Designed for S8M (HTD 8M) profile pulleys with 8mm pitch and 25mm or wider tooth face. Verify your pulley tooth profile before ordering — S8M and HTD 8M are generally interchangeable.
⚠️ Size Selection: Belt length = inner circumference of the closed loop. Use the size selector above to choose your exact tooth count and length. If your required size is not listed, contact us.

✅ Key Features of These S8M Closed Loop Synchronous Timing Belts

  • ⚙️8mm HTD Tooth Profile — The curvilinear S8M tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in synchronous drive applications.
  • 📏160+ Sizes in One Listing — Circumferences from 352mm (≈13.9") to 4400mm (≈173.2") with tooth counts from 44 to 550, covering a wide range of CNC, conveyor, and automation drive configurations.
  • 🔒Closed Loop Construction — Seamless endless loop eliminates splice joints that can cause vibration or failure, maintaining consistent tension throughout the belt's service life.
  • 🧵Reinforced Tensile Cord — Internal cord reinforcement (typically fiberglass or steel) resists elongation under dynamic loads, keeping tooth pitch consistent for accurate synchronous motion.
  • 📐25mm Working Width — The 25mm (≈1") belt width provides a broader tooth engagement surface compared to narrower S8M belts, making it suitable for medium-duty power transmission in industrial and maker applications.
  • 🔄Drop-In S8M Pulley Fit — Tooth spacing conforms to the S8M / HTD 8M standard, so this closed loop timing belt fits existing S8M pulleys without modification in most drive configurations.

📐 Technical Specifications — S8M HTD Closed Loop Timing Belt

Belt Profile S8M (HTD 8M — curvilinear tooth)
Pitch 8mm (≈0.315")
Belt Width 25mm (≈1")
Belt Type Closed loop synchronous timing belt
Circumference Range 352mm (≈13.9") – 4400mm (≈173.2")
Tooth Count Range 44 teeth – 550 teeth (varies by size)
Tensile Reinforcement See variant options (typically fiberglass or steel cord)
Body Material See variant options (typically neoprene or rubber compound)
Compatible Pulley S8M / HTD 8M profile pulleys, 25mm face width or wider
Application CNC drives, conveyor systems, 3D printers, laser cutters, industrial automation
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right S8M timing belt length?

The belt length listed (e.g., 352mm) is the inner circumference of the closed loop. To calculate the belt you need, use the standard formula:

Belt Length ≈ 2 × C + π × (D1 + D2) / 2

where C is the center-to-center distance between pulleys and D1/D2 are the pitch diameters. For a quick reference: 352mm ≈ 13.9", 1000mm ≈ 39.4", 2000mm ≈ 78.7". When in doubt, size up slightly to maintain proper tension adjustment range.

What pulleys are compatible with this S8M timing belt?

This belt is designed for S8M-profile (HTD 8M) pulleys with an 8mm pitch. The 25mm belt width generally pairs with pulleys that have a 25mm or wider tooth face. S8M and HTD 8M are typically interchangeable — always confirm the tooth profile matches before ordering.

What is the load-bearing or tensile strength of this timing belt?

S8M timing belts in the 25mm width range are generally suited for moderate-to-heavy power transmission. Exact tensile ratings depend on the internal cord material (typically fiberglass or steel). For load-critical applications, contact us to confirm the specific tensile strength for your selected size.

Can this timing belt be used outdoors or in wet environments?

The rubber compound used in S8M HTD belts is generally resistant to moderate moisture and incidental oil splash. Prolonged UV exposure, harsh chemical contact, or full submersion is not recommended. For outdoor or washdown-rated applications, contact us before purchase to verify material suitability.

Is this belt the same as an HTD 8M belt?

Yes — S8M and HTD 8M refer to the same curvilinear tooth profile standard with an 8mm pitch. They are generally interchangeable in most drive systems. Always verify the tooth profile shape and pitch match your existing pulley before installation to avoid misalignment.

How do I convert belt length from mm to inches?

Divide the millimeter value by 25.4. Quick reference examples:

  • 352mm ÷ 25.4 ≈ 13.9"
  • 600mm ÷ 25.4 ≈ 23.6"
  • 1000mm ÷ 25.4 ≈ 39.4"
  • 2000mm ÷ 25.4 ≈ 78.7"
  • 4400mm ÷ 25.4 ≈ 173.2"

All variant sizes are listed in mm in the size selector above.

What industries or machines commonly use S8M timing belts?

S8M closed loop timing belts are commonly found in CNC routers, 3D printers, laser cutters, conveyor systems, packaging machinery, agricultural equipment, and general industrial automation. The 25mm width is typically suited for medium-duty synchronous power transmission tasks where tooth engagement accuracy matters.

🛒 Select your size and length above, then add to cart — ships from our US warehouse.
