S8M Timing Belt Pulley — Precision Synchronous Drive for 40mm Wide Belts

When a slipping or mismatched pulley causes your CNC router, 3D printer, or conveyor to lose position, the entire project stalls. Engineers, makers, and automation integrators who need a reliable, zero-slip synchronous drive solution will find the S8M timing belt pulley an exact-fit answer. Designed for 8mm pitch (S8M) timing belts with a 40mm belt width, these pulleys eliminate the guesswork of sourcing compatible drive components.

Each S8M timing belt pulley is machined from aluminum alloy, delivering a balance of low rotational inertia and structural rigidity. The tooth profile conforms to the S8M standard with an 8mm pitch and a tooth count ranging from 20T to 40T. Outer diameter scales with tooth count — typically 51mm to 102mm (2.0 in to 4.0 in) — and bore options span 12mm to 30mm (0.47 in to 1.18 in), with keyed variants available for positive shaft engagement.

Typical use cases include CNC axis drives requiring repeatable linear positioning, robotic joint actuators where backlash must be minimized, and industrial conveyor systems needing a synchronous S8M sprocket that handles continuous-duty loads without belt creep.

⚙️ Compatibility: Fits S8M open-end and closed-loop timing belts with 40mm (1.57 in) width. Verify belt pitch (8mm) and belt width before ordering.

✅ Key Features of These S8M Timing Belt Pulleys

🔩 Wide Tooth Count Range (20T–40T)

Choose from 12 tooth-count options to dial in your exact drive ratio. More teeth reduce belt load per tooth; fewer teeth allow more compact drive layouts for tight spaces.

📐 Multiple Bore Sizes with Keyway Options

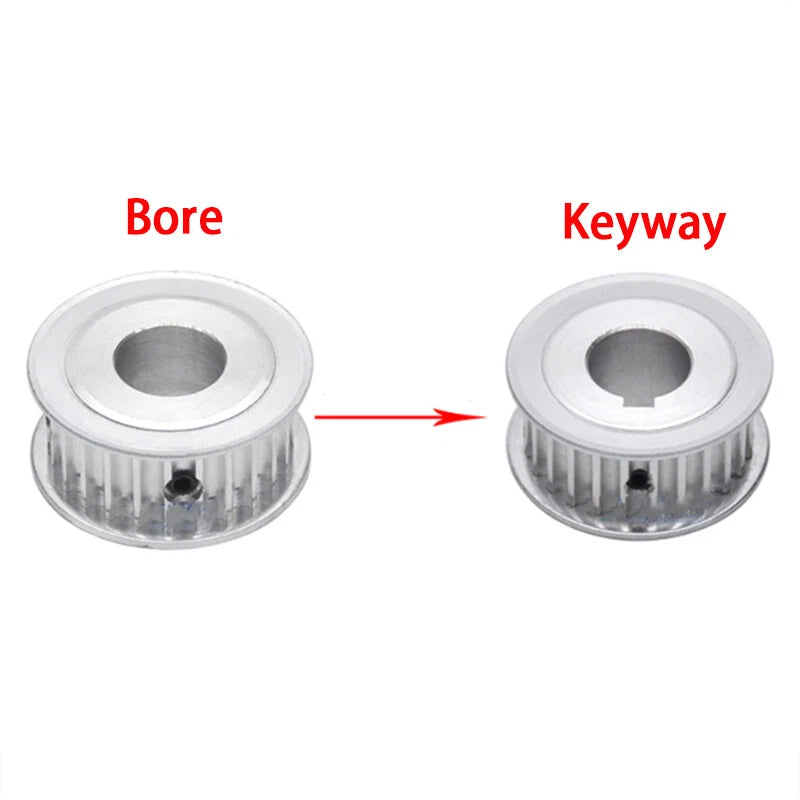

Plain bore options from 12mm to 30mm cover most motor and shaft diameters. Keyed variants (4mm, 5mm, or 8mm keyway) lock the pulley to the shaft for torque-critical applications.

🏗️ Aluminum Alloy Construction

Lightweight yet rigid aluminum alloy body reduces rotational inertia for faster acceleration and deceleration cycles, extending belt and bearing life in dynamic drive systems.

🎯 S8M Standard Tooth Profile

Machined to the S8M synchronous belt standard — 8mm pitch, trapezoidal tooth form — ensuring full mesh engagement with S8M belts and consistent pitch-line velocity across the full tooth count range.

📏 40mm Belt Width Flange Design

Flanged pulley body retains the 40mm wide belt on track under lateral loads, reducing belt walk-off in horizontal and vertical drive orientations without additional guides.

🔄 Drop-In Replacement Geometry

Standard S8M tooth geometry and common bore sizes make these pulleys direct replacements for worn or undersized synchronous sprockets in existing drive assemblies.

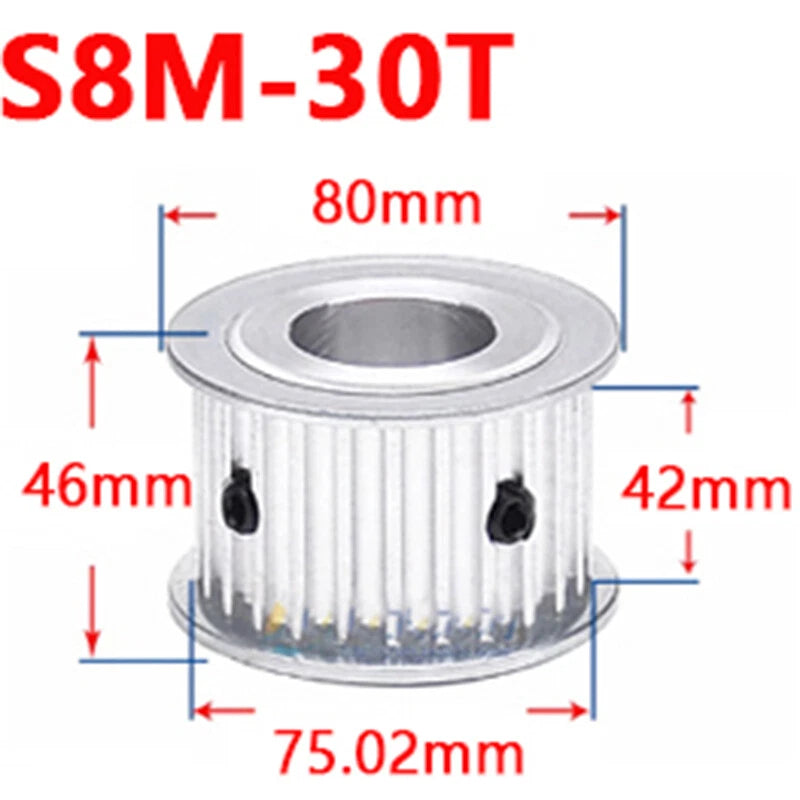

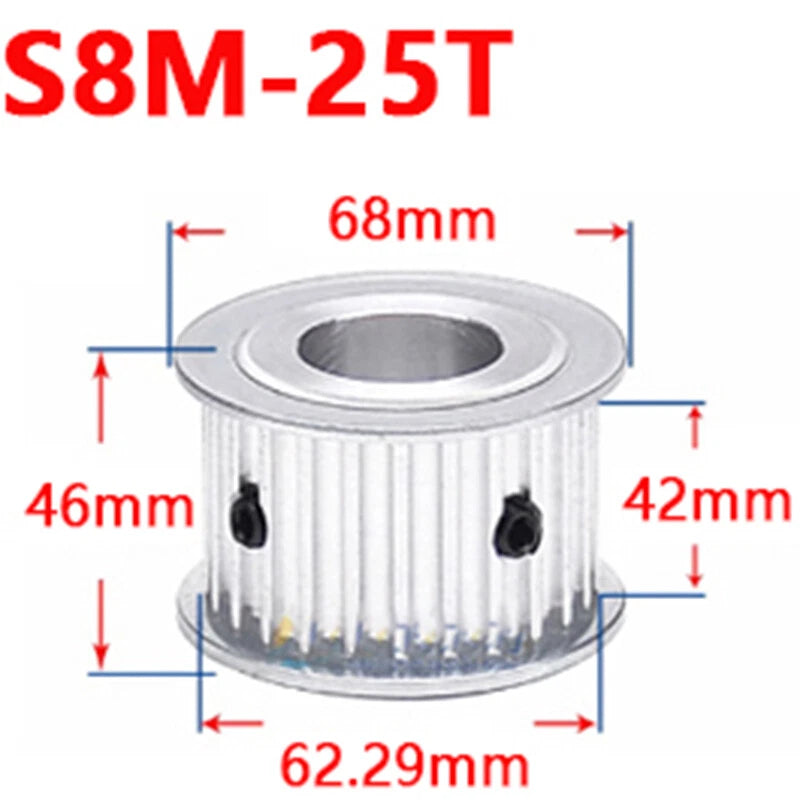

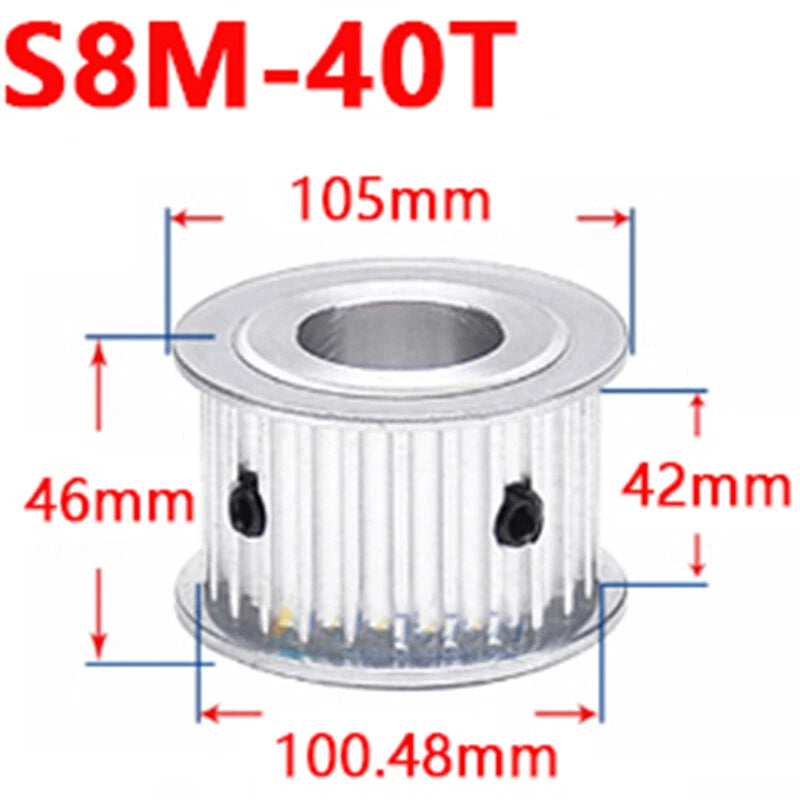

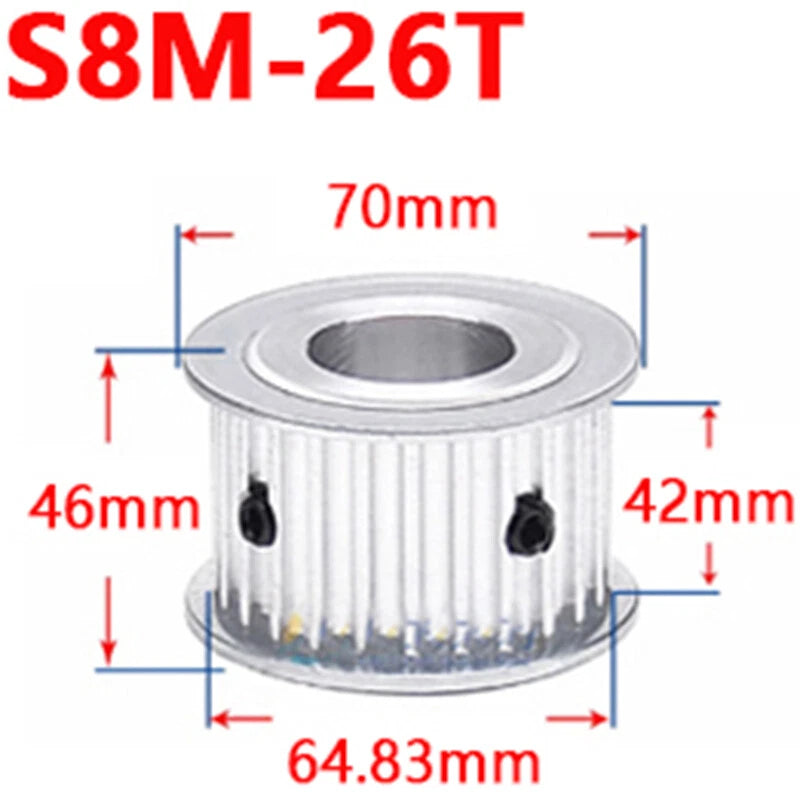

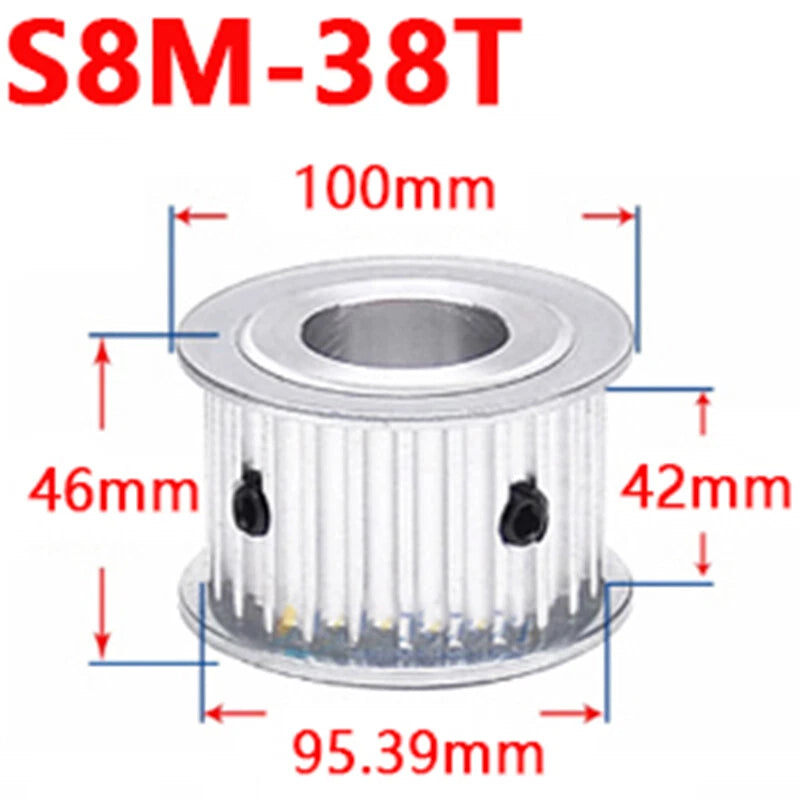

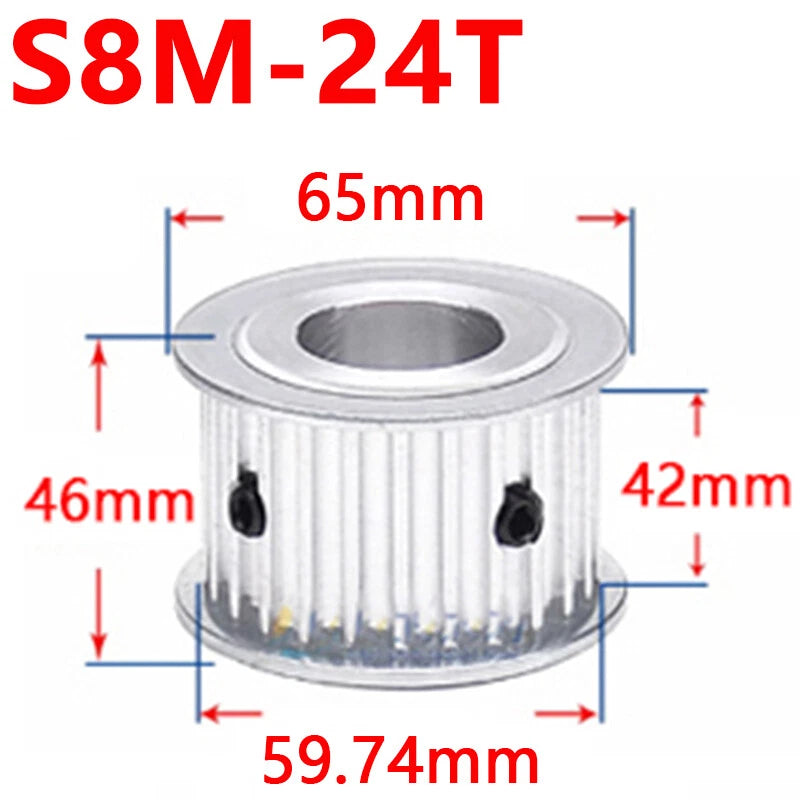

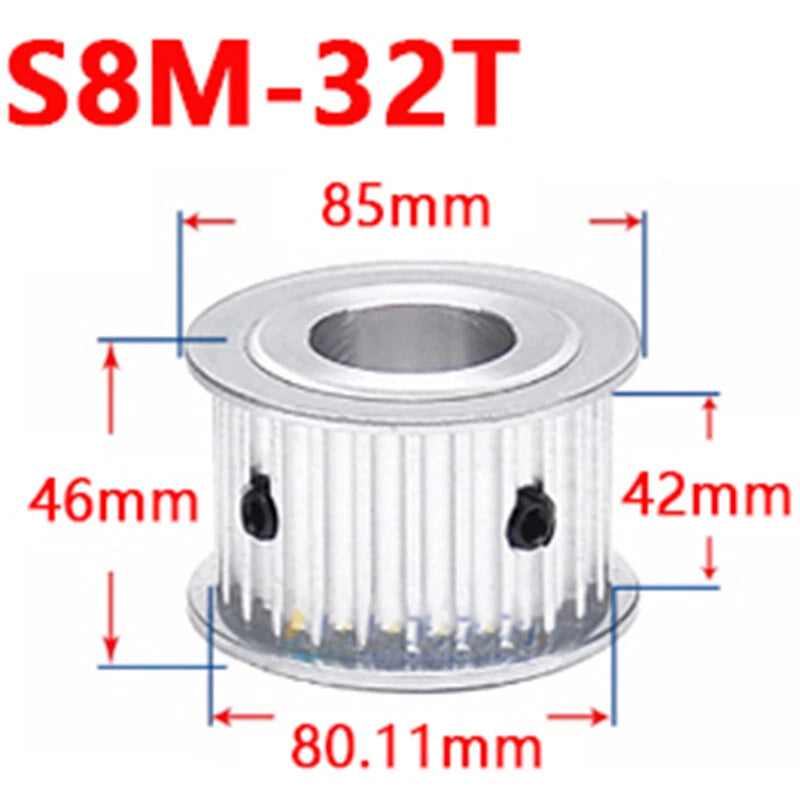

📐 Technical Specifications — S8M Timing Belt Pulley

Belt Standard	S8M (8mm pitch, trapezoidal)
Belt Width	40mm (1.57 in)

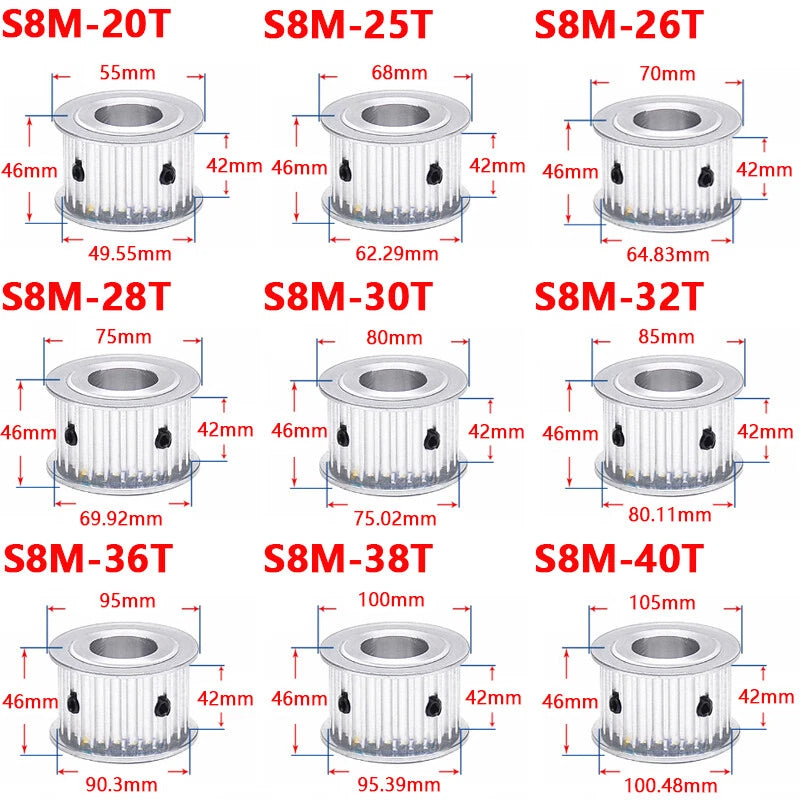

Tooth Count	20T, 22T, 24T, 25T, 26T, 28T, 30T, 32T, 34T, 36T, 38T, 40T

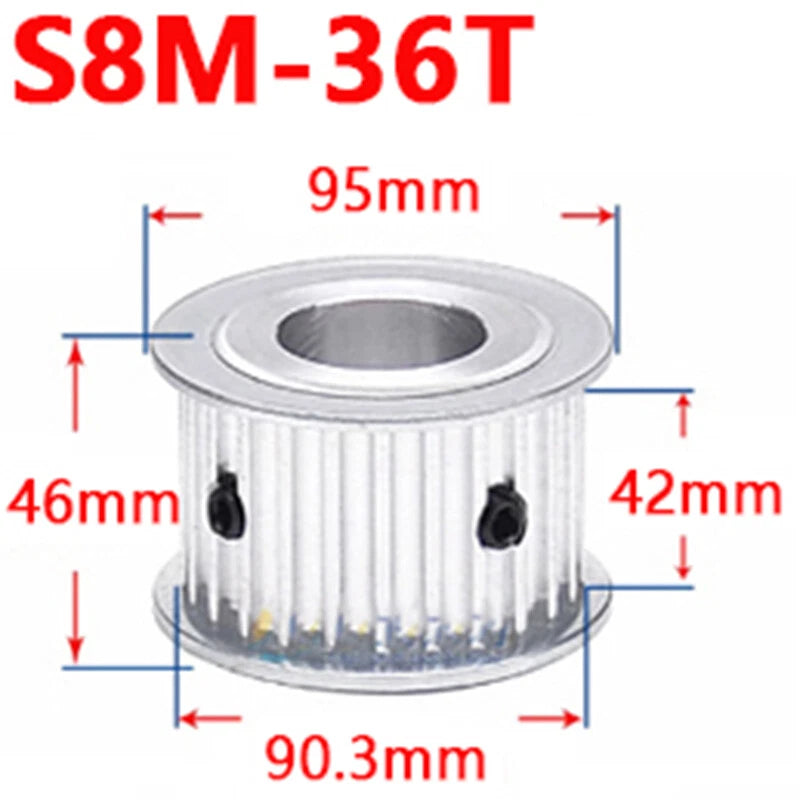

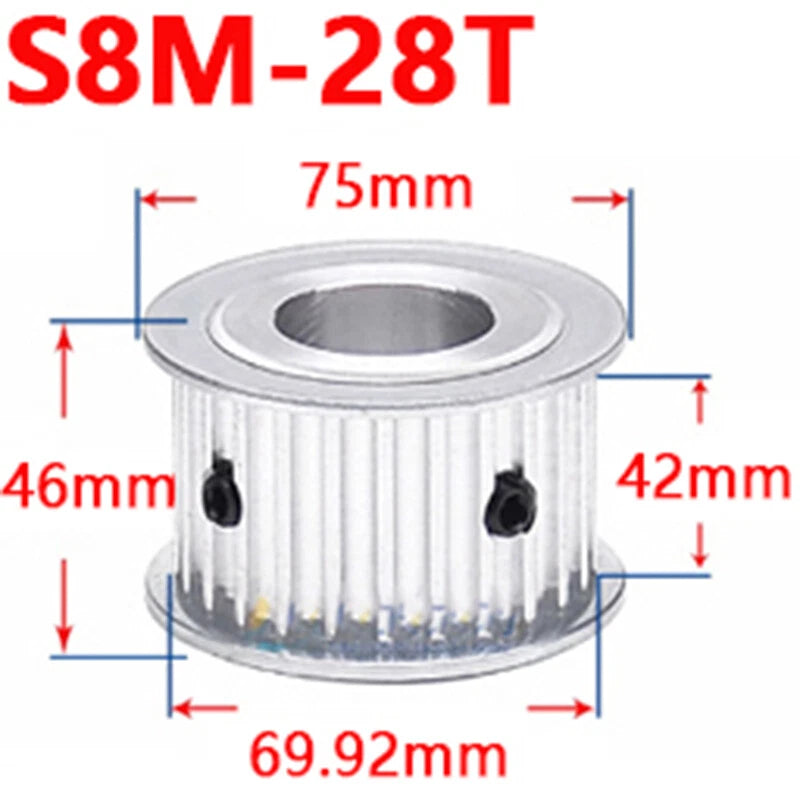

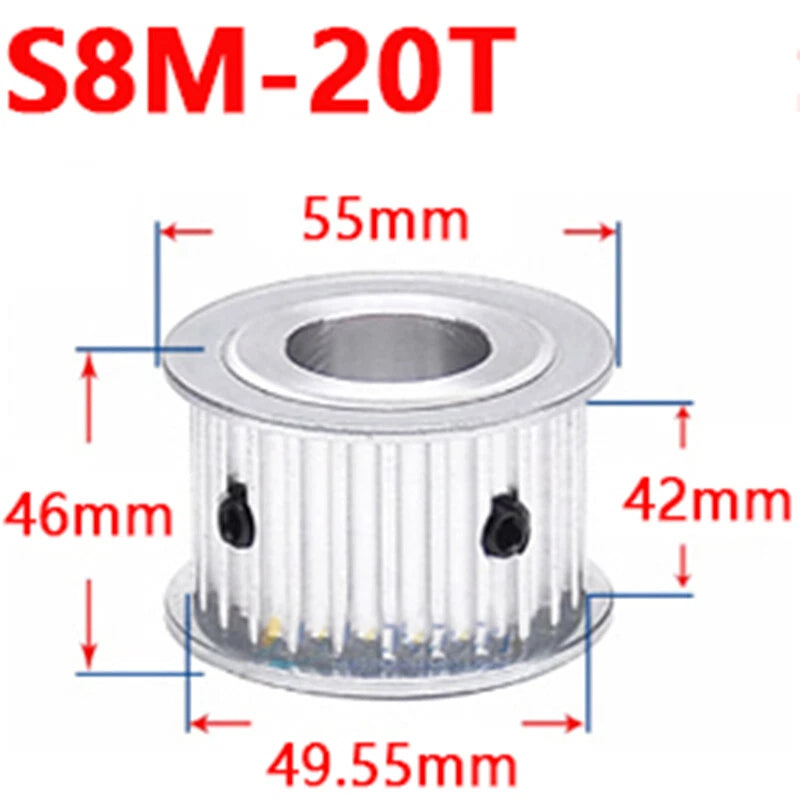

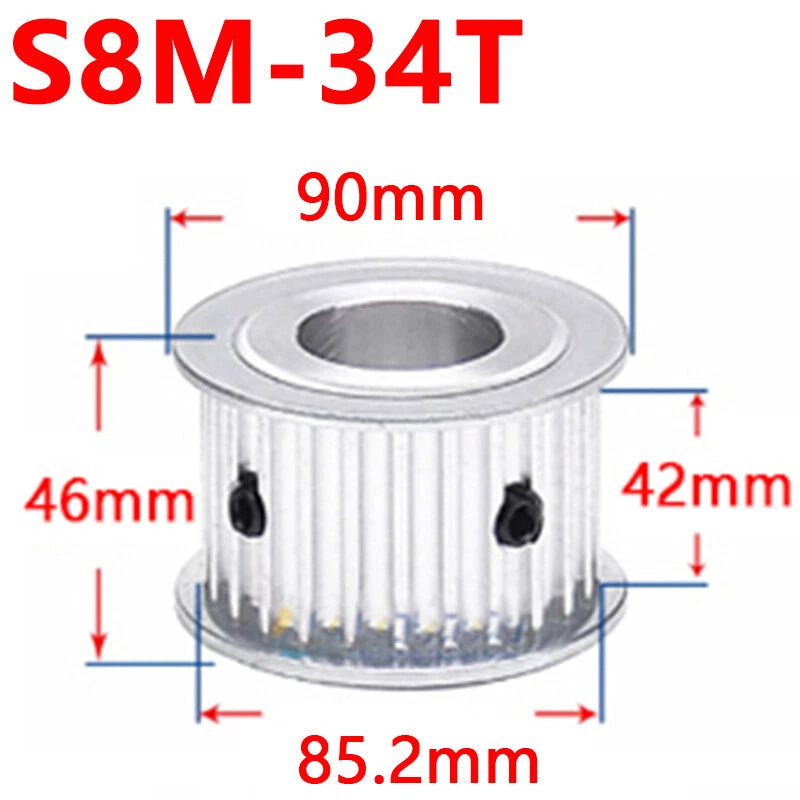

Pitch Diameter Range	Approx. 50.9mm–101.9mm (2.0 in–4.0 in) — varies by tooth count
Bore Diameter	12mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm
Keyway Options	4mm, 5mm, or 8mm keyway (see variant options)
Material	Aluminum alloy
Flange	Flanged (belt retention)
Surface Finish	See variant options
Hub Length	See variant options
Set Screw	See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count (20T vs 40T)?

Tooth count determines your drive ratio and pitch diameter. A lower tooth count (e.g., 20T) gives a smaller pulley diameter — useful for compact layouts or as a driver pulley to increase speed. A higher tooth count (e.g., 40T) increases the pitch diameter, which reduces belt tension and is often used as the driven pulley to reduce speed and increase torque. Divide the driven tooth count by the driver tooth count to get your reduction ratio.

What bore size should I select for my motor shaft?

Measure your motor or drive shaft diameter with calipers and select the matching bore size. Available plain bore options are 12mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, and 30mm. If your shaft has a keyway slot, select the corresponding keyed bore variant (e.g., 19mm Bore 6mm Keyway) to prevent rotational slip under load.

Do I need a keyway variant, or will a plain bore work?

For light-duty or positioning applications where a set screw provides sufficient retention, a plain bore is adequate. For torque-intensive applications — such as CNC axis drives, conveyor drives, or robotic joints — a keyed bore variant is recommended. The keyway creates a positive mechanical lock between the shaft and pulley, preventing rotational slip even under shock loads.

Are these pulleys compatible with all S8M timing belts?

These pulleys are designed for S8M timing belts with an 8mm pitch and 40mm belt width. They are compatible with both open-end S8M belts (cut to length) and closed-loop S8M belts of the correct width. They are not compatible with other belt standards such as HTD 8M, GT2, or T10 — even if the pitch appears similar, the tooth profile geometry differs.

What material are these pulleys made from, and how do they handle corrosion?

The pulleys are machined from aluminum alloy, which offers a favorable strength-to-weight ratio and natural oxidation resistance in dry or low-humidity indoor environments. For applications exposed to moisture, mild chemicals, or outdoor conditions, consider applying a compatible protective coating or selecting a stainless steel shaft and fasteners to prevent galvanic corrosion at contact points.

Can I use these as a direct replacement for worn pulleys in an existing drive?

Yes, provided your existing system uses S8M-standard pulleys with a 40mm belt width. Match the tooth count and bore diameter (and keyway if applicable) of your worn pulley. Because these conform to the S8M standard tooth geometry, they will mesh correctly with any S8M-compatible belt already in your system without requiring belt replacement.

What applications are these S8M synchronous pulleys suited for?

Common applications include CNC router and laser cutter axis drives, 3D printer gantry systems, robotic arm joints, conveyor belt drives, packaging machinery, and general industrial automation where synchronous (no-slip) power transmission is required. The 40mm belt width makes them suitable for moderate-to-high torque drives where narrower belts would be undersized.

🛒 Select your Size and Bore above, then add to cart.
