Description

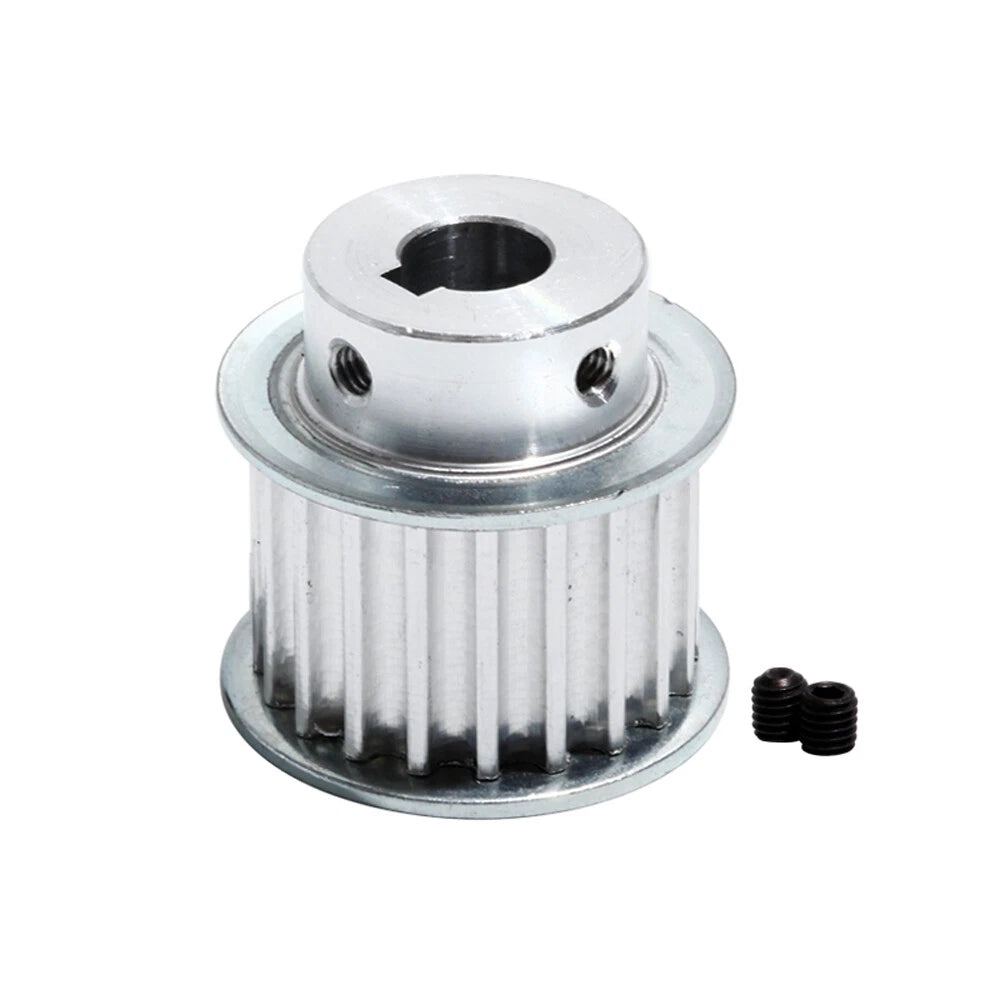

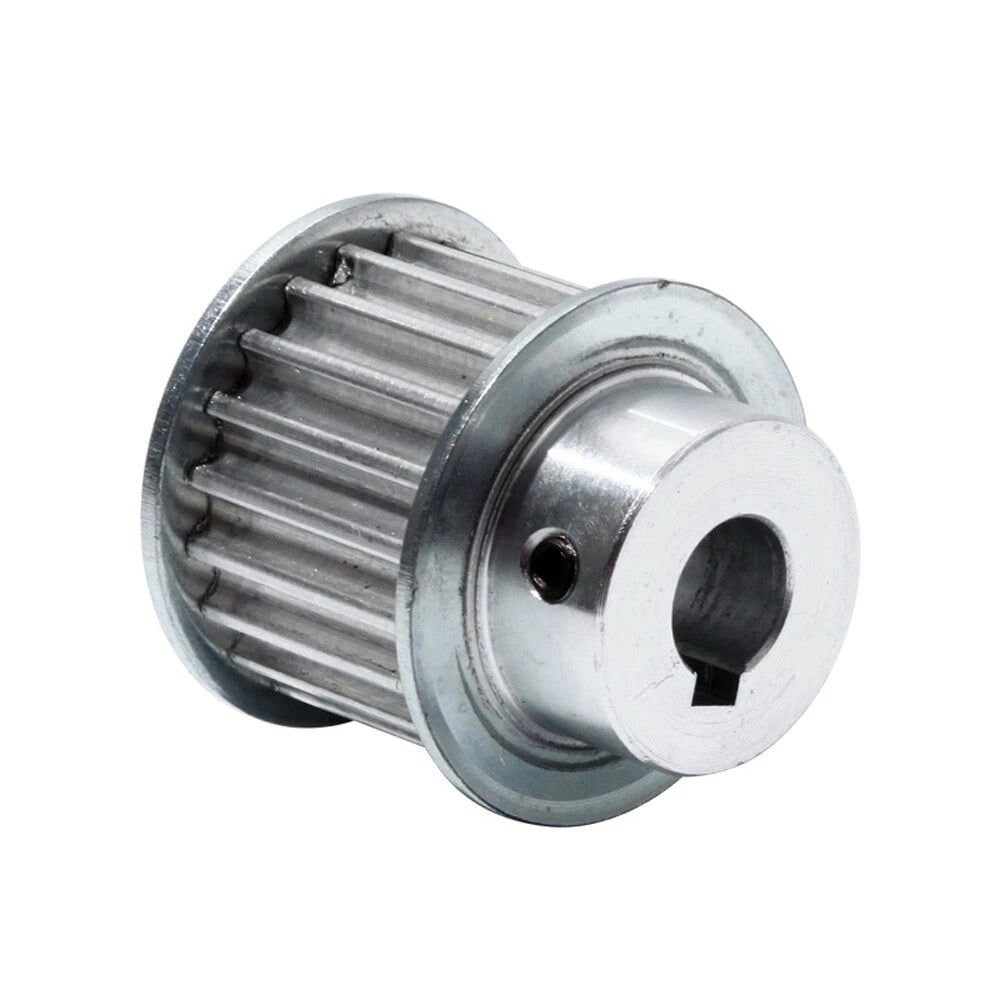

S8M Timing Belt Pulleys — Precision 8mm Pitch Drive for DIY Automation

When your CNC router, 3D printer, or custom conveyor system demands slip-free, repeatable motion, a mismatched or worn pulley becomes the weakest link in the entire drive train. These S8M timing belt pulleys are engineered for makers, small-workshop builders, and automation hobbyists who need a reliable, drop-in synchronous drive component without sourcing from industrial distributors.

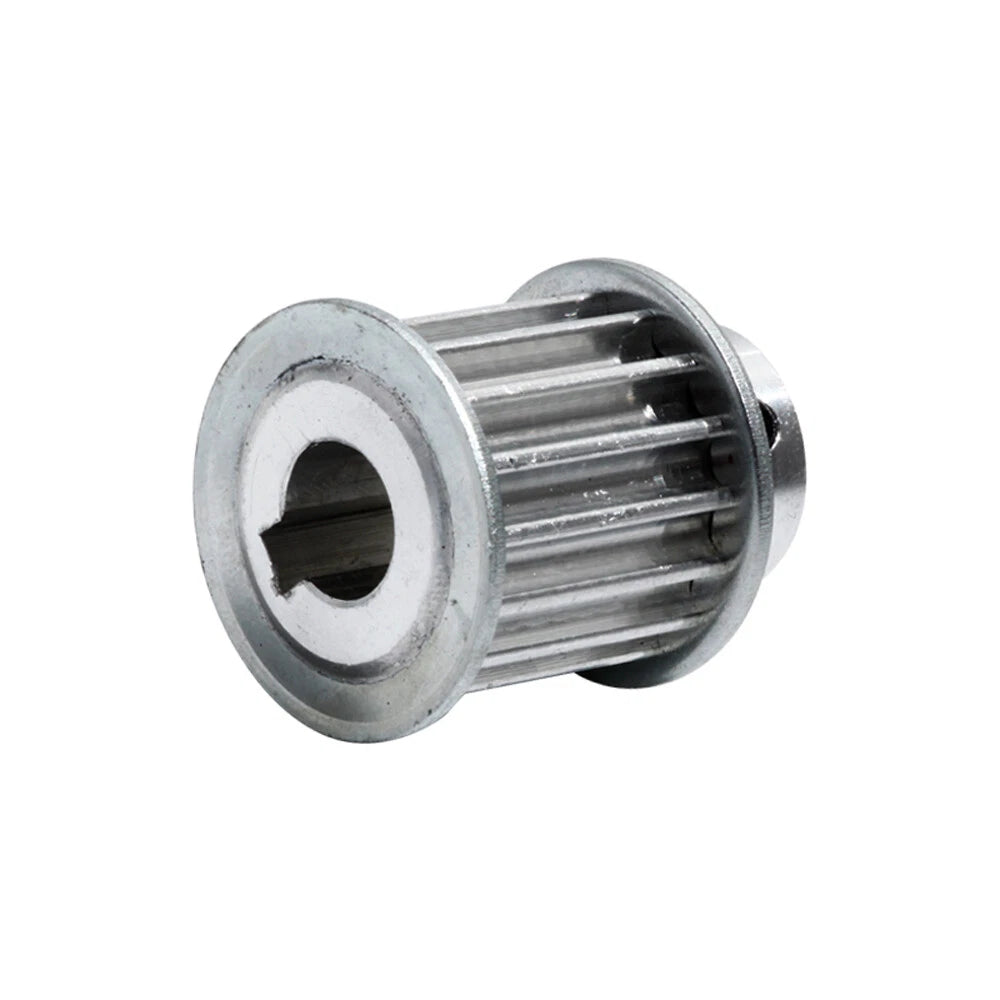

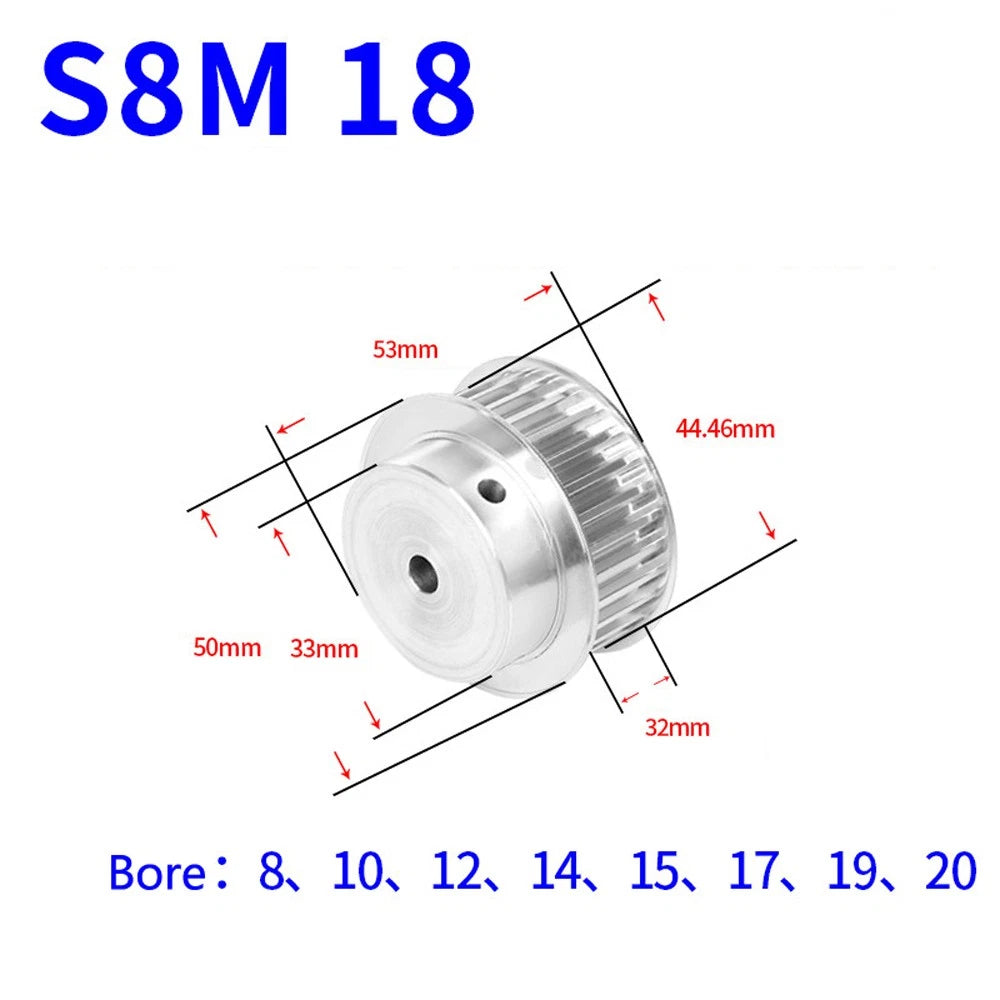

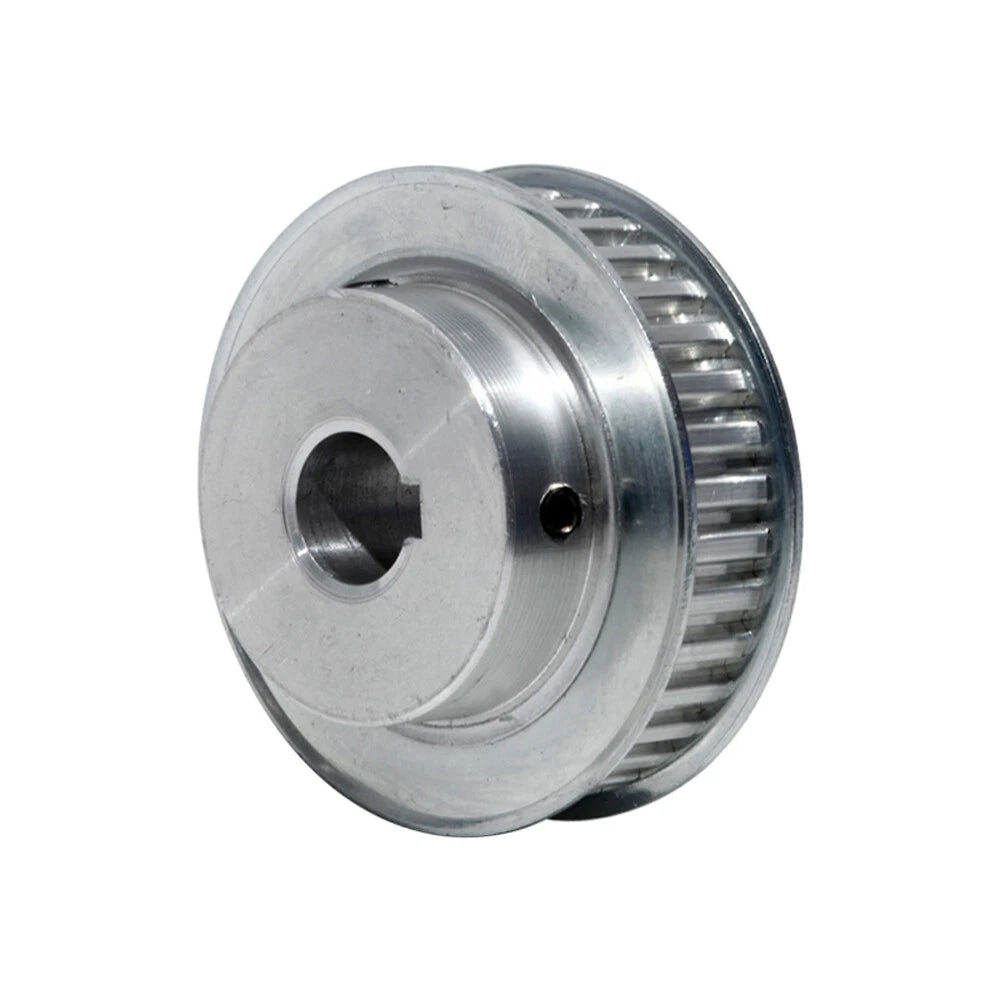

Each pulley is machined from aluminum alloy with a natural silver finish. The tooth profile follows the S8M standard — 8mm pitch, 32mm belt width — with a precision-cut keyway bore ranging from 8mm to 30mm (approximately 0.31" to 1.18"). Tooth counts span 12T through 50T, covering a wide range of gear ratios in a single product family.

Typical use cases include DIY CNC axis drives requiring an S8M 20T timing pulley with keyway, desktop laser cutter feed systems using an S8M 30T synchronous pulley, and custom 3D printer extruder or Z-axis assemblies needing an 8mm pitch belt pulley with step bore.

⚙️ Compatible with: S8M synchronous timing belts, 32mm belt width. Verify bore diameter and keyway dimensions match your shaft before ordering.

✅ Key Features of These S8M Timing Belt Pulleys

🔩 Precision Keyway Bore

Step-bored with standard keyway slots (3×1.4mm up to 8×3.3mm) for secure shaft locking and zero-slip torque transfer.

📐 Wide Tooth Count Range

Available in 12T to 50T, letting you dial in the exact speed ratio your drive system requires without custom machining.

🏗️ Aluminum Alloy Construction

Lightweight yet rigid aluminum body keeps rotational inertia low while maintaining dimensional stability under continuous load.

📏 32mm Belt Width Standard

Designed for 32mm-wide S8M synchronous belts, providing ample contact area for higher torque transmission compared to narrower profiles.

🔄 Step Flange Design

Integrated step flange keeps the belt tracking true on the pulley face, reducing lateral drift during high-speed or reversing operation.

🛠️ Multiple Bore Sizes Available

Bore options from 8mm to 30mm (0.31"–1.18") cover common shaft diameters used in DIY CNC, robotics, and automation builds.

📐 Technical Specifications — S8M Timing Belt Pulley

Belt Type S8M Synchronous Timing Belt
Pitch 8mm
Belt Width 32mm
Number of Teeth 12T – 50T (see variant options)

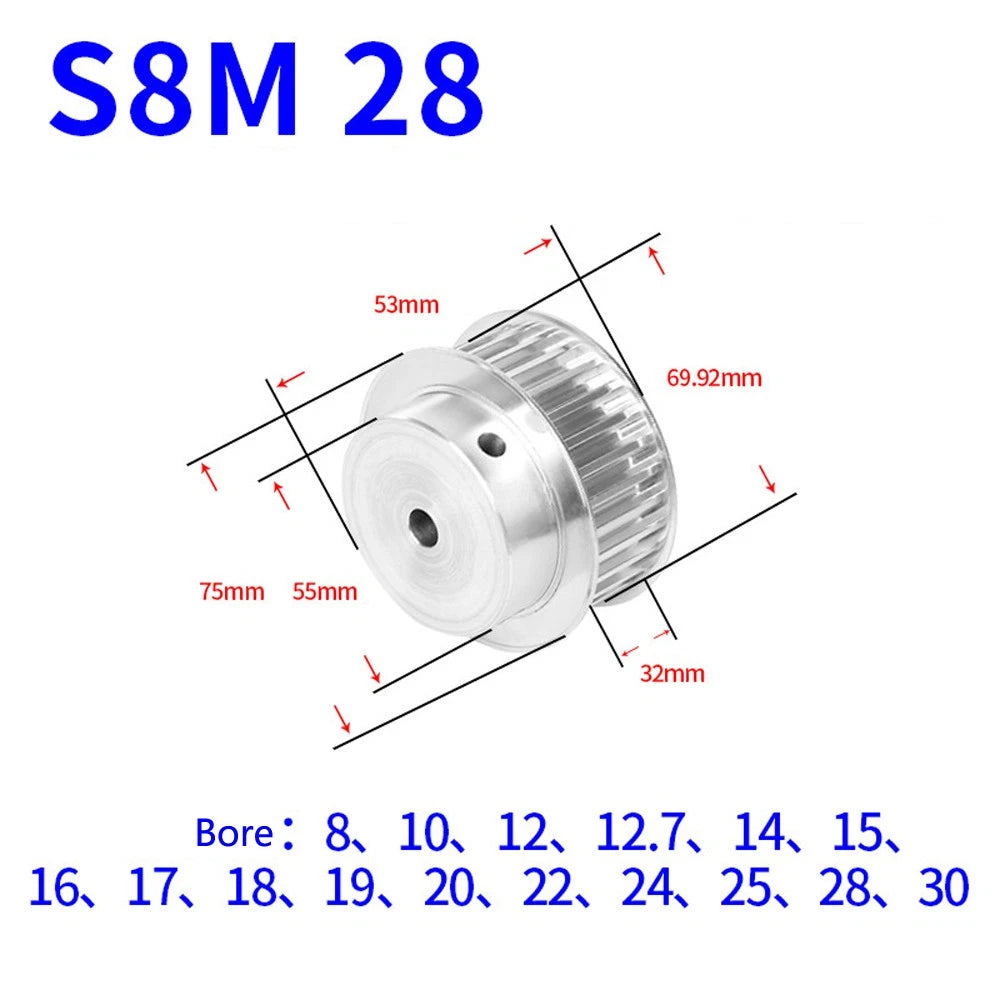

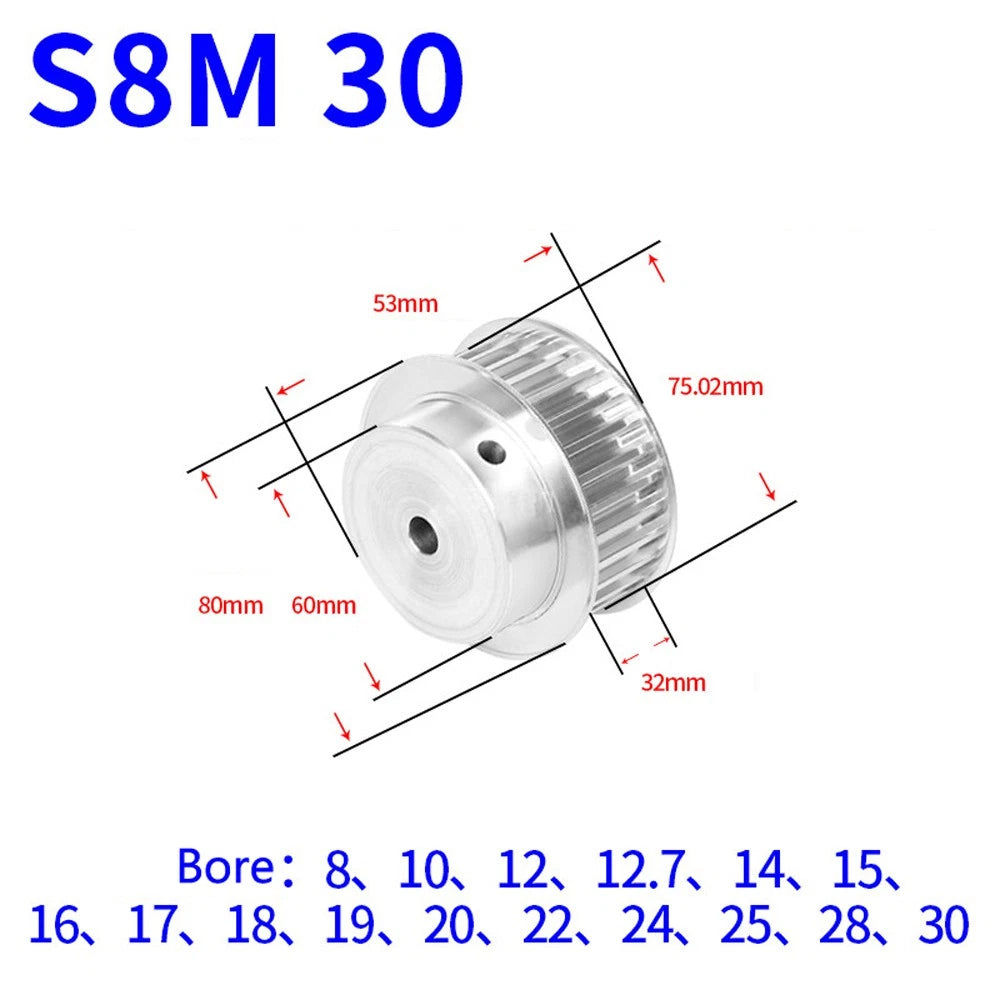

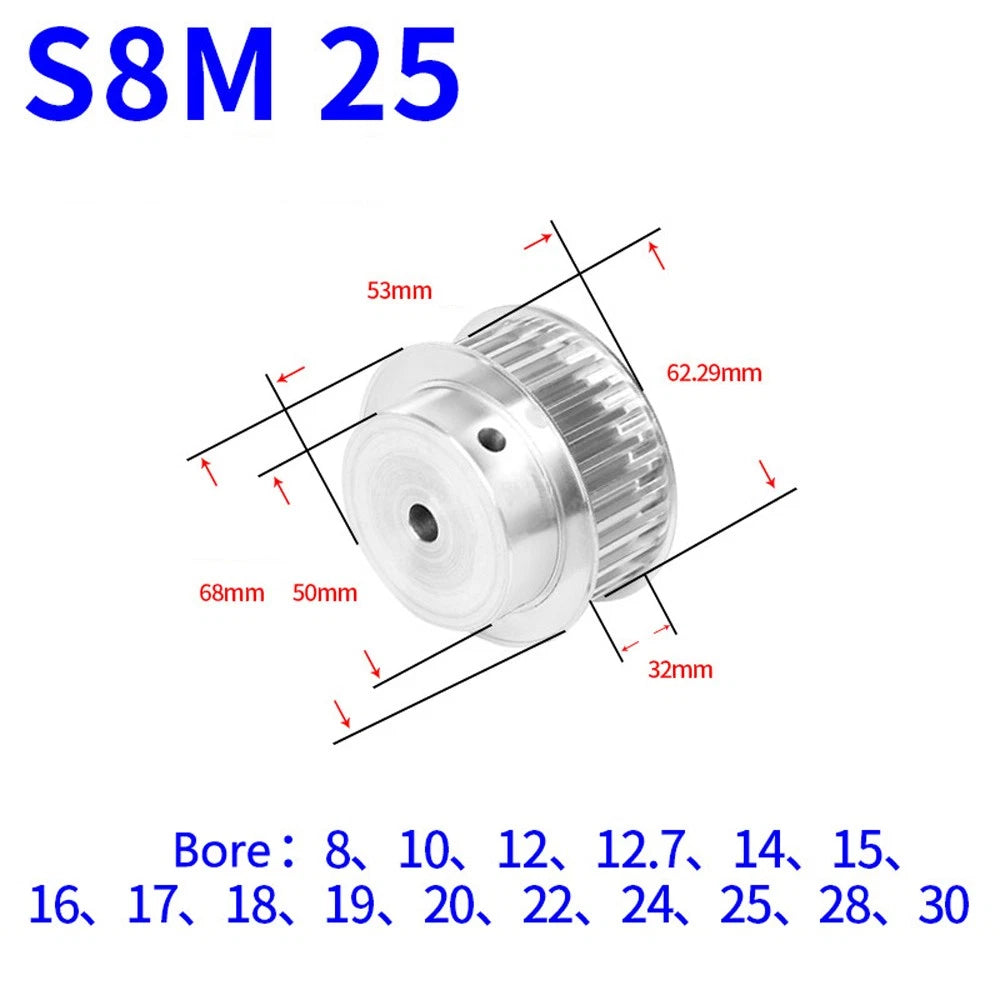

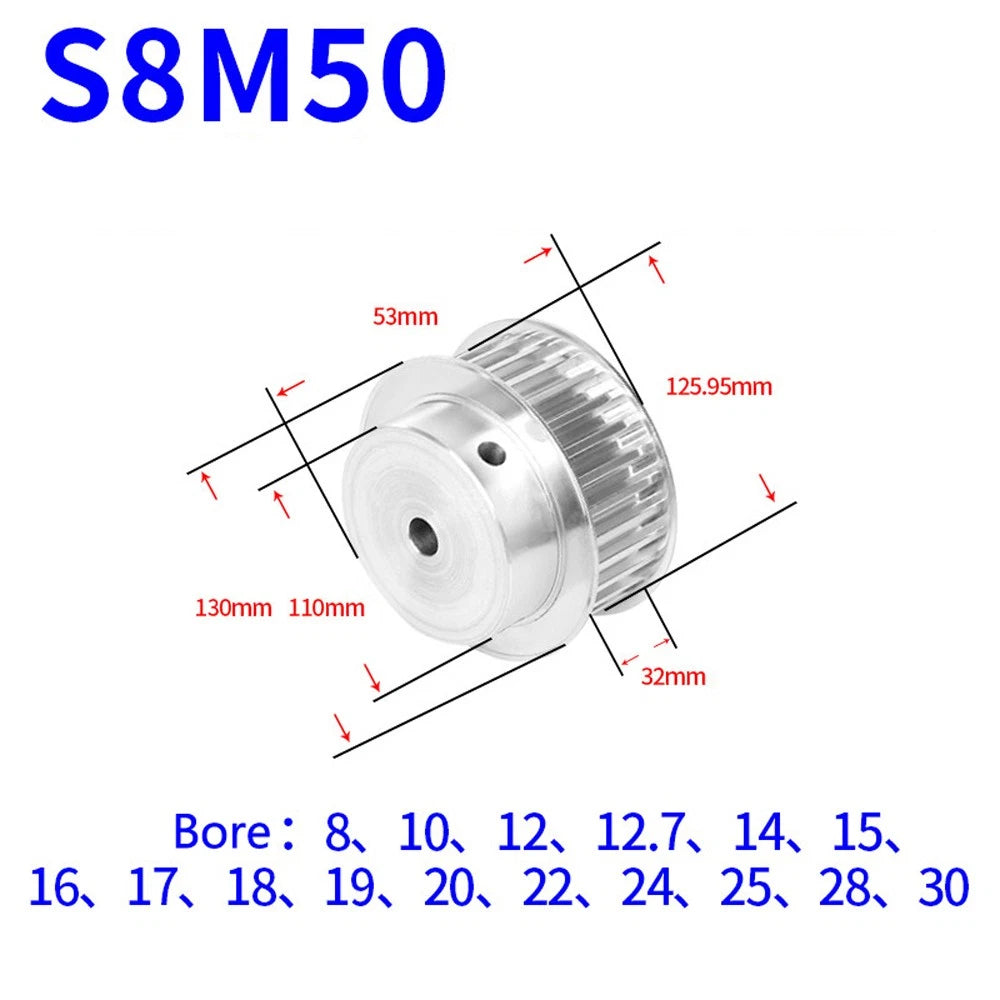

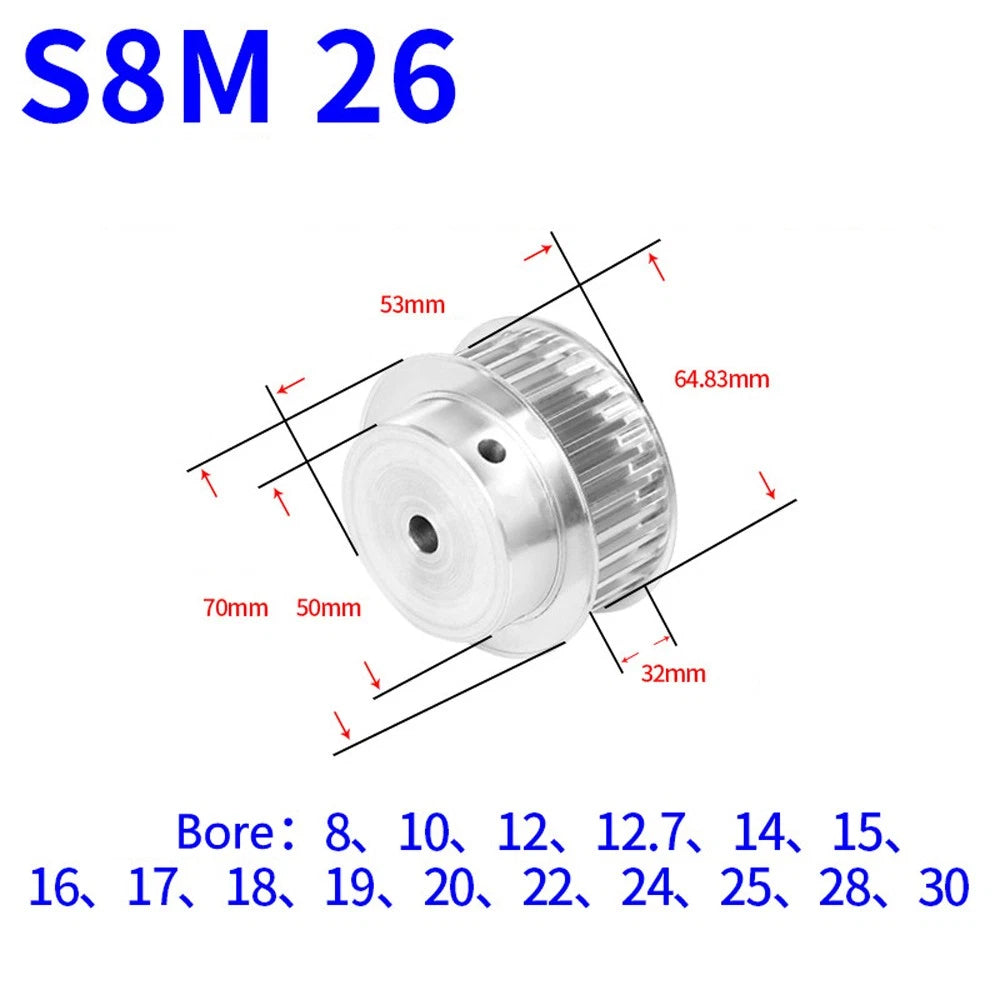

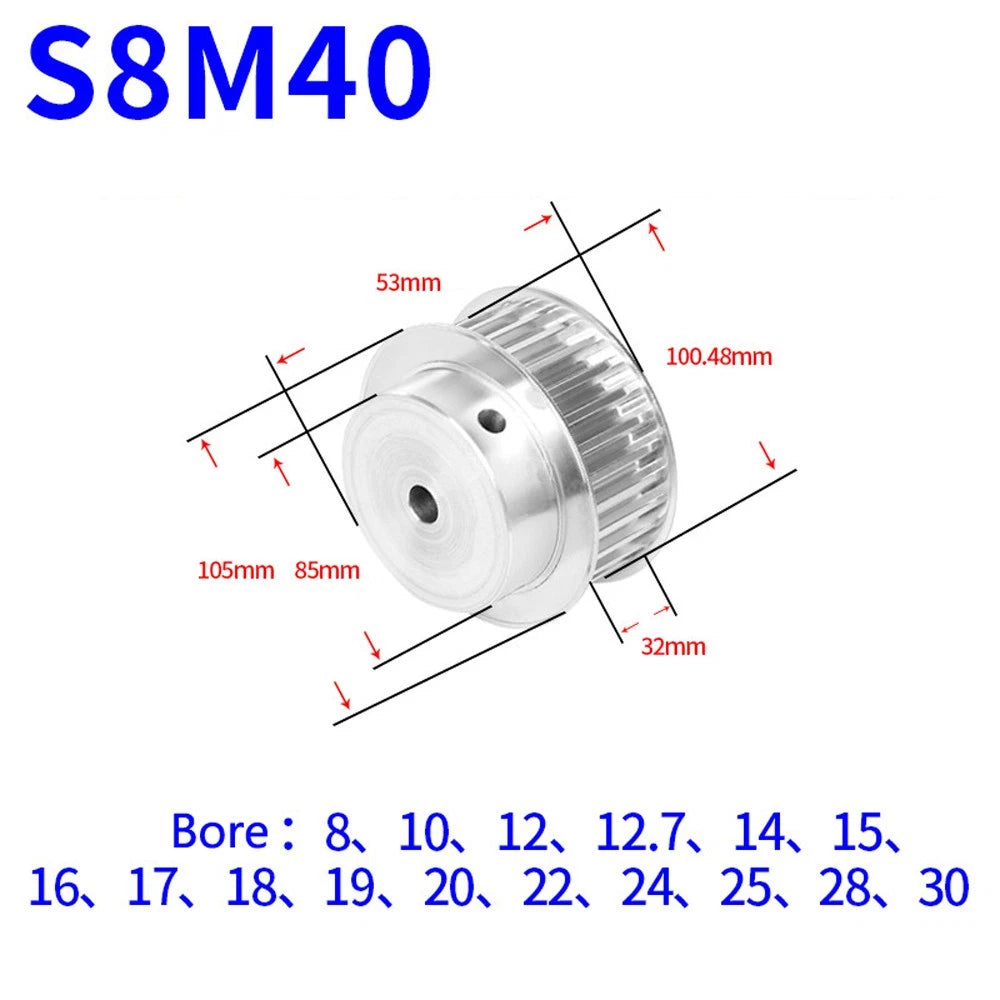

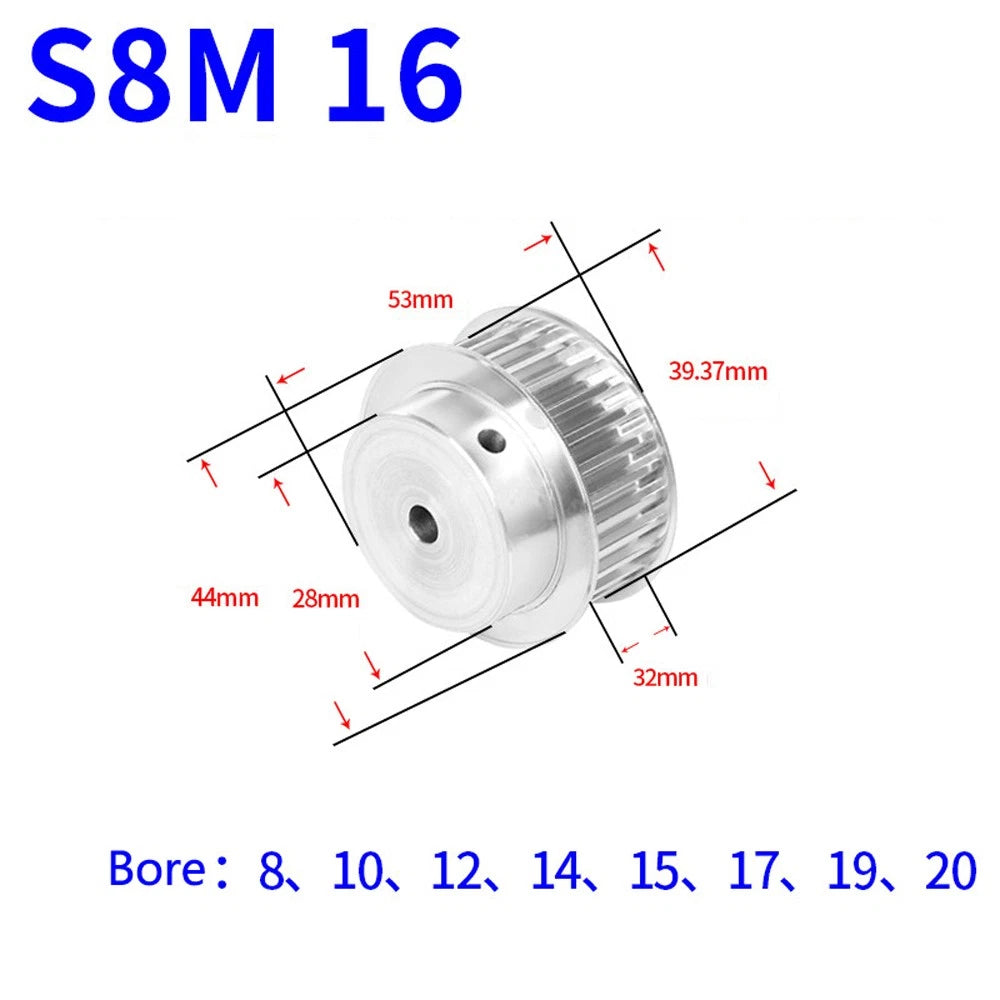

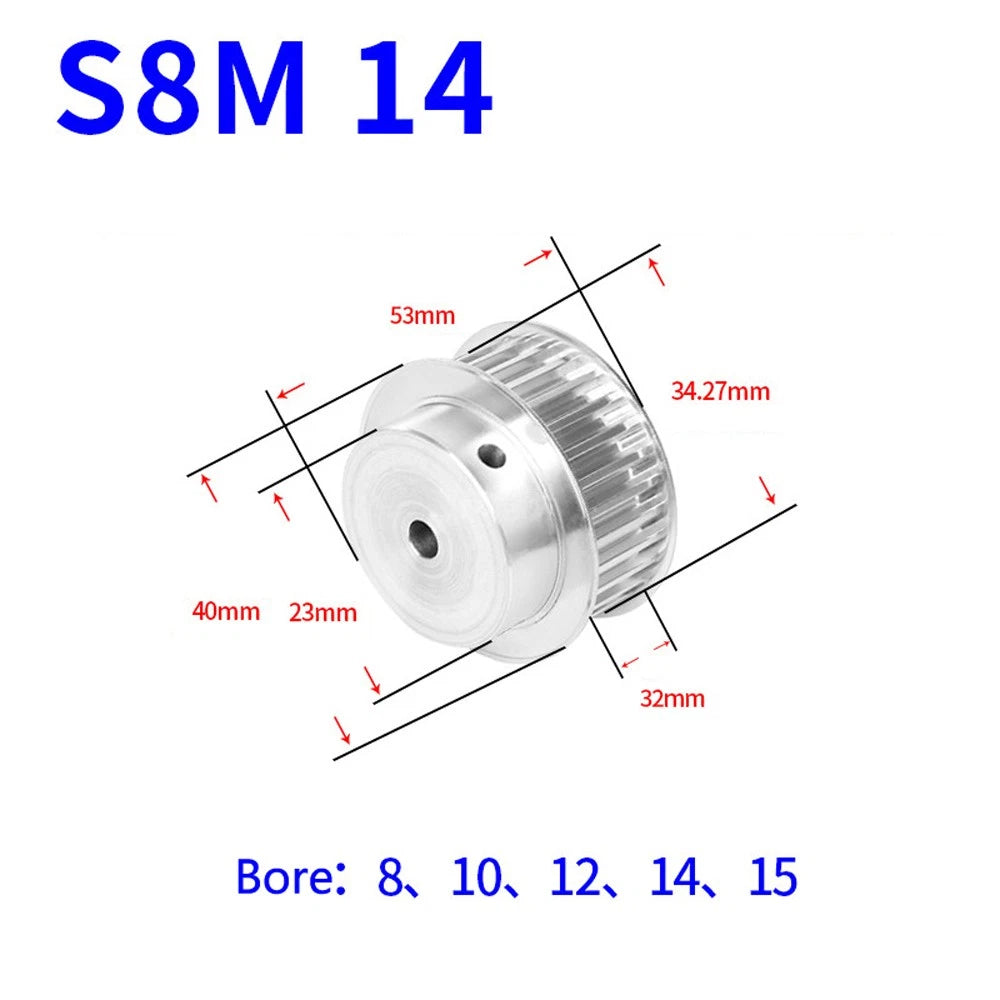

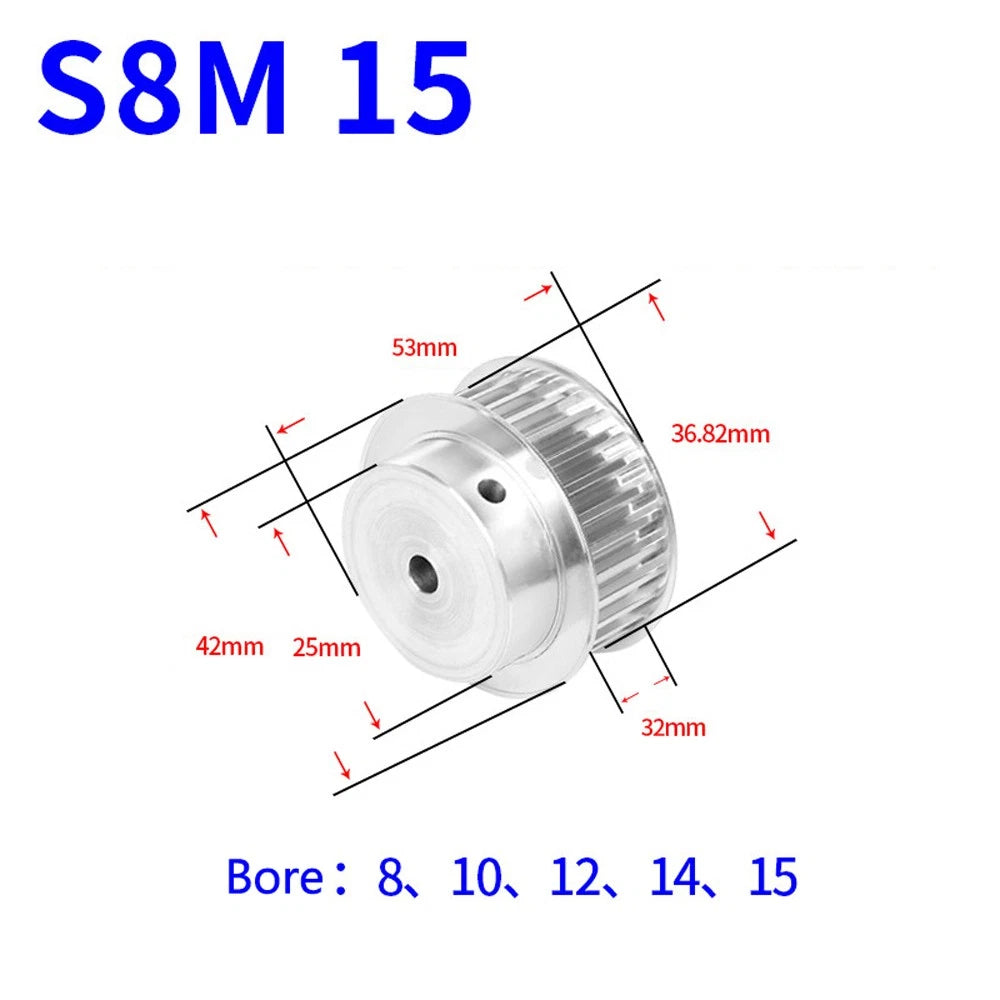

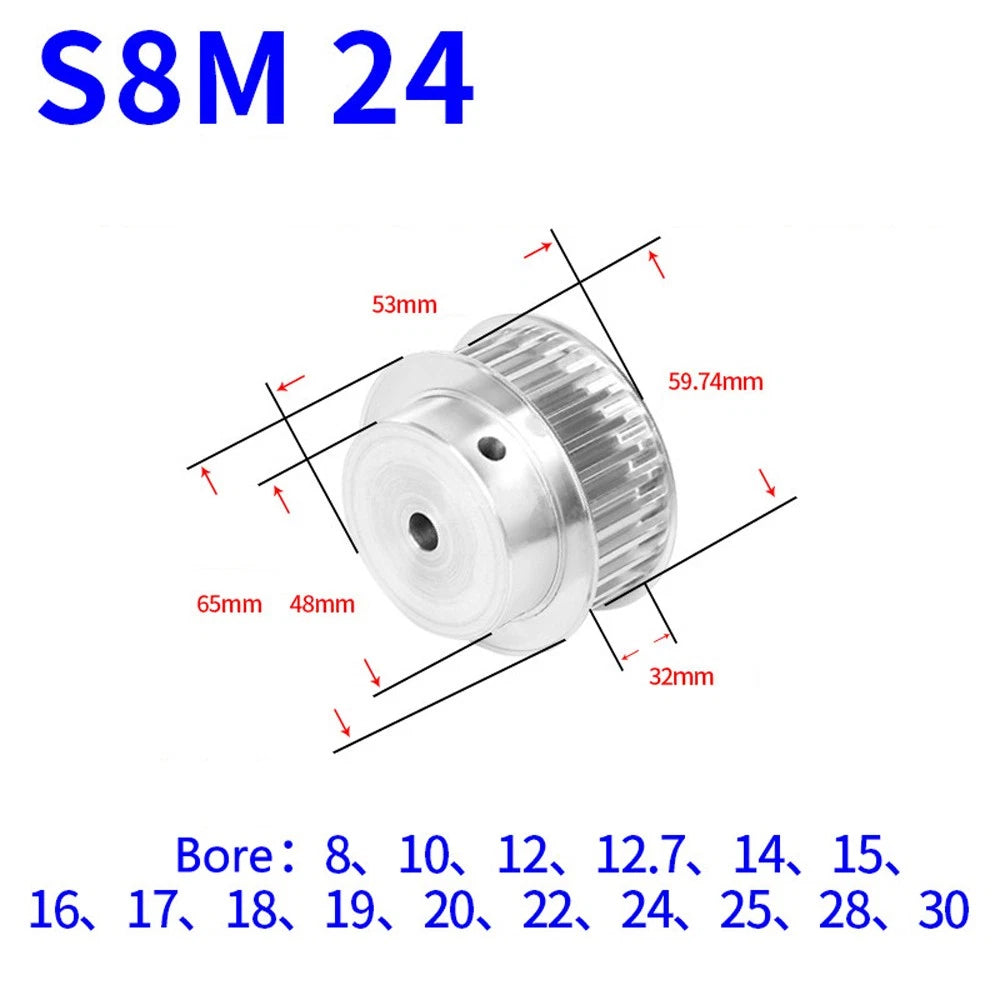

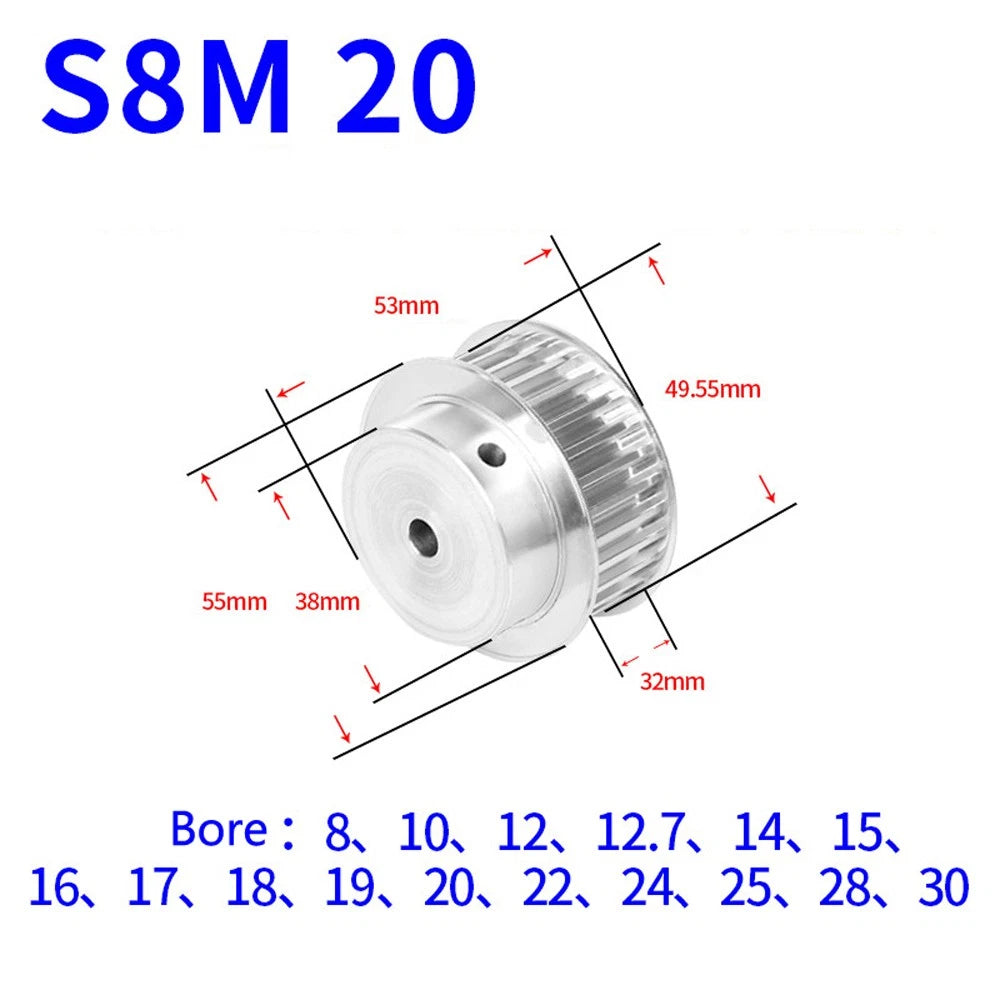

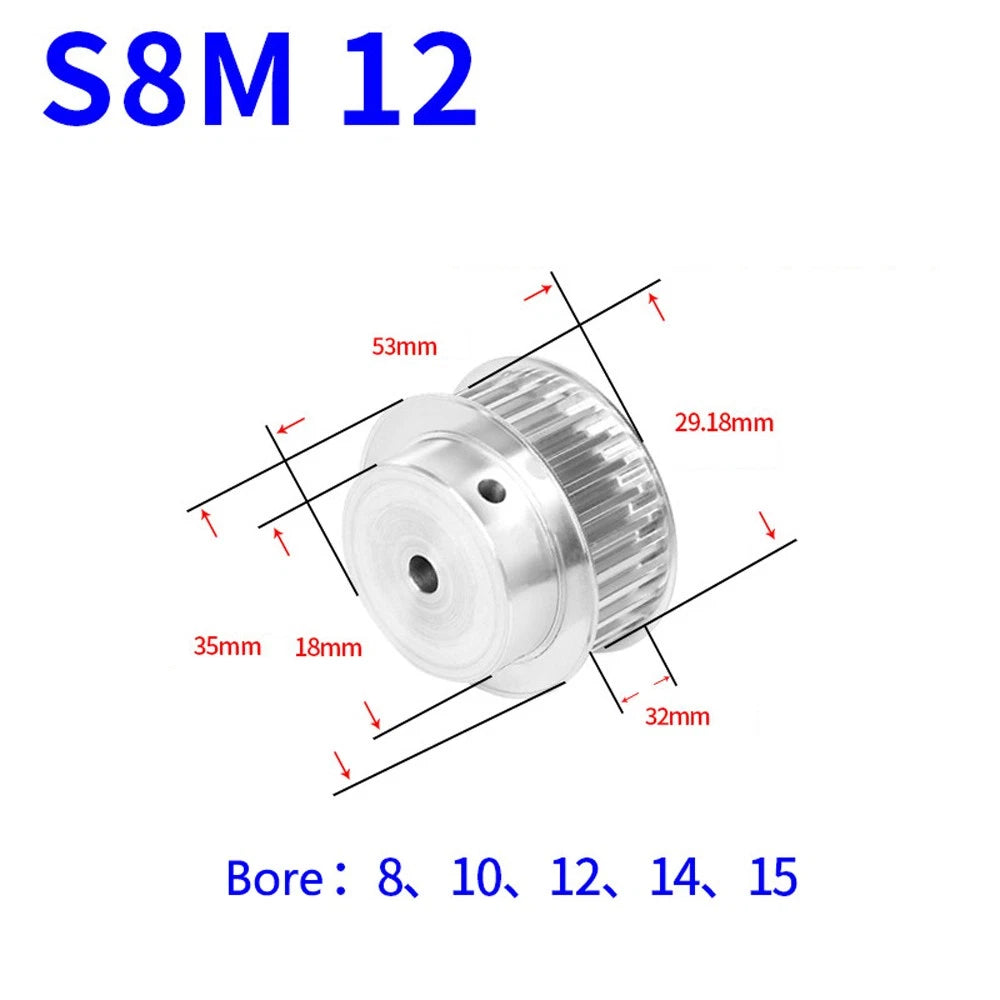

Bore Diameter 8mm – 30mm (see variant options)

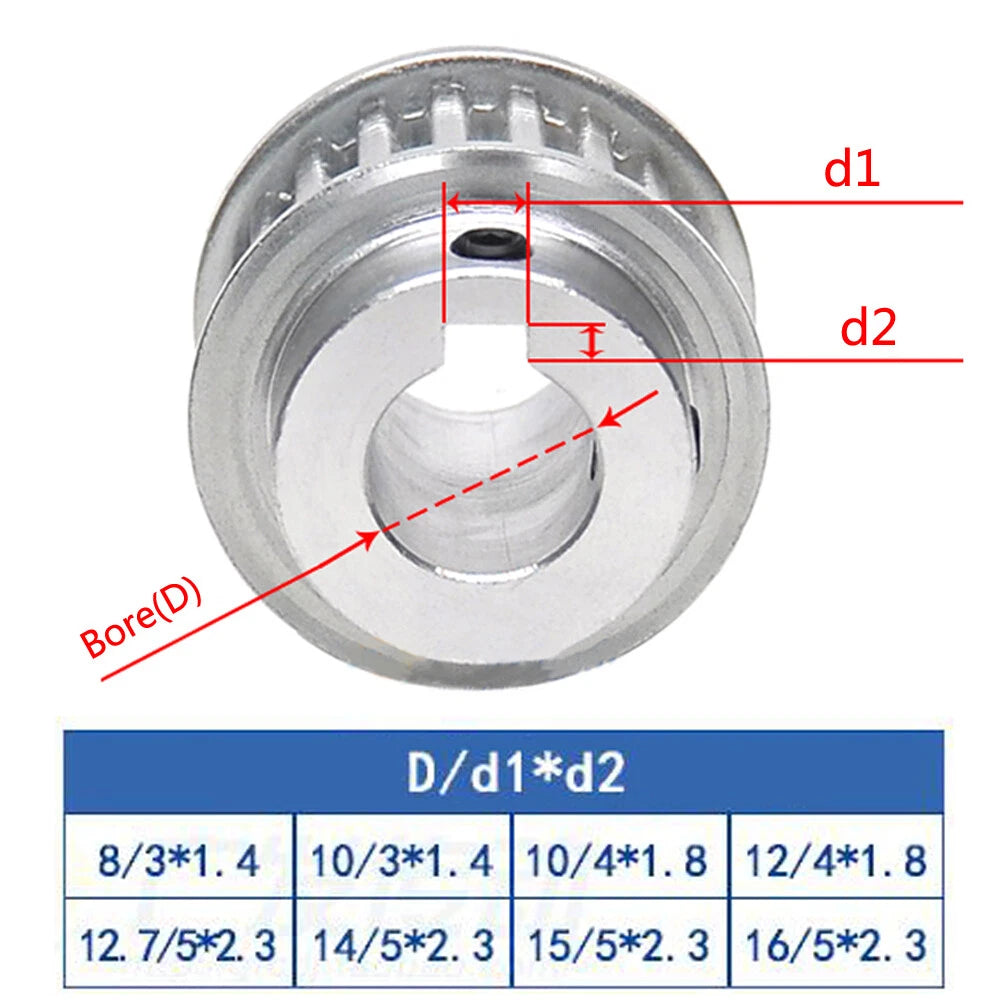

Keyway Dimensions 3×1.4mm / 4×1.8mm / 5×2.3mm / 6×2.8mm / 8×3.3mm (see variant options)
Material Aluminum Alloy
Finish Natural Aluminum (Silver)
Flange Type Step Flange
Quantity per Order 1 Piece
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right number of teeth for my application?

The tooth count determines your drive ratio. Divide the driven pulley teeth by the driver pulley teeth to get the ratio. For example, a 20T driver paired with a 40T driven pulley gives a 2:1 reduction. Choose a tooth count that achieves your target speed or torque ratio while keeping belt wrap angle above 90° on the smaller pulley.

What bore size should I select for my shaft?

Select a bore diameter that matches your shaft exactly. Available bores range from 8mm to 30mm. The keyway slot must also match your shaft's keyway dimensions — check the variant options for the keyway size paired with each bore. If your shaft is imperial (e.g., 1/2" = 12.7mm), select the 12.7mm bore variant where available.

Are these pulleys compatible with standard S8M timing belts?

Yes. These pulleys are designed to the S8M standard with an 8mm pitch tooth profile. They are compatible with any S8M synchronous timing belt with a 32mm width. Ensure your belt width matches — using a narrower belt will reduce load capacity and may cause tracking issues.

How strong is the keyway connection — will it slip under load?

The keyway and set-screw combination provides a positive mechanical lock between the pulley and shaft. For typical DIY CNC and automation loads, this connection is more than adequate. For very high-torque applications, ensure the set screw is torqued to spec and consider using a thread-locking compound for added security.

Will aluminum pulleys corrode or wear out quickly?

Aluminum alloy offers good corrosion resistance in typical indoor workshop and automation environments. The natural finish provides adequate protection against oxidation under normal operating conditions. For outdoor or high-humidity environments, consider applying a light coat of protective lubricant to the bore and keyway area.

Can I use these pulleys for both CNC routers and 3D printers?

Yes. The S8M pulley family is widely used in CNC router axis drives, laser cutter feed systems, and larger-format 3D printer motion systems. Select the tooth count and bore that matches your motor shaft and desired belt ratio. Smaller tooth counts (12T–16T) are common on motor shafts; larger counts (20T–50T) are used on driven axes or for reduction stages.

What is the difference between the step flange and a flat pulley?

The step flange is a raised rim on one or both sides of the pulley face that physically constrains the belt from sliding off laterally. This is especially important in applications with reversing motion or misalignment. A flat (flangeless) pulley relies entirely on belt tension and alignment to stay tracked, which is less forgiving in DIY builds.

🛒 Select your Number of Teeth, Bore, and Keyway & Amount above, then add to cart.
