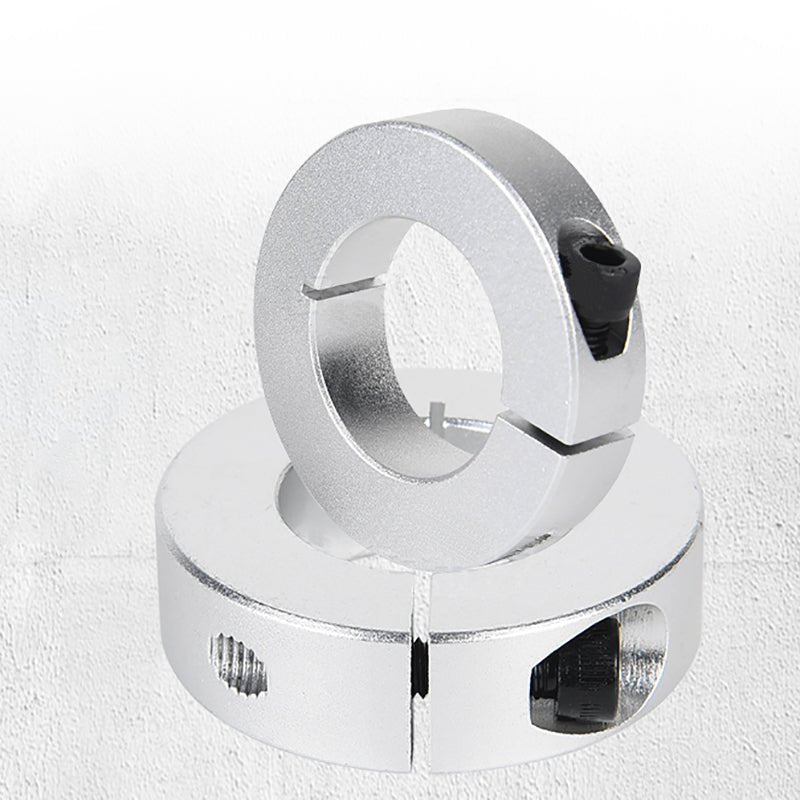

SCS Split Shaft Collar Kit — Precision Shaft Fixation & Limit Control
When machinery alignment slips or shaft components shift under load, the consequences range from costly downtime to catastrophic failure. Engineers, machinists, and DIY builders who demand repeatable, zero-drift positioning need a fixation system they can trust. The SCS Split Shaft Collar Kit is engineered for exactly that — delivering rock-solid shaft control across a wide range of industrial and precision applications.
This comprehensive kit combines adjustable locking clamps, retaining rings, bearing retainers, and positioning rings into one integrated solution. Available in shaft sizes from 3 mm to 60 mm (approximately 0.12" to 2.36"), the collars are precision-machined from high-strength aluminum (other configurations available), offering an excellent strength-to-weight ratio for both static and dynamic applications.
Whether you're building a conveyor system, assembling a robotics platform, maintaining an industrial pump, or setting up a precision optical axis, the SCS Split Shaft Collar Kit provides the reliable retention and positioning accuracy your project demands — from light-duty automation to high-torque industrial machinery.
✅ Compatible with round shafts from 3 mm to 60 mm in diameter — suitable for conveyor systems, pumps, robotics, optical axes, turbines, and general precision machinery.
Key Features
- 🔩 Multi-Component Precision Fixation System — Combines adjustable locking clamps, retaining rings, bearing retainers, and positioning rings into one versatile kit, eliminating the need for multiple separate parts and simplifying your build.

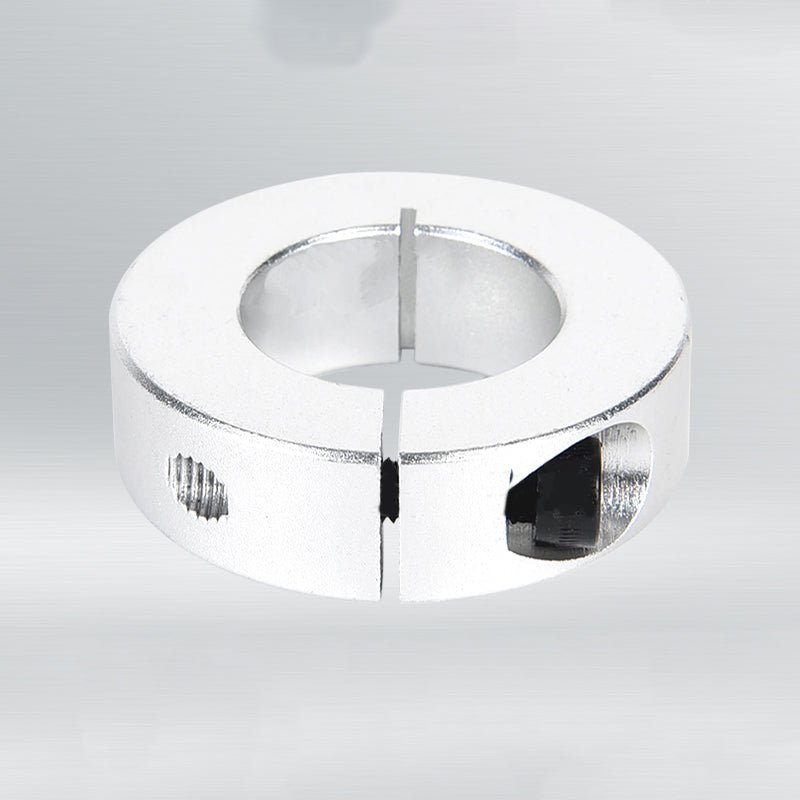

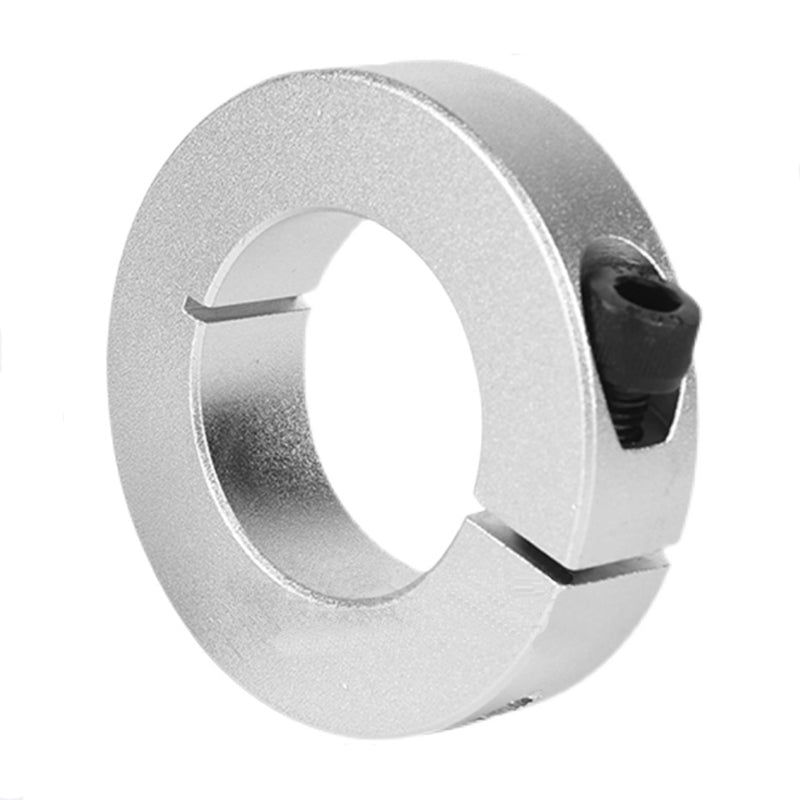

- 🎯 High-Precision Adjustable Locking Mechanism — Precision-machined split collar design delivers secure clamping force with tight tolerances, allowing quick position adjustments on rotating shafts for reliable retention of pulleys, bearings, gears, and other mechanical components.
- 🛡️ Durable High-Strength Material Construction — Machined from high-strength aluminum (or alloy steel depending on configuration) with hardened surfaces and corrosion-resistant treatment, ensuring longevity and minimal wear even under continuous operation, heavy loads, and vibration.
- ⚙️ Universal Shaft Compatibility — 3 mm to 60 mm — Accommodates a wide range of shaft diameters across diverse machinery applications, with a split design that allows installation without disassembling the shaft, saving time and maintaining alignment accuracy.
- 🏭 Versatile Industrial & Precision Engineering Applications — Ideal for automation, robotics, conveyor systems, pumps, turbines, optical axis assemblies, and high-speed or high-torque environments where reliable shaft positioning is critical.
- 🔧 Tool-Free Quick Adjustment — The split clamp collar design enables fast repositioning along the shaft without full disassembly, reducing maintenance time and improving workflow efficiency in production and repair environments.
Who Is This For
🏭 Industrial Maintenance Engineers
Maintain precise shaft alignment on conveyor systems, pumps, and turbines. The SCS Split Shaft Collar Kit's adjustable locking clamps and retaining rings provide the reliable fixation needed to minimize unplanned downtime in demanding production environments.
🤖 Robotics & Automation Builders
Achieve repeatable, zero-drift positioning for servo shafts, linear actuators, and drive assemblies. The precision-machined split collars accommodate tight tolerances required in automated systems and robotic platforms.
🔬 Precision Machinery & Optical Axis Applications
Secure optical axis components, lead screws, and precision shafts with confidence. The kit's bearing retainers and positioning rings ensure stable, vibration-resistant fixation for sensitive measurement and machining equipment.
🔧 DIY Machinists & Workshop Builders
Build custom machinery, lathes, mills, or workshop equipment with professional-grade shaft collars. The wide size range (3 mm–60 mm) and easy split-collar installation make this kit accessible for hobbyists and professionals alike.
Technical Specifications
| Product Type |
Split Shaft Collar Kit |
| Included Components |
Adjustable locking clamps, retaining rings, bearing retainers, positioning rings |
| Shaft Size Range |
3 mm – 60 mm (approx. 0.12" – 2.36") |
| Material |
High-strength aluminum (standard); alloy steel available depending on configuration |
| Surface Treatment |
Corrosion-resistant coating / hardened surface |
| Collar Type |
Split clamp (two-piece locking) |
| Installation Method |
Split design — no shaft disassembly required |
| Applicable Environments |
Industrial machinery, automation, robotics, precision engineering, optical axis assemblies |
| Load Capacity |
See variant options |
| Operating Temperature |
Contact us to confirm |
Frequently Asked Questions
What components are included in the SCS Split Shaft Collar Kit?
The kit includes adjustable locking clamps, retaining rings, bearing retainers, and positioning rings — providing a complete multi-component shaft fixation solution in one package.
What shaft sizes does this collar kit fit?
The kit is available in sizes from 3 mm to 60 mm (approximately 0.12" to 2.36") to accommodate a wide range of shaft diameters. Please select the correct size variant for your application.
Do I need to remove the shaft to install the collar?
No. The split clamp design allows installation directly onto the shaft without disassembly, saving significant time and labor during installation or repositioning.
What material is the collar made from?
The standard configuration is machined from high-strength aluminum, offering an excellent strength-to-weight ratio. Alloy steel configurations are also available depending on the variant selected.
Is this kit suitable for high-vibration or high-torque environments?
Yes. The precision-machined split collar and locking clamp mechanism is designed to maintain secure clamping force under vibration, heavy loads, and high-torque conditions typically found in industrial machinery and automation systems.
Can I use this collar kit for optical axis or precision machinery applications?
Absolutely. The SCS Split Shaft Collar Kit is well-suited for optical axis assemblies, lead screws, and precision machinery where stable, vibration-resistant shaft fixation is required.
How do I adjust the collar position on the shaft?
Loosen the locking clamp screws, slide the collar to the desired position along the shaft, then re-tighten the screws to the recommended torque. The split design makes repositioning quick and straightforward without special tools.
What industries or applications is this kit commonly used in?
Common applications include conveyor systems, industrial pumps, turbines, robotics platforms, automation equipment, CNC machinery, optical axis assemblies, and general precision engineering projects.
Ready to achieve precise, reliable shaft fixation? Select your required shaft size above and add the SCS Split Shaft Collar Kit to your cart today. Questions about compatibility or bulk orders? Contact us — we're here to help.
