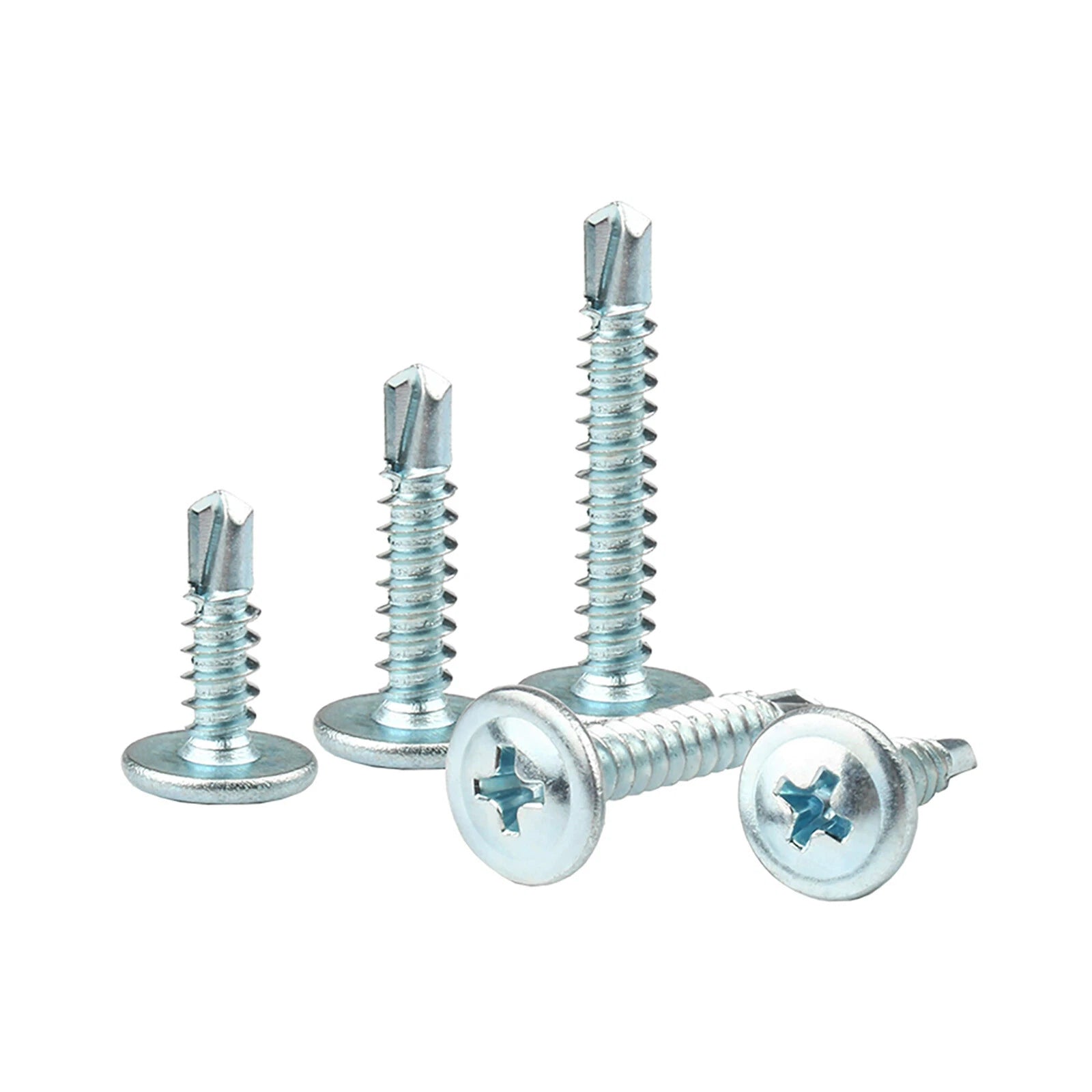

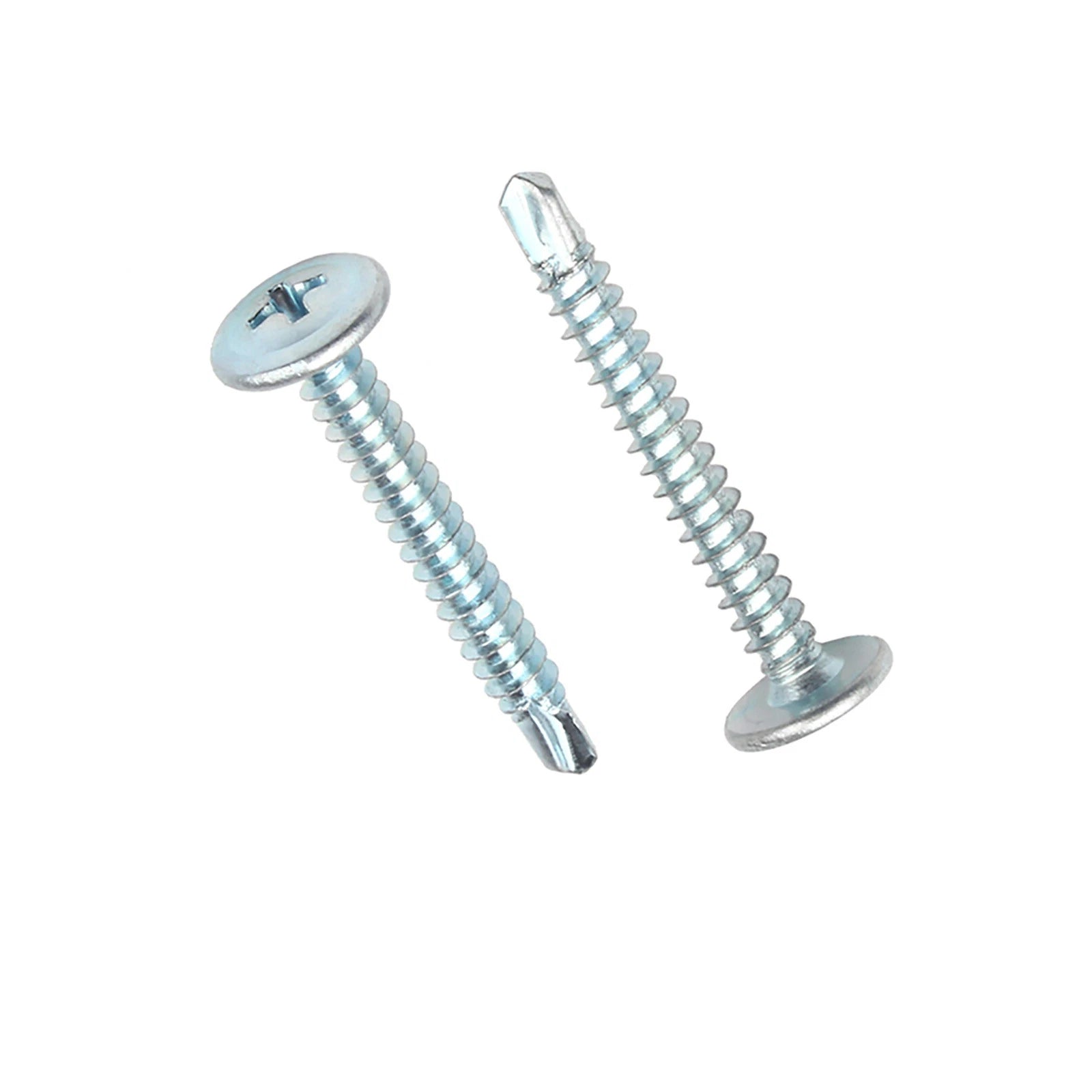

🔩 Self-Drillingg Wafer Head Screws – Stainless & Galvanized Steel for Metal Sheets

When you’re fastening metal to metal or metal to wood, every extra step costs time. These self-drilling wafer head screws eliminate the need for a separate drill bit — the sharp, hardened point bores its own pilot hole while the thread taps tightly into sheet steel, aluminum, and composite panels. A low‑profile wafer head lays flat against the surface, spreading clamp load to prevent pull‑through in thin materials. Choose 304 stainless steel (A2) for superior rust resistance in outdoor, marine, and coastal applications. Opt for 410 stainless when higher hardness and wear resistance matter more. Or select galvanized carbon steel for a strong, economical option with solid zinc‑layer corrosion protection. With M4.2 and M4.8 diameters and lengths from 13 mm up to 50 mm, this range covers HVAC ductwork, metal roofing, trailer siding, auto body repair, and general steel framing — all with one drive and done.

⚙️ Key Features – Self-Drilling Wafer Head Screws for Metal

Self-drilling tip punctures sheet metal instantly — no pilot hole required, saving time and drill bits
Wafer head design provides a wide, flat bearing surface that resists pull‑through and sits flush to the workpiece
Available in three material grades: 304 stainless (marine‑grade corrosion resistance), 410 stainless (extra hardness), and galvanized carbon steel (reliable rust protection on a budget)
M4.2 and M4.8 thread diameters handle the majority of light‑ to medium‑duty metal fastening jobs
Lengths from 13 mm to 50 mm accommodate thin sheet stack‑ups as well as thicker structural members
Hex head drive allows high torque with a standard socket or nut driver — minimal cam‑out or stripping
Perfect for metal roofing, HVAC ducting, automotive panels, steel framing, and general sheet metal fabrication

📋 Technical Specifications – Self-Drillingg Wafer Head Screws

Size	Thread Diameter	Available Lengths (mm)	Head Style	Drive	Material Options	Corrosion Resistance
M4.2	4.2 mm	13, 16, 19, 25, 32, 38, 50	Wafer (Flat)	Hex	304 Stainless / 410 Stainless / Carbon Steel Galvanized	304: Marine grade — excellent 410: Limited — good for dry locations Galvanized: Moderate — suitable for outdoor covered use
M4.8	4.8 mm	13, 16, 19, 25, 32, 38, 50	Wafer (Flat)	Hex	304 Stainless / 410 Stainless / Carbon Steel Galvanized	304: Marine grade — excellent 410: Limited — good for dry locations Galvanized: Moderate — suitable for outdoor covered use

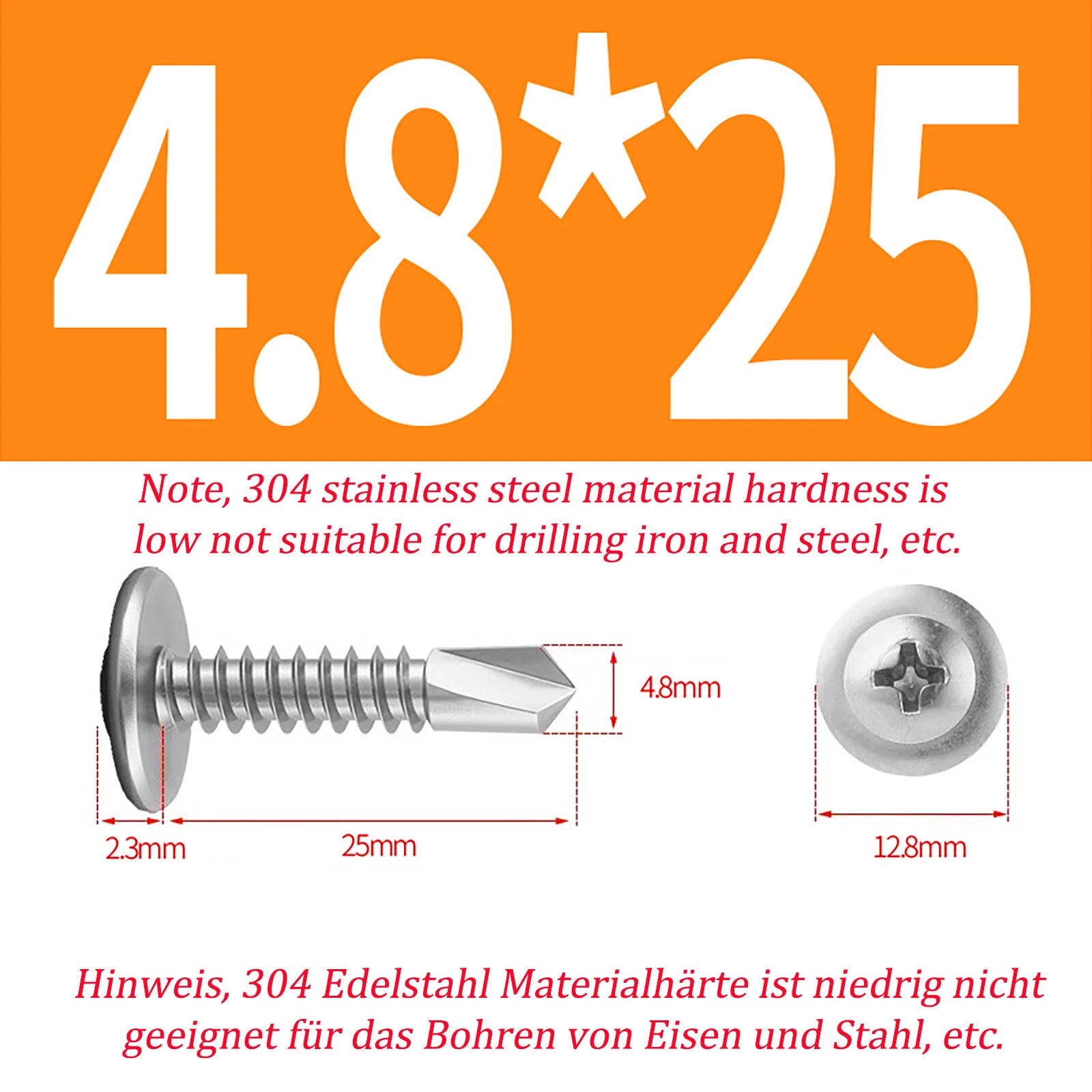

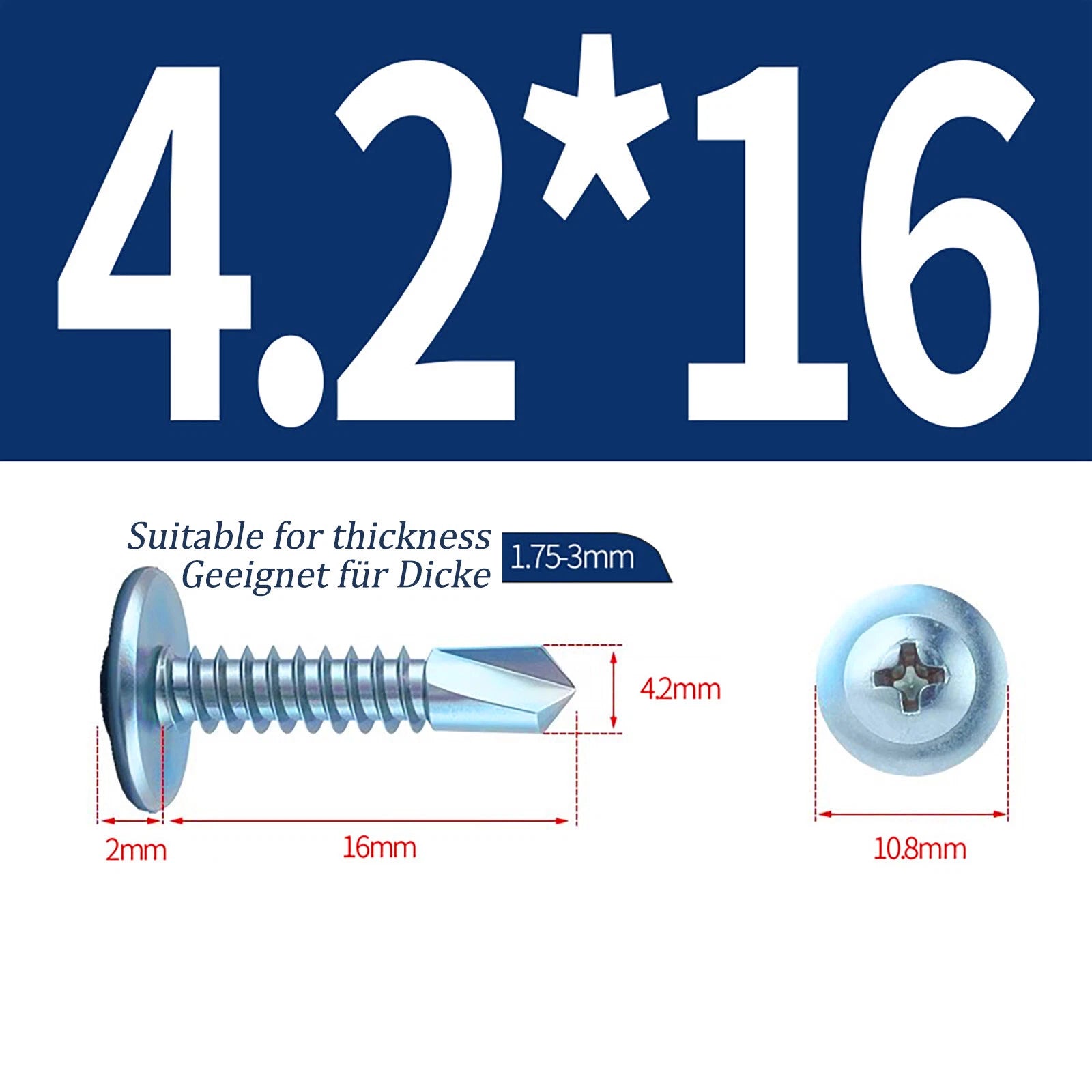

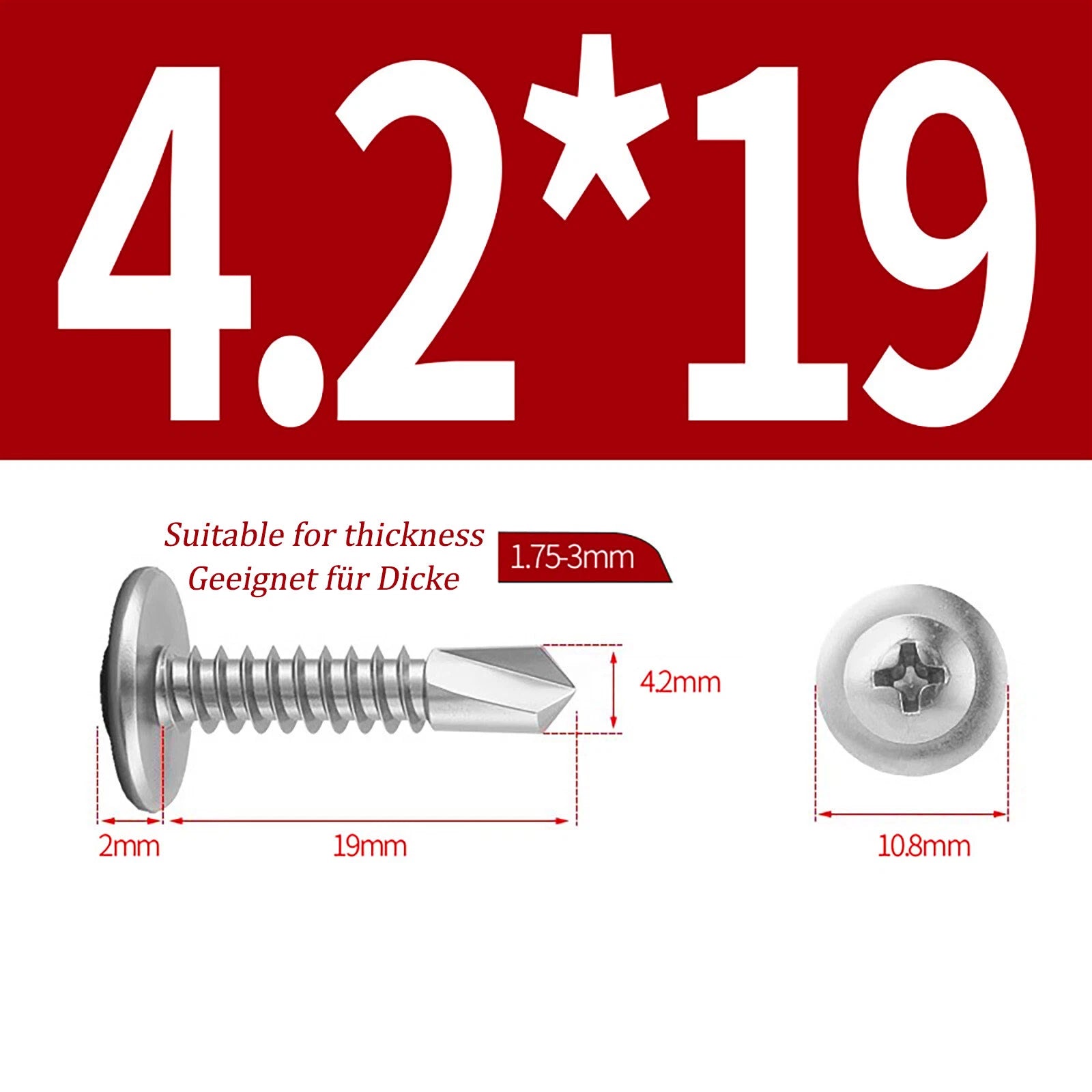

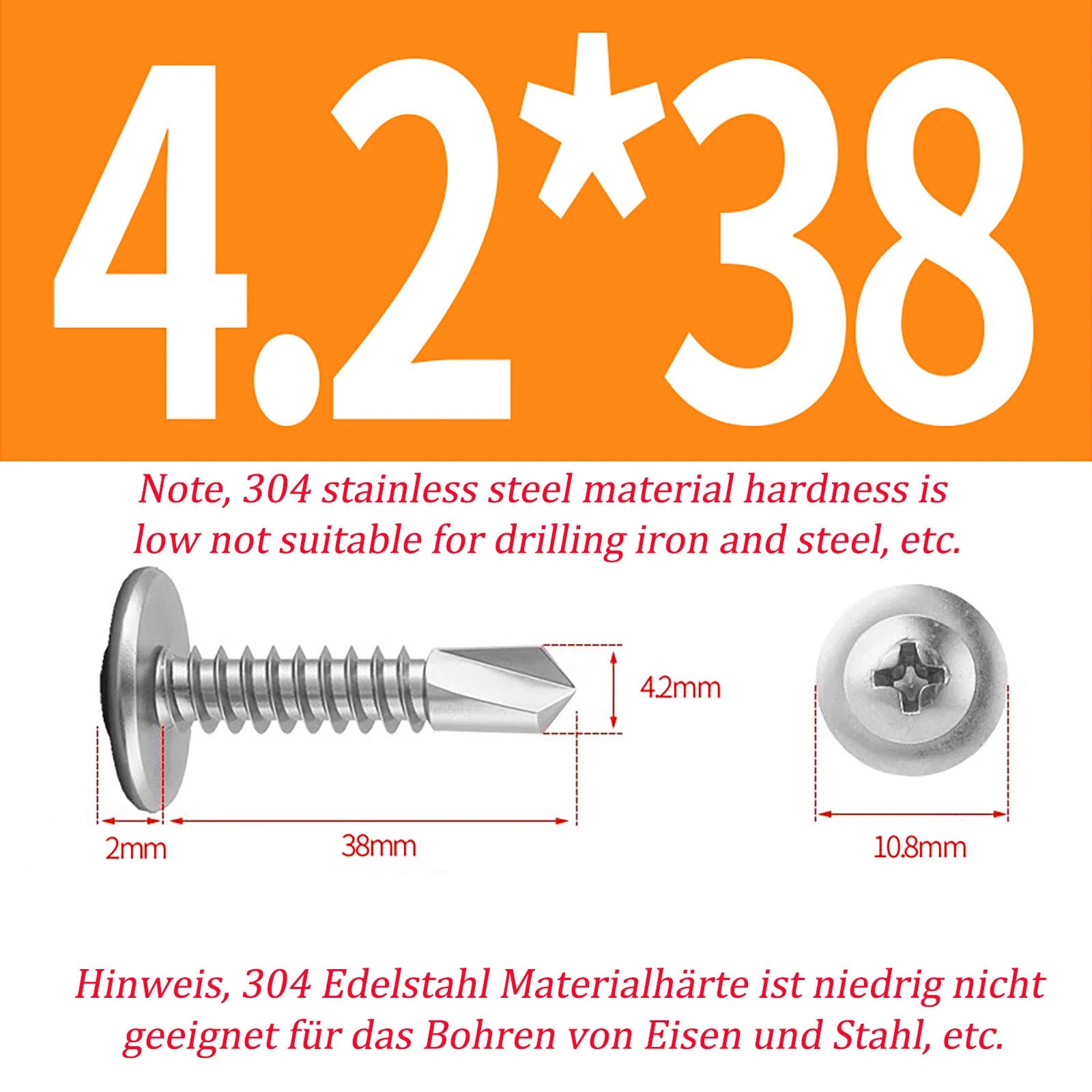

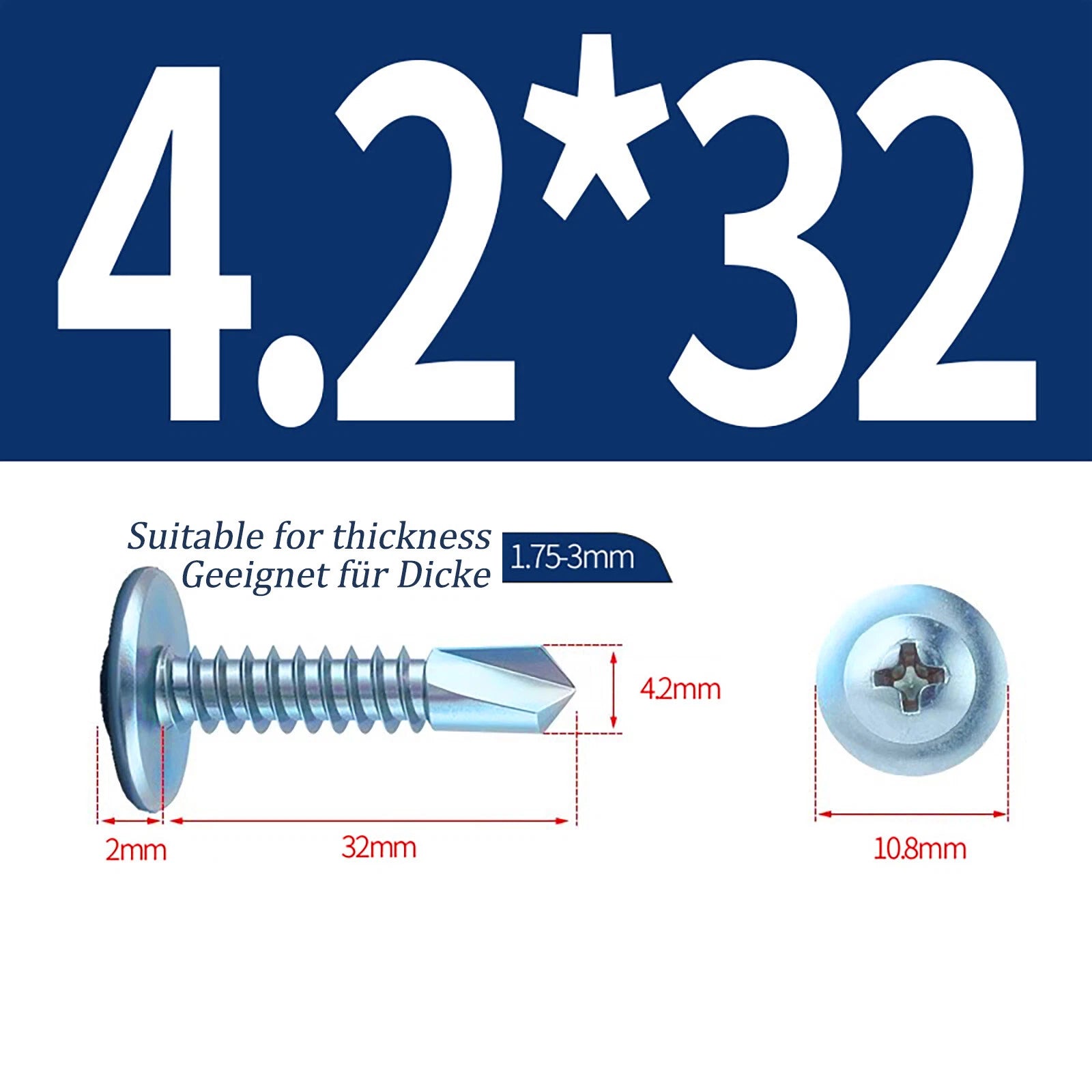

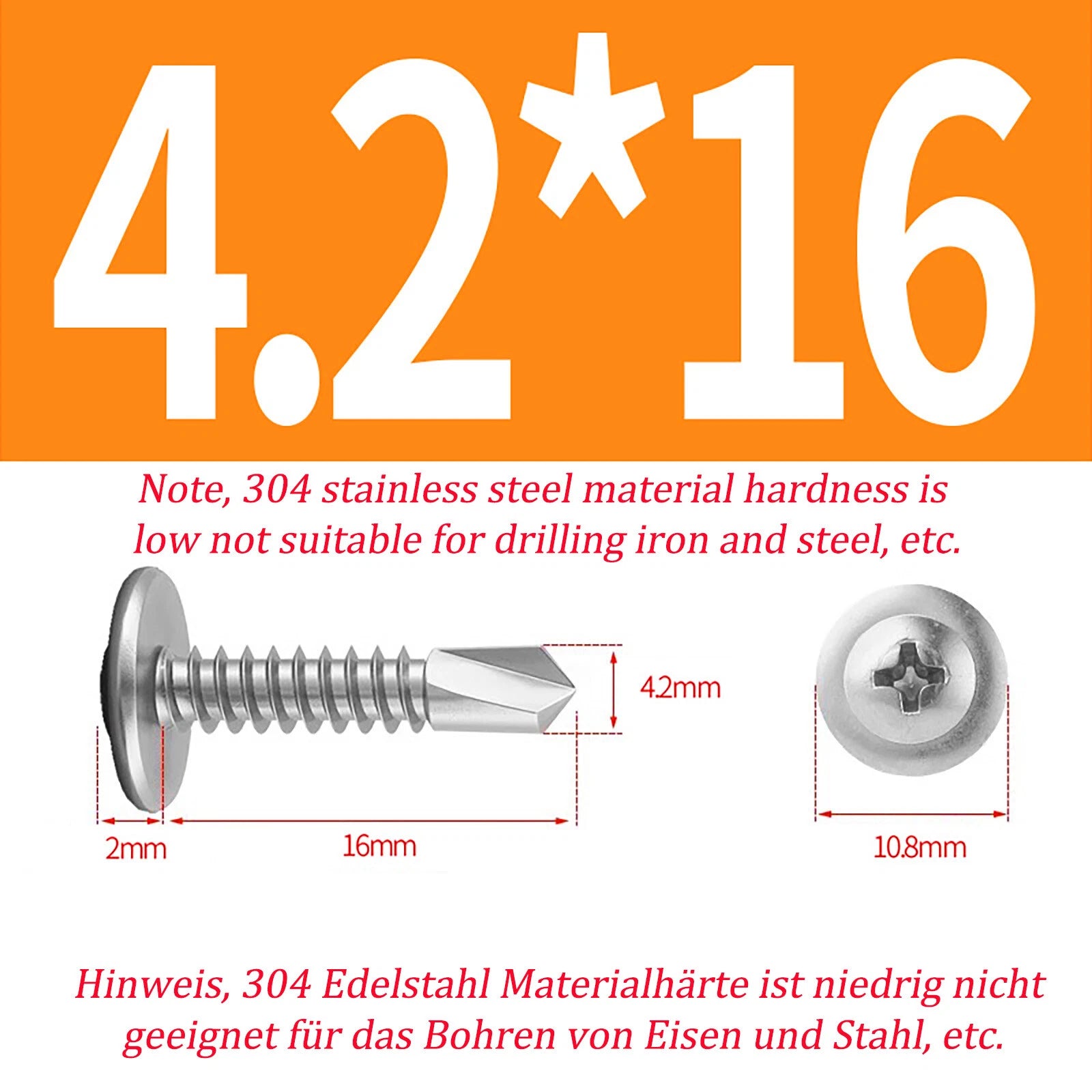

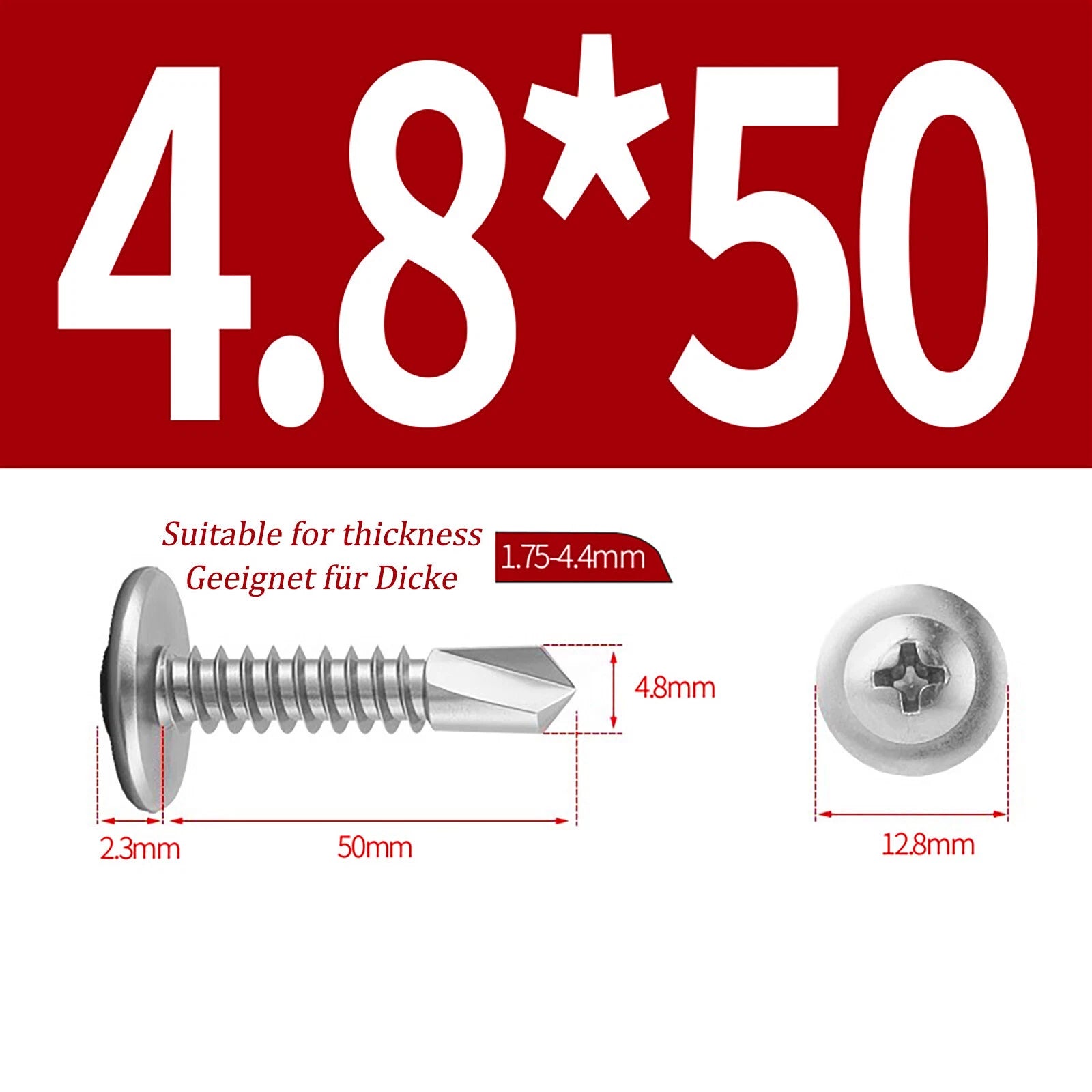

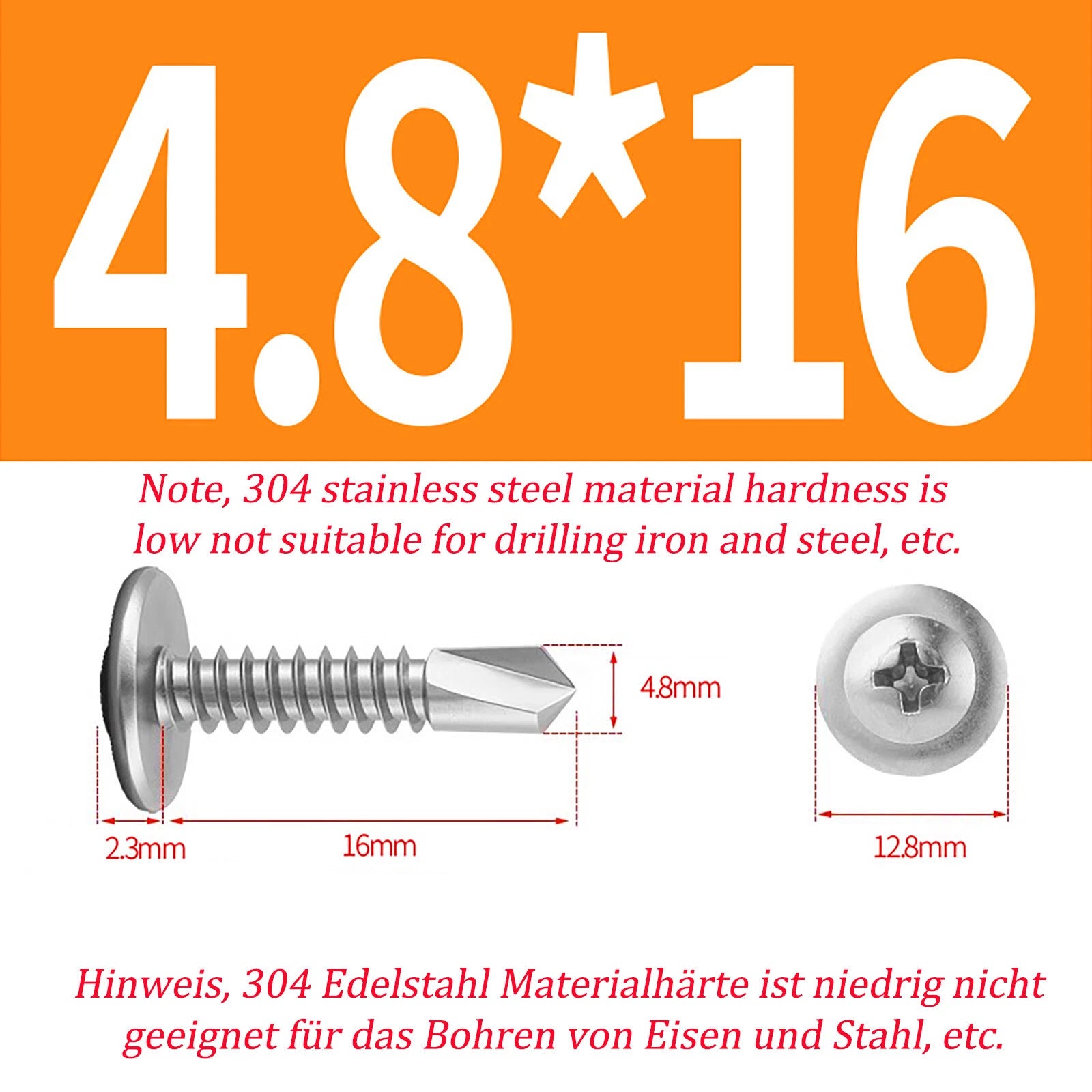

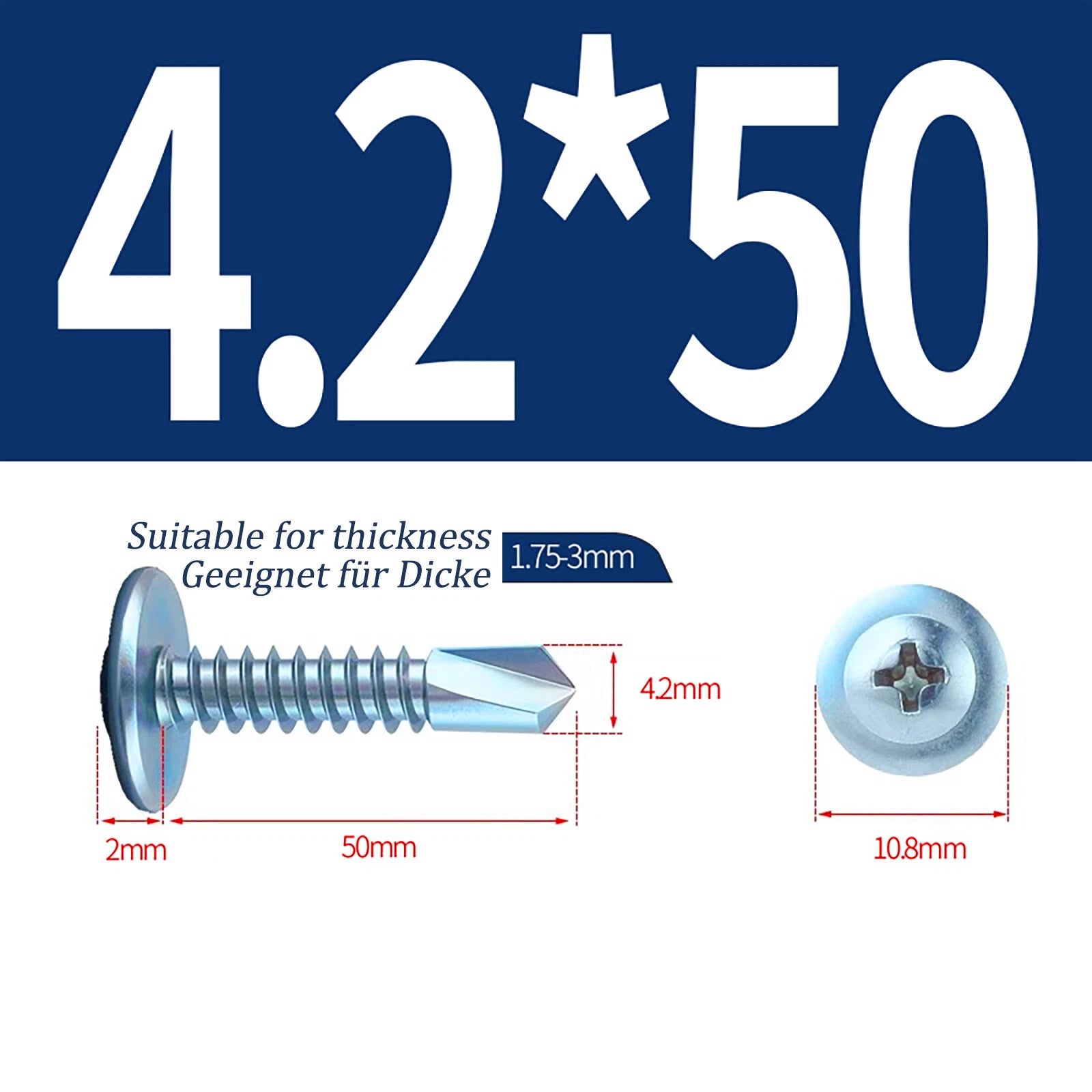

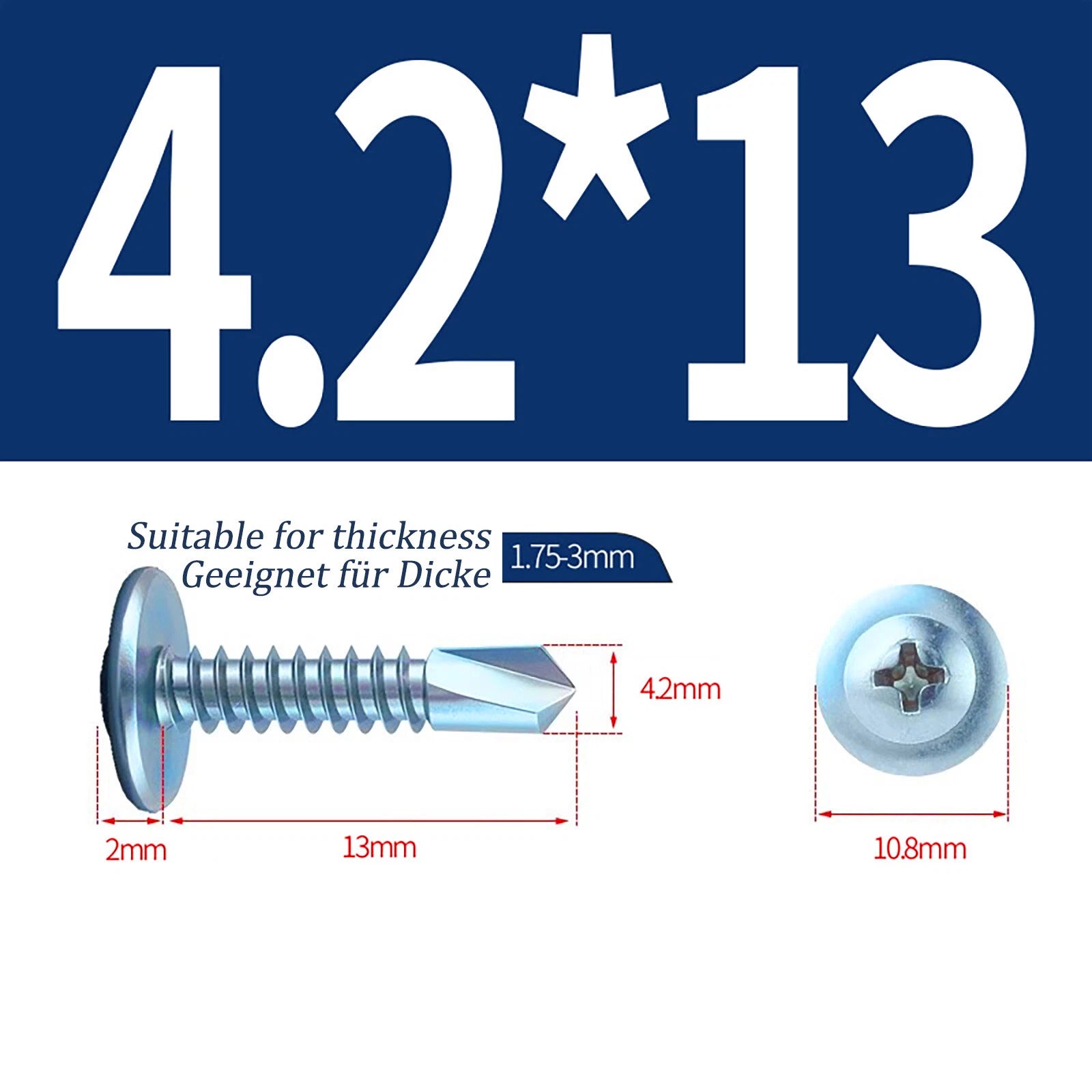

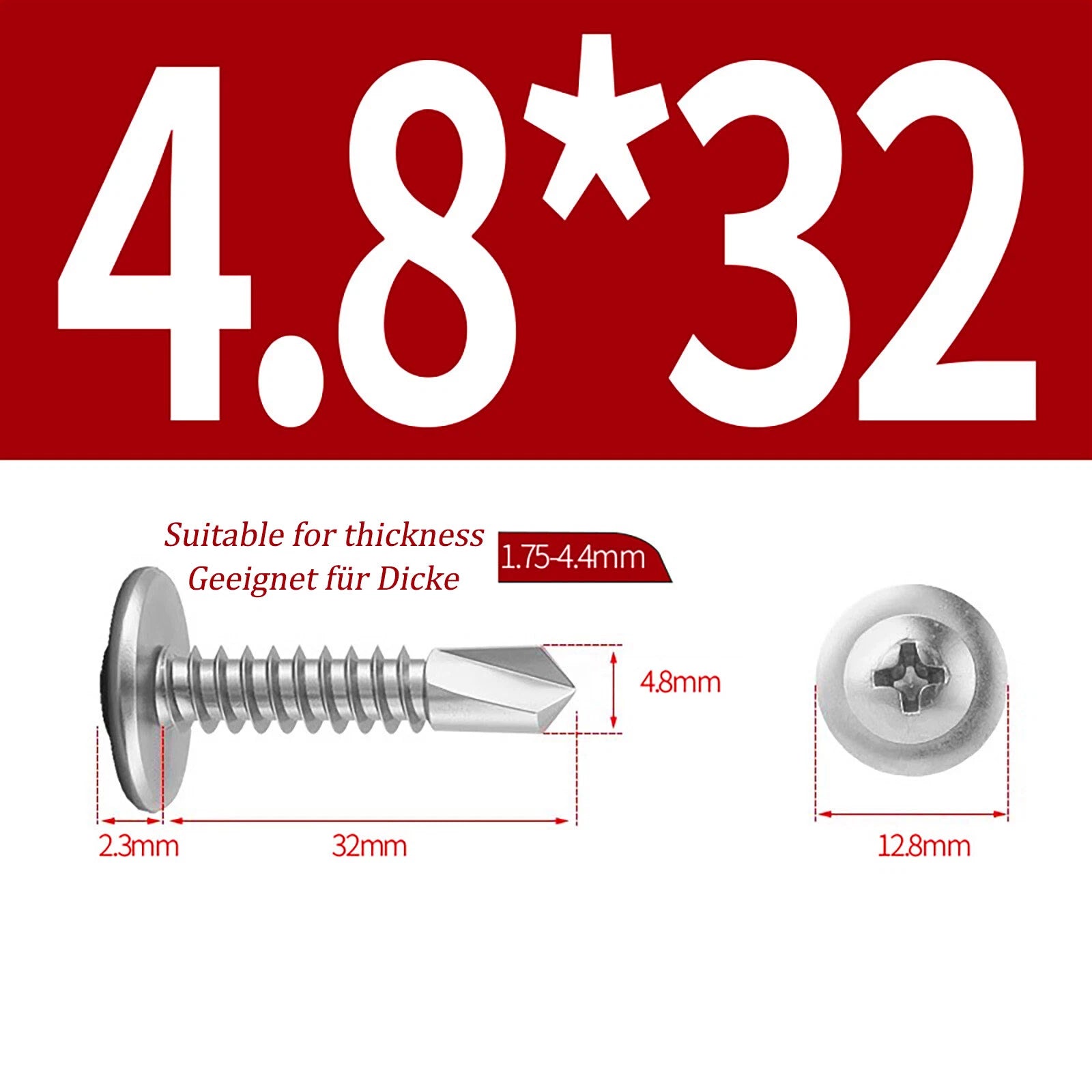

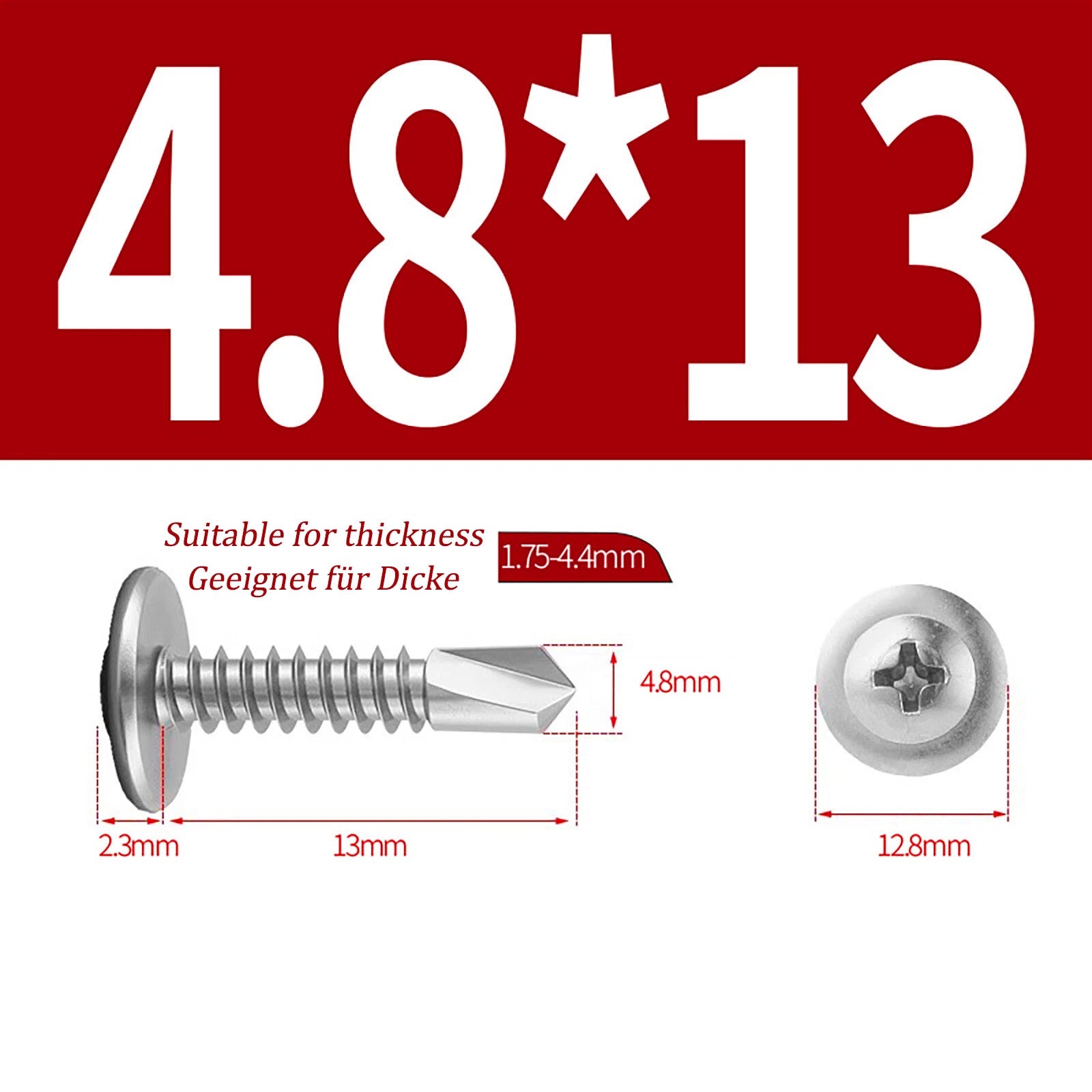

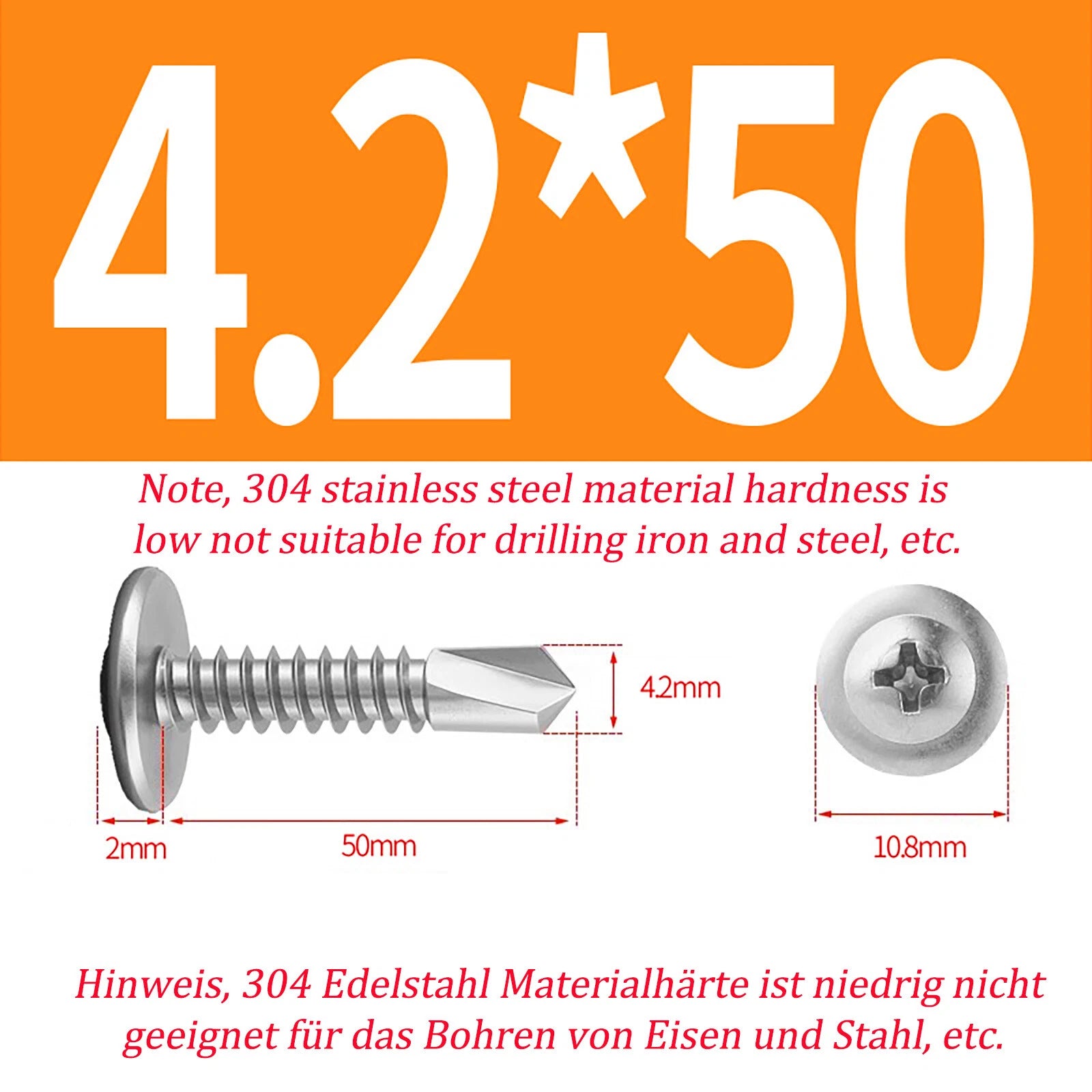

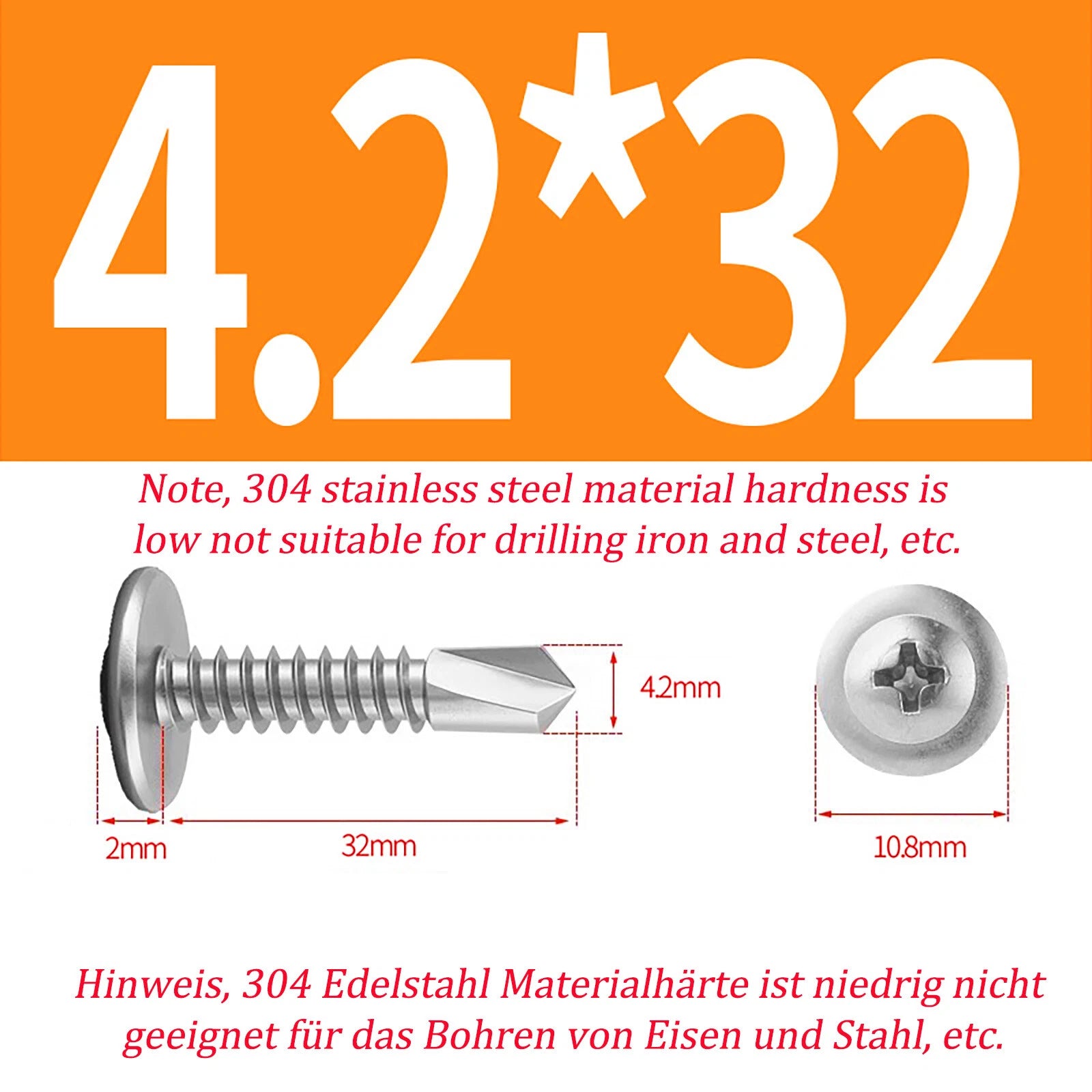

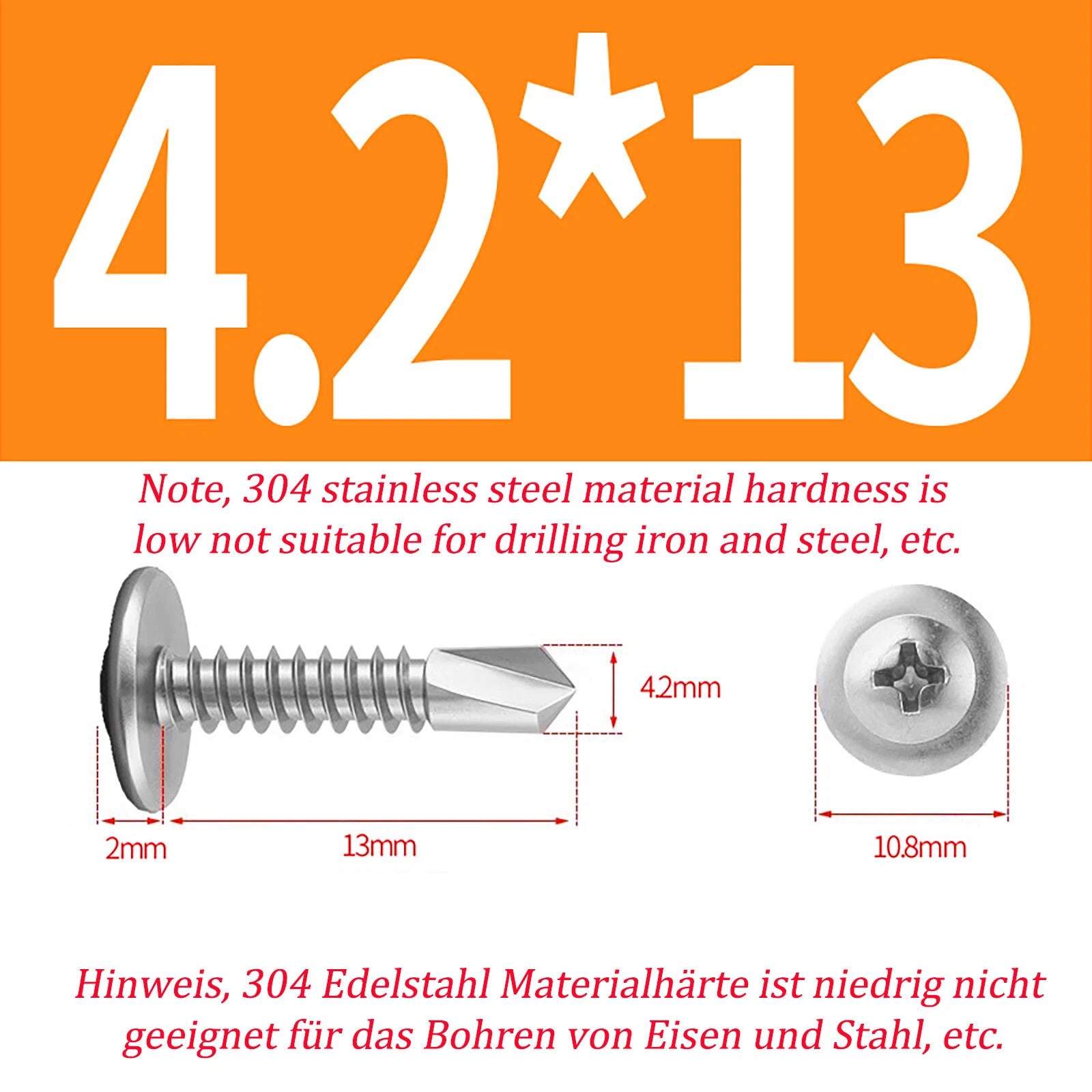

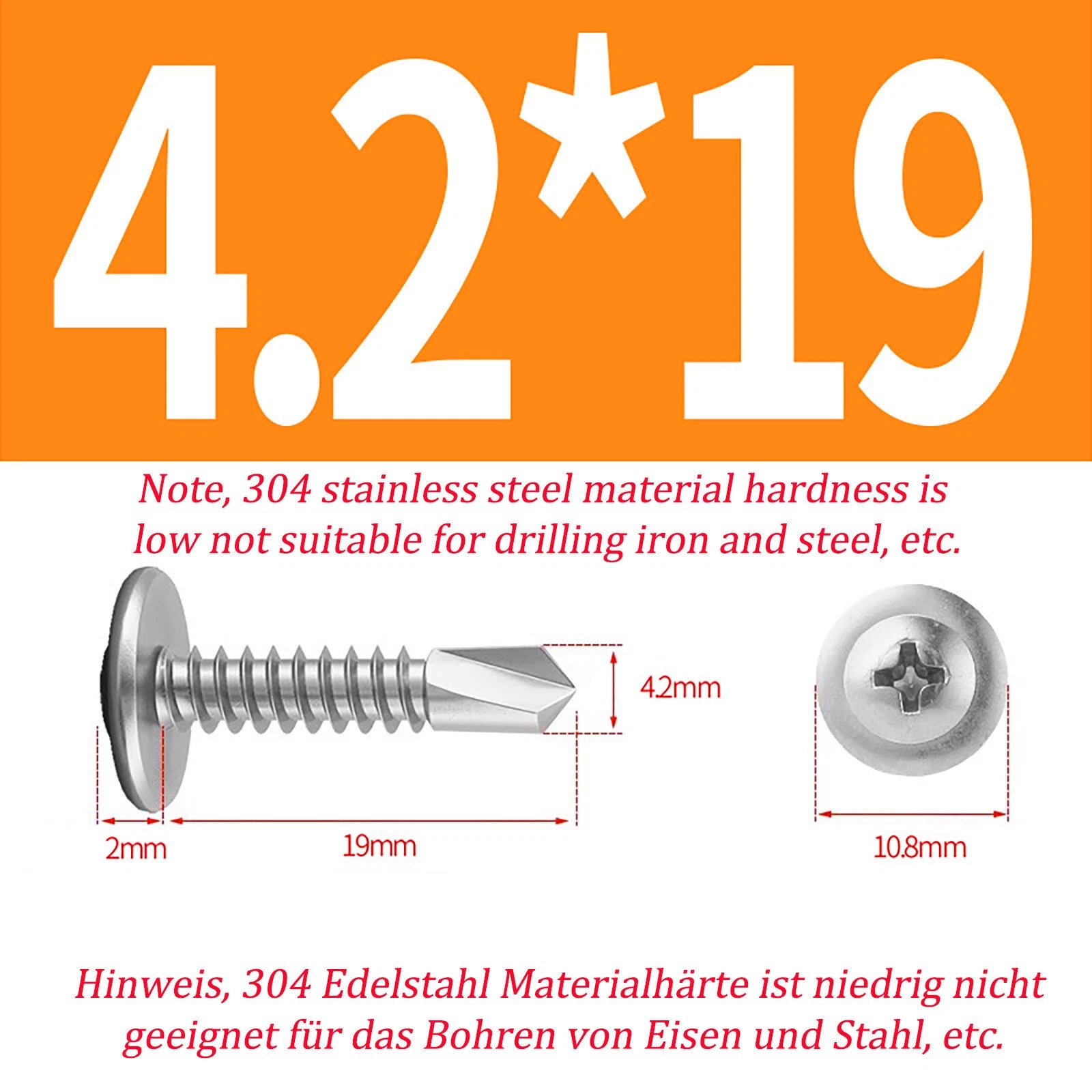

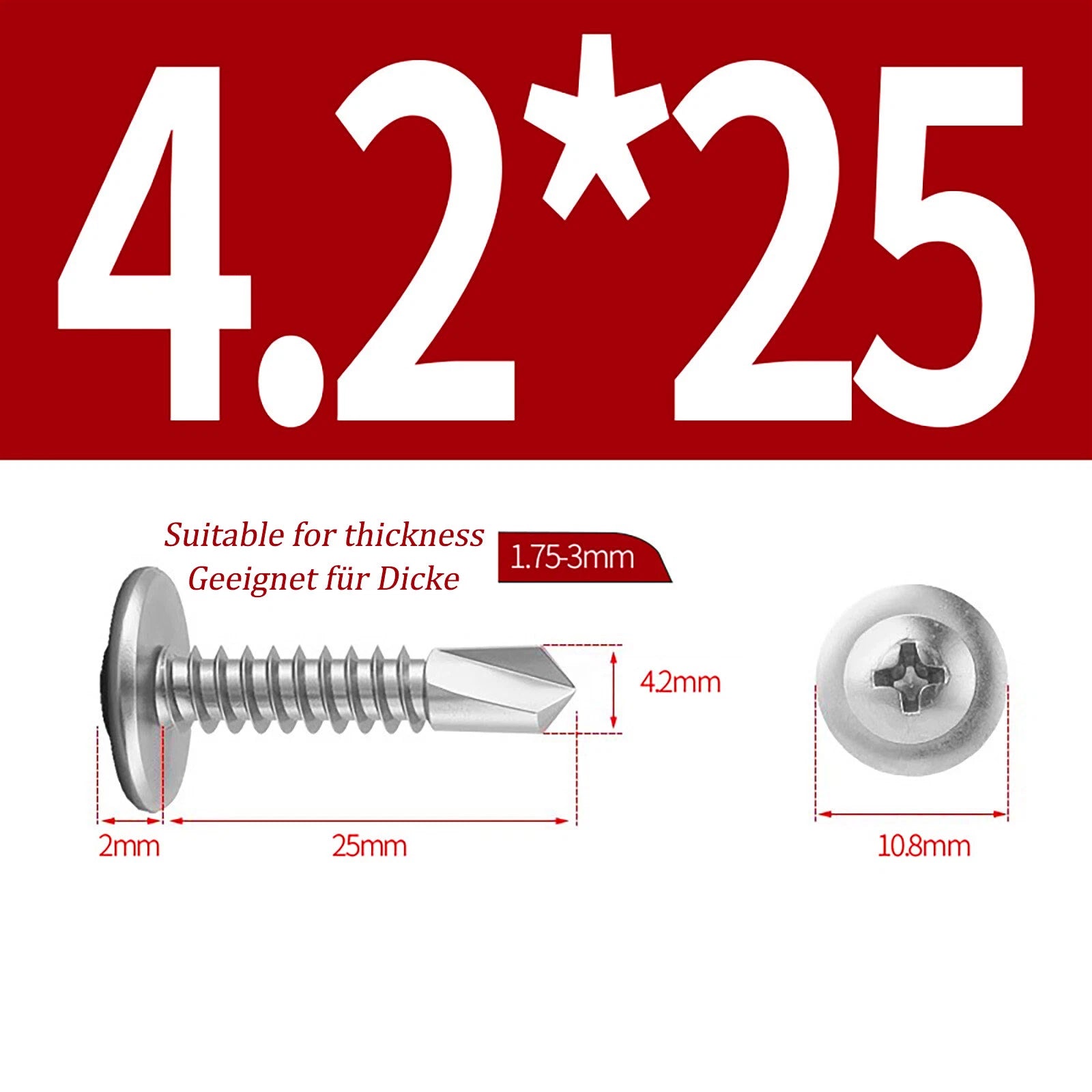

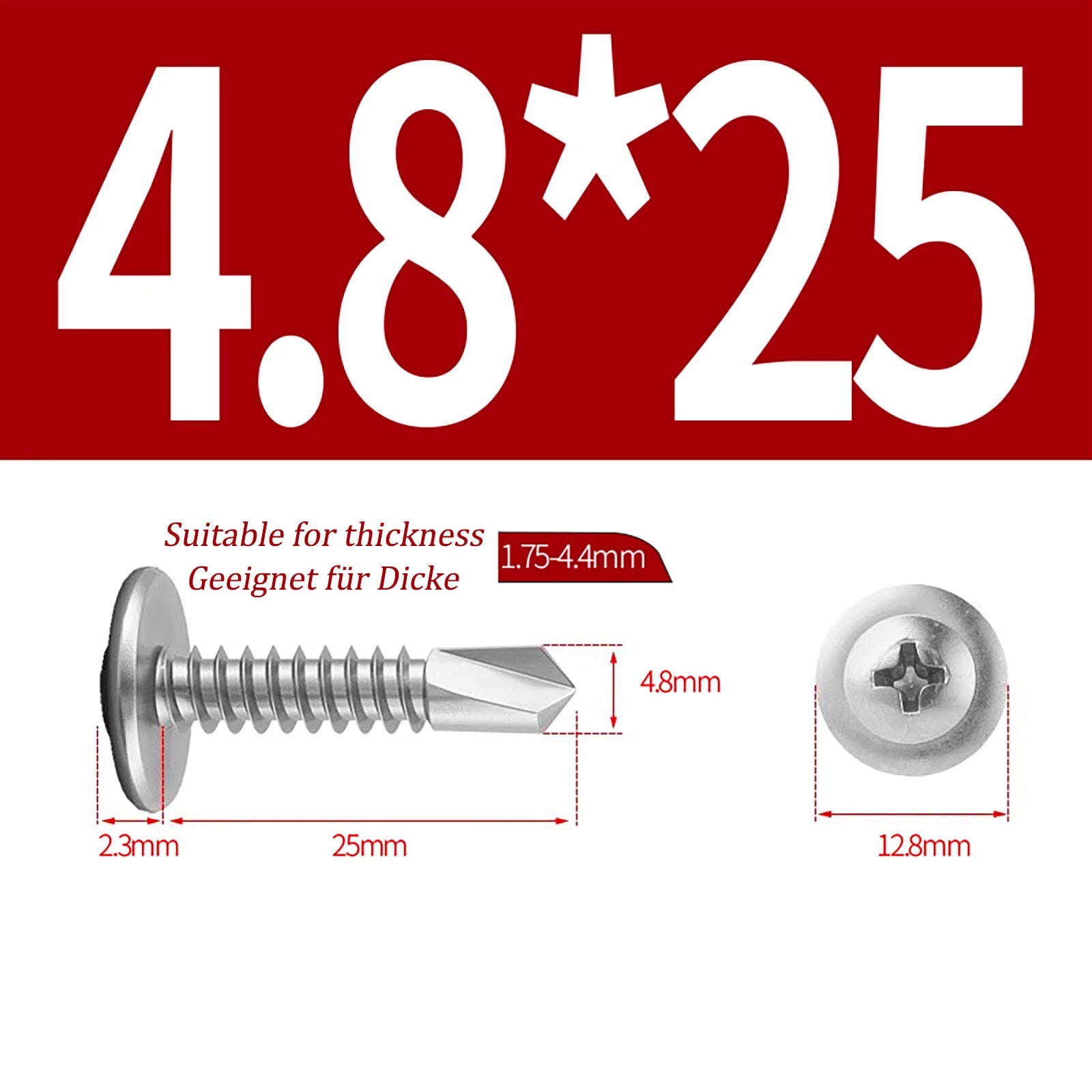

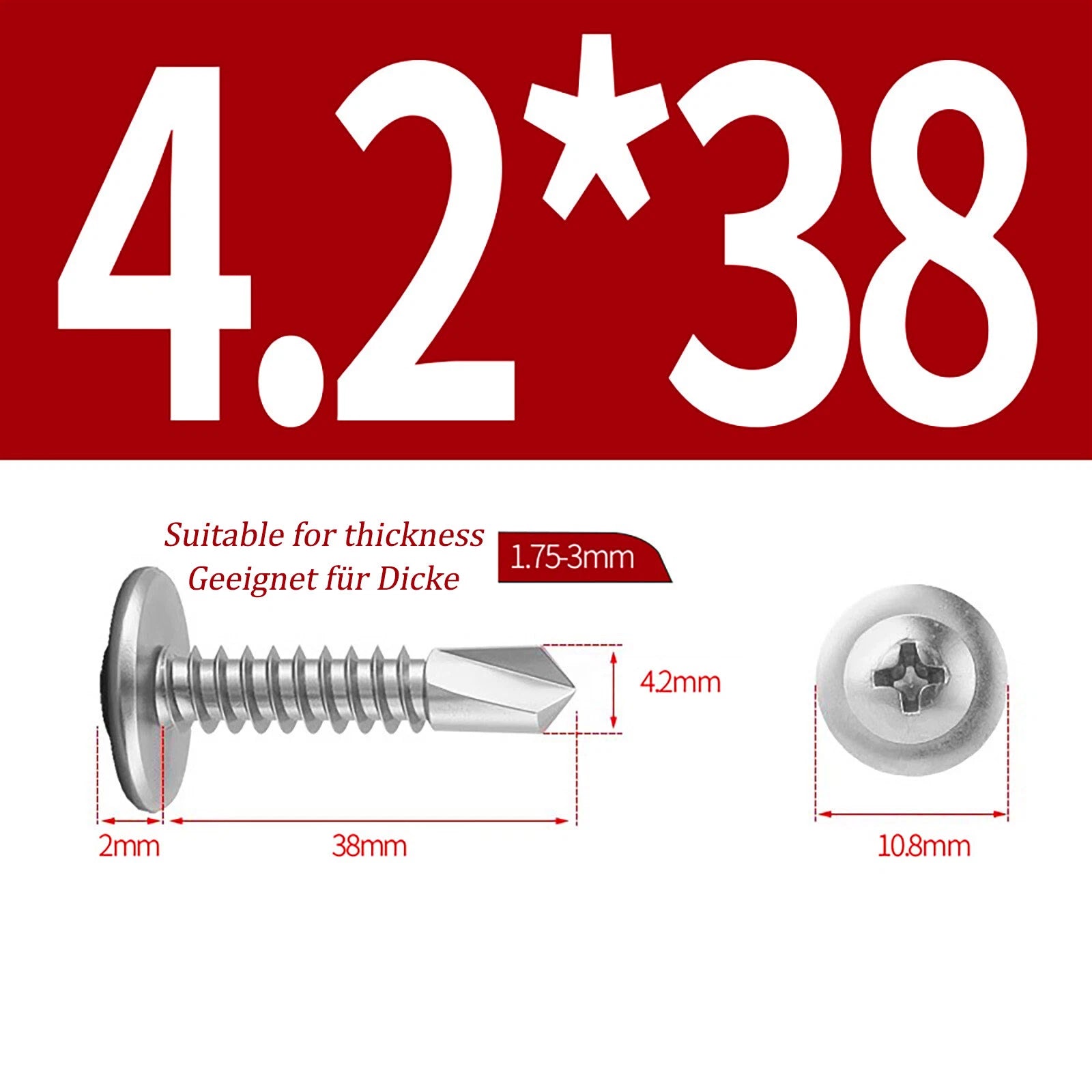

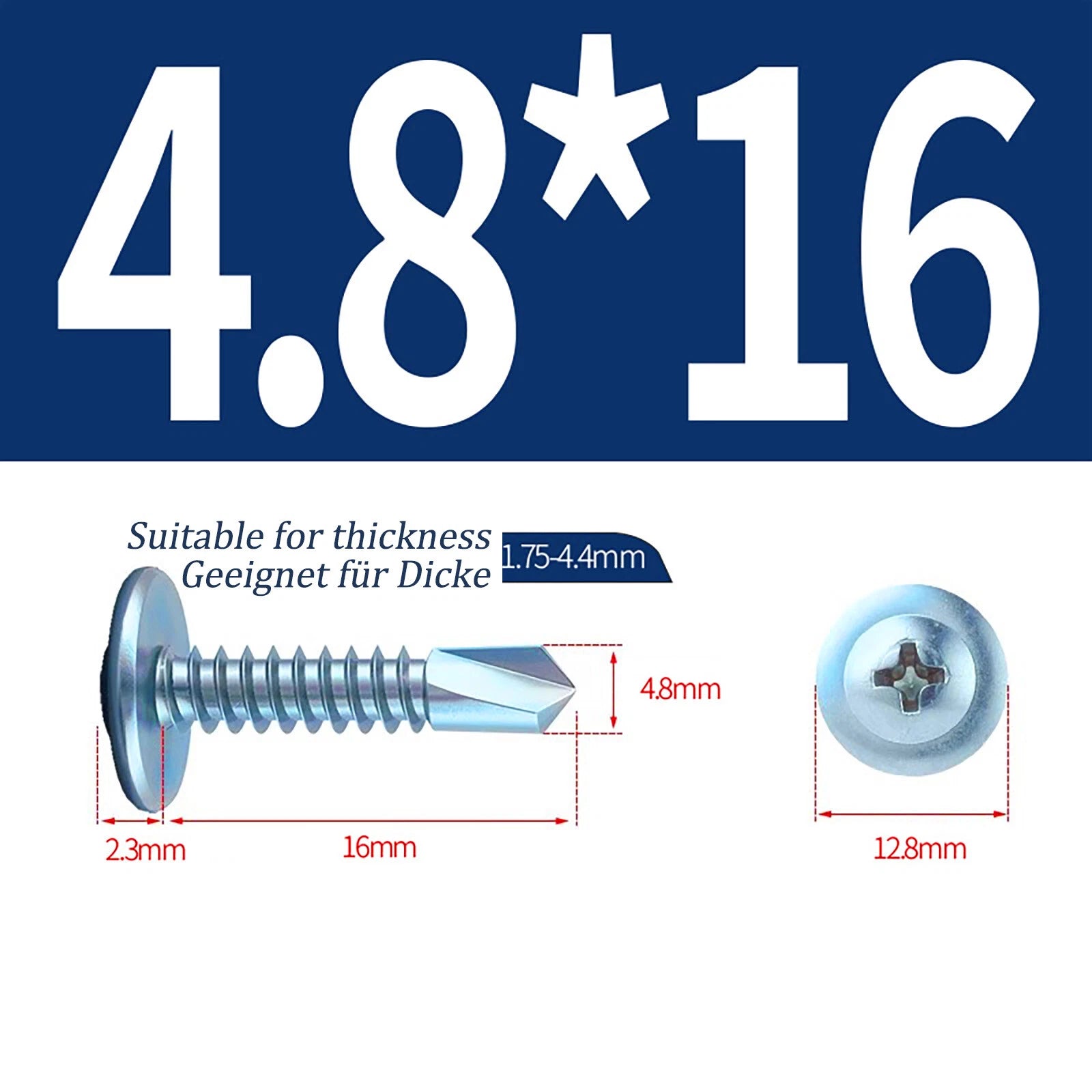

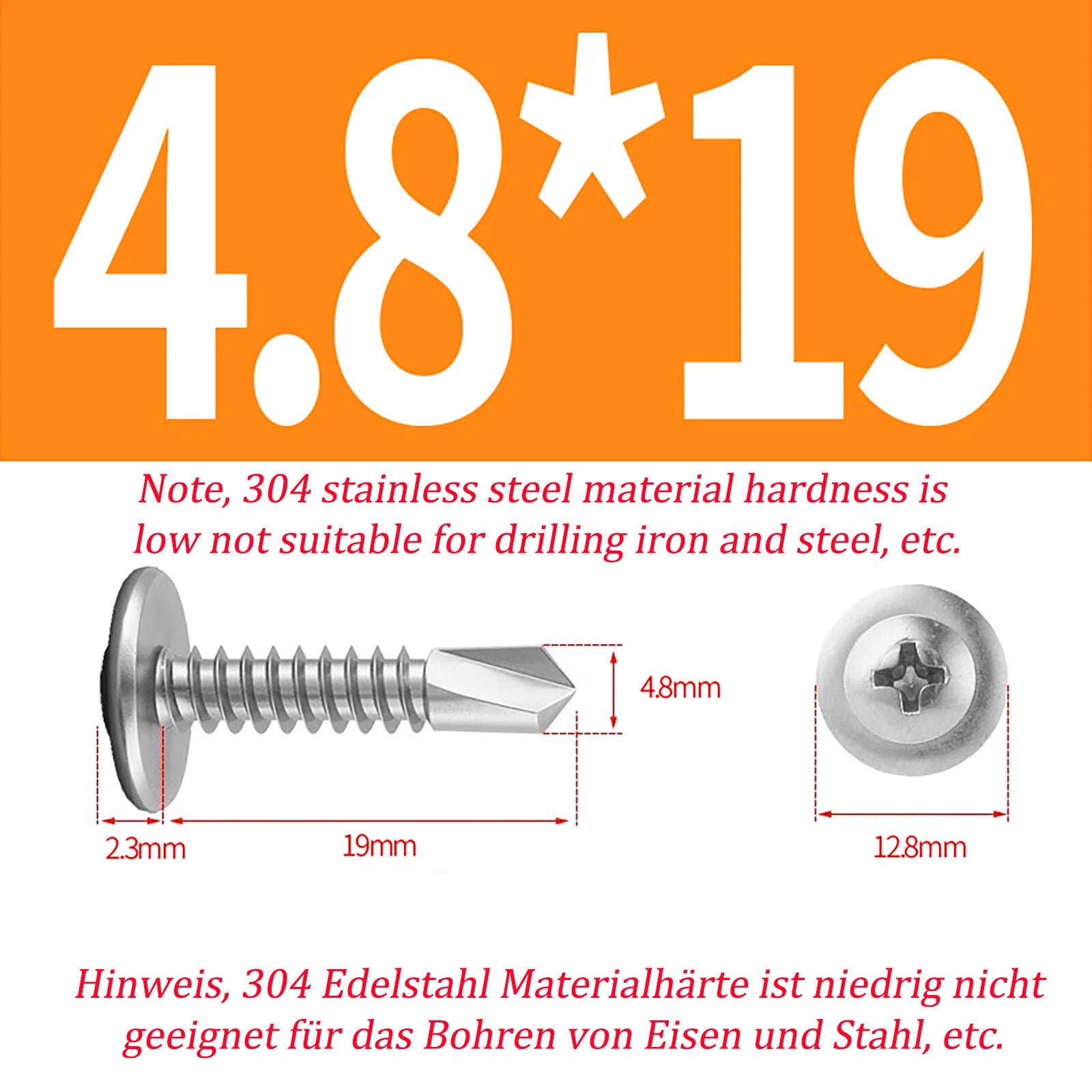

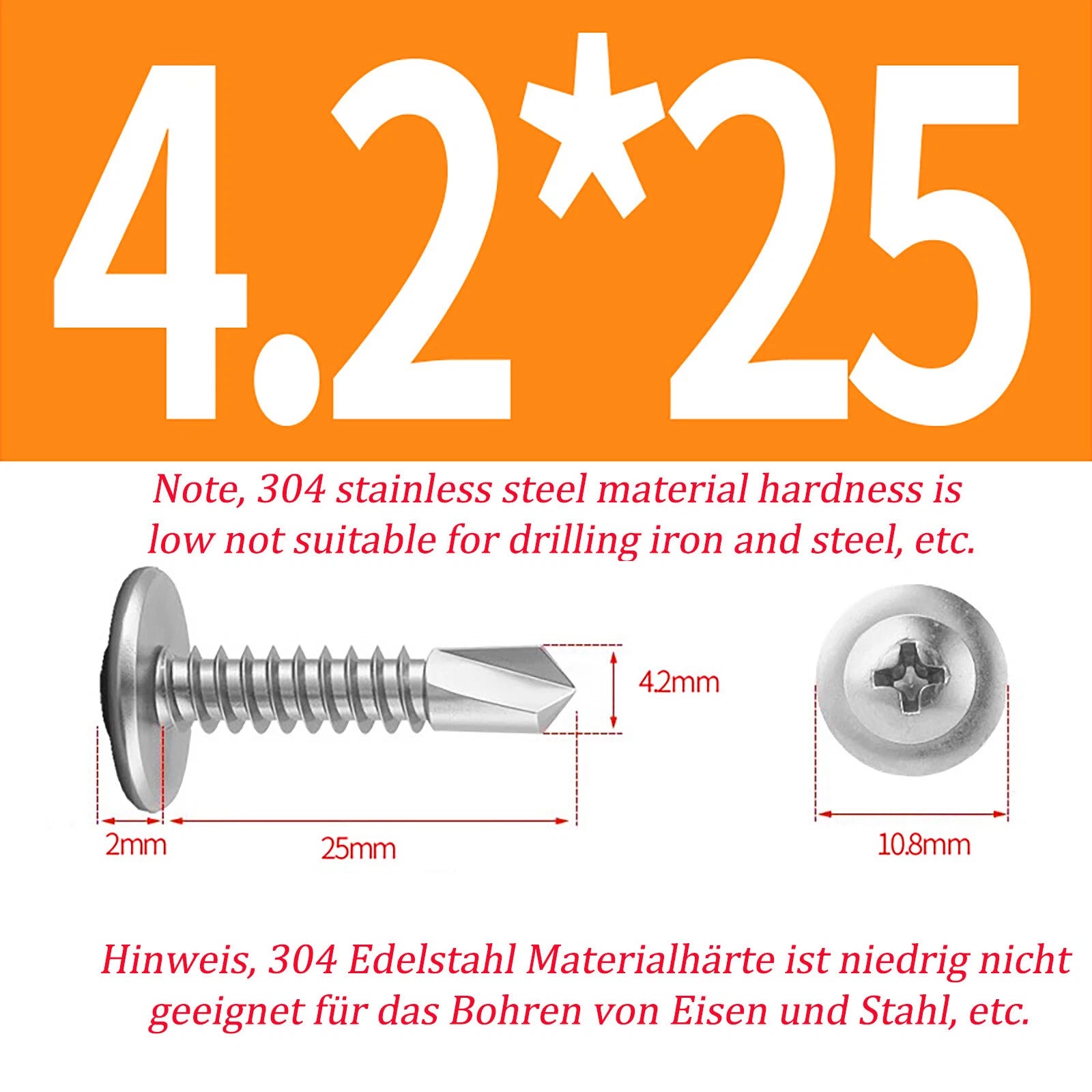

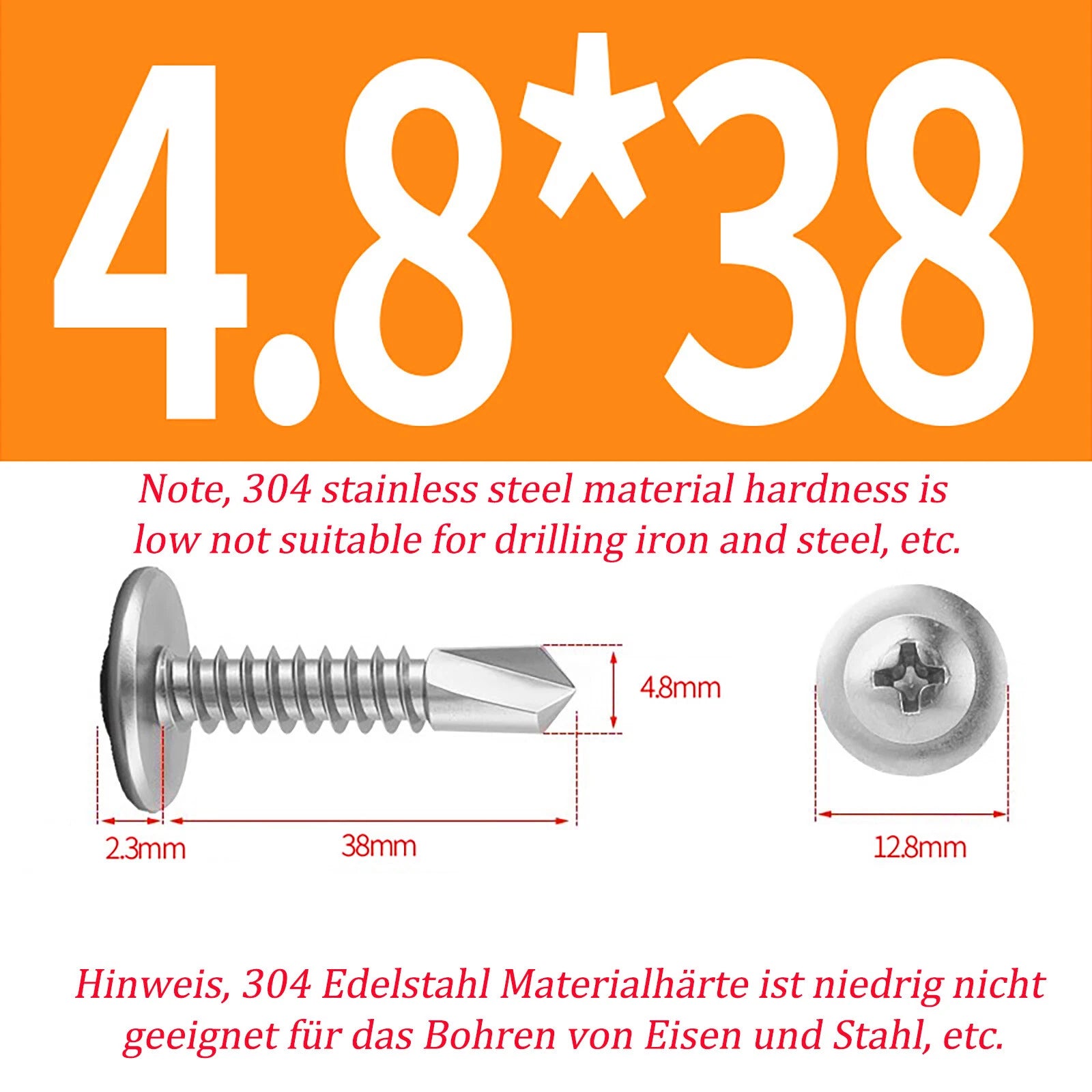

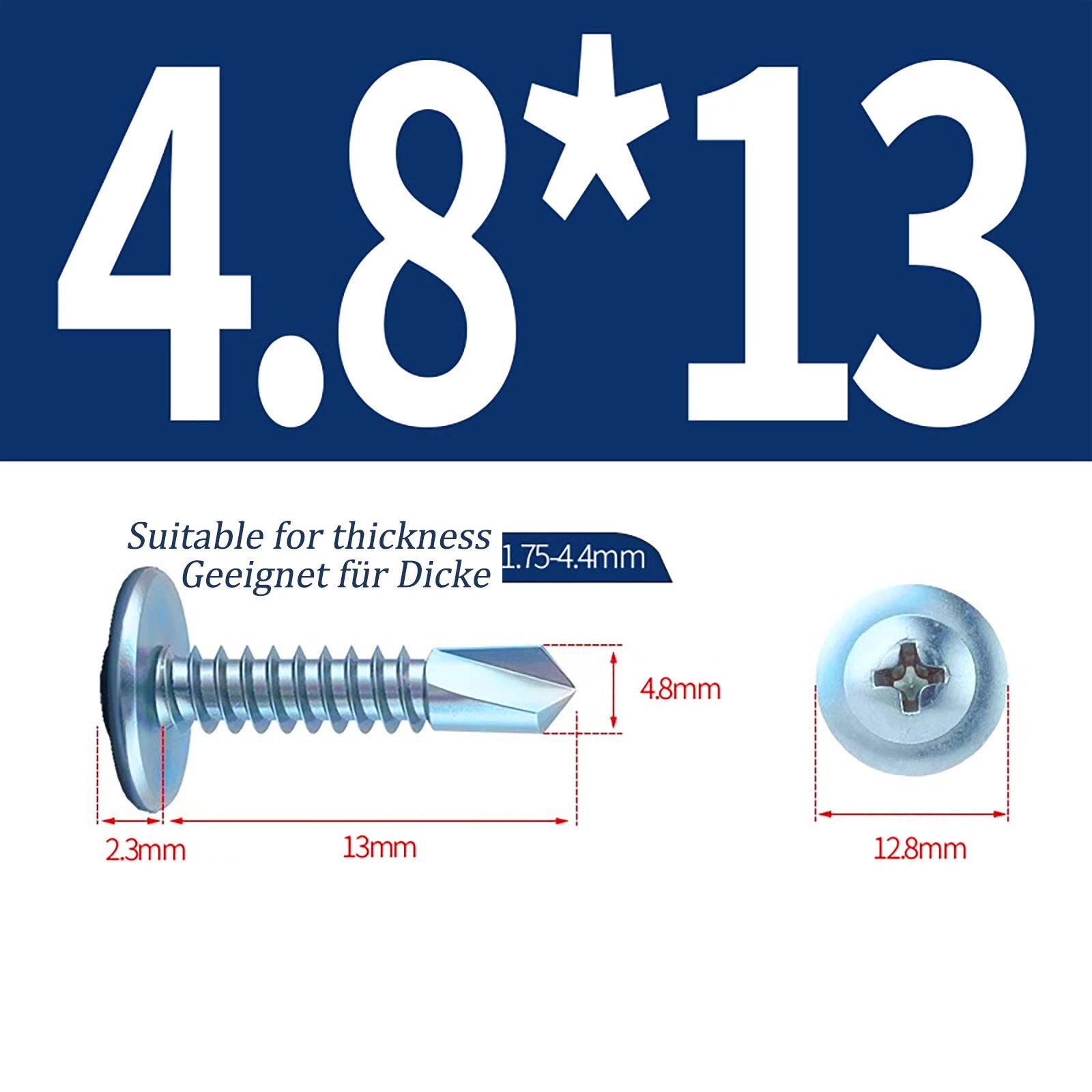

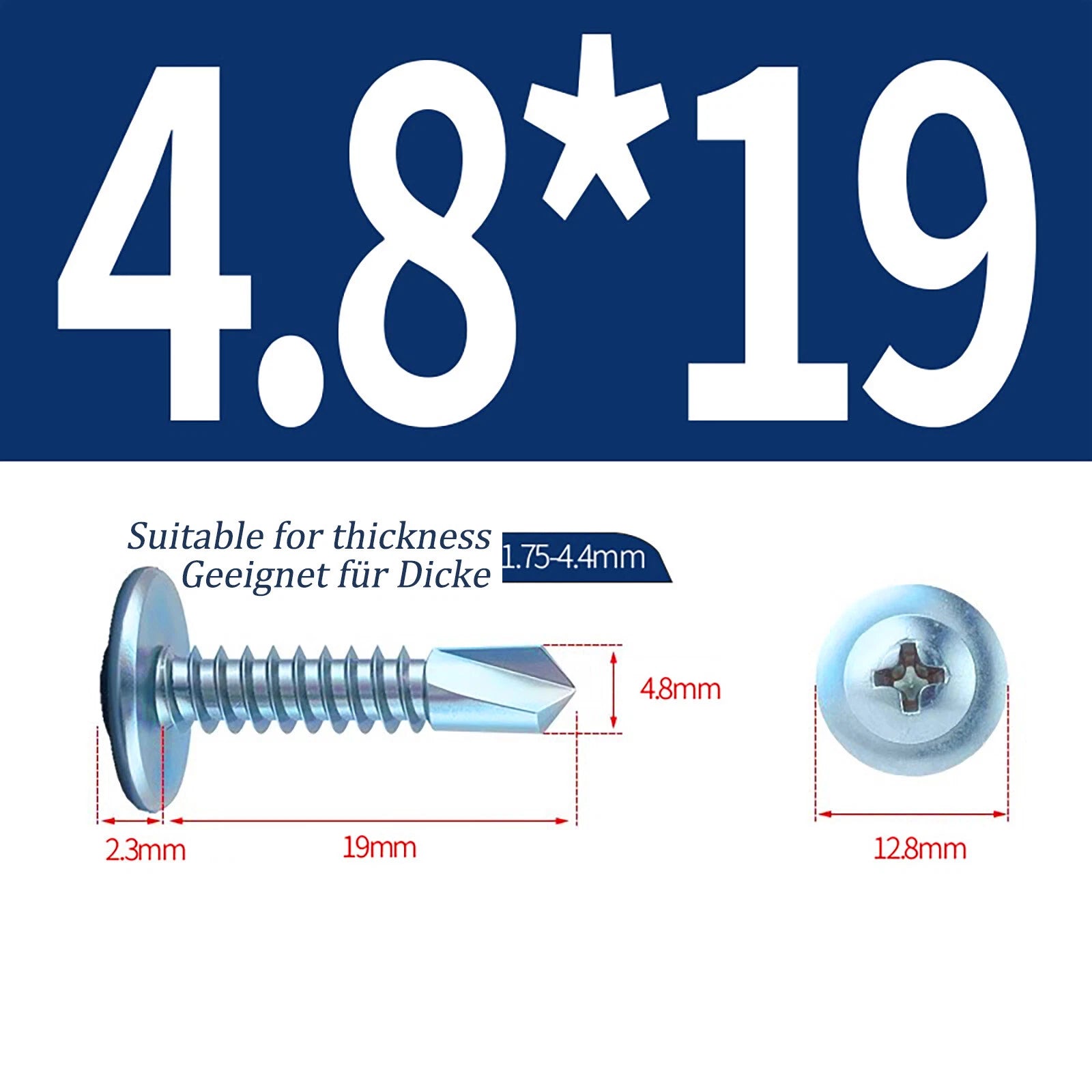

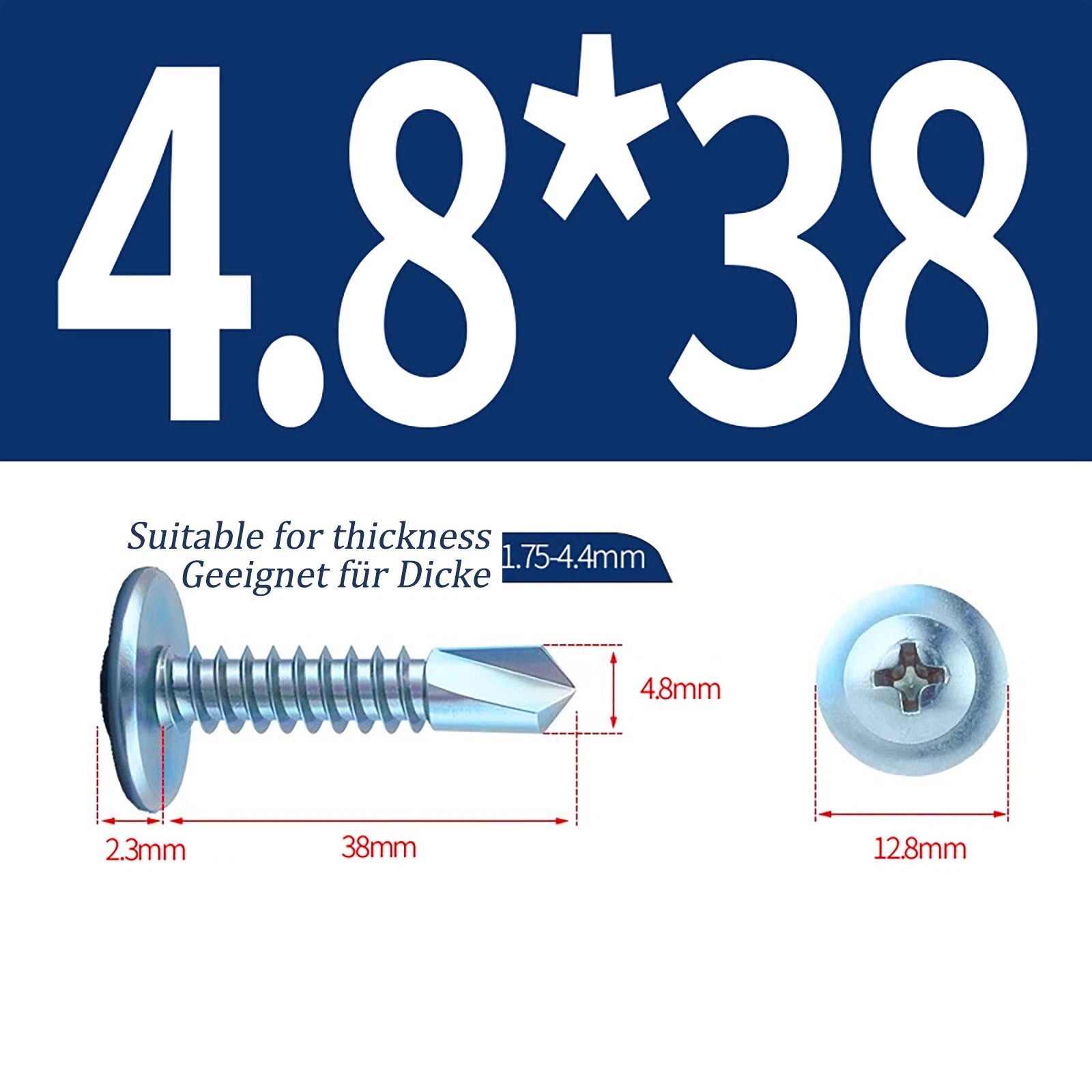

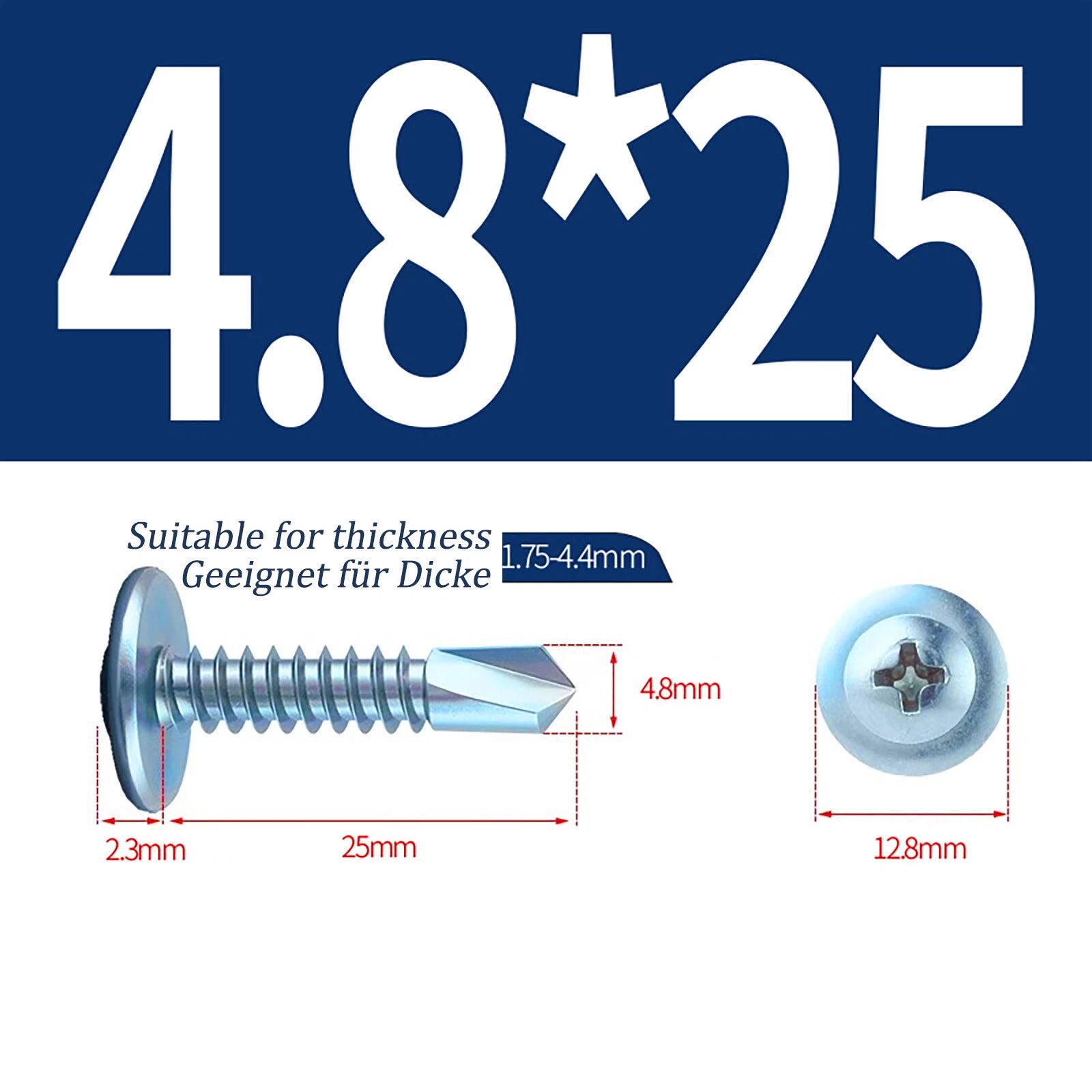

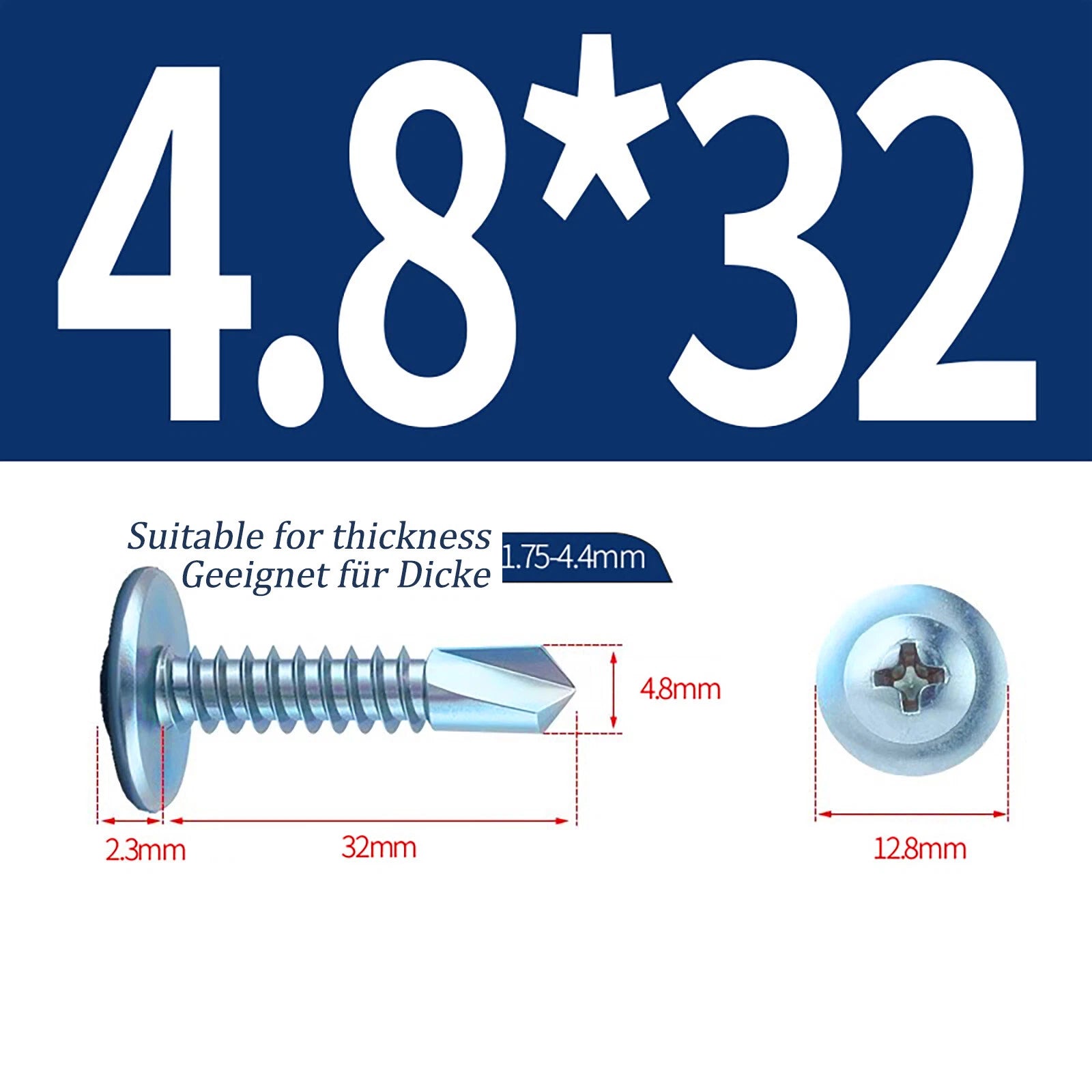

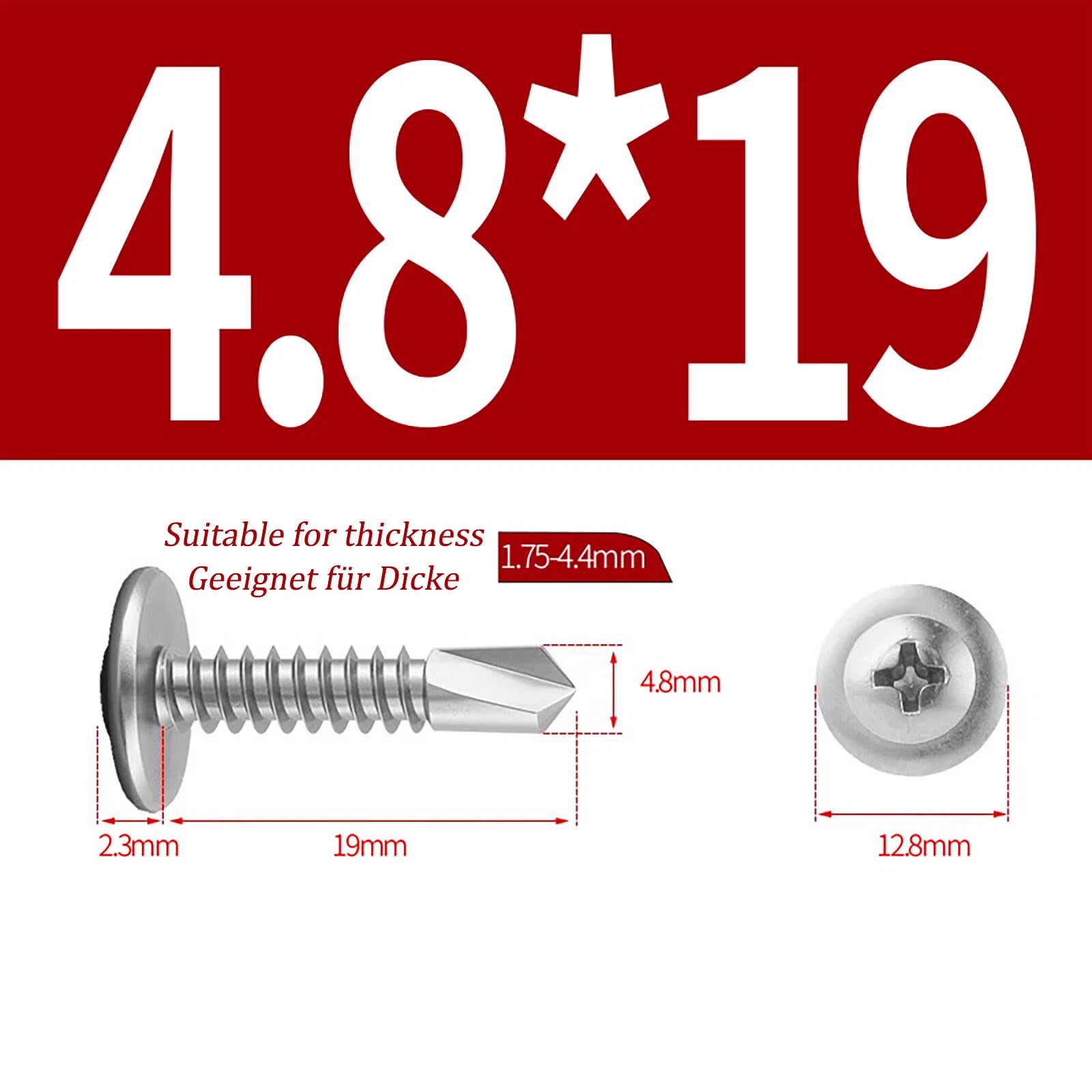

* Lengths measured from under the head. Material grade is clearly marked on each pack. Refer to the size chart image in the listing for exact drill point dimensions.

❓ Frequently Asked Questions – Self-Drilling Wafer Head Screws

🔸 What material should I choose for outdoor projects?

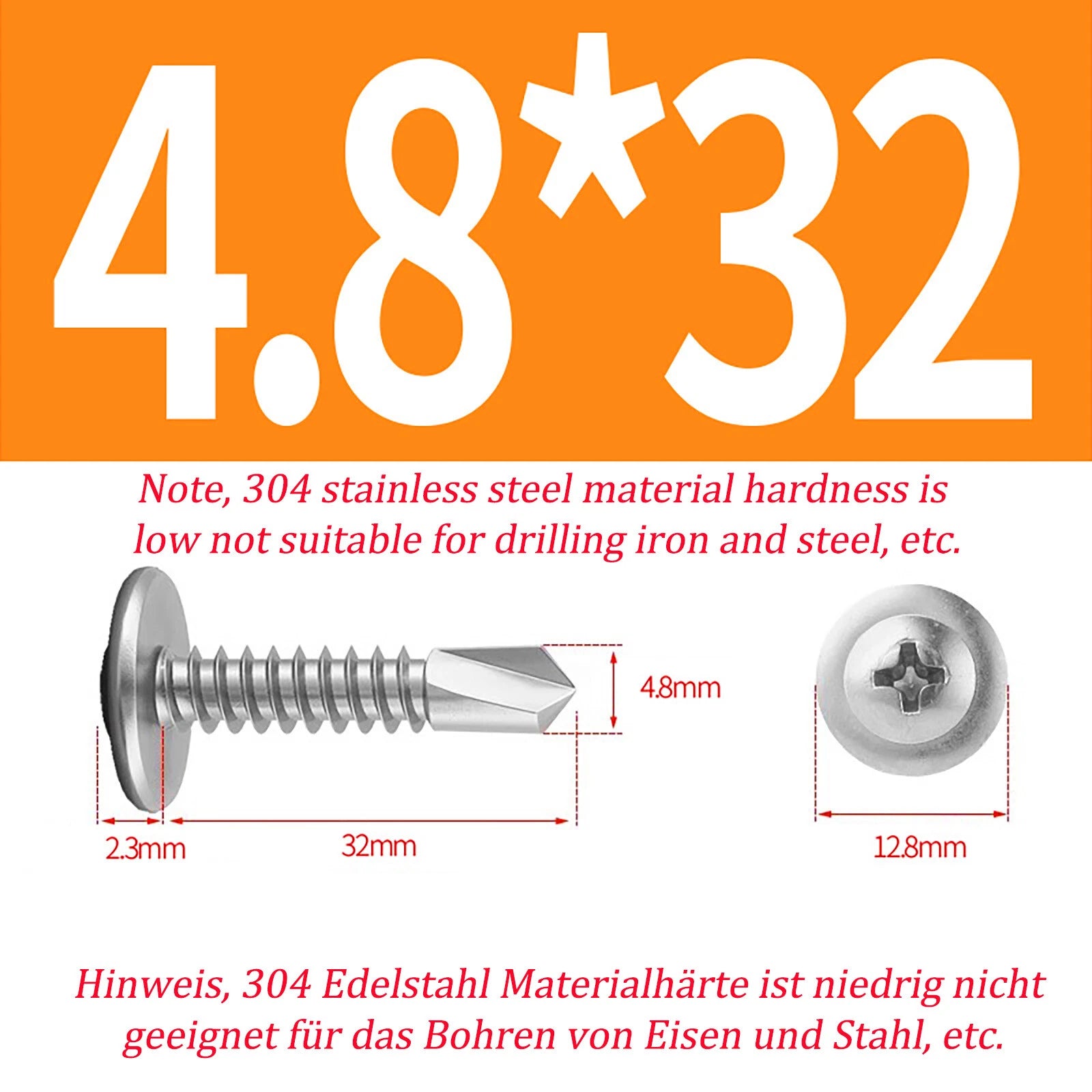

304 stainless steel is the best choice for outdoor, marine, and coastal environments — it won’t red‑rust and resists corrosion in rain, salt air, and humidity. Galvanized carbon steel works well for covered outdoor spaces (under eaves, inside unheated buildings). 410 stainless is a harder material but offers less corrosion protection, so it’s better suited for indoor or dry applications where hardness matters more than rust resistance.

🔸 Do I need to pre‑drill before using self-drillingg screws?

No. That’s the advantage of self-drilling screws — the tip acts like a small drill bit and cuts its own hole as you drive. They’ll punch through sheet metal up to approximately 1.5 mm to 2.0 mm thick without any pilot hole. For thicker material, consult the size chart to confirm the drill point capacity.

🔸 What hex driver size do I need?

Both M4.2 and M4.8 screws in this range use a standard 8 mm (or 5/16‑inch) hex socket. A magnetic nut driver bit makes installation fast and keeps the screw from falling off the bit.

🔸 Can I use these in wood as well as metal?

Yes. The self-drilling point goes through sheet metal and then bites into wood or composite material behind it. They are commonly used for attaching metal roofing sheets to timber purlins or fastening metal brackets to wood studs.

🔸 Are the different material grades clearly labeled?

Yes. Each pack is labeled with the grade (e.g., 304, 410, or Galvanized Carbon Steel). The listing variation selector also allows you to pick the exact material and size combination, so you receive exactly what you order.
