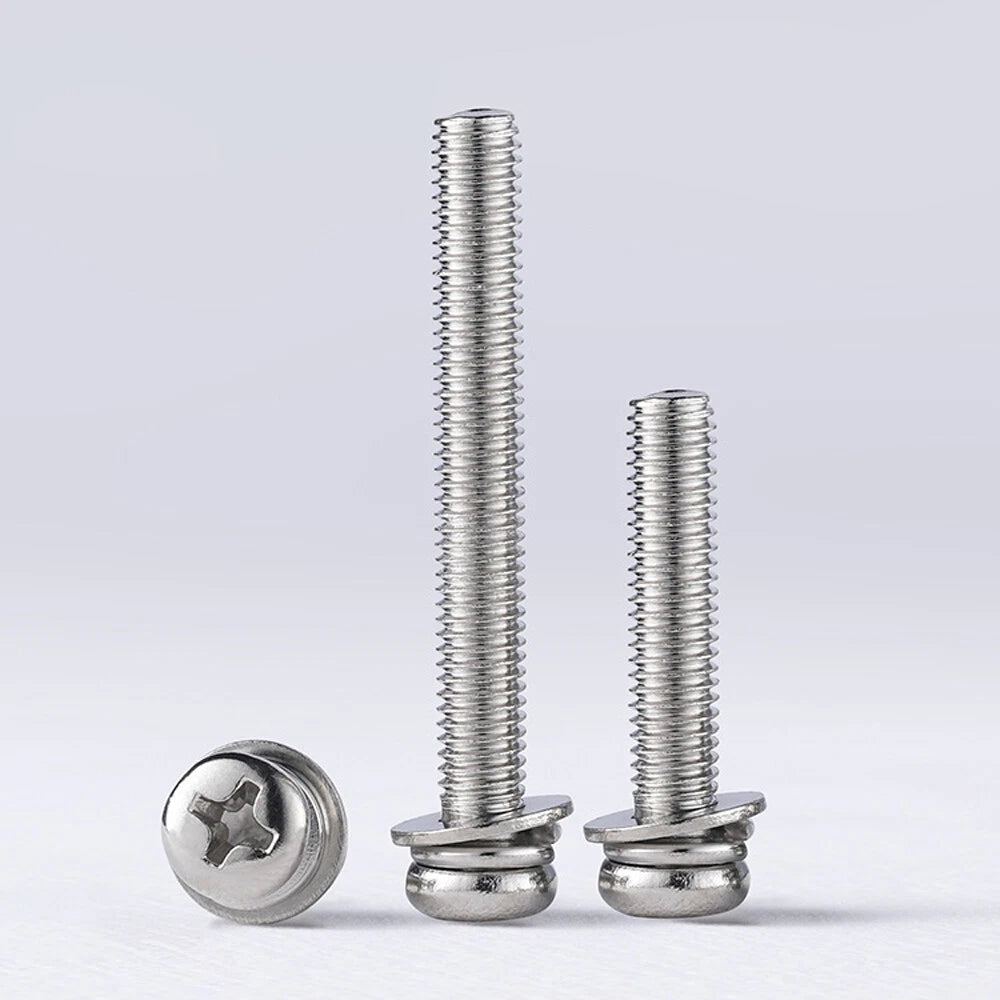

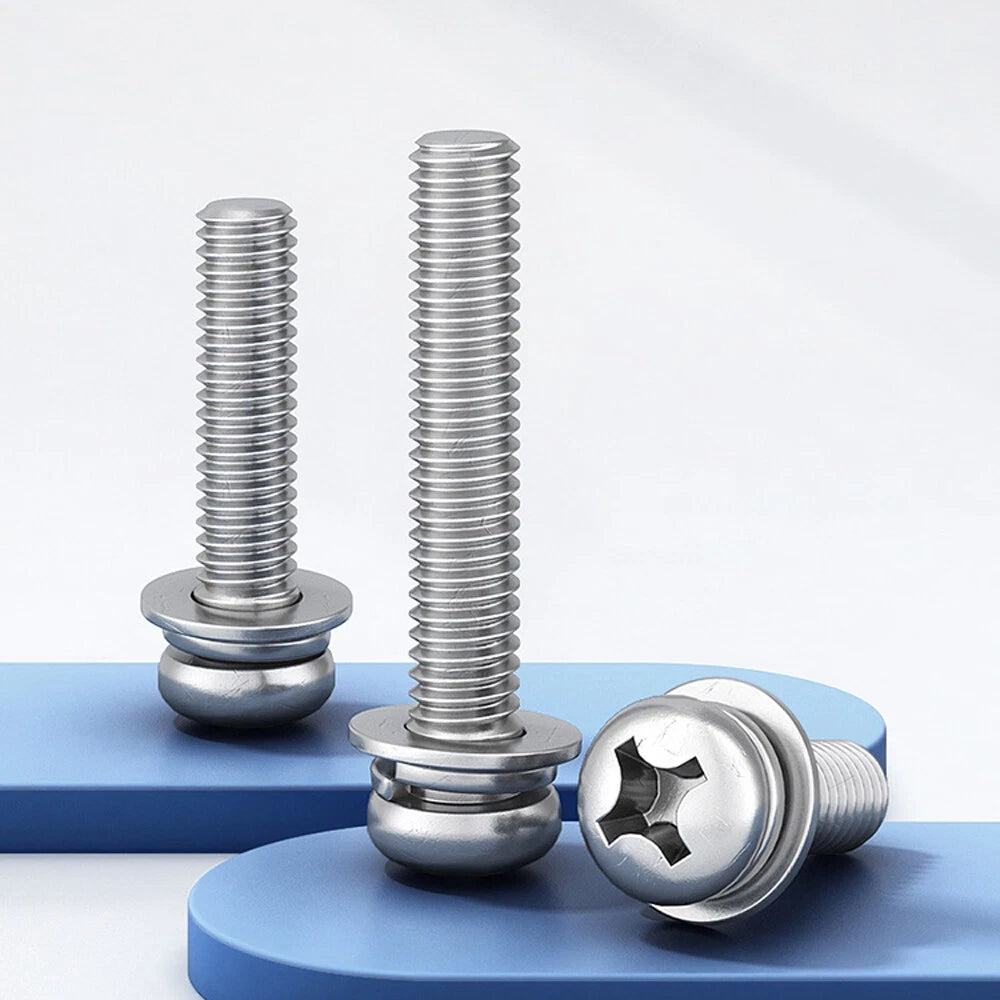

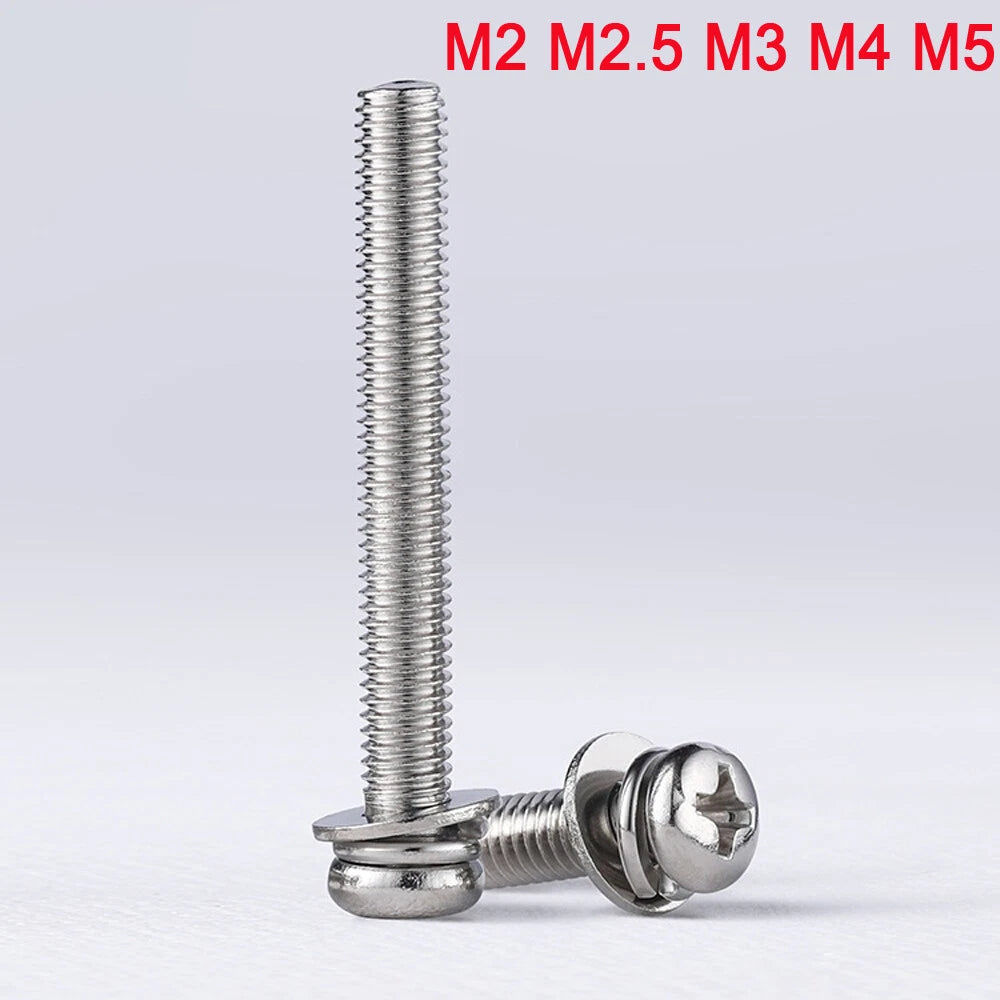

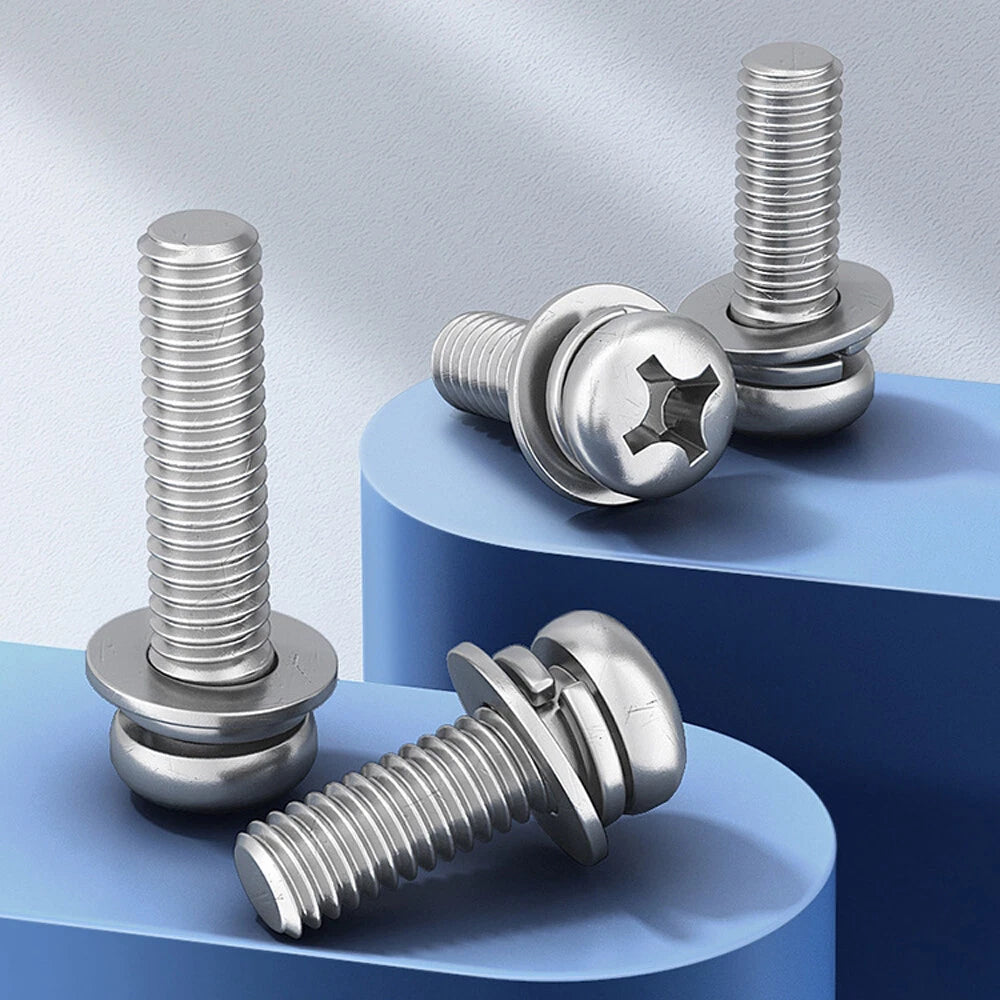

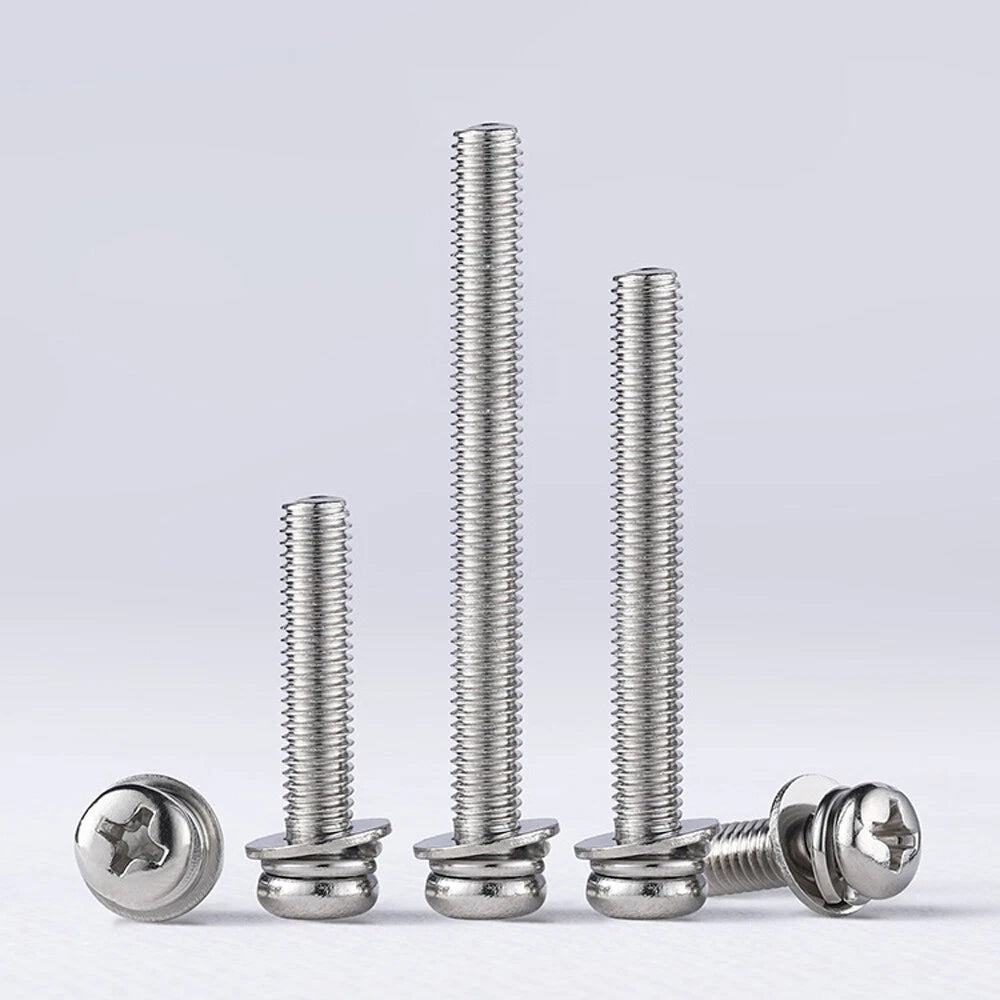

You’re tired of juggling loose washers while trying to start a screw in a tight spot. These pan head Phillips machine screws come with a spring washer and a flat washer already assembled – no extra parts to drop or misplace. Made from 304 stainless steel, they resist rust and corrosion indoors and out. The spring washer keeps tension under vibration, and the flat washer spreads the load to protect softer materials. Available in M2 through M10 diameters, with lengths measured under the head (excluding the head). Perfect for electronics, appliances, automotive, and any assembly where a secure, vibration‑resistant joint matters.

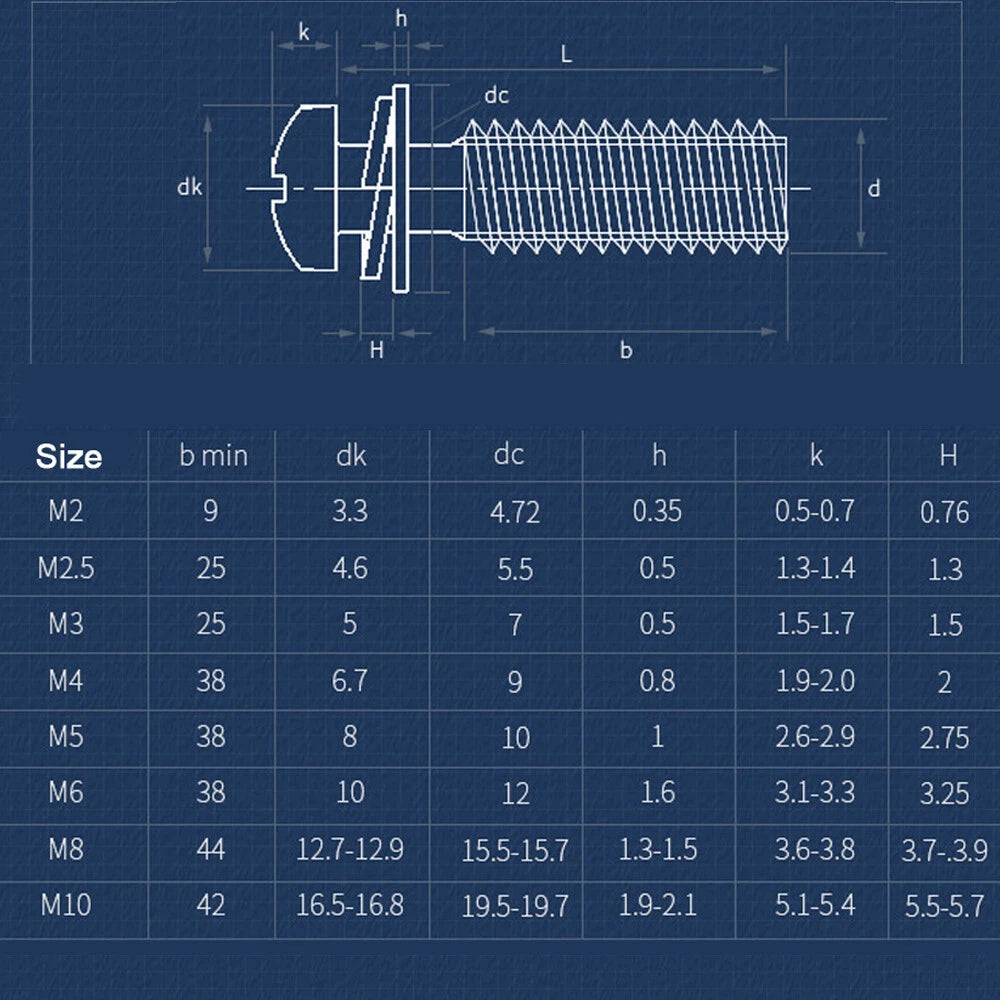

| Thread Diameter (M) | Thread Pitch (mm) | Typical Lengths (mm, under head) * | Head Style | Drive | Washer Type | Material |
|---|---|---|---|---|---|---|
| 📐 Length measured from underside of head to tip. Fully threaded. Select size from dropdown. | ||||||
| M2 | 0.4 | Lengths vary by diameter – typical range from 4mm up to 60mm depending on M size. Select from dropdown. | Pan head | Phillips | Spring (lock) + flat washer | 304 Stainless Steel |
| M2.5 | 0.45 | |||||
| M3 | 0.5 | |||||
| M4 | 0.7 | |||||
| M5 | 0.8 | |||||
| M6 | 1.0 | |||||
| M8 | 1.25 | |||||
| M10 | 1.5 | |||||
* Lengths vary by diameter – exact availability shown in dropdown. All screws are fully threaded. Washers are pre‑assembled and will rotate freely but won’t fall off.
| Washer Type | Function | Benefit |
|---|---|---|
| Flat washer | Wide ring under the head | Spreads clamping load, protects soft surfaces, prevents pull‑through. |
| Spring (split lock) washer | Split ring with sharp edges | Provides tension, prevents screws from loosening due to vibration. |
| Pre‑assembled (sems) | Both washers captive on the screw | Saves assembly time, reduces lost parts, ensures correct washer usage. |
1. Are the washers removable? Can I use the screw without them?
The washers are pre‑assembled but can be slid off if needed. However, they are designed to stay on for convenience. Removing them may require a little force, but they are reusable.
2. How do I measure the length of a sems screw?
For pan head screws, length is measured from the underside of the head (the flat bearing surface just below the washers) to the tip. The head and washers are NOT included. So an “M5 x 30mm” screw has a 30mm threaded shaft under the head.
3. Are these screws fully threaded? What about long lengths?
Yes – all screws in this range (up to the maximum length) are fully threaded from under the head to the tip, ensuring maximum thread engagement.
4. Can I use these screws outdoors? Will they rust?
304 stainless steel offers excellent corrosion resistance. They are suitable for outdoor use in most environments – rain, humidity, and coastal areas. For continuous saltwater immersion, consider A4 (316) stainless, but for general outdoor applications, 304 is perfect.
5. Do the washers stay in place during driving?
Yes – the washers are captive on the screw. They may spin freely but won’t slide off the threads. When you drive the screw, the flat washer contacts the surface first, followed by the spring washer compressing against the pan head.
6. Do you offer other head styles like flat or button head?
This listing is for pan head Phillips. We also carry flat head and button head sems screws – please check our store or contact us for custom orders.
