Small Compression Springs Ballpoint Pen Spring 0.4mm Wire Dia 18 20 25 30mm Long

HomeDIYer
No reviews

By HomeDIYer®

Price:
$2.72 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Bancontact BLIK Diners Club Discover EPS Google Pay iDEAL Wero JCB Maestro Mastercard Multibanco MobilePay PayPal Przelewy24 Shop Pay Twint Union Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Limited Offer — Spend More, Save More
Spend $55+
Save $5
Spend $100+
Save $10
Spend $200+
Save $25
✅ Discount applied automatically at checkout 🚚 Free shipping on orders over $89
HomeDIYer DIY Expert Support

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri  8:30 AM – 8:00 PM
WhatsApp
24-Hour Fast Ship
Arrives in 3–14 Days
Worldwide Shipping
30-Day Returns
1 tree planted with every purchase

Description

Small Compression Springs for Ballpoint Pens — Precise Force in a Miniature Form

When a ballpoint pen skips, a clicker mechanism fails, or a precision instrument loses its tactile feedback, the culprit is almost always a worn or incorrectly sized compression spring. Engineers, repair technicians, and DIY enthusiasts who work with fine-tolerance assemblies need a reliable source of miniature compression springs that deliver consistent load performance across repeated cycles.

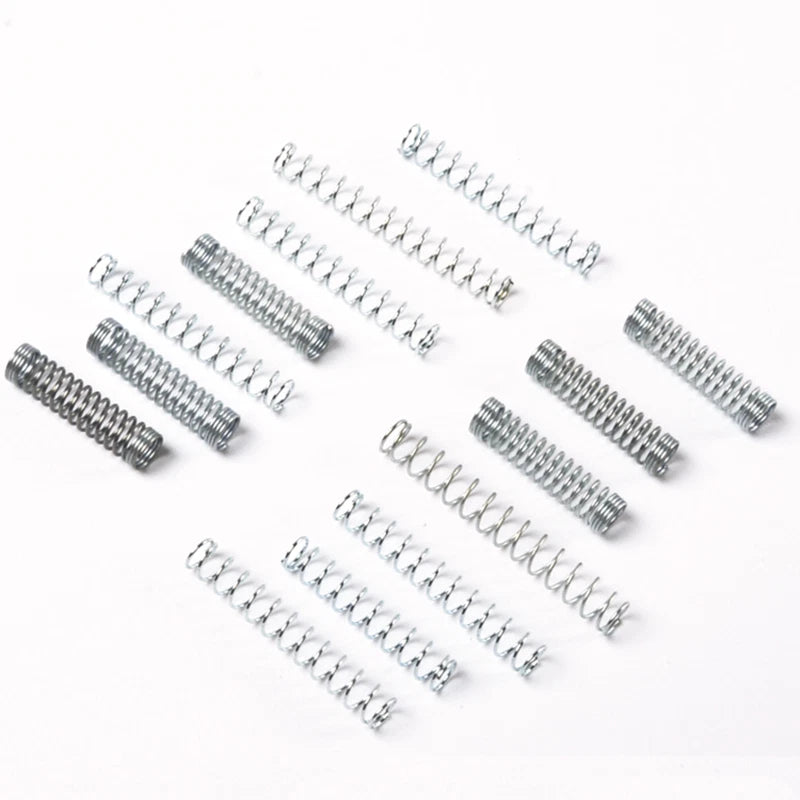

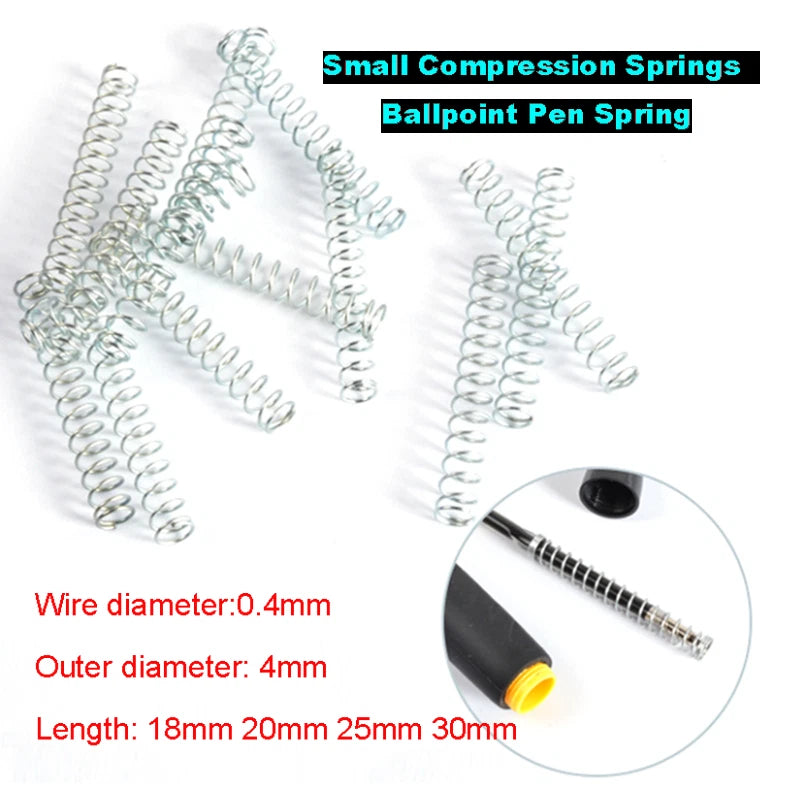

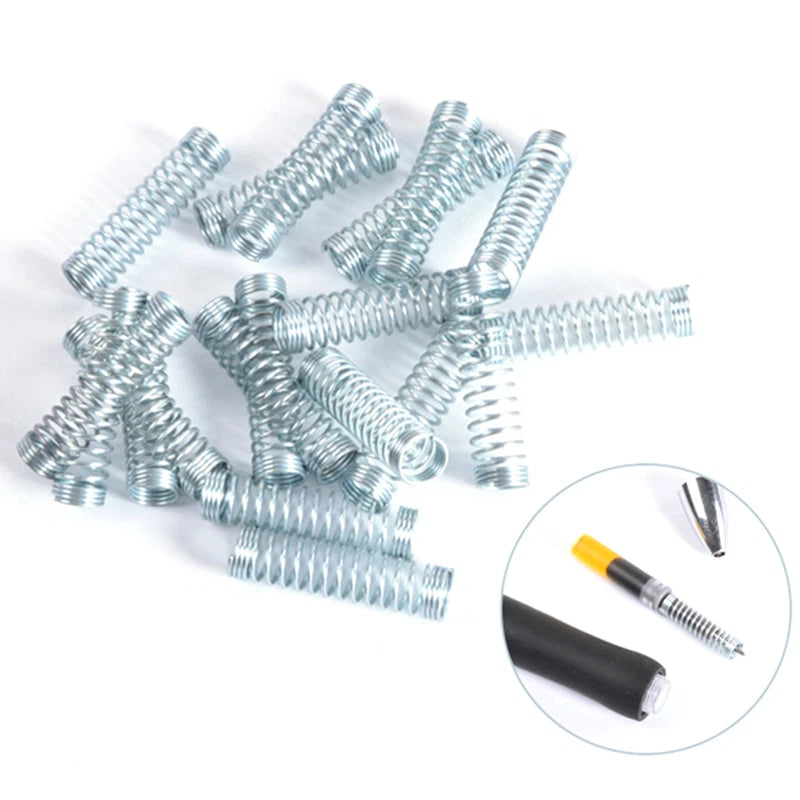

These small compression springs feature a 0.4mm wire diameter and outer diameters ranging from 4mm to 4.5mm (approximately 0.157–0.177 in), with free lengths of 18mm, 20mm, 25mm, and 30mm (approximately 0.71–1.18 in). Available in spring steel (natural finish) and zinc-coated steel for added corrosion resistance, each spring is wound to close tolerances suitable for compact mechanical assemblies.

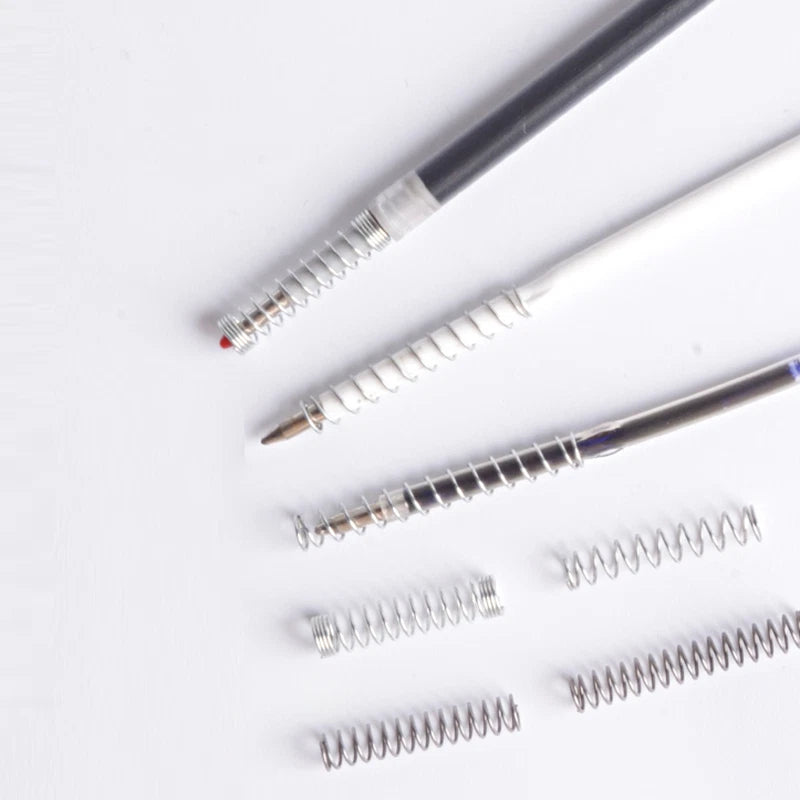

Typical applications include ballpoint pen click mechanisms, retractable marker assemblies, small electronic push-button switches, miniature valve return springs, and precision instrument reset mechanisms — anywhere a compact, reliable compression spring for small devices is required.

🔧 Compatibility: Designed for standard ballpoint pen barrels, retractable writing instruments, and compact mechanical assemblies requiring OD 4–4.5mm compression springs with 0.4mm wire diameter.

✅ Key Features of These Small Compression Springs

📏
Miniature Dimensions

Wire diameter 0.4mm, OD 4–4.5mm, free length 18–30mm — engineered for tight-clearance pen mechanisms and compact devices where space is critical.

⚙️
Two Material Options

Spring steel offers excellent elasticity and fatigue resistance for dry indoor applications; zinc-coated steel adds a protective layer for environments with light moisture exposure.

🔄
Consistent Cycle Performance

Close-wound coil geometry maintains stable spring rate across thousands of compression cycles, reducing the risk of set or premature fatigue in high-use mechanisms.

📦
Flexible Pack Quantities

Available in 10, 20, 50, and 1000-piece packs — suitable for single repairs, prototyping runs, and small-batch production alike.

🎯
Multiple Length Options

Choose from 18mm, 20mm, 25mm, and 30mm free lengths to match your specific assembly stack height and required deflection range.

🛡️
Zinc-Coated Variant Available

The zinc-coated option provides corrosion inhibition for applications exposed to humidity or light chemical contact, extending service life in demanding environments.

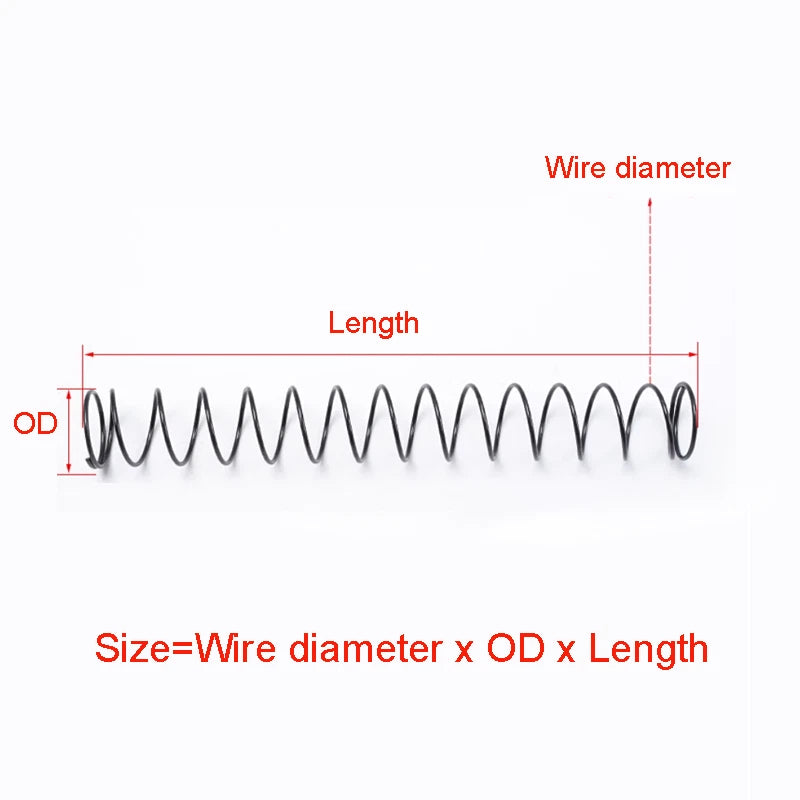

📐 Technical Specifications — Miniature Compression Springs

Spring Type Compression Spring
Wire Diameter 0.4 mm (0.016 in)
Outer Diameter (OD) 4 mm – 4.5 mm (0.157 – 0.177 in)
Free Length 18 mm, 20 mm, 25 mm, 30 mm (0.71 – 1.18 in)
Material Spring Steel / Zinc-Coated Steel (see variant options)
Finish Natural (Spring Steel) / Zinc Coating (Zinc-coated)
Coil Direction Right-hand wound
End Type Closed ends
Spring Rate See variant options
Pack Quantity 10 pcs / 20 pcs / 50 pcs / 1000 pcs
Application Ballpoint pens, retractable instruments, precision devices

❓ Frequently Asked Questions

How do I choose the right length for my ballpoint pen spring?

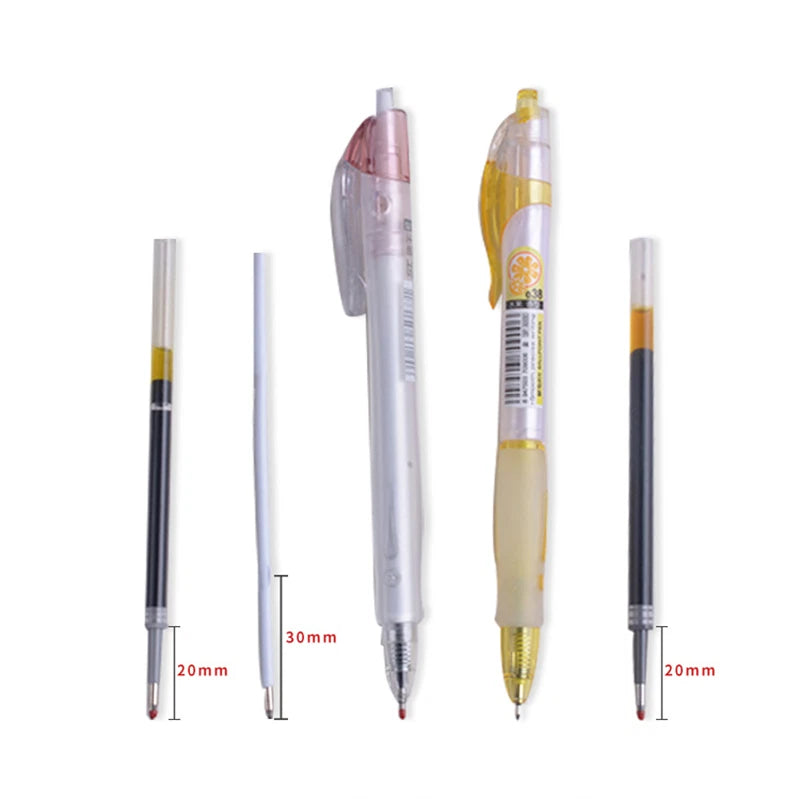

Measure the free (uncompressed) length of your existing spring or the available cavity depth in your pen barrel. Add approximately 20–30% to the compressed working length to determine the required free length. For most standard ballpoint pens, the 18mm or 20mm options are the most common fit.

What is the difference between spring steel and zinc-coated variants?

Spring steel springs are made from uncoated high-carbon steel wire, offering excellent elasticity and fatigue life in dry indoor environments. Zinc-coated springs have an additional zinc layer that provides corrosion inhibition, making them more suitable for applications with occasional humidity or light chemical exposure.

Are these springs strong enough for repeated clicking in a pen mechanism?

Yes. The close-wound coil geometry and spring steel material are selected for fatigue resistance under repeated compression cycles. These springs are designed to maintain consistent return force across thousands of actuations typical of click-pen mechanisms.

Can I use these springs in applications other than ballpoint pens?

Absolutely. The 0.4mm wire diameter and 4–4.5mm OD make these springs suitable for miniature push-button switches, small valve return mechanisms, precision instrument reset assemblies, retractable markers, and any compact device requiring a light-load compression spring in this size range.

Will the zinc-coated springs rust if used outdoors or in humid conditions?

Zinc coating provides a meaningful level of corrosion resistance for light moisture and humidity exposure. However, for prolonged outdoor use or direct water contact, additional sealing or a stainless steel alternative would be more appropriate. These springs are best suited for indoor or semi-protected environments.

How do I confirm the OD fits my assembly bore?

The outer diameter of the spring should be slightly smaller than the bore or housing it sits in, typically with 0.1–0.3mm clearance. For a 4mm OD spring, a bore of 4.1–4.3mm is recommended. Check the variant options for the exact OD of each size before ordering.

What pack size should I order for a repair vs. production use?

For single repairs or prototyping, the 10-piece or 20-piece packs provide enough springs to test fit and have spares. For small-batch production or workshop stock, the 50-piece pack offers a cost-effective balance. The 1000-piece pack is intended for production runs or resellers requiring bulk quantities.

🛒 Select your wire diameter, OD, length, and quantity above, then add to cart.
