25mm - 55mm Square Flat Nylon Pulley H Idler Wheels, Ball Bearing Nylon Rollers

Roll over image to zoom in Click on image to zoom

25mm - 55mm Square Flat Nylon Pulley H Idler Wheels, Ball Bearing Nylon Rollers

HomeDIYer

No reviews

By HomeDIYer®

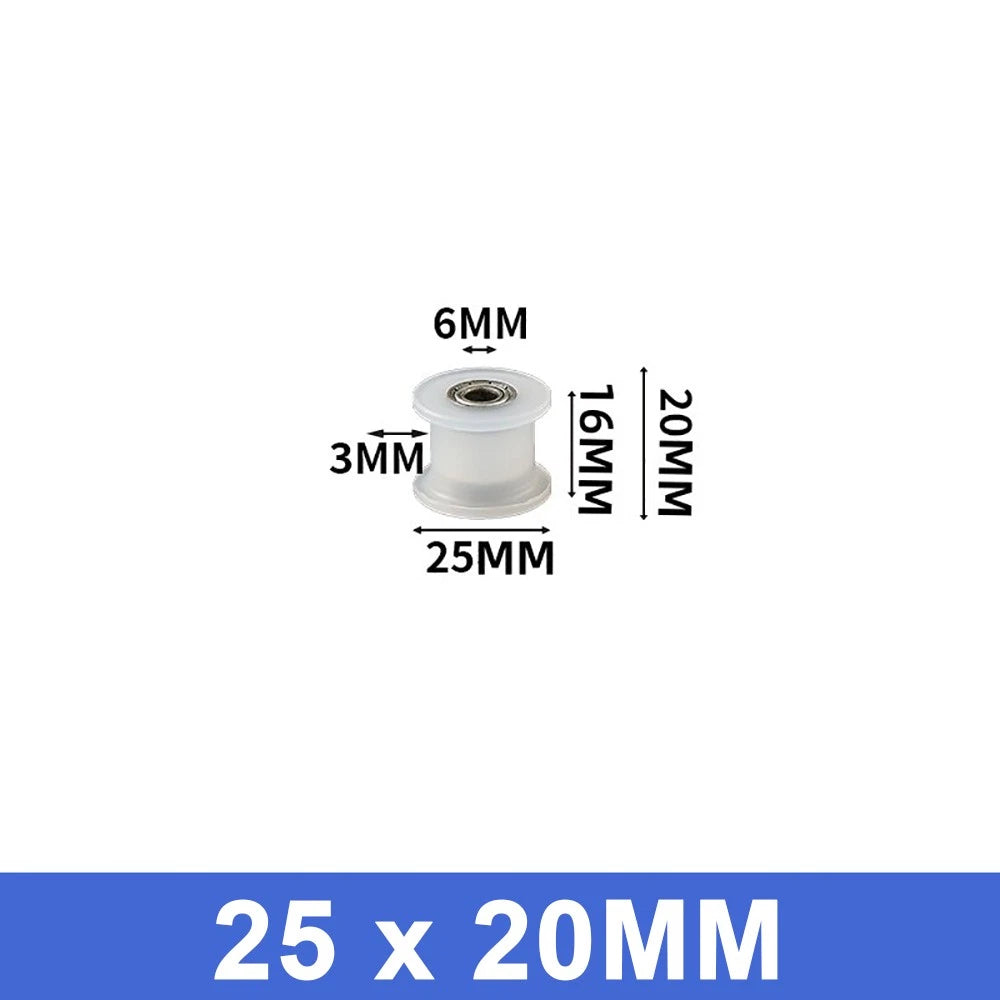

Size Specifications: 25 x 20MM

Price:

$4.47 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Square Flat Nylon Pulley Idler Wheels — Smooth, Quiet Belt Guidance for DIY Automation

When your belt-driven machine skips, squeaks, or drifts off-track, the culprit is often a poorly fitted idler wheel. Makers, hobbyists, and small-workshop builders who run 3D printers, CNC routers, laser cutters, or custom linear-motion rigs need a reliable, low-friction guide that keeps belts tensioned and aligned without adding noise or play. These square flat nylon pulley H idler wheels with integrated ball bearings are engineered for exactly that role.

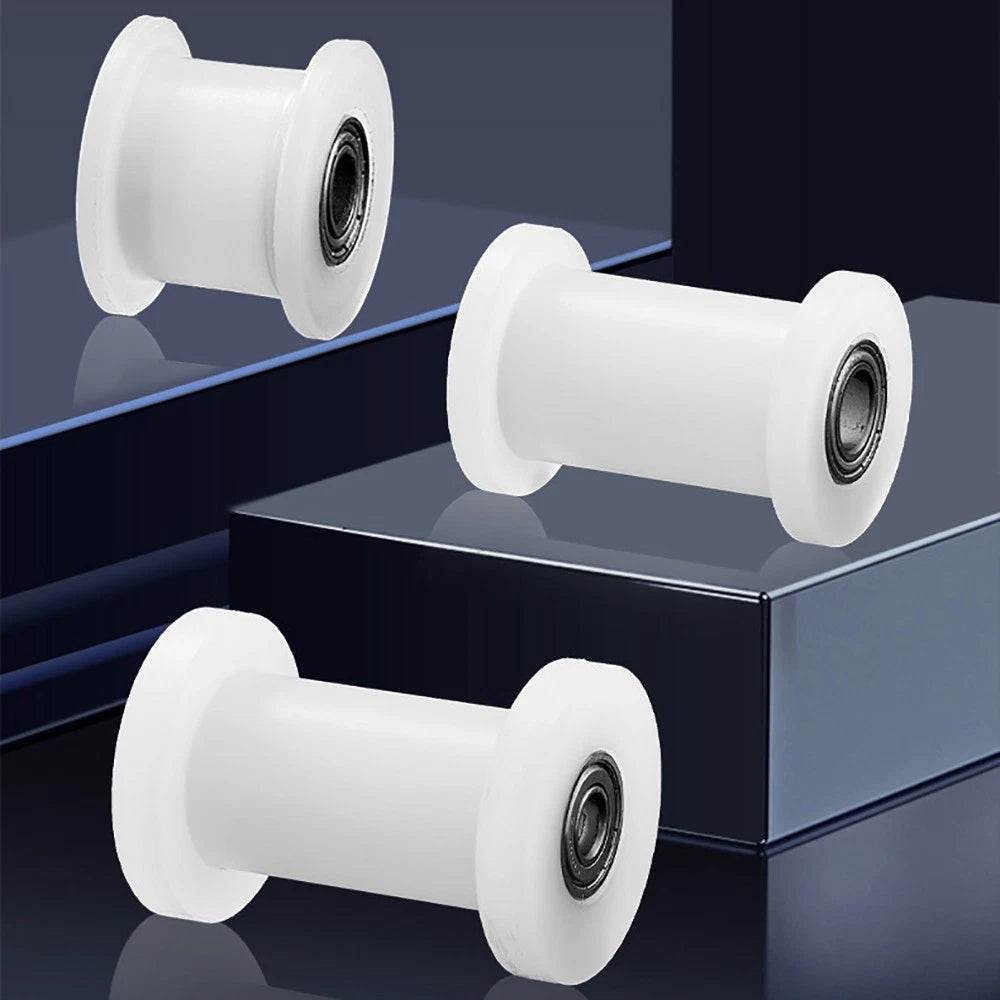

Each wheel is machined from engineering-grade nylon with a square flat profile and a recessed H-groove channel that captures flat or round belts securely. The pre-installed ball bearing at the center bore provides smooth, low-resistance rotation. Available sizes span 25 mm to 55 mm outer diameter (approximately 1.0 in to 2.2 in), with bore diameters and widths varying by variant — see the Size Specifications option for exact dimensions.

Typical applications include idler pulley replacements on Cartesian and CoreXY 3D printers, belt tensioner assemblies for DIY CNC gantry systems, guide rollers on compact conveyor or linear-slide builds, and low-load rope or cable deflection in workshop automation projects.

⚙️ Compatibility: Designed for flat and round belts on 3D printers, CNC routers, laser engravers, and custom linear-motion frames. Verify bore diameter and outer diameter against your frame spec before ordering.

✅ Key Features of These Square Flat Nylon Pulley Idler Wheels

🔵 H-Groove Square Flat Profile
The recessed center channel keeps flat and round belts seated and prevents lateral drift during high-cycle operation.

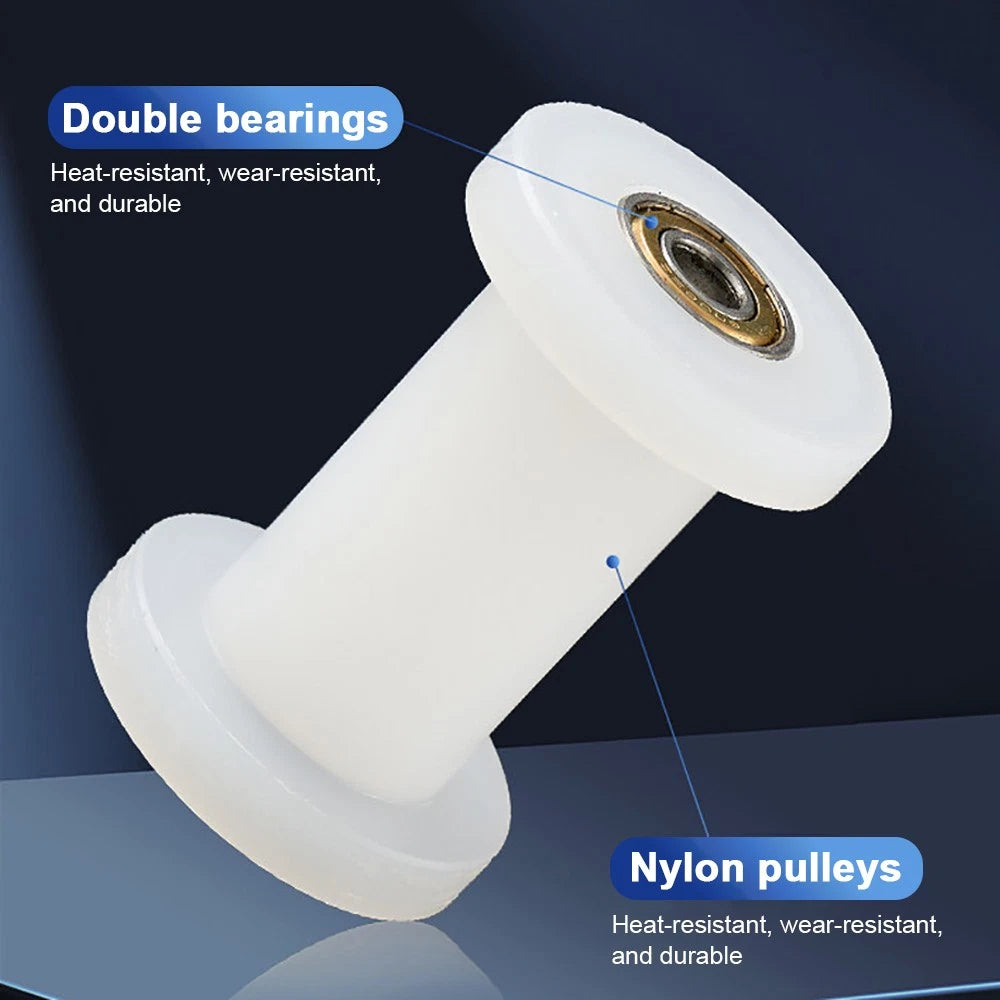

🔵 Integrated Ball Bearing

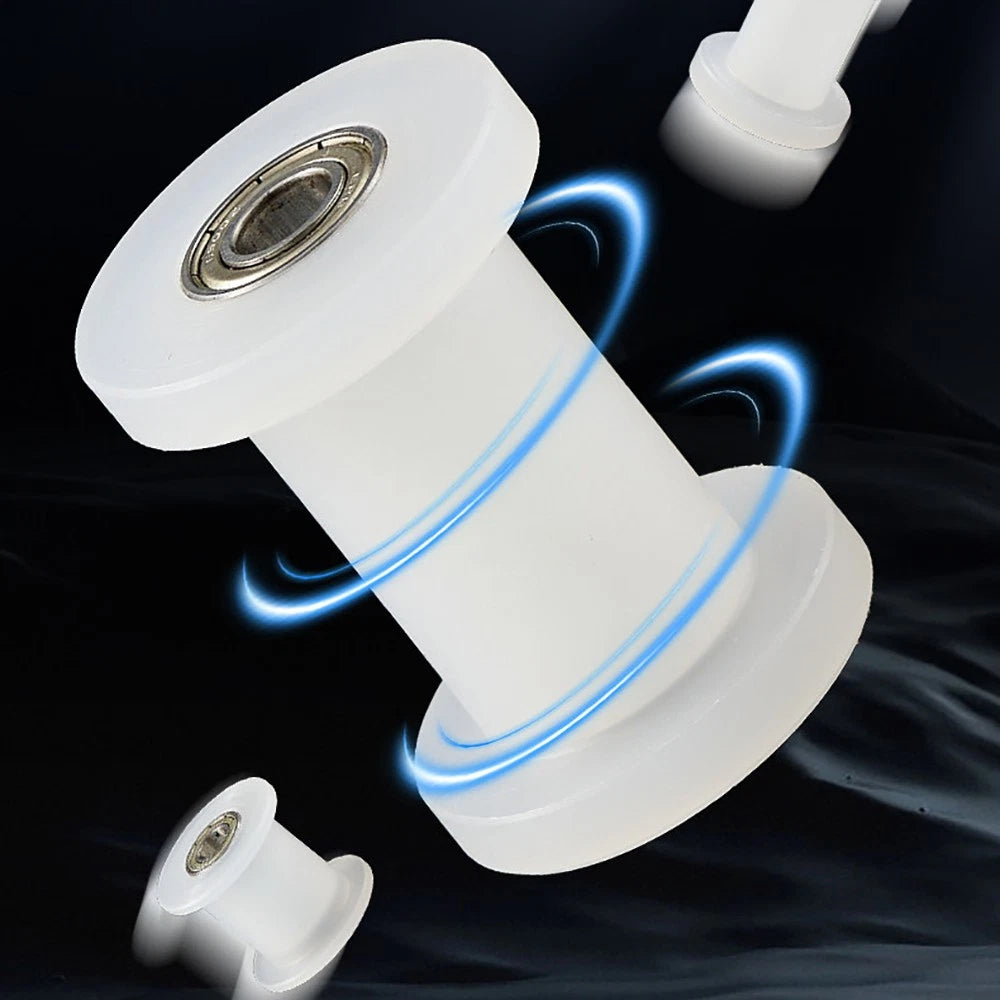

A pre-installed radial ball bearing at the bore delivers smooth, low-friction rotation and reduces wear on both the wheel and the belt.

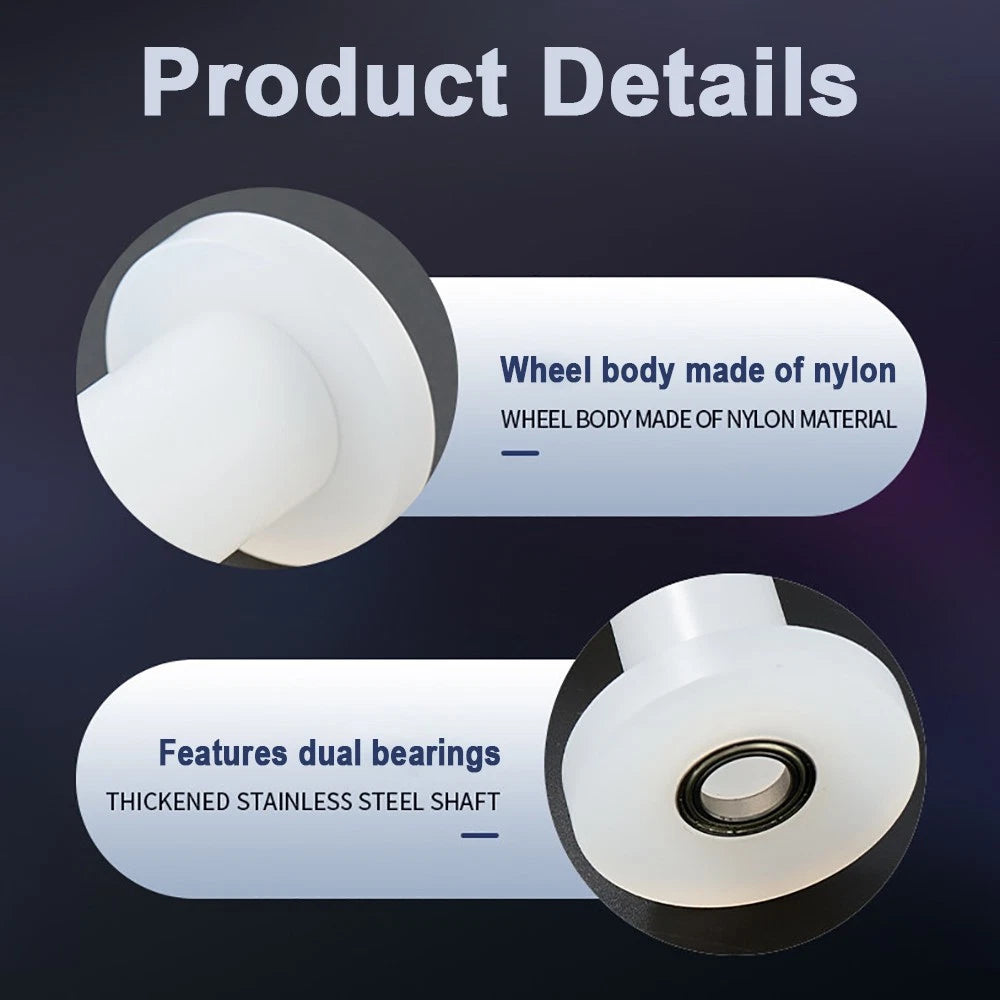

🔵 Engineering-Grade Nylon Construction
Nylon offers a favorable strength-to-weight ratio, inherent lubricity, and resistance to oils and mild chemicals — extending service life in workshop environments.

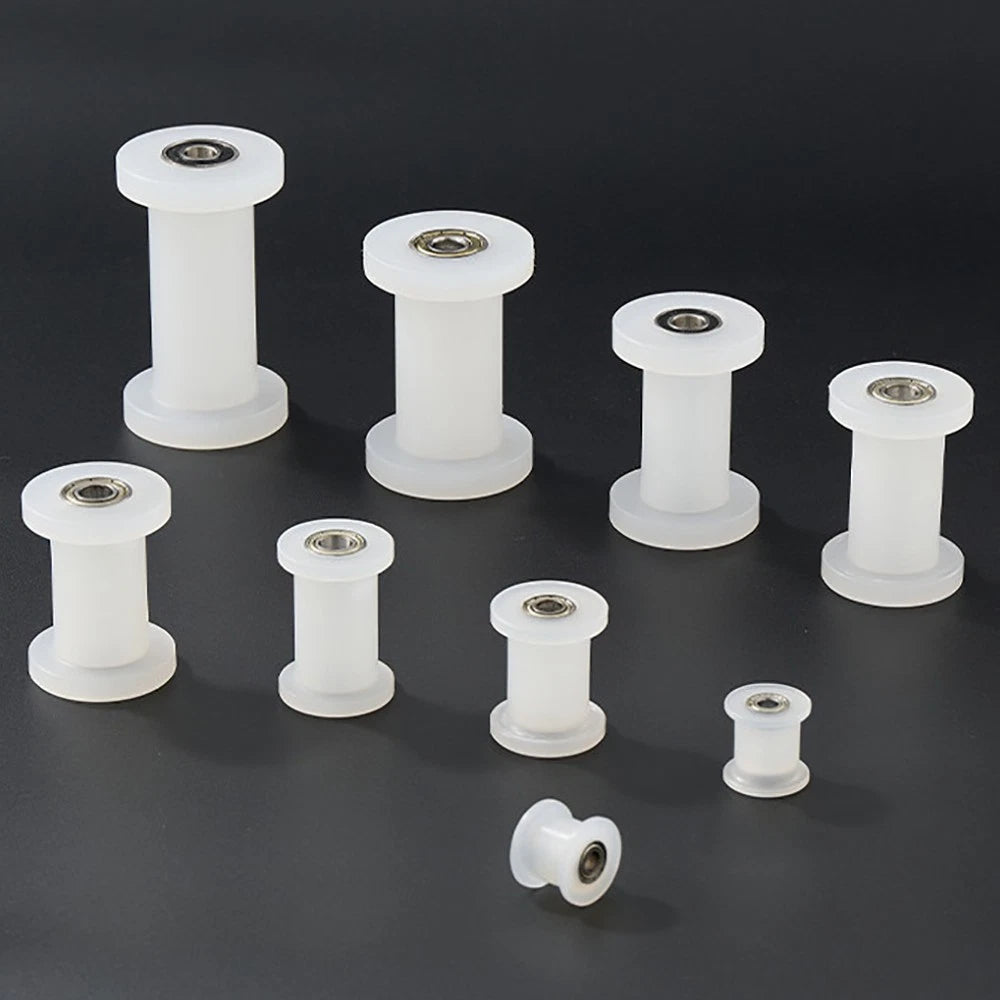

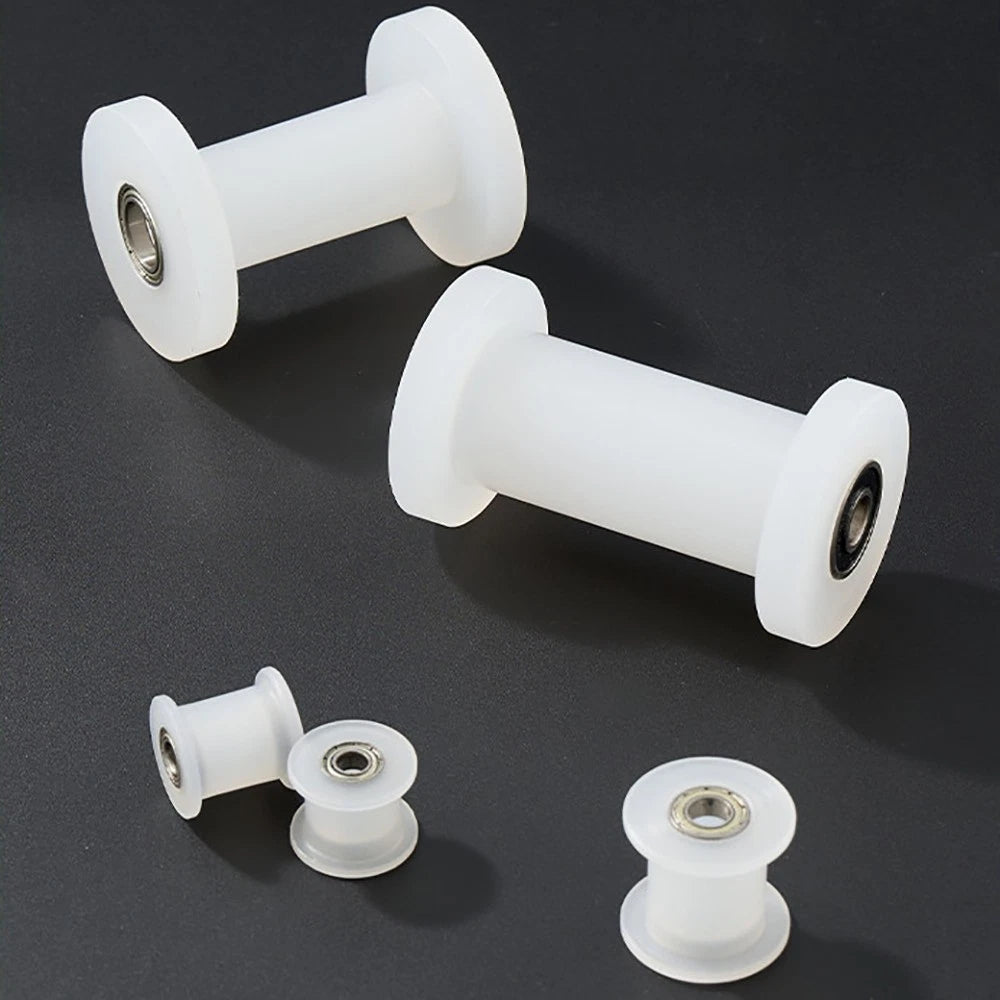

🔵 Wide Size Range (25 mm – 55 mm OD)

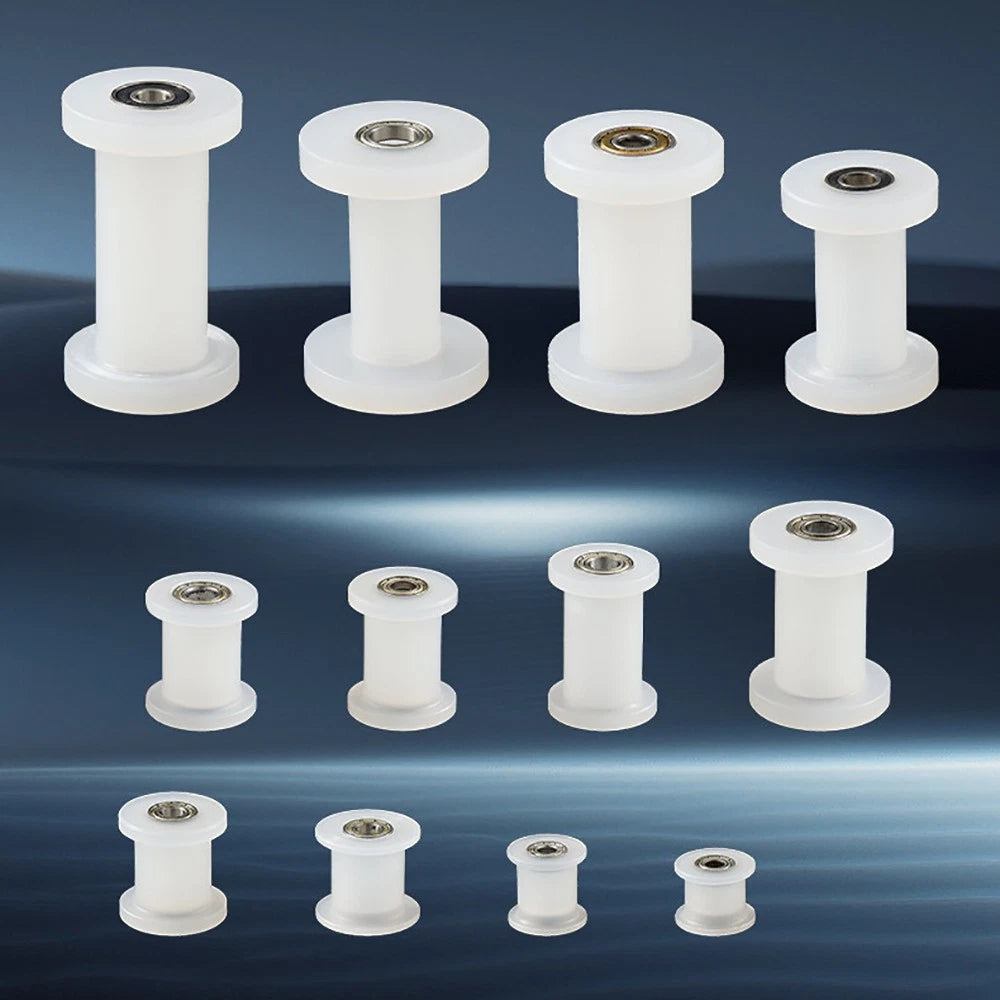

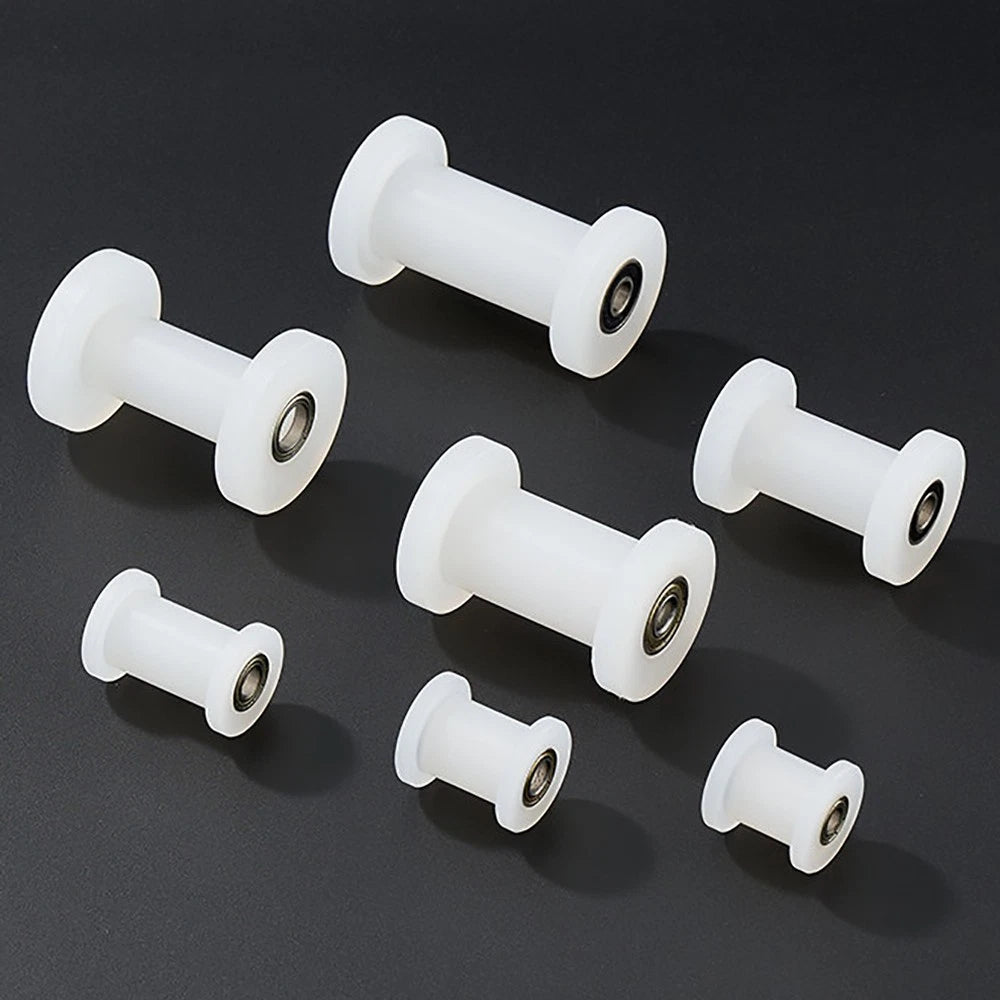

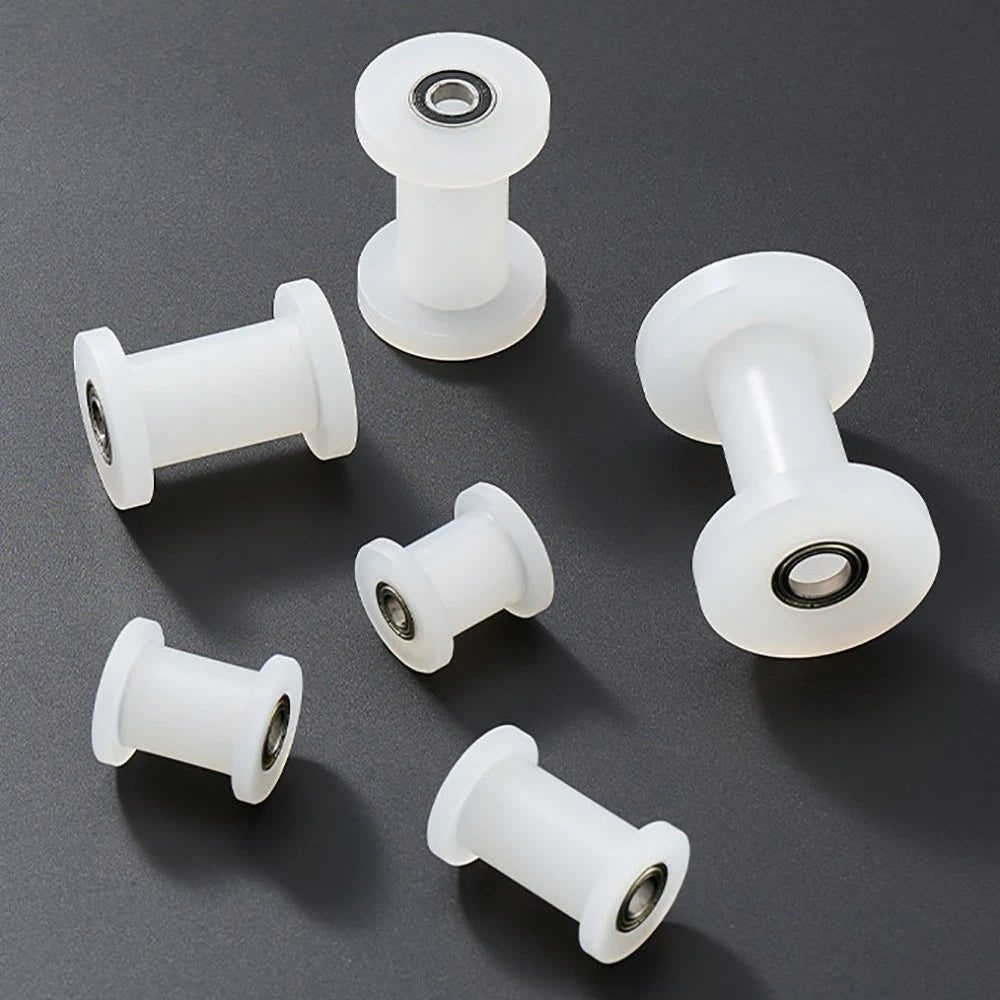

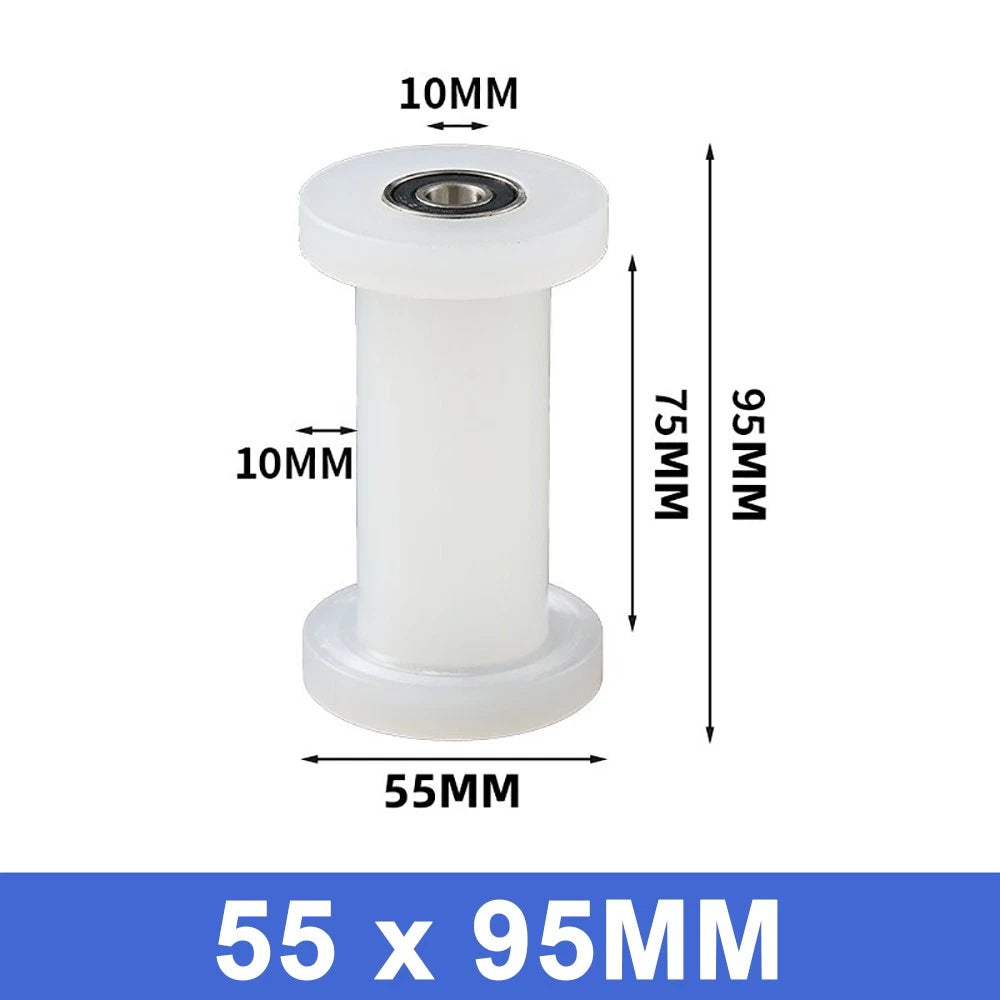

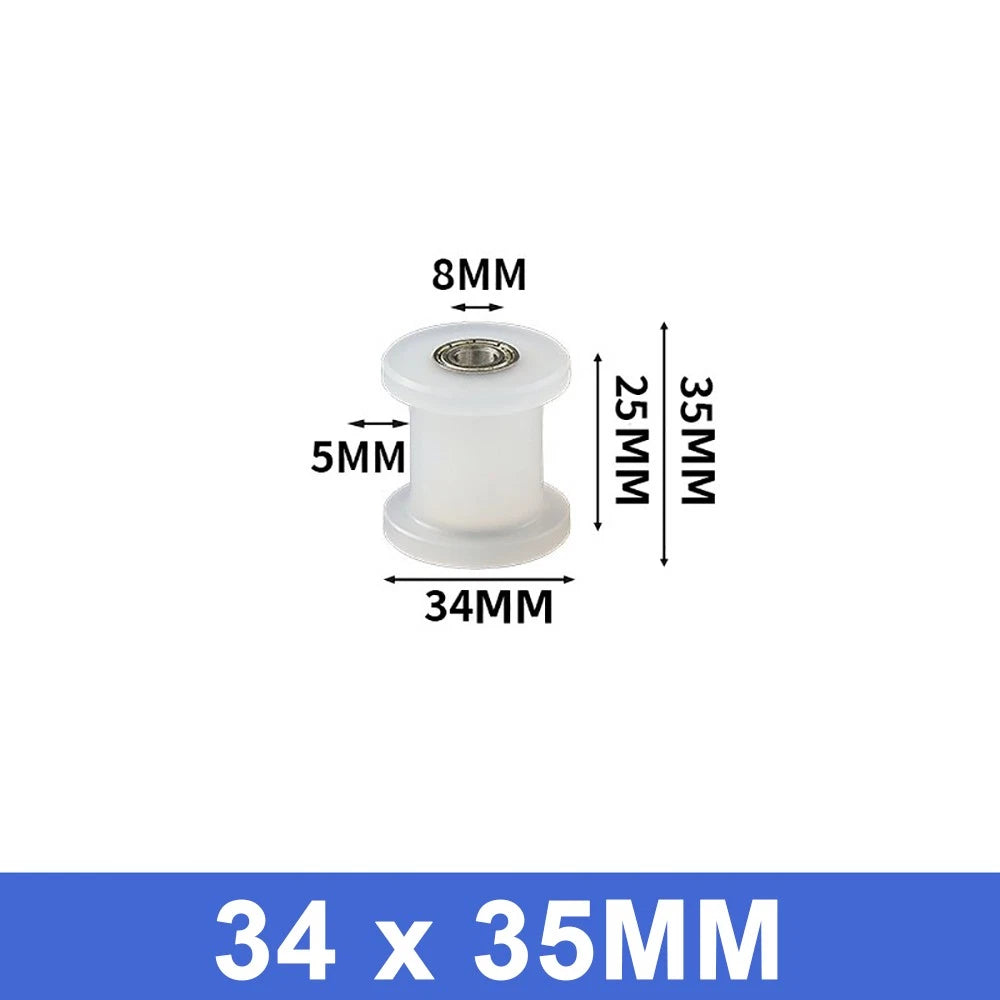

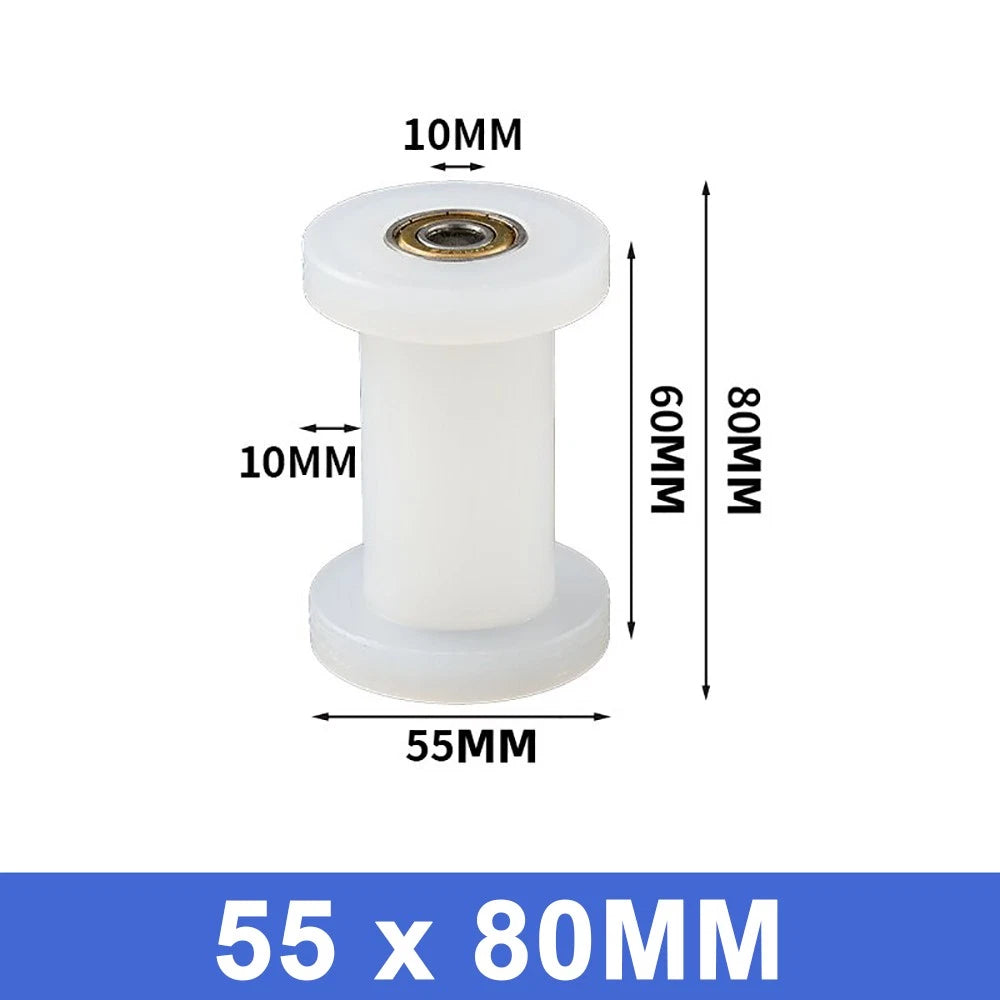

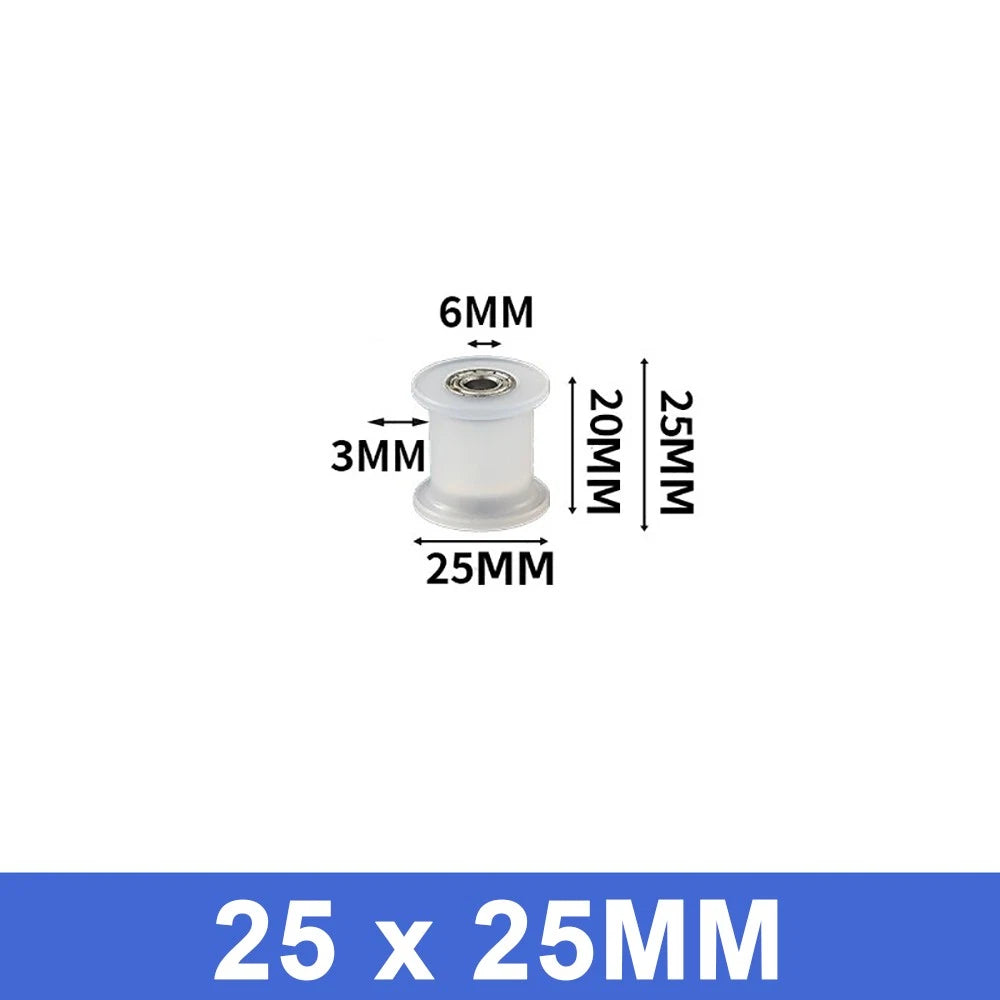

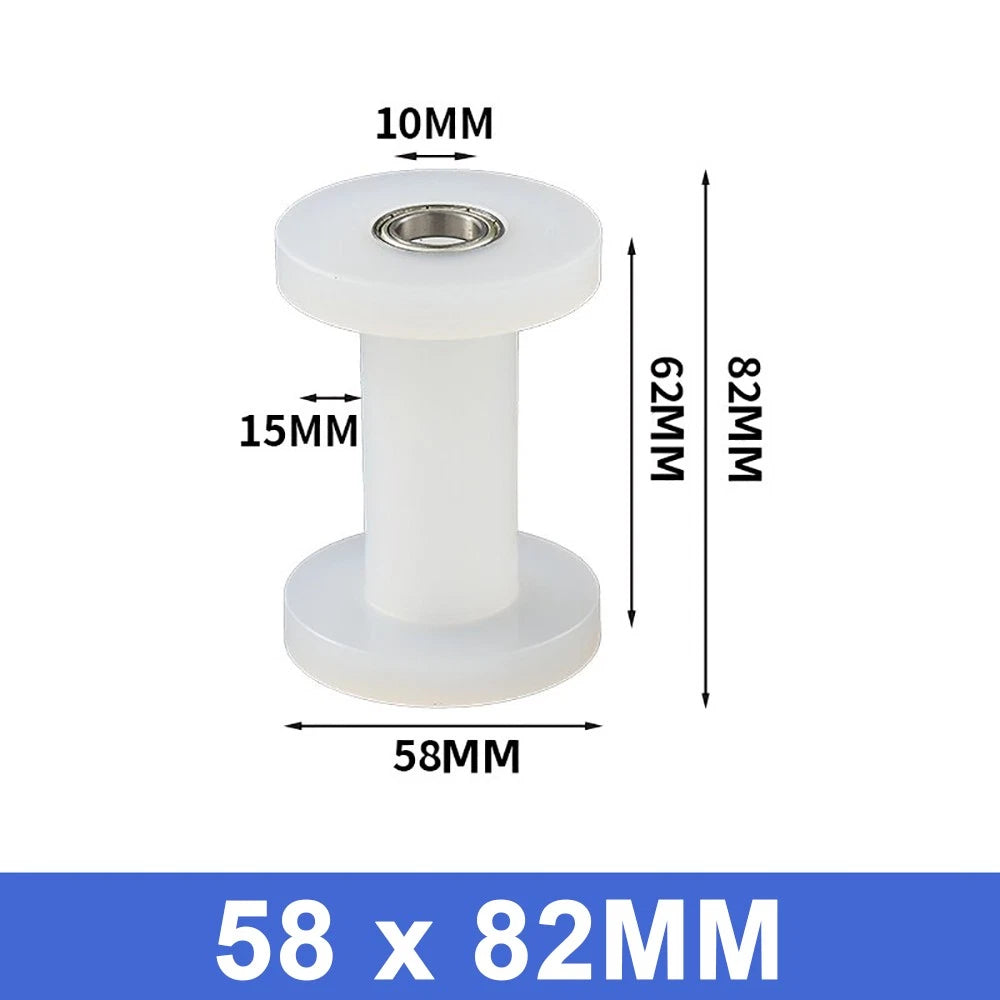

Twelve size variants from 25 × 20 mm up to 55 × 95 mm let you match the exact geometry your frame or tensioner requires without custom machining.

🔵 Drop-In Replacement Fit
Standard bore sizing aligns with common M-series shoulder bolts and axle pins used across popular open-source printer and CNC frame designs.

🔵 Low Noise, Low Maintenance
The nylon-on-bearing combination runs quietly without requiring periodic lubrication, keeping your machine clean and your workspace quieter.

📐 Technical Specifications — Nylon Pulley Idler Wheels

Product Type	Square Flat H-Groove Idler Pulley Wheel
Material	Engineering-Grade Nylon
Bearing Type	Radial Ball Bearing (pre-installed)
Outer Diameter Range	25 mm – 55 mm (approx. 1.0 in – 2.2 in)
Width Range	20 mm – 95 mm (approx. 0.8 in – 3.7 in)
Bore Diameter	See variant options
Groove Profile	Square Flat (H-type)
Color / Finish	Natural Nylon (off-white / light gray)
Compatible Belt Types	Flat belts, round belts, GT2 / T-type flat-profile belts
Recommended Load	See variant options
Quantity per Order	1 piece per variant

❓ Frequently Asked Questions

How do I choose the right size for my machine?

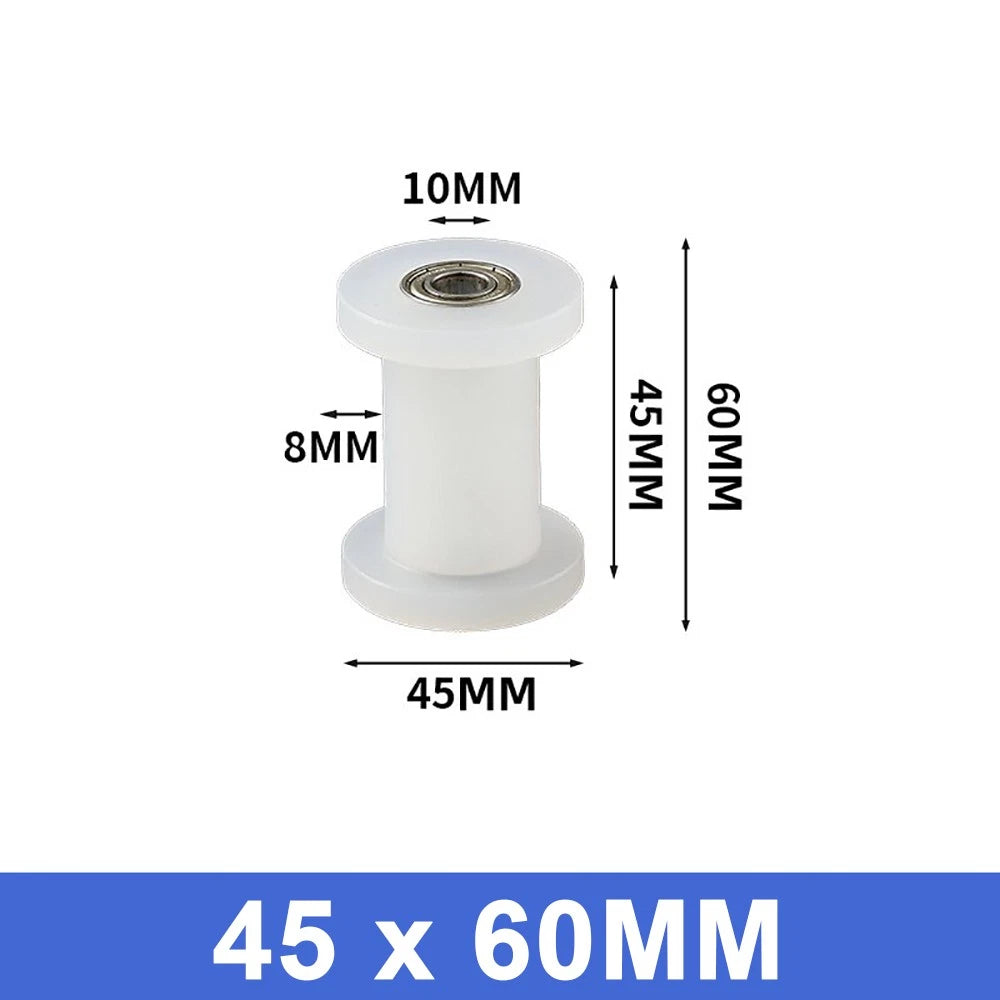

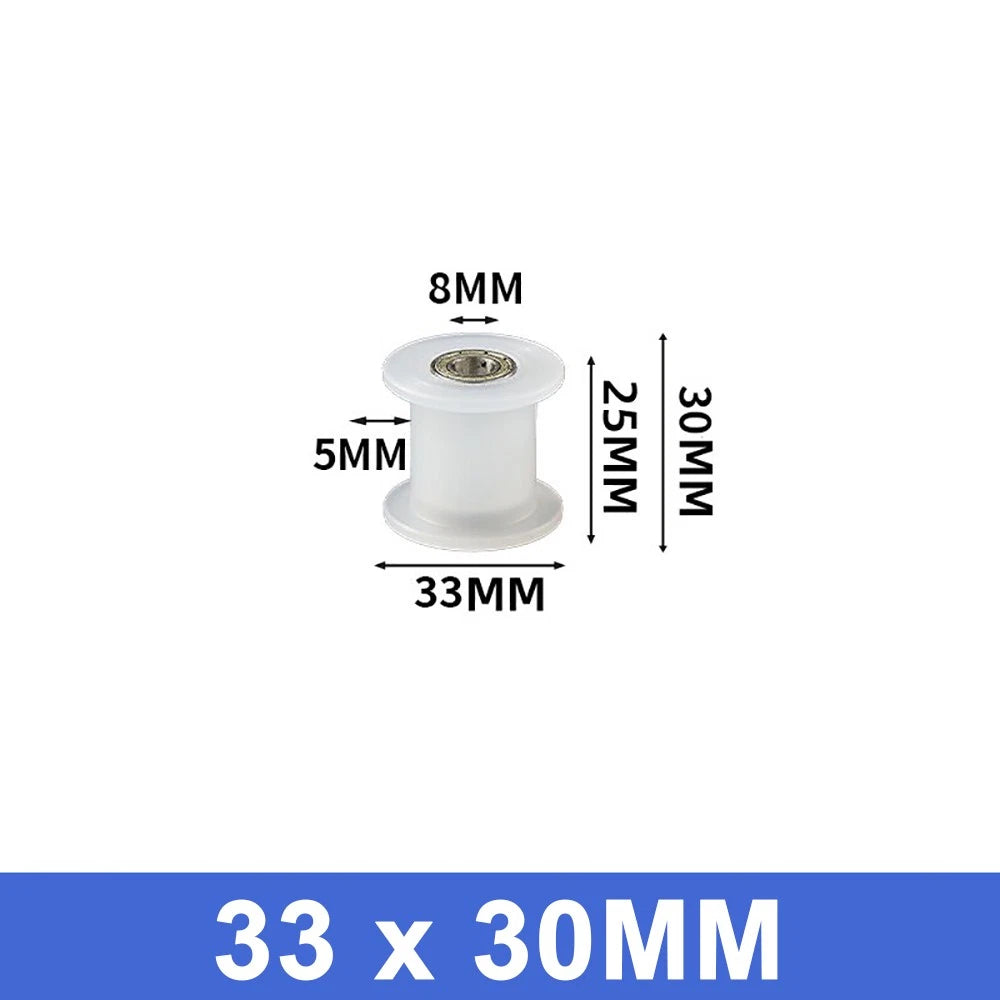

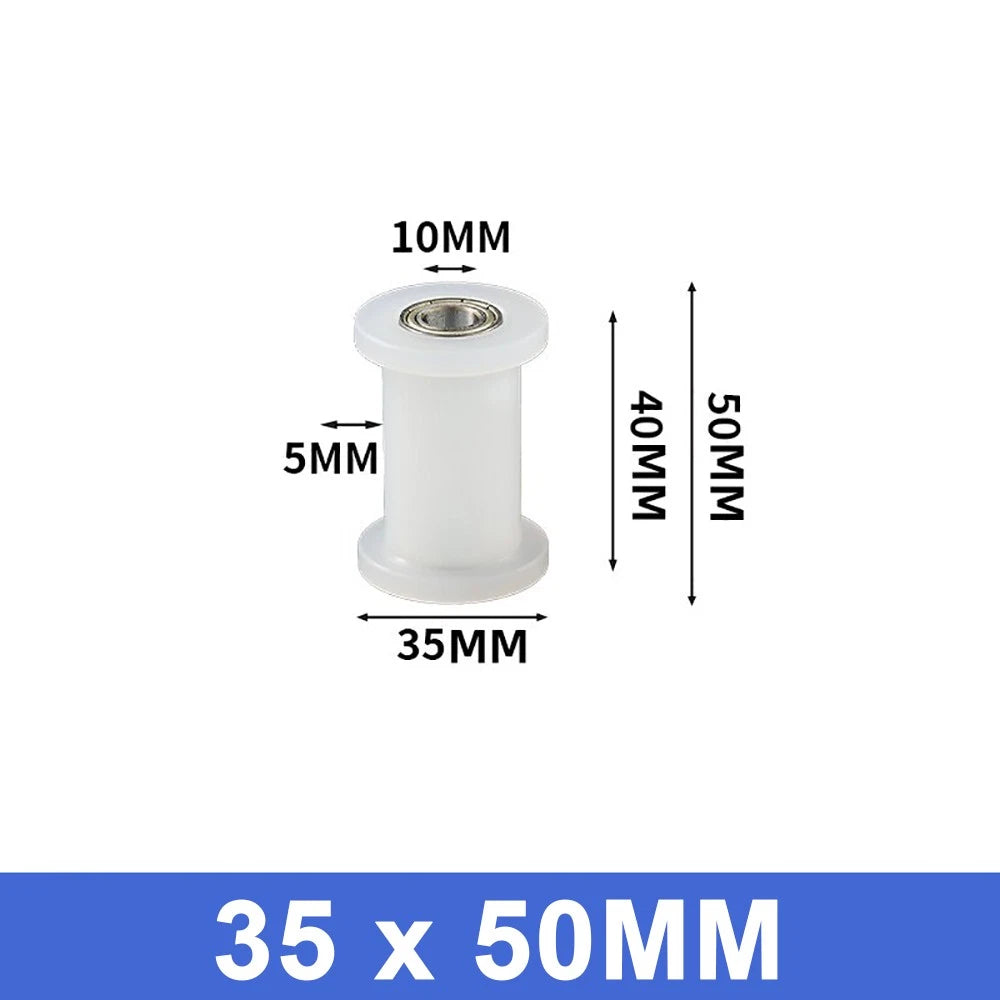

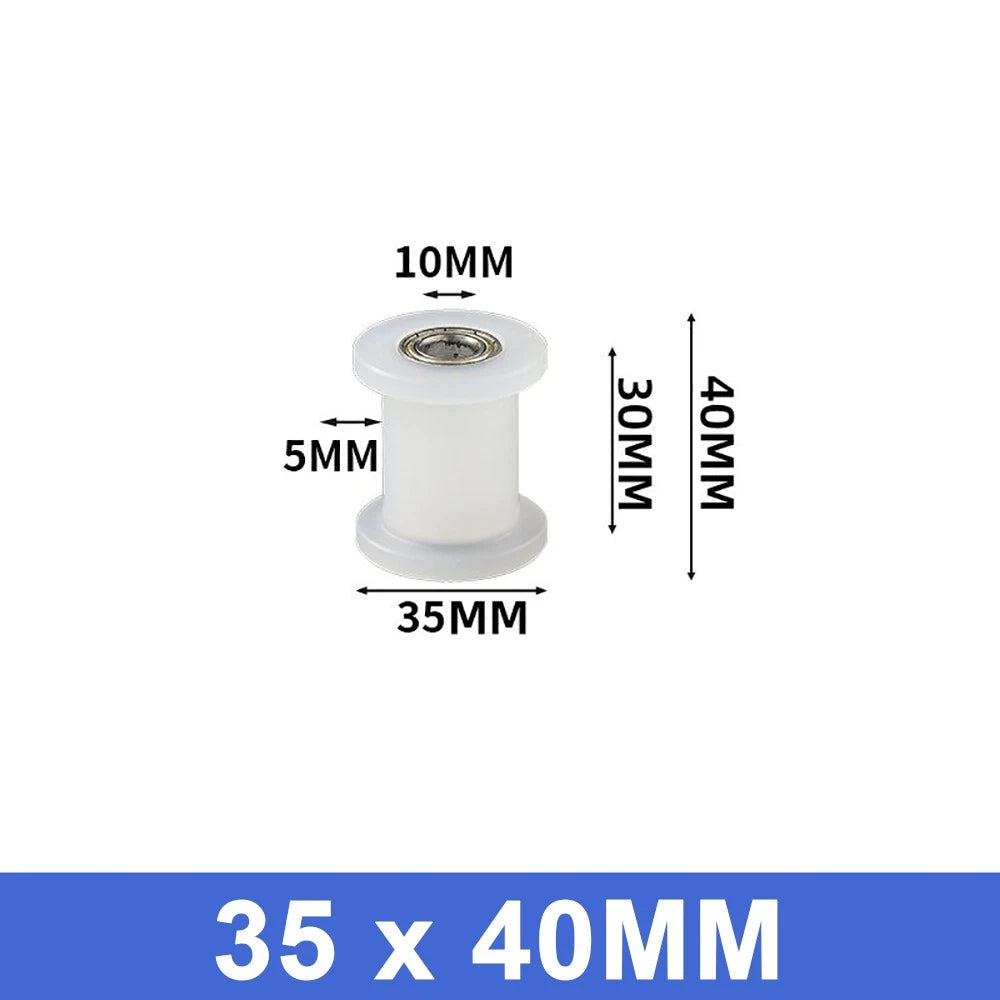

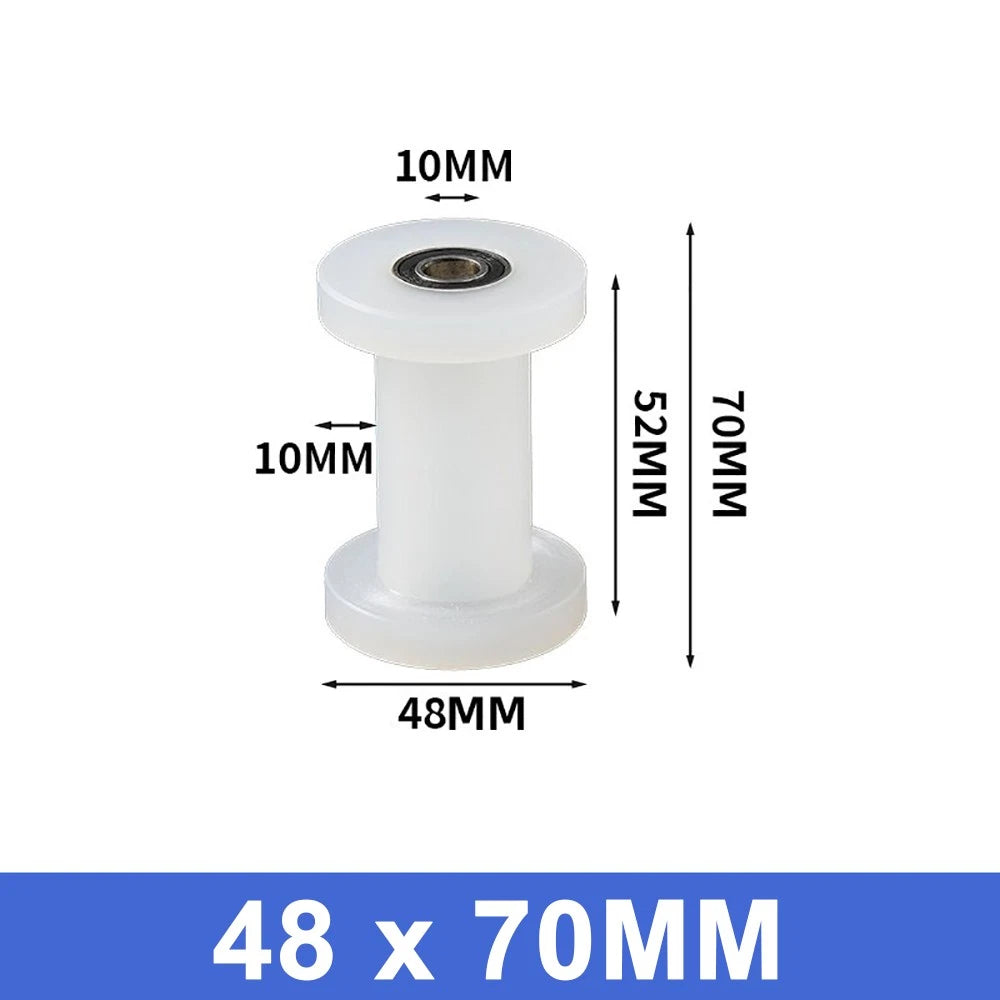

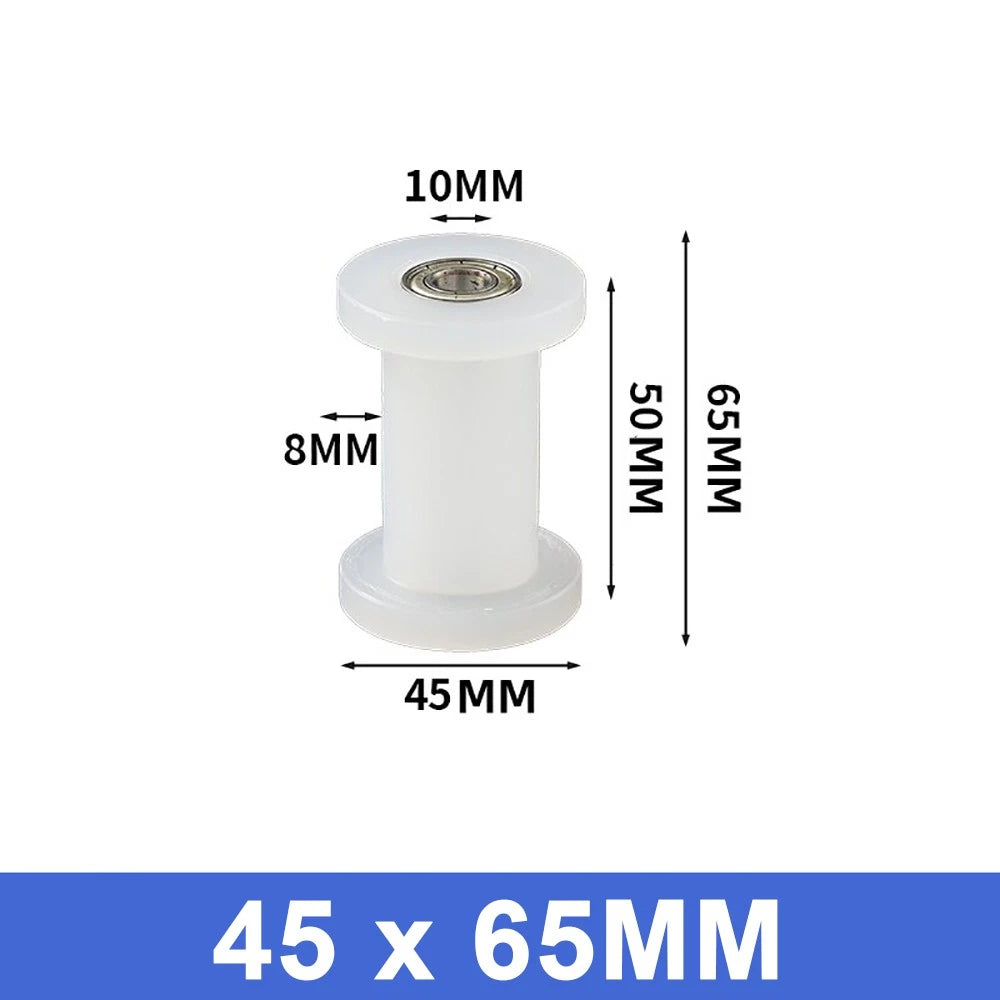

Match the outer diameter (OD) to the space available in your tensioner bracket or frame slot, and confirm the bore diameter fits your axle bolt or shoulder screw. The Size Specifications dropdown lists each variant as OD × Width in millimeters — measure your existing wheel or check your frame's BOM before selecting.

What belt profiles are compatible with these idler wheels?

The H-groove square flat profile is designed for flat belts and round belts. It also works as a passive idler (non-toothed) for GT2 and similar timing belts when used on the smooth back side of the belt. It is not a toothed pulley and should not be used as a drive pulley for toothed belts.

Are these wheels strong enough for continuous-duty use?

Engineering-grade nylon has a tensile strength typically in the range of 70–85 MPa and performs well under the light-to-moderate radial loads common in 3D printers, laser engravers, and small CNC routers. For heavy industrial conveyor applications with sustained high loads, please contact us to confirm suitability.

Will these wheels corrode or degrade in a workshop environment?

Nylon is inherently resistant to oils, greases, and mild solvents commonly found in workshop settings. It does not rust. Prolonged exposure to strong acids, bases, or UV radiation can degrade nylon over time, so avoid those conditions for extended service life.

Do I need to lubricate the ball bearing?

No. The pre-installed ball bearing is factory-lubricated and sealed, so it requires no additional lubrication during normal use. This keeps your machine clean and reduces maintenance intervals.

Can I use these as a direct replacement for the idler wheels on my Ender, Voron, or similar printer?

Many popular open-source printer frames use idler wheels with standard bore sizes (commonly 3 mm, 5 mm, or 8 mm inner diameter). Check the bore diameter listed for your chosen variant against your printer's axle spec. If the OD and bore match, these wheels are a direct drop-in replacement. If you are unsure, contact us with your printer model and we will help confirm compatibility.

How many wheels come in one order?

Each order includes 1 piece of the selected size variant. If you need multiple wheels for a full printer or CNC build, simply increase the quantity at checkout.

🛒 Select your Size Specifications above, then add to cart.
