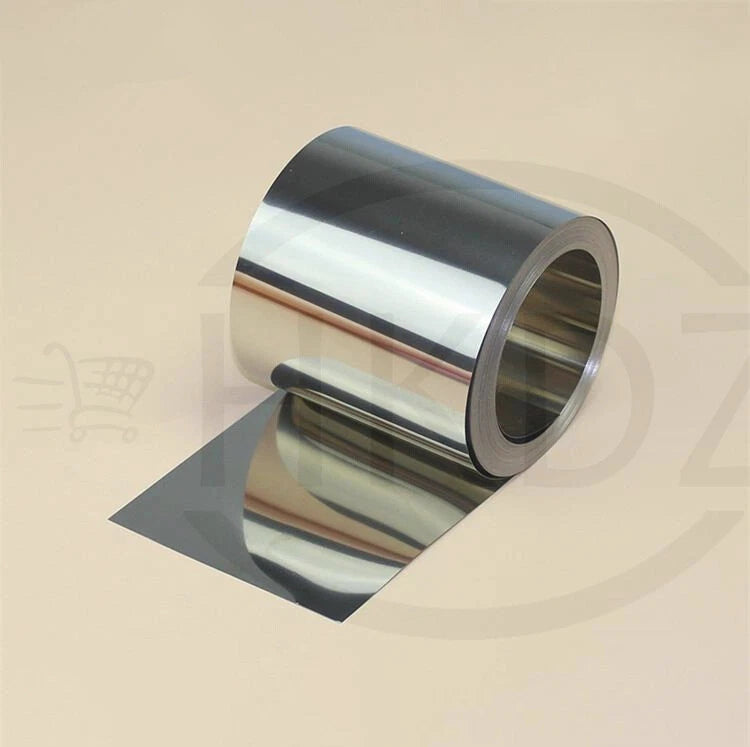

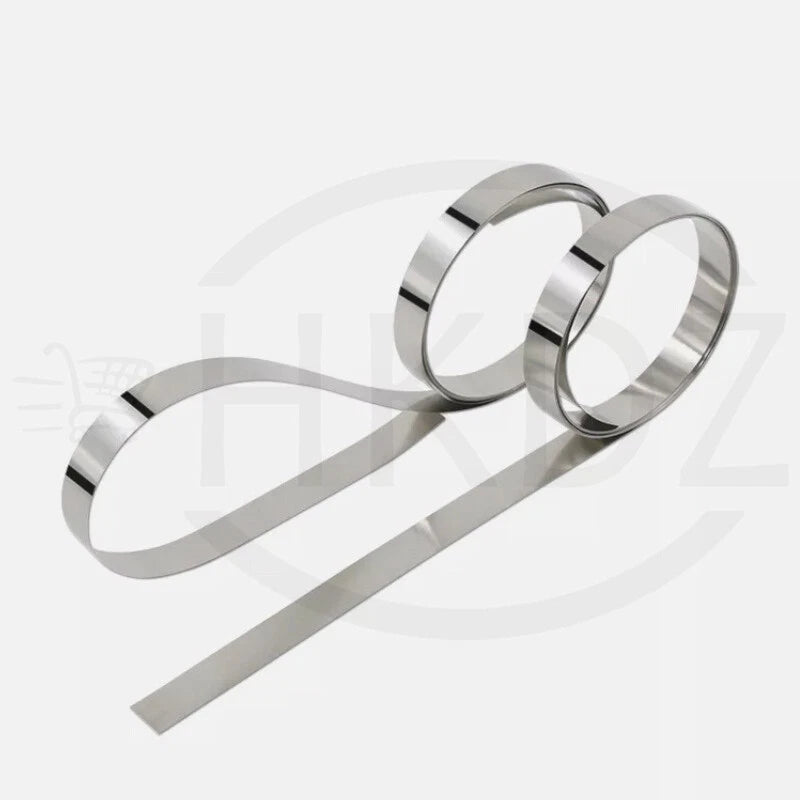

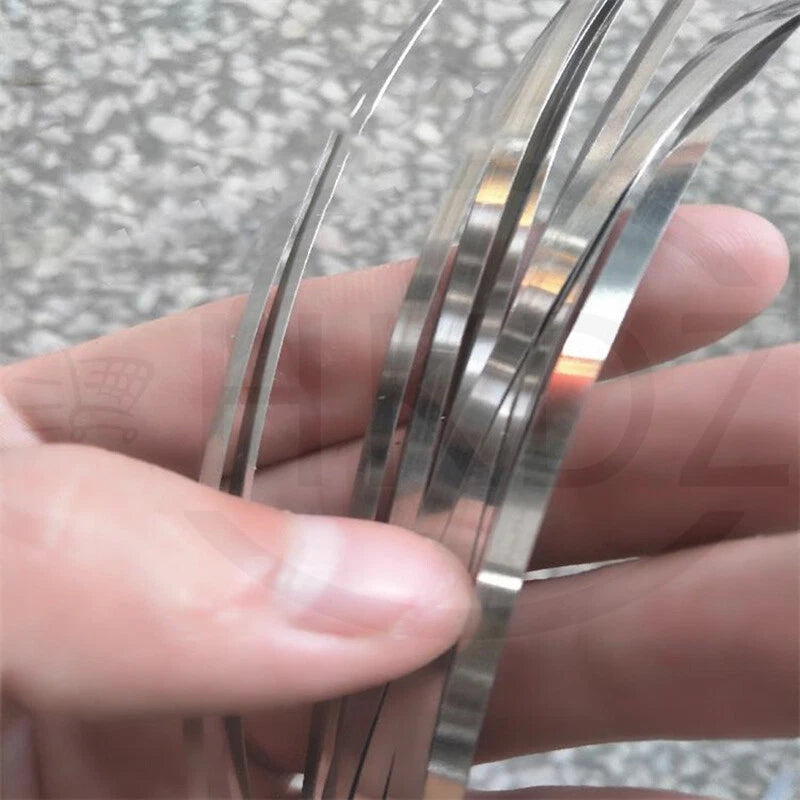

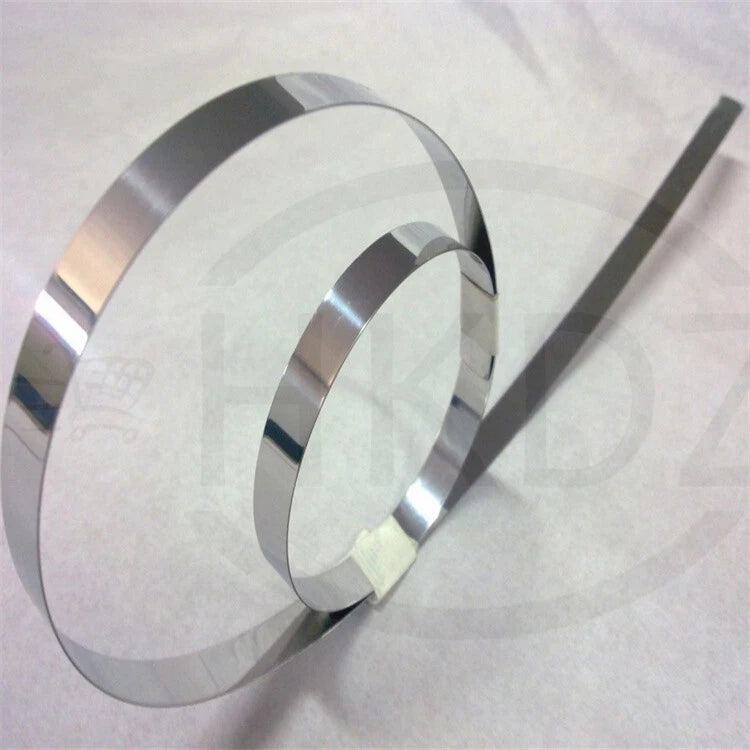

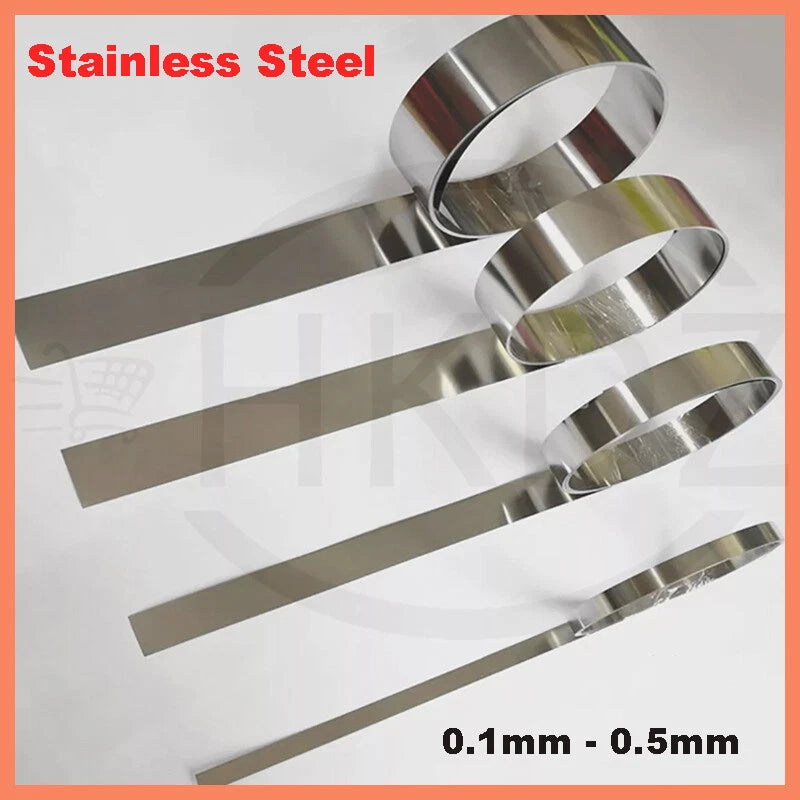

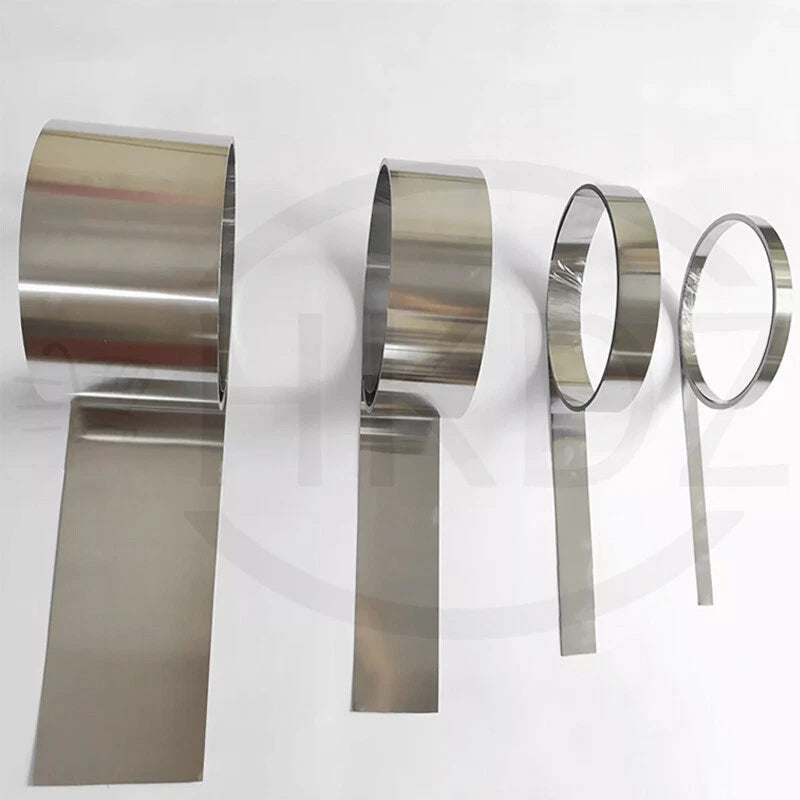

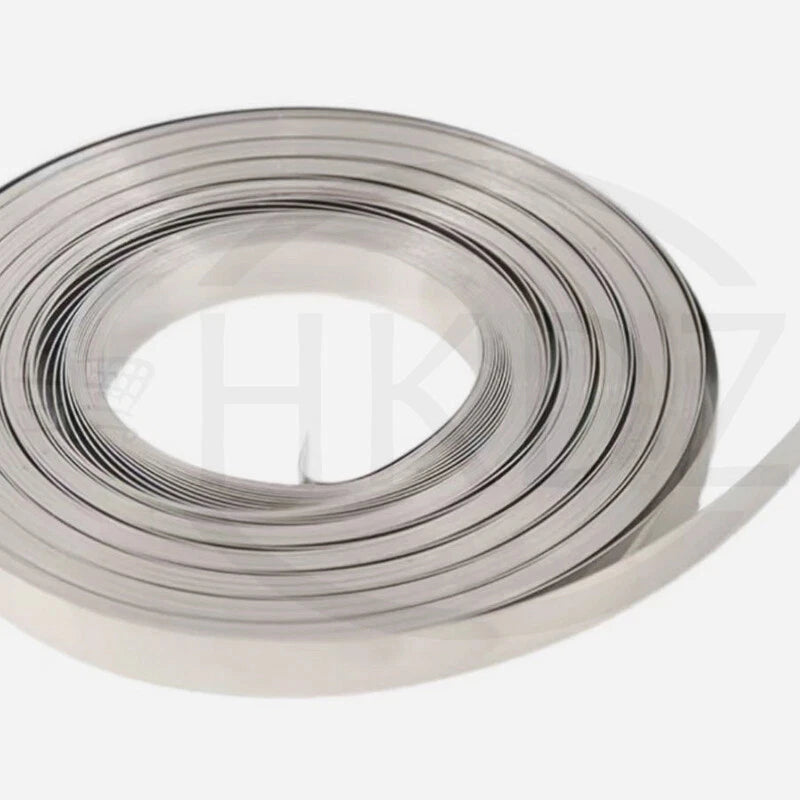

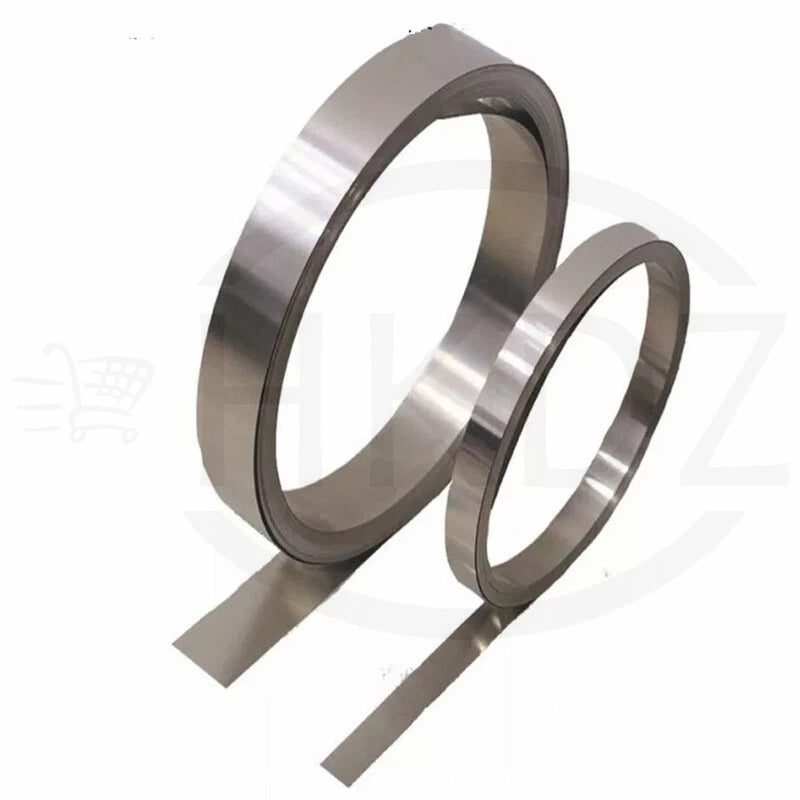

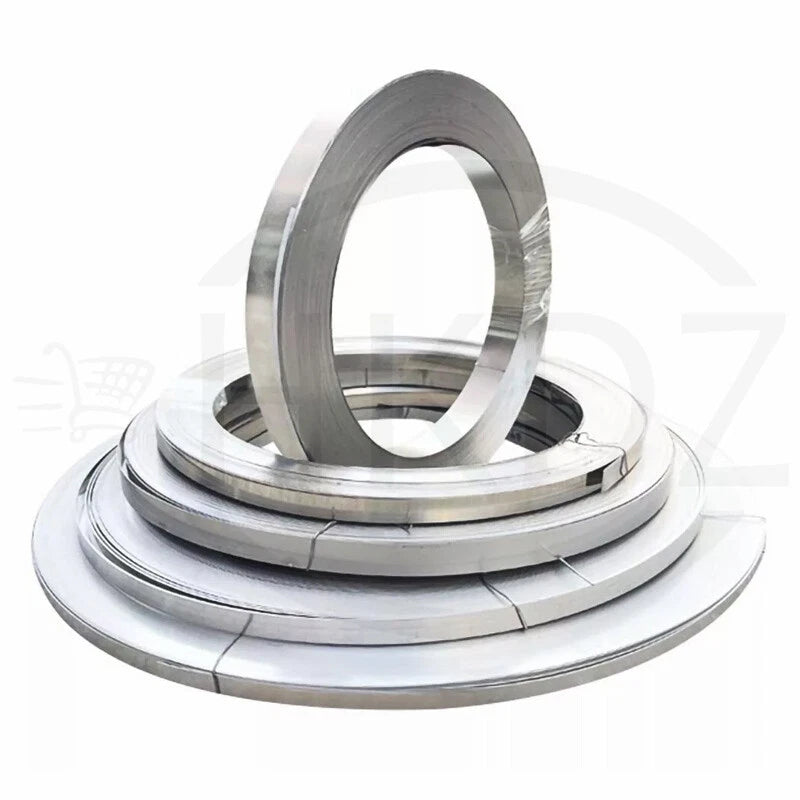

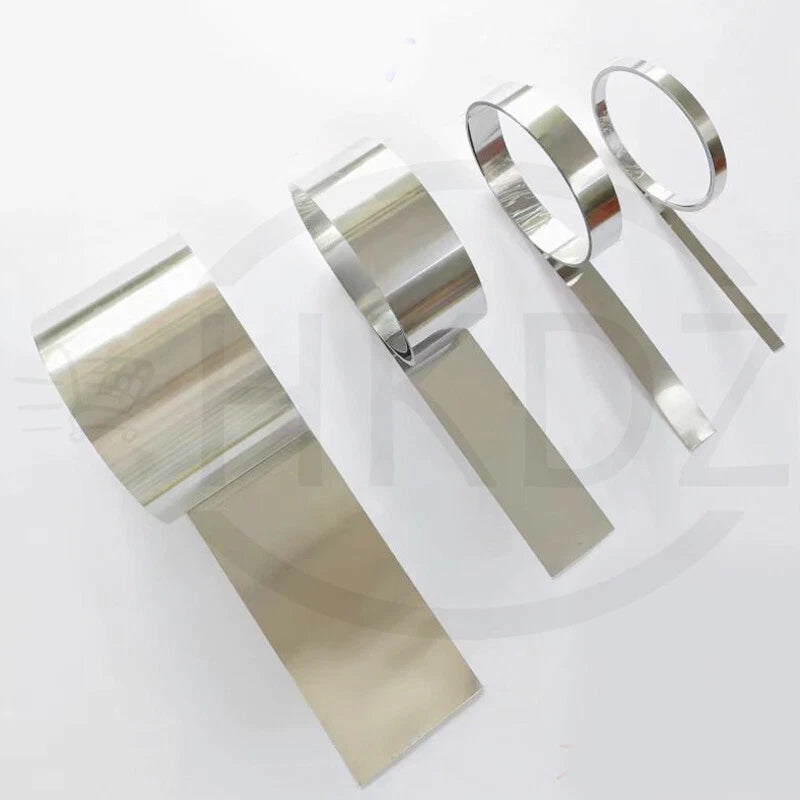

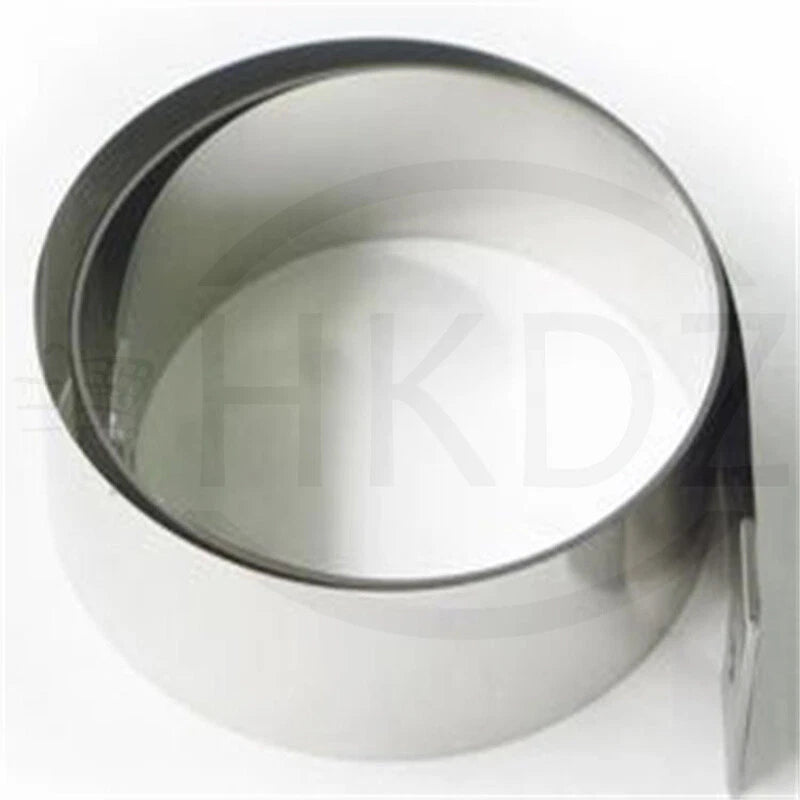

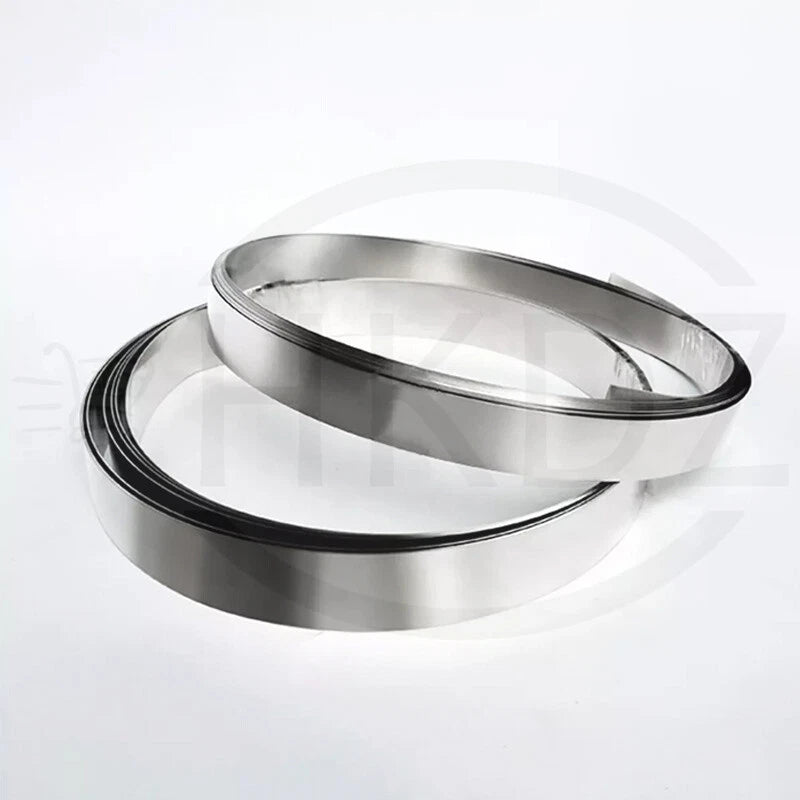

0.1 -1mm Stainless Steel Foil Sheet Width 5mm-100mm Fine Plate Strip Steel Roll

For most bearing and shaft shimming tasks, 0.1 mm to 0.3 mm strips are used to make fine clearance adjustments. For structural spacers or gasket blanks that need to handle moderate compression, 0.4 mm to 1 mm is more appropriate. If you are unsure, start with 0.2 mm — it is the most versatile thickness for general-purpose shimming.

Choose a width that is equal to or slightly wider than the widest dimension of your gasket blank. For pipe flange gaskets, the 50 mm and 100 mm widths give you enough material to cut most standard flange profiles. For narrow channel seals, the 5 mm to 20 mm widths are ideal and reduce waste.

304 stainless steel in cold-rolled foil form has reasonable spring-back characteristics for light-duty leaf spring and clip applications. For thicknesses of 0.3 mm and above, the strip can hold a formed shape under moderate load. For heavy-duty spring applications requiring high fatigue resistance, consider 301 or 17-7 PH stainless — this product is best suited for light-load spring and retaining clip uses.

304 stainless steel provides good resistance to atmospheric corrosion, fresh water, and mild chemical exposure. It is not recommended for prolonged immersion in salt water or exposure to chloride-rich environments, where 316 stainless would be a better choice. For indoor workshop use, automotive engine bays, and general outdoor fabrication, this strip will perform reliably without surface treatment.

Yes. 304 stainless steel is readily weldable using TIG or MIG processes with ER308L filler wire. For very thin gauges (0.1 mm – 0.2 mm), use low heat input and a backing bar to prevent burn-through. Soldering is possible with stainless-compatible flux and silver-bearing solder, though welding produces a stronger joint for structural applications.

For straight cuts, sharp tin snips or a guillotine shear produce clean edges on gauges up to 0.5 mm. For thicker gauges (0.6 mm – 1 mm), a rotary pipe cutter or angle grinder with a thin cutting disc works well. Laser cutting gives the cleanest edge on all gauges. After cutting, deburr edges with a fine file or 400-grit wet-dry sandpaper to remove any sharp burrs before handling.

The 1-meter roll is sufficient for single-use shim sets, small gasket blanks, and prototype fabrication. If you are running a batch of parts, doing repeated shimming adjustments, or want material on hand for future repairs, the 5-meter roll offers better value per meter and reduces the chance of running short mid-project.
