Stainless Steel Pulley U V H Groove Shape Roller Wheels Idler Pulley Wheel Large

Roll over image to zoom in Click on image to zoom

Stainless Steel Pulley U V H Groove Shape Roller Wheels Idler Pulley Wheel Large

HomeDIYer

No reviews

By HomeDIYer®

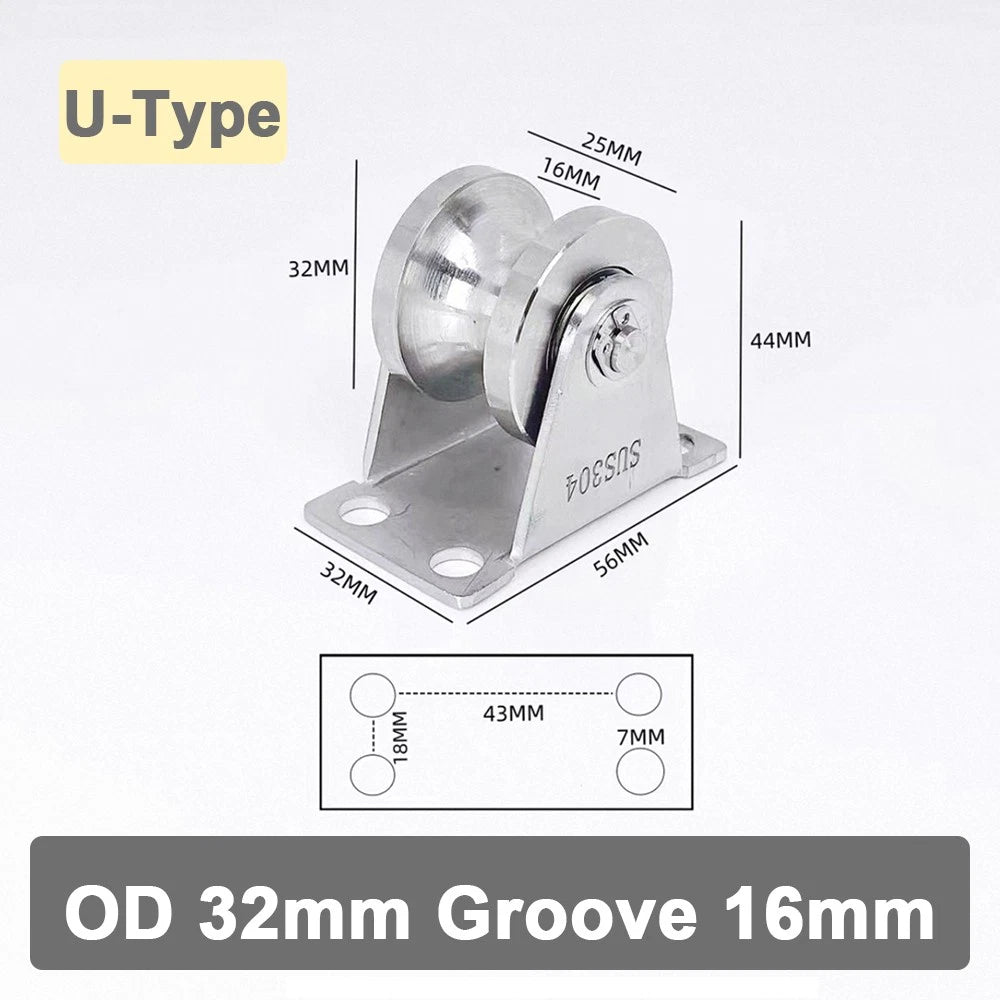

Size Specifications: U Type (OD 32mm Groove 16mm)

Bracket Material: 201 Stainless Steel

Price:

$38.88 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

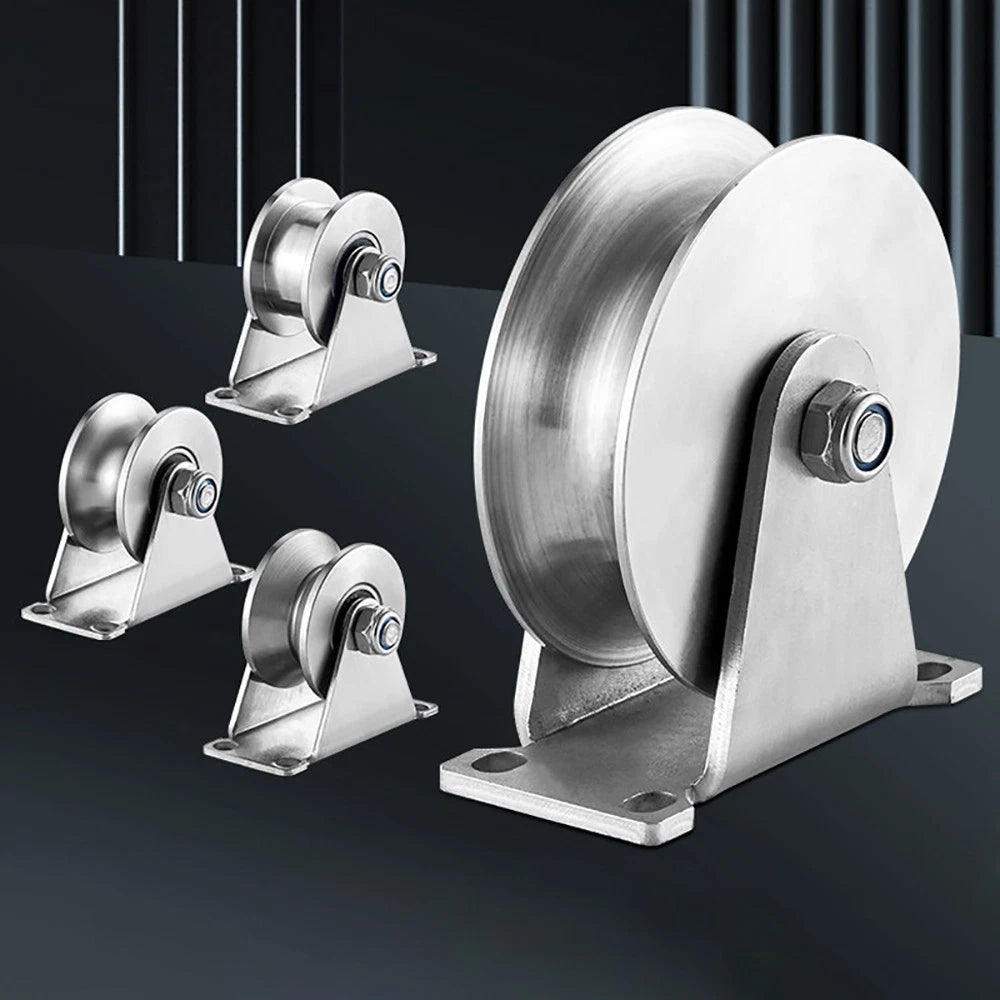

Stainless Steel Idler Pulley Wheel — U / V / H Groove Roller for Rope, Cable & Belt Guide Systems

Rope, cable, and belt guide systems fail prematurely when the idler wheel corrodes, wears unevenly, or lacks the groove profile to keep the load centered. Riggers, fabricators, and machine builders who work with wire rope, round belts, flat belts, or V-belts need a roller wheel that holds its geometry under continuous load and resists the corrosion that destroys standard steel components. These stainless steel idler pulley wheels are built for exactly that — delivering consistent groove engagement and long service life in demanding environments.

Each wheel is machined from stainless steel — available in 201 or 304 grade — with a precision-turned groove profile in U, V, or H shape to match the cross-section of your rope, cable, or belt. Outer diameters range from 32mm to 118mm (~1.26 in to ~4.65 in), and groove widths span 16mm to 32mm (~0.63 in to ~1.26 in). The bracket material matches the wheel grade, providing a corrosion-consistent assembly for marine, outdoor, and industrial applications.

Typical applications include wire rope guide pulleys for overhead lifting and rigging systems, V-belt tensioner idler wheels in agricultural and industrial machinery, flat belt guide rollers in conveyor and packaging lines, and cable management wheels in architectural and structural cable systems. The H-groove variant is suited for flat or wide-profile belts, while the U-groove handles round rope and cable, and the V-groove engages V-belts and V-profile ropes.

⚙️ Compatibility: Select the groove shape (U / V / H) to match your rope, cable, or belt cross-section. Select the OD and groove width to match your installation clearance and load width. Choose 304 stainless steel for marine, food-grade, or high-corrosion environments; 201 stainless steel for general indoor and light outdoor use.

✅ Key Features of These Stainless Steel Idler Pulley Wheels

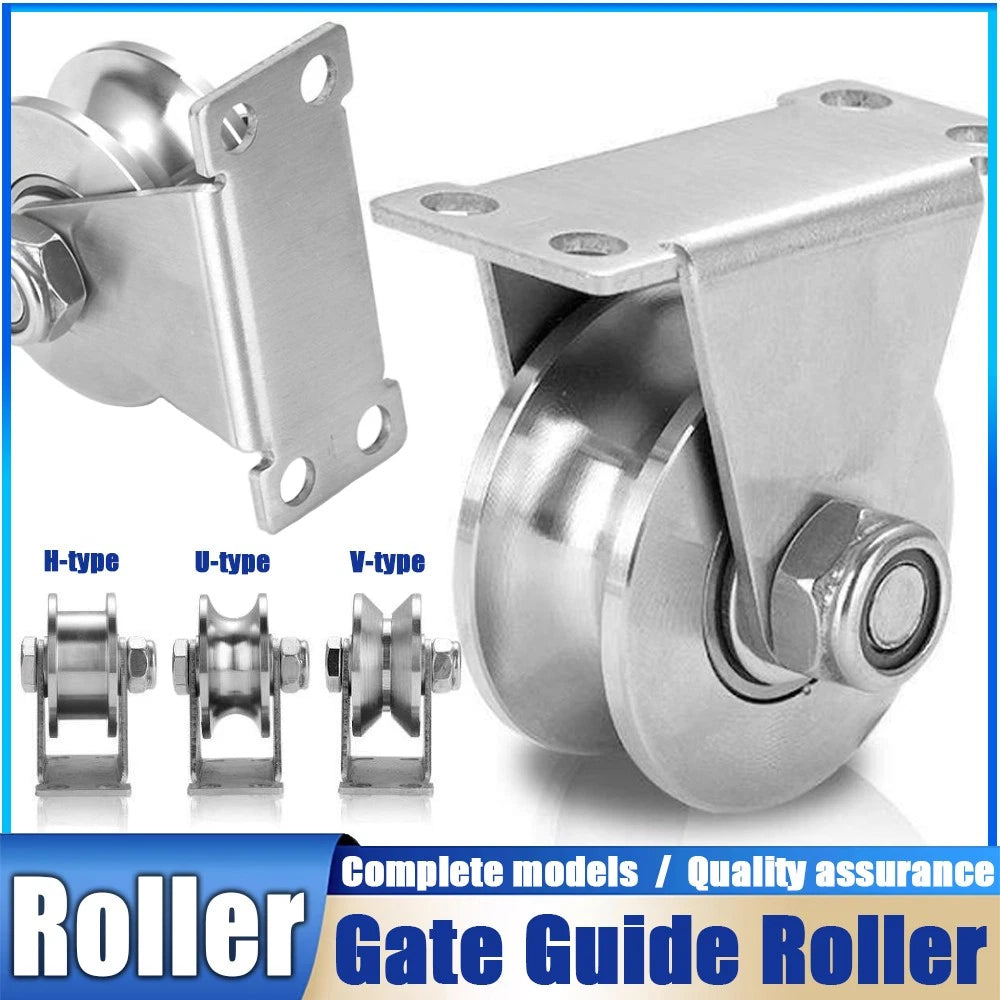

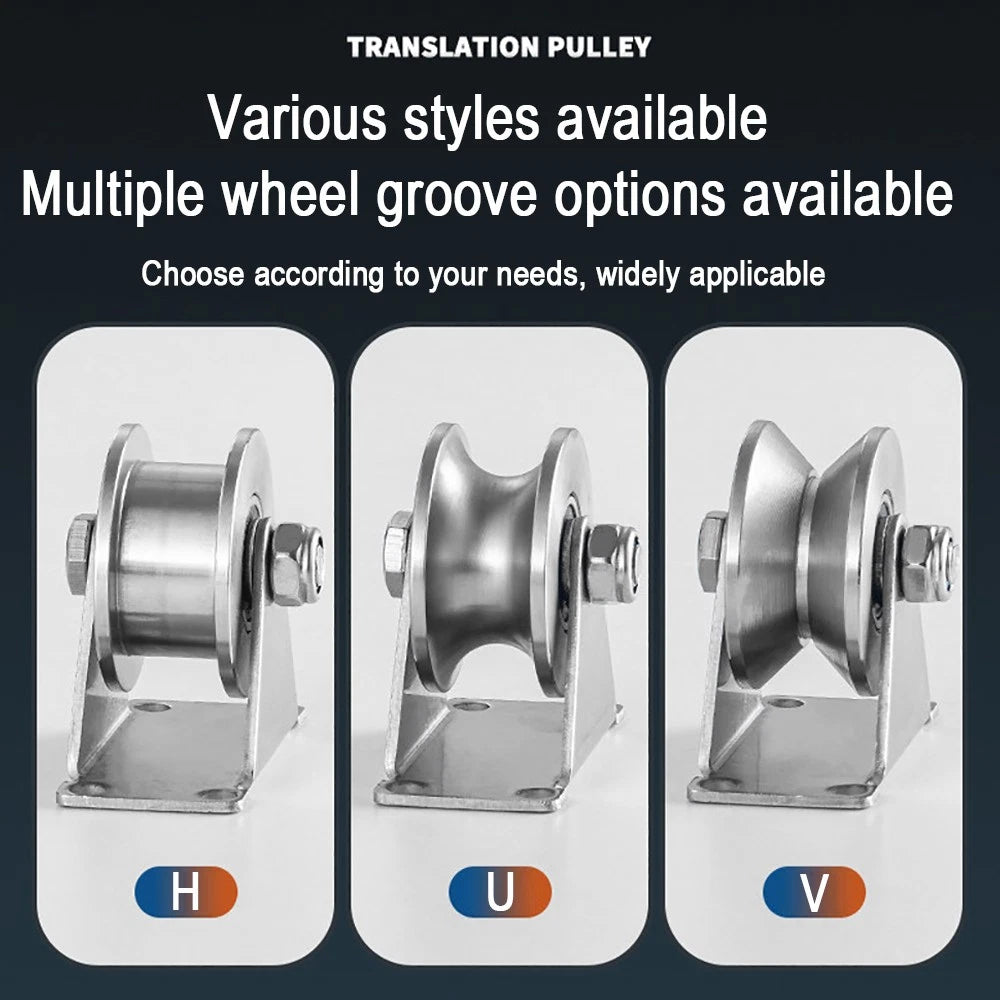

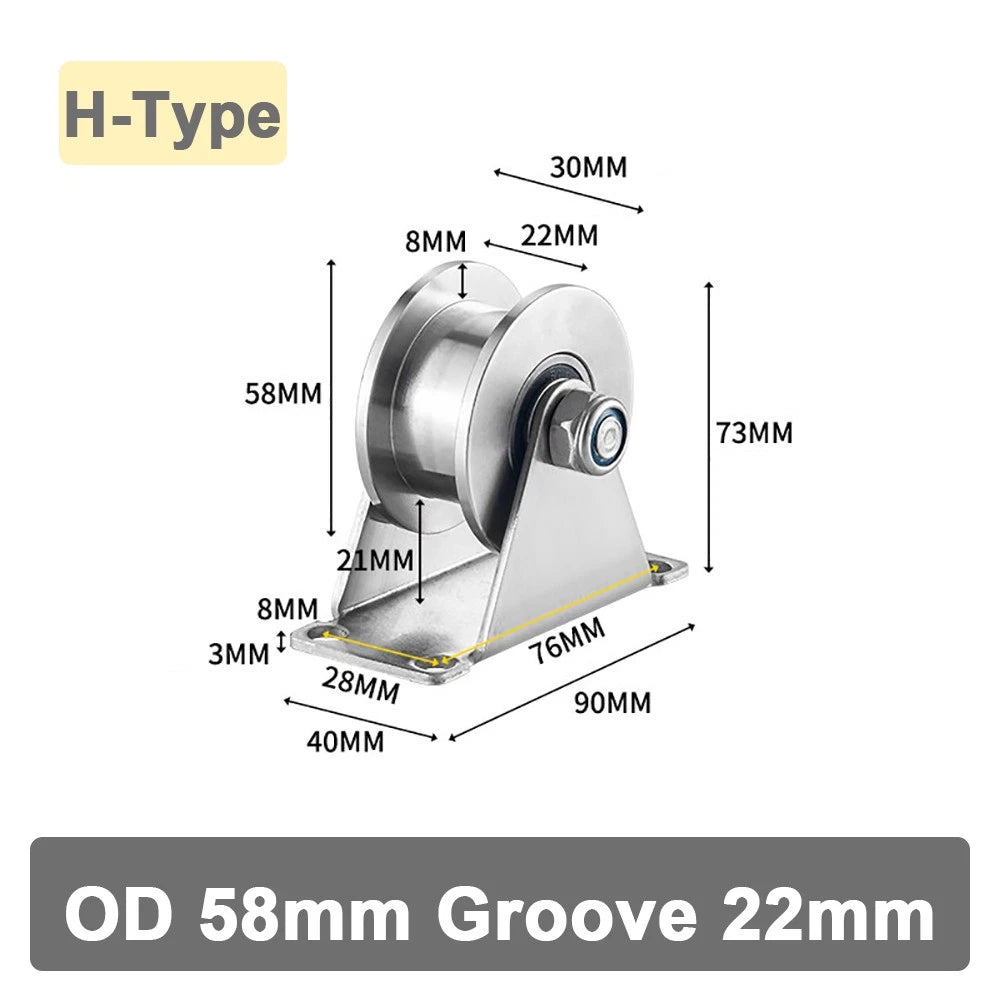

🔘 Three Groove Profiles: U, V, and H

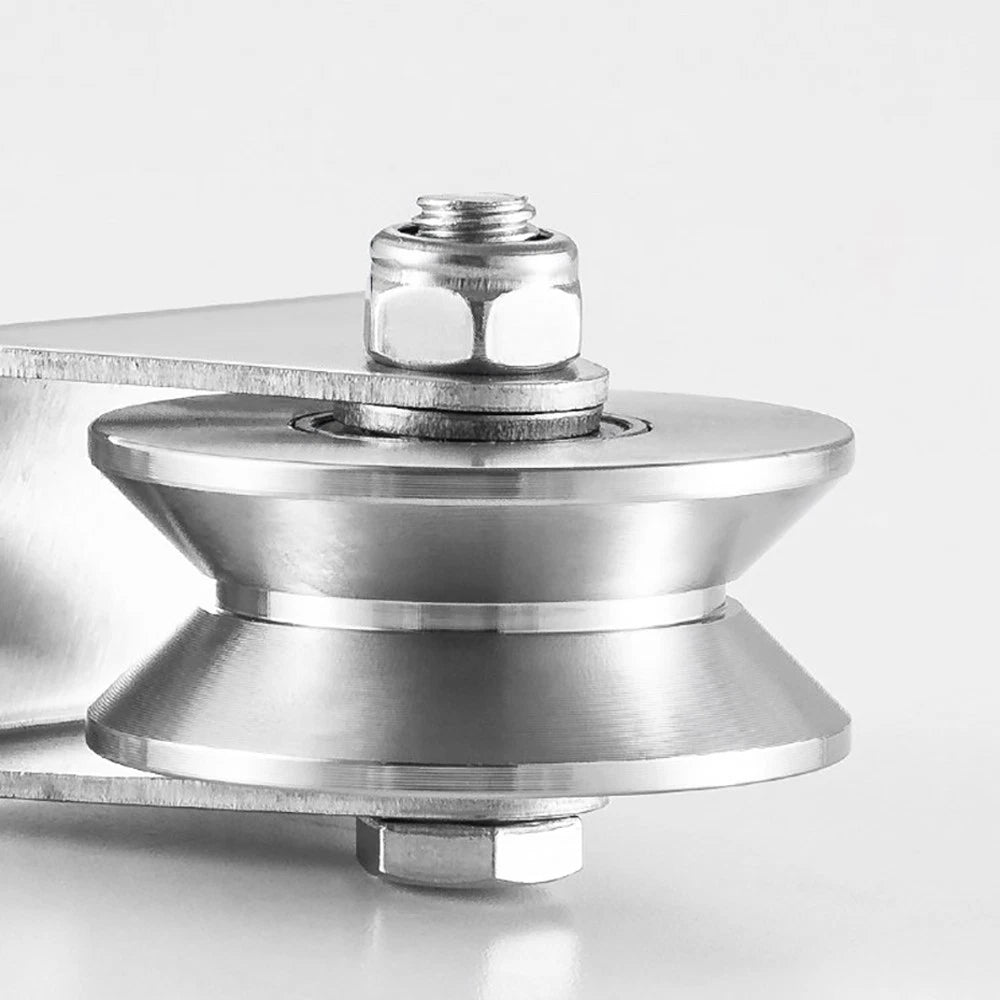

U-groove for round rope and cable, V-groove for V-belts and V-profile ropes, and H-groove for flat belts and wide-profile loads — select the profile that matches your application geometry.

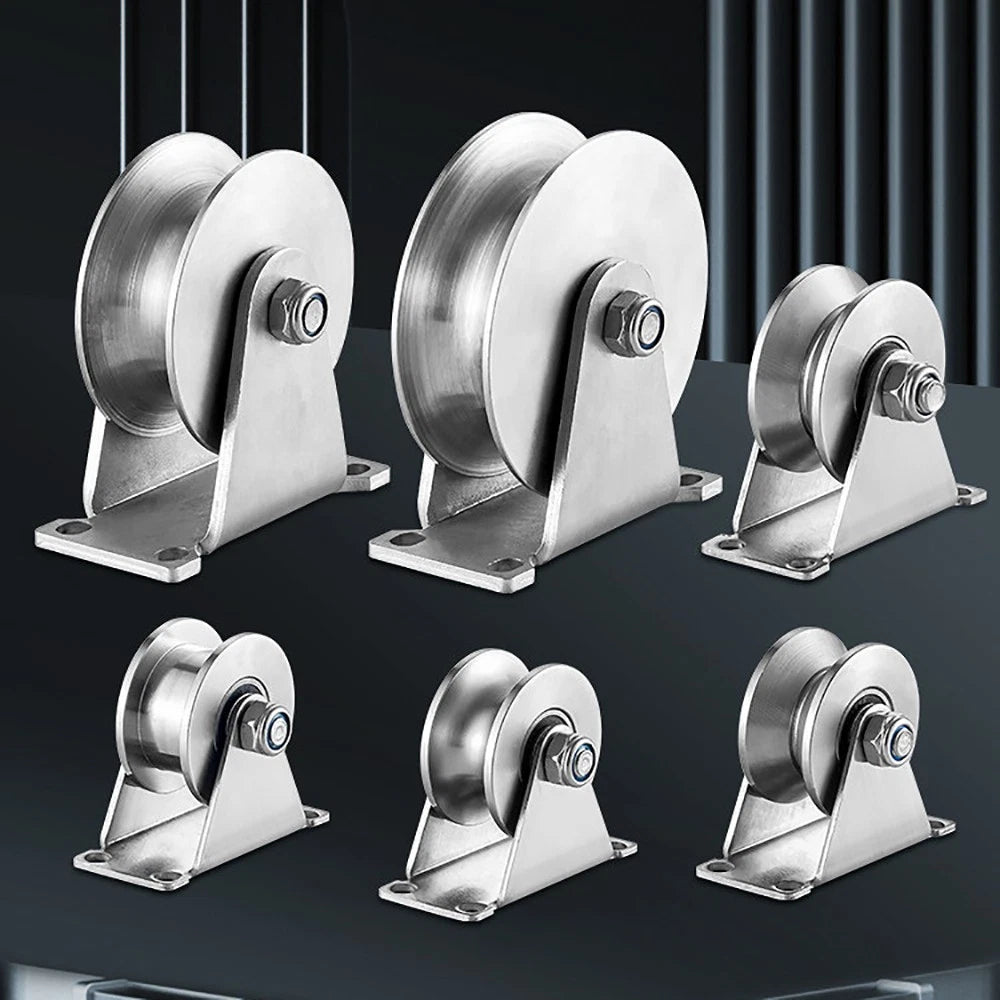

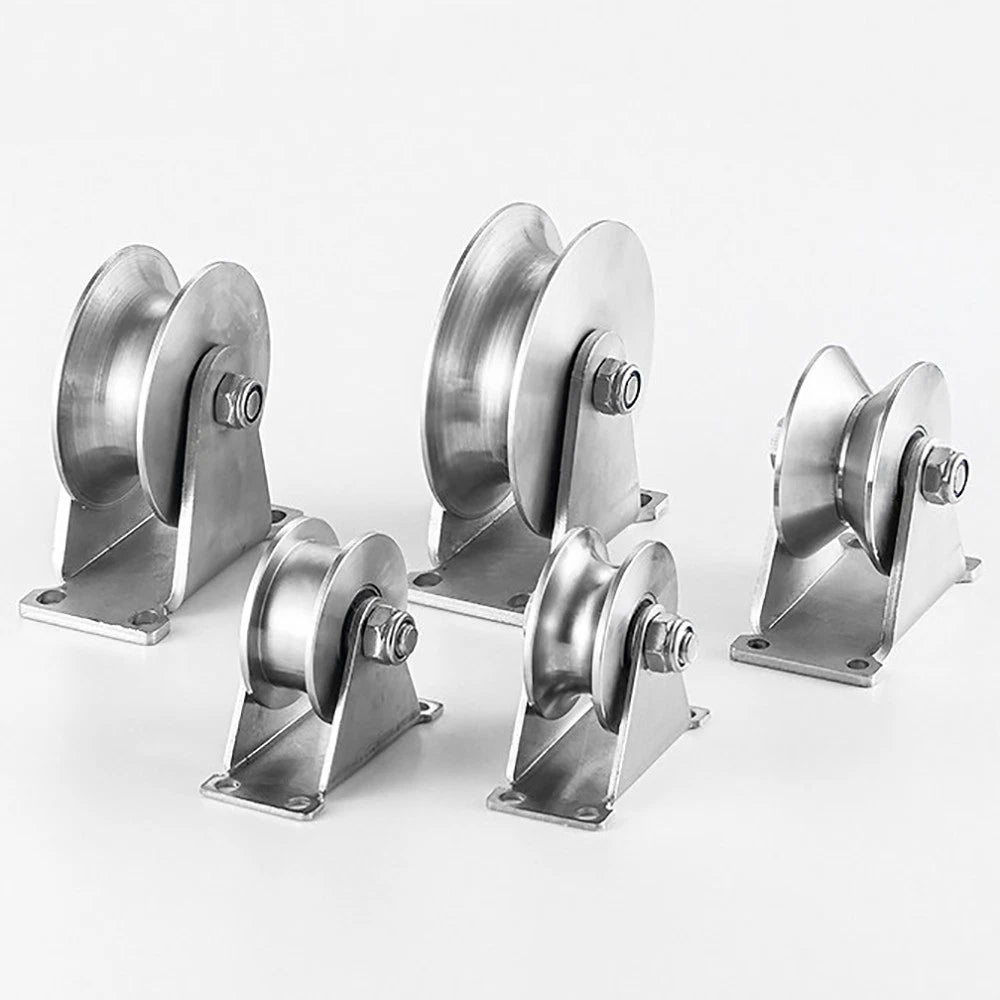

📐 Wide Size Range: OD 32mm to 118mm

Sixteen size and groove combinations spanning OD 32mm to 118mm and groove widths of 16mm, 22mm, 25mm, and 32mm cover the most common idler wheel positions in rigging, conveyor, and drive systems.

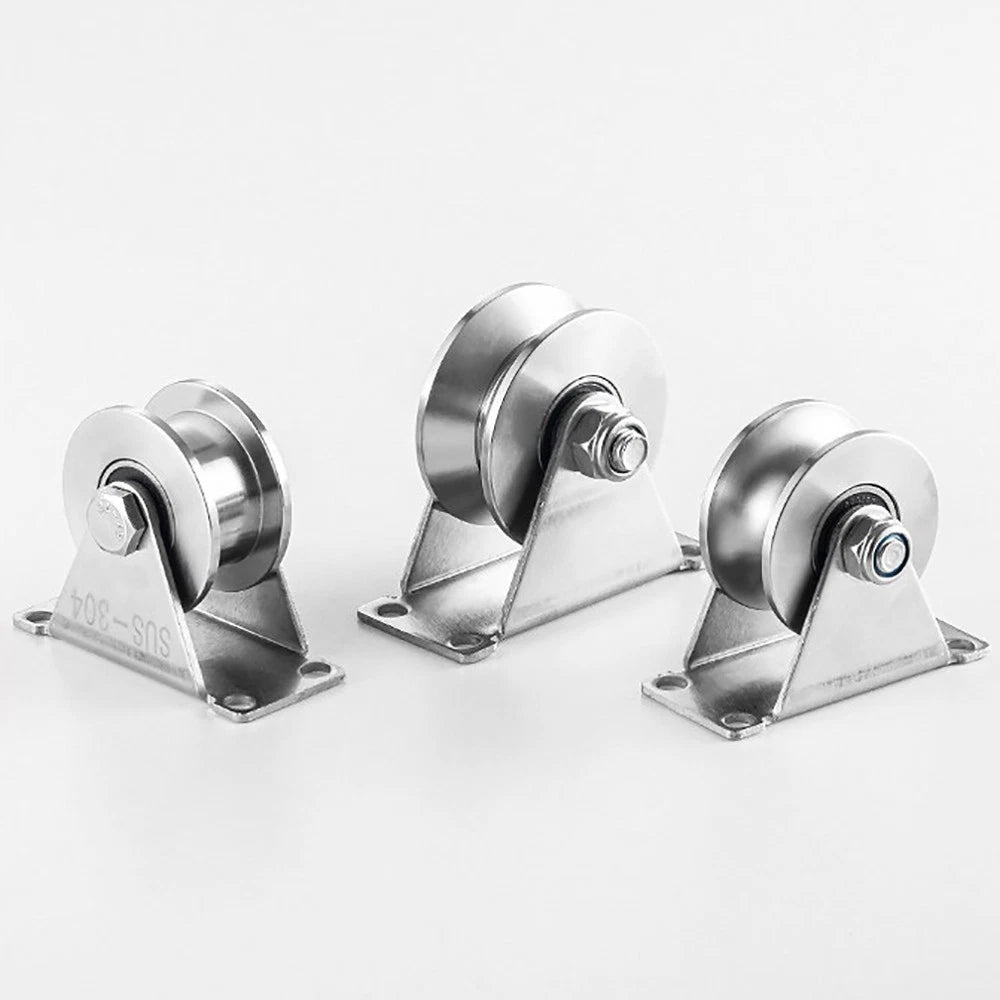

🛡️ 201 or 304 Stainless Steel Construction

Both grades provide corrosion resistance superior to carbon steel. 304 stainless offers enhanced resistance to chloride environments, making it the preferred choice for marine, coastal, and food-processing applications.

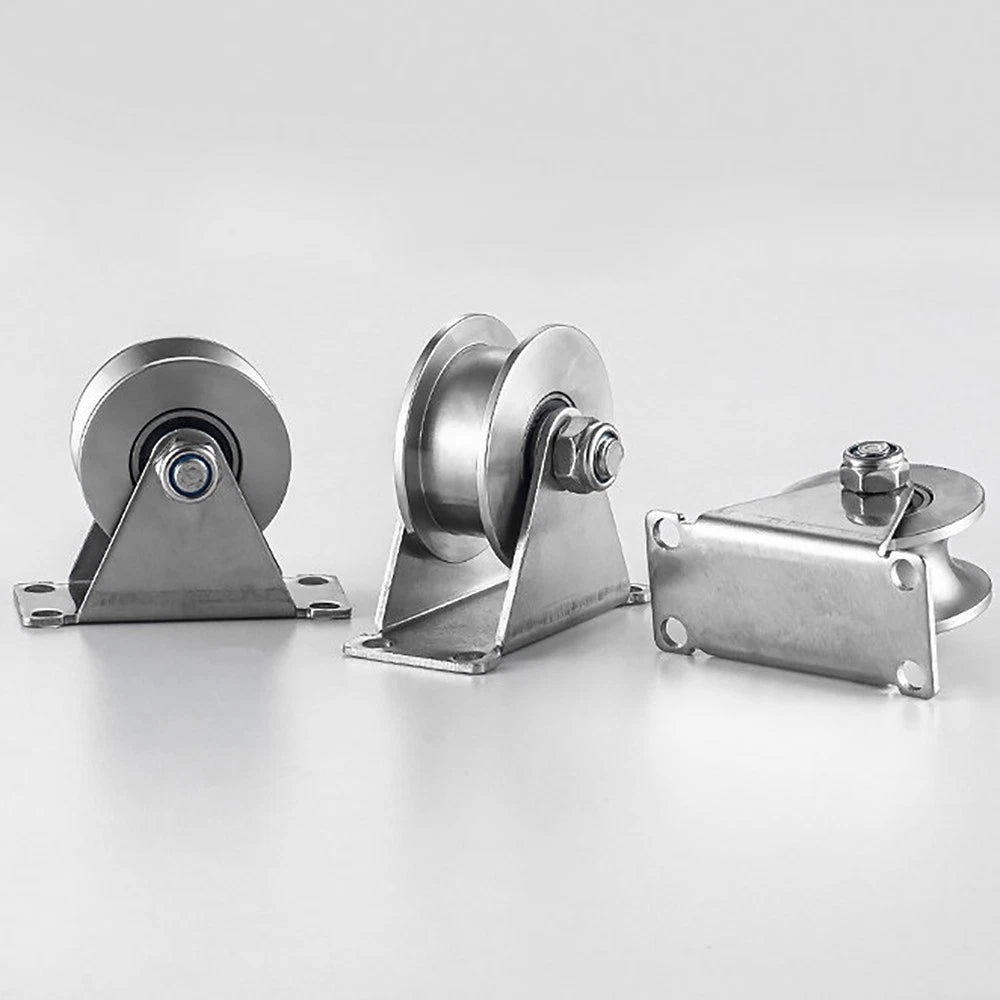

🔩 Integrated Bracket for Direct Mounting

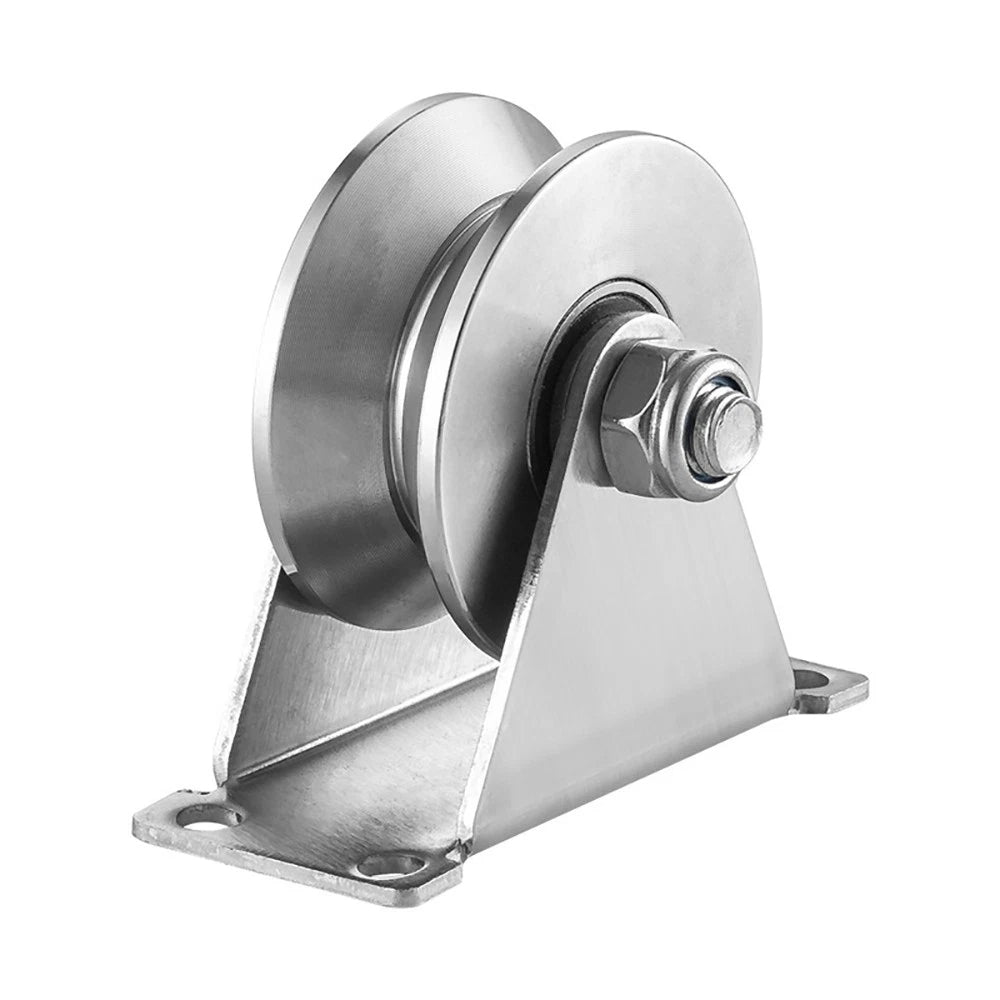

The stainless steel bracket is included with the wheel, providing a ready-to-mount assembly that reduces installation time and eliminates the need to source a separate mounting plate.

🔄 Smooth Rolling Under Load

The precision-turned groove surface and balanced wheel body minimize friction and vibration during continuous operation, reducing wear on both the wheel and the rope, cable, or belt it guides.

🏗️ Suitable for Outdoor and Industrial Environments

Stainless steel construction withstands moisture, humidity, and light chemical exposure without surface degradation, making these wheels suitable for outdoor rigging, marine deck hardware, and industrial conveyor systems.

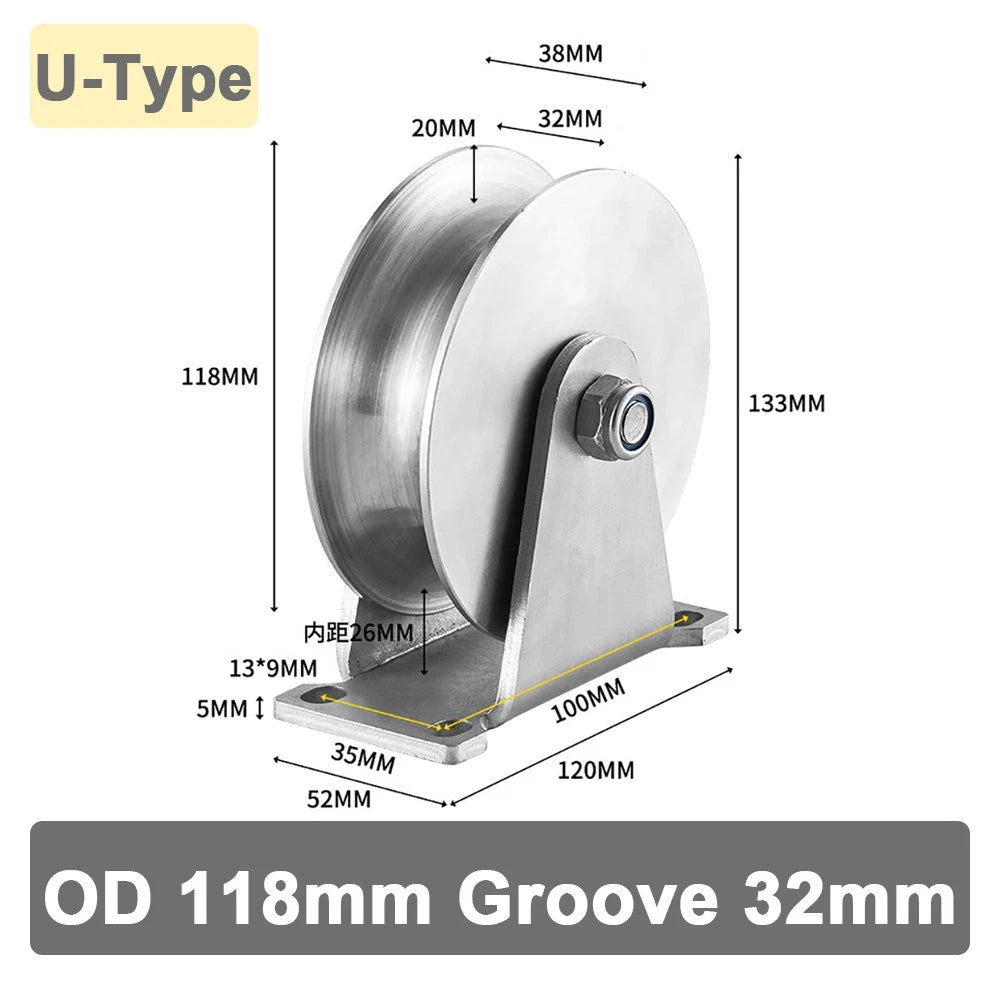

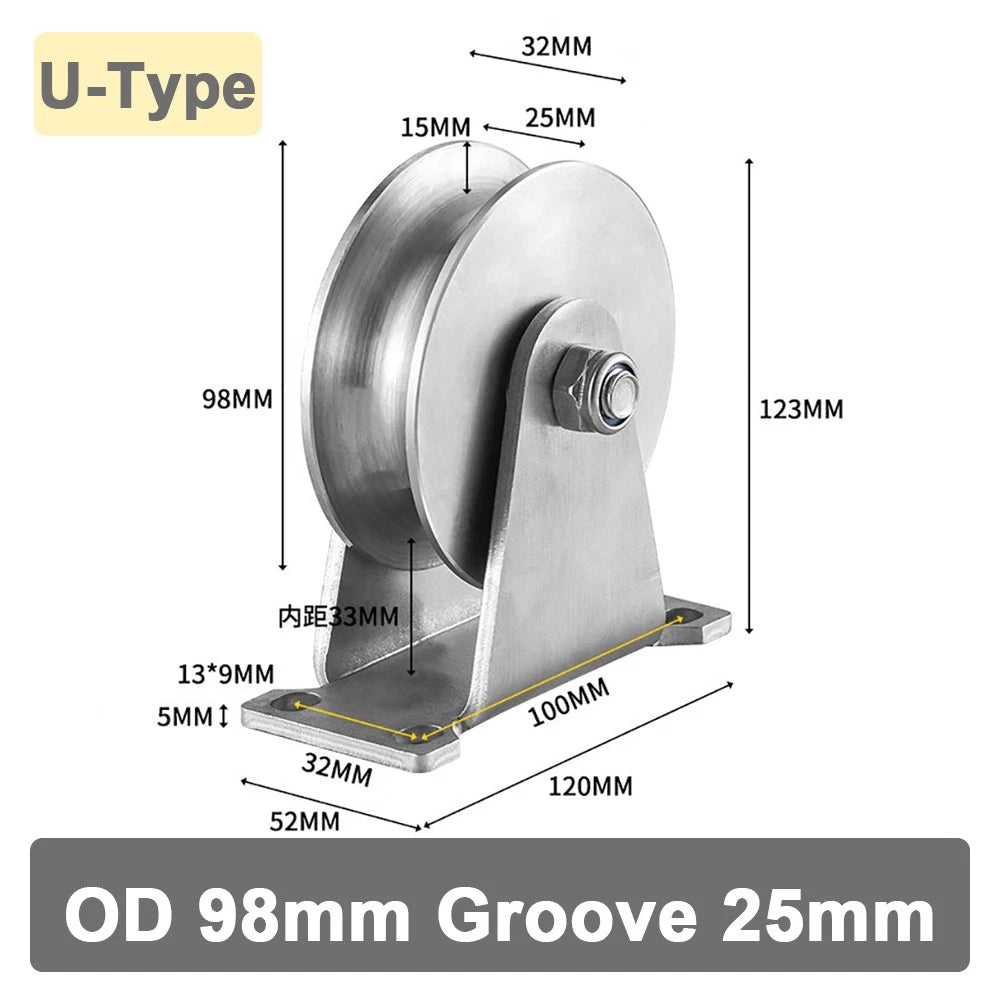

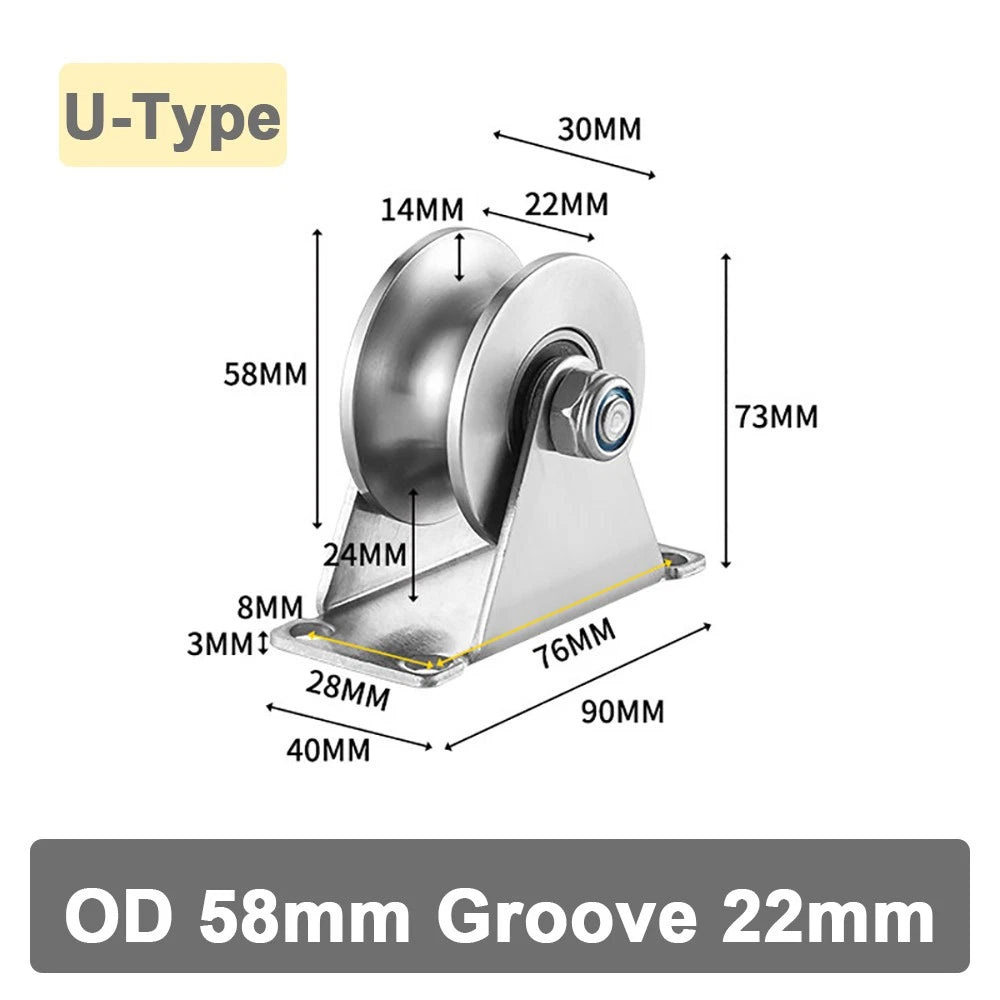

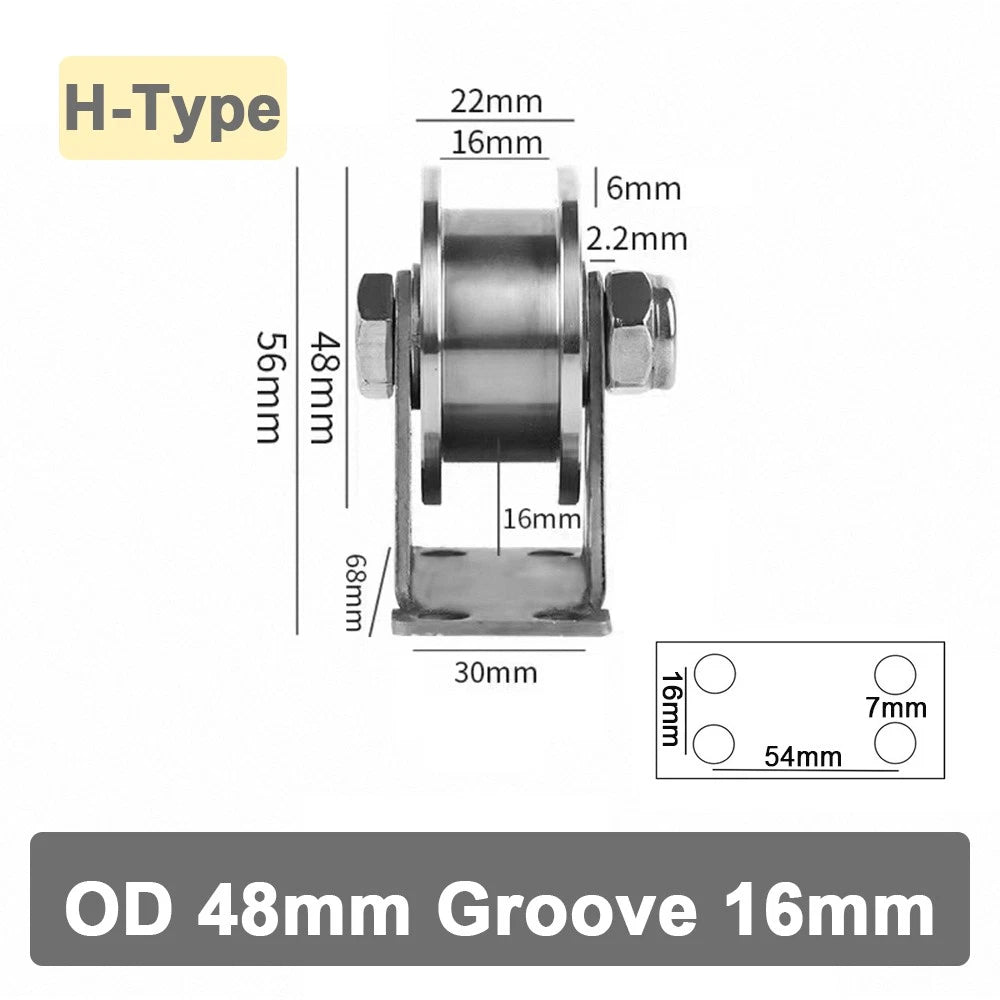

📐 Technical Specifications — Stainless Steel Idler Pulley Wheel

Groove Shape Options	U Type, V Type, H Type

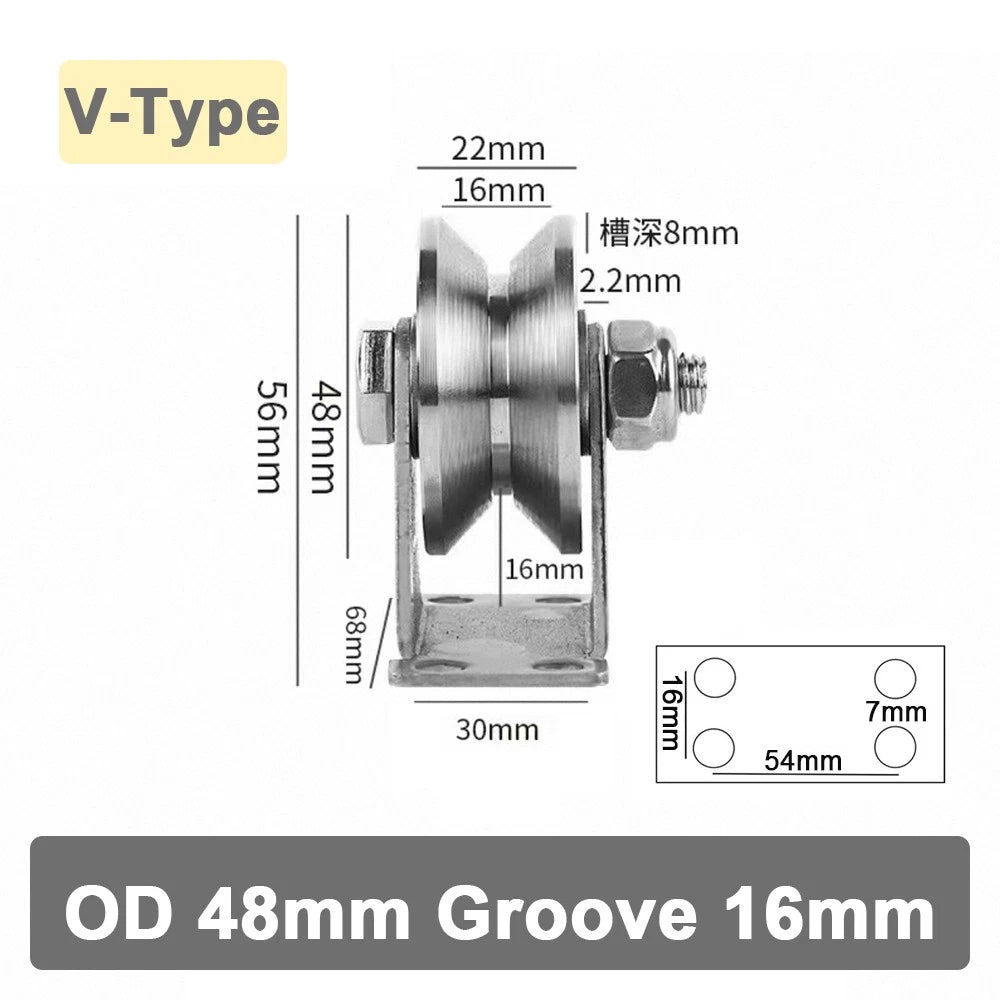

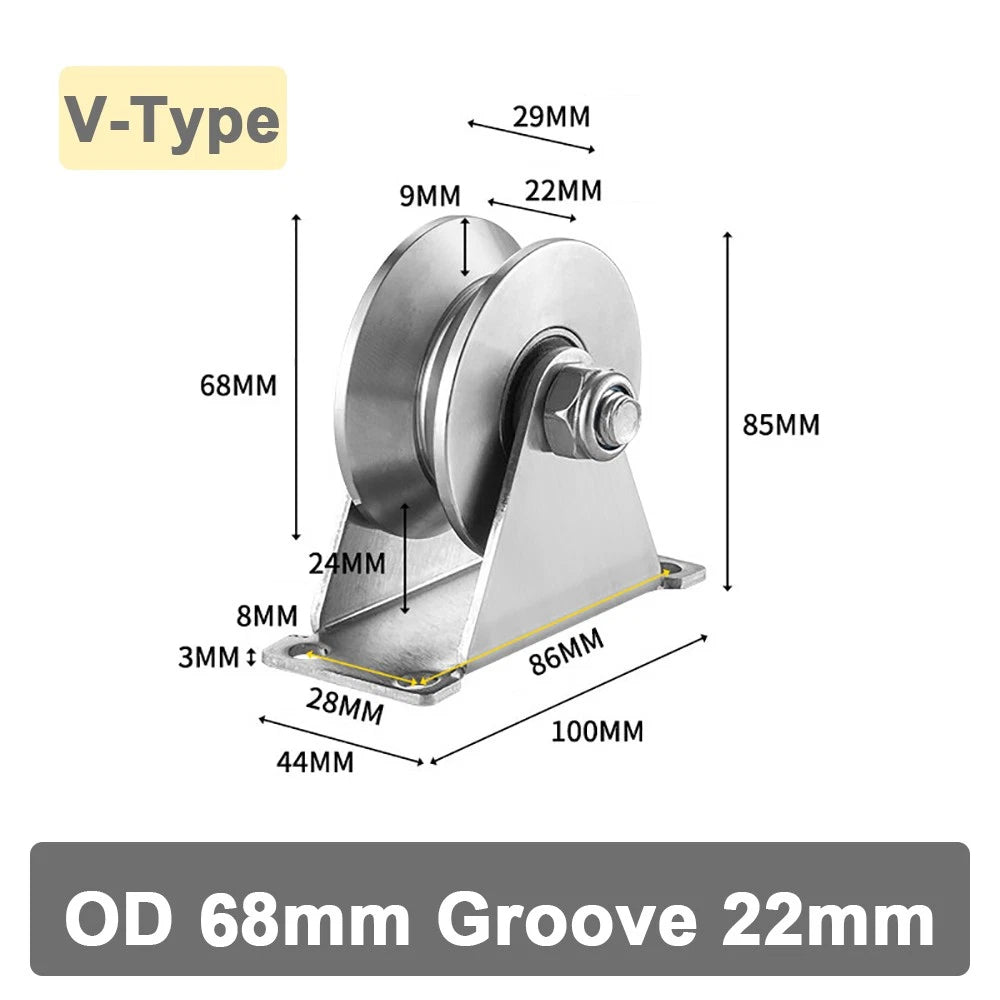

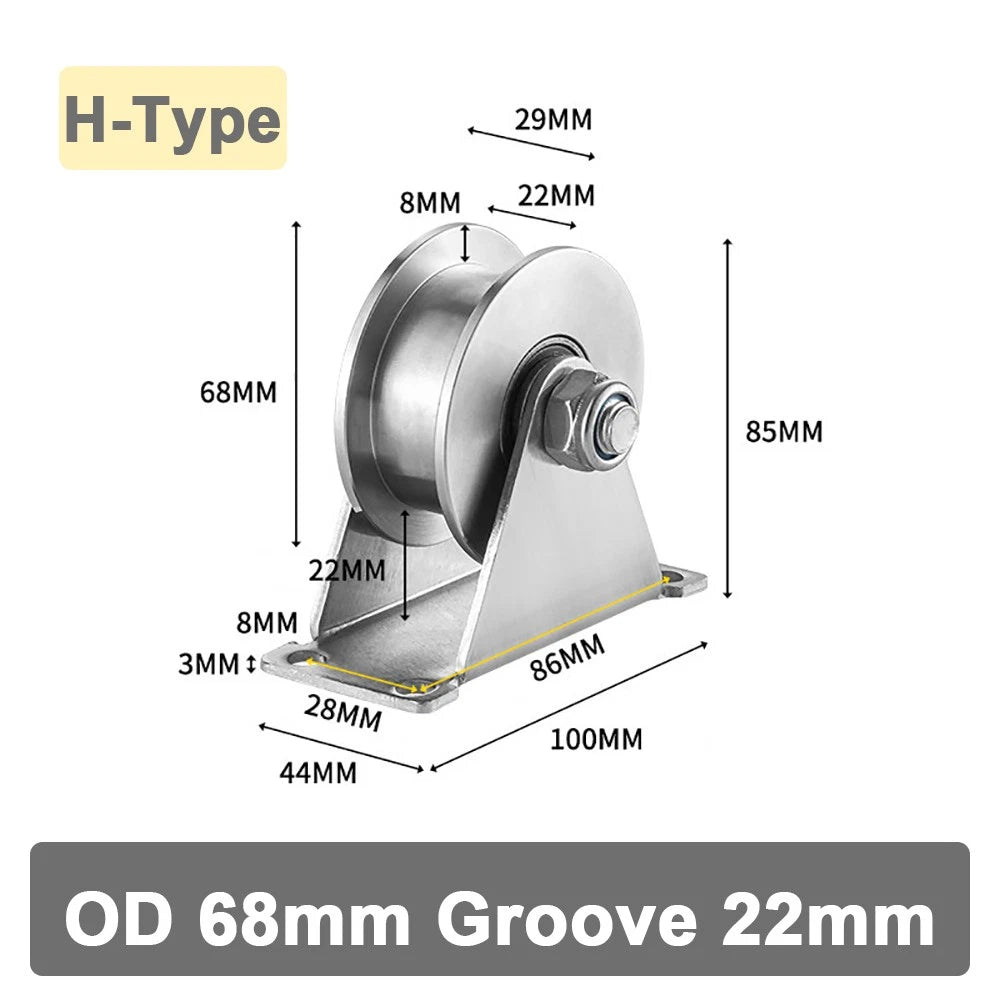

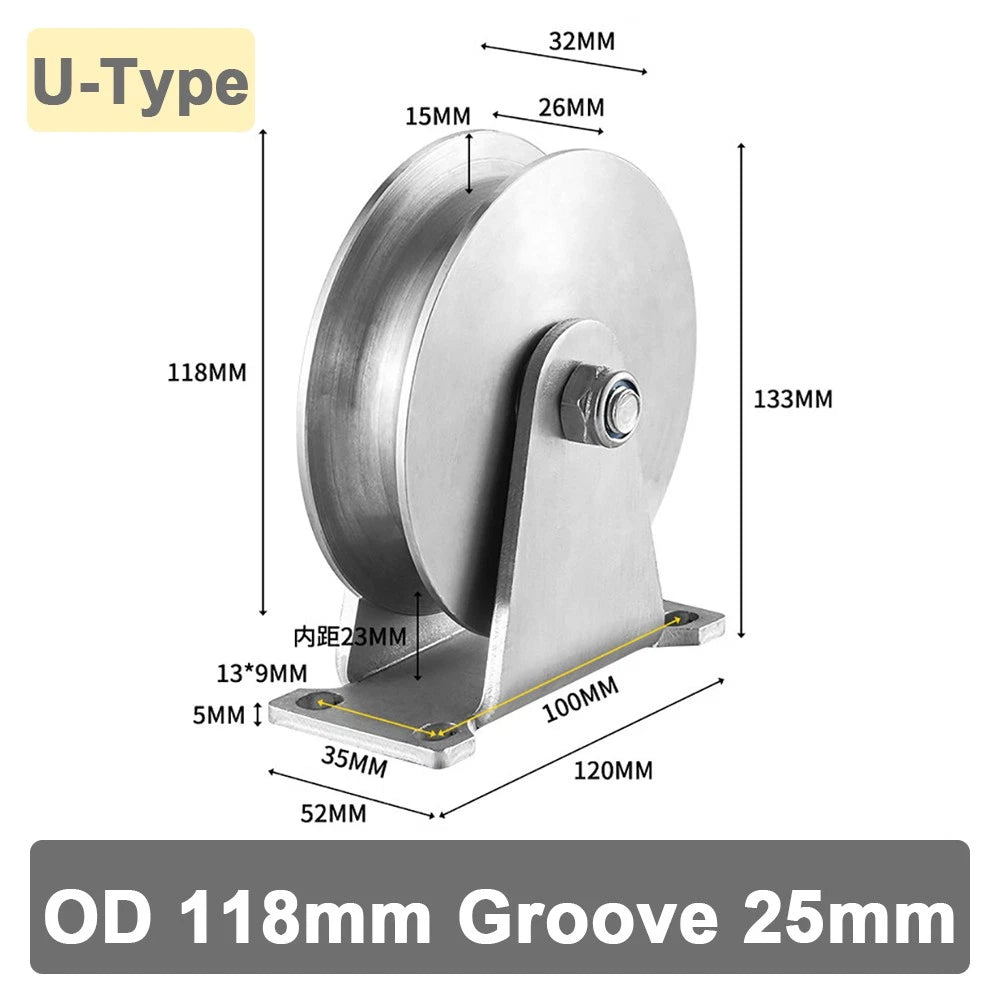

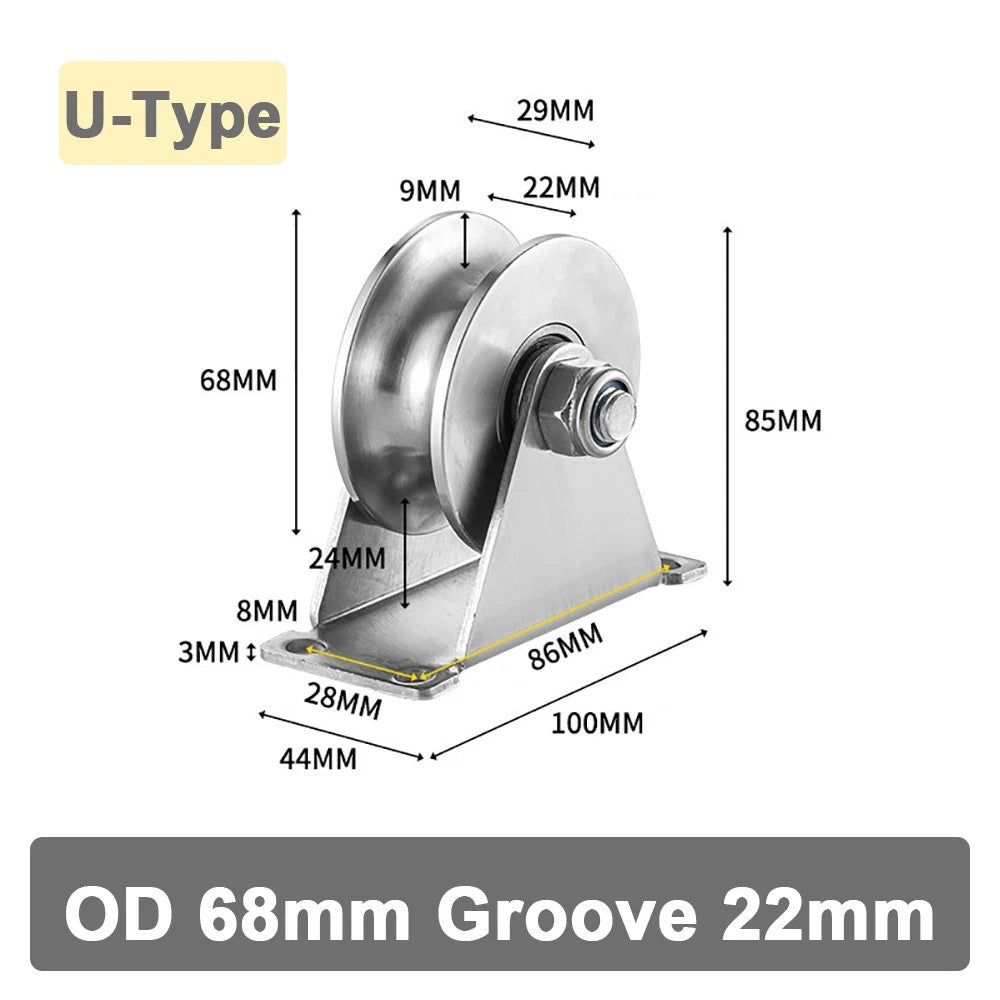

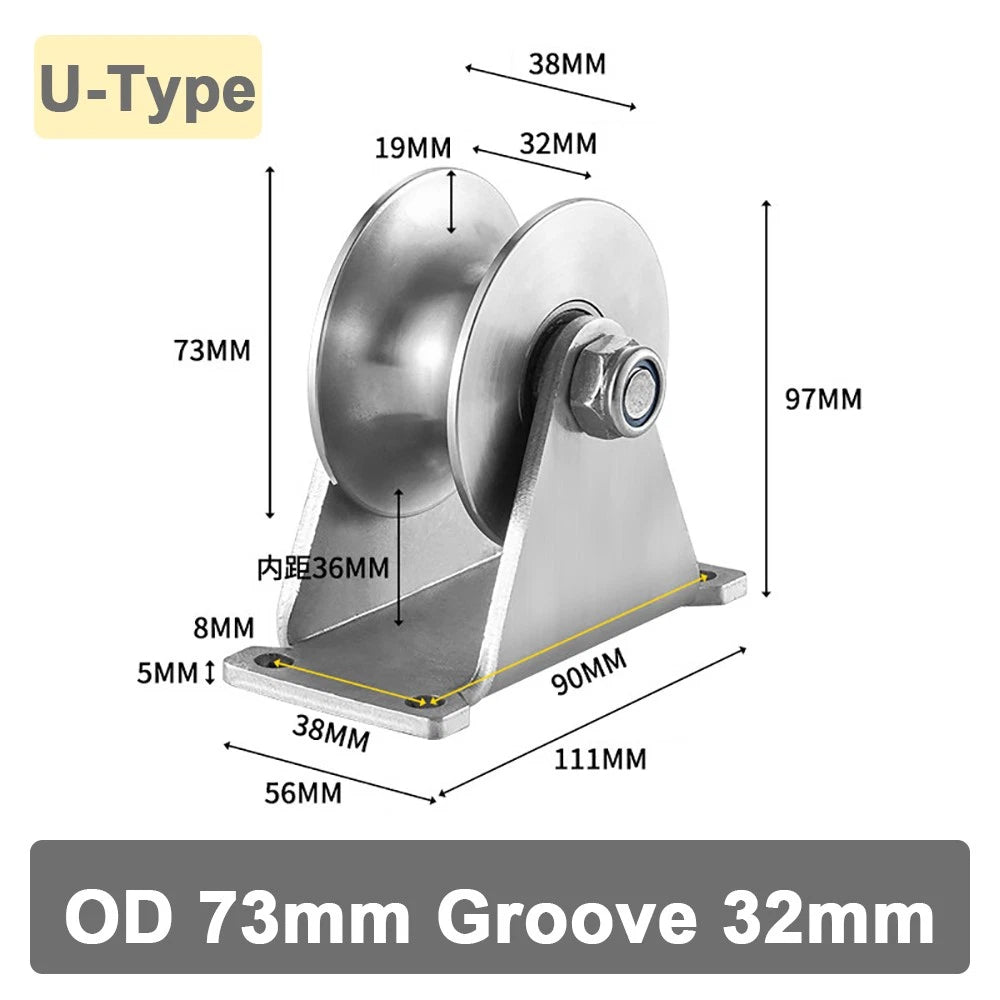

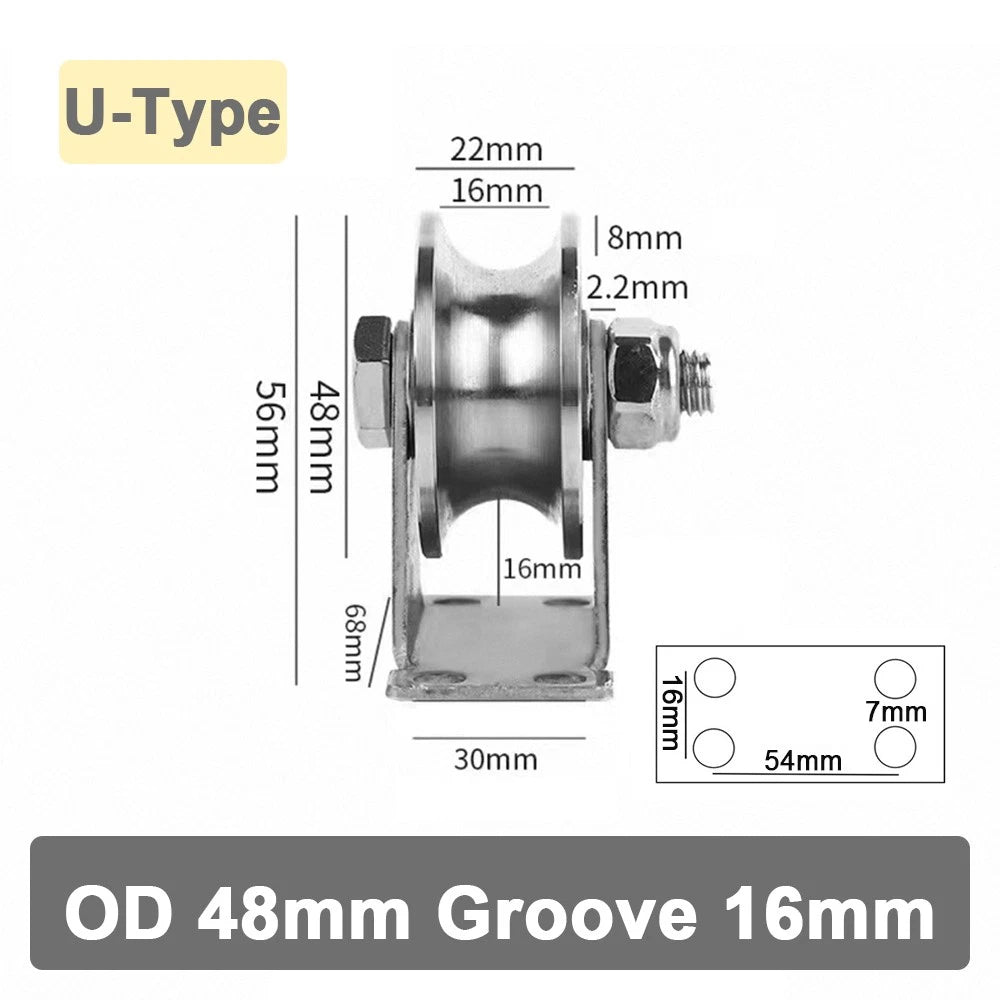

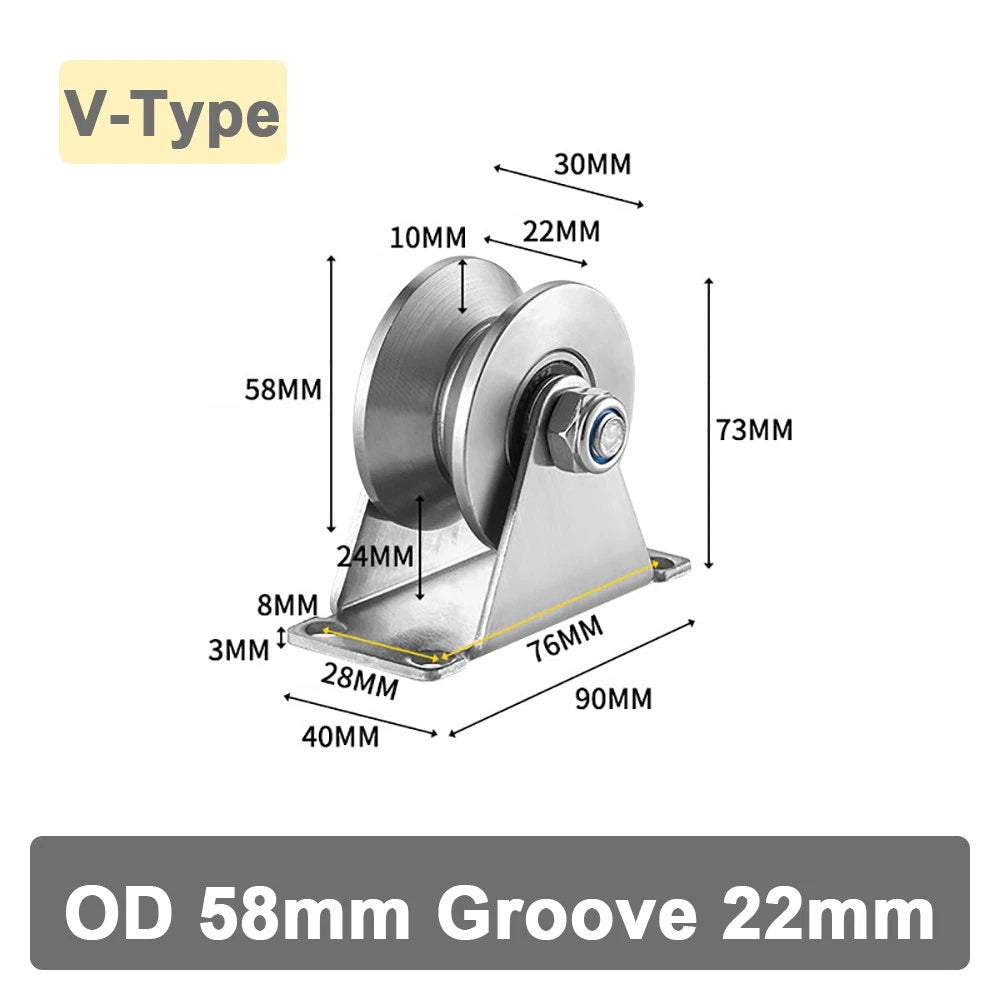

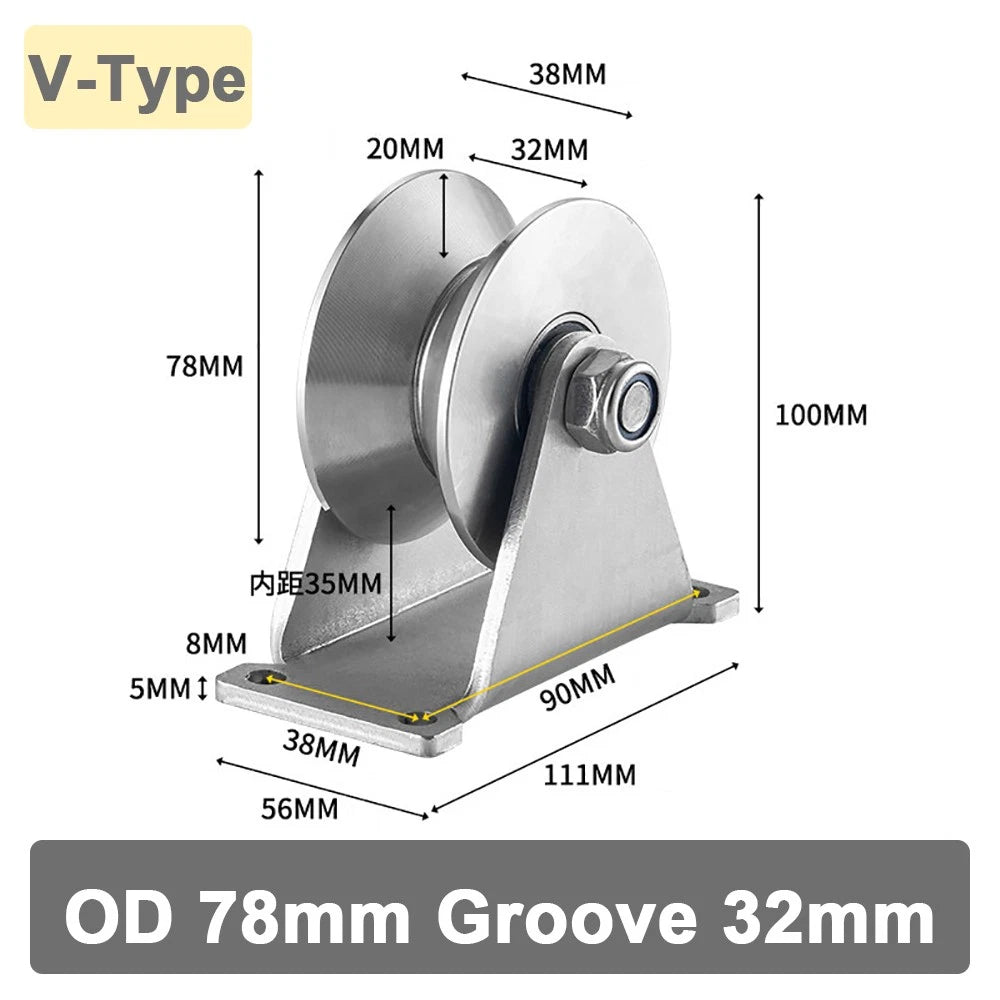

Outer Diameter (OD) Range	32mm, 48mm, 58mm, 68mm, 73mm, 78mm, 98mm, 118mm
Groove Width Range	16mm, 22mm, 25mm, 32mm (see variant options)
Bracket Material Options	201 Stainless Steel / 304 Stainless Steel
Wheel Material	Stainless steel (matching bracket grade)
Surface Finish	Machined / polished stainless
Bore / Axle Diameter	See variant options
Weight	See variant options
Quantity per Order	1 piece
Applicable Load Types	Round rope, cable, V-belt, flat belt (by groove type)

❓ Frequently Asked Questions

What is the difference between U, V, and H groove types?

The groove shape must match the cross-section of your rope, cable, or belt. U-groove wheels are designed for round rope and wire cable, cradling the round profile to prevent lateral movement. V-groove wheels engage V-belts and V-profile ropes, using the angled sides to center the load. H-groove (flat-bottom) wheels are suited for flat belts and wide-profile loads where a flat contact surface is needed. Using the wrong groove type will cause the rope or belt to ride incorrectly and wear prematurely.

How do I choose the right outer diameter and groove width?

The outer diameter determines the wheel's circumference and affects the bending radius imposed on the rope or belt. Larger OD wheels impose a gentler bend, which is important for wire rope and cables with a minimum bend radius specification. The groove width must be equal to or slightly wider than the diameter of your rope or the width of your belt. Measure your rope or belt cross-section and select the groove width that provides a snug but not binding fit.

What is the difference between 201 and 304 stainless steel?

Both grades are corrosion-resistant stainless steels, but 304 contains a higher nickel content that provides significantly better resistance to chloride-induced corrosion (salt water, coastal air, and cleaning chemicals). For marine, coastal, food-processing, or chemical environments, 304 stainless steel is the recommended choice. For general indoor or light outdoor applications where chloride exposure is minimal, 201 stainless steel provides adequate corrosion resistance at a lower cost.

Can these wheels be used for wire rope rigging and overhead lifting?

These wheels are designed as guide and idler pulleys for rope, cable, and belt routing applications. For overhead lifting and load-bearing rigging, the working load limit (WLL) of the specific wheel and mounting configuration must be verified against your load requirements. Contact us with your load specification to confirm suitability before using in a lifting application.

Are these wheels suitable for outdoor and marine environments?

Yes, particularly the 304 stainless steel variants. 304 stainless steel forms a stable passive oxide layer that resists corrosion from moisture, salt spray, and mild chemical exposure. For fully submerged or highly aggressive marine environments, 316 stainless steel would provide even greater protection, but 304 is widely used in above-waterline marine hardware and outdoor rigging applications.

Does the wheel include a bearing, or does it spin on the bracket axle directly?

The bearing configuration varies by size and variant. Some sizes include a pre-installed bearing for smooth rotation on a fixed axle; others are designed to spin on the bracket pin directly. Please check the specific variant description or contact us to confirm the bearing arrangement for your selected size before ordering.

What mounting hardware is included with the wheel?

Each wheel is supplied with the stainless steel bracket as shown. Mounting bolts, axle pins, and fasteners for attaching the bracket to your structure are not included and must be sourced separately to match your installation requirements. The bracket has pre-drilled mounting holes — refer to the product images for hole pattern dimensions.
