Lifting Rope Pulley Swivel Hanging Wire Towing Wheel Heavy Duty Stainless Steel

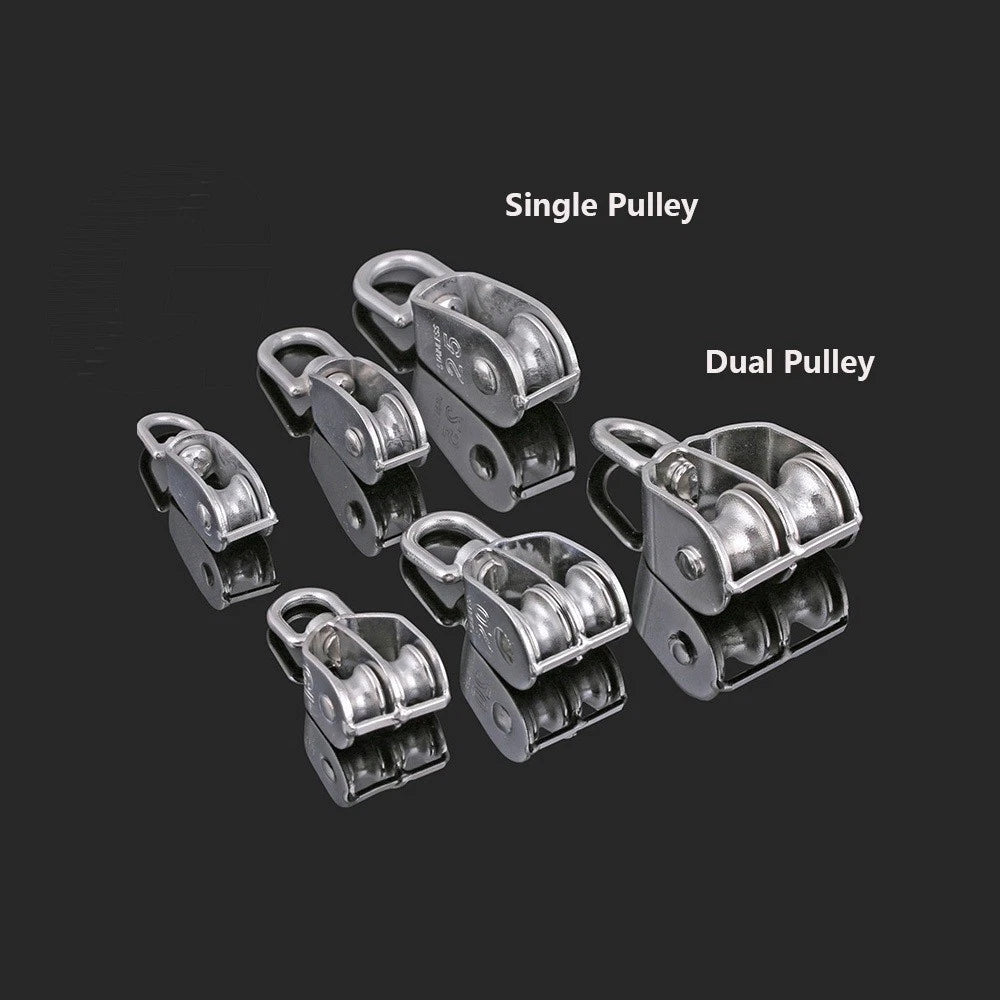

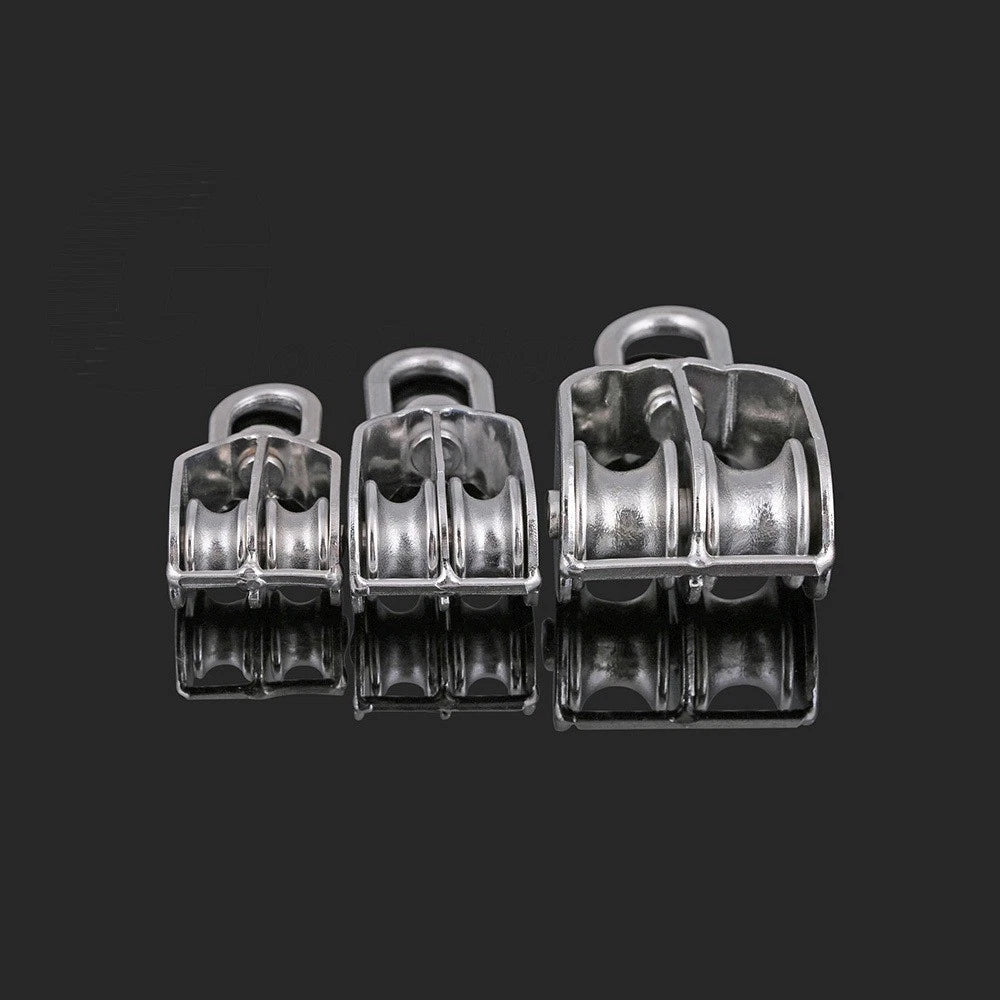

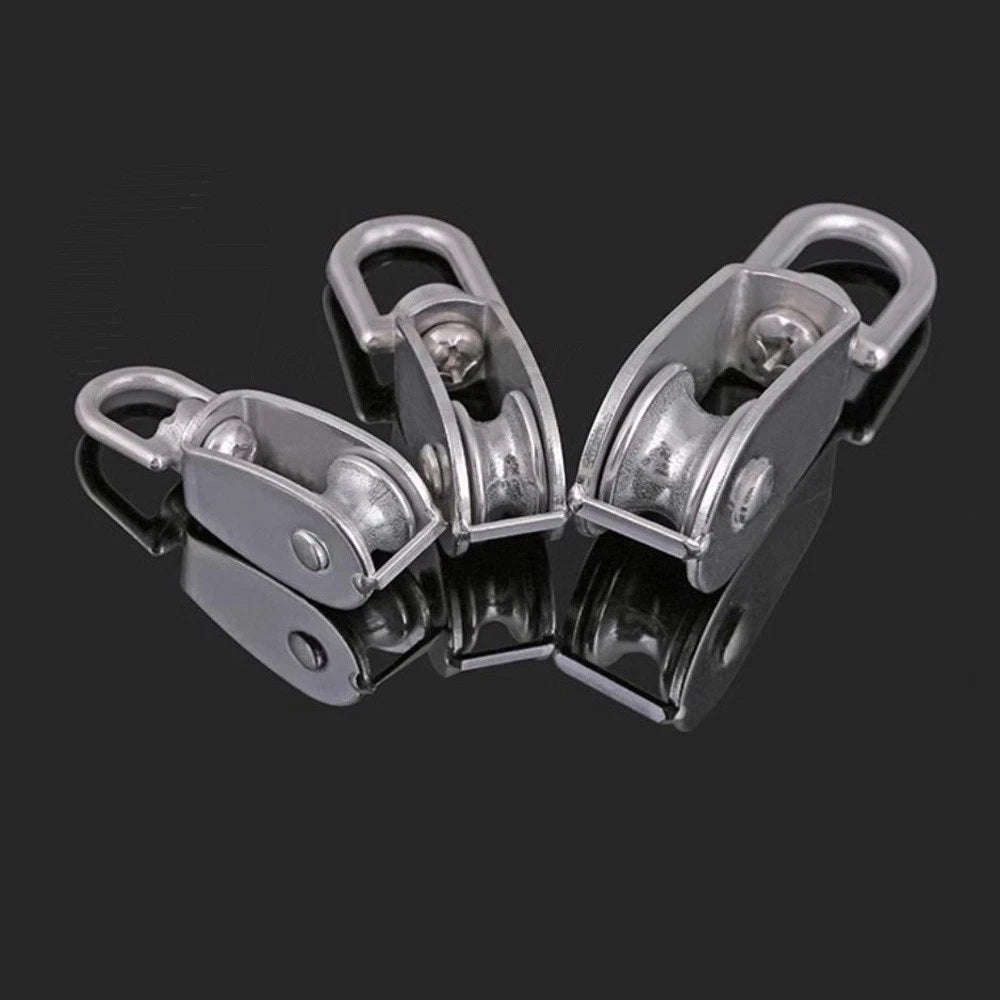

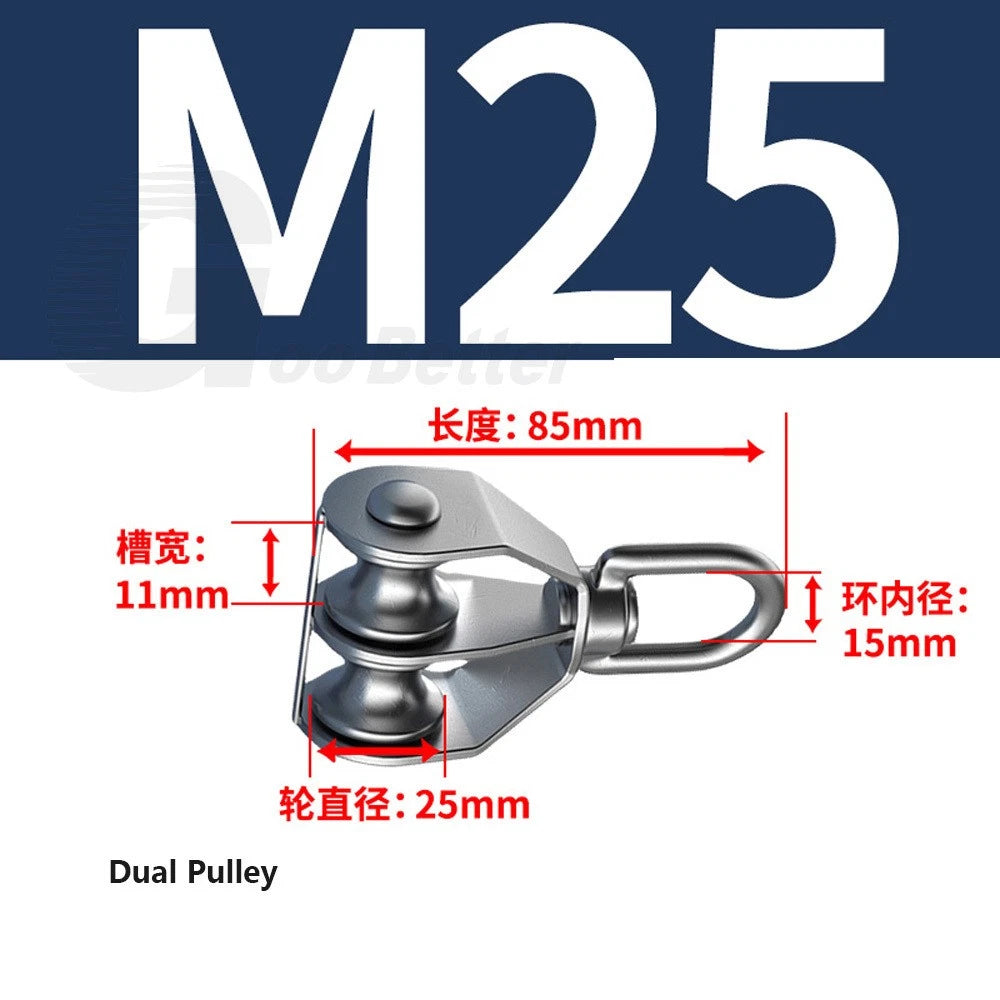

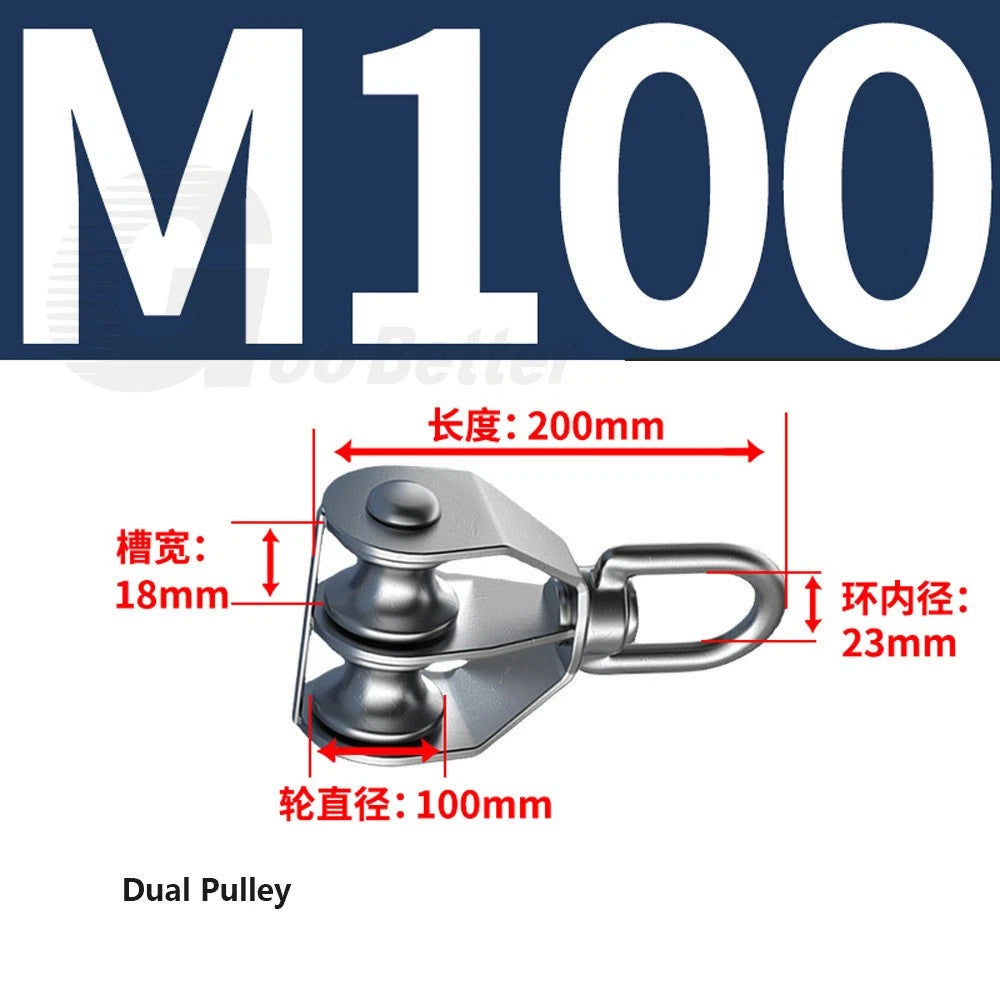

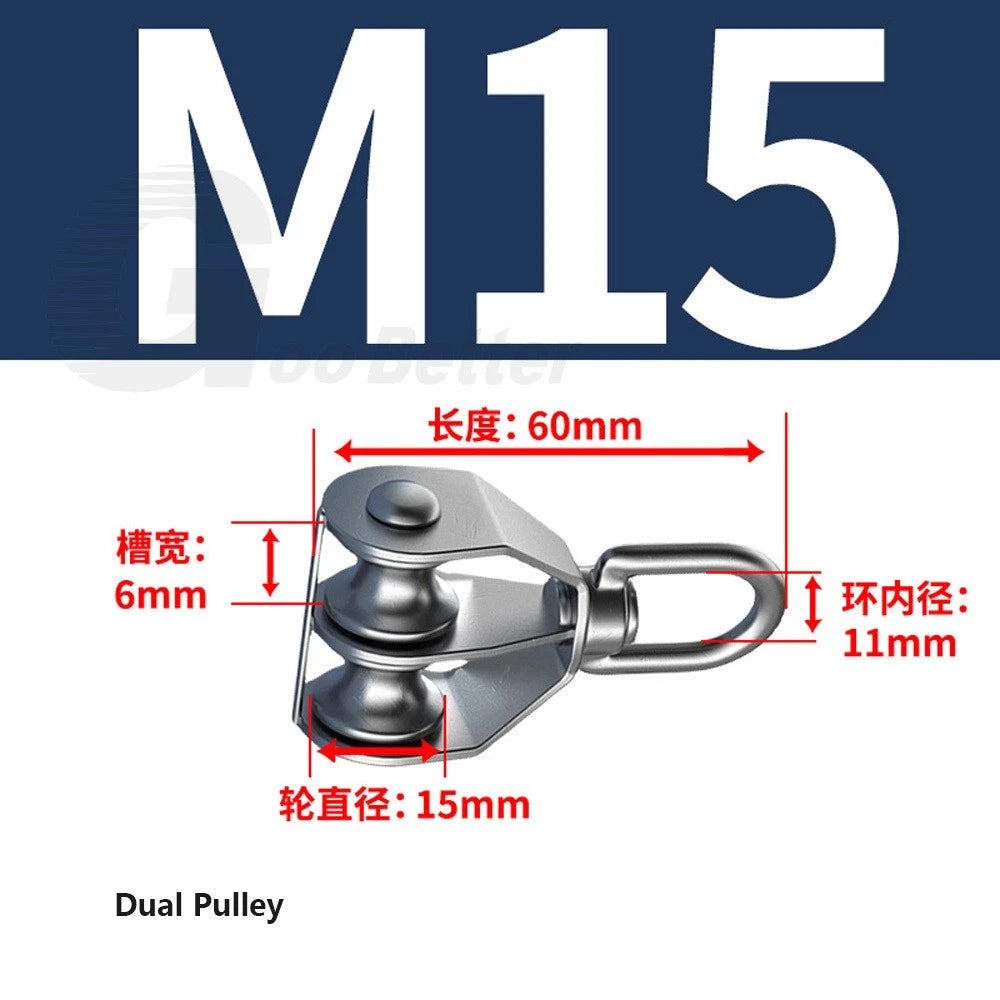

A single-sheave pulley redirects the rope path without changing the mechanical advantage — the force you apply equals the load (minus friction). A dual-sheave block creates a 2:1 mechanical advantage when rigged correctly, meaning you only need to apply roughly half the force to lift the same load. Choose single for simple rope redirection and dual when you need to reduce lifting effort on heavier loads.

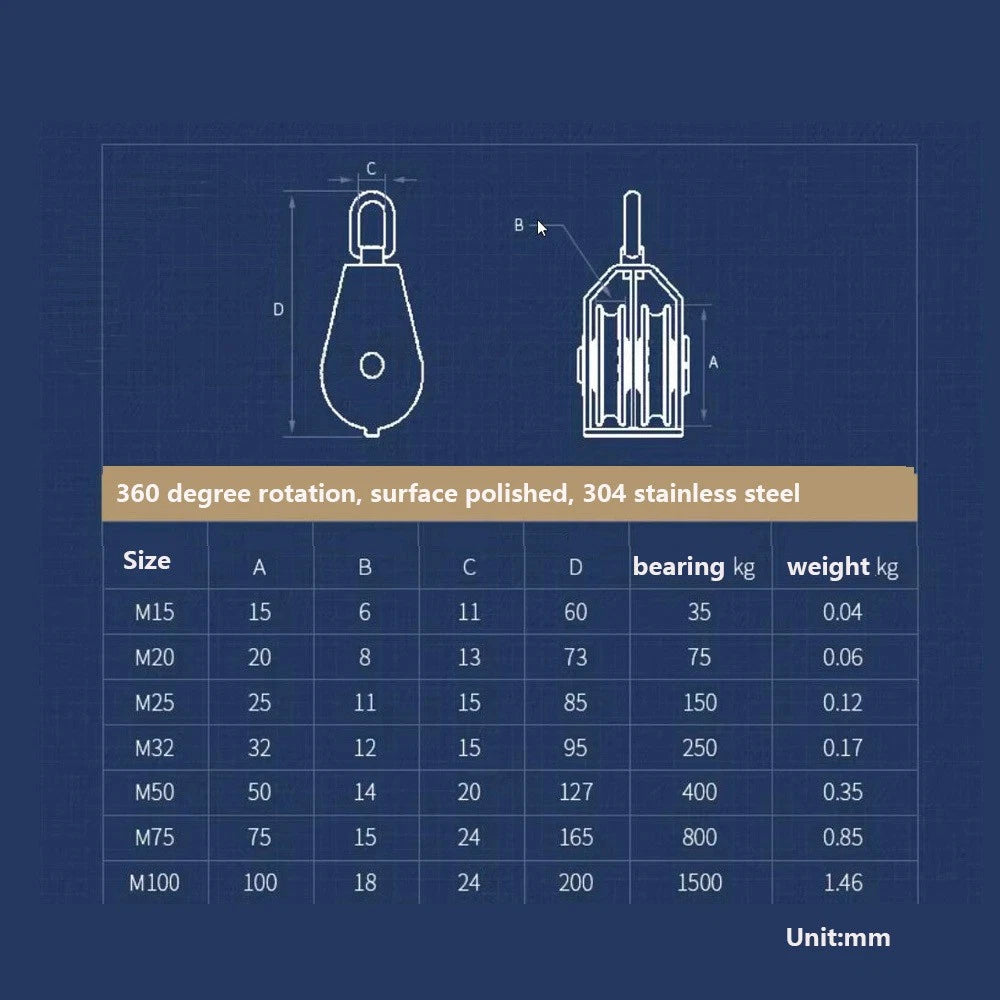

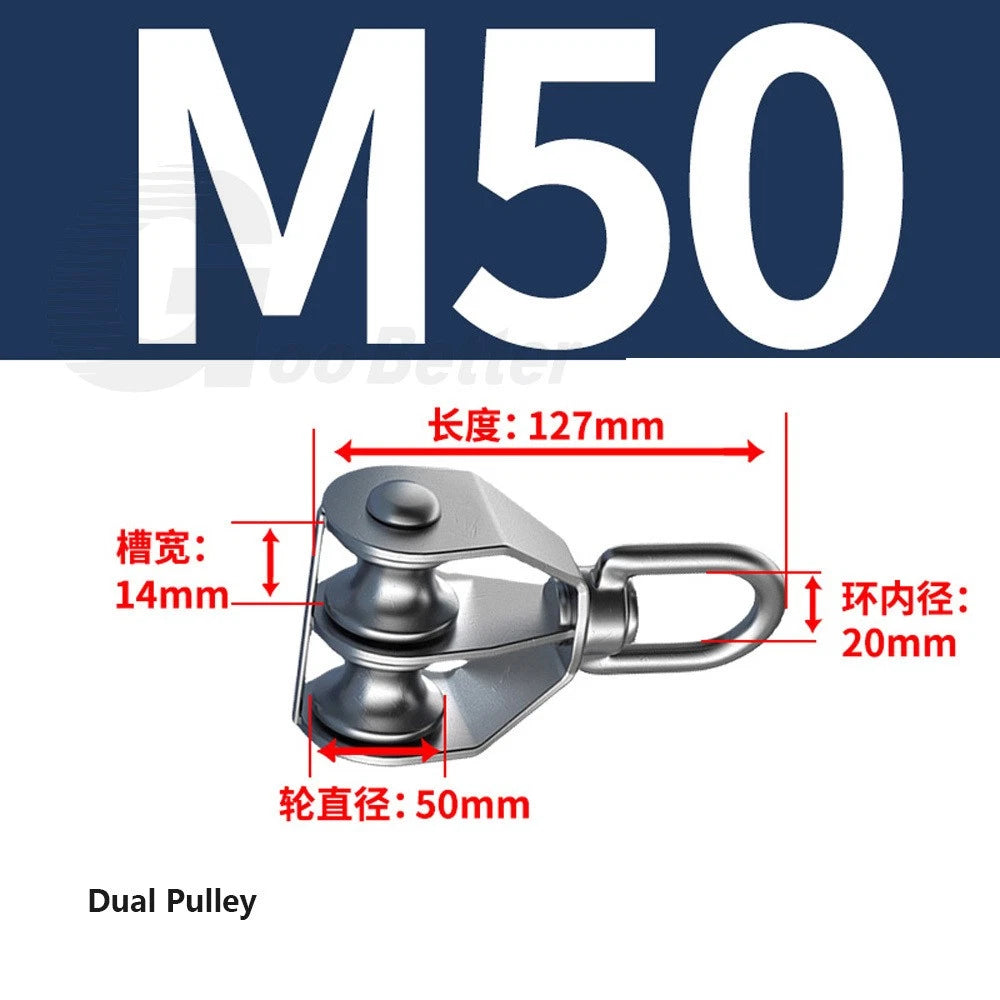

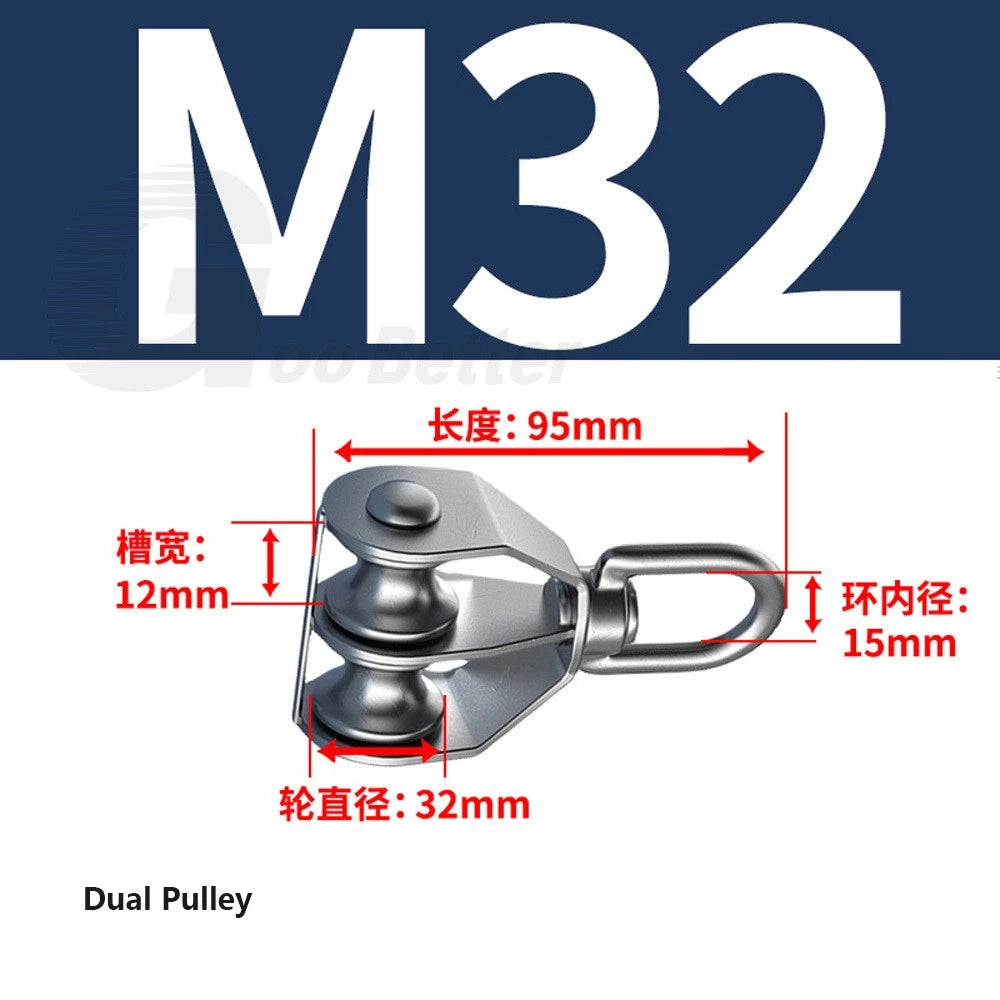

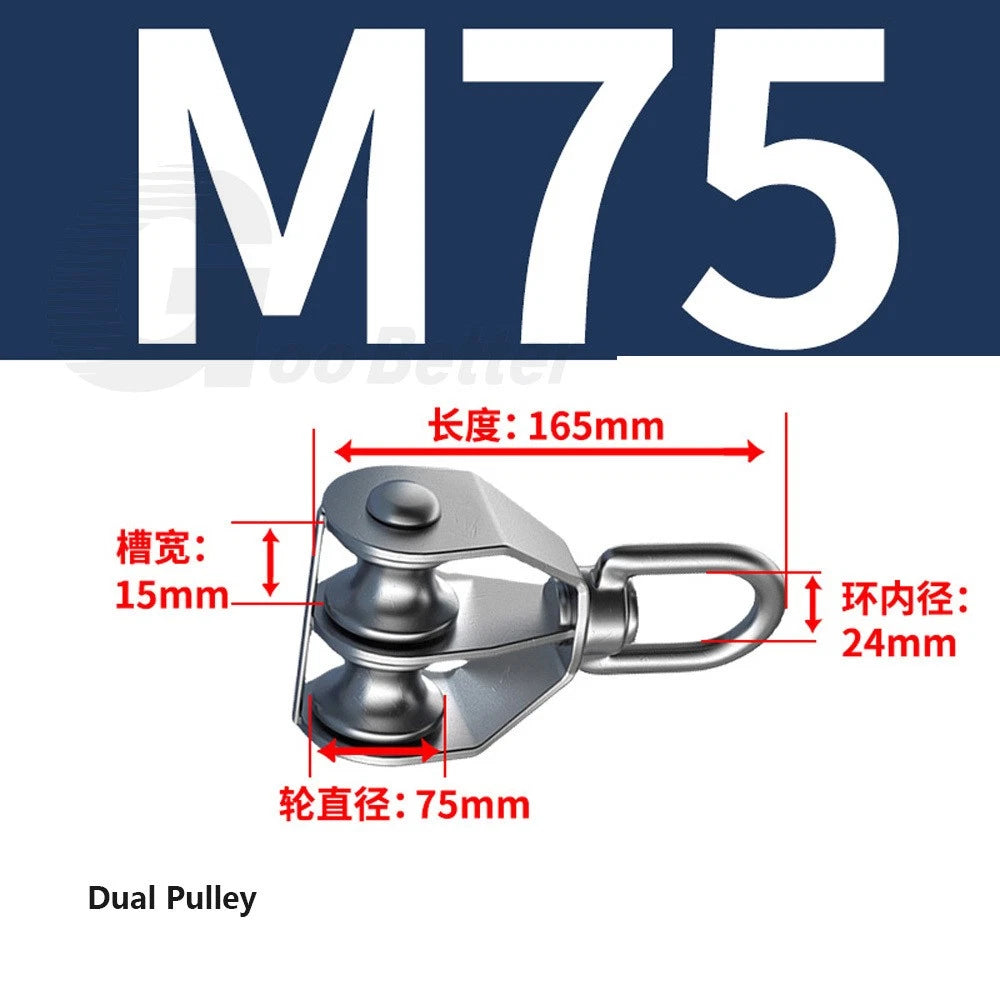

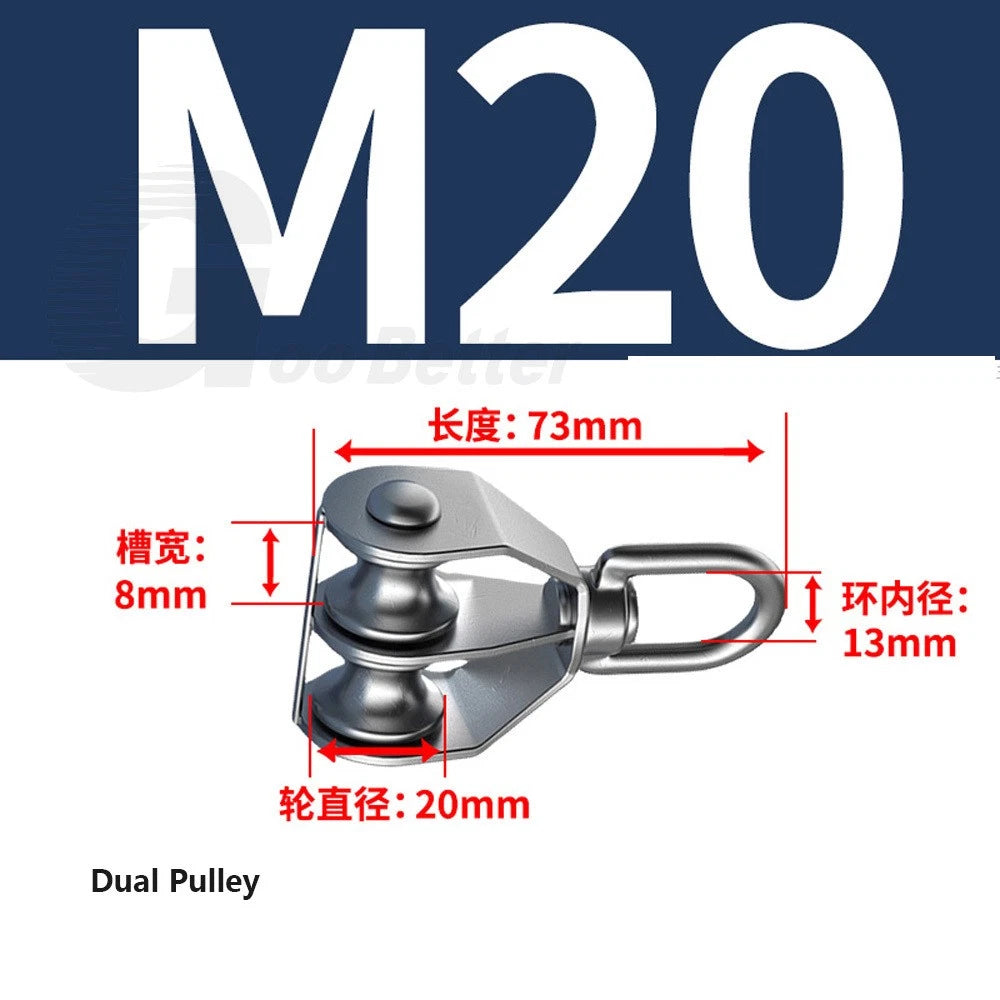

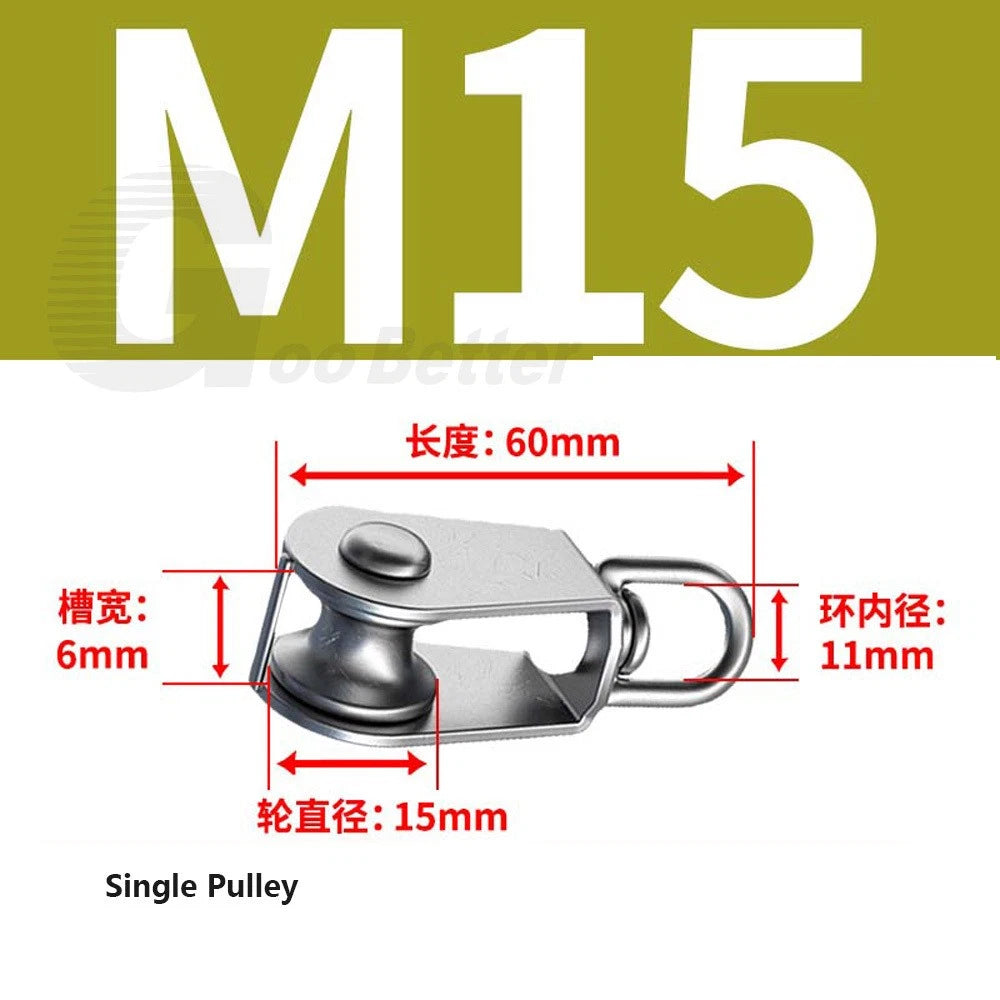

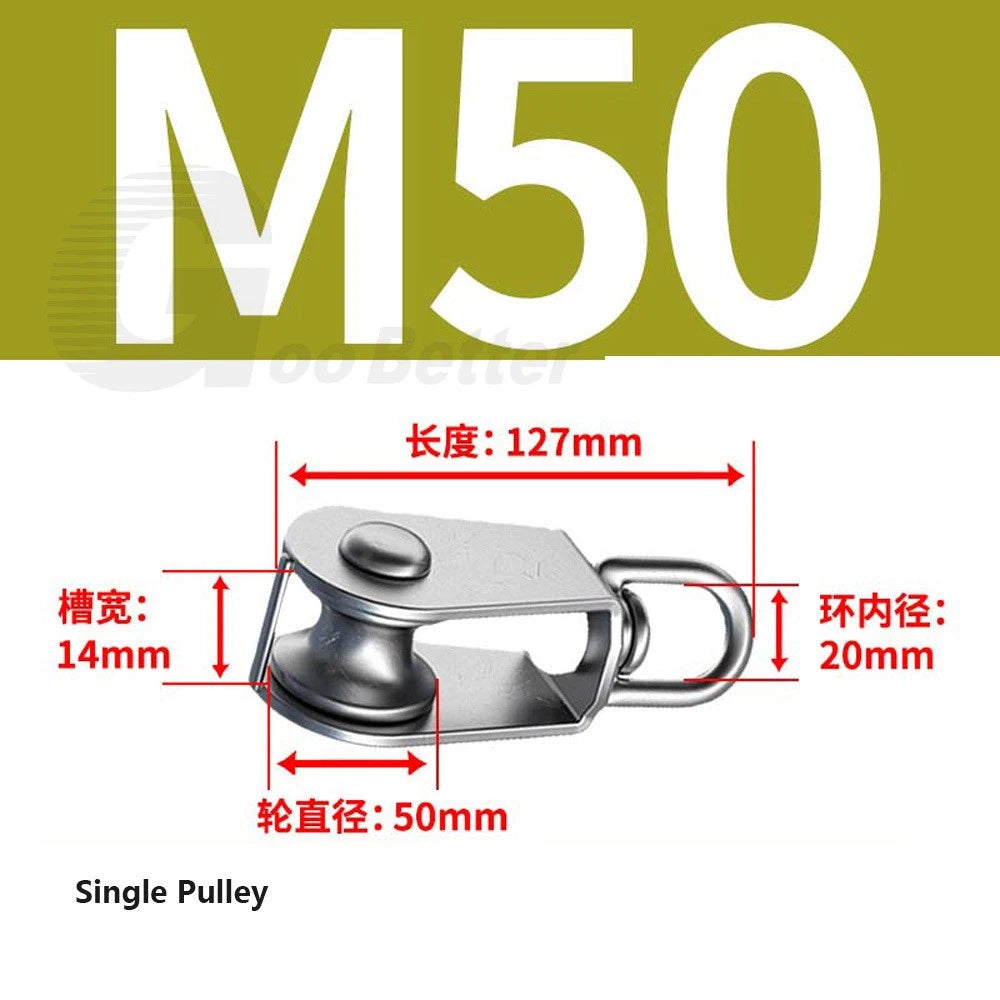

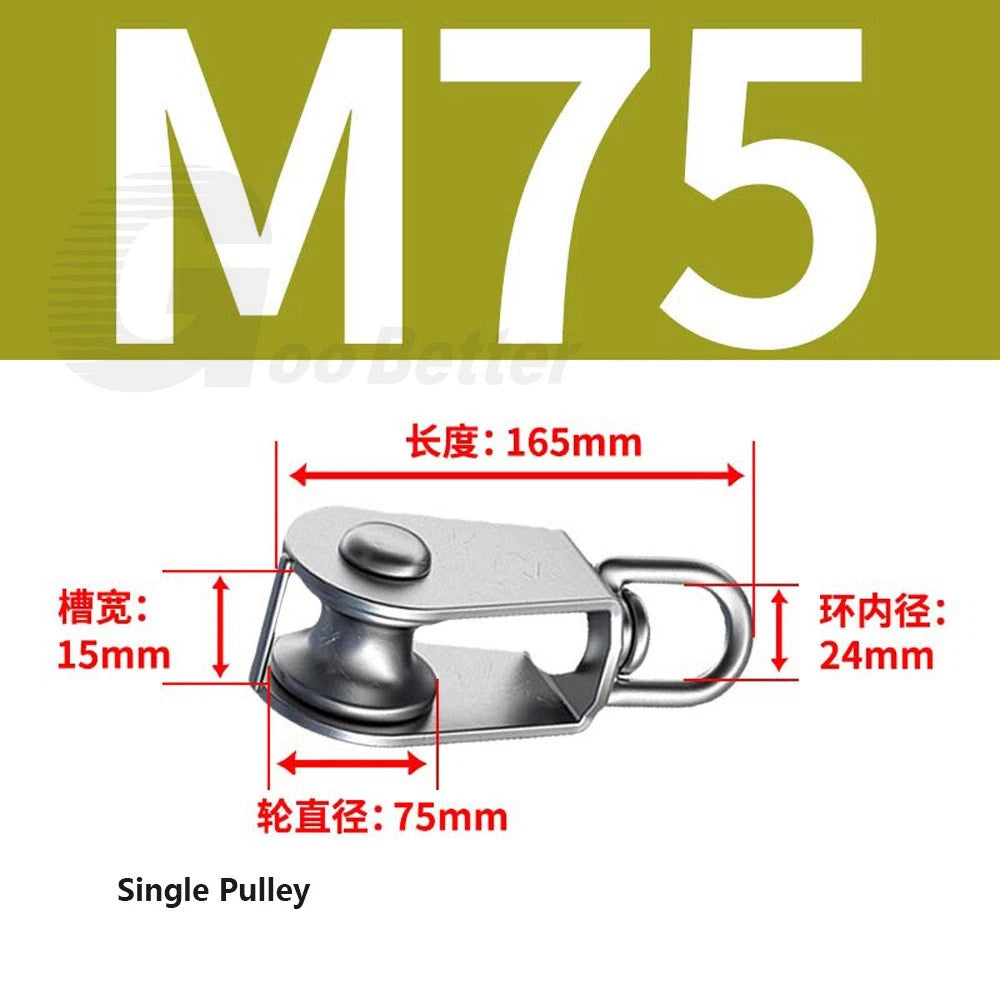

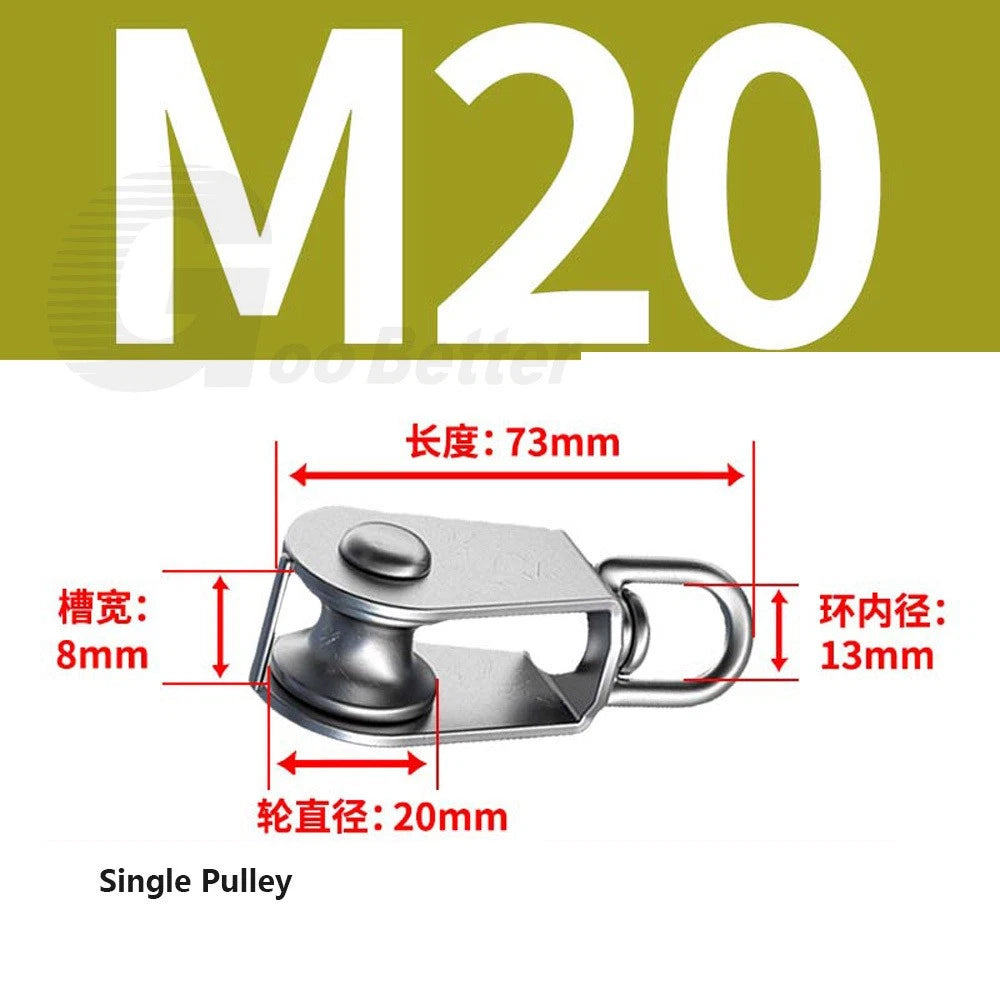

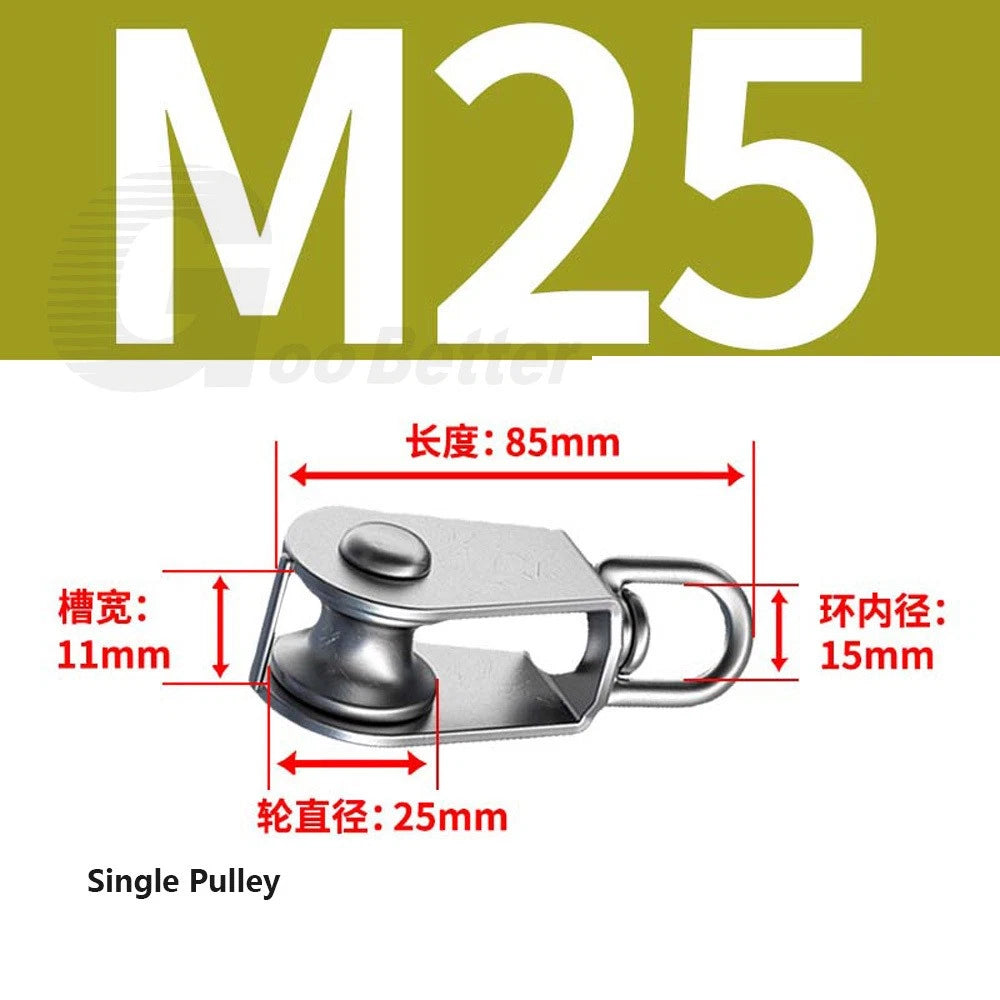

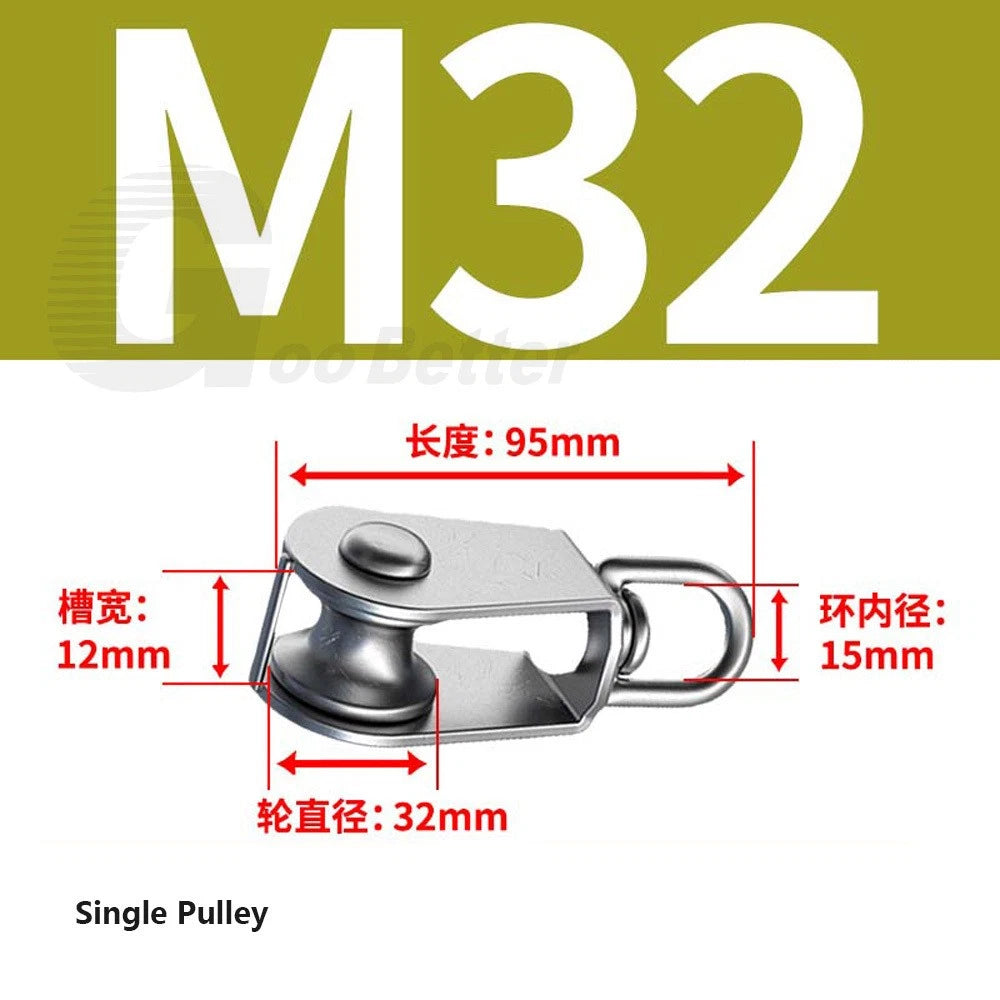

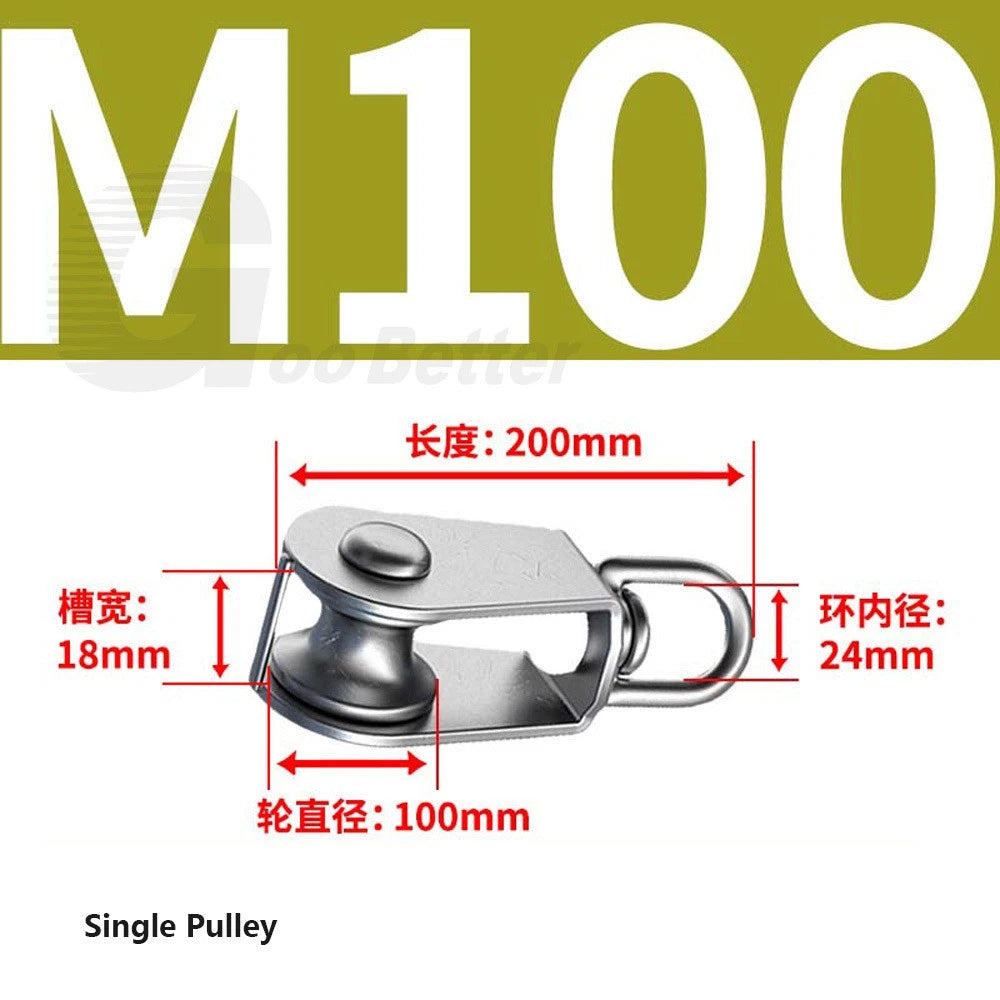

The size designation (M15, M20, M25, M32, M50, M75, M100) refers to the sheave diameter in millimeters. As a general rule, select a sheave diameter that is at least 8–10× the diameter of your rope for smooth operation and reduced rope wear. For example, a 6 mm wire rope pairs well with an M50 or larger sheave. If you are unsure, contact us to confirm compatibility before ordering.

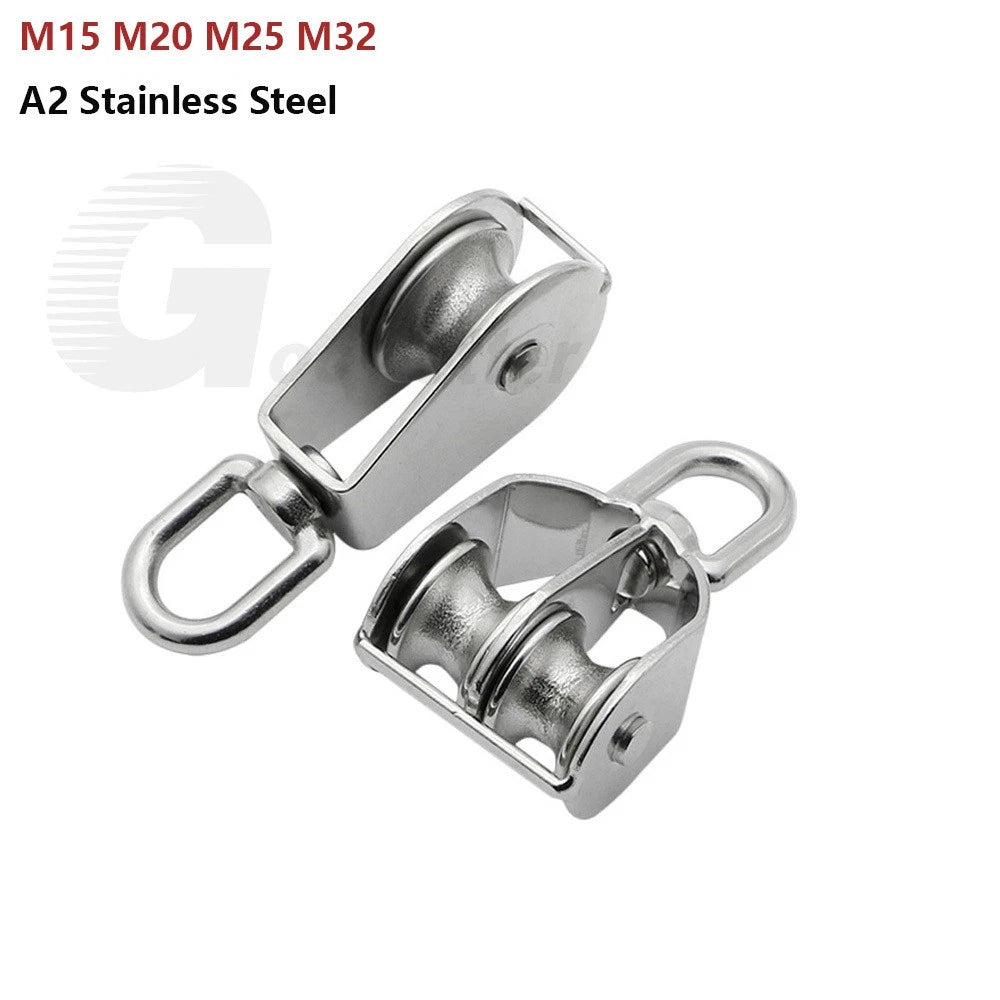

304 stainless steel offers solid corrosion resistance in most outdoor environments, including light marine exposure. It resists rust and oxidation well in fresh water and moderate salt-air conditions. For prolonged immersion in seawater or highly corrosive environments, 316 stainless steel is typically recommended. For general outdoor rigging, workshop hoists, and occasional marine use, 304 stainless steel performs reliably.

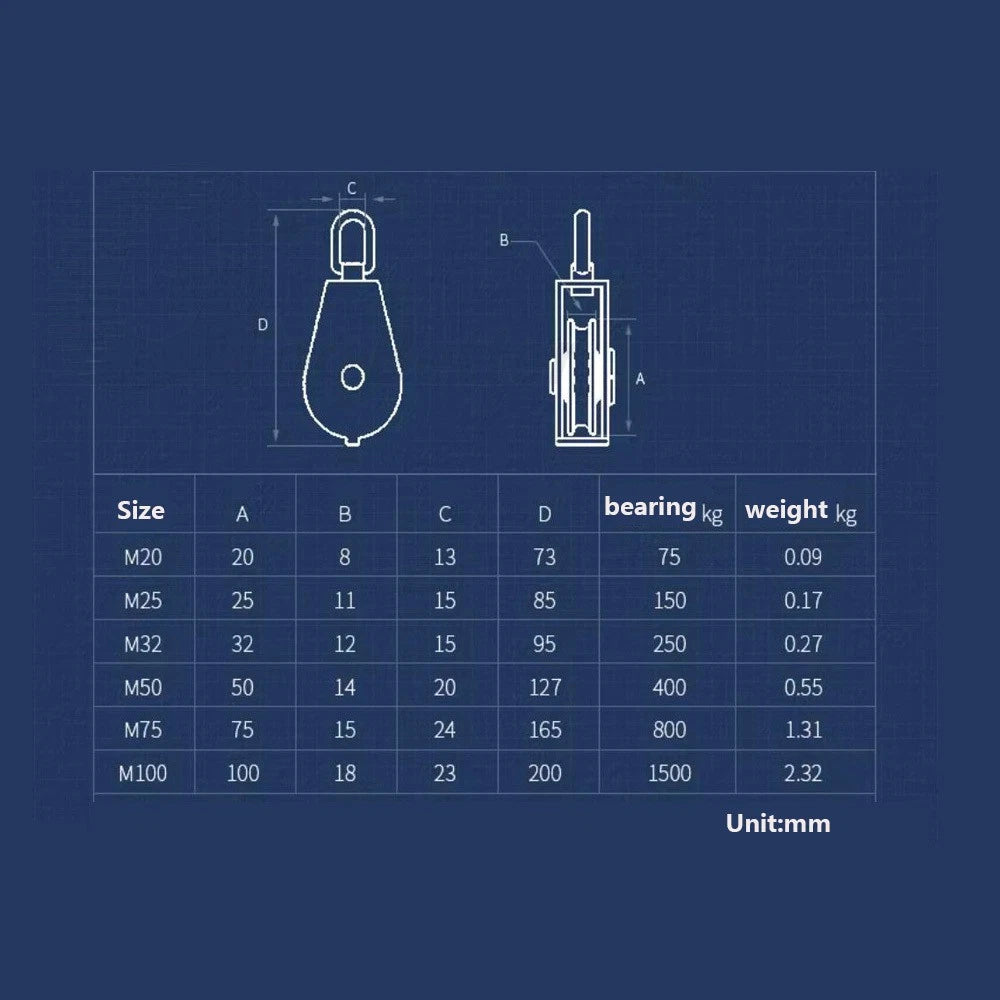

The working load limit (WLL) varies by sheave size and configuration (single vs. dual). Please refer to the variant-specific details or contact us to confirm the WLL for your chosen size before use in any load-bearing application. Never exceed the stated WLL, and always apply an appropriate safety factor for your application.

Yes. These swivel pulleys are compatible with both wire rope and synthetic rope (such as polyester or nylon braid), provided the rope diameter is matched to the sheave groove width. Using a rope that is too thick for the groove can cause binding and accelerated wear. Contact us if you need guidance on rope-to-sheave compatibility for your specific rope diameter.

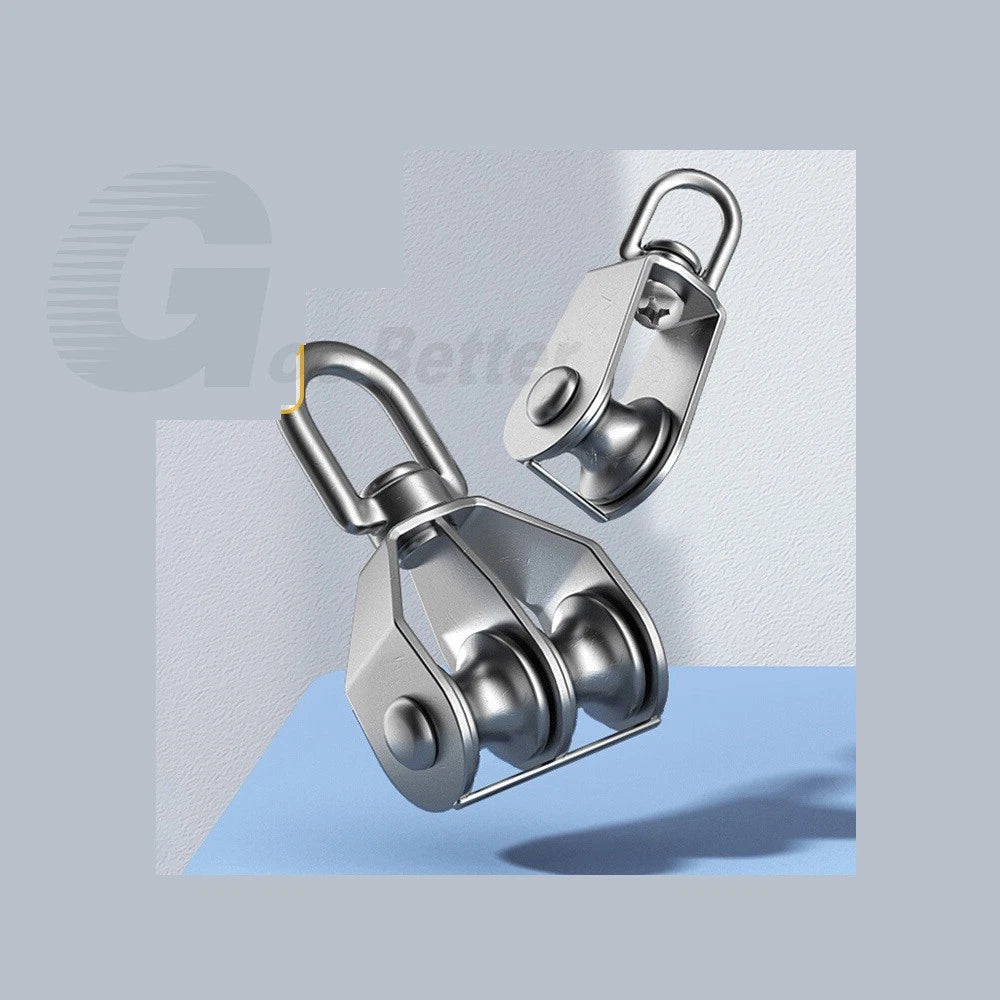

The swivel mount is designed to rotate and self-align as the load direction changes, helping to prevent the rope from twisting and reducing torsional stress on the anchor point. Under very heavy static loads, swivel rotation may be limited by friction — this is normal behavior for swivel-mount pulleys. The primary benefit is alignment correction during rigging setup and dynamic load shifts.

Rinse the pulleys with fresh water after exposure to salt air or dirty environments. Periodically inspect the sheave wheel for wear grooves and check that the swivel rotates freely. Apply a light coat of corrosion-inhibiting lubricant to the swivel pivot and sheave axle every few months, or more frequently in harsh conditions. Replace any pulley that shows cracks, deformation, or significant sheave wear before continued use.
