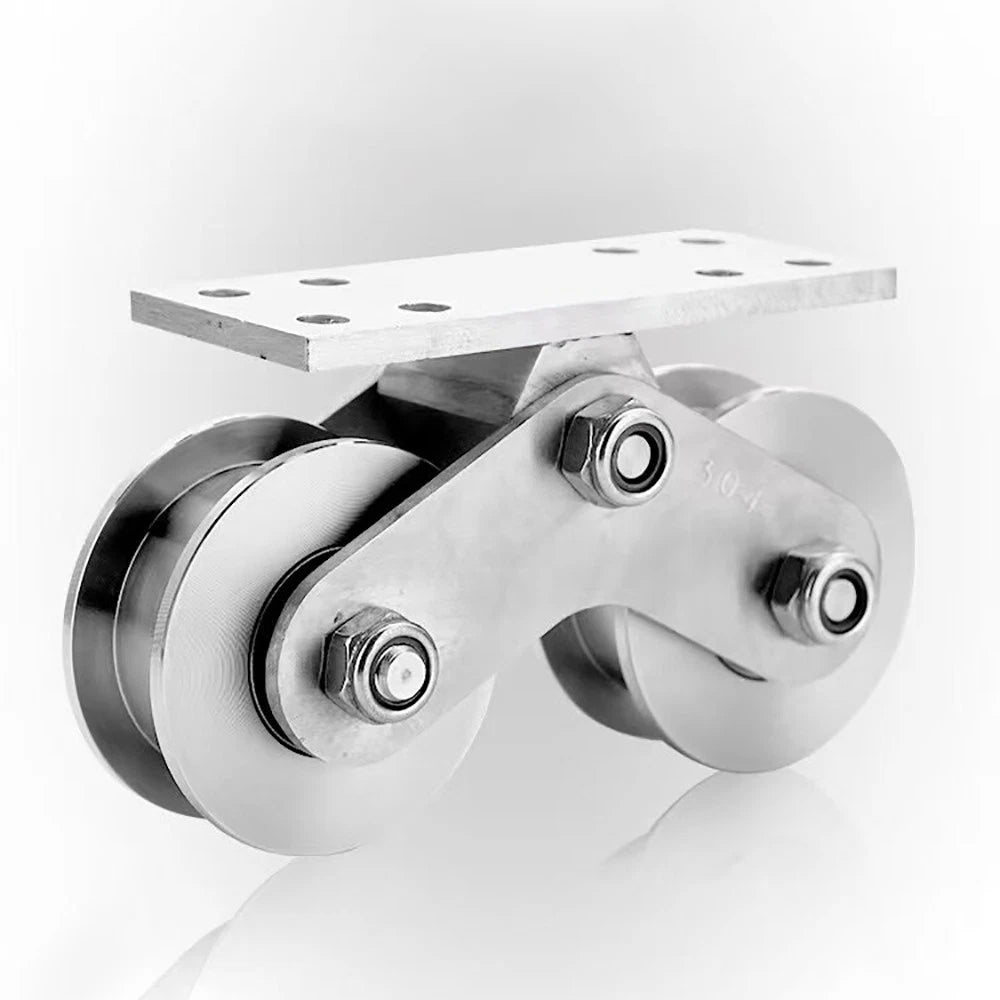

Stainless Steel Pulley UVH Groove Sliding Door Roller Runner Wheel Track Pulley

Roll over image to zoom in Click on image to zoom

Stainless Steel Pulley UVH Groove Sliding Door Roller Runner Wheel Track Pulley

HomeDIYer

No reviews

By HomeDIYer®

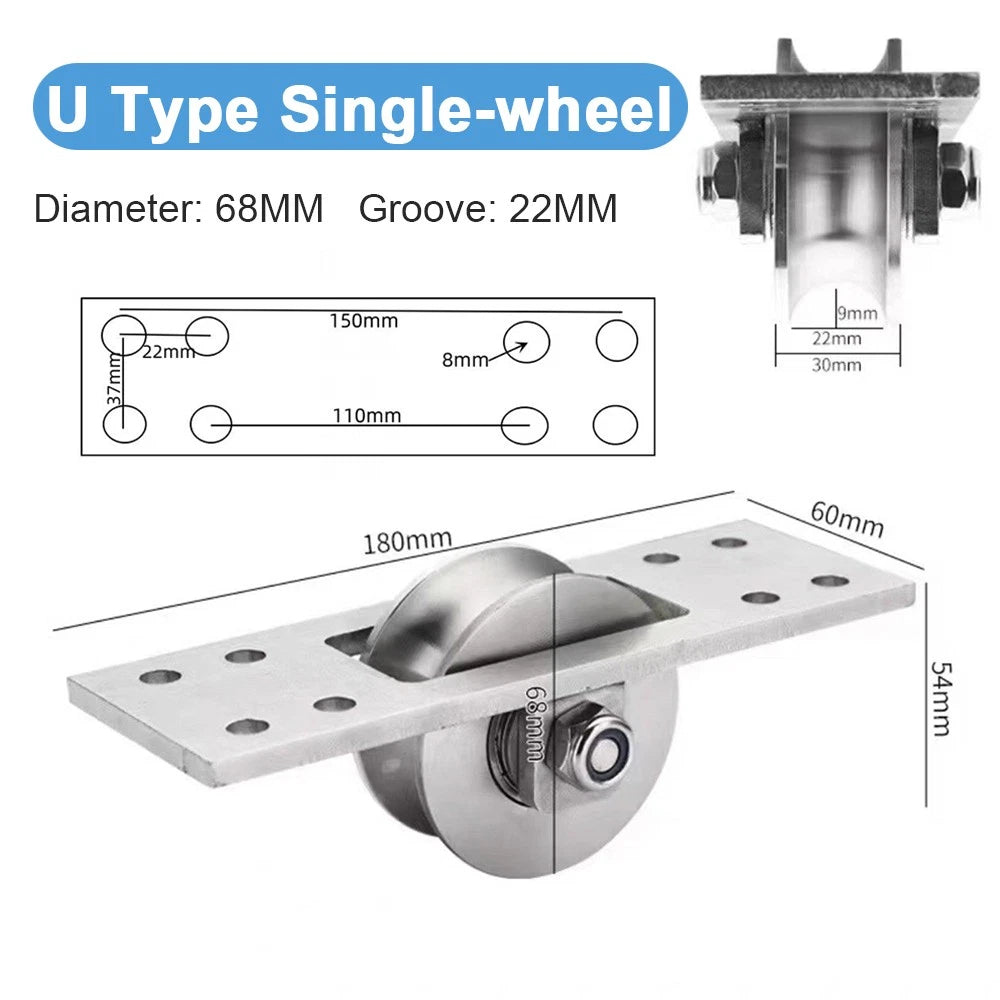

Size Specifications: U Type Groove 22MM Single-wheel

Bracket material: 304 Stainless Steel

Price:

$143.96 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Stainless Steel UVH Groove Sliding Door Pulley — Smooth, Corrosion-Resistant Track Rolling

Sliding doors that jump the track, bind under load, or corrode after a season outdoors are a constant frustration for builders, fabricators, and property owners alike. These stainless steel UVH groove sliding door roller pulleys are engineered for anyone who needs a reliable, long-service rolling solution — from residential barn door hardware to industrial conveyor and gate systems.

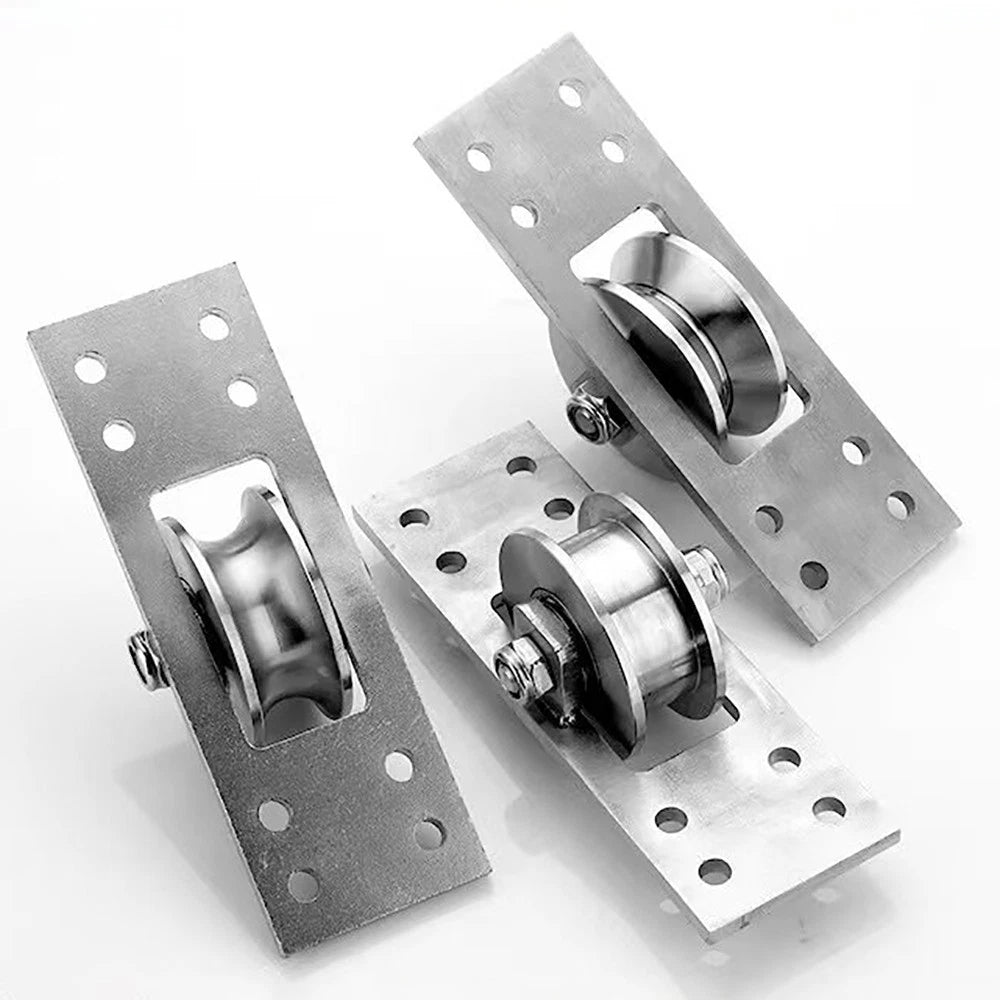

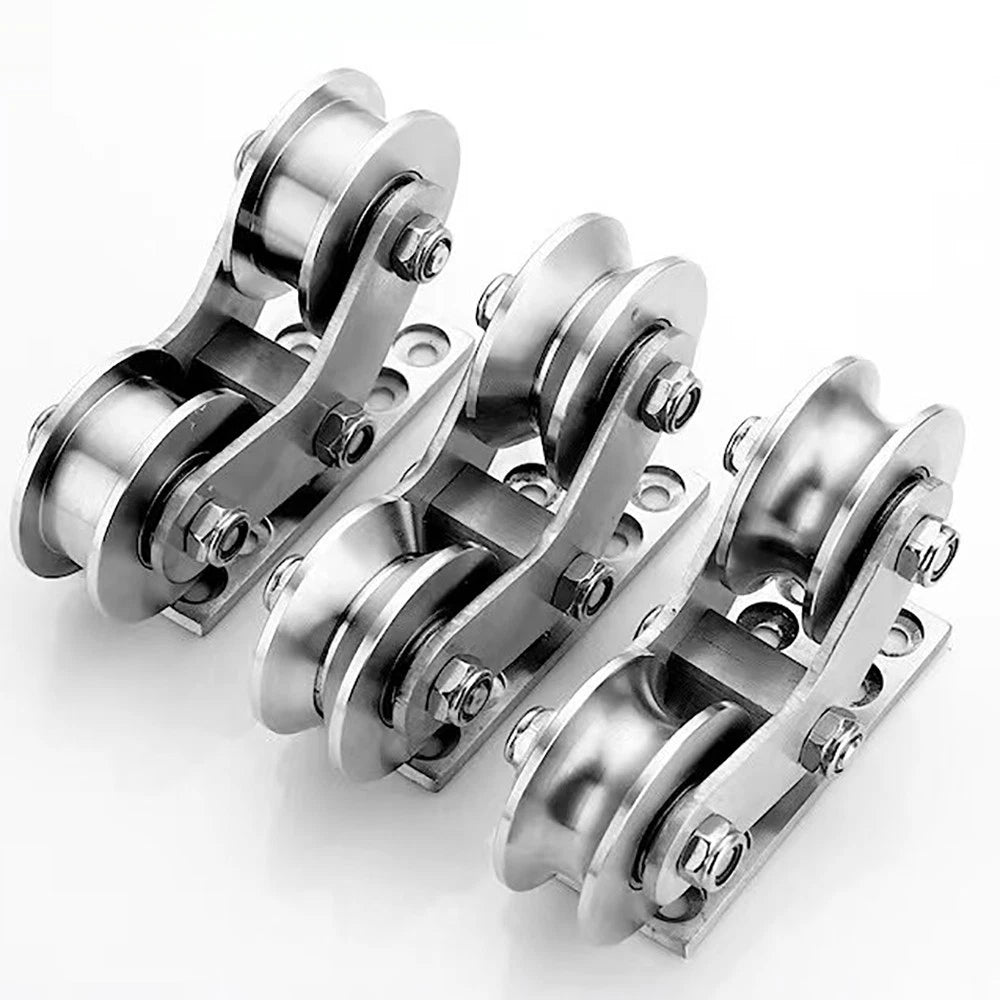

Each pulley assembly consists of a precision-machined stainless steel bracket (available in 304 or 201 grade) paired with a grooved wheel — U-type, V-type, or H-type — in diameters of 20 mm (0.79 in), 22 mm (0.87 in), or 25 mm (0.98 in). Single-wheel and dual-wheel configurations are available, with wheel materials in stainless steel or nylon depending on the variant selected.

Typical applications include sliding barn door hardware for residential interiors, heavy-duty gate roller systems for agricultural and commercial fencing, overhead conveyor track assemblies in light manufacturing, and cable or rope guide pulleys for marine and outdoor installations requiring corrosion resistance.

🔩 Compatibility: Designed for standard flat or angled track profiles. U-groove suits round rod/pipe rails; V-groove suits angled or chamfered tracks; H-groove suits flat-flange or I-beam style rails. Verify track profile and flange width before ordering.

✅ Key Features of These Stainless Steel UVH Groove Sliding Door Pulleys

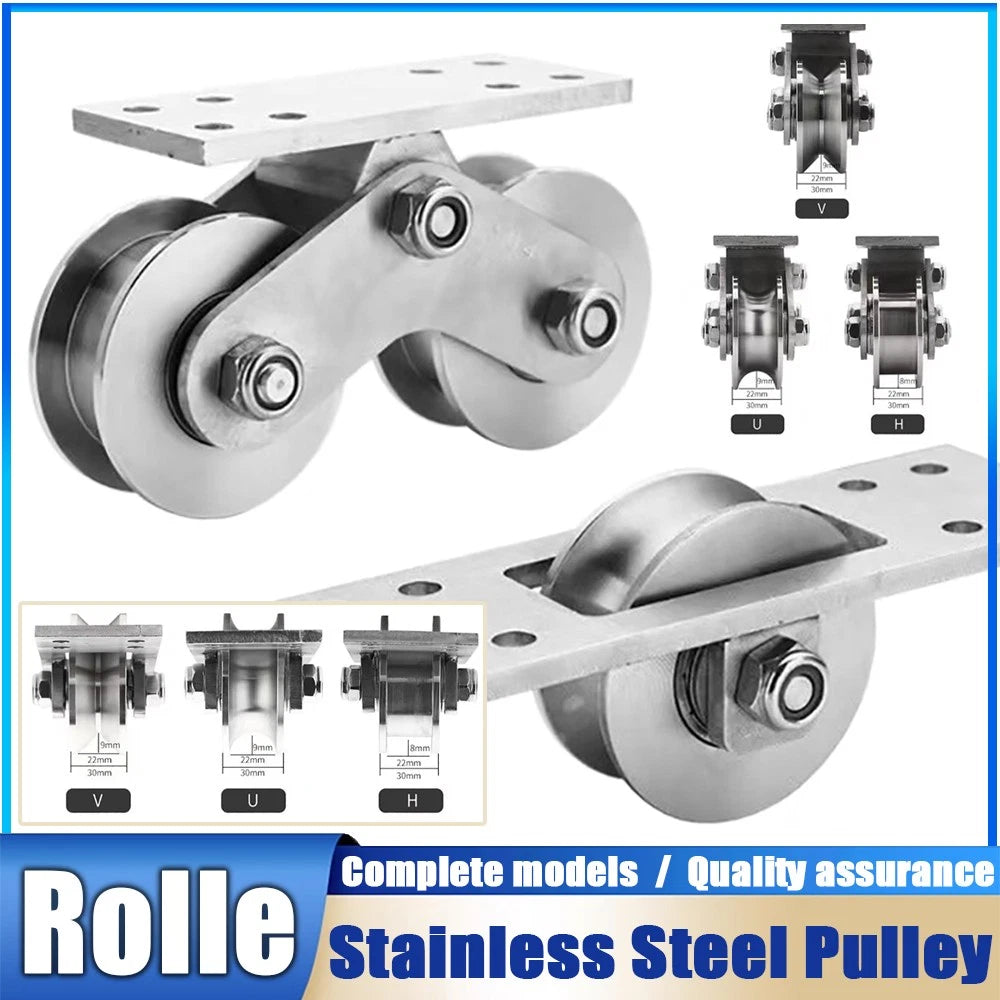

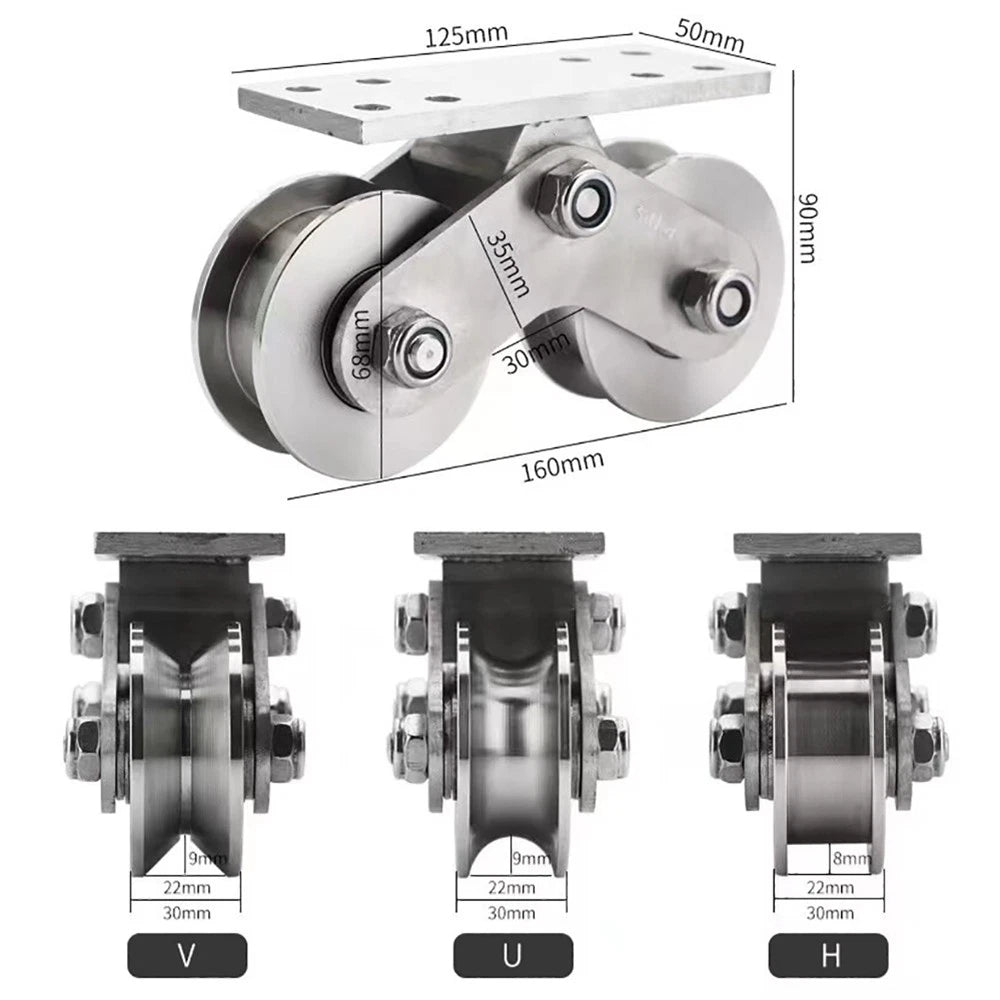

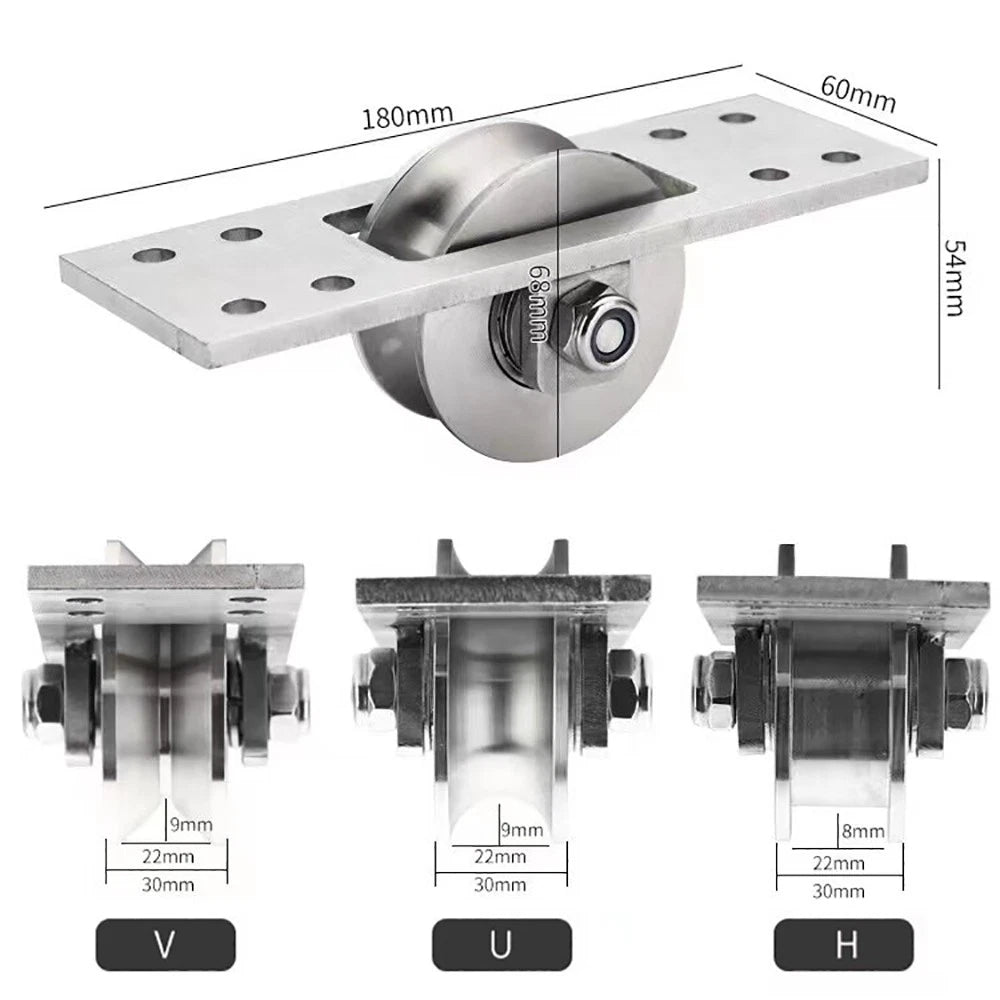

🔄 Three Groove Profiles

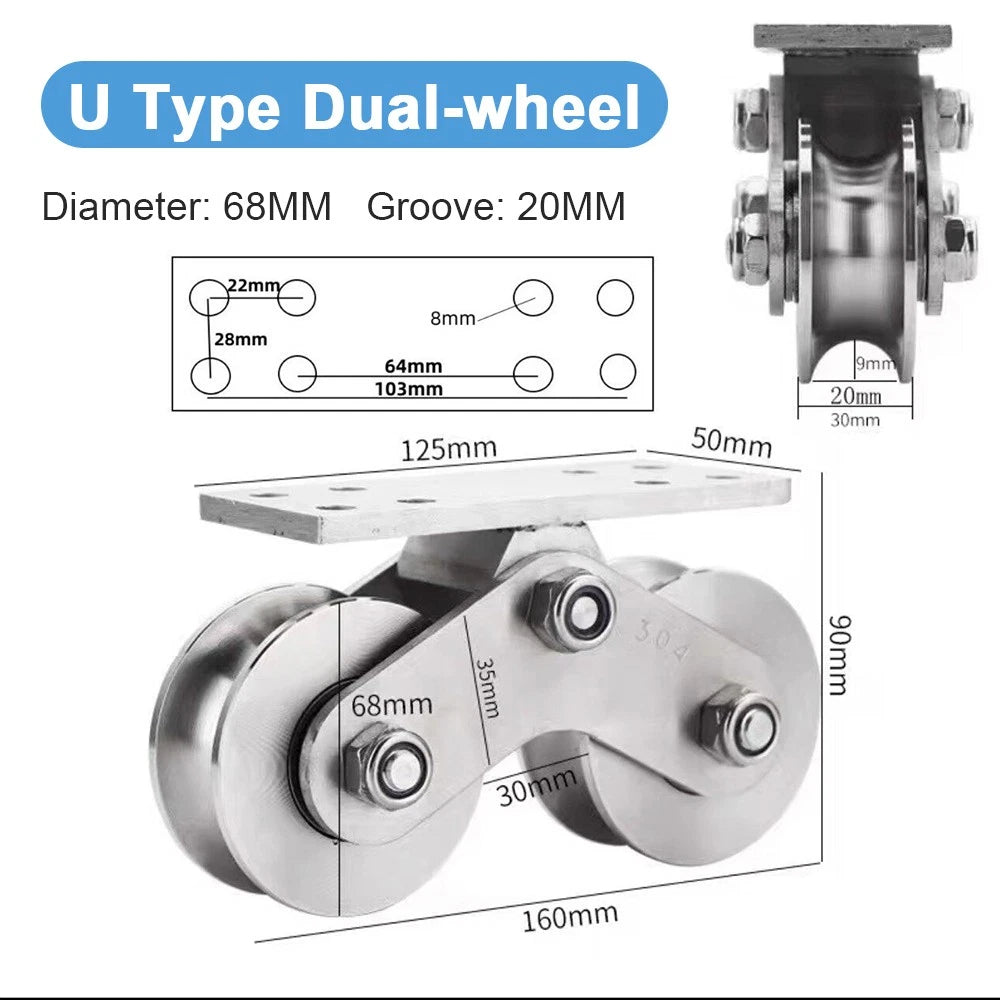

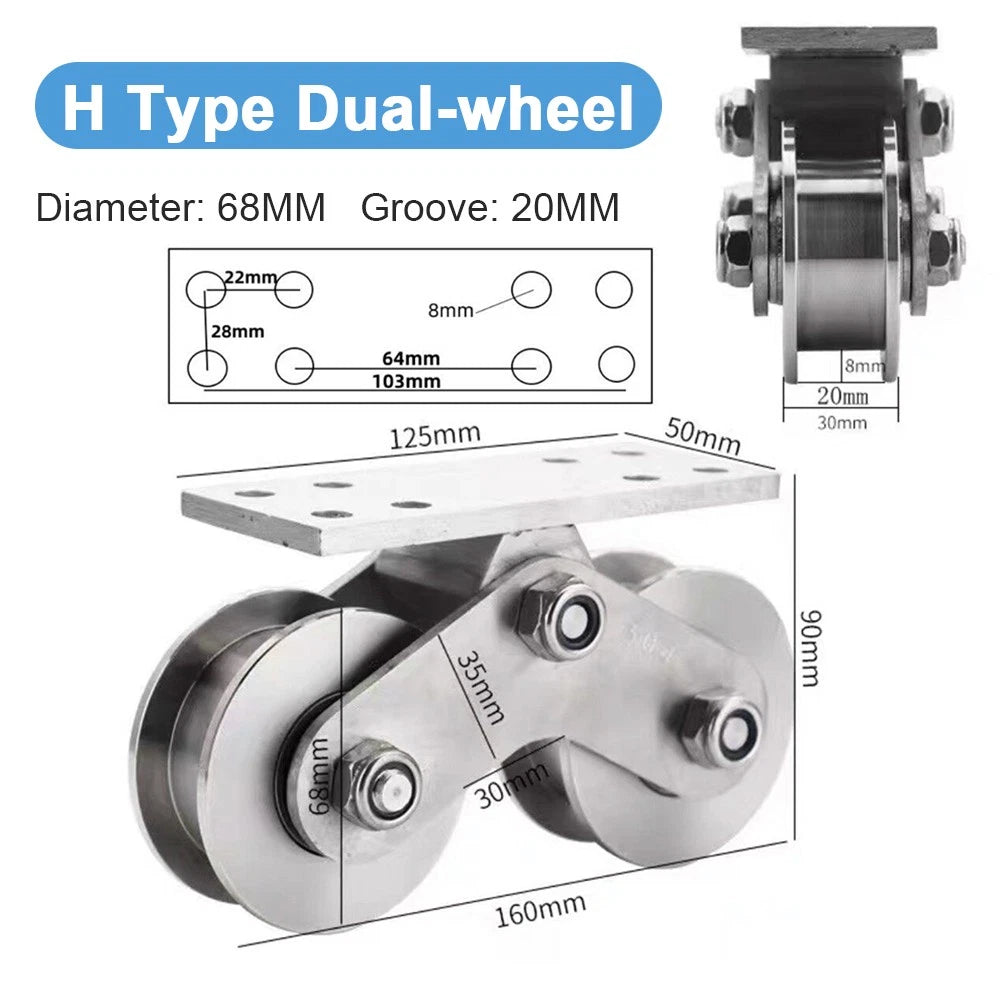

U-type, V-type, and H-type groove options let you match the pulley precisely to your track profile, reducing lateral play and extending wheel life.

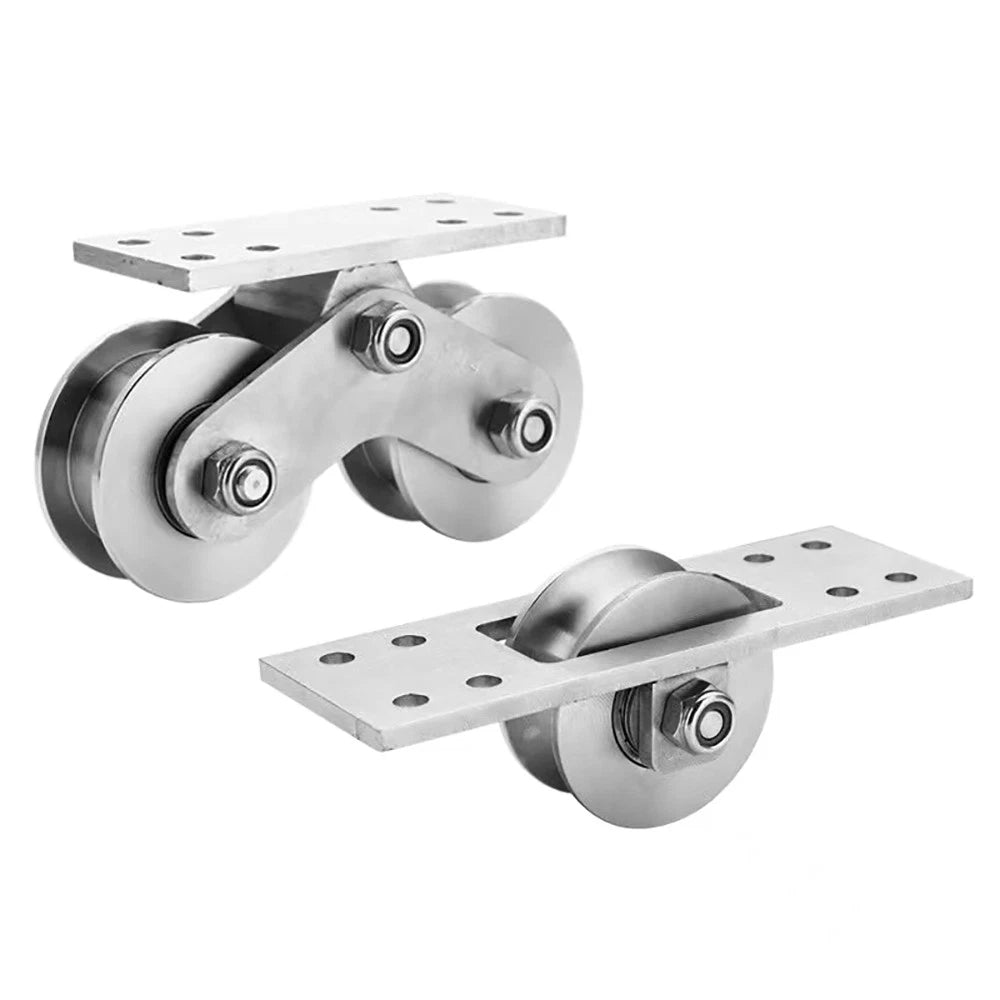

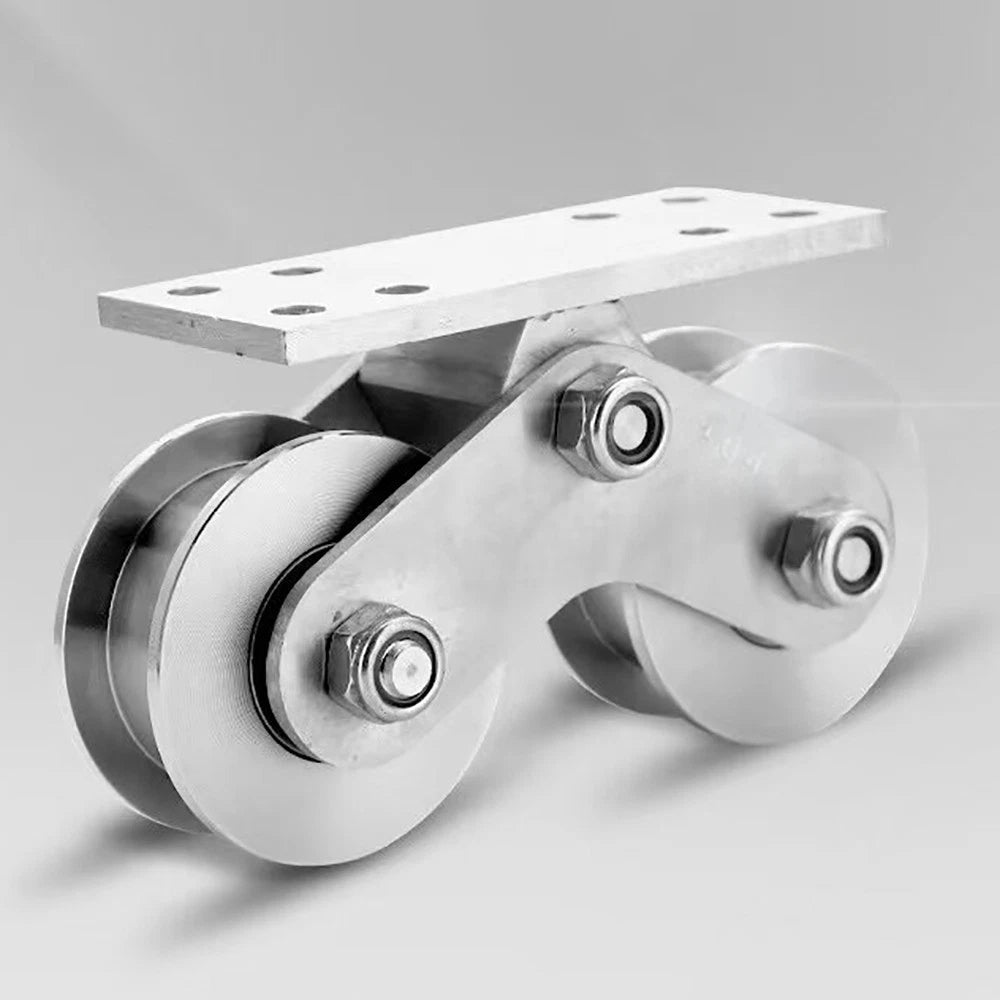

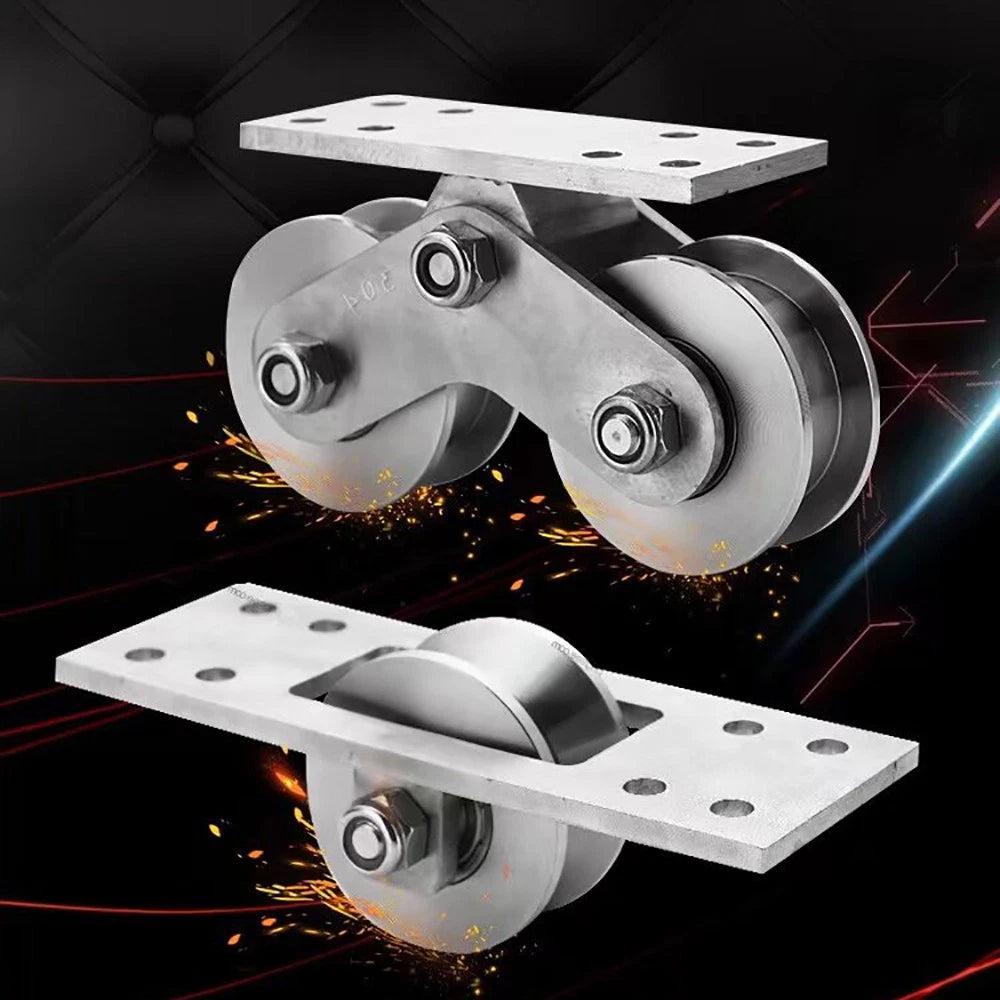

⚙️ Single & Dual-Wheel Configurations

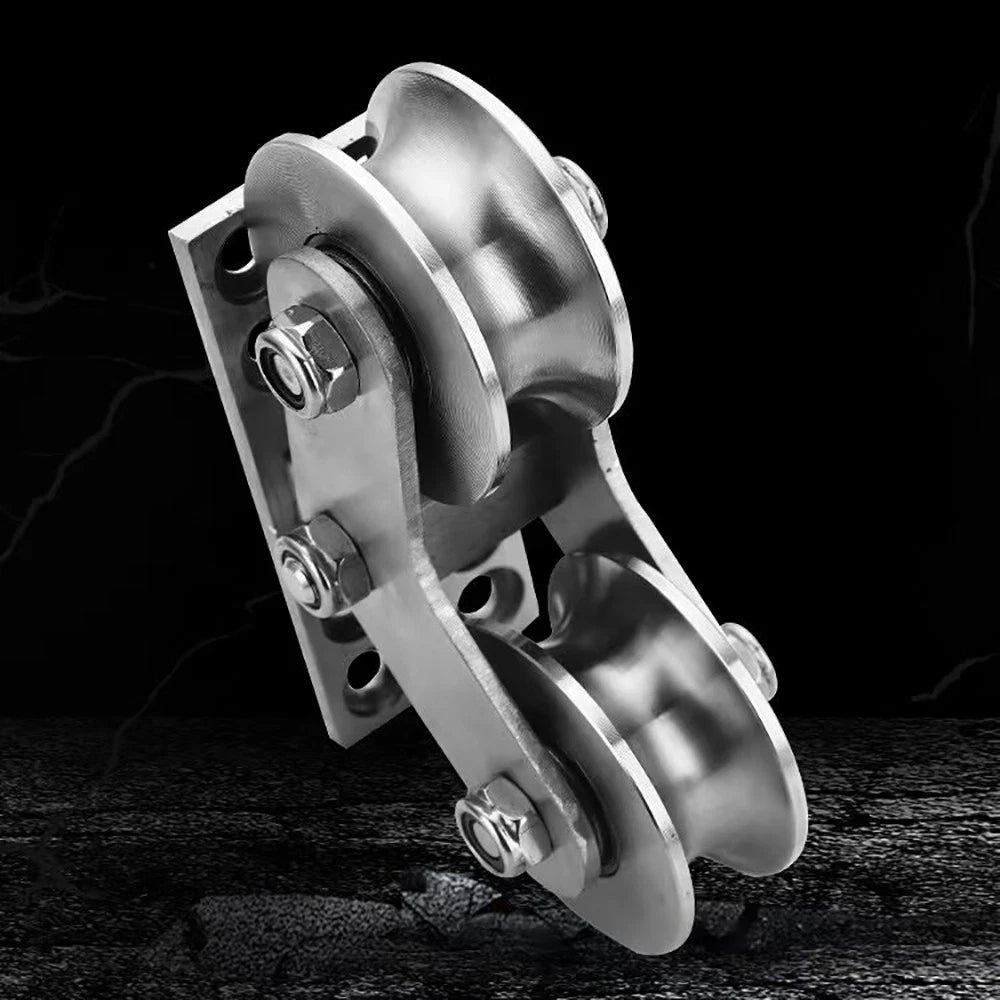

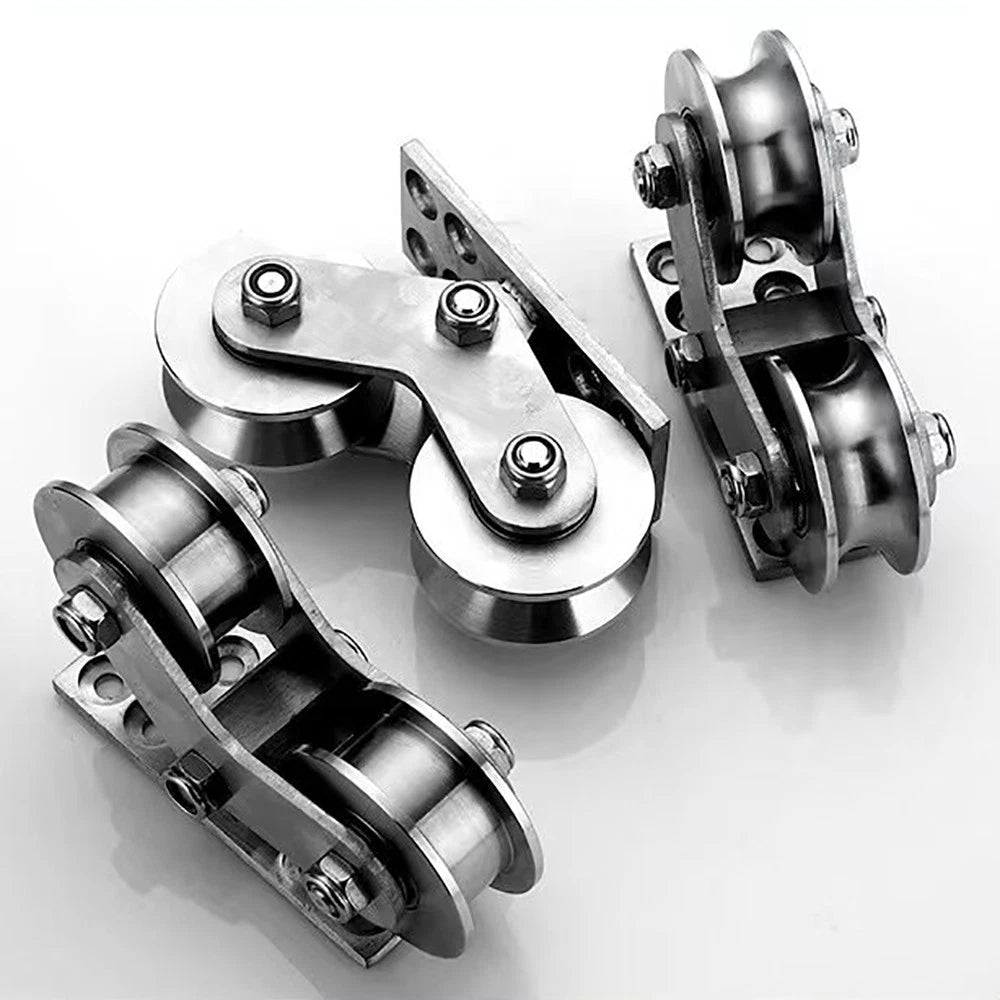

Single-wheel variants suit lighter loads and compact brackets; dual-wheel variants distribute load across two contact points for heavier doors and gates.

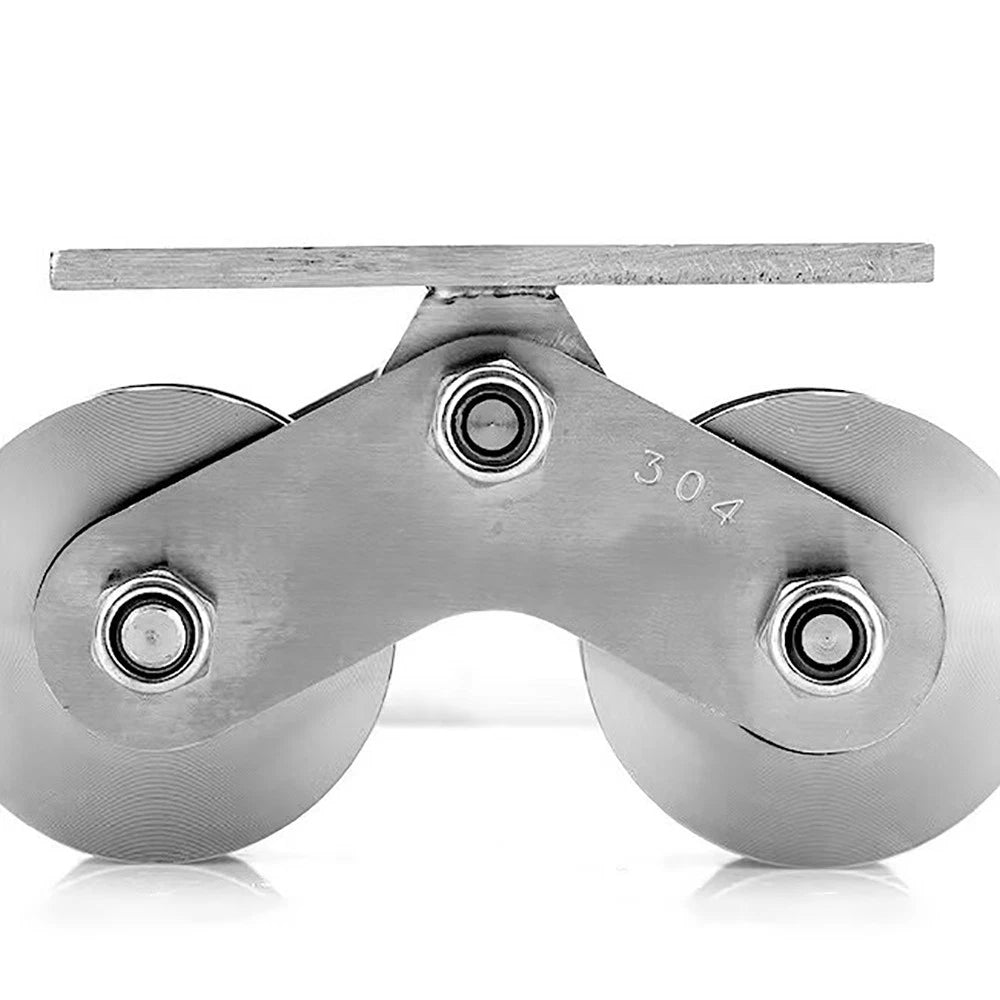

🛡️ 304 & 201 Stainless Steel Brackets

304-grade brackets offer superior corrosion resistance for outdoor, coastal, or humid environments; 201-grade provides a cost-effective option for indoor or low-moisture applications.

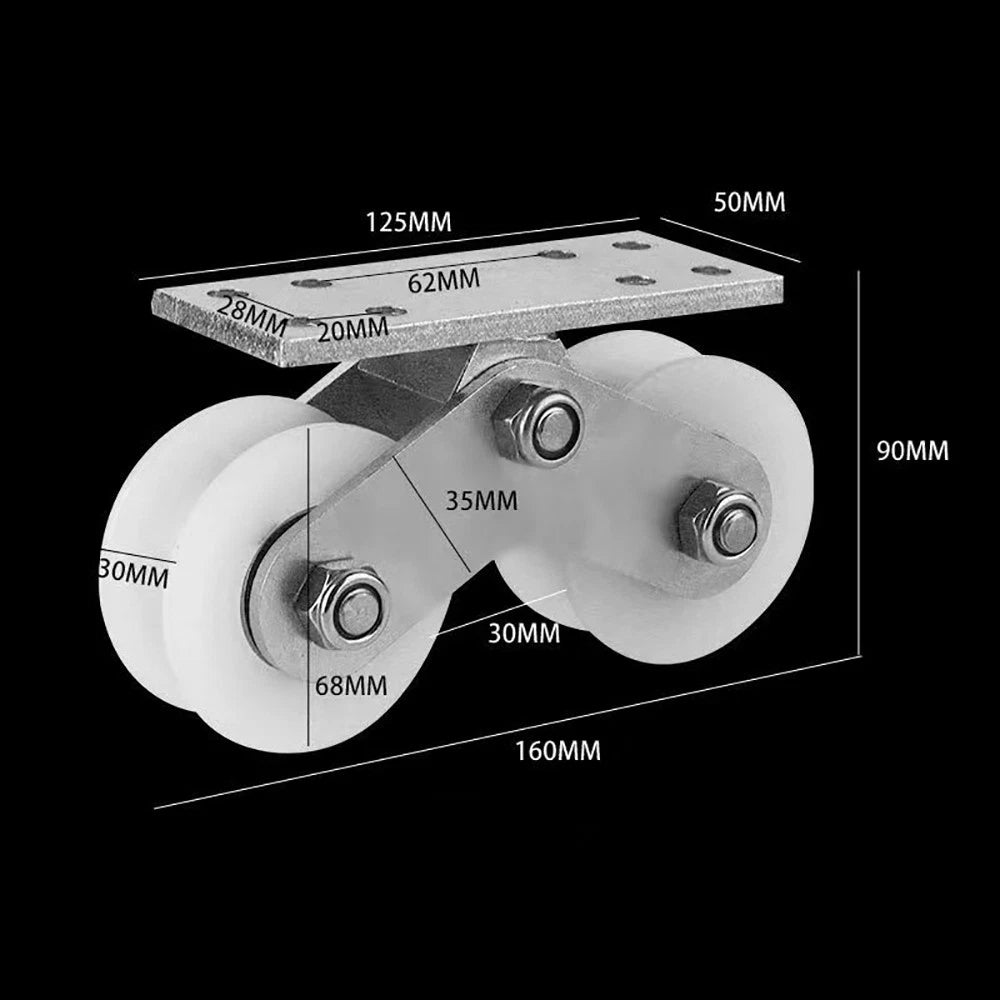

🔵 Stainless Steel or Nylon Wheel Options

Stainless steel wheels handle higher loads and temperatures; nylon wheels run quieter and are gentler on delicate track surfaces — ideal for interior sliding door systems.

📐 Multiple Wheel Diameters

Available in 20 mm, 22 mm, and 25 mm wheel diameters to suit a range of track widths and load requirements across residential and light-commercial projects.

🔧 Bolt-On Bracket Design

The bracket features pre-drilled mounting holes for straightforward installation onto door panels, gate frames, or structural members without specialized tooling.

📐 Technical Specifications — Stainless Steel Groove Sliding Door Pulleys

Bracket Material	304 Stainless Steel / 201 Stainless Steel (see variant options)
Wheel Material	Stainless Steel or Nylon (see variant options)
Groove Type	U-Type / V-Type / H-Type (see variant options)
Wheel Diameter	20 mm (0.79 in) / 22 mm (0.87 in) / 25 mm (0.98 in) (see variant options)

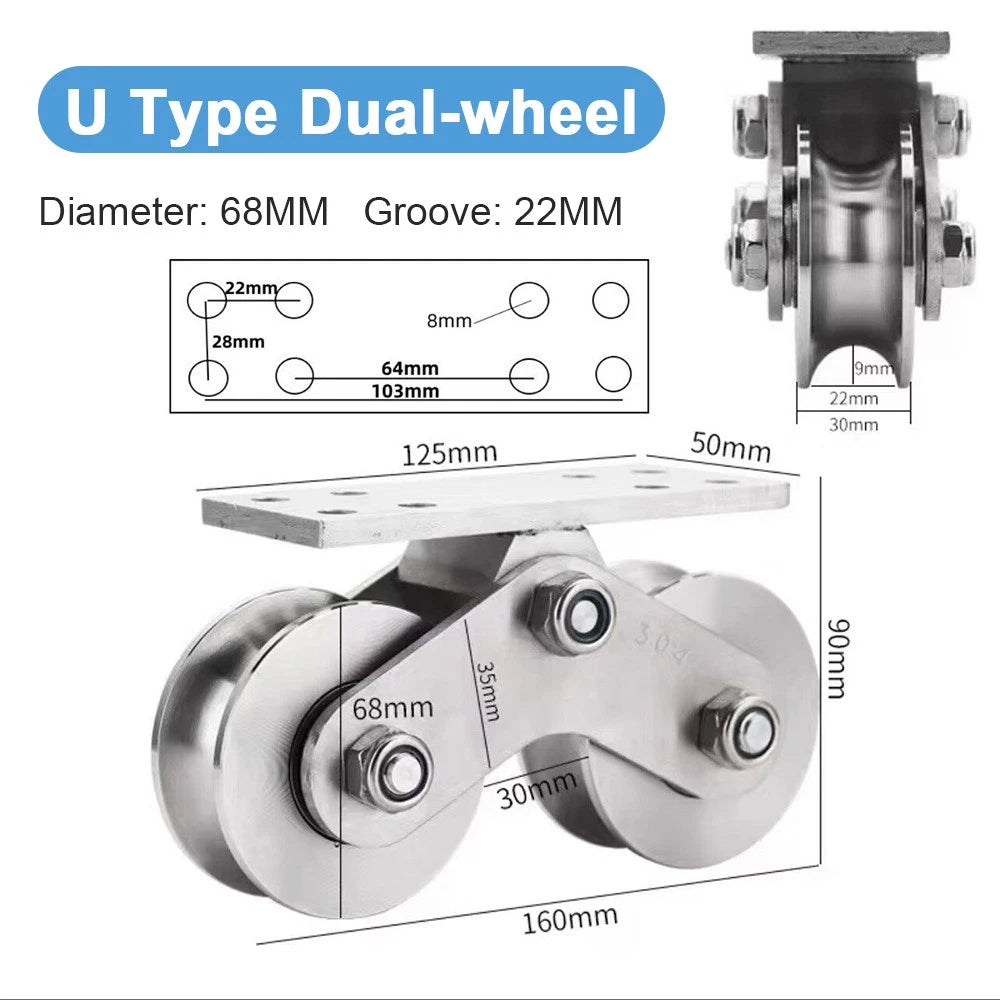

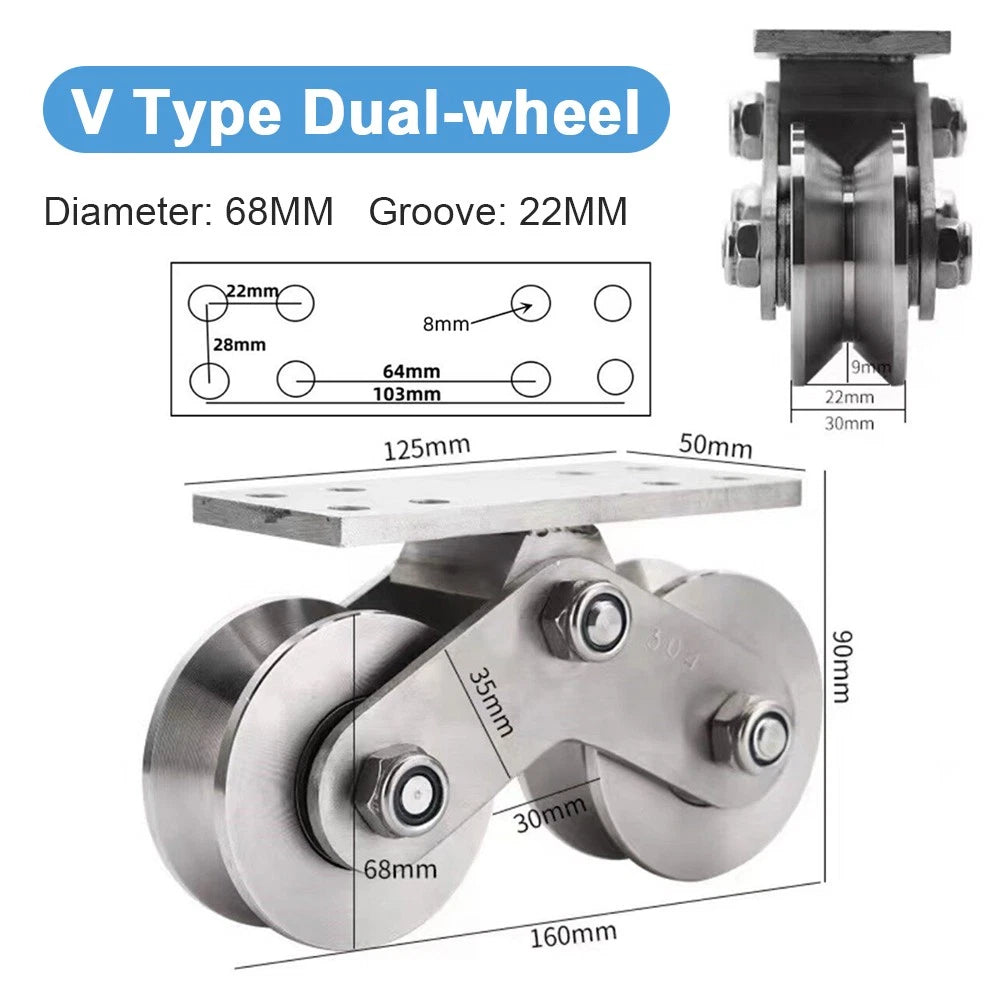

Wheel Configuration	Single-wheel / Dual-wheel (see variant options)
Finish	Brushed / Natural Stainless Steel
Mounting	Bolt-on bracket with pre-drilled holes
Recommended Track Profile	See variant options
Max Load Capacity	See variant options / Contact us to confirm
Operating Temperature Range	Typically −20°C to +120°C (−4°F to +248°F)
Quantity per Unit	1 piece

❓ Frequently Asked Questions

How do I choose between U-type, V-type, and H-type groove?

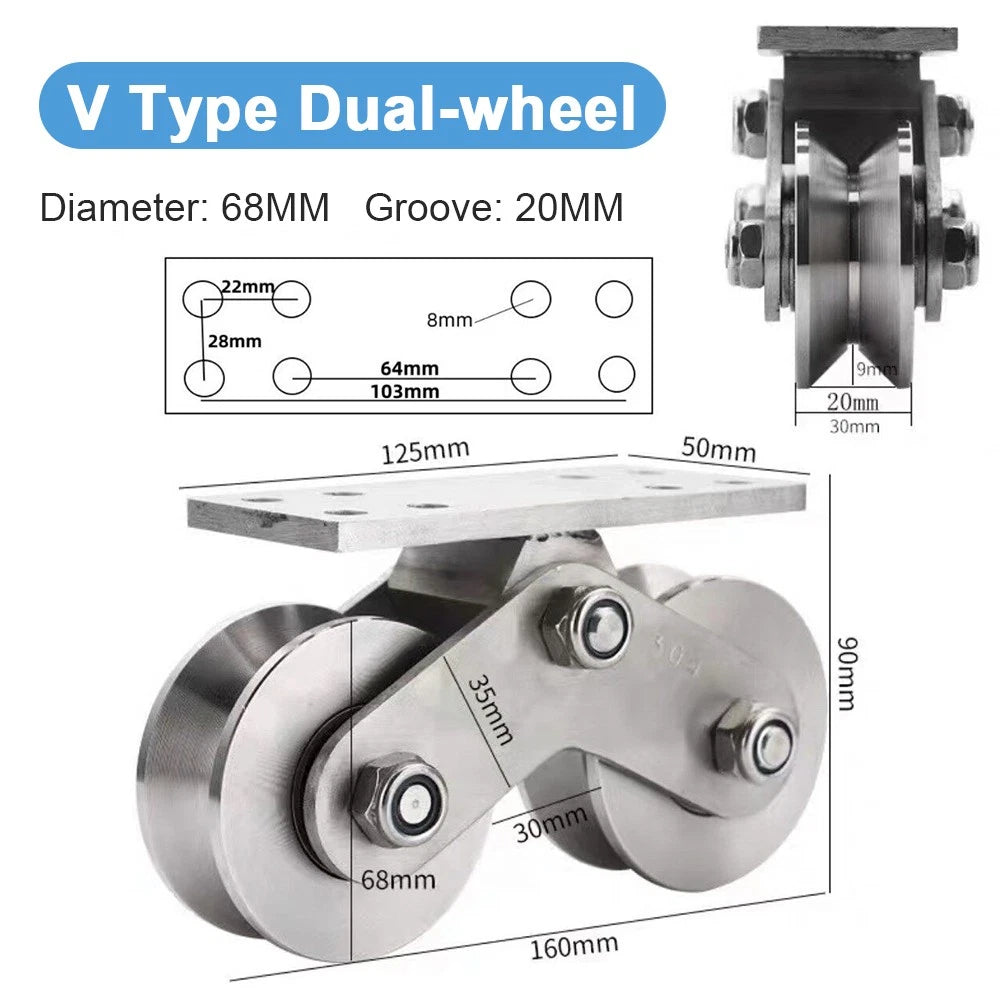

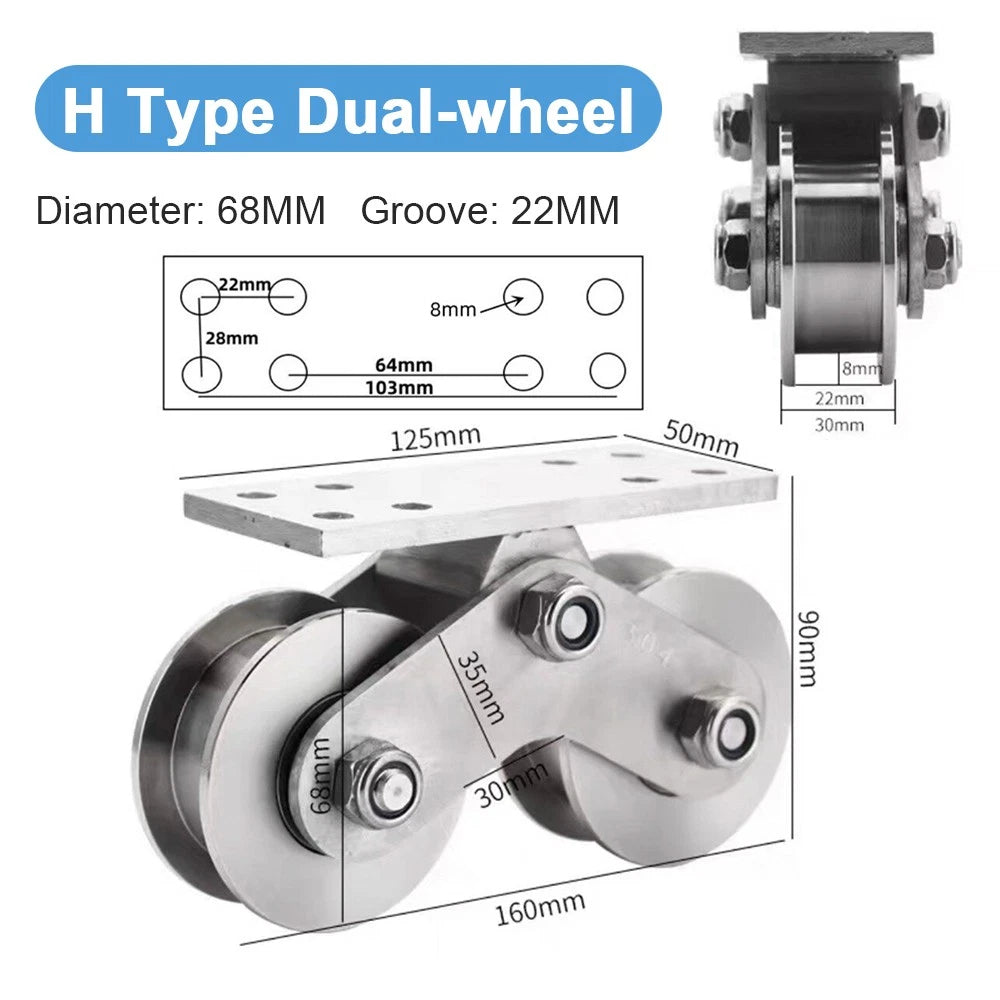

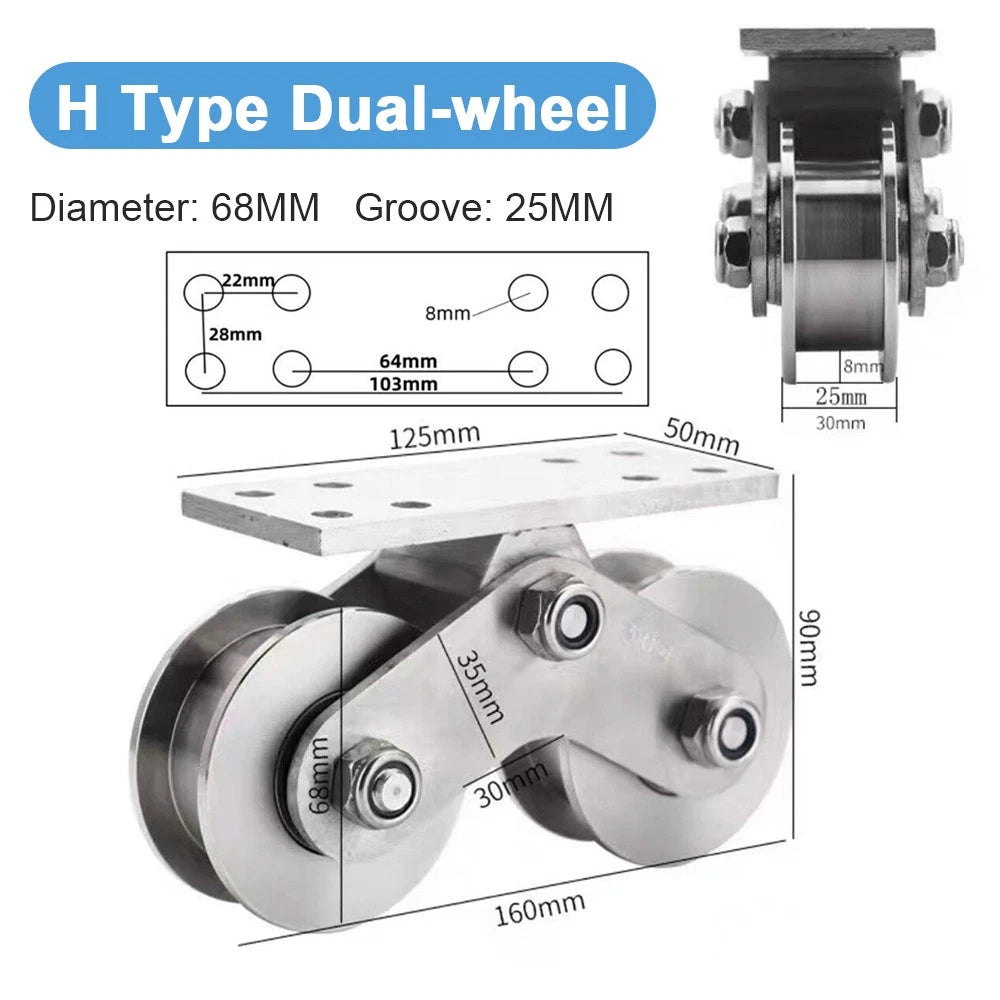

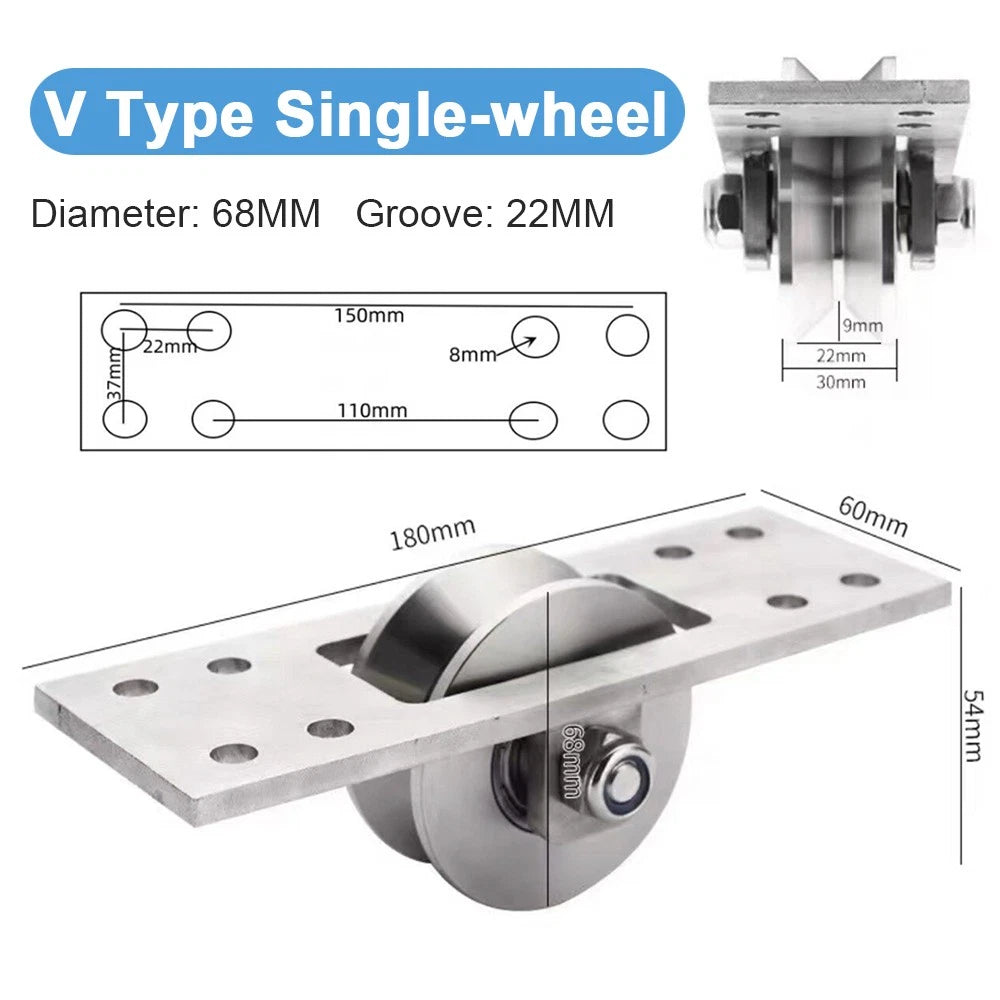

The groove profile must match your track cross-section. U-type grooves are designed for round rod or pipe rails. V-type grooves suit angled or chamfered tracks where the wheel seats into a pointed channel. H-type grooves are intended for flat-flange or I-beam style rails. Measure your track profile before selecting a variant.

What is the difference between 304 and 201 stainless steel brackets?

304 stainless steel contains a higher chromium and nickel content, giving it superior resistance to rust, oxidation, and chloride environments — making it the right choice for outdoor, coastal, or high-humidity installations. 201 stainless steel is a lower-nickel alloy that performs well in dry indoor environments and offers a more economical option where extreme corrosion resistance is not required.

Should I choose a stainless steel wheel or a nylon wheel?

Stainless steel wheels are better suited for heavy loads, high temperatures, and outdoor environments where durability is the priority. Nylon wheels operate more quietly, produce less vibration, and are gentler on track surfaces — making them a popular choice for interior sliding barn doors and furniture-grade applications where noise reduction matters.

Can these pulleys be used outdoors or in marine environments?

Yes — the 304 stainless steel bracket variants are suitable for outdoor and moderately corrosive environments. For marine or coastal applications with direct saltwater exposure, we recommend the 304-grade bracket with a stainless steel wheel. The 201-grade bracket is better reserved for sheltered or indoor use.

Do single-wheel and dual-wheel variants fit the same track?

Both single-wheel and dual-wheel variants are designed for the same track profiles within each groove type. The dual-wheel configuration spreads the load across two contact points, which reduces wear and improves stability for heavier sliding panels or gates. Single-wheel variants are more compact and suited to lighter-duty applications.

What tools are needed to install these pulleys?

Installation typically requires a drill, appropriate drill bits for your door or gate material, a wrench or socket set for the mounting bolts, and a level to ensure the track is aligned before fitting the pulleys. No specialized tooling is required. Refer to your track manufacturer's specifications for bolt size and spacing recommendations.

How do I select the right wheel diameter for my project?

Wheel diameter affects the rolling clearance and load distribution. Larger diameter wheels (25 mm) roll more smoothly over minor track imperfections and handle heavier loads, while smaller diameter wheels (20 mm) are more compact and suited to tighter bracket spaces. Match the wheel diameter to your track width and the weight of the sliding panel or gate.

🛒 Select your groove type, wheel diameter, and bracket material above, then add to cart.
