T10 Closed Loop Timing Belt 25mm Wide — Reliable Synchronous Drive for CNC, Automation & DIY Builds

When your CNC router skips steps, your linear actuator loses position, or your conveyor drifts out of sync, the culprit is often a worn or incorrectly sized timing belt. Engineers, makers, and maintenance technicians who need a dependable T10 synchronous belt in a specific closed-loop length will find this listing covers the widest size range available — from compact 560mm (≈22.0") loops up to long-span 2500mm (≈98.4") runs.

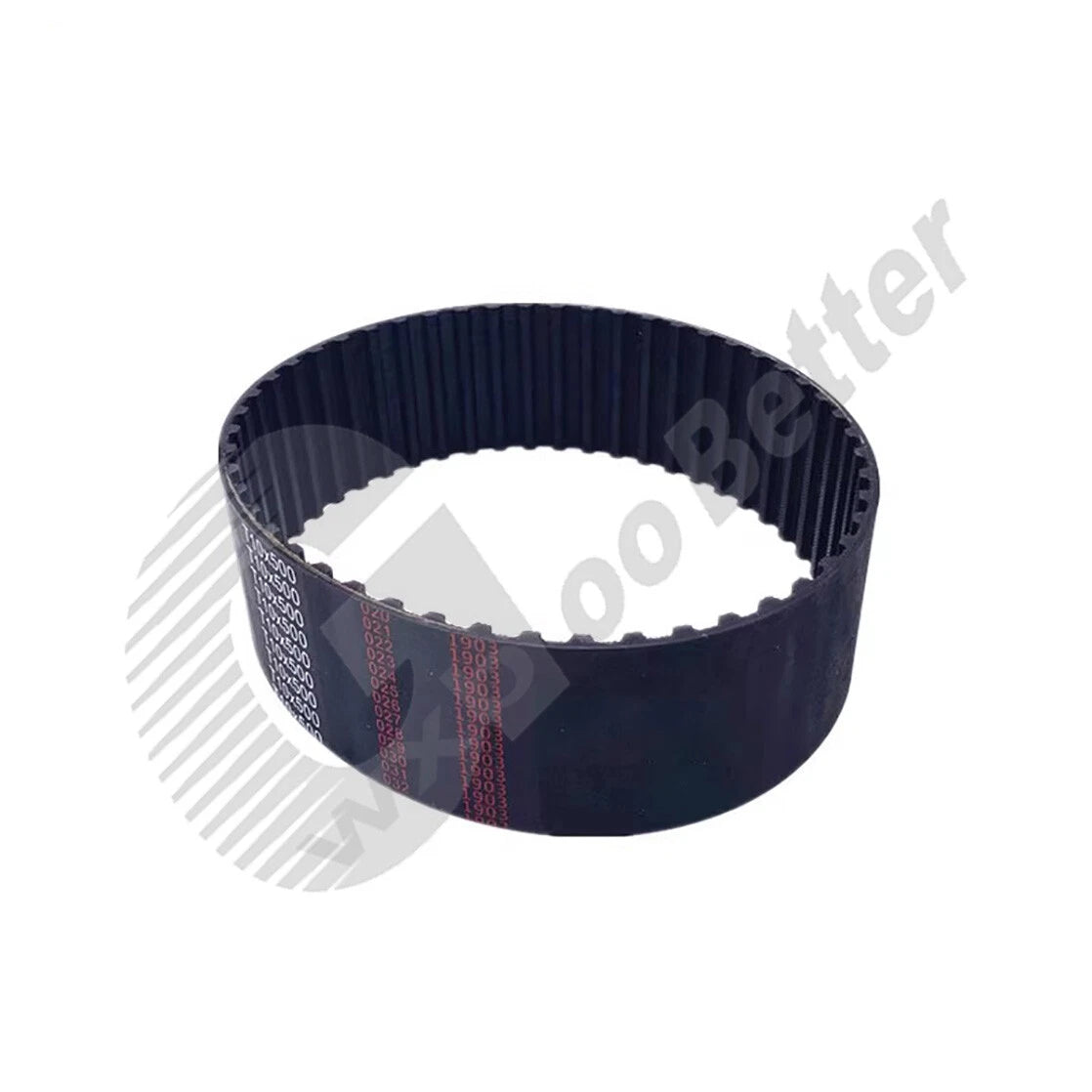

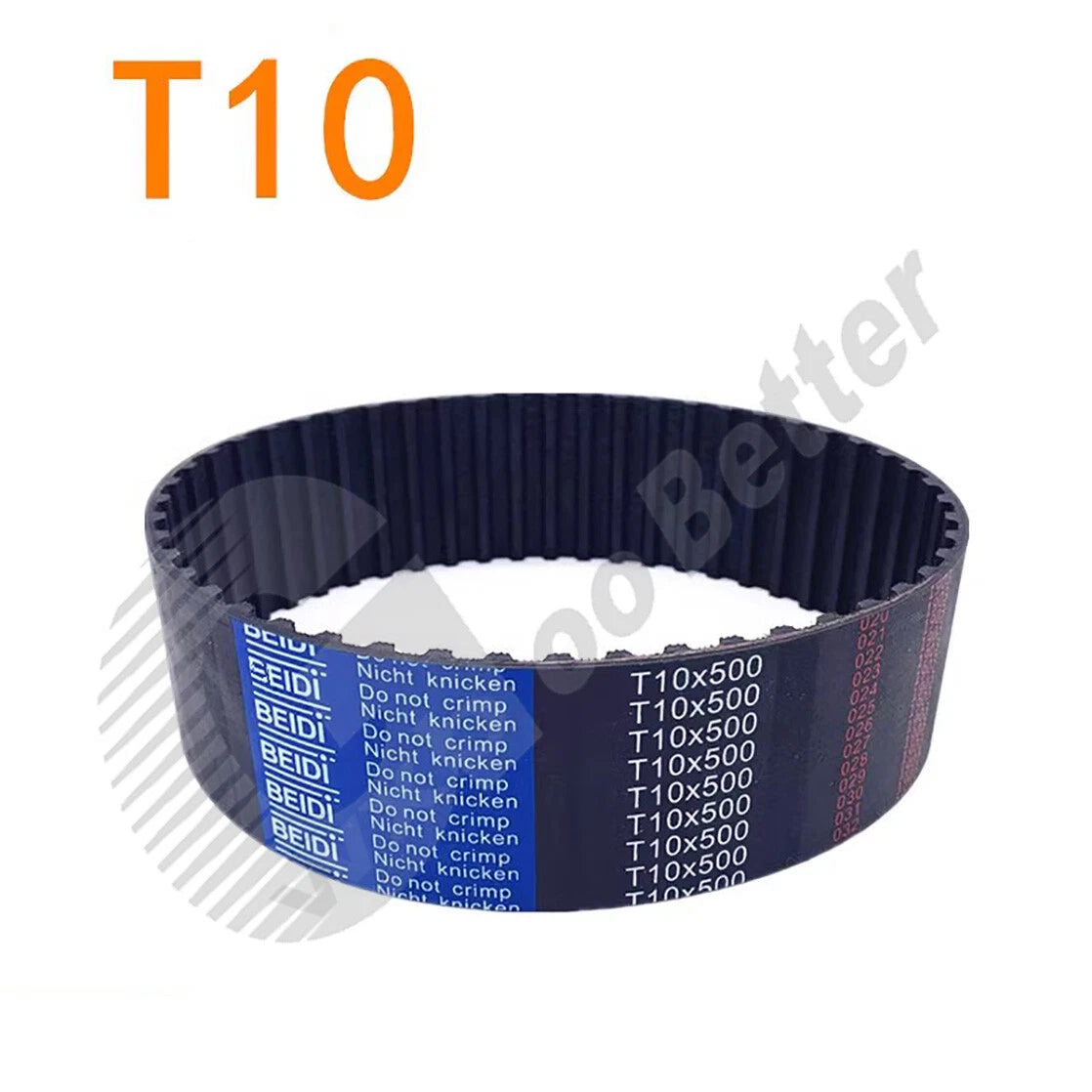

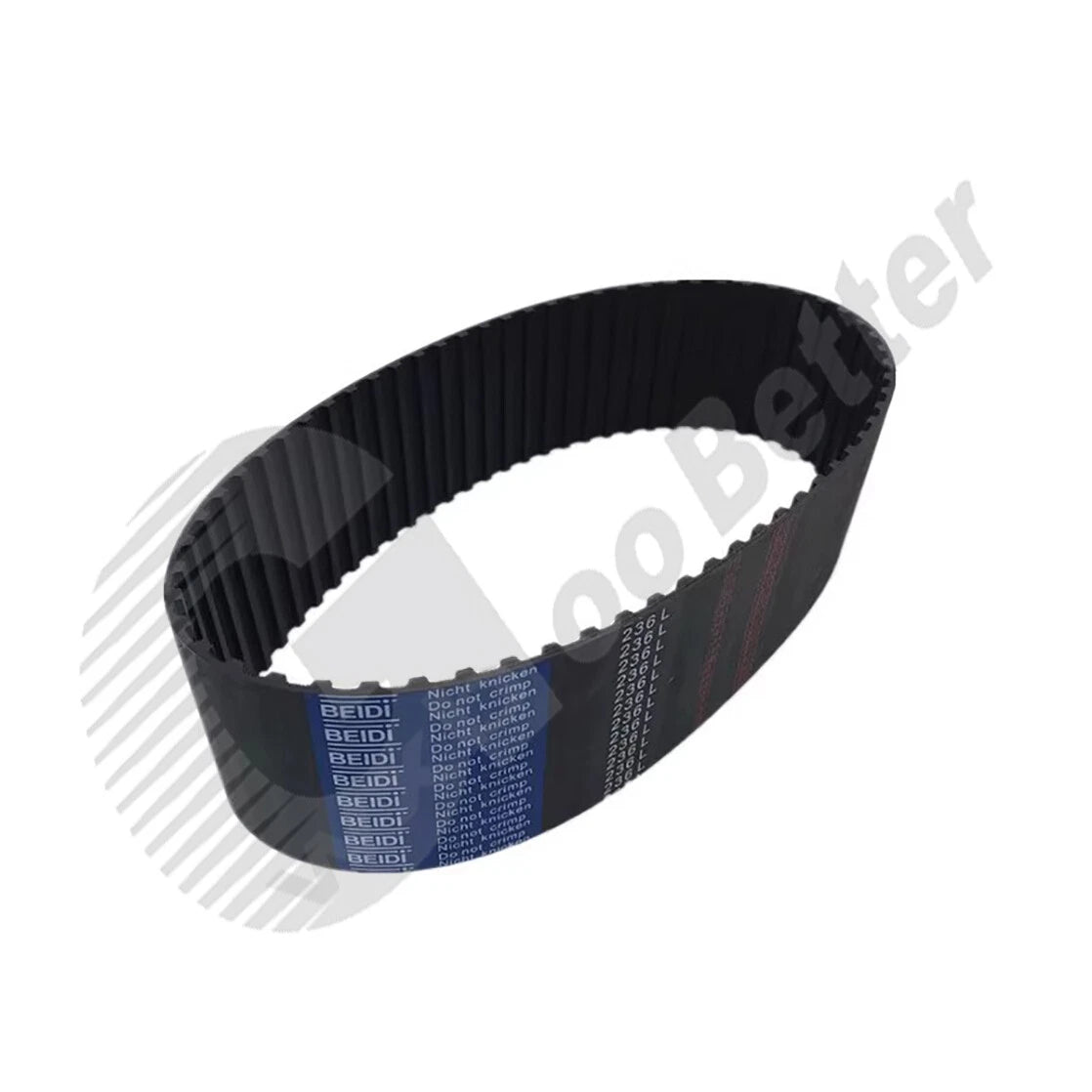

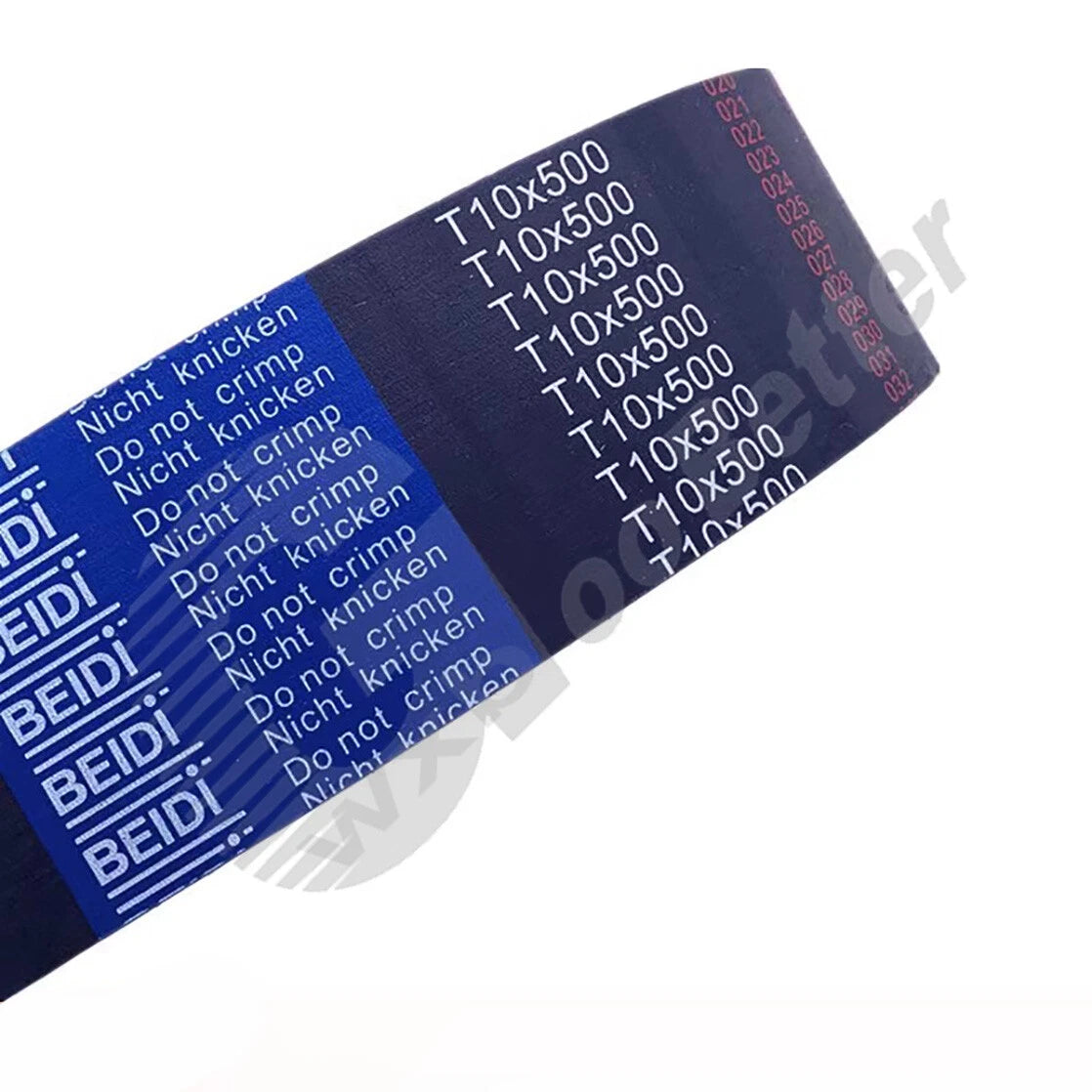

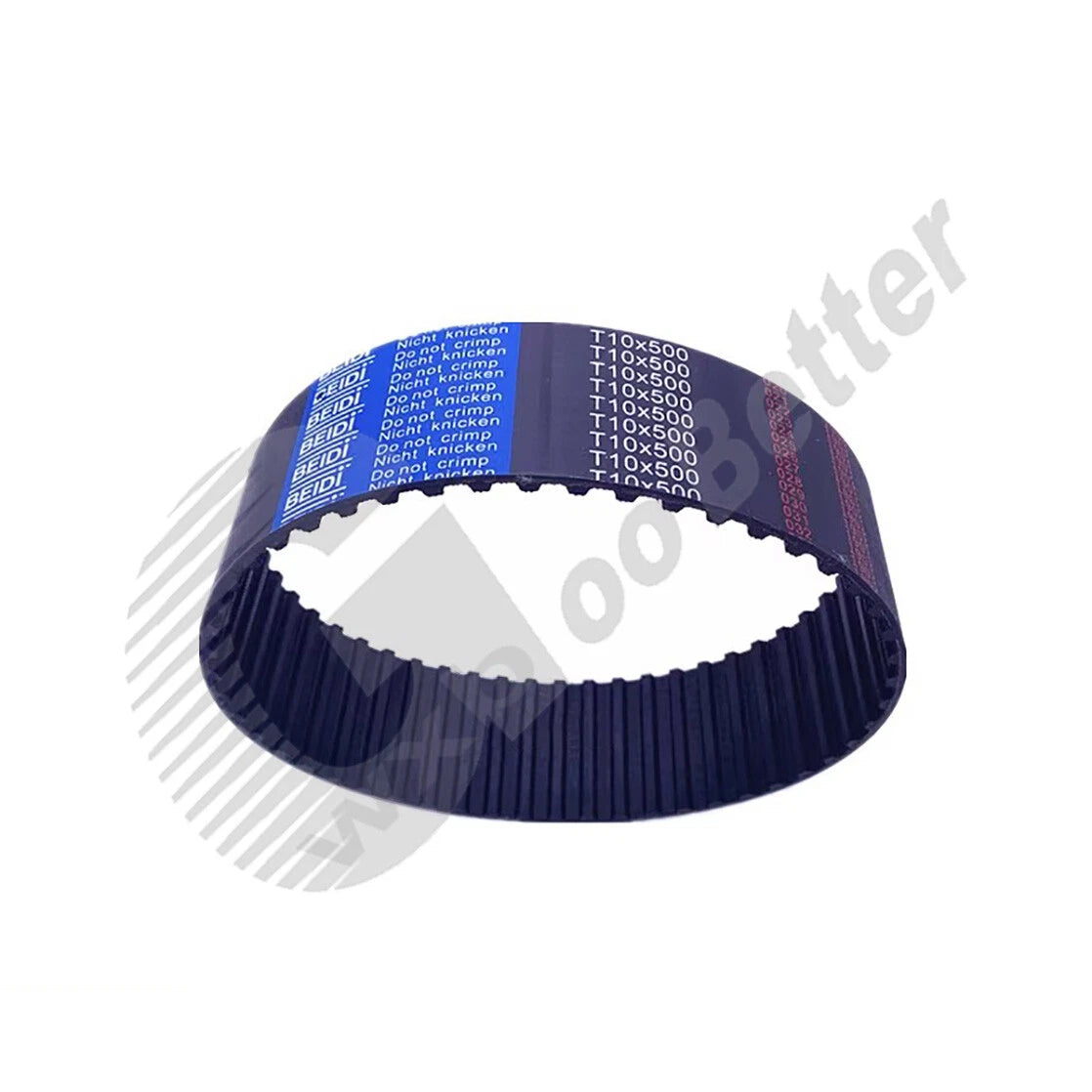

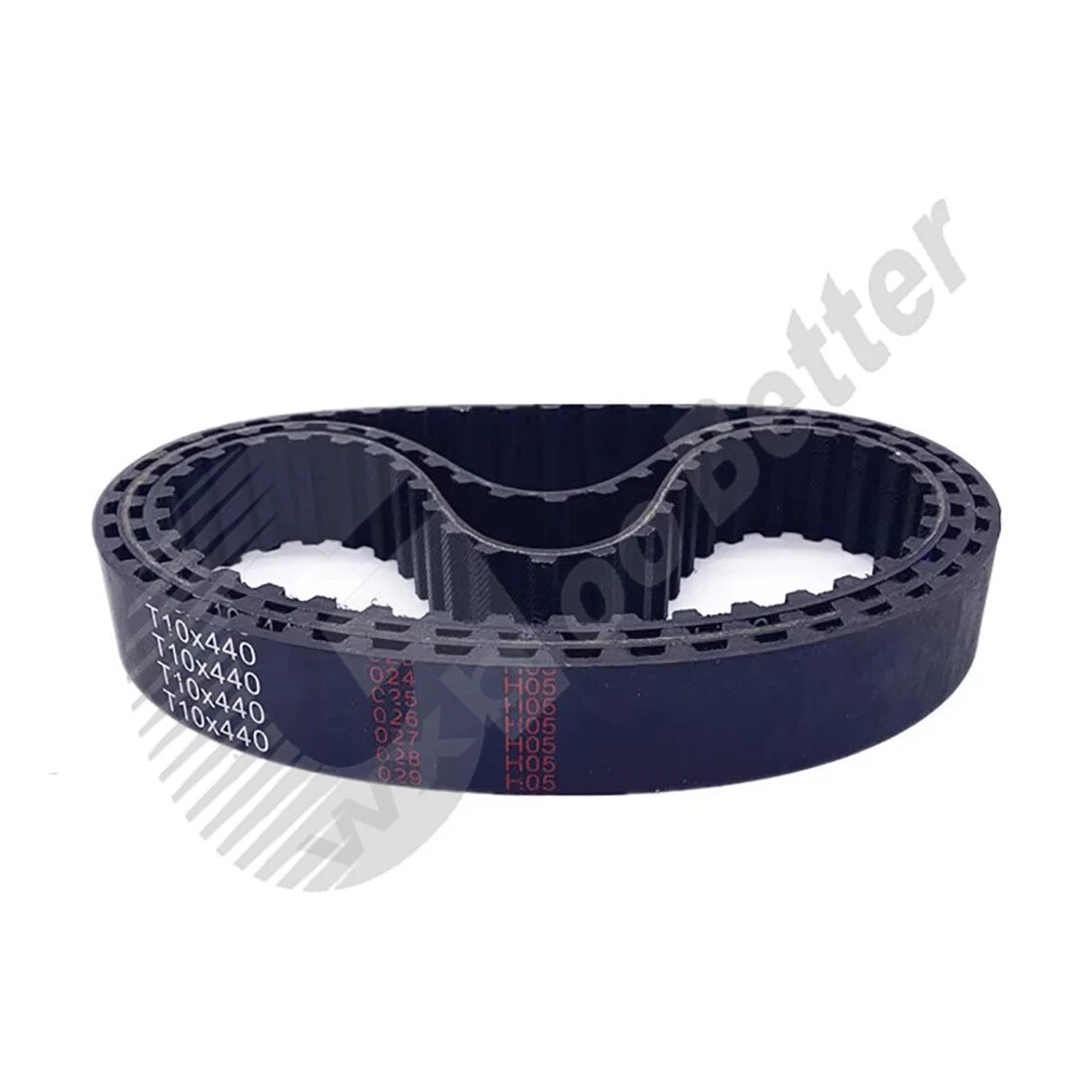

Each belt features a T10 trapezoidal tooth profile with a 10mm pitch and a 25mm belt width, constructed from rubber with fiberglass tension cord reinforcement for dimensional stability under load. The closed-loop (endless) design eliminates the need for belt lacing or joining hardware. Available in multiple lengths — select your exact size from the variant dropdown above.

Typical use cases include CNC machine axis drives, 3D printer gantry systems (larger format), linear motion conveyor belts, packaging line synchronization, and custom DIY automation rigs where precise tooth engagement and repeatable positioning are required.

ℹ️ Compatibility: Fits standard T10 pulleys with 25mm belt width groove (DIN 7721 / metric trapezoidal tooth profile). Not compatible with AT10, T5, T20, or imperial XL/L pulleys. Verify pulley flange width before ordering.

✅ Key Features of These T10 25mm Closed Loop Synchronous Timing Belts

🔁Closed-Loop Endless Construction — No splices, joints, or lacing hardware needed; the seamless loop delivers consistent tension and smooth synchronous drive performance.
📐10mm T10 Trapezoidal Tooth Pitch — Standardized DIN 7721 tooth geometry ensures accurate tooth engagement with T10 pulleys, critical for CNC positioning and linear actuator repeatability.
📏Wide Size Selection (560mm–2500mm) — Over 40 length variants in a single listing; find the exact closed-loop circumference your drive system requires without custom cutting or splicing.
💪Fiberglass Tension Cord Reinforcement — Embedded fiberglass cords resist elongation under cyclic load, maintaining pitch accuracy over extended operation in light-to-medium duty synchronous belt drives.
🔧25mm Width for Increased Torque Capacity — Wider than standard 10mm or 16mm T10 variants, the 25mm belt width distributes load across more tooth contact area, suitable for higher-torque automation and conveyor applications.
⚙️Drop-In Replacement for T10-25 Drive Systems — Matches the tooth profile and width of OEM T10 25mm belts used in packaging equipment, CNC routers, and industrial automation, simplifying maintenance and replacement.

📐 Technical Specifications — T10 Synchronous Timing Belt

Belt Type	T10 Closed Loop Synchronous (Timing) Belt

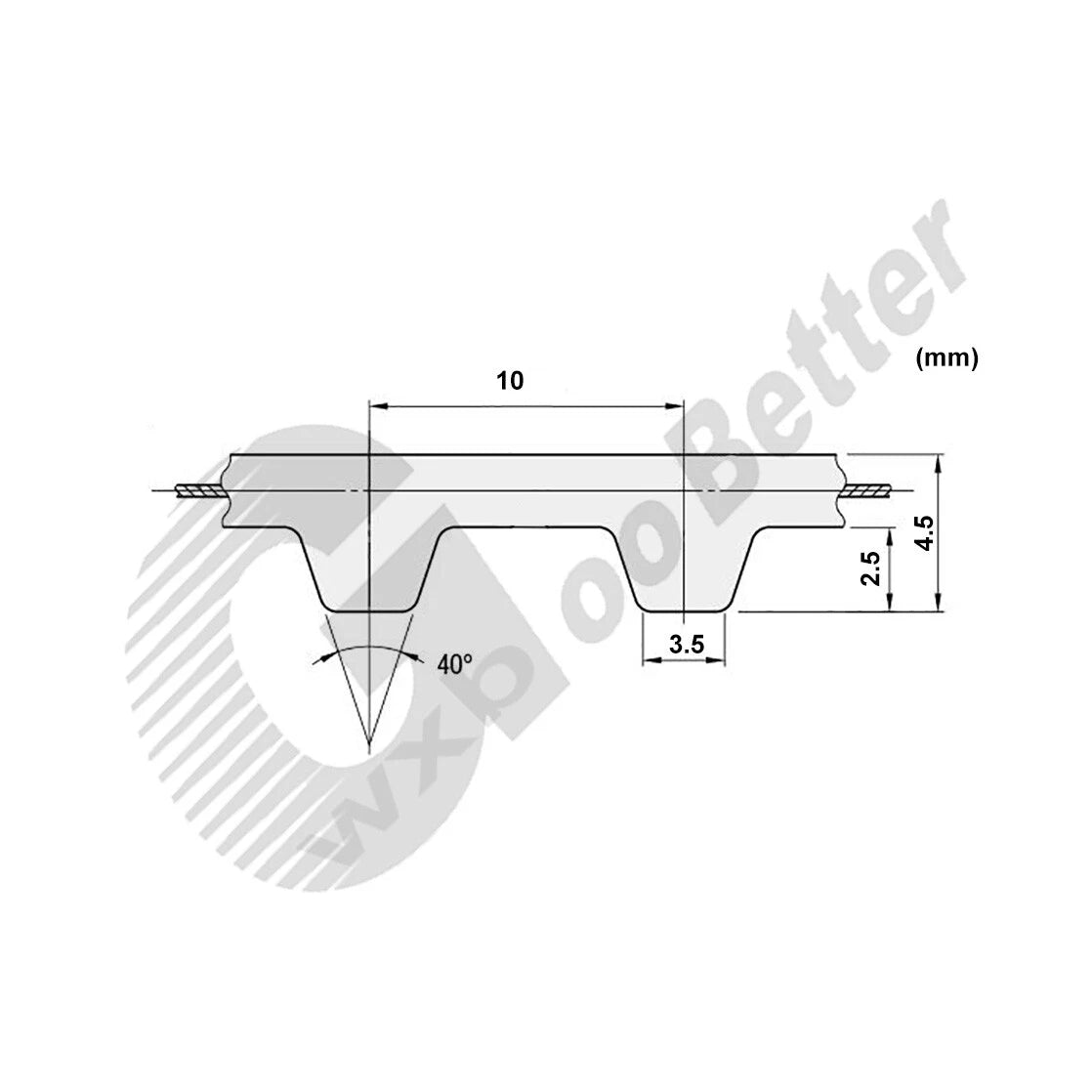

Tooth Profile	Trapezoidal — T10 (DIN 7721)
Pitch	10mm
Belt Width	25mm (≈0.98")
Available Lengths	560mm (≈22.0") to 2500mm (≈98.4") — see variant options
Construction	Rubber body with fiberglass tension cord reinforcement (typically)
Loop Type	Endless / Closed Loop
Compatible Pulley Profile	T10 (metric trapezoidal) — 25mm groove width

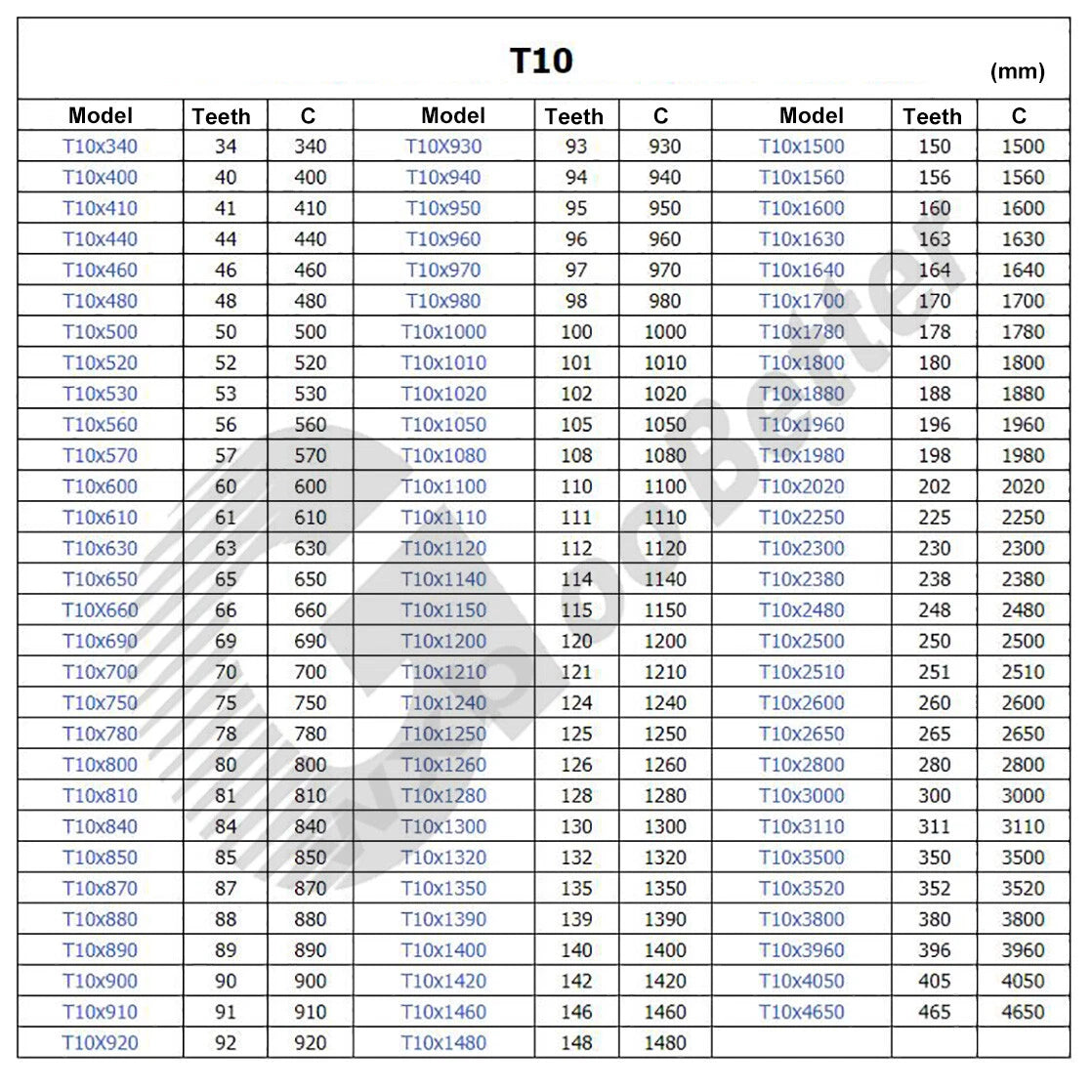

Tooth Count	See variant options (length ÷ 10mm = number of teeth)
Operating Temperature	Contact us to confirm
Color / Finish	Typically black rubber
SKU Format	WXB[length]T1025x1 (e.g., WXB880T1025x1 = 880mm length)

⚠️ Size Tip: To find your belt length, count the teeth on your existing belt and multiply by 10mm. Alternatively, use the formula: Belt Length = 2 × Center Distance + π × (Pulley OD₁ + Pulley OD₂) / 2. When in doubt, size up — a slightly longer belt can often be accommodated with tensioner adjustment.

❓ Frequently Asked Questions

How do I choose the right length for my T10 timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: L = 2C + π(D₁+D₂)/2, where C is center distance and D₁/D₂ are pulley pitch diameters. For T10 belts, the pitch is 10mm — you can also count the teeth on your existing belt and multiply by 10mm to get the pitch circumference. Available sizes in this listing range from 560mm (≈22.0") to 2500mm (≈98.4").

What is the pitch of a T10 timing belt?

T10 timing belts have a 10mm tooth pitch — the distance from one tooth center to the next. This is a metric trapezoidal tooth profile standardized under DIN 7721. It is not interchangeable with AT10 (curvilinear tooth), T5, T20, or imperial XL/L belts.

How much load can a T10 25mm timing belt handle?

Load capacity depends on the number of teeth in mesh, pulley diameter, and operating speed. Generally, a T10-25 belt is suitable for light-to-medium duty power transmission applications. For precise load ratings specific to your drive system, contact us to confirm suitability before ordering.

Can this timing belt be used outdoors or in wet environments?

T10 rubber timing belts are generally resistant to light moisture and humidity. However, they are typically not rated for continuous outdoor UV exposure or full immersion. For harsh outdoor or chemical environments, a polyurethane (PU) variant is generally more suitable. Contact us to confirm material specifications for your application.

Is this belt compatible with standard T10 pulleys?

Yes. This belt follows the T10 metric trapezoidal tooth profile (DIN 7721) and is compatible with any standard T10 pulley with a 25mm belt width groove. Always verify the pulley flange width accommodates 25mm belts before ordering. It is not compatible with AT10, T5, T20, or XL/L pulleys.

What machines or applications use T10 25mm timing belts?

T10 25mm closed loop timing belts are commonly used in CNC machine axis drives, large-format 3D printer gantry systems, linear actuators, conveyor systems, packaging equipment, and custom DIY automation projects. The 25mm width provides more torque capacity than narrower T10 variants, making it well-suited for moderate-load synchronous drive systems.

What is the difference between T10 and AT10 timing belts?

Both T10 and AT10 have a 10mm pitch, but the tooth profile differs. T10 uses a trapezoidal tooth shape, while AT10 uses a curvilinear (rounded) tooth profile that generally offers higher torque capacity and reduced noise. They are not interchangeable — always match the belt profile to your pulley profile.

🛒 Select your size above, then add to cart — ships from our US warehouse.
