T10 Closed-Loop Rubber Timing Belt — Precise 10mm Pitch Synchronous Drive

When your CNC router skips a step, your 3D printer loses position, or your conveyor drifts out of sync, the culprit is almost always a worn or incorrectly sized drive belt. Engineers, machine builders, and serious DIYers who need slip-free, repeatable motion rely on T10 timing belts to keep their systems running true — and a wrong perimeter or width means the whole drive has to come apart again.

Each belt in this listing is a closed-loop (endless) T10 synchronous belt made from rubber with fiber cord reinforcement. The tooth pitch is 10mm, following the trapezoidal T10 profile (DIN 7721). Available perimeters run from 560mm (≈22.0") to 2500mm (≈98.4"), and belt widths are offered in 30mm (≈1.18"), 40mm (≈1.57"), and 50mm (≈1.97"). Tooth count varies by perimeter — for example, a 700mm belt has 70 teeth, a 1000mm belt has 100 teeth.

These T10 closed-loop timing belts are widely used in CNC router X/Y axis drives, large-format 3D printer motion systems, conveyor and indexing tables, and industrial linear actuators where precise, synchronous power transmission is required without slippage or backlash.

🔗 Compatibility: Fits any standard T10-profile pulley or sprocket (10mm pitch, trapezoidal tooth form, DIN 7721). Match belt width (30 / 40 / 50mm) to your pulley groove width. Verify perimeter against your center-to-center distance before ordering.
⚠️ Size confirmation: Perimeter is the full closed-loop circumference. If you are replacing an existing belt, measure the old belt's perimeter and tooth count directly. If designing a new drive, calculate perimeter from pulley center distance and pitch diameters before selecting a variant.

✅ Key Features of These T10 Closed-Loop Rubber Timing Belts

  • ⚙️Standard T10 Tooth Profile — 10mm pitch trapezoidal teeth conform to DIN 7721, ensuring drop-in compatibility with T10 pulleys used in CNC machines, 3D printers, and industrial drives.
  • 🔄Closed-Loop Endless Construction — Seamless loop design eliminates the splice point weakness found in open-ended belts, delivering consistent tension and smooth rotation throughout the full perimeter.
  • 📏Wide Perimeter Selection — Available from 560mm (≈22") to 2500mm (≈98"), covering a broad range of center distances for both compact desktop machines and larger industrial conveyor timing belt applications.
  • ↔️Three Width Options for Load Matching — Choose 30mm for light-duty or space-constrained drives, 40mm for balanced torque capacity, or 50mm for high-load synchronous belt drive systems requiring maximum power transmission.
  • 🧱Fiber-Reinforced Rubber Construction — The rubber body resists moderate oils and flex fatigue, while internal cord reinforcement limits elongation under load — important for maintaining positioning accuracy in CNC router belt drive setups.
  • 🔢Tooth Count Matches Perimeter — Each variant lists both perimeter and tooth count (e.g., 70 teeth for 700mm), making it straightforward to verify gear ratio and synchronization requirements for your specific drive system.

📐 Technical Specifications — T10 Closed-Loop Rubber Synchronous Belt

Belt Type T10 Closed-Loop (Endless) Synchronous Timing Belt

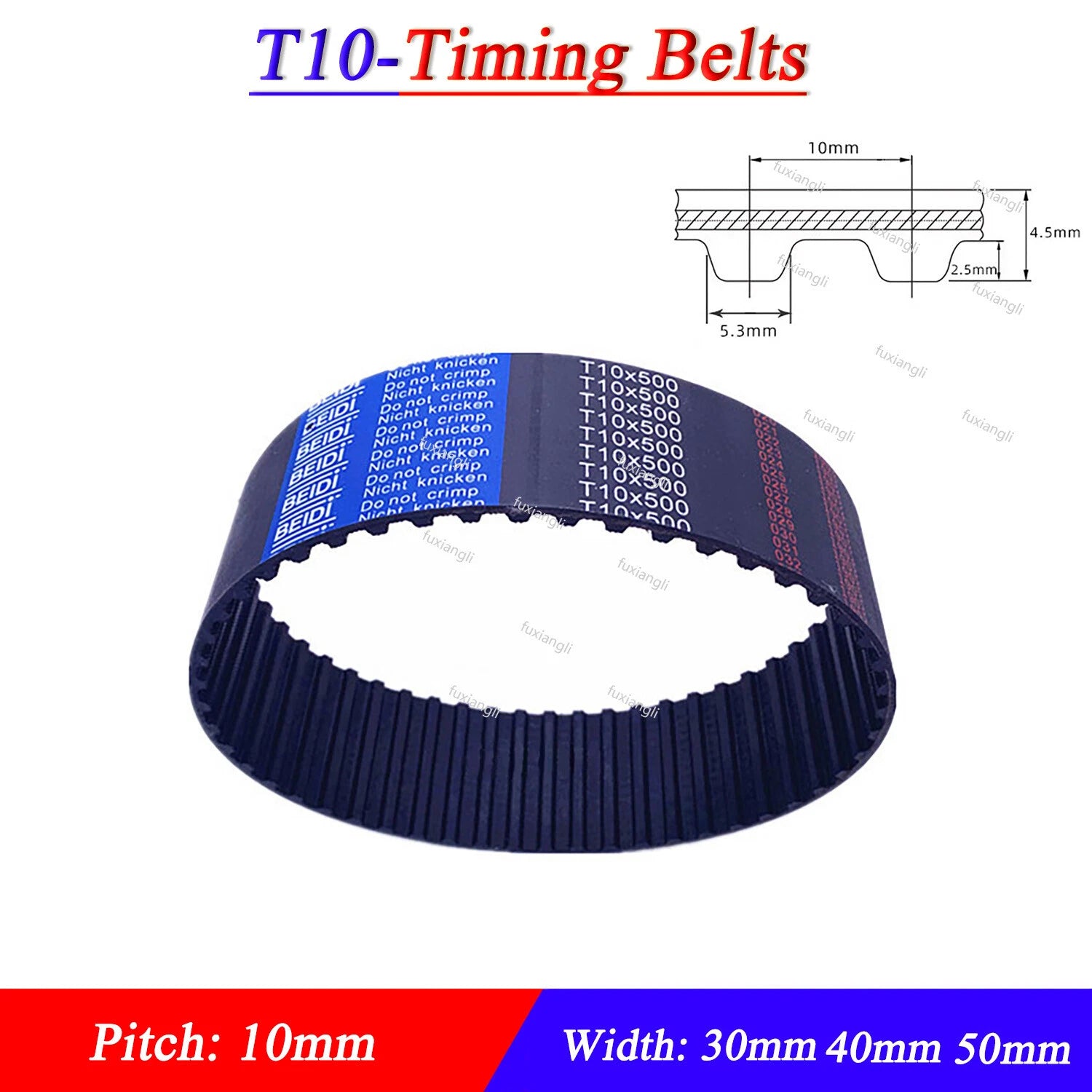

Tooth Profile Trapezoidal T10, DIN 7721
Pitch 10mm (tooth-to-tooth)
Available Perimeters 560mm (≈22.0") to 2500mm (≈98.4") — see variant options
Available Belt Widths 30mm (≈1.18"), 40mm (≈1.57"), 50mm (≈1.97")

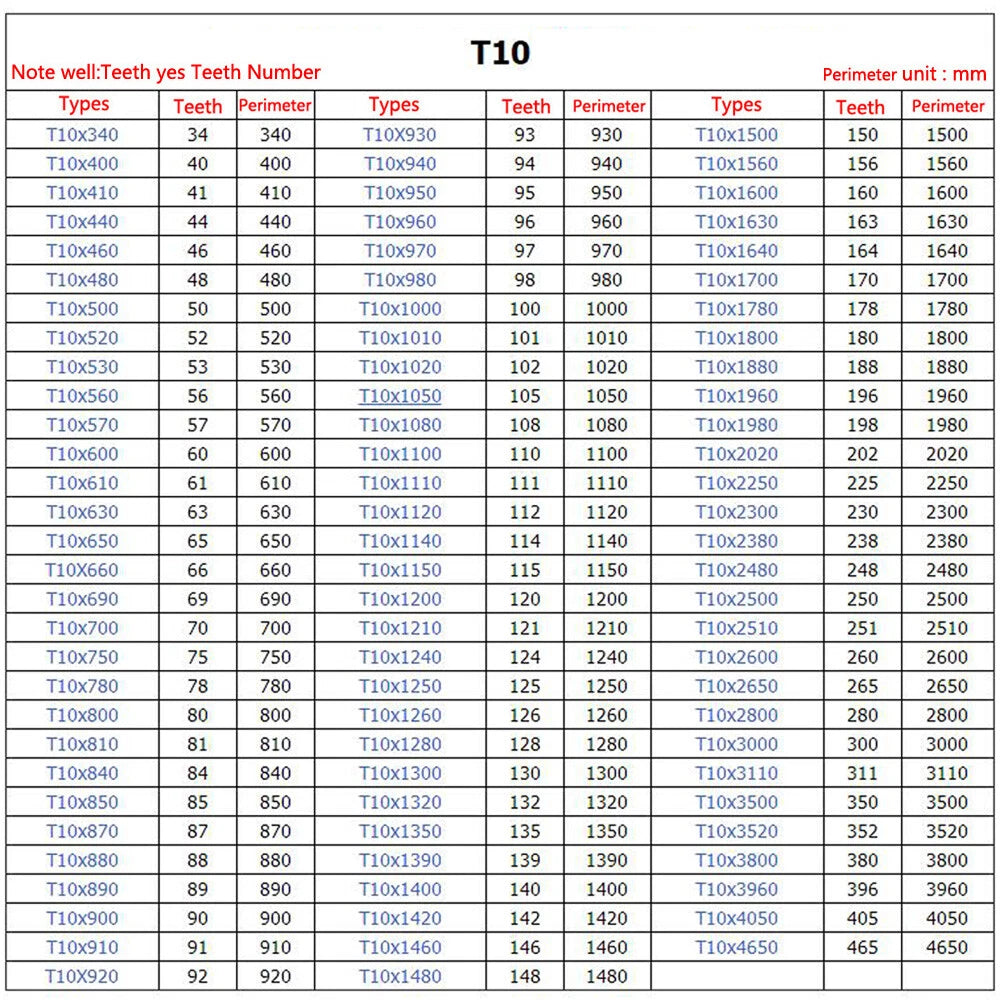

Tooth Count Perimeter ÷ 10mm (e.g., 560mm = 56 teeth, 1000mm = 100 teeth)
Material Rubber with fiber cord reinforcement
Construction Closed-loop (endless / no splice)
Compatible Pulleys Standard T10-profile pulleys and sprockets
Typical Applications CNC routers, 3D printers, conveyors, linear actuators, indexing drives
Operating Temperature Contact us to confirm for your specific environment
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter and belt width for my application?

Measure the center-to-center distance between your two pulleys, then calculate the required belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters. For width, match the belt width to your pulley groove width — typically 30mm belts suit lighter loads, 40mm for moderate torque, and 50mm for higher-load applications.

All perimeters are listed in mm. To convert to inches, divide by 25.4 — for example, 560mm ≈ 22.0", 700mm ≈ 27.6", 1000mm ≈ 39.4", 1500mm ≈ 59.1".

What load or torque can these T10 timing belts handle?

T10 belts are generally rated for moderate-to-high torque transmission in synchronous drive applications. The 50mm-wide variants typically carry greater load capacity than 30mm versions due to the wider tooth engagement area. Actual load ratings depend on pulley diameter, belt speed, and operating conditions. For critical load calculations, consult your drive system's engineering specifications or contact us to confirm suitability.

Are these belts suitable for outdoor or wet environments?

These belts are made from rubber with fiber reinforcement, which generally provides good resistance to moderate oils and incidental moisture. They are not typically rated for continuous submersion or highly corrosive chemical environments. For outdoor installations, protect the belt from prolonged direct UV exposure and standing water where possible to extend service life.

Are these compatible with standard T10 pulleys and sprockets?

Yes. These are standard T10-profile belts with a 10mm pitch (tooth-to-tooth distance), conforming to the trapezoidal T10 DIN 7721 standard. They are compatible with any T10-standard pulley or sprocket. This profile is widely used in CNC machines, 3D printers, conveyor systems, and industrial automation equipment.

How do I read the variant naming — what does "T10-700 / 700mm / 70 & 30mm" mean?

The variant name breaks down as follows:

  • T10-700 — Belt type (T10) and perimeter in mm (700mm closed-loop circumference)
  • 700mm — Confirms the full closed-loop perimeter
  • 70 & 30mm — 70 teeth total, belt width of 30mm

Select the combination that matches your pulley center distance and pulley groove width.

Can I use these belts in CNC routers, 3D printers, or linear motion systems?

Yes. T10 closed-loop timing belts are commonly used in CNC routers, laser cutters, large-format 3D printers, and linear actuator systems where precise, slip-free motion is required. The 10mm pitch provides a good balance of tooth engagement strength and positioning accuracy. For high-speed or high-precision CNC applications, verify that your pulley tooth count and belt tension are within the drive system's design parameters.

What is the difference between the 30mm, 40mm, and 50mm width options?

Belt width directly affects load-carrying capacity and lateral stiffness. The 30mm width is suited for lighter-duty or space-constrained drives. The 40mm width offers a balance of compactness and torque capacity for mid-range applications. The 50mm width is best for high-torque or high-speed applications where maximum power transmission is needed. Always match the belt width to your pulley's groove width to prevent tracking issues.

🛒 Select your belt type, perimeter, and width above, then add to cart — ships from our US warehouse.
