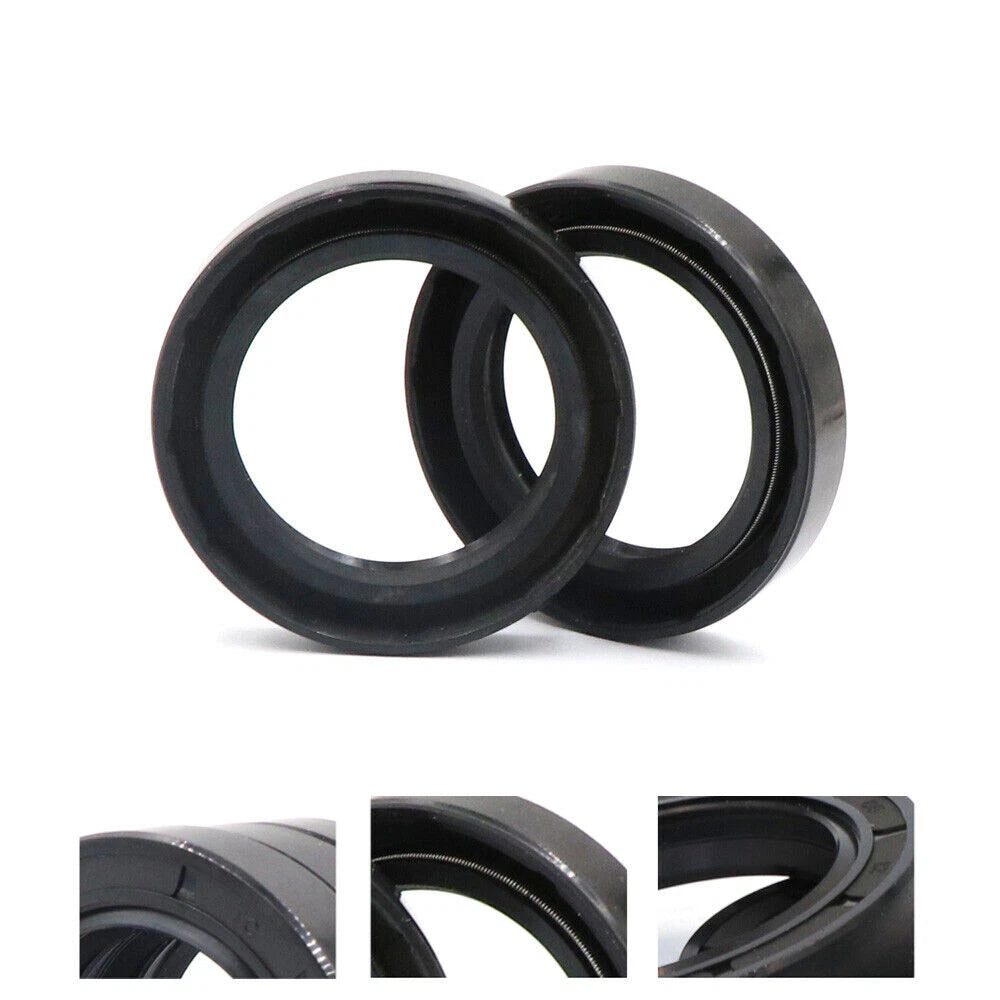

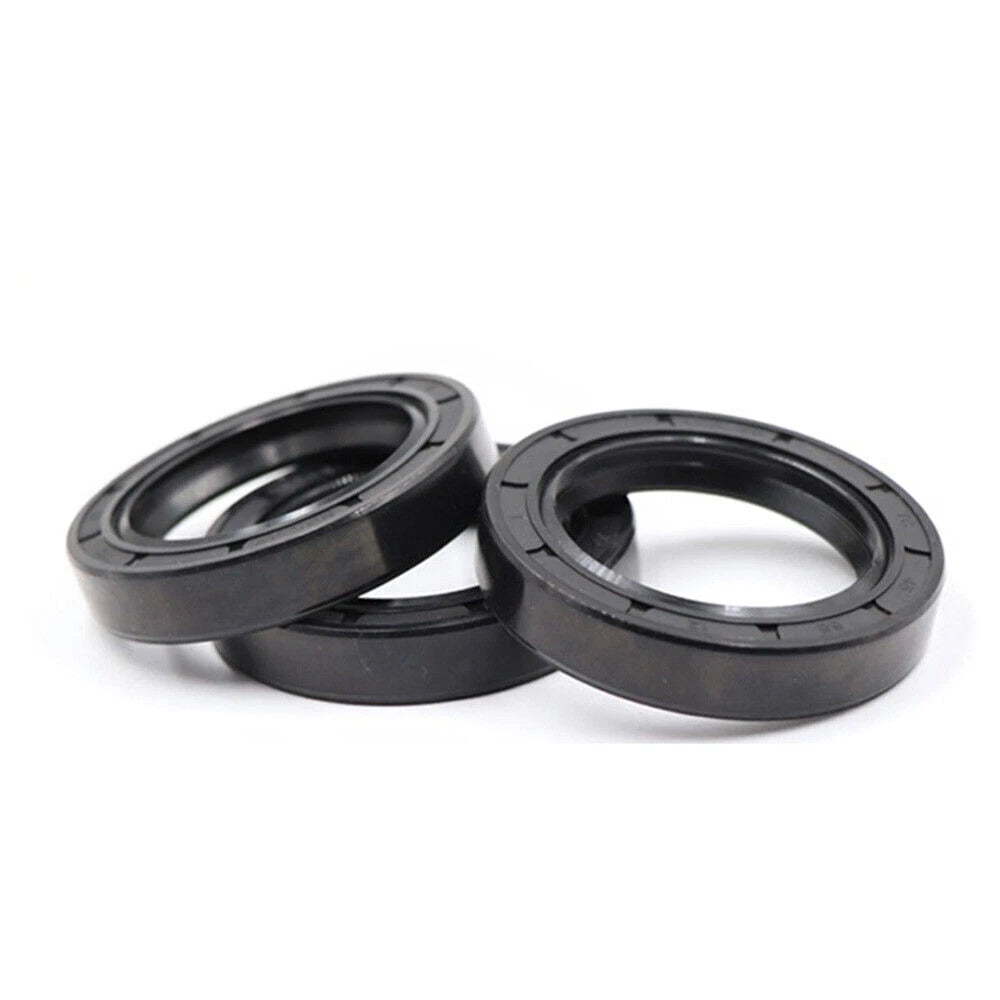

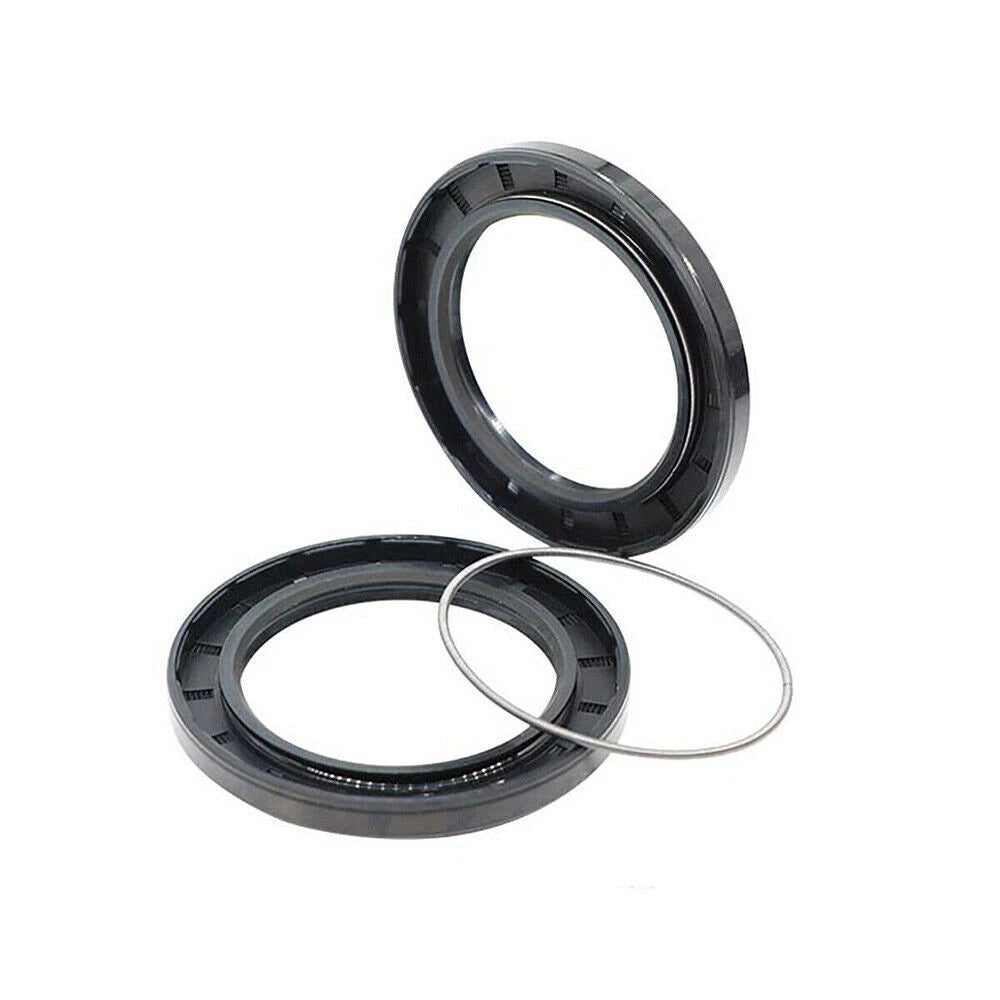

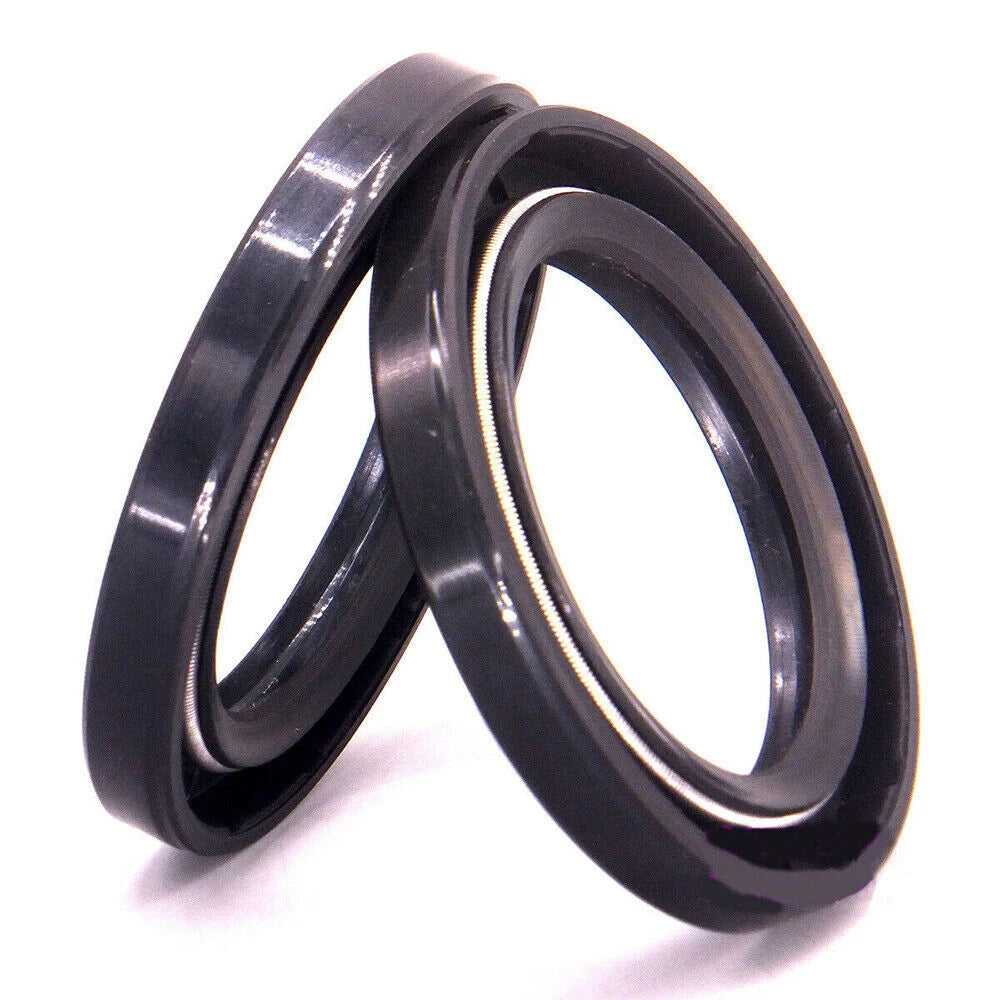

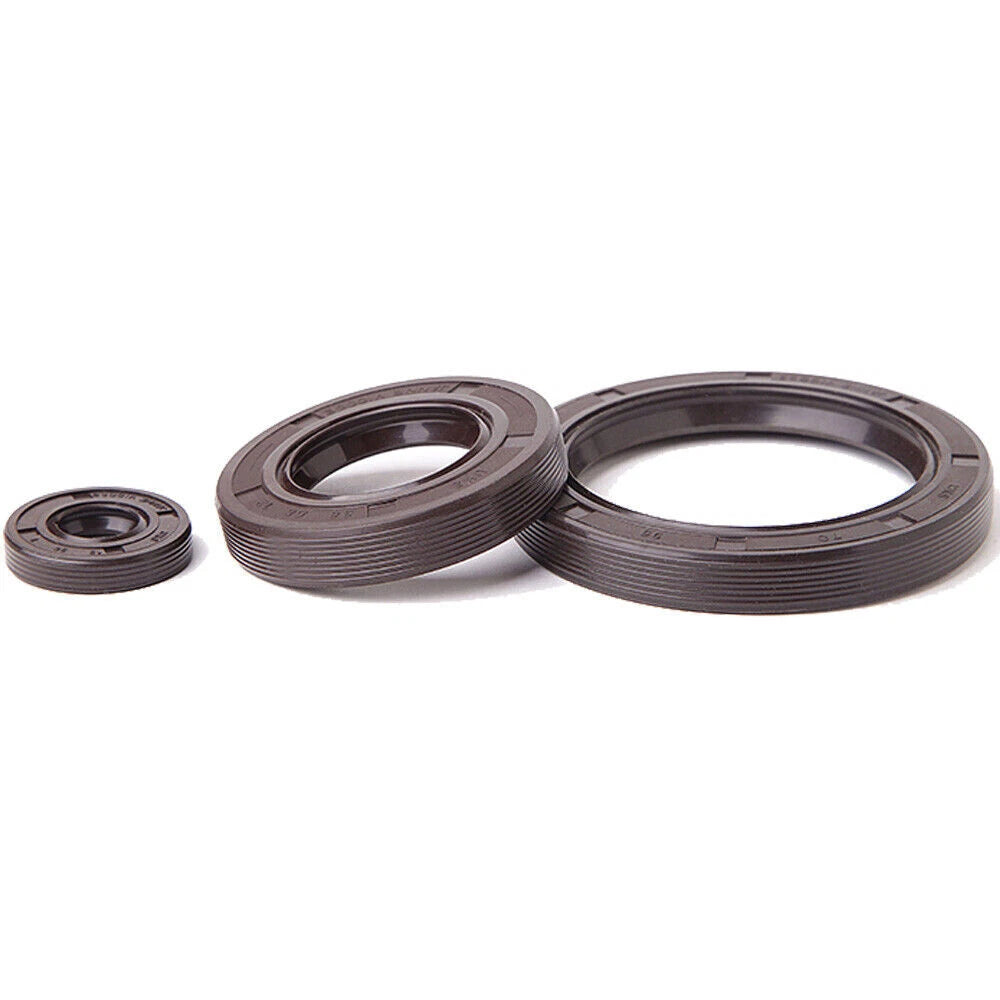

TC FB Skeleton Oil Seal NBR Double Lip — Rotation Shaft Seal ID 8–19mm

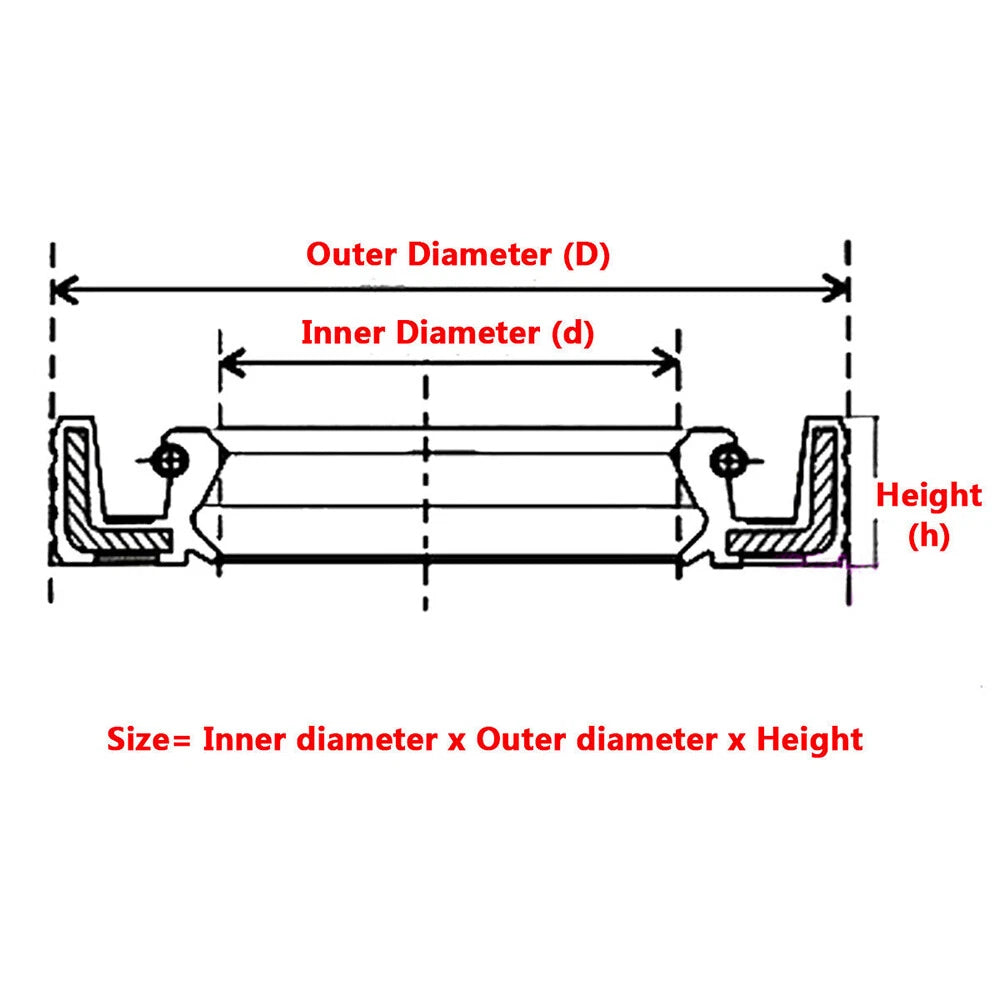

Measure three dimensions with calipers: the shaft inner diameter (I.D.), the housing bore outer diameter (O.D.), and the housing depth (Height). Match all three to the variant listed as I.D × O.D × Height in mm. For example, a 15mm shaft in a 30mm bore with a 7mm housing depth needs the 15*30*7mm variant. When in doubt, size up on height rather than down to avoid a seal that sits proud of the housing face.

TC-type skeleton oil seals are generally designed for low-to-medium pressure applications, typically rated for static pressures up to around 0.05 MPa. They are best suited for dynamic sealing on rotating shafts in gearboxes, motors, and pumps — not for high-pressure hydraulic lines. Confirm your system pressure before ordering.

NBR rubber offers good resistance to petroleum-based oils, greases, and mild water splash. However, NBR is generally not recommended for prolonged immersion in water, steam above 100 °C, or ozone-rich environments. For harsh outdoor, marine, or chemical exposure applications, consider FKM (Viton) alternatives. The secondary dust lip does provide meaningful protection against light moisture and dirt ingress.

Yes. These are metric-dimensioned TC skeleton seals that are generally interchangeable with seals following ISO 6194-1 and DIN 3760 Type A/B standards. The I.D. dimension corresponds directly to the nominal shaft diameter. Always verify the exact I.D., O.D., and height against your OEM part number or housing drawing before substituting.

Use a seal driver or flat press plate sized to the O.D. to press the seal in squarely and evenly. Never hammer directly on the seal lip or body. Lightly lubricate the primary lip with clean oil before installation. Ensure the shaft surface is smooth (typically Ra ≤ 0.8 µm) and free of burrs, nicks, or sharp edges that could cut the lip during installation or operation.

TC seals have two sealing lips — a primary oil lip and a secondary dust/dirt exclusion lip — making them suitable for environments where contamination ingress is a concern. SC seals have a single lip and are generally used in cleaner, more controlled environments. For most general machinery, automotive, and agricultural applications, TC double-lip seals are the preferred and more protective choice.

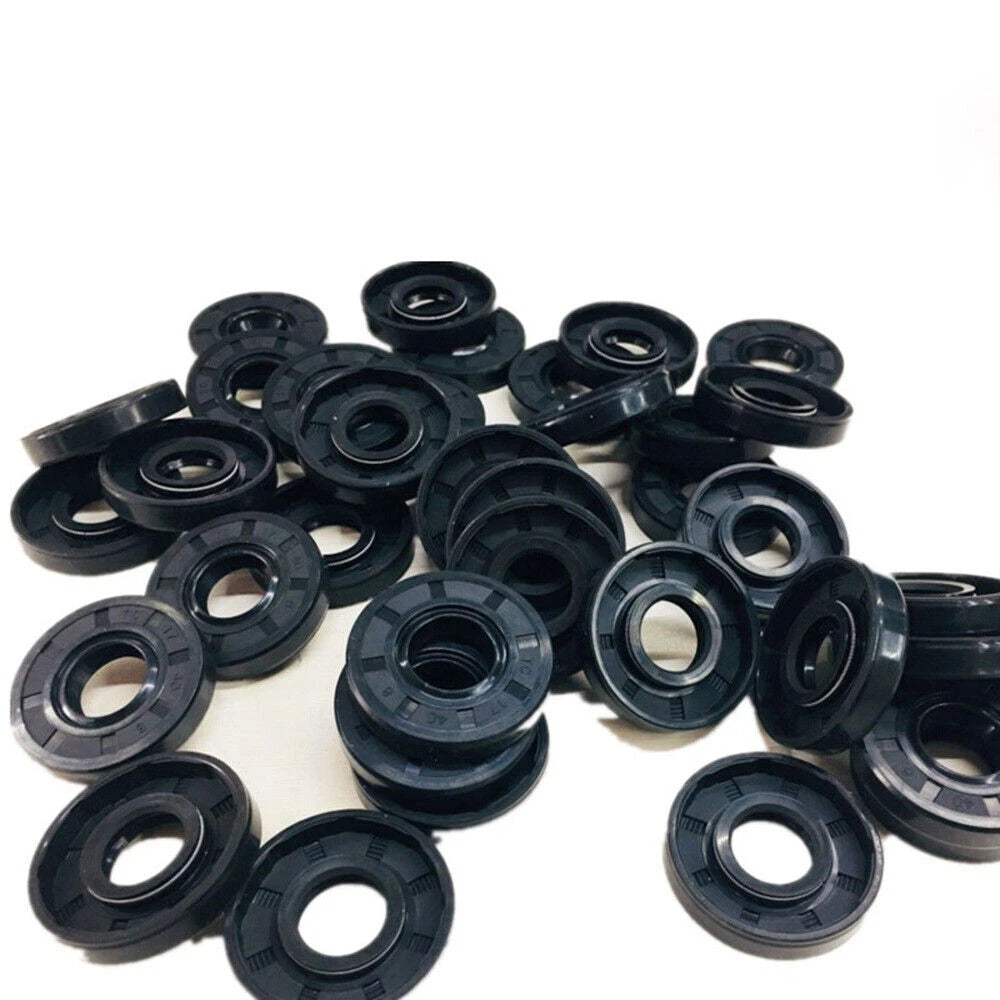

Each size is available in packs of 2, 5, 10, 30, or 50 pieces. For a single repair, the 2- or 5-piece pack is typically sufficient. If you maintain a fleet of equipment or run a production line, the 10-, 30-, or 50-piece packs offer a lower per-unit cost and ensure you have spares on hand. Larger packs are also useful for scheduled preventive maintenance kits.
