Description

Timing Belt Closed-Loop Synchronous Drive — Precision Motion for Makers & Engineers

When a slipping or stretched drive belt brings your CNC router, 3D printer, or conveyor to a halt, every minute of downtime costs you. This closed-loop synchronous timing belt is engineered for hobbyists, workshop builders, and automation engineers who need repeatable, slip-free linear motion without the hassle of custom splicing.

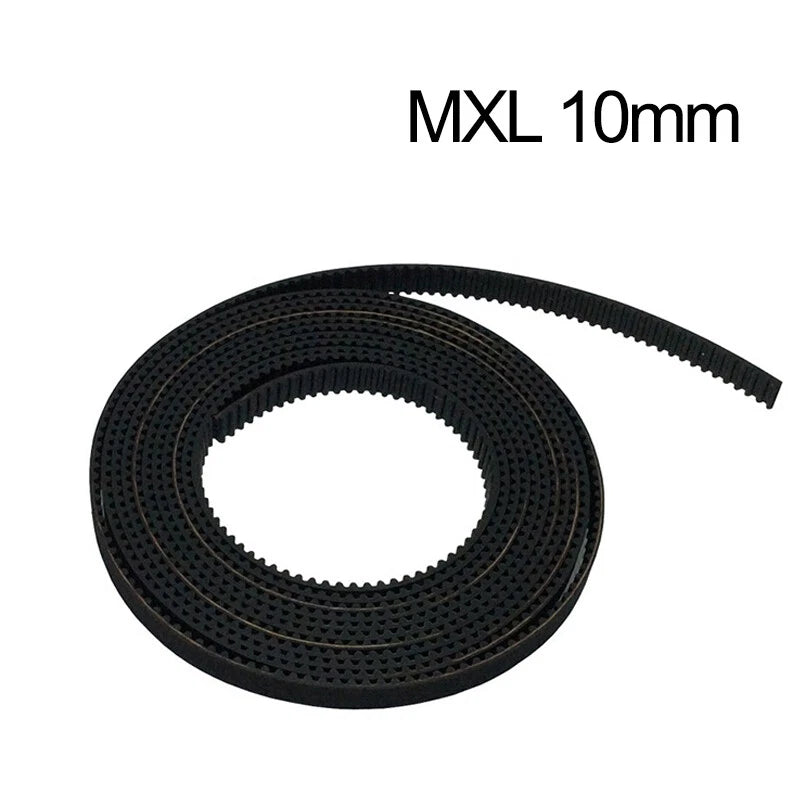

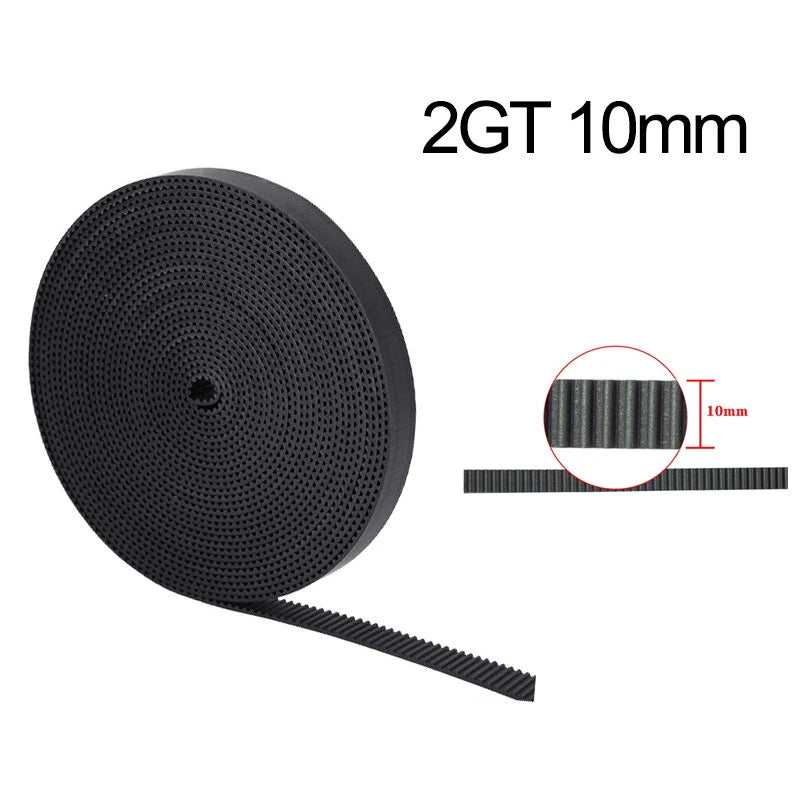

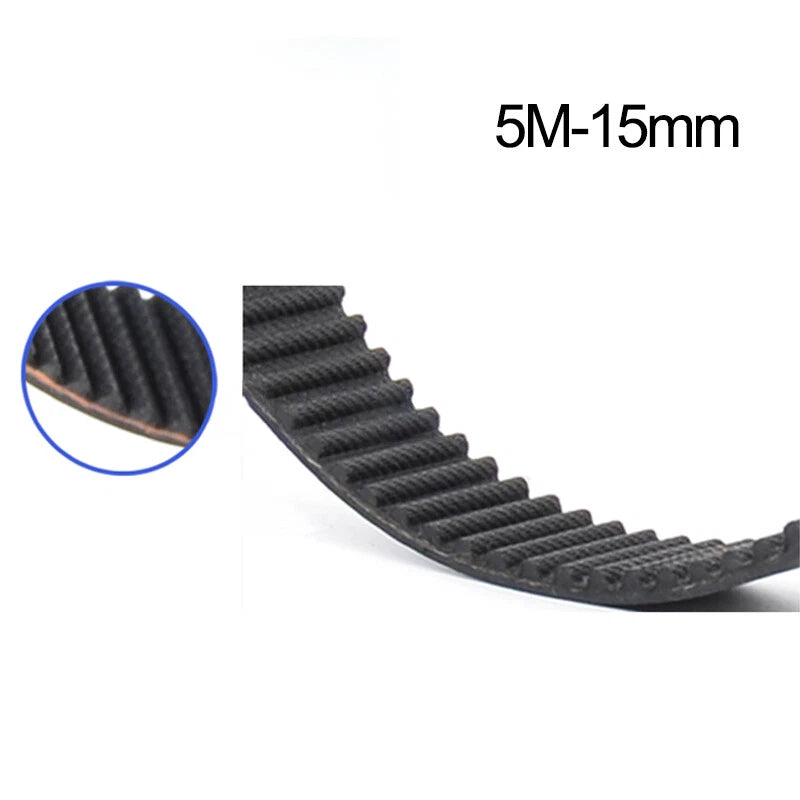

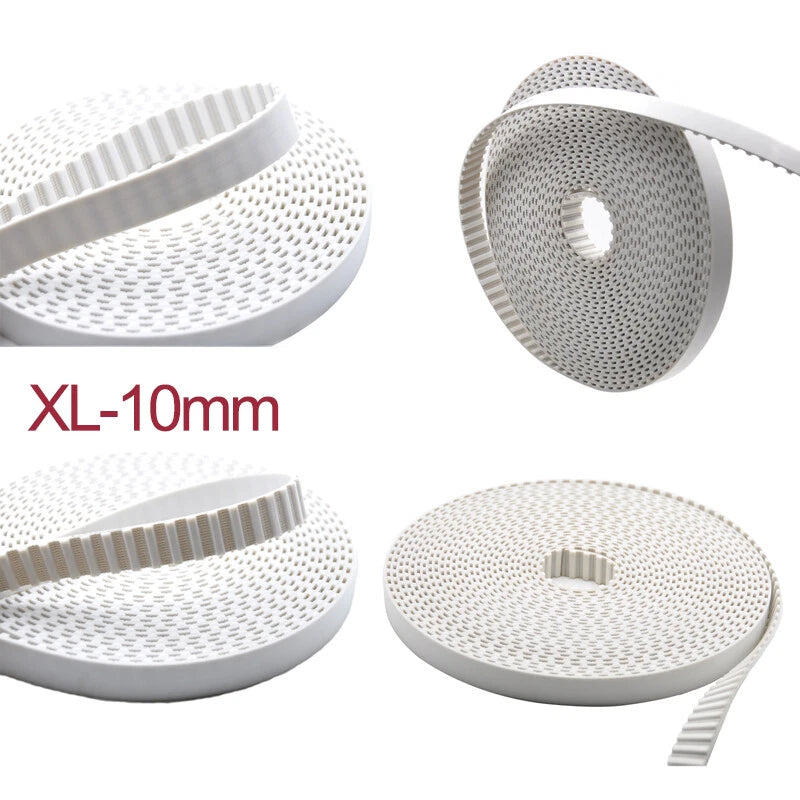

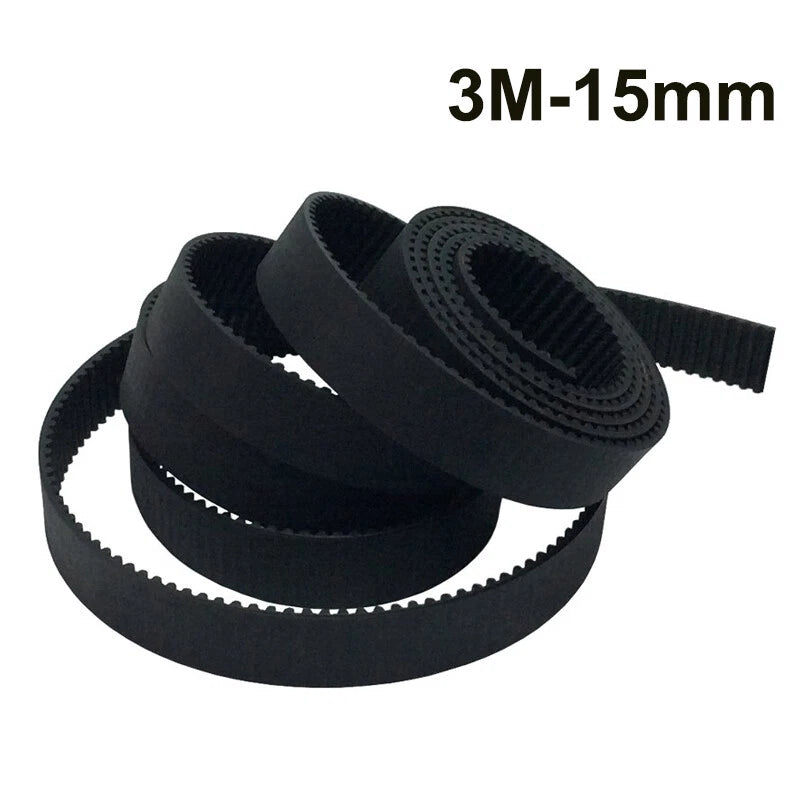

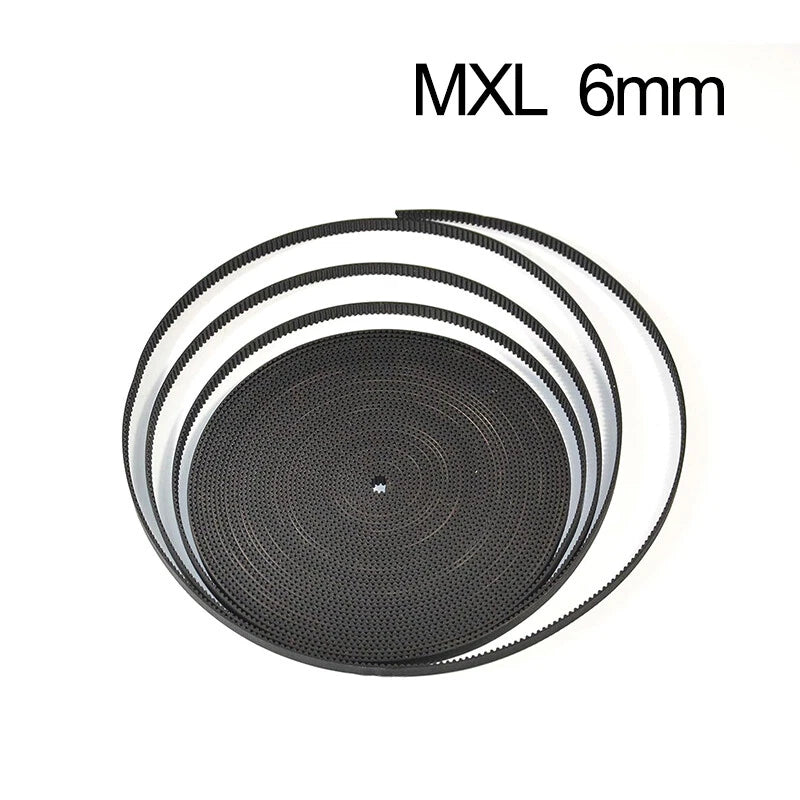

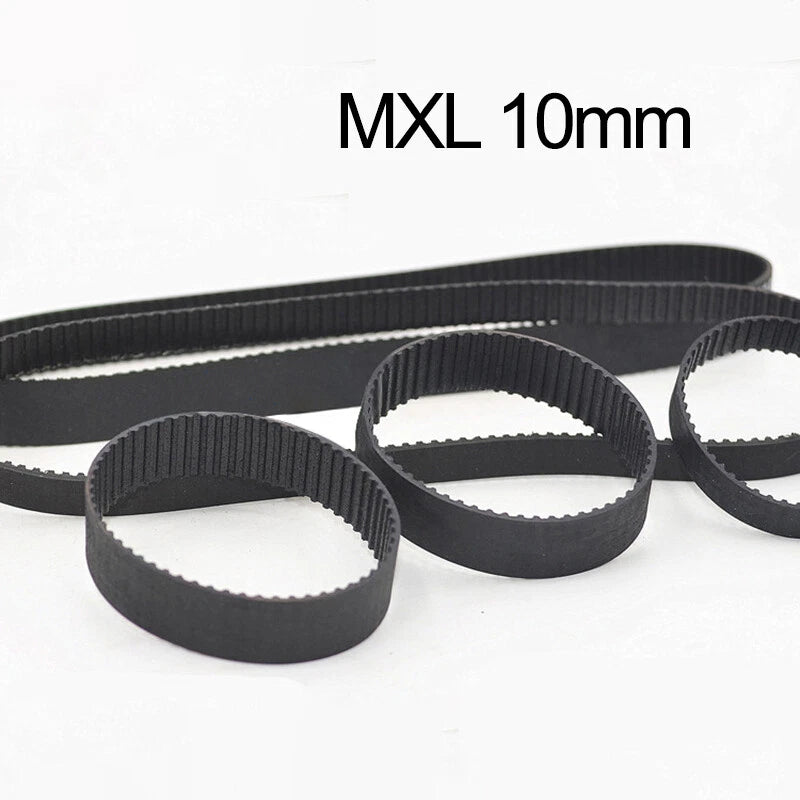

Each belt is sold by the meter in your chosen profile and width. Available profiles include 2GT (2 mm pitch, 6 mm or 10 mm wide), MXL (2.032 mm pitch, 6 mm or 10 mm wide), XL (5.08 mm pitch, 10 mm wide), 3M (3 mm pitch, 15 mm wide), and 5M (5 mm pitch, 15 mm wide). Material options span Black Rubber, Black Polyurethane with steel wire reinforcement, White Polyurethane with or without steel wire, and TPU with Kevlar fiber core — widths typically range from 6 mm to 15 mm (approx. 0.24 in to 0.59 in).

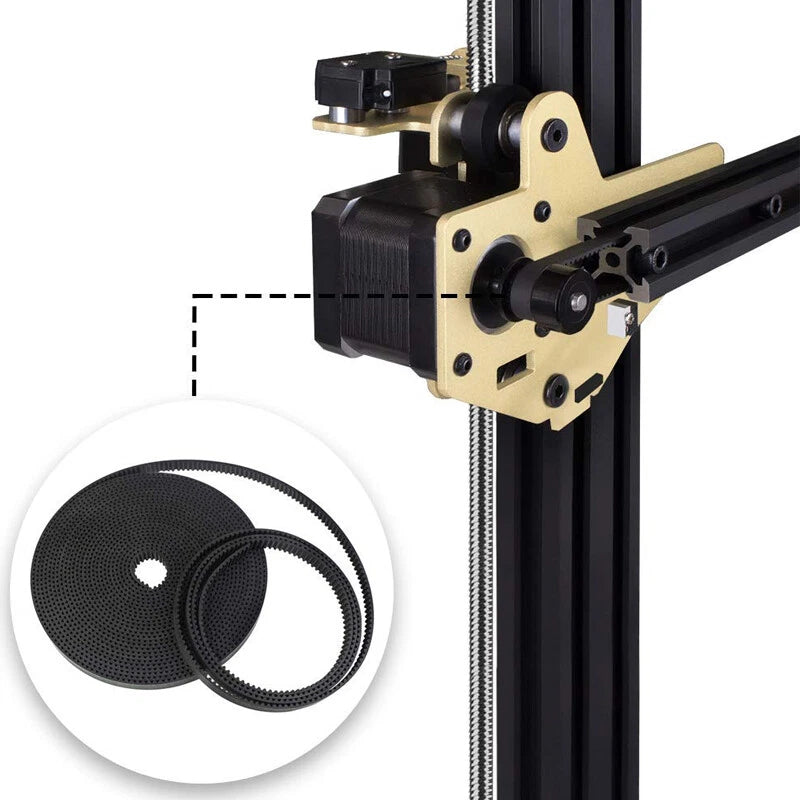

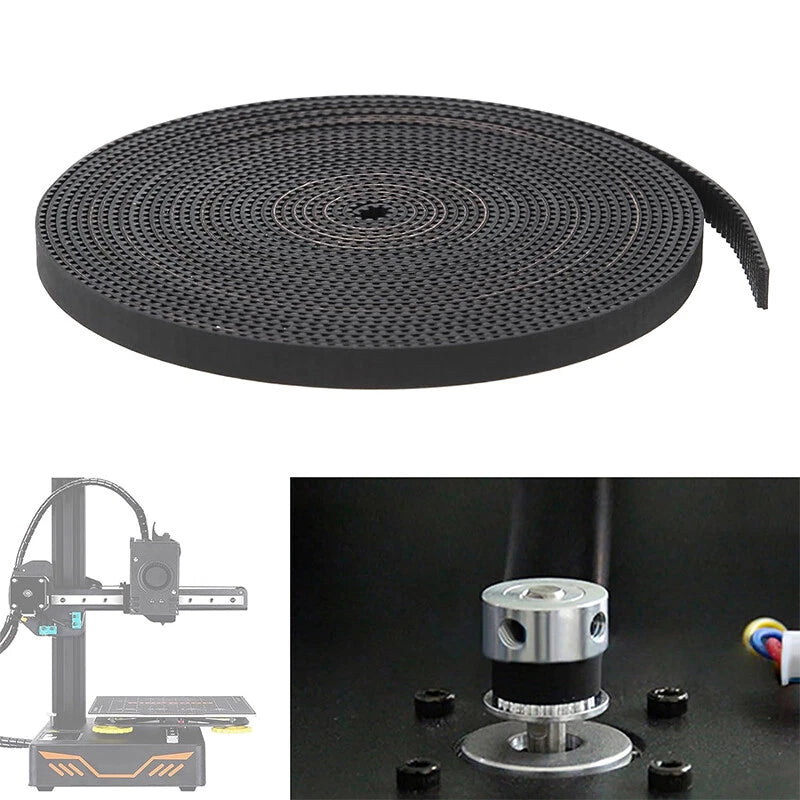

Typical use cases include replacing worn drive belts on FDM 3D printers and CoreXY machines, building custom CNC plasma or laser cutter gantries, and constructing lightweight robotic arm joints or pick-and-place automation systems that demand low backlash synchronous timing belt drive performance.

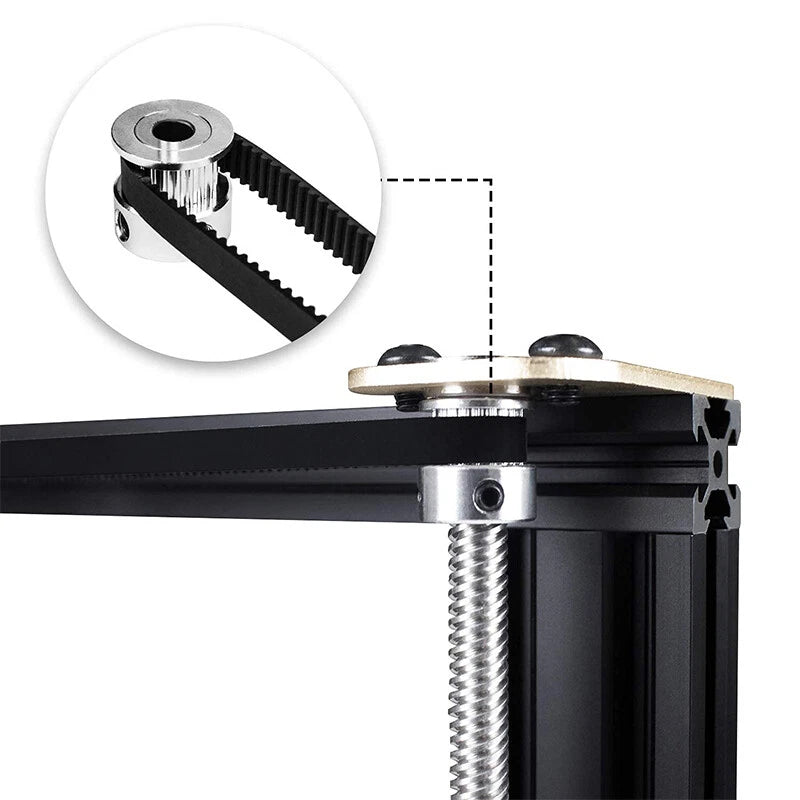

⚙️ Compatible with standard 2GT, MXL, XL, 3M, and 5M timing pulleys. Verify your pulley tooth profile and belt width before ordering.

✅ Key Features of These Synchronous Timing Belts

🔁

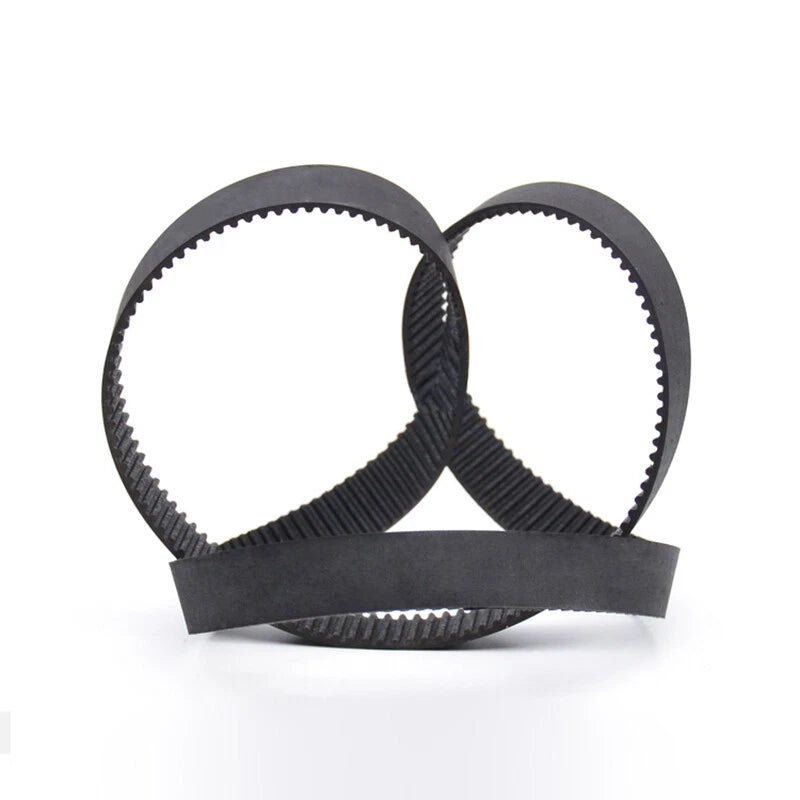

Closed-Loop Design

Seamless endless loop eliminates splice weak points, delivering consistent tension and zero-backlash power transmission across the full belt length.

🧱
Multiple Material Options

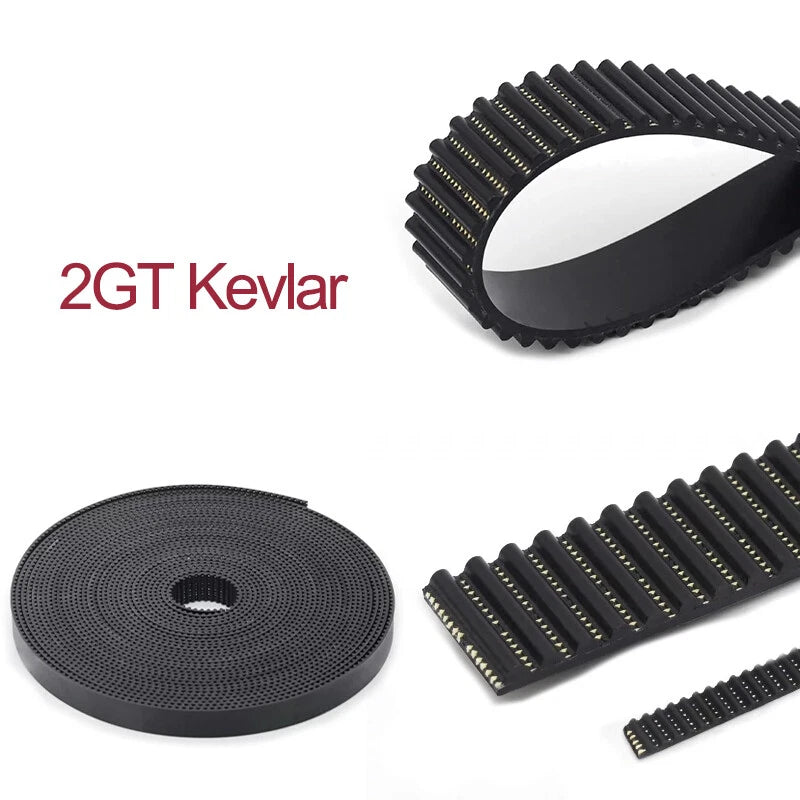

Choose Black Rubber for cost-effective general use, Polyurethane + steel wire for higher load capacity, or TPU + Kevlar for the lightest weight with maximum tensile strength.

📐
Wide Profile Selection

Covers 2GT, MXL, XL, 3M, and 5M tooth profiles to match the most common timing pulleys used in desktop CNC, 3D printing, and light industrial automation.

📏
Flexible Length — 1 to 15 Meters

Order exactly the quantity you need in 1 m, 2 m, 3 m, 5 m, 10 m, or 15 m increments, reducing waste and letting you stock the right amount for your project.

🛡️
Corrosion & Oil Resistant

Rubber and polyurethane compounds resist moisture, light oils, and workshop chemicals, maintaining dimensional stability and tooth geometry over extended service life.

⚡
Low Noise, Low Stretch

Steel wire and Kevlar fiber cores minimize elongation under load, while the elastomeric tooth body absorbs vibration for quieter operation in noise-sensitive environments.

📐 Technical Specifications — Synchronous Timing Belt

Belt Type Closed-Loop Synchronous Timing Belt
Available Profiles 2GT, MXL, XL, 3M, 5M
Pitch 2 mm (2GT/MXL), 3 mm (3M), 5 mm (5M), 5.08 mm (XL)
Width Options 6 mm, 10 mm, 15 mm (varies by profile)
Material Options Black Rubber / Black Polyurethane + Steel Wire / White Polyurethane + Steel Wire / White Polyurethane / TPU + Kevlar
Reinforcement Steel wire core (PU variants) / Kevlar fiber core (TPU variant) / None (Rubber variant)
Color Black or White (see variant options)
Length Options 1 m, 2 m, 3 m, 5 m, 10 m, 15 m
Operating Temperature See variant options
Tooth Form Trapezoidal (MXL, XL) / Curvilinear (2GT, 3M, 5M)
Application 3D Printers, CNC Machines, Robotics, Conveyor Systems, Automation

❓ Frequently Asked Questions

How do I choose the right belt profile for my machine?

Match the belt profile to your existing pulley. The most common profiles for desktop 3D printers and CoreXY machines are 2GT (also called GT2) with 6 mm or 10 mm width. CNC routers often use XL or 3M profiles. Check your pulley's tooth pitch and width specification before selecting a variant.

What is the difference between Rubber, Polyurethane, and TPU+Kevlar belts?

Black Rubber belts are flexible and economical, suitable for light-duty 3D printing and general motion control. Polyurethane belts with steel wire reinforcement offer higher tensile strength and lower stretch, making them better for CNC and heavier loads. TPU + Kevlar belts combine the flexibility of thermoplastic polyurethane with the ultra-low elongation of Kevlar fiber, ideal for high-speed or precision applications where minimal belt stretch is critical.

Are these belts compatible with standard GT2 pulleys?

Yes — the 2GT profile is dimensionally equivalent to GT2 (2 mm pitch, curvilinear tooth form) and is compatible with standard GT2 pulleys used in most FDM 3D printers. Always verify the belt width matches your pulley flange width (6 mm or 10 mm) to ensure proper tracking.

How strong are these timing belts under tension?

Tensile strength varies by material. Steel wire-reinforced polyurethane belts typically handle significantly higher loads than rubber belts of the same profile. TPU + Kevlar belts offer the lowest elongation under load. For specific load ratings, refer to the variant you select or contact us to confirm suitability for your application.

Can these belts be used outdoors or in humid environments?

Rubber and polyurethane belts both offer good resistance to moisture and light humidity. Polyurethane variants are generally more resistant to oils and mild chemicals than rubber. For prolonged outdoor UV exposure, contact us to confirm the best material choice for your specific conditions.

How do I determine how many meters to order?

Measure the total drive path length of your machine — including both the working span and the return span around all pulleys. Add 5–10% extra for tensioning allowance. Select the QTY (meter) option that meets or slightly exceeds your calculated requirement. Ordering a slightly longer length is recommended to allow for trimming and future replacements.

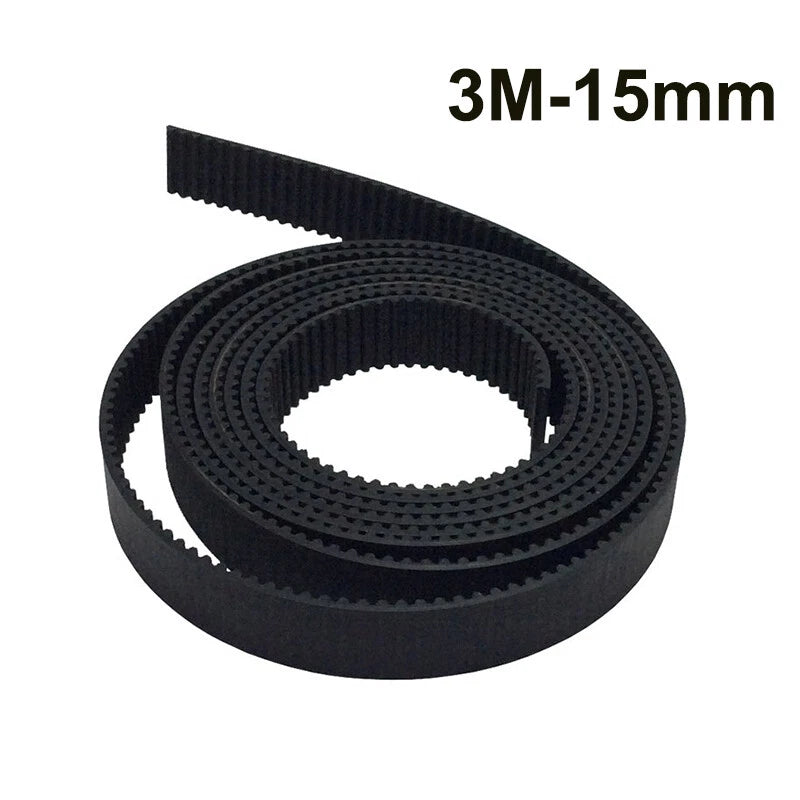

What is the difference between the 3M-15mm and 3M-15mmmm variant names?

Both refer to the same 3M profile (3 mm pitch) with 15 mm belt width. The variant label difference is a display formatting variation in our catalog — the product specifications are identical. If you are unsure which to select, choose either 3M-15mm or 3M-15mmmm for the same belt.

🛒 Select your Type-Width, Color-Material, and QTY (meter) above, then add to cart.
