When belt slippage or misalignment stalls your build, the culprit is often an undersized or poorly machined idler pulley. Engineers, robotics builders, and CNC hobbyists who demand repeatable motion need a U-grooved idler pulley that holds belt tracking without flex or wobble — every cycle, every time.

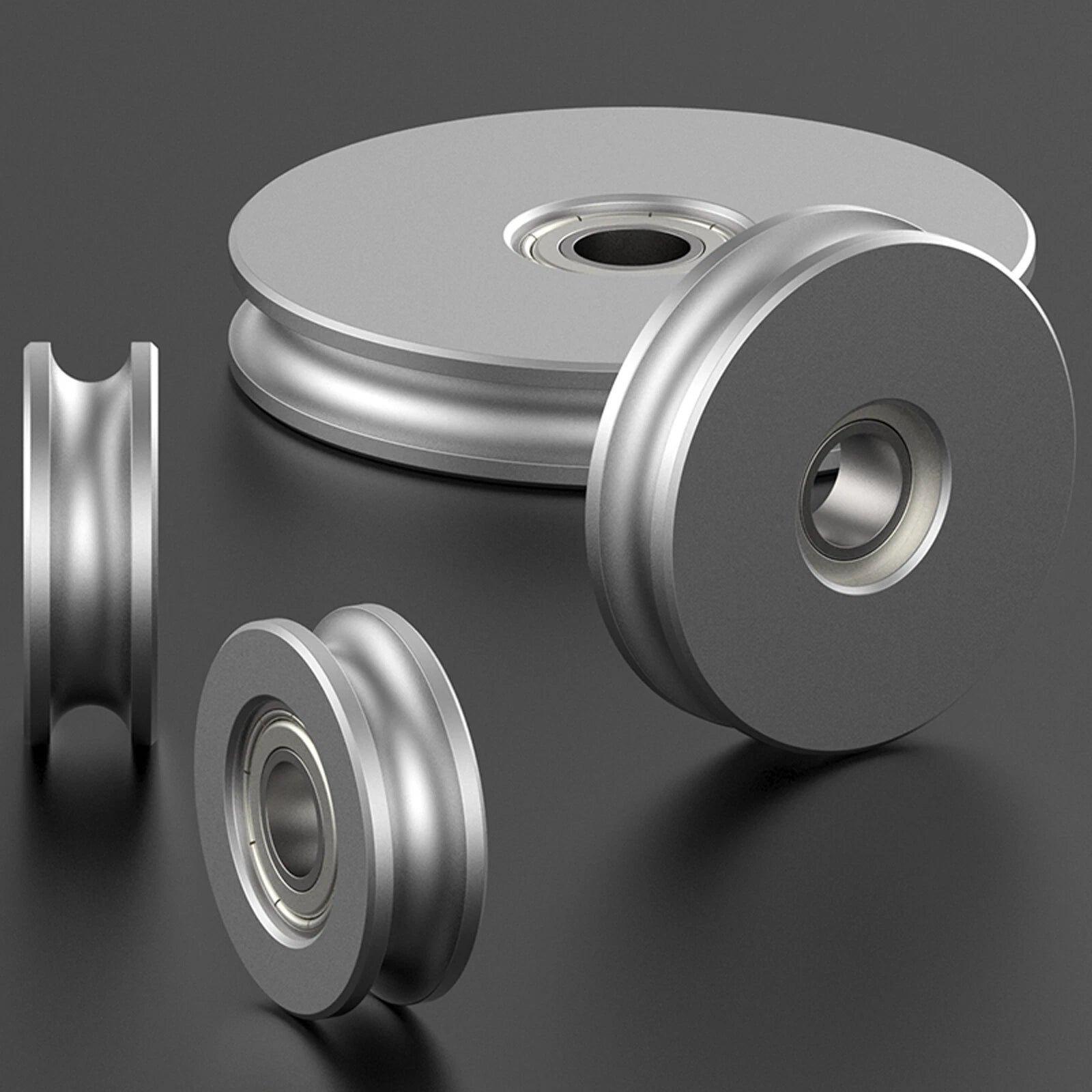

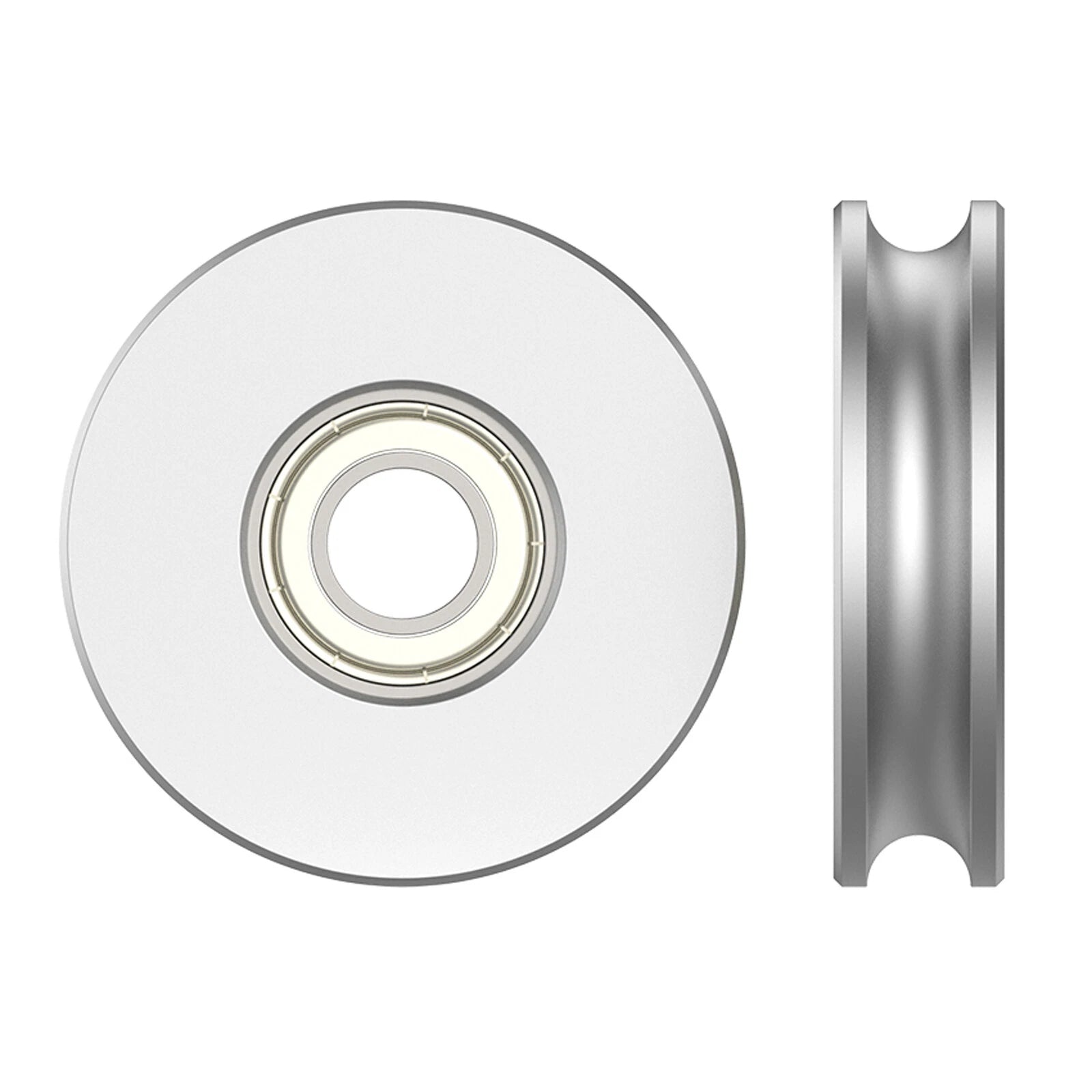

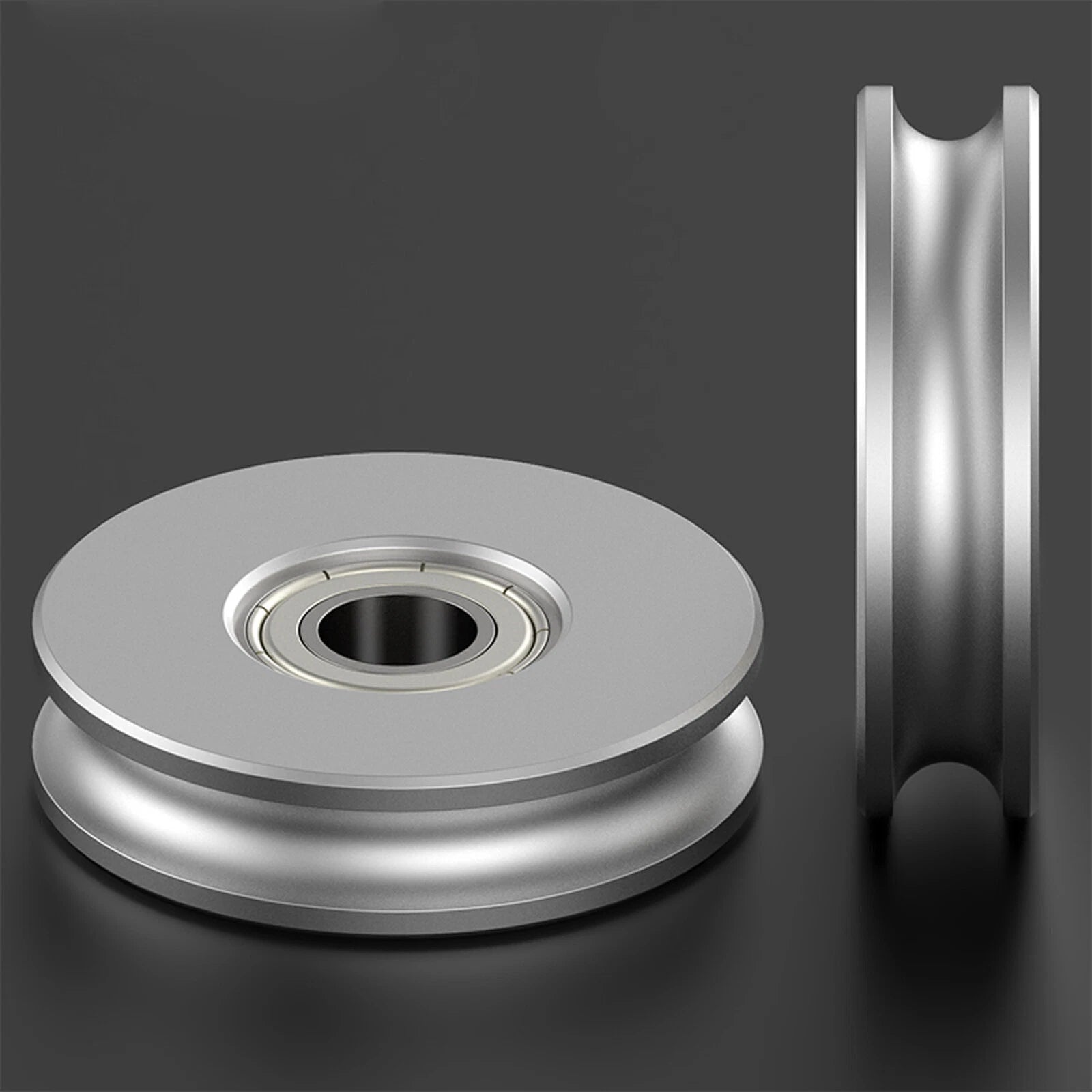

These U-grooved idler pulleys are machined from aluminum alloy and feature a precisely cut U-profile groove designed to guide flat PU belts with widths of 6mm, 8mm, or 10mm. Outer diameters range from 30mm to 80mm (~1.18" to ~3.15"), with bore options from 5mm to 20mm (~0.20" to ~0.79") to suit a wide range of shaft sizes. Each pulley ships individually (1 piece per order) unless a multi-pack variant is selected.
Typical use cases include: tensioning and redirecting PU flat belts in desktop CNC routers and laser cutters; serving as idler wheels in 3D printer belt drive systems; and guiding conveyor belts in lightweight automation and pick-and-place rigs where low-friction, low-inertia pulleys reduce motor load.

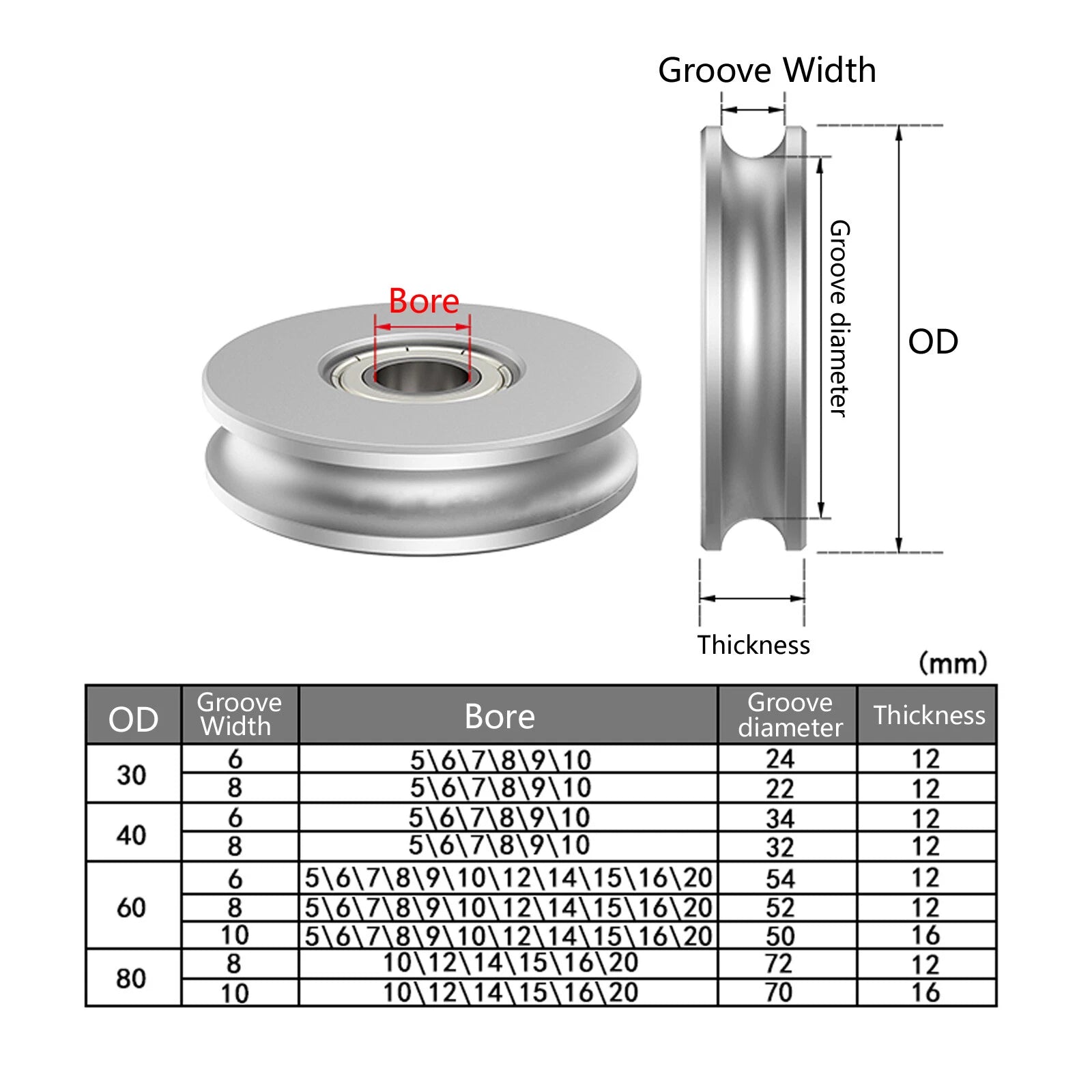

| Material | Aluminum Alloy |
|---|---|
| Groove Profile | U-Groove |
| Compatible Belt Width | 6mm / 8mm / 10mm |
| Outer Diameter (OD) | 30mm / 40mm / 60mm / 80mm |
| Bore Diameter | 5mm / 6mm / 7mm / 8mm / 10mm / 12mm / 14mm / 15mm / 16mm / 18mm / 20mm |
| Groove Width | See variant options |
| Hub Thickness | See variant options |
| Surface Finish | See variant options |
| Quantity per Order | 1 Piece |
| Application | Idler / Tensioner for PU flat belt drives |

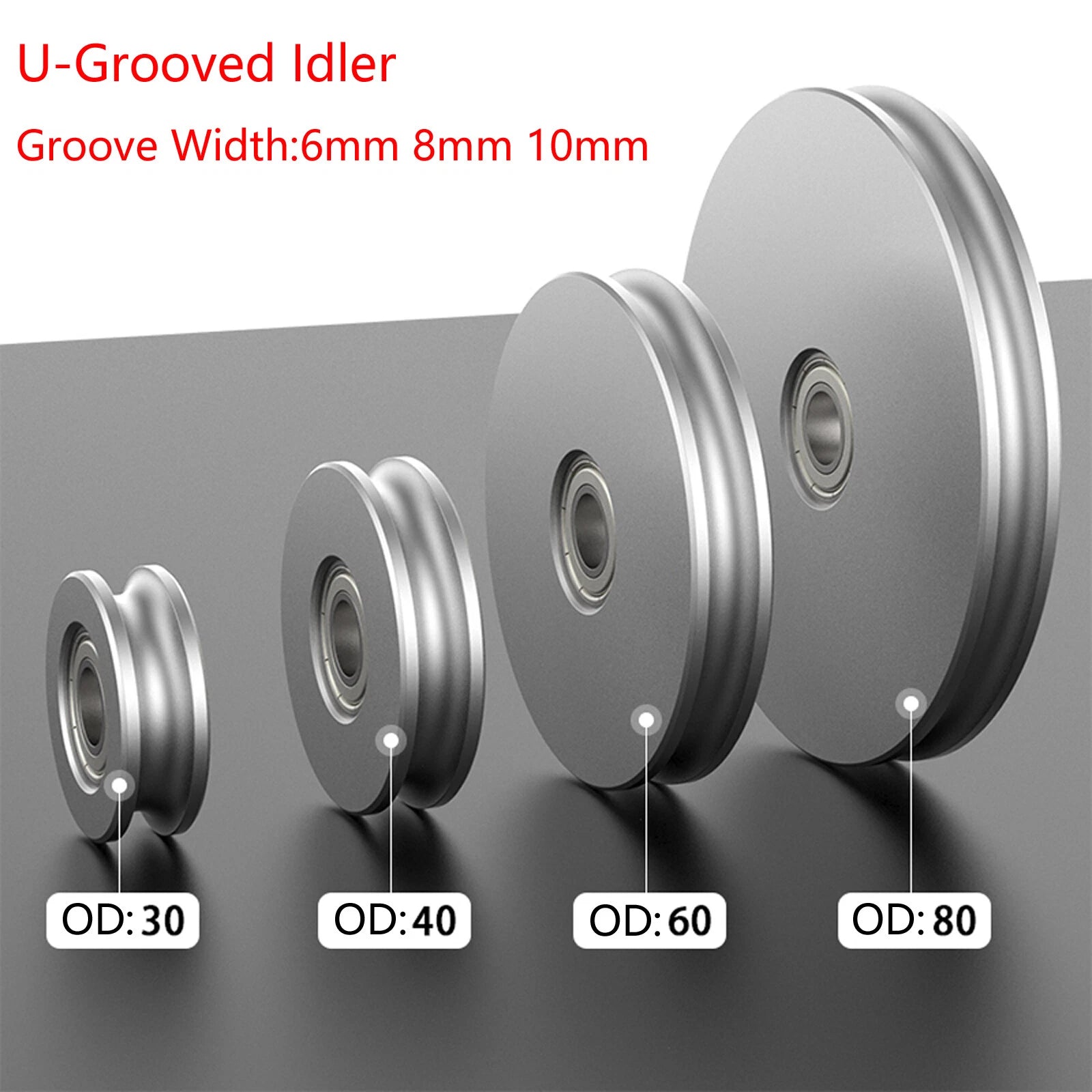

The outer diameter affects the wrap angle and the surface speed of the belt at the idler. For tensioner applications, a smaller OD (30–40mm) is typically sufficient. For redirecting pulleys where the belt wraps more than 90°, a larger OD (60–80mm) reduces bending stress on the belt and extends belt life. Match the OD to your available mounting space and desired belt path geometry.
Select a bore diameter that matches your shaft or shoulder bolt diameter exactly. Available bores range from 5mm to 20mm. If you are using a standard M5 shoulder bolt, choose the 5mm bore; for an M8 shaft, choose 8mm, and so on. A precise bore-to-shaft fit prevents radial play that would cause belt tracking issues.
These aluminum idler pulleys are well-suited for the moderate speeds typical of desktop CNC, 3D printers, and light automation. For continuous high-speed or heavy-load industrial duty cycles, verify that the bore fit and any bearing arrangement you use are rated for your RPM and radial load. Contact us to confirm suitability for demanding applications.
These pulleys are supplied as the aluminum pulley body only. They are designed to be mounted on a shaft with an appropriate bearing (such as a flanged or standard radial ball bearing pressed into the bore) or used directly on a shoulder bolt with a smooth bore fit. Please confirm your mounting method and select the matching bore size accordingly.
The U-groove profile is optimized for flat PU belts and open-ended flat belts of 6mm, 8mm, or 10mm width. They can also function as smooth idlers for the back side of toothed timing belts (where the flat back of the belt contacts the pulley). They are not designed to mesh with the tooth profile of a timing belt on the toothed face.
The groove width is matched to the belt width variant you select (6mm, 8mm, or 10mm). Measure your belt width with calipers and select the corresponding groove width option. A groove that is too wide allows lateral belt wander; a groove that is too narrow can pinch the belt edges and cause premature wear.
Aluminum is an excellent choice for most maker, robotics, and light CNC applications because it offers a favorable strength-to-weight ratio and resists corrosion in typical indoor environments. If your application involves heavy radial loads, abrasive environments, or elevated temperatures beyond what aluminum alloy handles reliably, a steel pulley may be more appropriate. For standard desktop CNC and 3D printer use, aluminum is the practical choice.
