Description

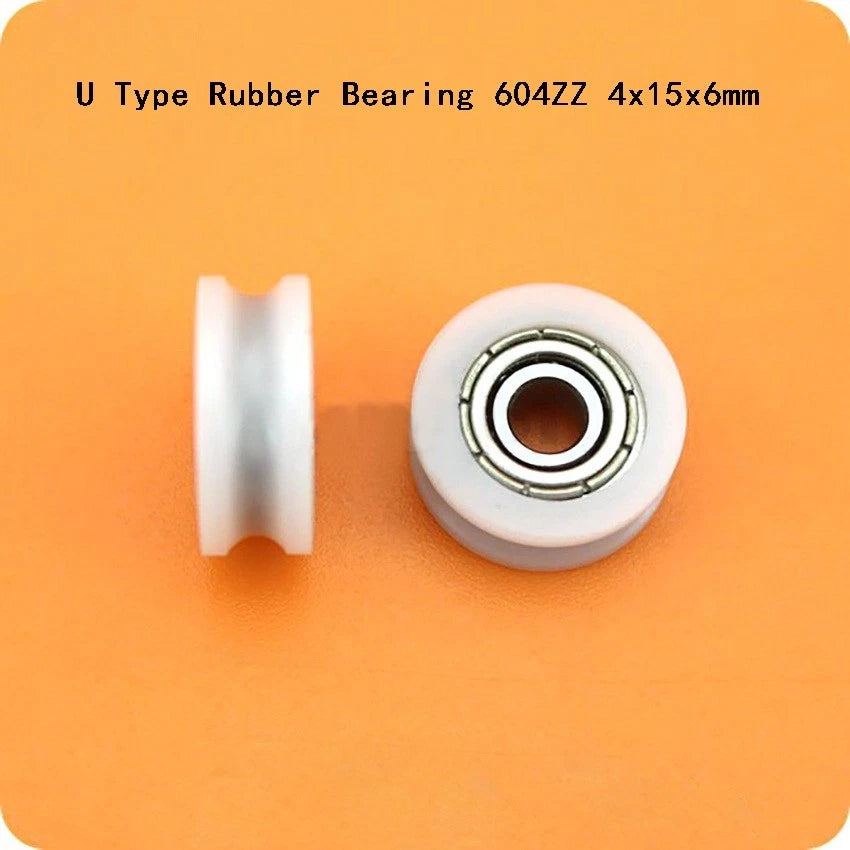

U-Type Deep Groove Nylon Pulley with 604ZZ Bearing — Smooth, Quiet Rolling for DIY Automation

When your linear rail, rope guide, or belt tensioner keeps slipping, binding, or generating unwanted noise, the culprit is almost always a poorly fitted pulley. Makers, workshop builders, and automation hobbyists who need a compact, low-friction guide wheel will find this U-type deep groove pulley a reliable drop-in solution.

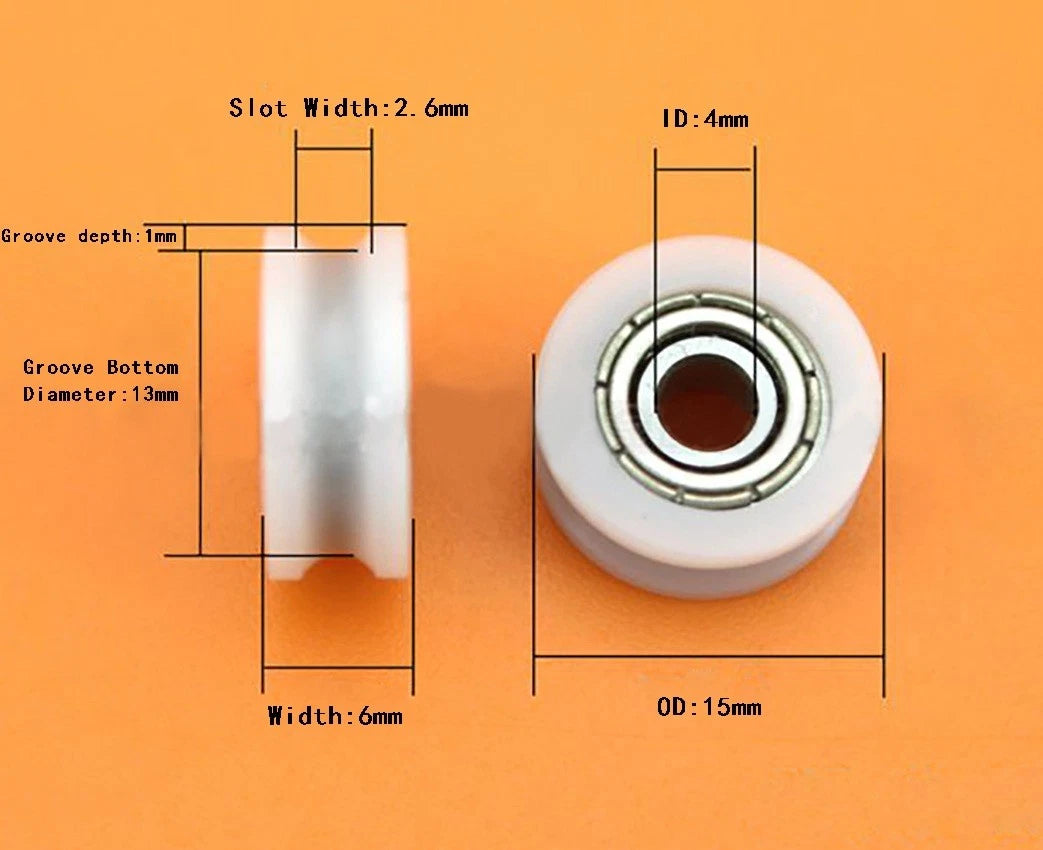

Each pulley is molded from engineering-grade nylon with a pre-installed 604ZZ deep groove ball bearing at its core. The overall dimensions are 4 mm bore × 15 mm outer diameter × 6 mm width (approximately 0.16" × 0.59" × 0.24"). The U-shaped groove profile is sized to capture round cords, thin belts, or wire rope securely without lateral drift.

Typical applications include 3D printer filament guides, CNC wire-routing pulleys, sliding door rope guides, small conveyor tensioners, and DIY robotic arm cable management — anywhere a compact, embedded-bearing guide wheel is needed.

⚙️ Compatibility: Fits M4 shoulder bolts or 4 mm axle pins. U-groove suits round cords and thin ropes typically 2–4 mm in diameter. Verify groove width against your cord diameter before ordering.

✅ Key Features of These U-Type Nylon Groove Pulleys

🔩 Pre-Installed 604ZZ Ball Bearing

The deep groove ball bearing is factory-pressed into the nylon hub, delivering smooth, low-friction rotation right out of the package — no assembly required.

🧱 Engineering-Grade Nylon Body

The nylon shell is lightweight yet rigid, resisting deformation under moderate radial loads while keeping overall pulley weight minimal for fast-moving applications.

🌊 U-Groove Profile for Secure Cord Tracking

The machined U-channel keeps round cords, ropes, and thin cables centered on the pulley face, preventing lateral slippage during direction changes.

🔇 Quiet, Vibration-Damping Operation

Nylon absorbs minor vibrations that metal pulleys transmit, resulting in noticeably quieter operation in enclosed frames and desktop automation rigs.

🛡️ Corrosion-Resistant Construction

The nylon outer shell does not rust, and the 604ZZ bearing's steel races are shielded on both sides, making this pulley suitable for moderately humid workshop environments.

📦 Flexible Pack Quantities

Available in 1 pc, 4 pcs, or 10 pcs to match your project scale — order a single unit for prototyping or a 10-pack for full machine builds.

📐 Technical Specifications — U-Type Nylon Groove Pulley

Bearing Model 604ZZ
Bore Diameter 4 mm (0.157")
Outer Diameter 15 mm (0.591")
Width 6 mm (0.236")
Groove Profile U-type deep groove
Body Material Engineering-grade nylon (PA)
Bearing Type Deep groove ball bearing, double-shielded (ZZ)
Compatible Axle M4 bolt / 4 mm pin
Suitable Cord Diameter Typically 2–4 mm (contact us to confirm)
Max Radial Load See variant options
Color / Finish See variant options
Pack Quantity 1 pc / 4 pcs / 10 pcs

❓ Frequently Asked Questions

What cord or rope diameter fits this U-groove pulley?

The U-groove is designed for round cords and ropes typically in the 2–4 mm diameter range. For best tracking, the cord should sit snugly in the groove without excessive play. If you are using a specific cord size, contact us to confirm fitment before ordering.

What axle or bolt size does this pulley require?

The 604ZZ bearing has a 4 mm bore, so this pulley mounts on an M4 shoulder bolt or any 4 mm diameter pin or axle. Ensure the axle is long enough to pass through your mounting bracket plus the 6 mm pulley width.

Is the 604ZZ bearing replaceable if it wears out?

The bearing is press-fit into the nylon hub. While a skilled user with the right press tools can replace it, in practice the low unit cost makes replacing the entire pulley more practical for most DIY applications.

Can this pulley handle outdoor or humid environments?

The nylon body does not corrode, and the double-shielded (ZZ) bearing provides basic protection against dust and light moisture. For prolonged outdoor exposure or wet conditions, we recommend periodic inspection of the bearing and re-lubrication as needed.

How much load can this pulley carry?

This pulley is designed for light-duty DIY and automation applications — such as 3D printer guides, small cable routing, and hobby robotics. It is not rated for heavy industrial loads. For specific load requirements, please contact us to confirm suitability.

Should I order 1 pc, 4 pcs, or 10 pcs?

Choose 1 pc for prototyping or a single replacement. The 4-pack suits small builds with a few guide points. The 10-pack offers the best per-unit value for full machine builds, conveyor systems, or when you want spares on hand.

Is this compatible with 3D printer frames and CNC machines?

Yes — the 4 mm bore and compact 15 mm OD make this pulley a common choice for 3D printer filament guides, CNC wire routing, and similar maker projects. Verify that your frame's axle diameter is 4 mm and that the groove width suits your cord or cable.

🛒 Select your quantity above, then add to cart.
