48 58 68 Pulley U V H Groove Shape Roller Wheels Idler Pulley Wheel Crane Roller

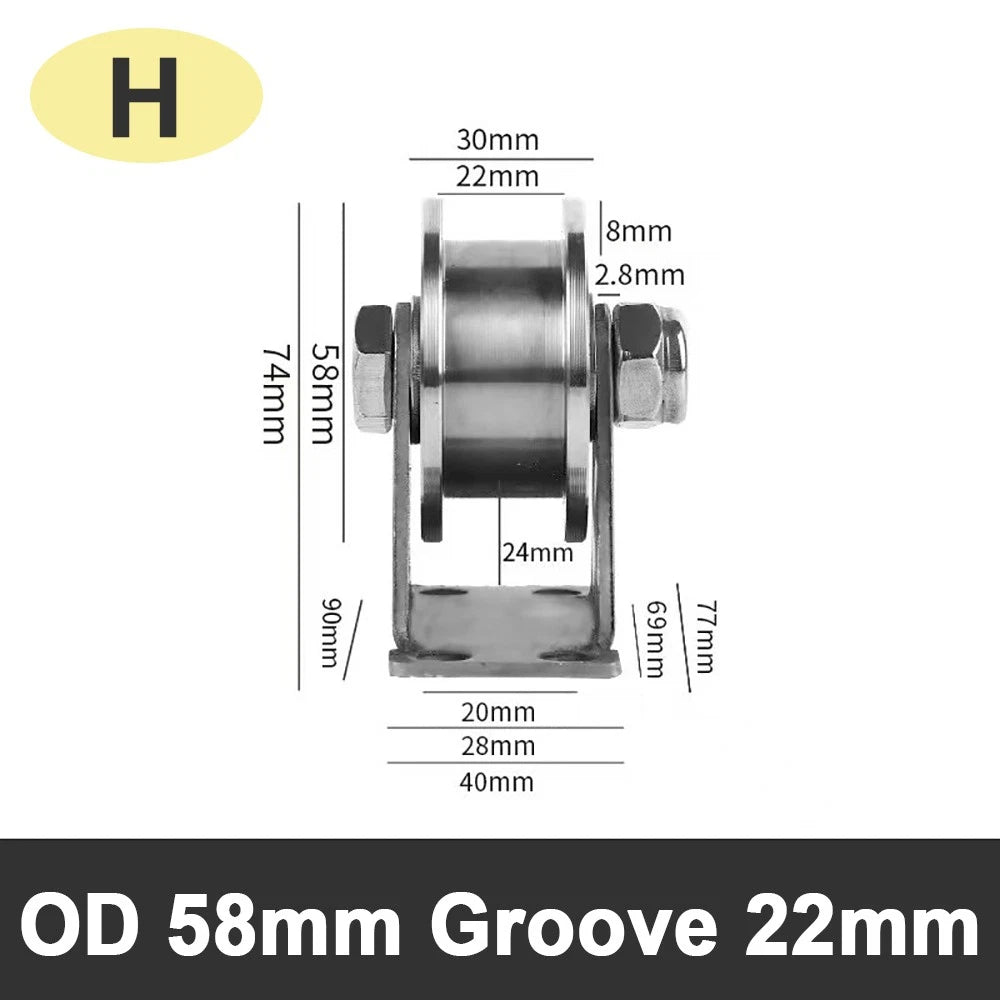

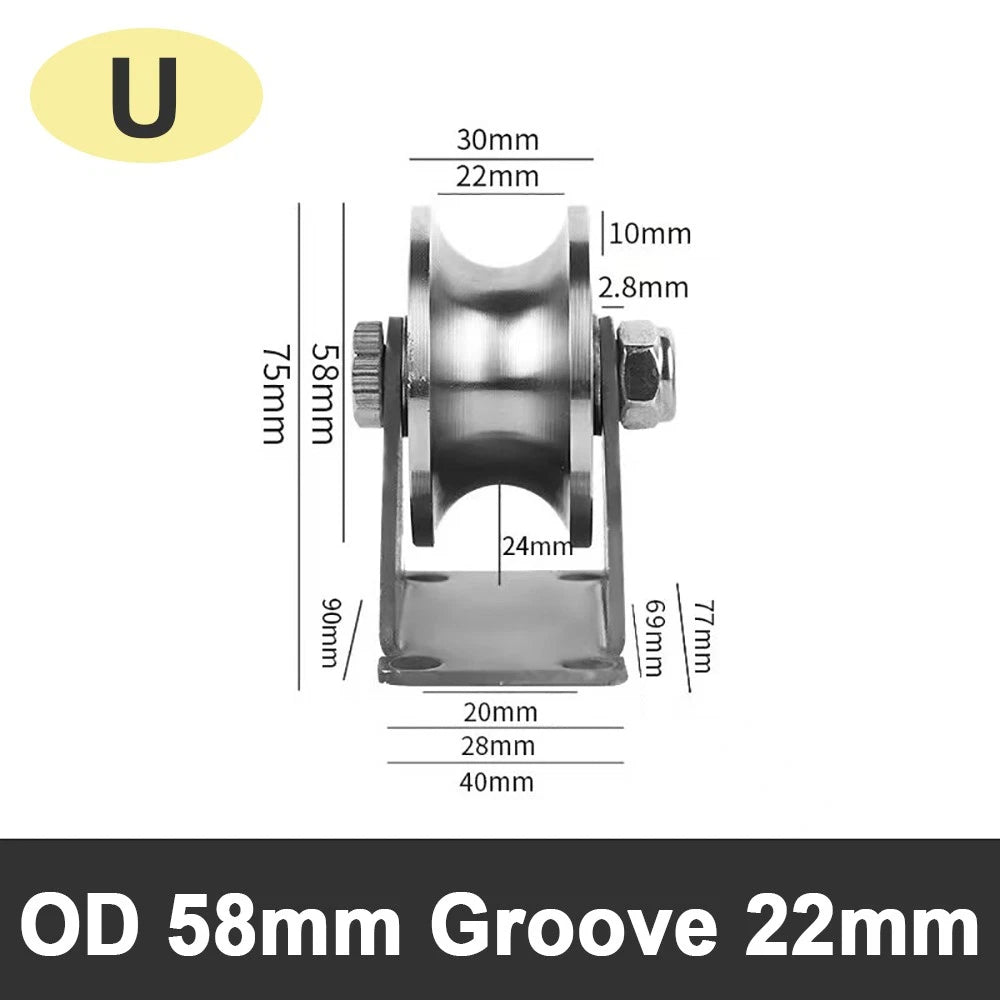

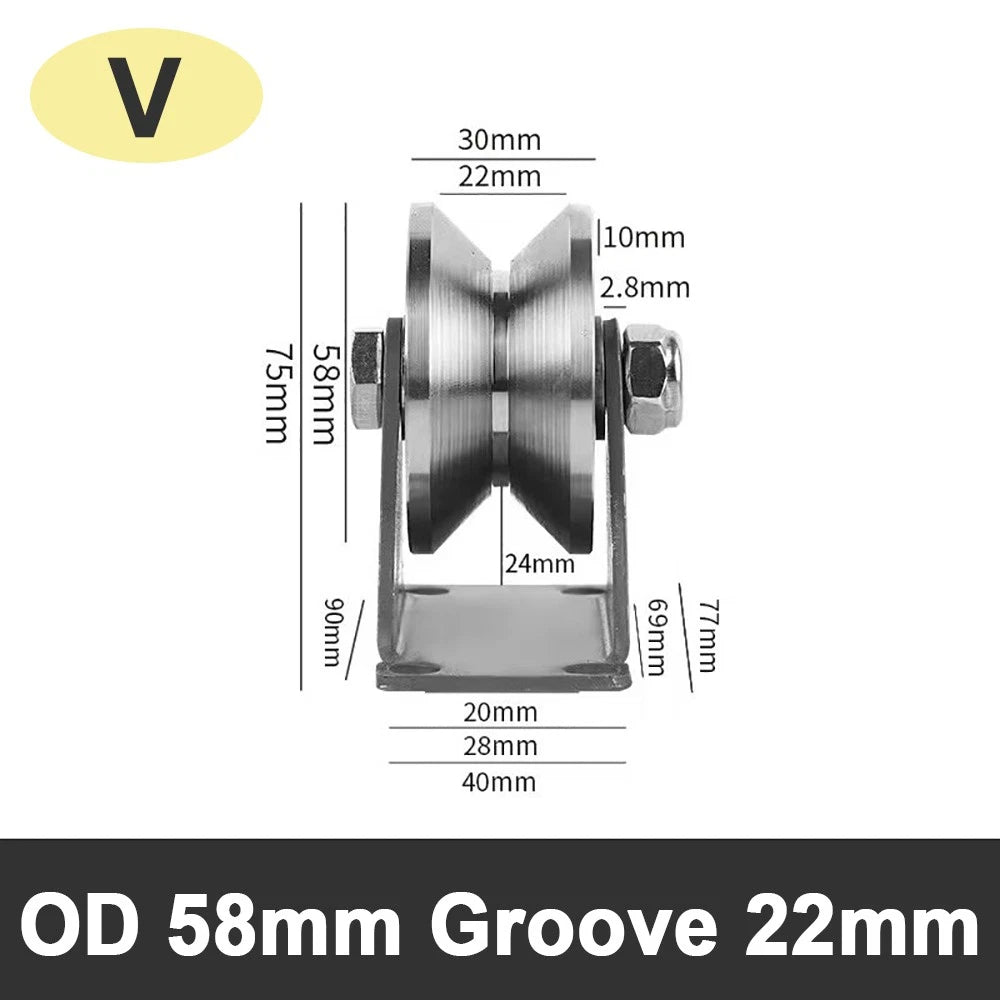

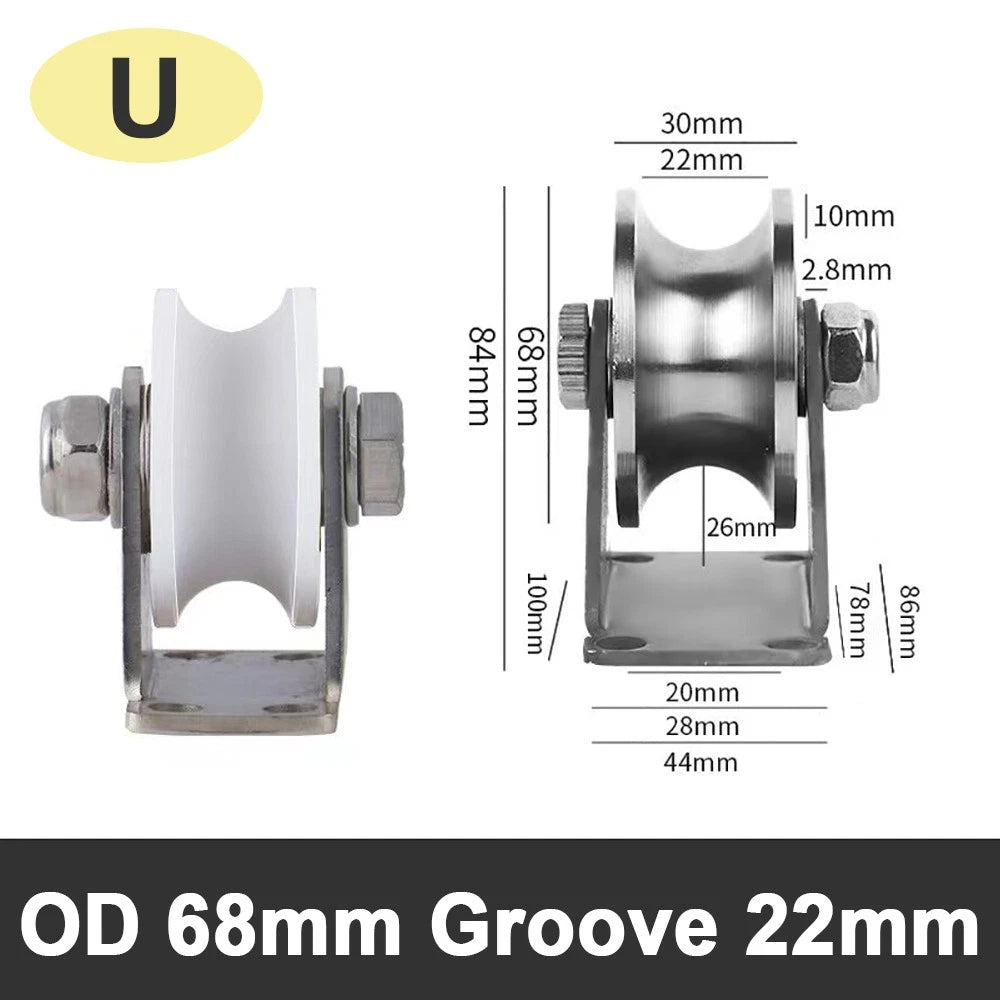

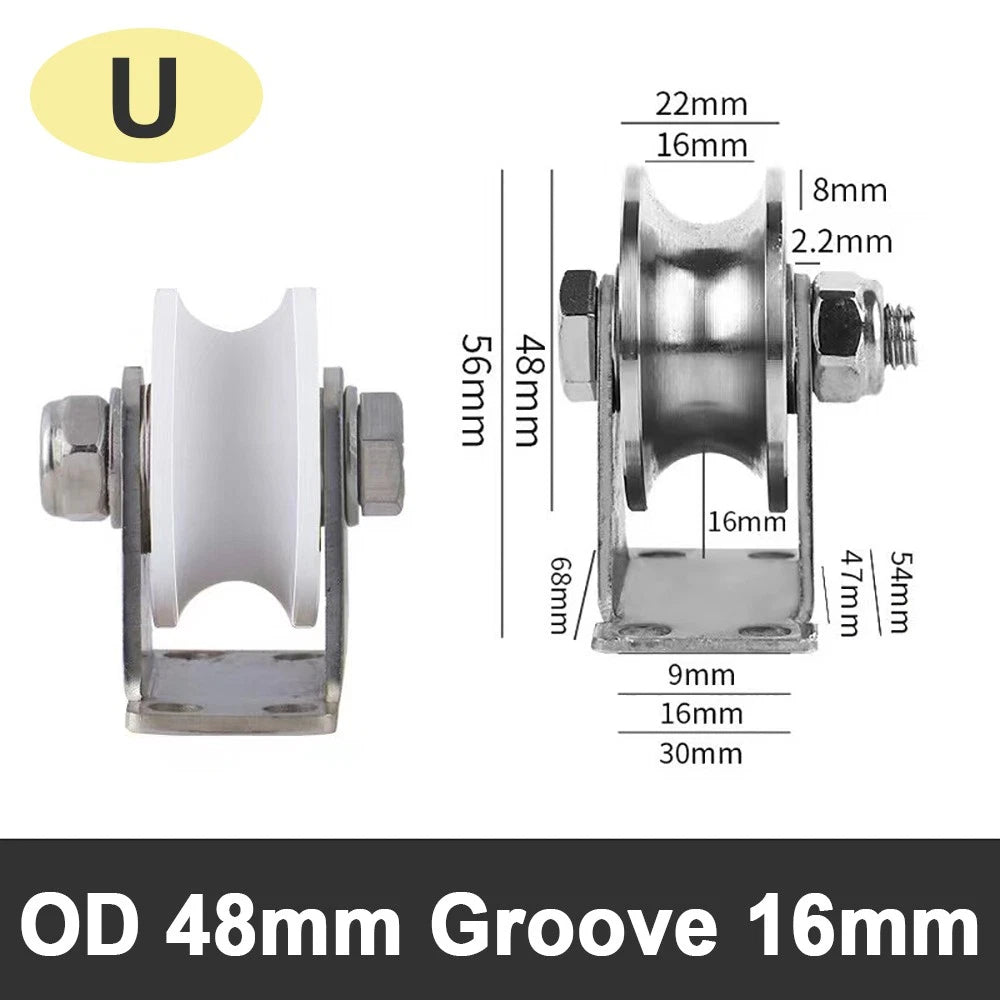

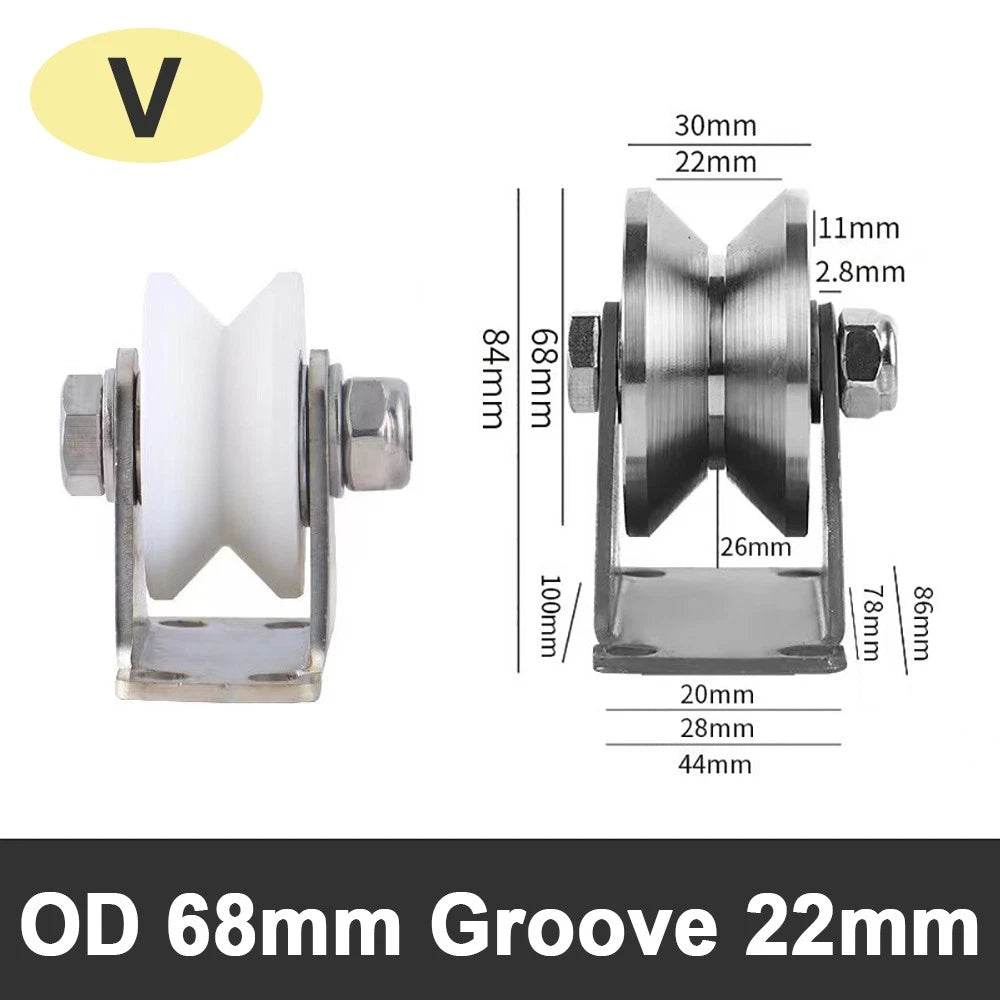

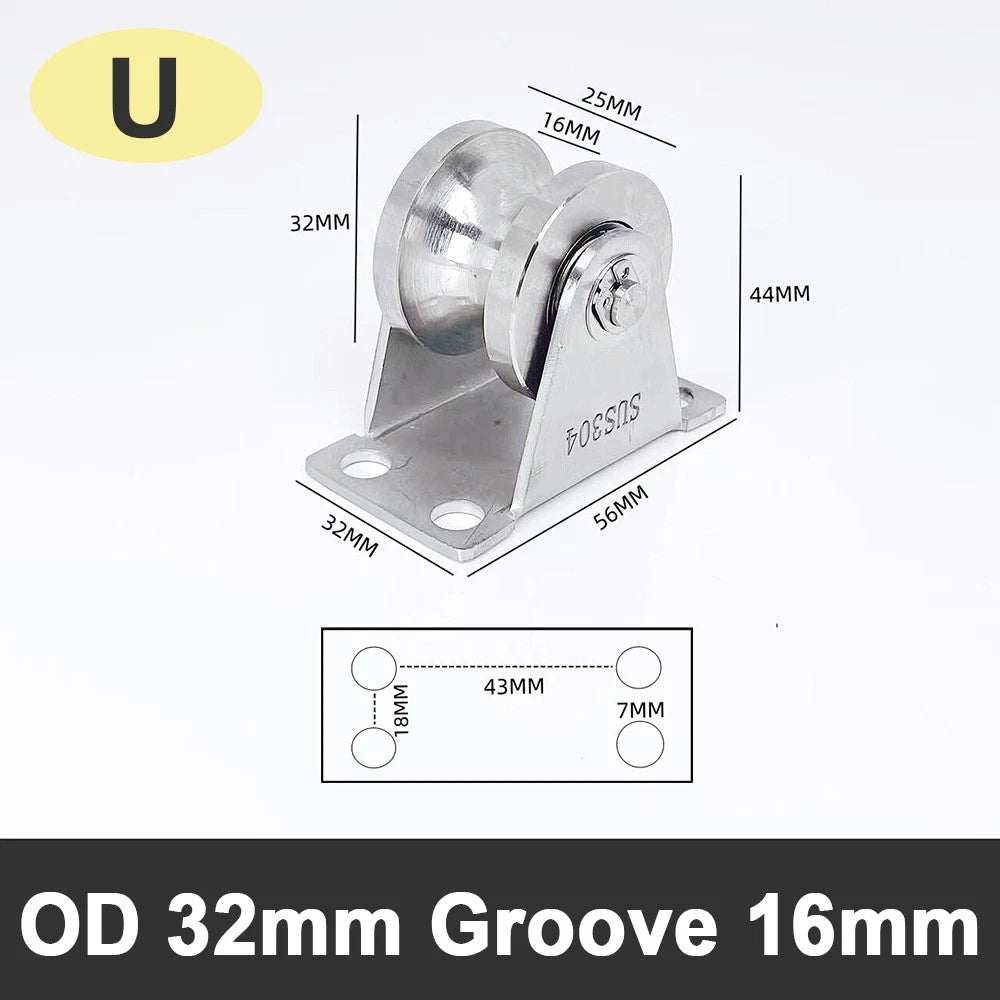

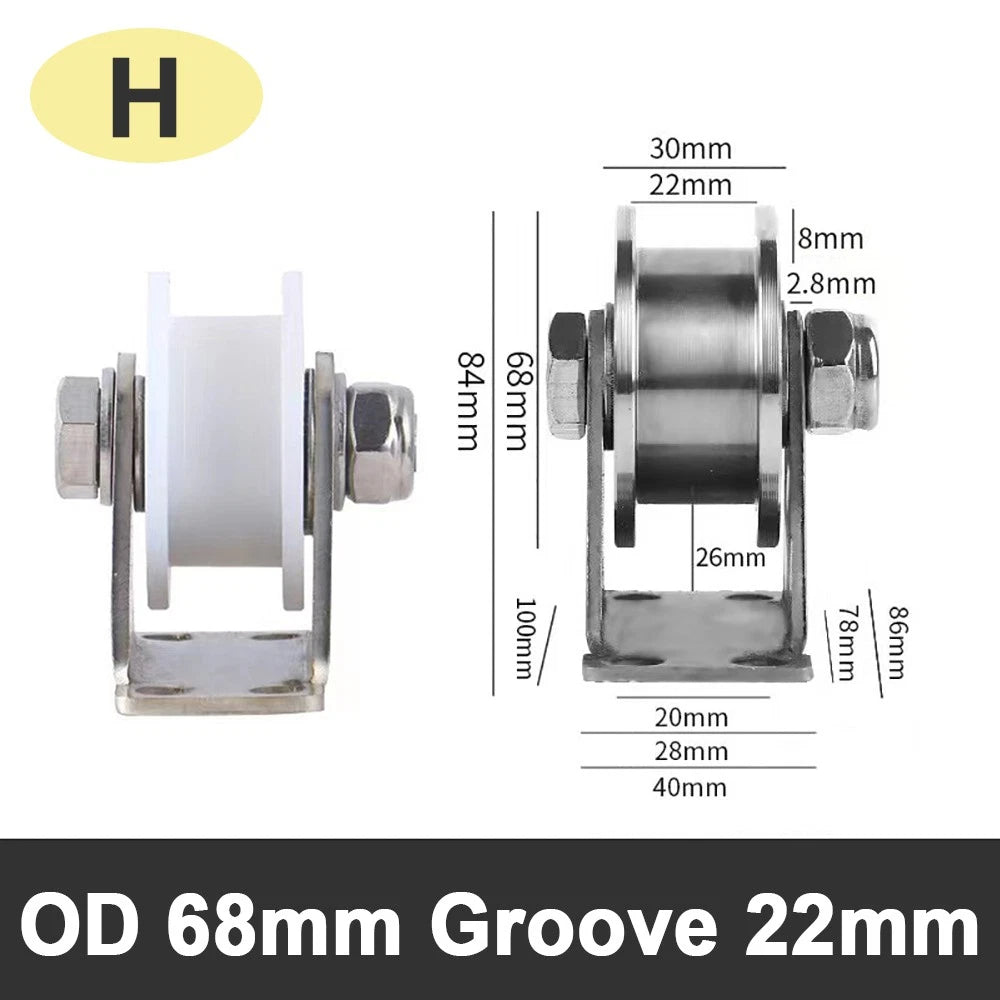

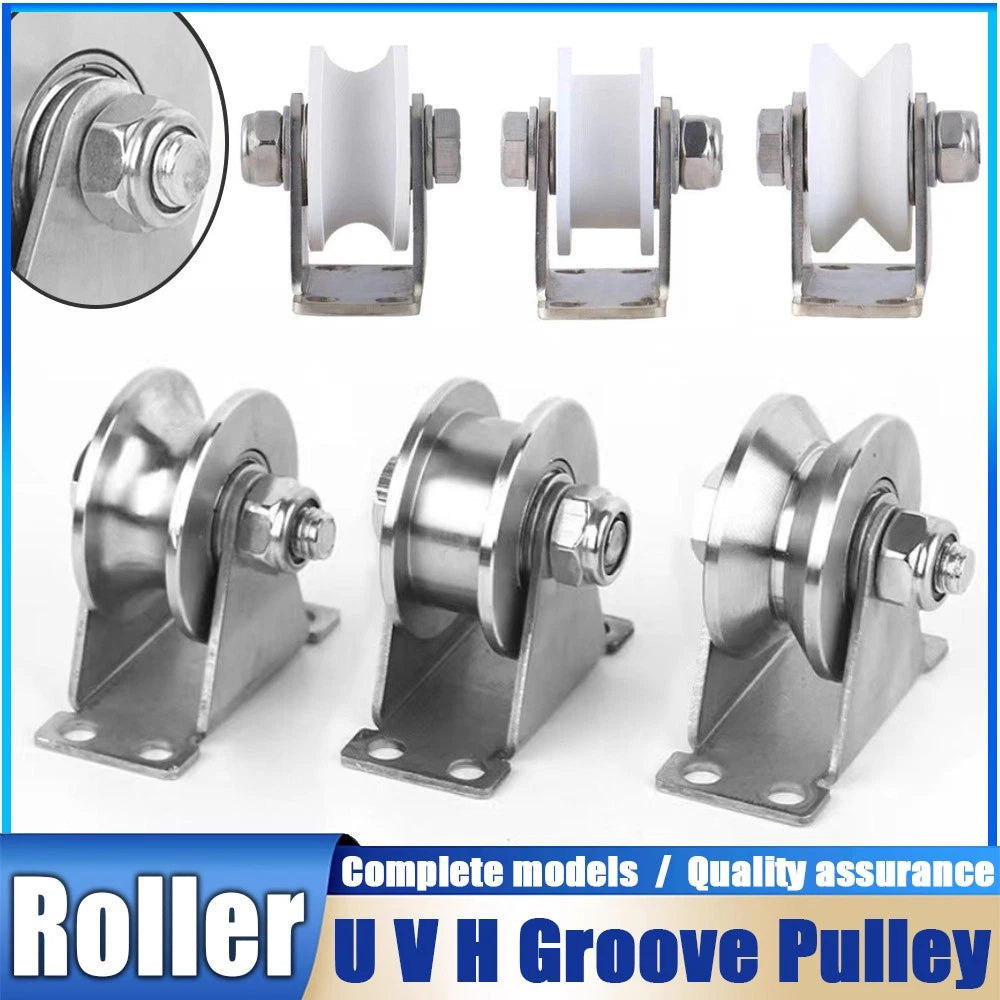

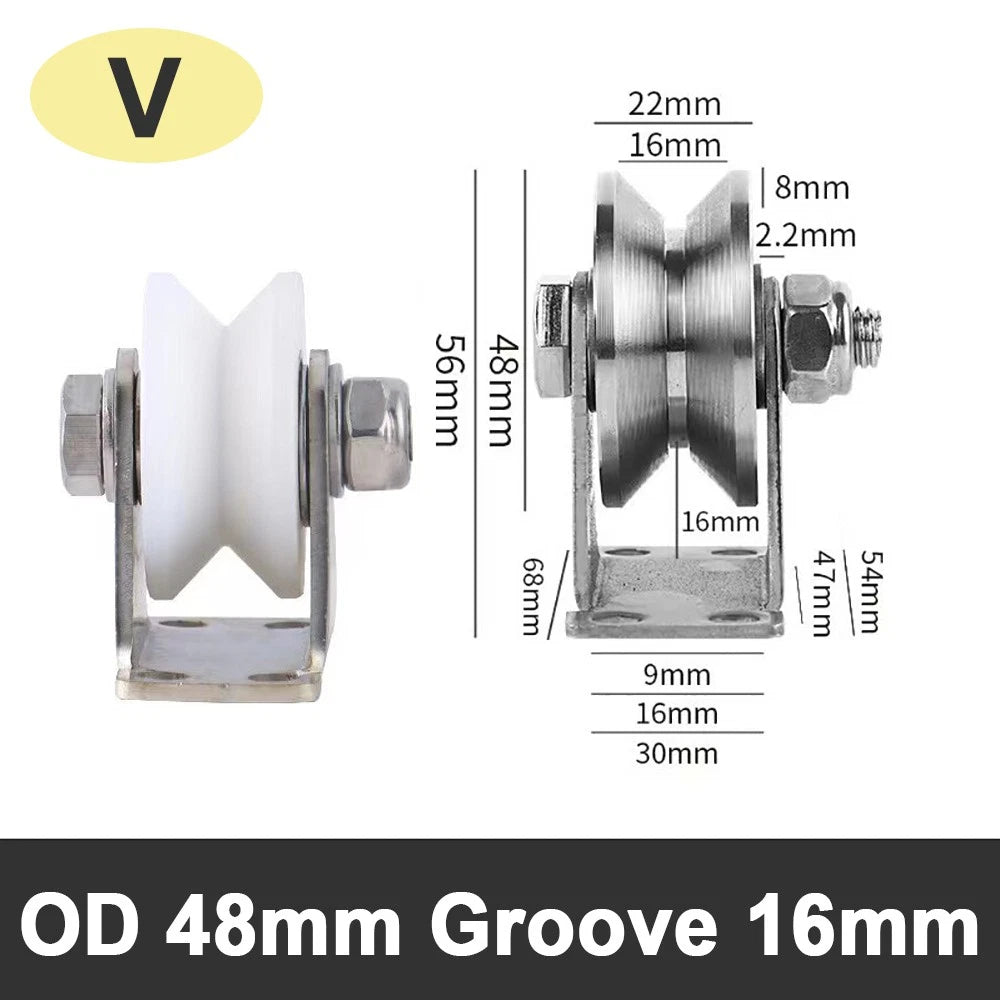

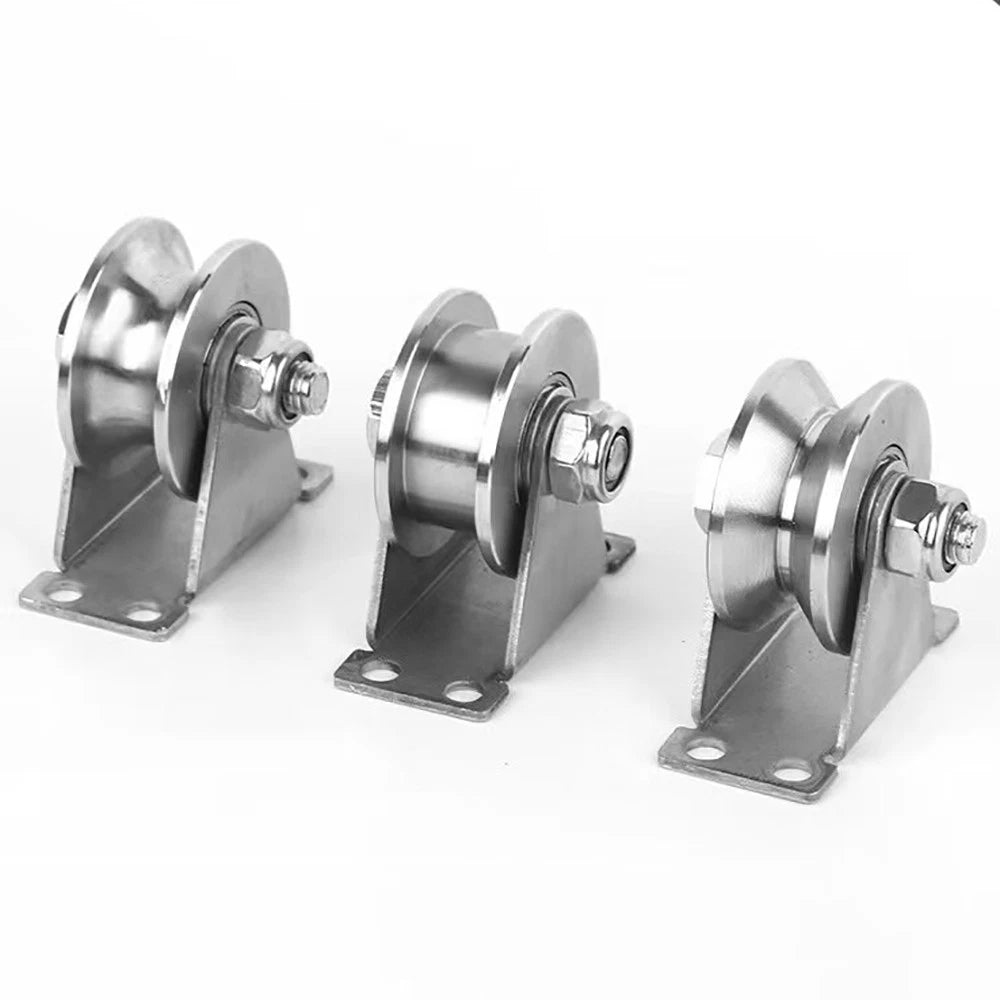

Select the groove profile that matches your line or belt cross-section. U-type (round-bottom) is designed for wire rope and round cord, keeping the rope seated and centered under load. V-type (angled walls) suits V-belts or any line that benefits from wedging contact for positive guidance. H-type (flat-bottom) works with flat belts, chains, or square-section cord where a flat bearing surface is needed. When in doubt, match the groove shape to the cross-section of your rope or belt.

304 stainless steel contains a higher nickel content, giving it stronger resistance to oxidation, salt spray, and humid environments — making it the preferred choice for outdoor, coastal, or wet workshop use. 201 stainless steel offers good corrosion resistance for dry indoor environments at a more economical price point. For applications exposed to moisture or chemicals, choose 304; for sheltered indoor conveyor or hoist systems, 201 is a cost-effective alternative.

The nylon rolling surface variant is ideal when you need to reduce rolling noise, protect rope coatings from metal abrasion, or operate in environments where sparks from metal-on-metal contact are a concern. The stainless steel body maintains structural integrity while the nylon rim provides a quieter, gentler contact surface for the rope or cable. It is commonly used in indoor studio rigging, light-duty workshop hoists, and applications with coated or synthetic rope.

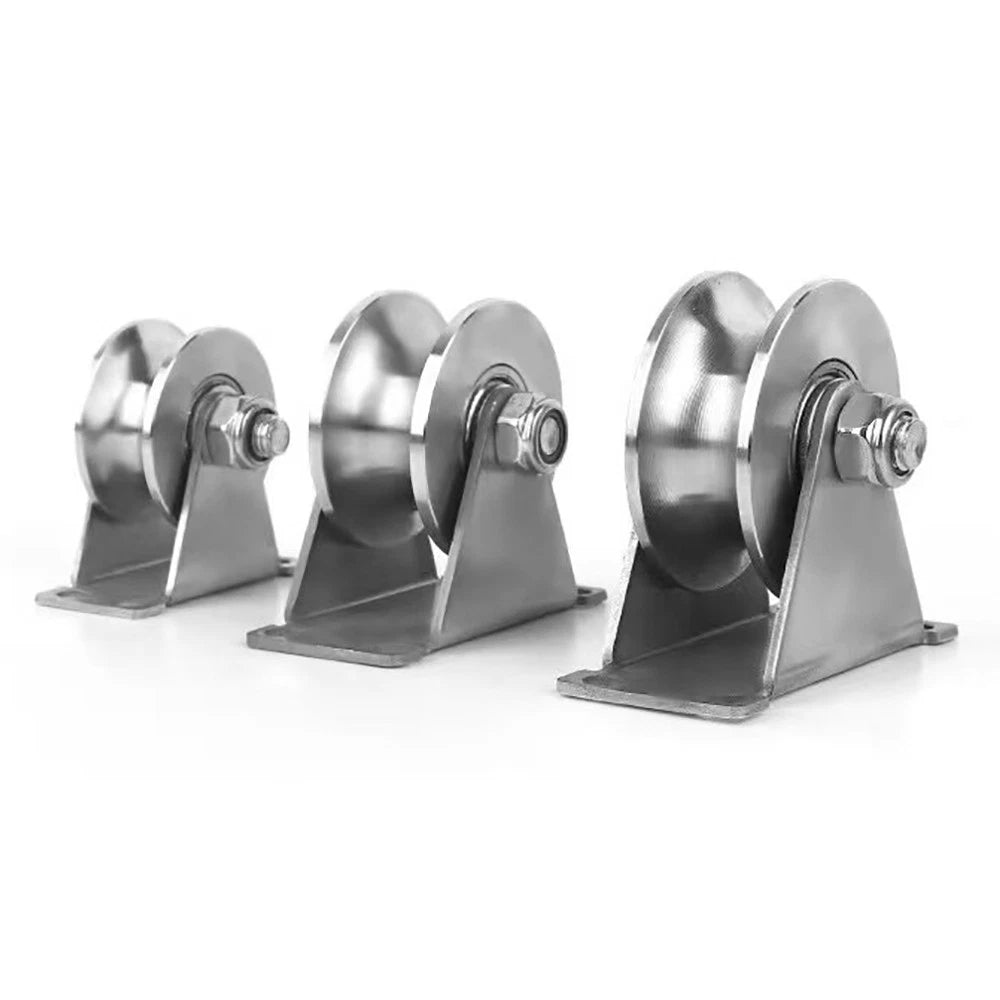

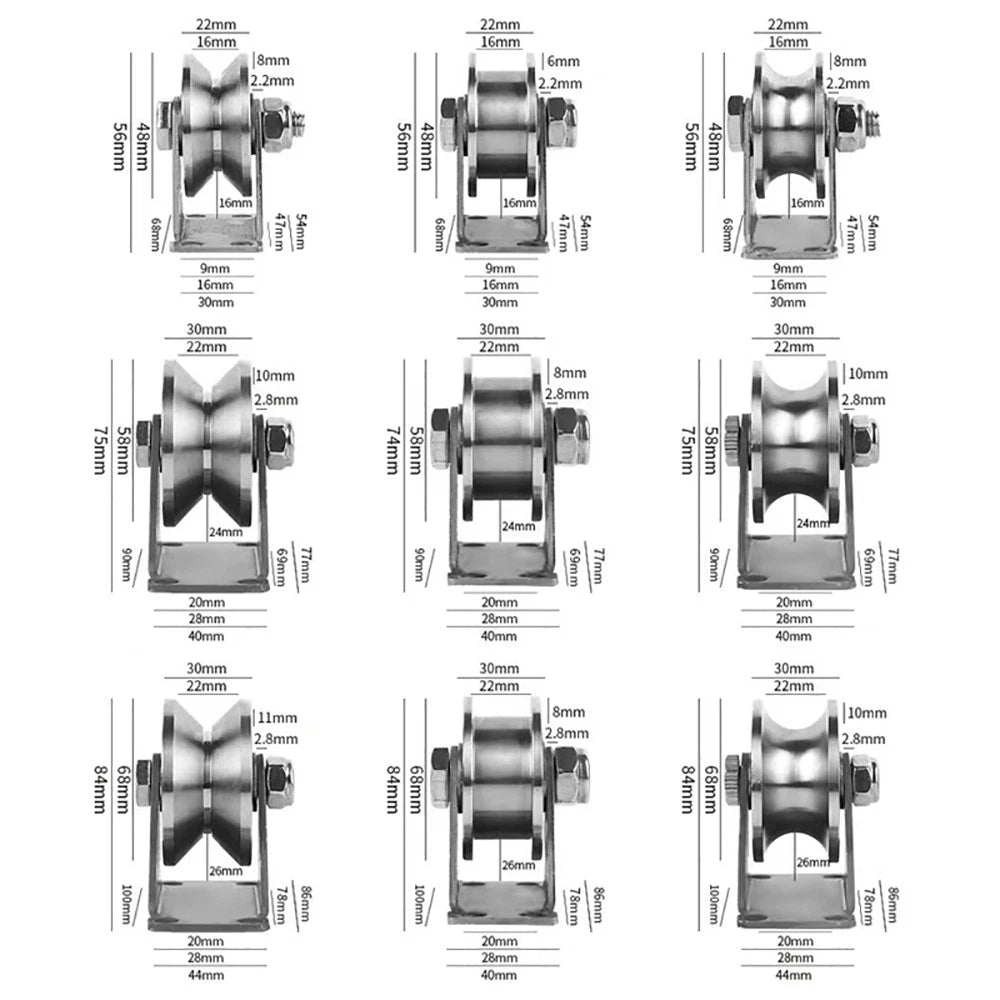

As a general rule, a larger OD pulley reduces bending stress on the rope or cable passing over it, extending line life. For wire rope, a minimum D/d ratio (pulley diameter to rope diameter) of 16:1 to 20:1 is commonly recommended for general rigging. For example, a 6 mm wire rope would ideally use a pulley with at least 96–120 mm OD for continuous duty, but smaller pulleys are acceptable for light-duty or infrequent use. Check your rope manufacturer's recommendations and select the largest OD that fits your space constraints.

The 304 stainless steel variants are suitable for outdoor and humid environments and offer good resistance to atmospheric corrosion. They are not rated for full saltwater immersion but perform well in coastal or marine-adjacent settings with periodic rinsing. The 201 stainless steel variants are better suited to sheltered indoor use. The nylon-surface variants should be kept away from prolonged UV exposure and strong solvents that can degrade the nylon over time.

These pulley wheels are designed as idler/guide rollers for rope and cable guidance in crane, hoist, and rigging systems. They are passive components that redirect the line rather than bear the full suspended load directly. Always verify the working load limit of the complete rigging assembly — including the axle, bracket, and fasteners — against your application's load requirements. For safety-critical overhead lifting, consult a qualified engineer and ensure all components are rated and inspected per applicable standards.

The bore diameter varies by size variant. Please refer to the variant specifications or contact us to confirm the bore diameter for your selected OD and groove profile before ordering, to ensure compatibility with your existing axle or mounting hardware.
