When a seized or undersized pulley brings your cable run, gym rig, or rigging system to a halt, you need a wheel that handles real load without wobble or corrosion. These U/V/H groove pulley wheels with bearing are engineered for DIYers, riggers, and fitness equipment builders who demand consistent, low-friction rotation across demanding applications.

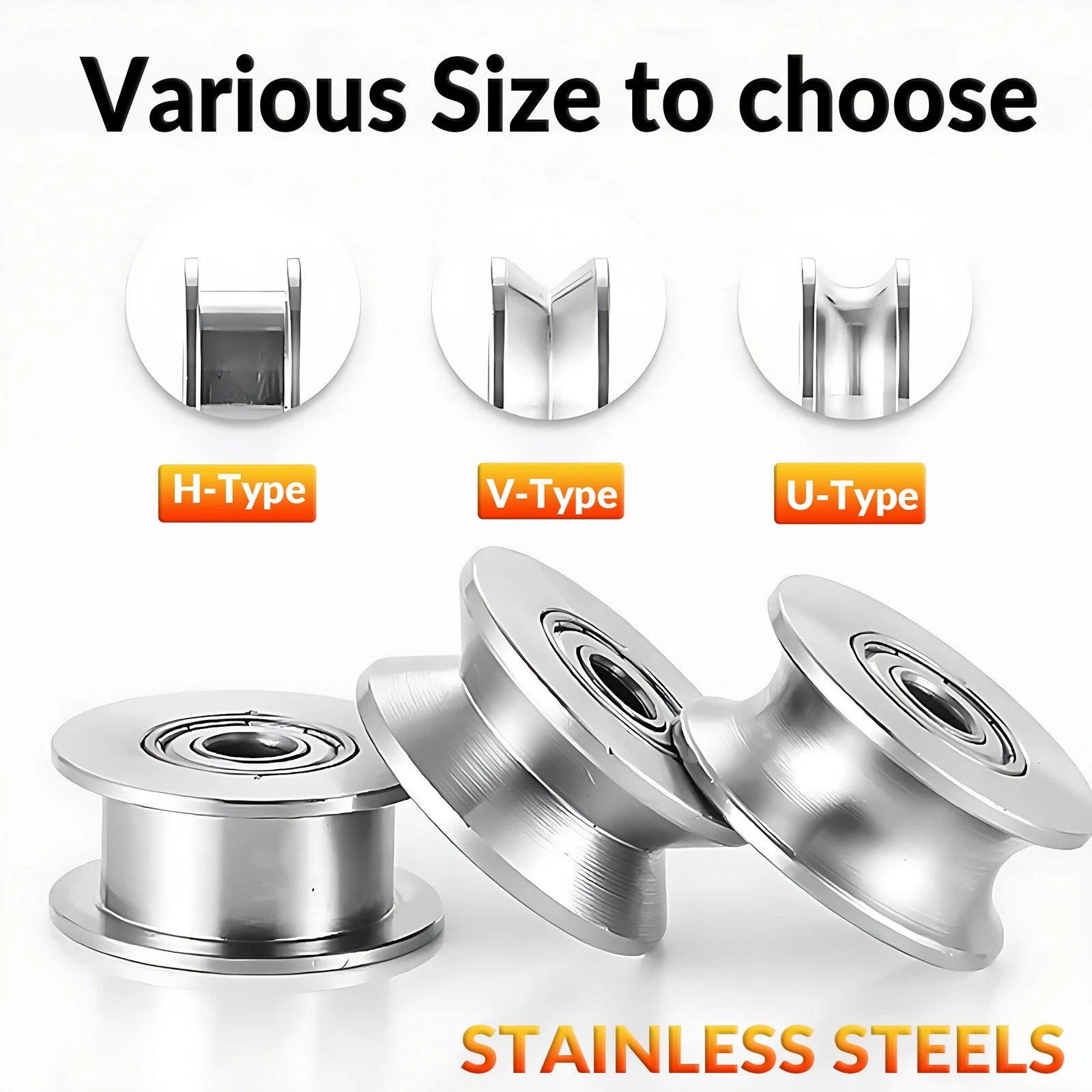

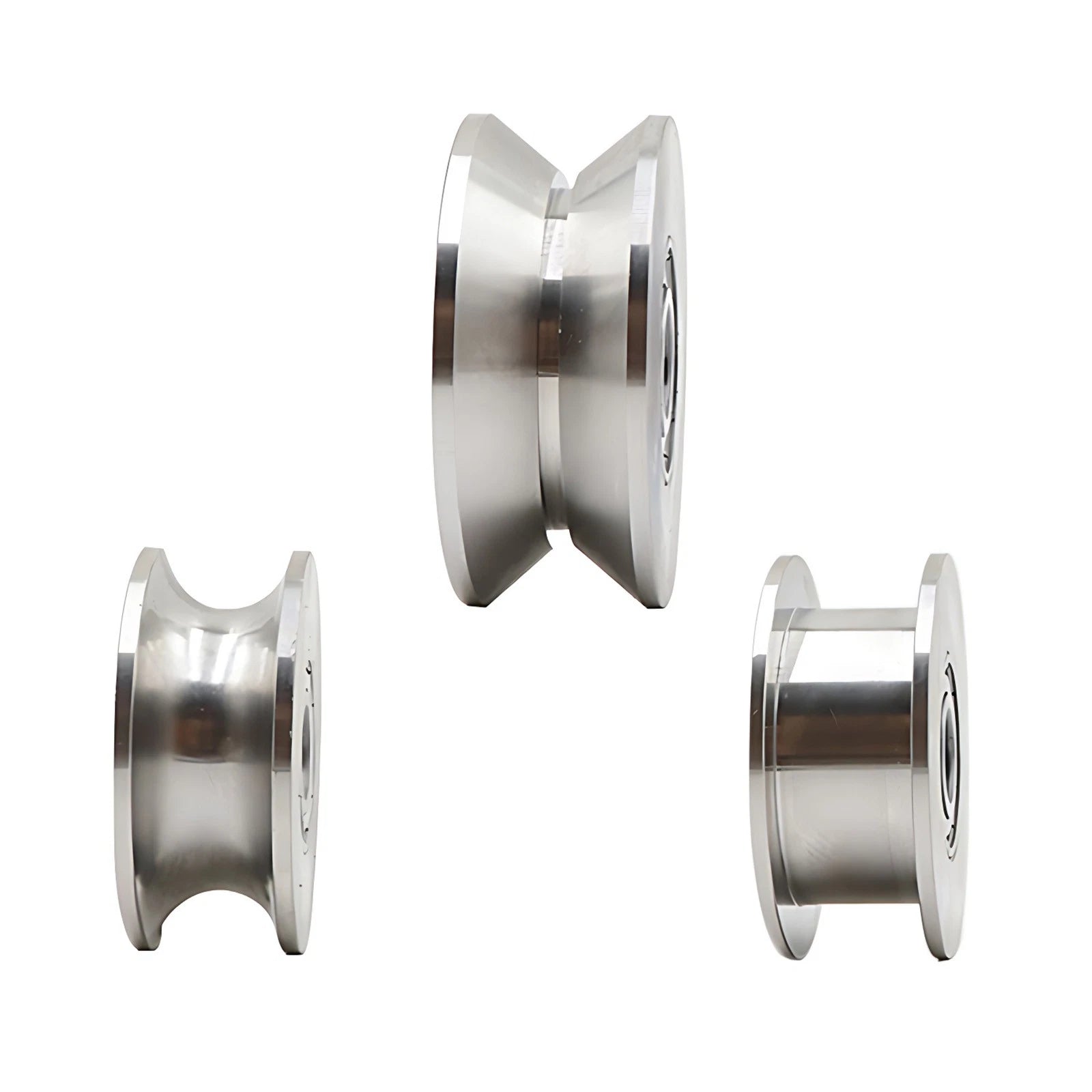

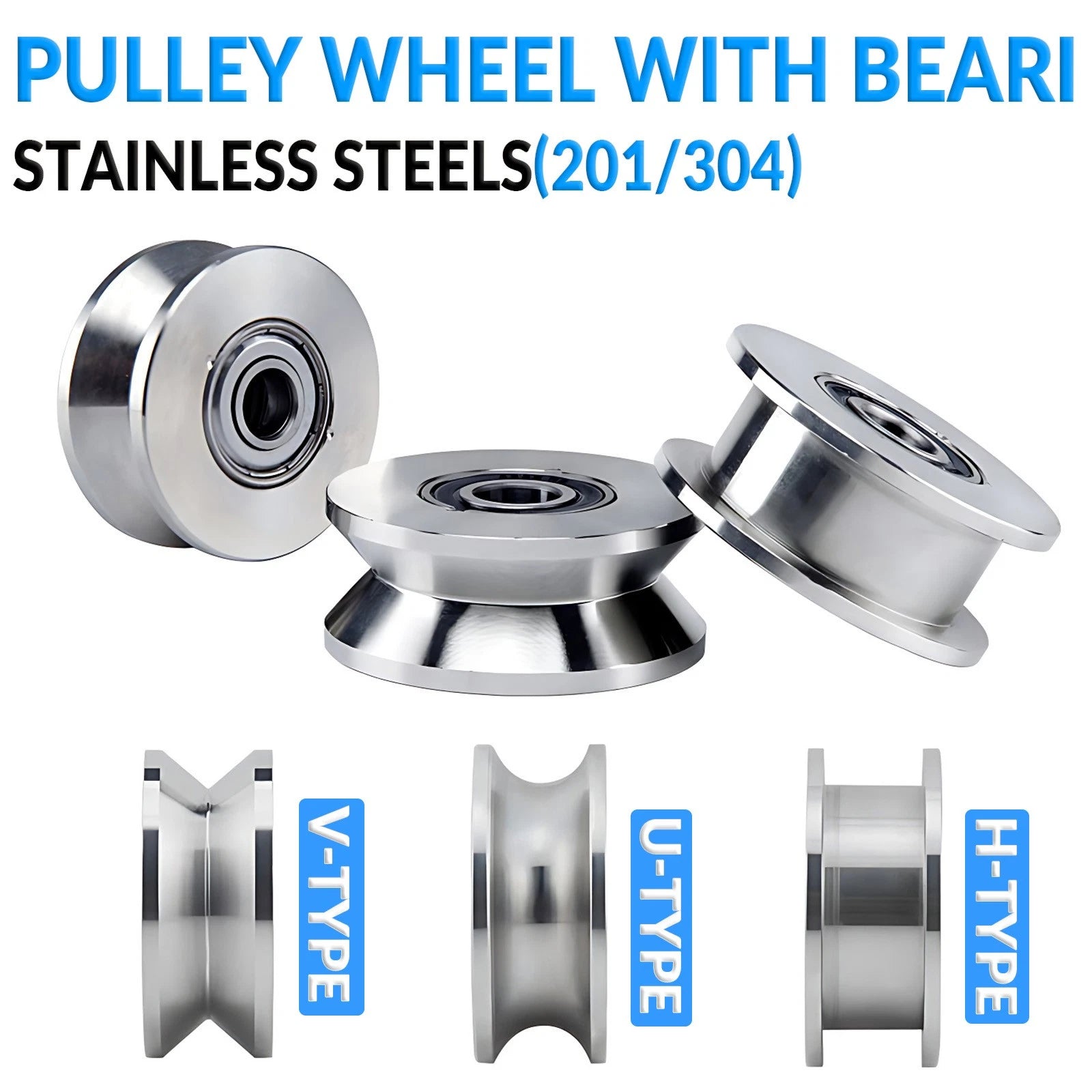

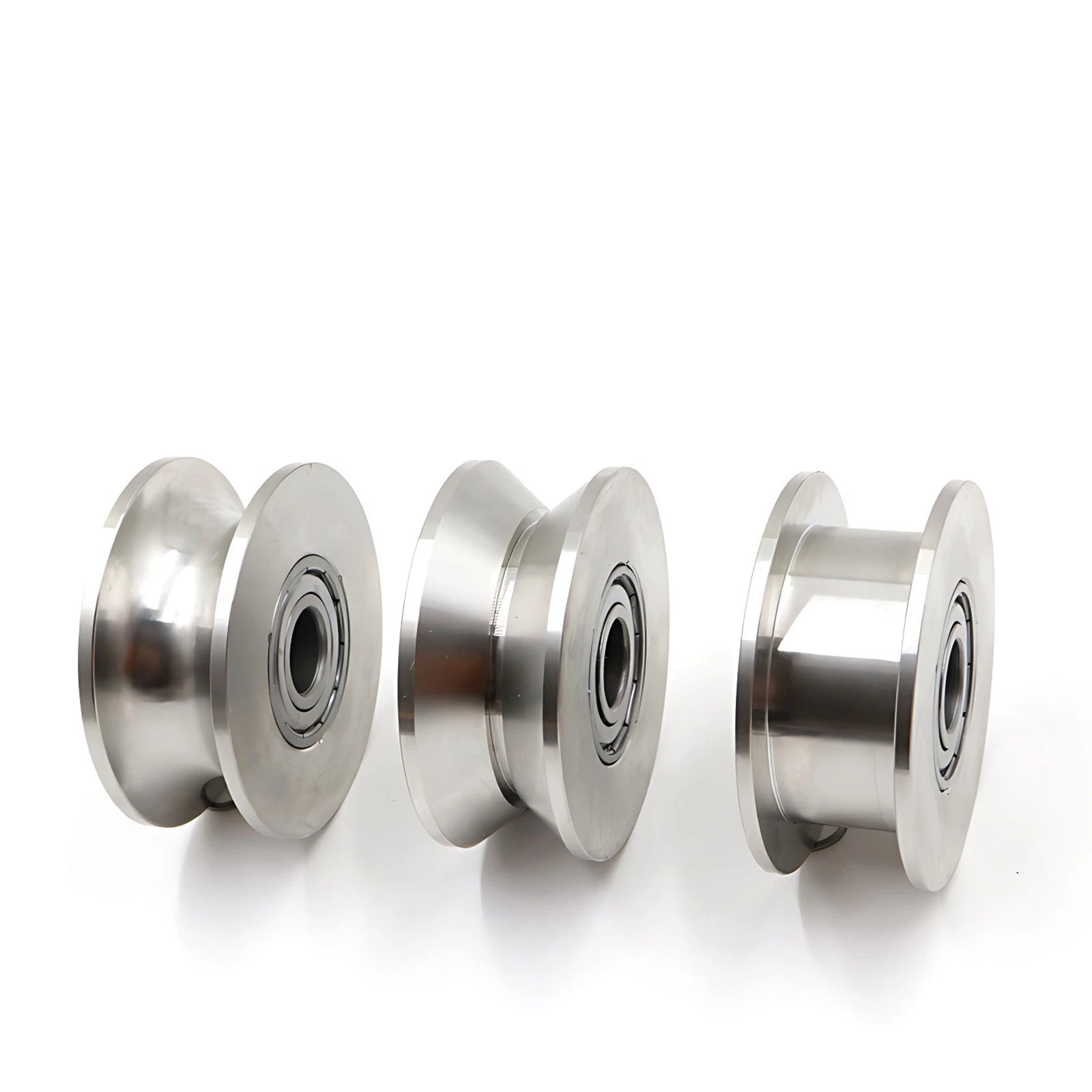

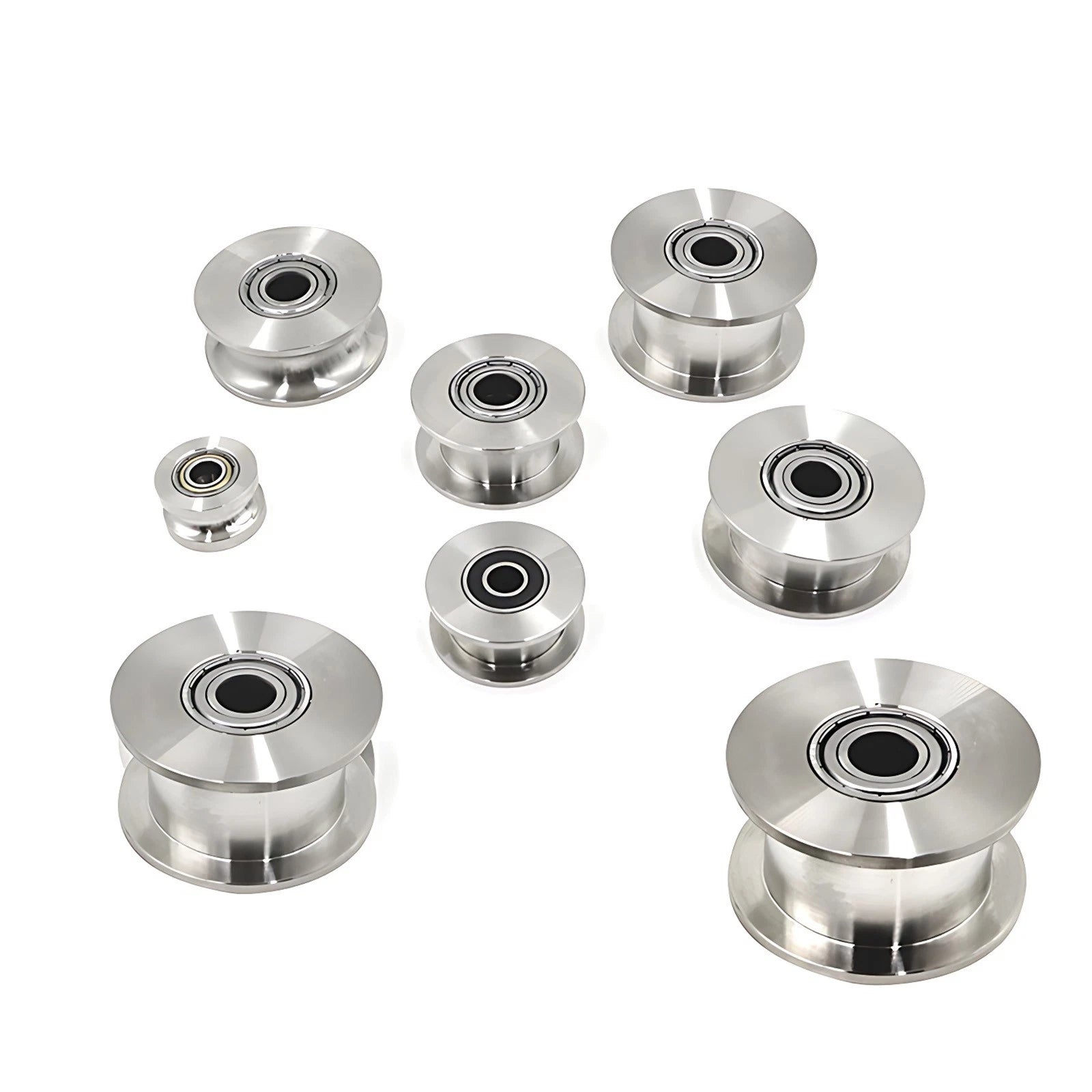

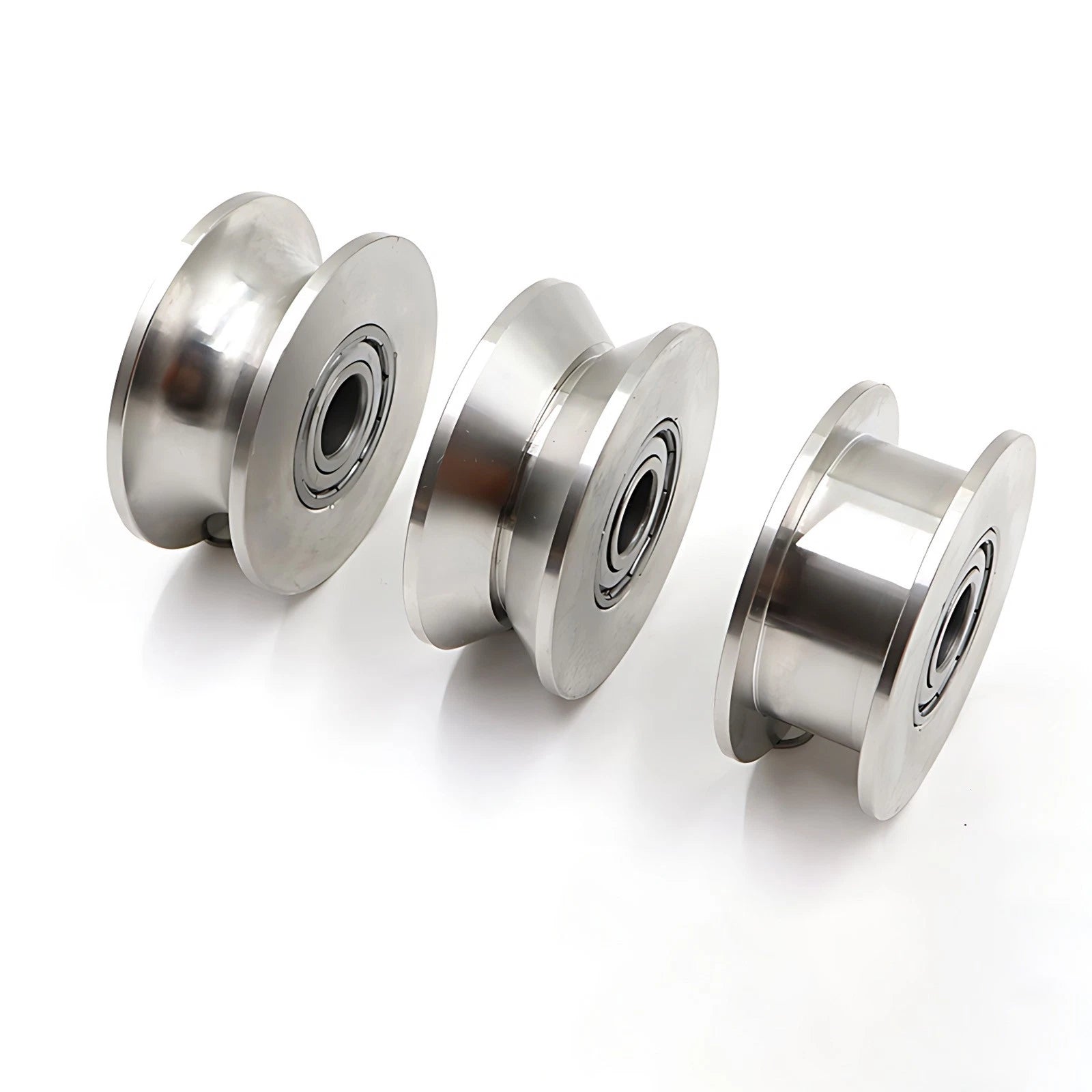

Each pulley wheel is machined from stainless steel — available in 201 or 304 grade — and ships with a pre-installed sealed bearing for immediate use. Outer diameters span 34 mm (1.34 in) to 90 mm (3.54 in), with inner bore diameters from 8 mm (0.31 in) to 17 mm (0.67 in). Three groove profiles are offered: U-type for round rope and cord, V-type for V-belt and angled wire, and H-type for flat or dual-rail cable paths.
Typical use cases include DIY gym cable pulley systems and lat-pulldown machines, overhead wire rope guide wheels for garage doors and sliding gates, and industrial rigging or load-bearing cable redirect applications where a compact, corrosion-resistant pulley wheel with bearing is required.
U-type, V-type, and H-type grooves accommodate round rope, V-belt, wire rope, and flat cable — one product family covers multiple rigging and fitness equipment setups.
201 SS offers solid corrosion resistance for indoor and light-outdoor use; 304 SS provides superior rust resistance for humid, wet, or outdoor environments.
Each wheel arrives with a sealed bearing already fitted, delivering smooth, low-friction rotation straight out of the box with no additional assembly required.
OD from 34 mm to 90 mm (1.34–3.54 in) and multiple groove widths let you match the exact rope or wire diameter and frame clearance your project demands.
Available in 1, 2, or 3-piece quantities so you can outfit a single redirect point or a full multi-pulley cable machine in one order.
Sized and profiled for DIY lat-pulldown, cable crossover, and overhead wire guide builds — a direct-fit solution for home gym pulley wheel upgrades and industrial cable redirect systems.

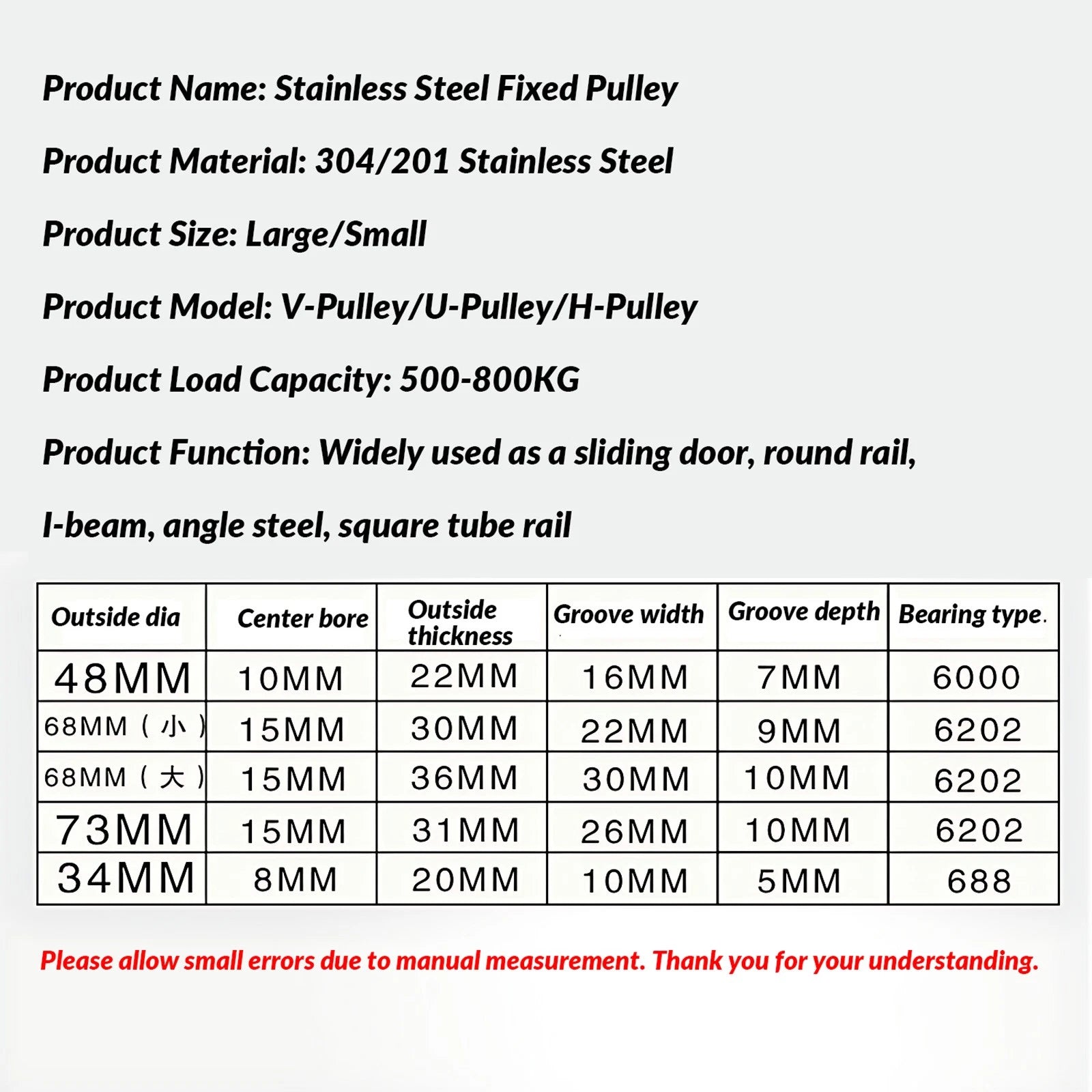

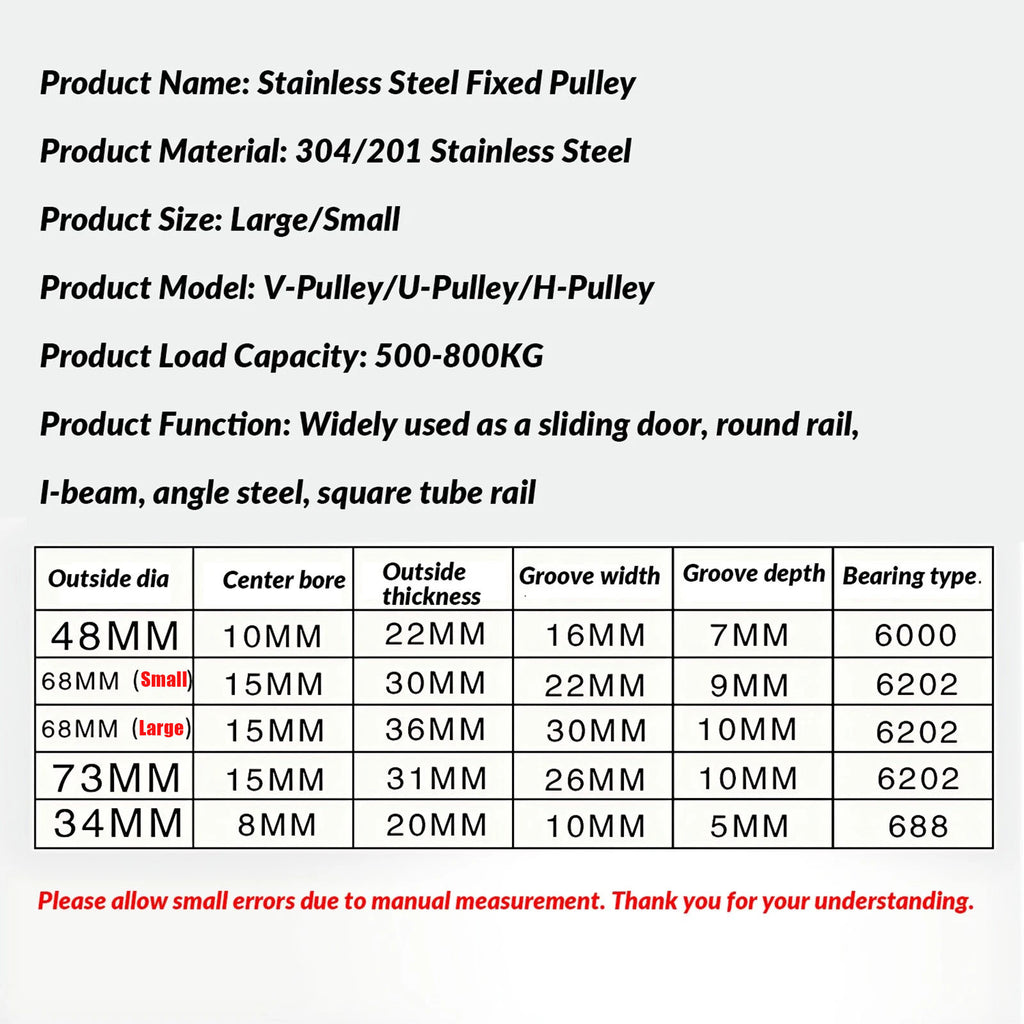

| Material | 201 Stainless Steel / 304 Stainless Steel (see variant options) |
|---|---|
| Groove Type | U-Type / V-Type / H-Type |
| Outer Diameter (OD) | 34 mm – 90 mm (1.34 in – 3.54 in) |
| Inner Diameter / Bore (ID) | 8 mm – 17 mm (0.31 in – 0.67 in) |
| Height (H) | 16 mm – 38 mm (see variant options) |
| Groove Width (G) | 7 mm – 30 mm (see variant options) |
| Bearing | Sealed bearing, pre-installed |
| Finish | Brushed / natural stainless steel |
| Available Quantities | 1 Pcs / 2 Pcs / 3 Pcs |
| Weight | See variant options |

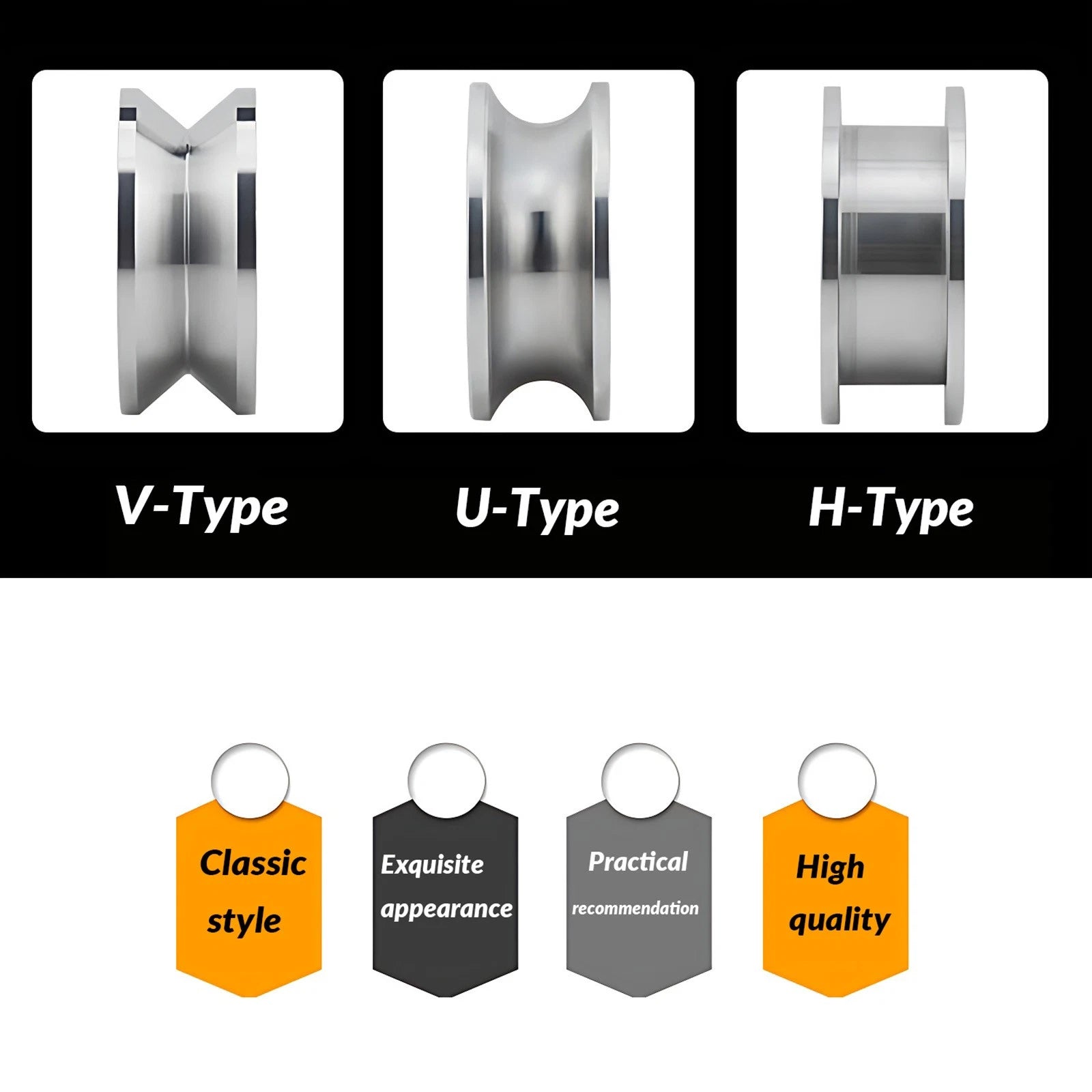

Choose U-type for round rope or cord (e.g., nylon or steel wire rope with a circular cross-section). Choose V-type for V-belts or angled wire where the groove walls grip the sides of the rope or belt. Choose H-type for flat cable, dual-rail systems, or applications where the cable rides on a flat-bottomed channel. Check your rope or cable cross-section before selecting.
201 stainless steel contains manganese instead of nickel, making it more affordable while still offering good corrosion resistance for dry indoor or light-outdoor use. 304 stainless steel has higher nickel content, providing superior resistance to rust, moisture, and mild chemicals — recommended for outdoor, humid, or marine-adjacent environments such as garage door cable systems or outdoor gym rigs.
The groove width (G dimension) indicates the usable channel width. As a general guide, your rope or wire diameter should be equal to or slightly smaller than the G value. For example, a G=10 mm groove suits rope up to approximately 8–10 mm in diameter. Always verify the G dimension listed in the variant name (OD×ID×H×G) against your rope spec before ordering.
Yes, with the right grade. 304 stainless steel variants are suitable for outdoor, humid, and wet environments. 201 stainless steel variants are better suited to indoor or sheltered applications. Neither grade is rated for continuous saltwater immersion; for marine use, consult a specialist.
The pre-installed bearing is a standard sealed ball bearing. In most cases, the bearing can be pressed out and replaced with a standard metric bearing of the same ID and OD if it wears over time. The exact bearing model number varies by pulley size — contact us to confirm the bearing spec for your chosen variant if you need this information for maintenance planning.

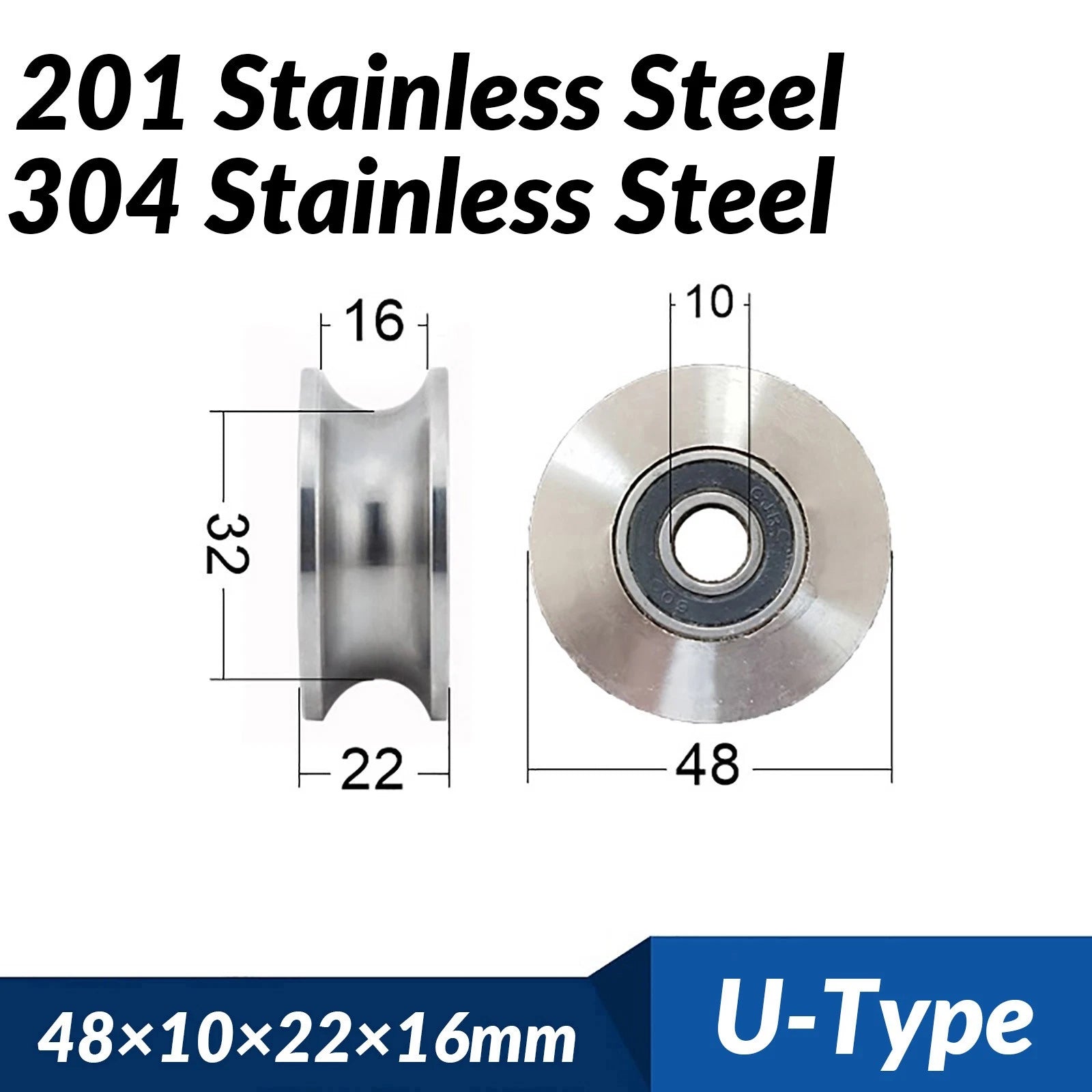

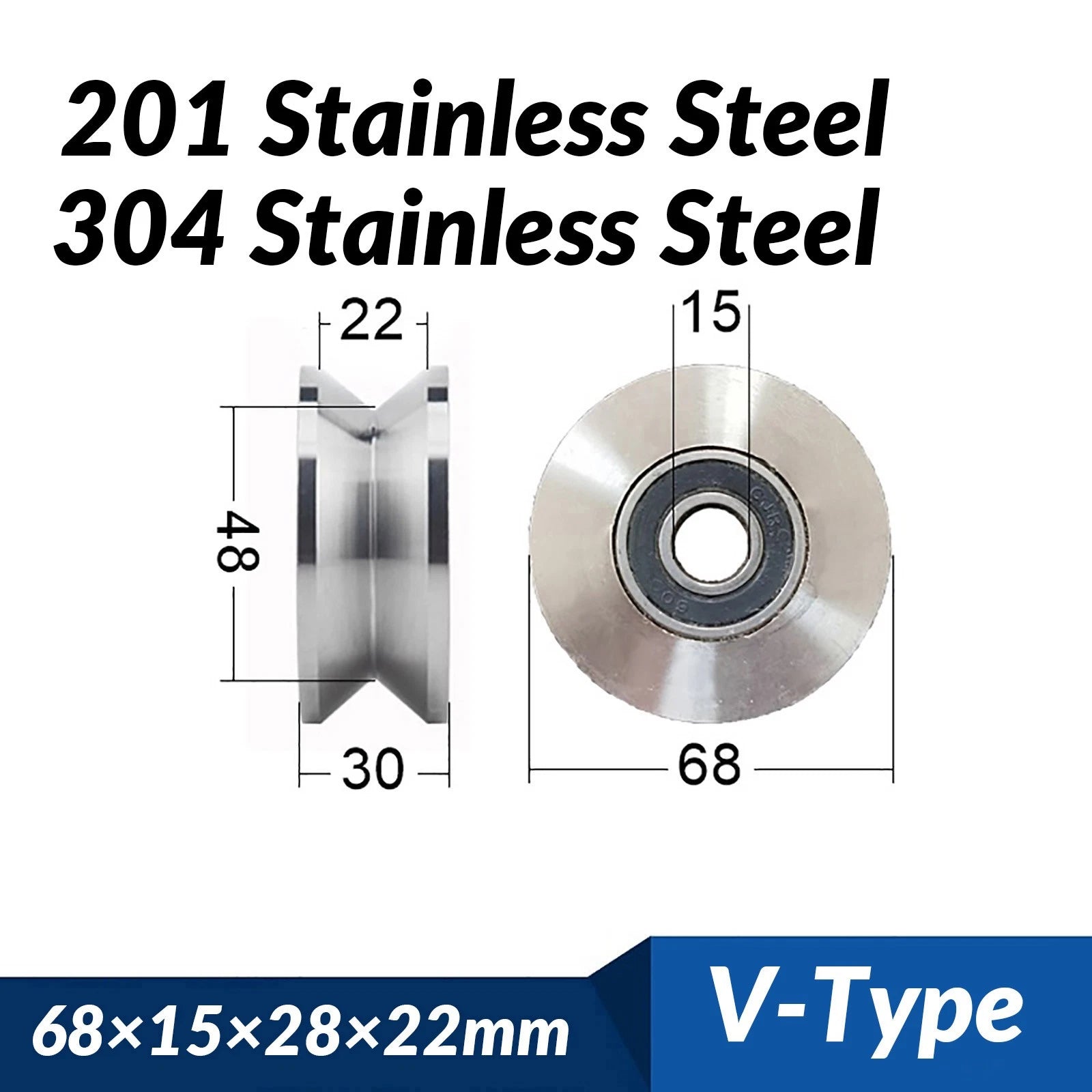

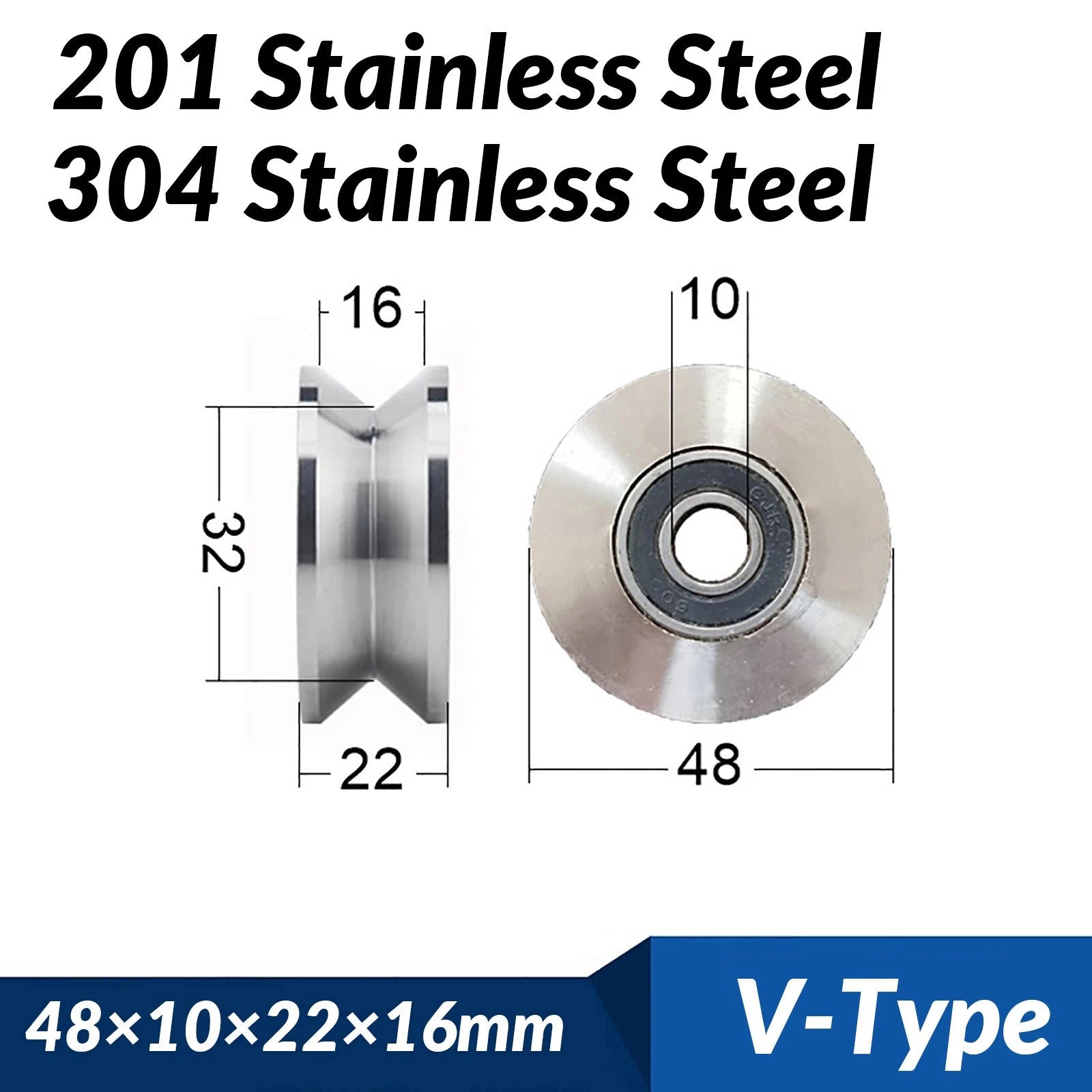

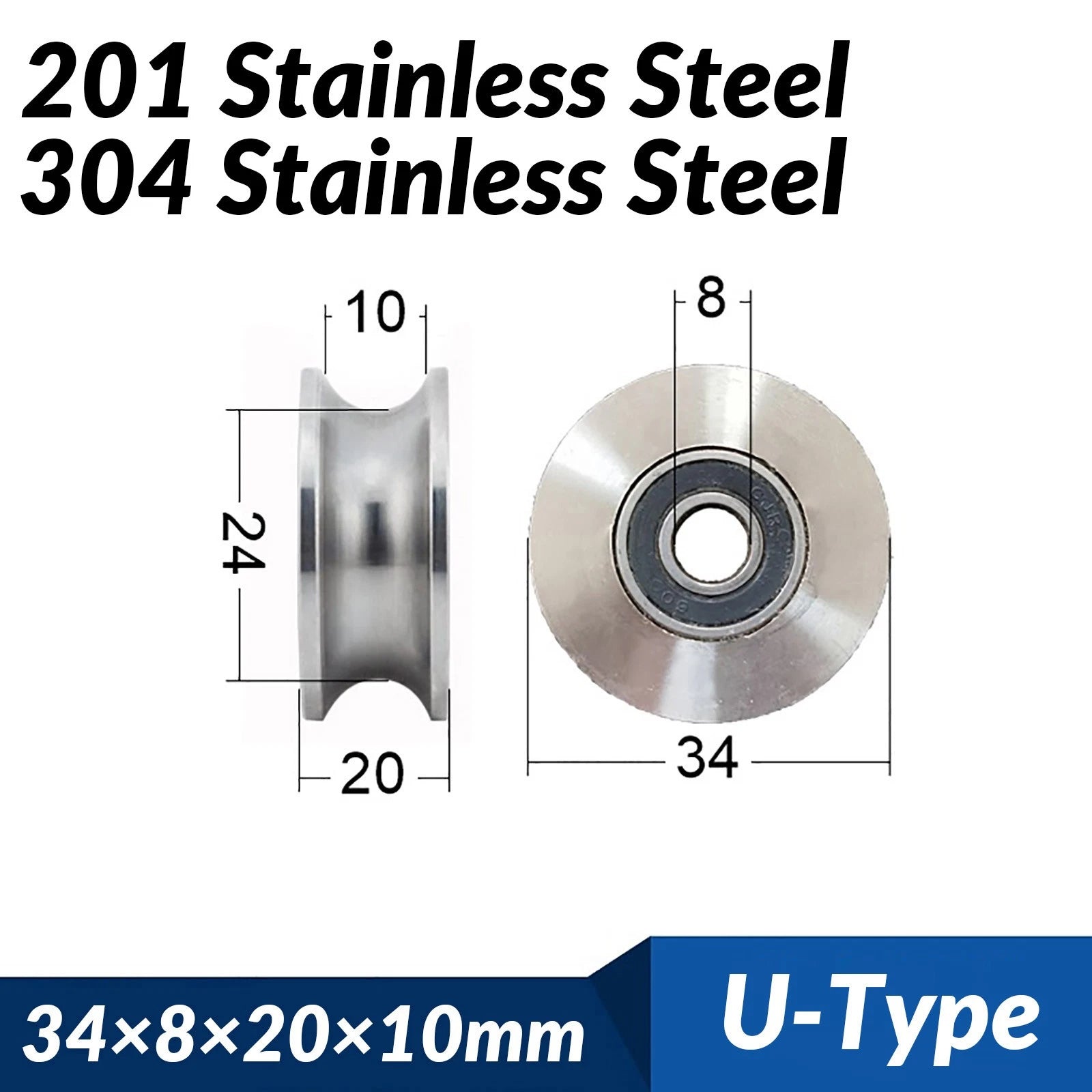

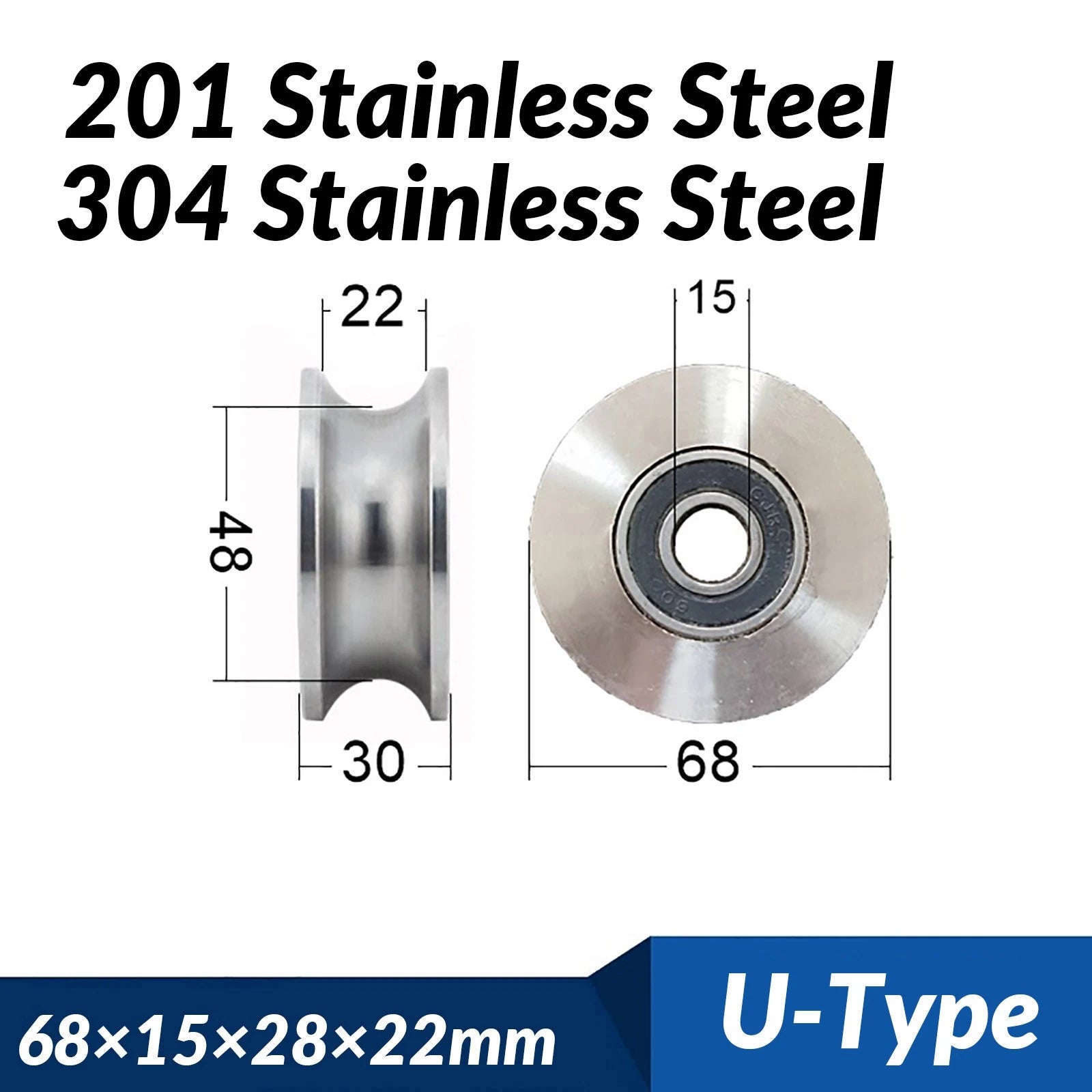

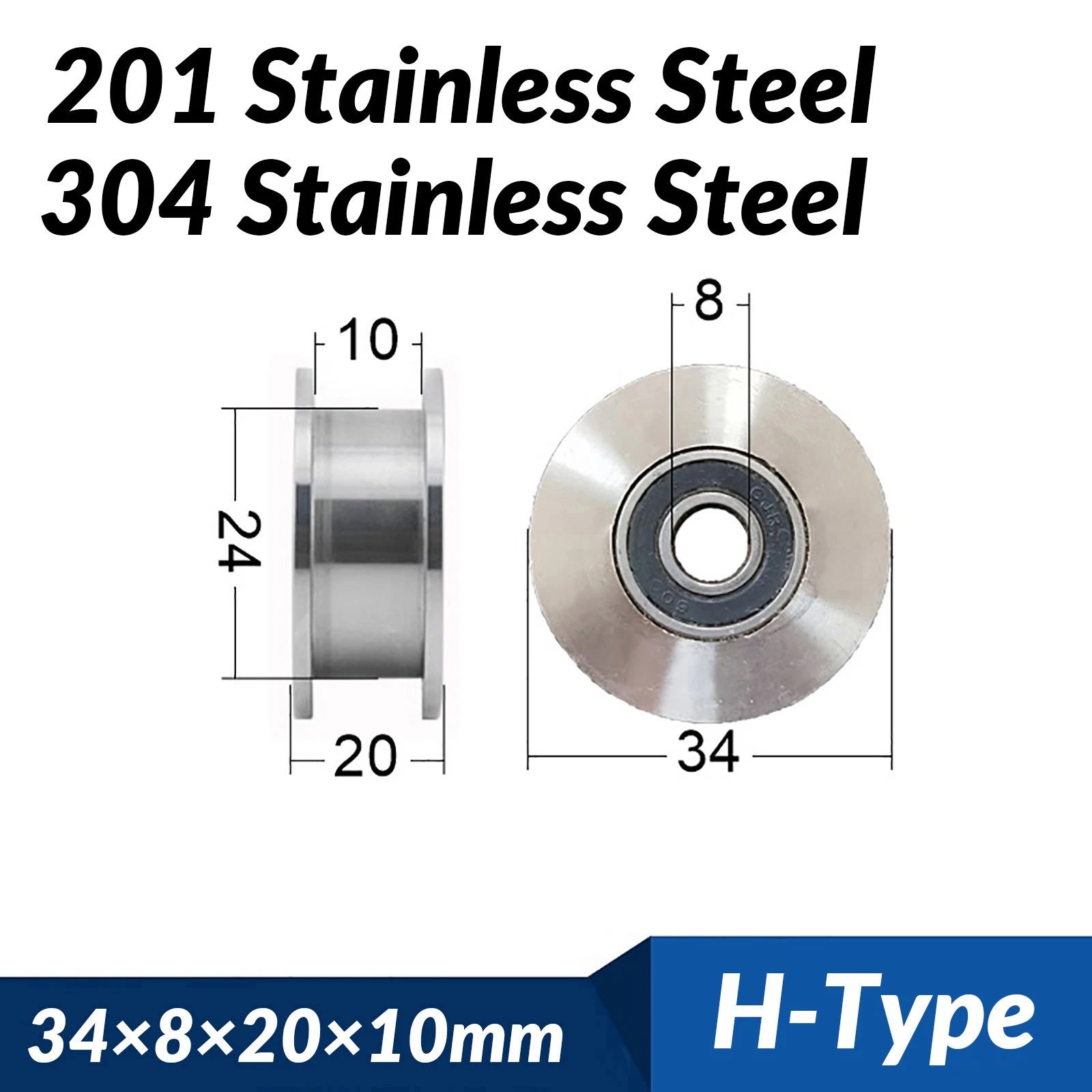

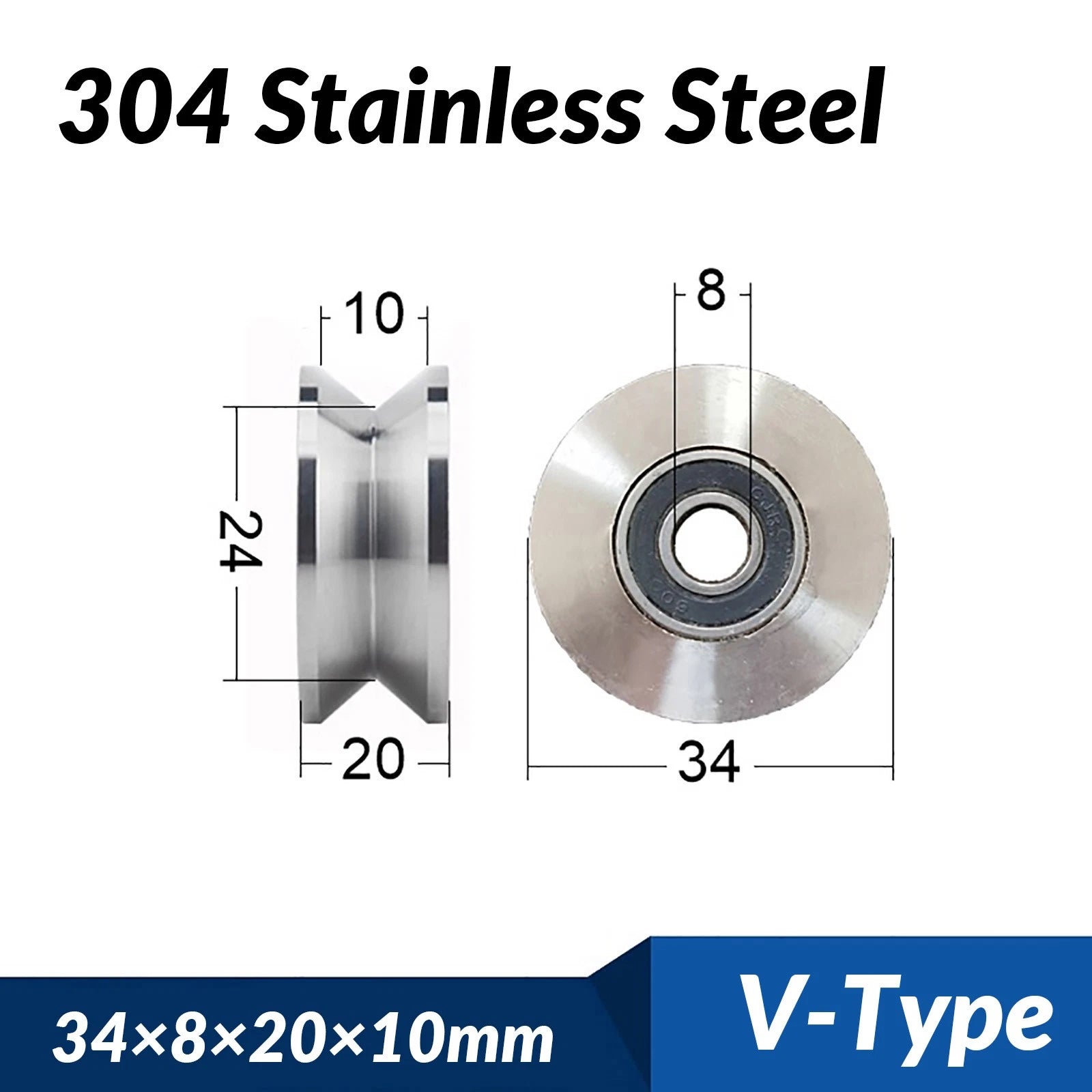

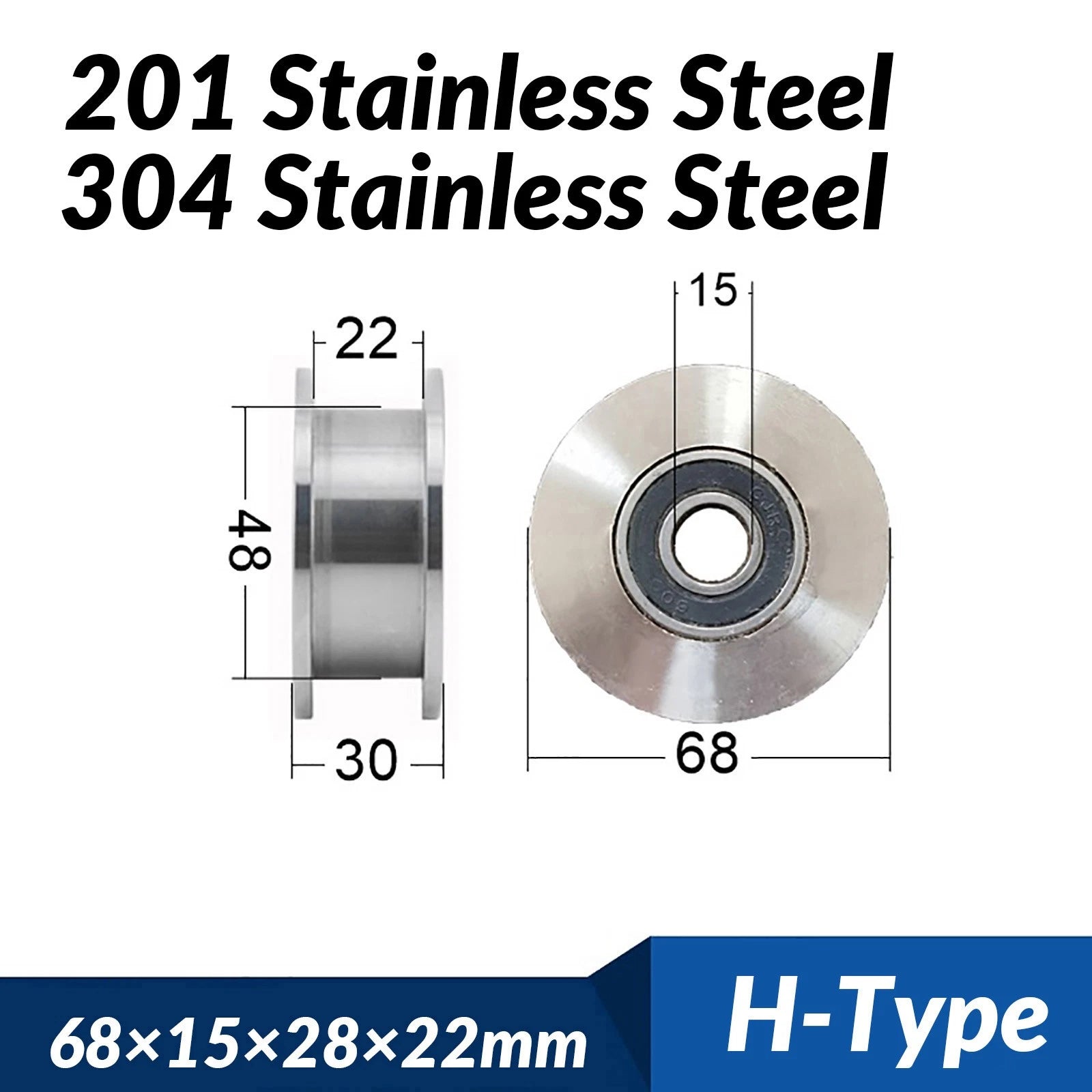

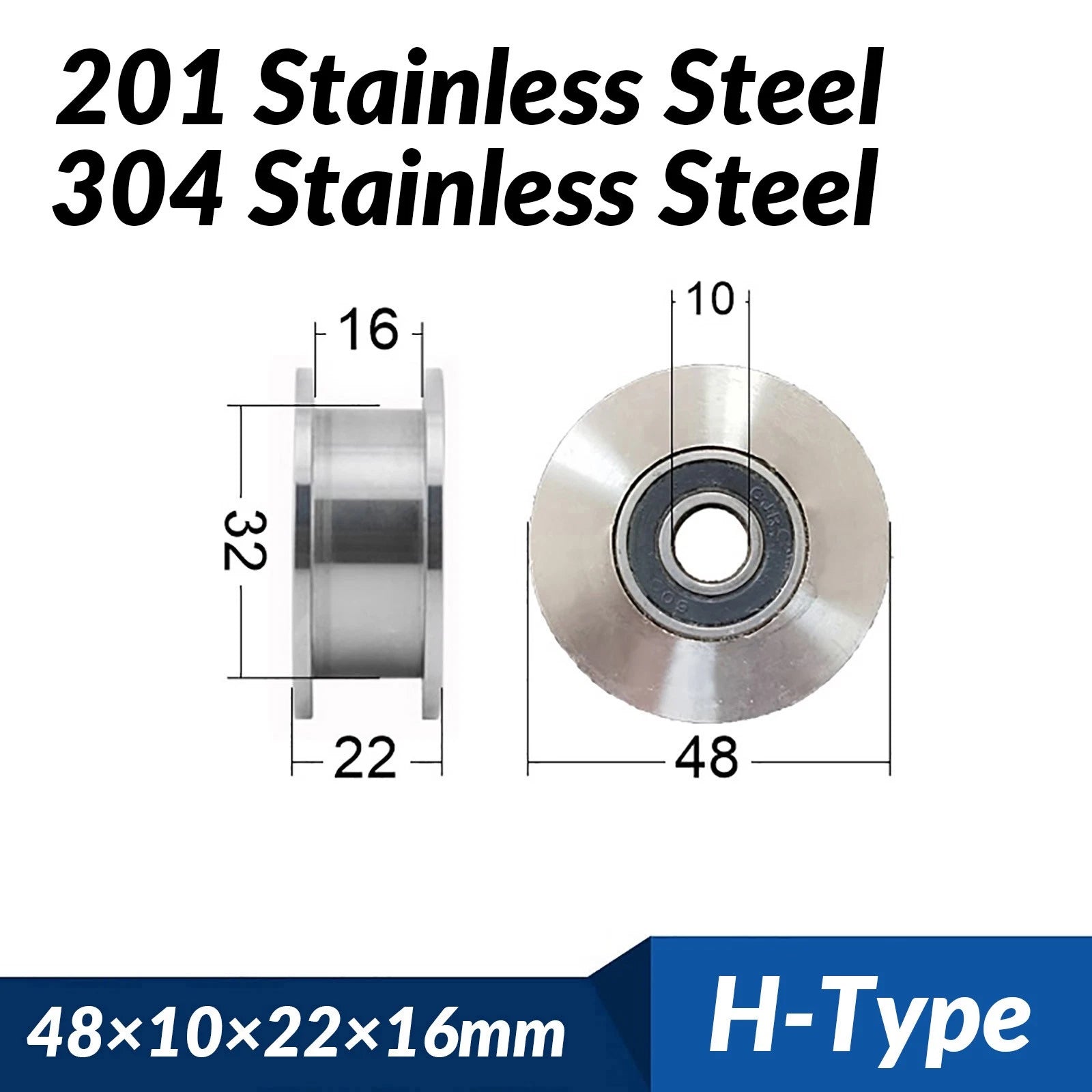

Each variant is labeled with four dimensions: OD (outer diameter of the wheel), ID (inner bore / shaft diameter), H (overall height/width of the wheel), and G (groove width). Measure your existing pulley or your frame's shaft diameter and clearance envelope, then match those measurements to the variant label. If you are unsure, contact us with your measurements and we will recommend the correct variant.
Yes. These groove pulley wheels with bearing are widely used in DIY lat-pulldown machines, cable crossover rigs, and functional trainer builds. Select a U-type groove for standard steel wire rope (typically 3–6 mm diameter) and choose 304 SS for longevity in a garage gym environment. Order the quantity that matches the number of redirect or load points in your cable system.
