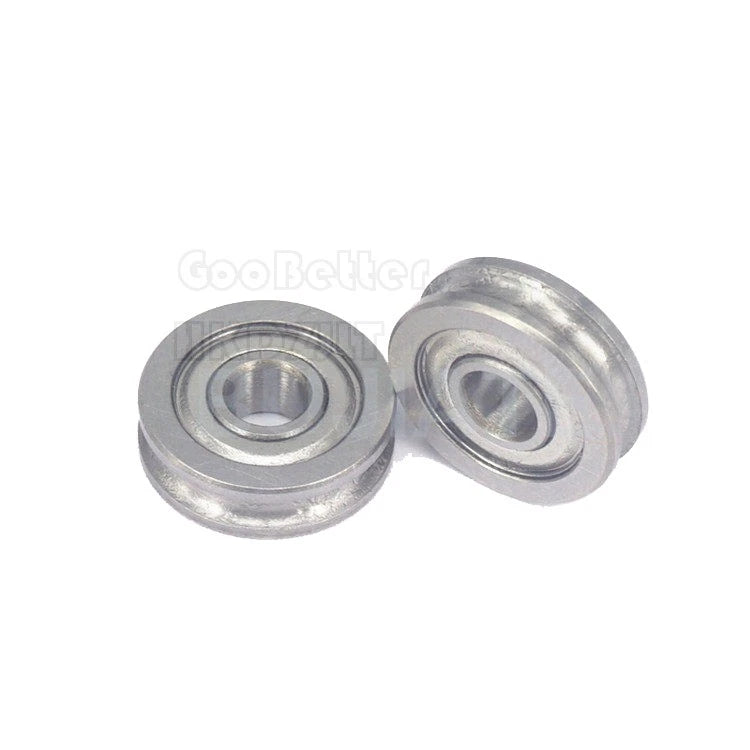

U604ZZ U-Groove Guide Wheel Pulley — Precision Rail Bearing for Linear Motion Systems

When your 3D printer carriage wobbles, your CNC gantry skips, or your linear rail system loses smooth travel, the culprit is often a worn or undersized guide wheel bearing. Makers, hobbyists, and small-workshop engineers who demand repeatable, low-friction motion need a guide wheel that stays true under load — and that is exactly what the U604ZZ sealed ball bearing delivers.

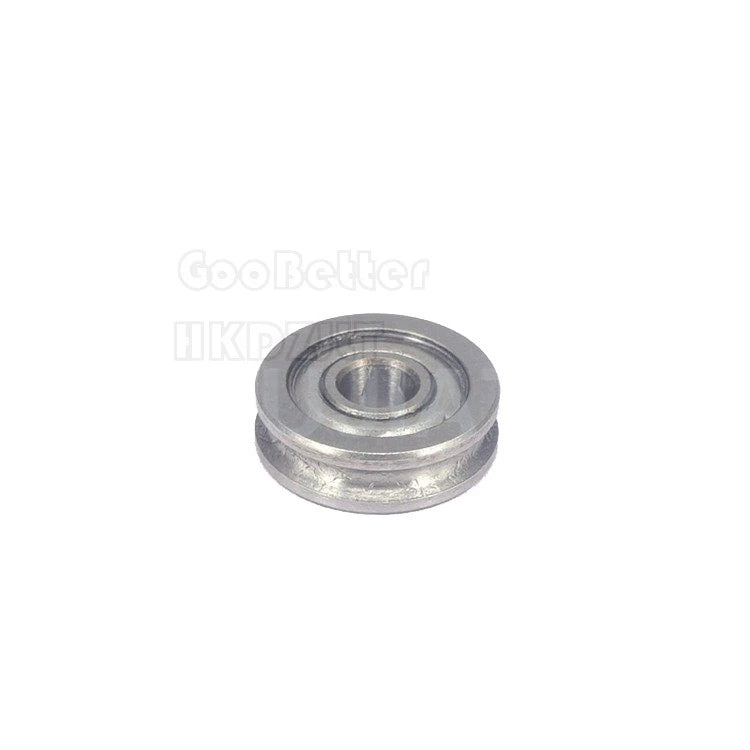

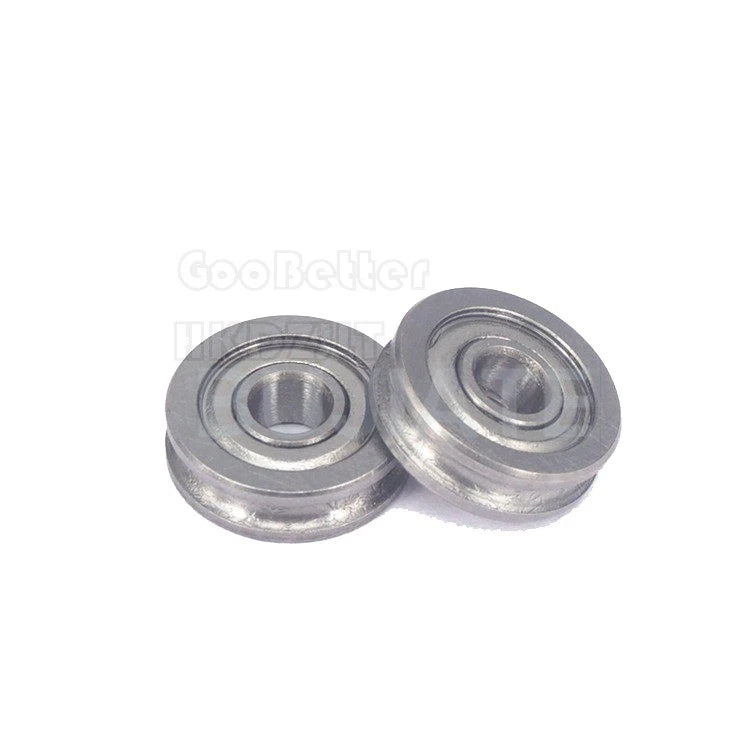

This U-groove guide wheel pulley is machined from steel with a sealed double-row ball bearing core. The U604ZZ variant measures 4 mm bore × 13 mm outer diameter × 4 mm width (approximately 0.16 in × 0.51 in × 0.16 in). The deep U-groove profile is sized to ride V-slot aluminum extrusion rails and round guide rods typically ranging from 3–5 mm (0.12–0.20 in) in diameter. Available in packs of 1, 5, 10, 15, 20, or 25 pieces to suit single-unit repairs or full-build kits.

Typical use cases include 3D printer X/Y/Z axis carriage wheels riding on V-slot extrusion, CNC router gantry guide wheels on linear rail, and DIY automation conveyor or sliding-door track systems where a compact sealed bearing is required to minimize maintenance intervals.

⚙️ Compatibility: Fits V-slot aluminum extrusion rails, round guide rods (typically 3–5 mm), and standard M4 bolt axles. Commonly used with Creality, Ender, Anet, and similar open-frame 3D printer platforms, as well as custom CNC and linear motion builds.

✅ Key Features of These U604ZZ U-Groove Guide Wheel Pulleys

  • 🔩Precise U-Groove Profile — Deep groove geometry keeps the bearing centered on V-slot rails and round rods, reducing lateral play and improving motion accuracy.

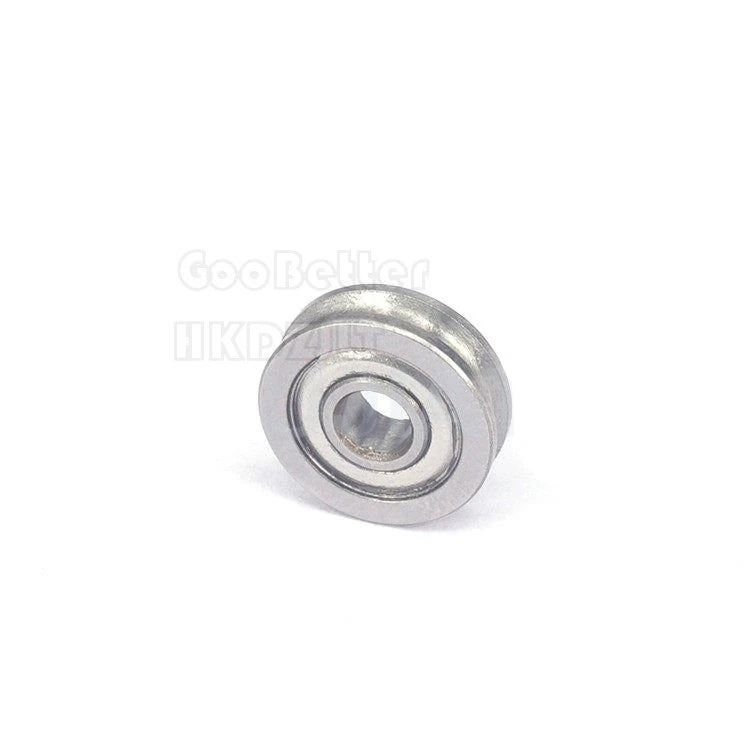

  • 🛡️Double-Sealed Ball Bearing Core — ZZ-rated metal shields on both sides block dust, debris, and fine particles from entering the bearing race, extending service life in open-frame environments.
  • 📐Compact 4×13×4 mm Form Factor — The slim profile fits tight carriage assemblies and lightweight gantry designs without adding unnecessary bulk or weight.
  • ⚡Low Rolling Resistance — Pre-lubricated steel ball bearings deliver smooth, consistent rotation from the first use, reducing motor load and improving positioning repeatability.
  • 🔄Multi-Pack Options — Available in 1, 5, 10, 15, 20, or 25-piece packs so you can stock exactly what your build or maintenance schedule requires.
  • 🏗️Broad Application Compatibility — Suitable for 3D printers, CNC routers, laser cutters, sliding door tracks, and any DIY linear motion project using standard V-slot or round-rod rail systems.

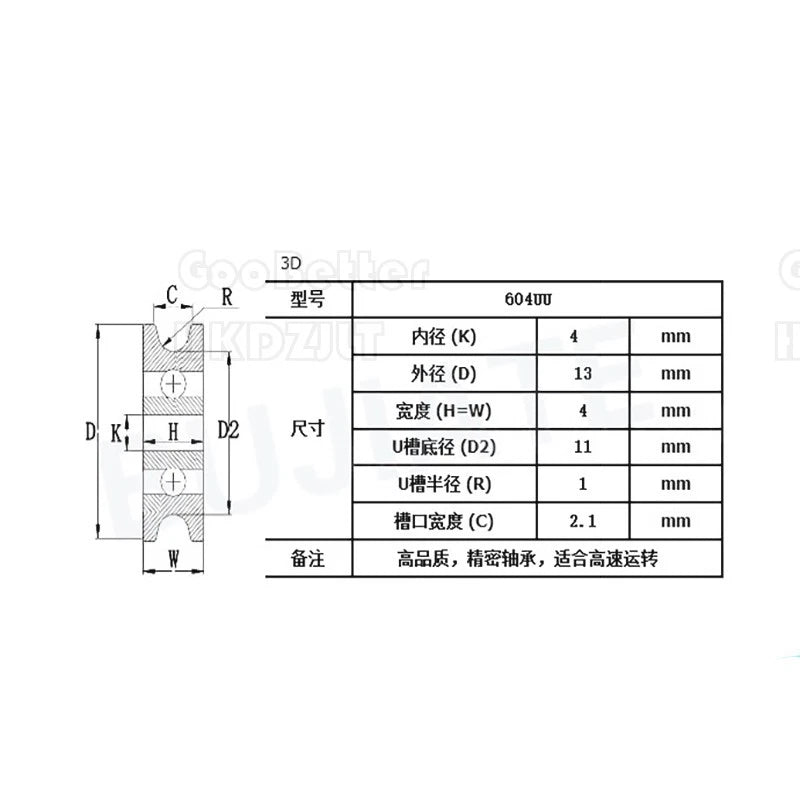

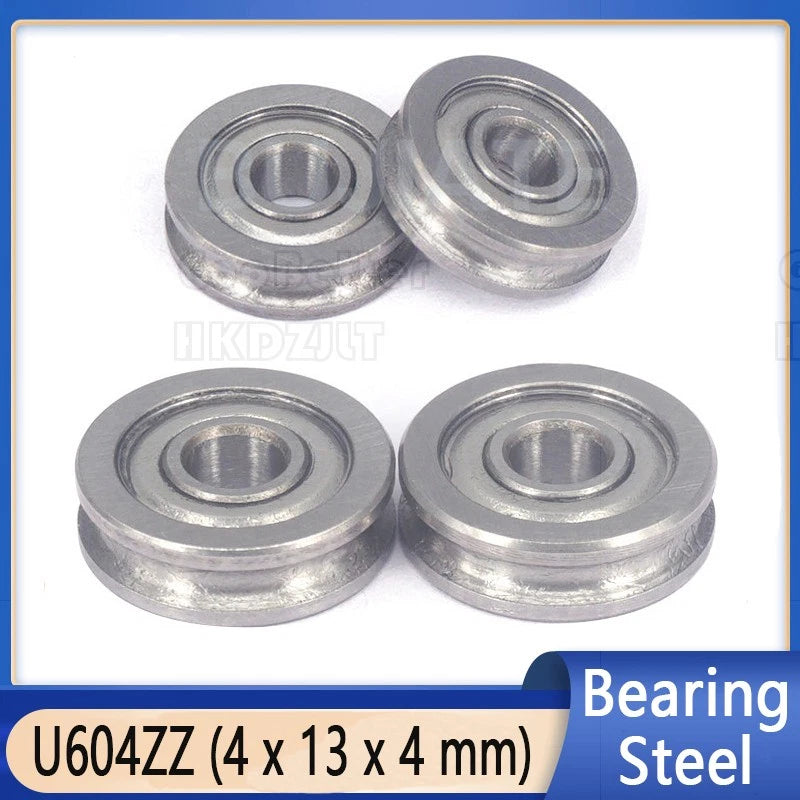

📐 Technical Specifications — U604ZZ U-Groove Guide Wheel Bearing

Bearing Model U604ZZ (604UU)
Bore Diameter (ID) 4 mm (0.157 in)
Outer Diameter (OD) 13 mm (0.512 in)
Width / Thickness 4 mm (0.157 in)
Groove Type U-groove (V-slot compatible)
Seal Type Double-sealed (ZZ metal shields)
Material Steel (bearing body & shields)
Lubrication Pre-lubricated (grease-filled)
Compatible Rail Types V-slot aluminum extrusion, round guide rod (typically 3–5 mm)
Compatible Axle M4 bolt / 4 mm shaft
Pack Size Options 1 / 5 / 10 / 15 / 20 / 25 PCS
Condition New

❓ Frequently Asked Questions

Which rail or rod size does the U604ZZ groove fit?

The U-groove on the U604ZZ is designed to ride on V-slot aluminum extrusion profiles and round guide rods typically in the 3–5 mm (0.12–0.20 in) diameter range. It is the standard guide wheel used on 2020 and 2040 V-slot extrusion commonly found in open-frame 3D printers and CNC builds.

What axle bolt size does this bearing require?

The U604ZZ has a 4 mm bore, so it mounts on an M4 bolt or a 4 mm diameter shaft. Most 3D printer carriage assemblies use M4 eccentric nuts and M4 bolts as axles for these guide wheels.

How many pieces do I need for a typical 3D printer build?

A standard Cartesian 3D printer (such as Ender-style machines) typically uses 6–9 guide wheel bearings across the X, Y, and Z axes. A CoreXY build may use 4–6. We recommend ordering a 10-pack for a full build or a 5-pack for a partial replacement or upgrade, with a few spares on hand.

Are these bearings sealed against dust and debris?

Yes. The ZZ designation means both sides of the bearing are fitted with metal shields (double-sealed). This keeps lubricant in and dust, filament particles, and fine debris out — an important feature for open-frame 3D printers and CNC environments where airborne particles are common.

Can these guide wheels be used on a CNC router or laser cutter?

Yes. The U604ZZ is widely used in CNC router gantry assemblies, laser cutter carriage systems, and other linear motion applications that use V-slot extrusion or round-rod rails. The sealed design handles the sawdust and debris typical of CNC environments better than open bearings.

How do I choose between the different pack sizes?

Choose the 1-pack for a single replacement. The 5-pack suits a partial axis rebuild or upgrade. The 10-pack covers a full 3D printer or small CNC build. The 15, 20, or 25-pack options are ideal for workshop stock, classroom lab kits, or building multiple machines at once — the per-unit cost decreases with larger packs.

Are these compatible with eccentric nuts for tension adjustment?

Yes. The 4 mm bore is compatible with standard M4 eccentric nuts (also called eccentric spacers) used in most V-slot carriage designs. Eccentric nuts allow you to fine-tune the preload and tension of the guide wheel against the rail for optimal motion smoothness.
