U624ZZ U-Groove Pulley Roller Wheels — Precision Ball Bearings for Linear Motion Systems

When your 3D printer carriage wobbles, your CNC gantry skips, or your DIY linear rail system loses smooth travel, the culprit is almost always a worn or undersized guide wheel. Engineers, makers, and automation builders who demand repeatable, low-friction motion need a roller that holds tight tolerances under continuous load — and that is exactly what these U624ZZ guide pulley wheels are built for.

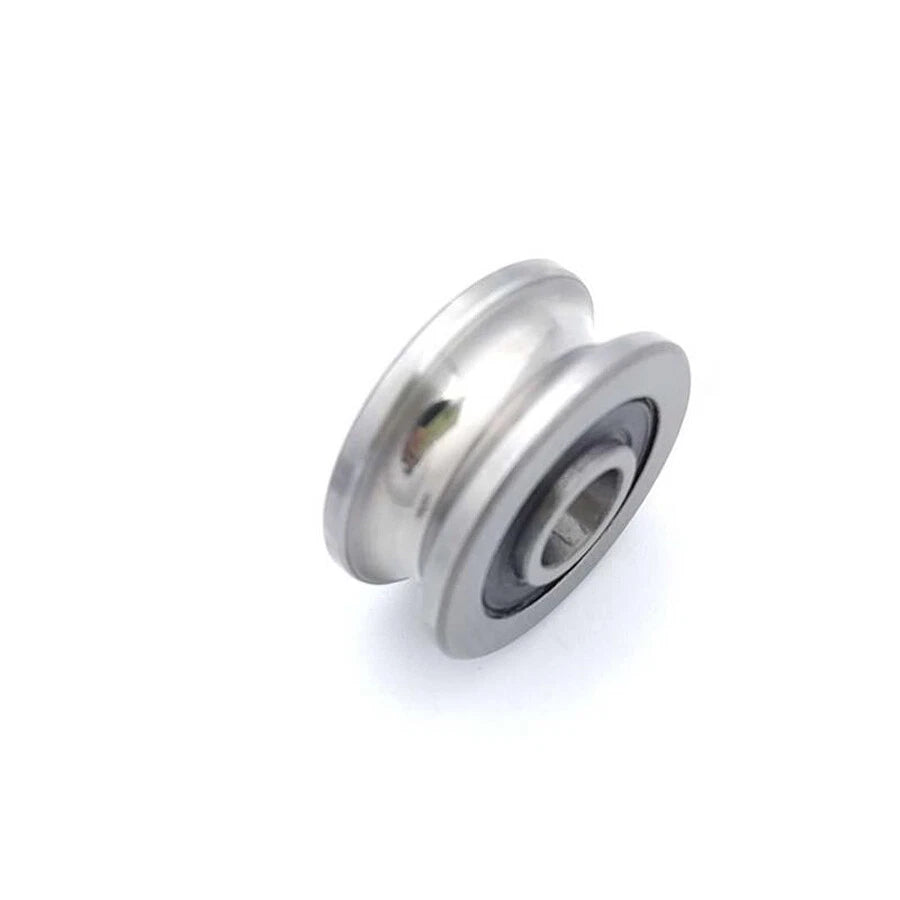

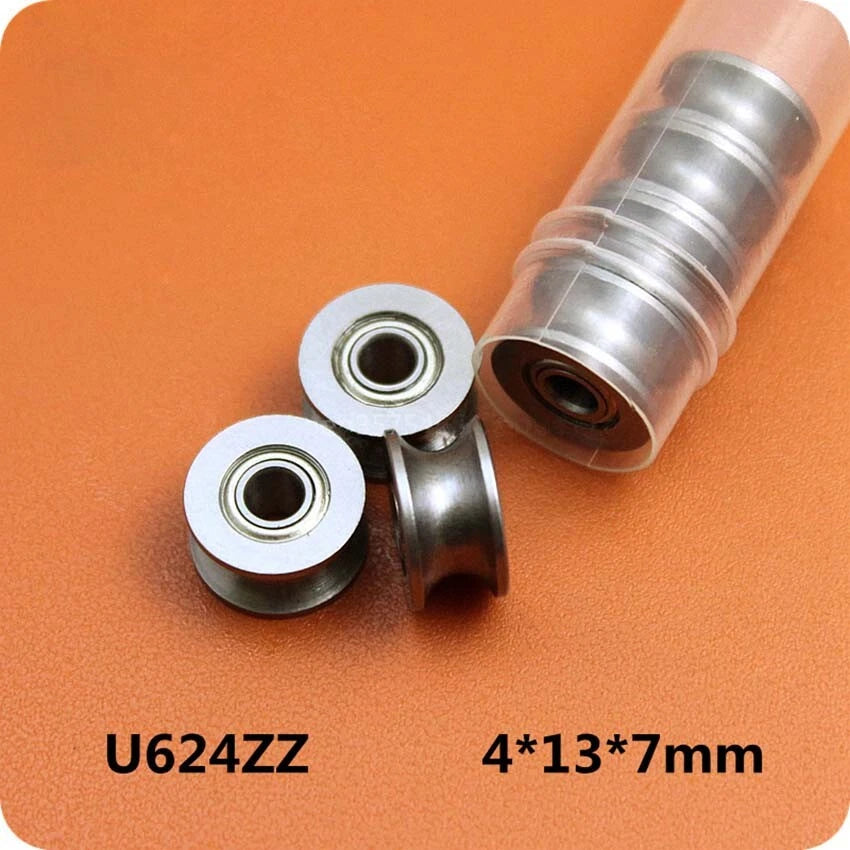

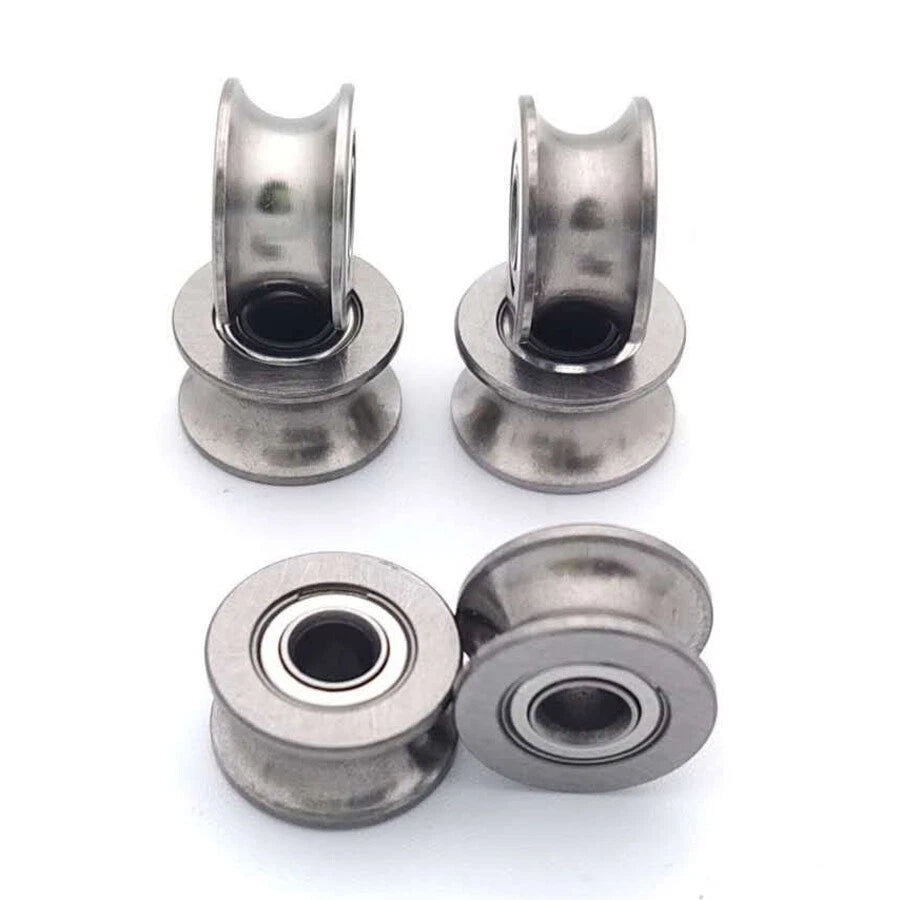

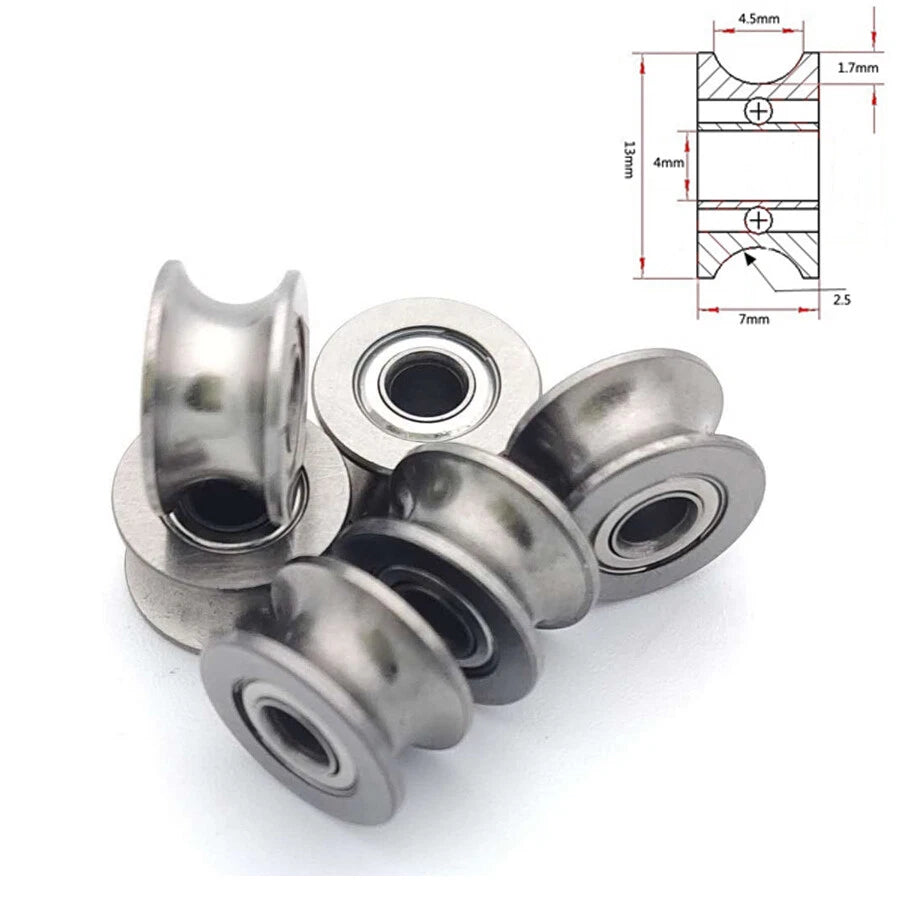

Each wheel is a U624ZZ deep-groove ball bearing with a machined U-groove profile on the outer race, measuring 4mm bore × 13mm outer diameter × 7mm width (approximately 0.16" × 0.51" × 0.28"). Available in two material grades — bearing steel (chrome steel, GCr15 equivalent) and high carbon steel — both options feature sealed construction to retain lubrication and exclude contaminants. The U-groove depth is sized to capture V-slot or round-profile rails securely without lateral play.

Typical applications include 3D printer X/Y axis carriages riding on V-slot aluminum extrusion, compact linear guide systems for laser engravers and pick-and-place machines, tensioner idler wheels in belt-driven CNC routers, and lightweight conveyor or sliding door track systems in DIY automation projects.

🔩 Compatible with V-slot aluminum extrusion profiles, round-rail linear guides, and belt tensioner assemblies. Bore ID: 4mm — fits standard M4 shoulder bolts and eccentric spacers.

✅ Key Features of These U624ZZ U-Groove Pulley Roller Wheels

🎯 Precision U-Groove Profile

The machined U-groove outer race self-centers on V-slot rails and round profiles, eliminating lateral drift and reducing carriage wobble in linear motion systems.

⚙️ Two Material Grades Available

Choose bearing steel (chrome steel) for longer fatigue life under cyclic loads, or high carbon steel for cost-effective builds where replacement cycles are acceptable.

🛡️ Double-Sealed Construction (ZZ)

The ZZ metal shield seals retain factory grease and block dust, swarf, and debris — extending service intervals in open-frame 3D printers and workshop environments.

📐 Compact 4×13×7mm Footprint

The small bore-to-OD ratio fits tight carriage designs where space is constrained, making these wheels a direct fit for popular open-source 3D printer and CNC platforms.

🔄 Low Rolling Resistance

Deep-groove ball bearing internals deliver smooth, low-friction rotation at the speeds typical of 3D printer and light automation duty cycles, reducing motor load and improving positioning accuracy.

📦 Flexible Pack Quantities

Available in 1-piece, 4-piece, and 10-piece packs — order a single replacement or stock up for a full machine build or maintenance kit without overpaying for bulk minimums.

📐 Technical Specifications — U624ZZ U-Groove Pulley Roller Wheels

Bearing Model	U624ZZ
Bore Diameter (ID)	4 mm (0.157")
Outer Diameter (OD)	13 mm (0.512")
Width	7 mm (0.276")
Groove Profile	U-groove (V-slot compatible)
Material Options	Bearing steel (chrome steel) / High carbon steel
Seal Type	Double metal shield (ZZ)
Lubrication	Factory-greased, sealed
Radial Load Capacity	See variant options
Max RPM	See variant options
Weight per Piece	See variant options
Pack Quantities	1 Pcs / 4 Pcs / 10 Pcs

❓ Frequently Asked Questions

What rail or track profile does the U-groove fit?

The U-groove outer race is designed to ride on V-slot aluminum extrusion profiles (such as 20×20mm and 20×40mm) and round-profile rails. The groove captures the rail edge and prevents lateral movement. It is not intended for flat-rail or T-slot-only applications where no edge profile exists.

What is the difference between bearing steel and high carbon steel versions?

Bearing steel (chrome steel, GCr15 equivalent) offers higher hardness, better fatigue resistance, and longer service life under repeated cyclic loading — ideal for machines that run continuously. High carbon steel is a cost-effective alternative suited to lighter-duty or lower-cycle applications where periodic replacement is acceptable.

What bolt or shaft size fits the 4mm bore?

The 4mm bore accepts M4 shoulder bolts, M4 eccentric spacers, and 4mm smooth shafts. For carriage assemblies on V-slot extrusion, M4 eccentric nuts are the standard pairing to allow preload adjustment. Ensure the shaft or bolt shoulder is ground to 4mm for a proper fit — threaded sections will cause bearing damage.

Are these wheels corrosion-resistant for outdoor or humid environments?

Both steel variants offer moderate corrosion resistance from the factory grease and metal shields, but are not stainless steel. For outdoor, high-humidity, or wash-down environments, additional corrosion protection (such as periodic re-greasing or a light coating of corrosion inhibitor) is recommended. If stainless construction is required, contact us to confirm availability.

How do I choose between 1-piece, 4-piece, and 10-piece packs?

Order 1 piece for a single-axis replacement or prototype test. The 4-piece pack suits a standard CoreXY or Cartesian 3D printer carriage (typically 4–6 wheels per axis). The 10-piece pack is the most economical option for full machine builds, multi-axis systems, or keeping spares on hand for maintenance.

Can these wheels handle the speed and load of a 3D printer or CNC router?

Yes. U624ZZ wheels are a widely used standard component in open-source 3D printer designs (including Voron, Ender, and similar platforms) and light CNC routers. They are rated for the carriage speeds and radial loads typical of these machines. For heavy-duty CNC applications with high cutting forces, consult the load rating for your specific variant before ordering.

Do these come pre-lubricated, or do I need to grease them before use?

These wheels are factory-greased and sealed with ZZ metal shields, so they are ready to install straight from the pack. No additional lubrication is required for standard use. The sealed design also means the grease is retained during operation, reducing maintenance frequency compared to open-bearing designs.
