👨🌾 Upgrade your ride without breaking your back. Whether you're mowing acres, moving pallets, or grading land, this heavy‑duty universal seat suspension kit absorbs punishing jolts and vibration. Designed for operators weighing 110–286 lbs (50‑130kg), the 65Mn spring system delivers 2 inches of smooth shock travel — drastically reducing spinal fatigue during long shifts. Fits most lawn tractors, compact tractors, forklifts, and bulldozers (without slider track). Built with 3mm steel and a sealed dust cover to shrug off mud, rain, and rust. Get back to work with a suspension that actually works.
| Item Code / SKU | T3342P463709 |
|---|---|
| Product Type | Single Box Suspension Kit (no slider) |
| Color | Black (electrostatic powder-coated) |
| Material | Q235 Structural Steel (3mm / 0.12" thick) + 65Mn Spring |
| Spring Travel | 45mm (approx. 2 inches) |
| Weight Capacity | 50 kg – 130 kg (110 lbs – 286 lbs) |

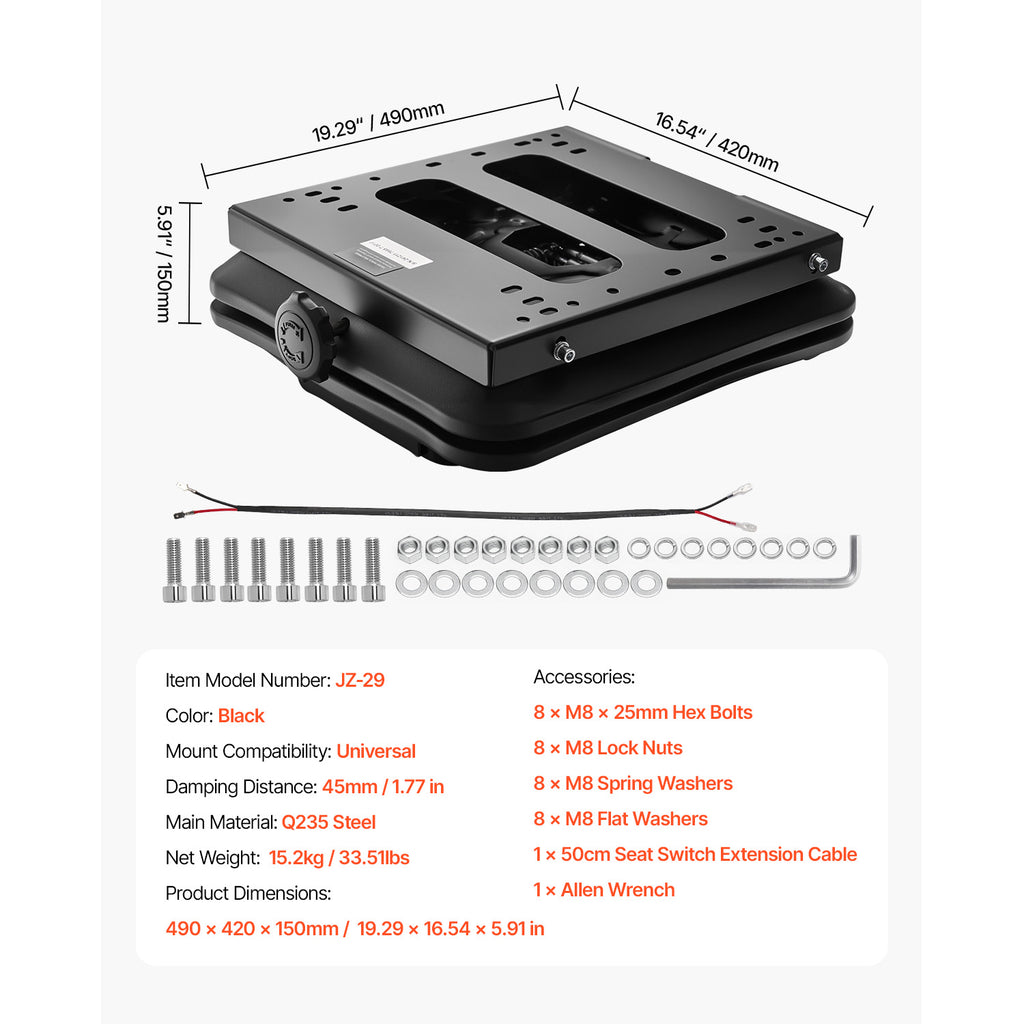

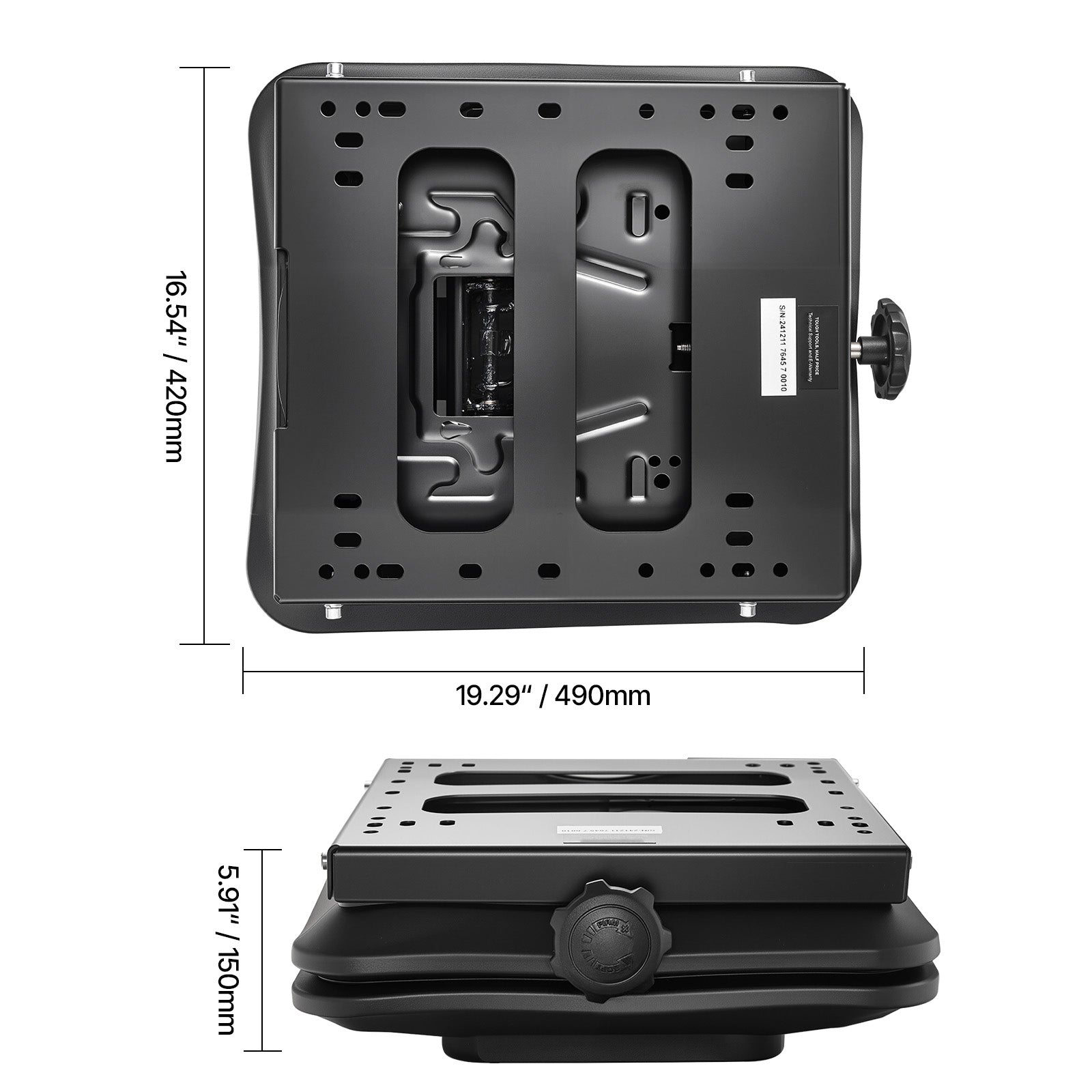

| Assembled Dimensions (L×W×H) | 20.47" × 17.32" × 7.09" (520 × 440 × 180 mm) |
| Product Weight | 35.26 lbs (16 kg) |
| Package Dimensions (L×W×H) | 20.47" × 17.32" × 7.09" |
| Package Weight | 35.36 lbs |
| Dust Protection | PVC dust cover / boot (sealed against dirt & moisture) |
| Extension Wire Length | 19.7 inches (50 cm) |
| Mounting Pattern | Universal base + 8 auxiliary mounting holes |
| Slider Track Included | No — designed for fixed seat applications or where track is not needed |
✅ Very likely, yes. This is a universal suspension kit without a slider track. It includes 8 additional mounting holes and works on a wide range of lawn tractors, garden tractors, zero‑turns (with fixed seat base), compact tractors, forklifts, and bulldozers. Measure the bolt pattern on your current seat base — if it's within the common 5"–11" width range, it should bolt right up. Many customers install it on John Deere, Cub Cadet, Husqvarna, and older Ford tractors.
🚫 No, the slider track is NOT included. This is intentional — many machines (especially lawn tractors and forklifts) either have an existing slider or do not require one. This kit provides the suspension base only. If you need a seat slider, you can often reuse your old one or purchase a universal slider separately. The suspension is designed to mount directly to the vehicle floor or to an existing slider mechanism.
⚖️ The suspension is optimized for operators between 50 kg and 130 kg (110 lbs – 286 lbs). At 240 lbs you are well within the sweet spot. The 65Mn spring and 2" travel will provide excellent cushioning without bottoming out under normal use.
🔧 Basic mechanical skills are all you need. The kit is designed as a bolt‑on replacement. You'll typically need a socket set, wrenches, and possibly a drill if you need to align new holes (though the 8 extra mounting slots reduce drilling). The 19.7" extension wire makes connecting your seat safety switch straightforward. Most DIYers complete the swap in 30–60 minutes. Professional installation is recommended if you're not comfortable working on your equipment.
🛡️ Absolutely. The steel is coated with a thick electrostatic powder finish that resists corrosion, and the spring is protected by a PVC dust boot. This keeps water, mud, and grass clippings away from the moving parts. For the longest life, occasional lubrication of pivot points is recommended.
⭐ Universal Seat Suspension Kit without Slider Track – fits lawn mower, tractor, forklift, bulldozer. Upgrade your ride comfort and protect your back during long hours in the field.
