🛠️ Upgrade your ride, reduce back fatigue. Whether you're mowing acres, moving pallets, or tilling soil, a worn-out seat suspension turns every bump into a jolt. This Universal Seat Suspension Kit with Slider Track & Dustcover is built for lawn mowers, tractors, forklifts, and compact construction equipment. With 2 inches of dampened travel and a heavy‑duty steel frame, it absorbs shock for operators between 110 and 285 lbs. The integrated slider gives you 6 inches of fore‑aft adjustment—so you can dial in the perfect driving position. No more aching back after a long day. 💪
| Product Type | Single Box Product · Complete Suspension Assembly |
|---|---|
| Material | Heavy‑Duty Steel (Q235) + PVC Dustcover |
| Colour / Finish | Black · Electrostatic Powder Coat |
| Assembled Dimensions (L×W×H) | 21.26″ × 17.32″ × 7.48″ (540 × 440 × 190 mm) |
| Product Weight | 39.68 lb (18 kg) |
| Package Dimensions (L×W×H) | 21.26″ × 17.32″ × 7.48″ |
| Package Weight | 39.78 lb (18.05 kg) |
| Spring Type | 65Mn High‑Strength Steel · 45mm Travel |
| Weight Capacity | 50 – 130 kg (110 – 285 lbs) |
| Slide Adjustment Range | 150 mm (6 inches) fore/aft |
| Wiring Extension | 50 cm (19.7″) switch wire included |
| Mounting Compatibility | Universal + 8 auxiliary holes; suits most lawn mower/tractor seats |
✅ Most likely yes. The kit features a universal bolt pattern plus 8 extra mounting holes. It’s compatible with a wide range of lawn mowers, garden tractors, compact tractors, forklifts, and even some bulldozers. The slider base dimensions are 21.26″ × 17.32″ — please compare with your existing seat platform. Many John Deere, Cub Cadet, Kubota, and Husqvarna owners have successfully installed it.
💪 The suspension is rated for 50–130 kg (110–285 lbs). At 260 lbs, you are well within the optimal range. The 65Mn springs provide progressive resistance, and the 45mm travel helps absorb hard bumps without bottoming out. It’s designed for heavy‑duty daily use.

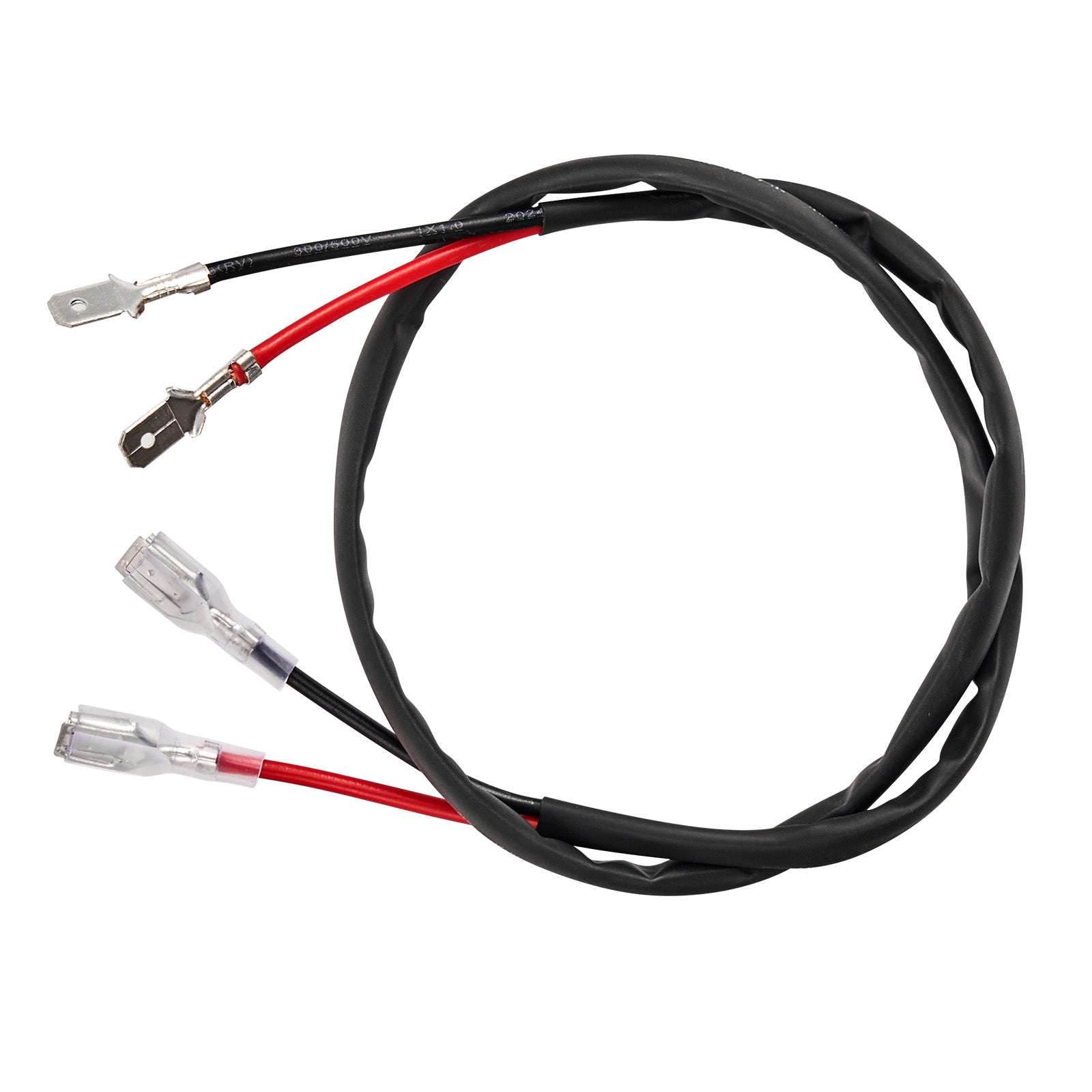

👍 Absolutely. The kit includes a 50cm (19.7″) switch extension wire, which works with most standard seat safety switches. If your machine uses a different connector, the wire can be spliced easily. The slider mechanism doesn’t interfere with the wiring routing.
☔ Yes, the steel frame receives an electrostatic powder coating that provides excellent corrosion resistance. Additionally, the PVC dustcover shields the spring and slider mechanism from rain, mud, and UV exposure. For long‑term outdoor storage, a breathable cover is still recommended, but this suspension is built for outdoor work.
🔧 Basic mechanical skills are all you need. You’ll require a socket set, wrenches, and possibly a drill if you use the auxiliary holes. The assembly replaces your existing seat suspension or rigid mount. Most users complete the swap in 30–60 minutes. A printed guide with diagrams is included.
