Wheel Alignment Tool Kit — Precision Toe Alignment Without the Shop Bill
Uneven tire wear, pulling to one side, and wasted fuel — misaligned wheels are one of the most common and costly problems for truck, SUV, and RV owners. This wheel alignment tool kit puts professional-grade toe adjustment back in your hands, right in your own driveway or garage.
The kit includes 2 heavy-duty stainless steel toe plates with a baked matte-black coating, plus 2 dual-lock measuring tapes. Each plate measures approximately 24.6" x 3.2" x 3.0" (625 x 81 x 76 mm), sized specifically for truck and SUV tires. The 14.5 mm universal bolt hole fits the most common lug patterns on the market.
Whether you're dialing in toe after a lift kit install, correcting drift on a daily driver, or prepping an off-road rig for a weekend trail run, this kit delivers repeatable, accurate results — no laser rack required.
✅ Compatible with most trucks, SUVs, RVs, Jeeps, Volkswagens, UTVs/ATVs, and daily cars — fits lug patterns 5x4.5, 5x5, 5x5.5, 6x5.5, 8x6.5, and 8x170mm. Not recommended for very low chassis or for vehicles with oversized calipers that block stud access.
Key Features
- 🛡️ Heavy-Duty & Rust-Resistant Construction — Thick stainless steel with a baked black coating resists corrosion and deformation in tough shop conditions. Built to handle daily drivers, heavy trucks, SUVs, RVs, and even UTV/ATVs. Long-lasting durability for both home users and pros.
- 🚗 Universal Compatibility for Most Vehicles — 14.5 mm universal bolt hole fits patterns: 5x4.5, 5x5, 5x5.5, 6x5.5, 8x6.5, and 8x170mm — covering Jeeps, VWs, trucks, SUVs, RVs, and UTVs/ATVs. Ideal for DIY and workshop use.
- 📐 Precision Measurements & Solo Operation — Dual slots lock measuring tape heads firmly in place, allowing one-person toe adjustments without shifting. Accurate coaxial distance and angle measurements improve handling, extend tire life, and enhance vehicle safety.
- ⚡ Tool-Free Setup & Wall-Mountable Design — Mounts directly onto wheel studs in seconds — no extra tools required. Oval mounting holes make wall storage effortless, keeping your garage organized. Includes a user manual and conversion chart for quick learning.
- 💰 Cost-Effective DIY Alignment Solution — Avoid expensive shop fees and complex digital gauges. This alignment tool kit guides you through precise toe & camber adjustments, perfect for off-road rigs and daily commuters. Save time, money, and frustration.
- 📦 Complete Kit, Ready to Use — Everything you need is included: 2 toe plates, 2 dual-lock measuring tapes, 1 pair of gloves, and a user manual with conversion chart. Unbox and start aligning the same day.

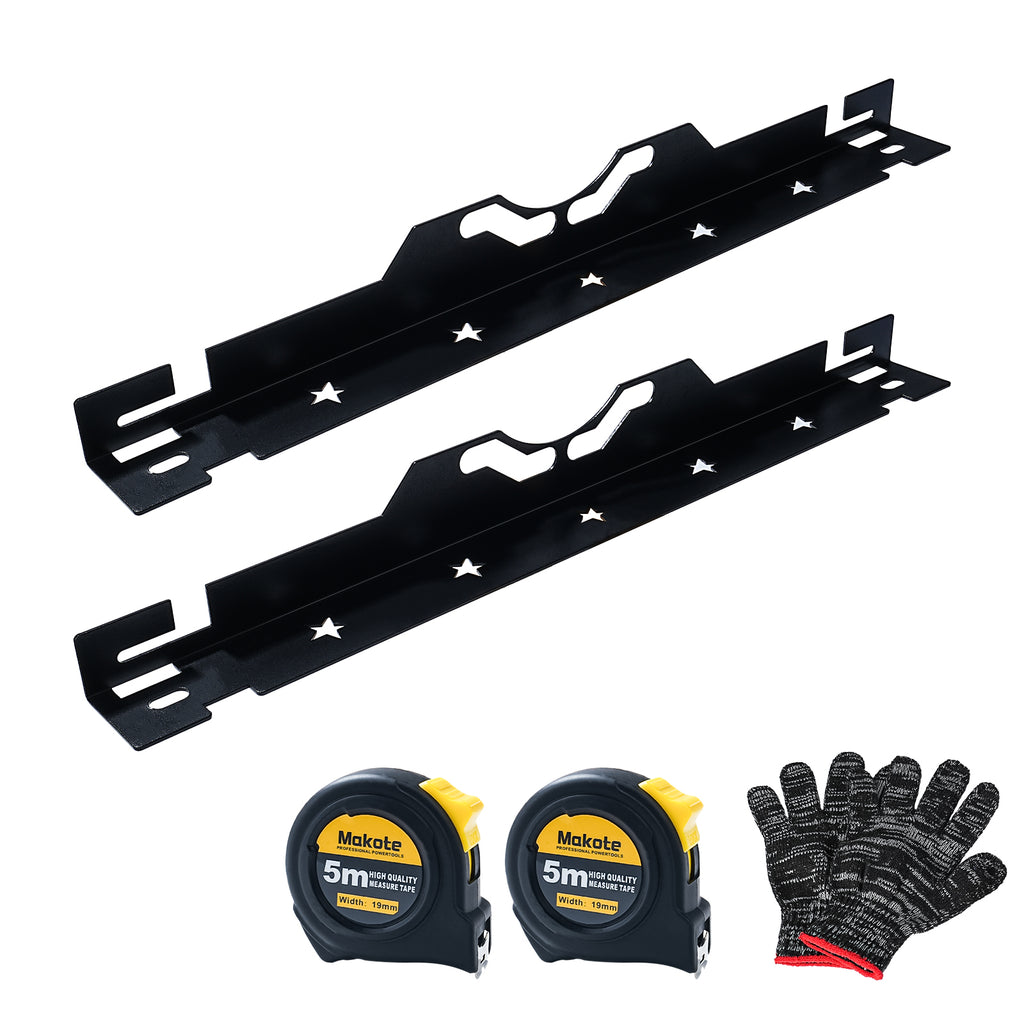

What's in the Box
- 2x Heavy Duty Toe Plates (Matte Black, Stainless Steel)
- 2x High-Vis Dual-Lock Measuring Tapes
- 1x Pair of Gloves
- 1x User Manual with Conversion Chart
Who Is This For
🔧 Home Mechanics & DIY Enthusiasts — Skip the alignment shop and take control of your suspension setup. If you've just installed a lift kit, new tie rods, or control arms, this kit lets you verify and correct toe right in your driveway.
🚙 Truck, SUV & RV Owners — Larger vehicles are expensive to align professionally and often need more frequent checks. This kit pays for itself after just one or two uses compared to shop rates.
🏕️ Off-Road & Trail Riders — Jeep, UTV, and ATV owners who regularly adjust suspension for different terrain will find this kit indispensable for quick field checks and post-trail corrections.
🏪 Small Shops & Mobile Mechanics — A portable, affordable backup tool for quick toe checks when a full alignment rack isn't available or practical on-site.
Technical Specifications
| Material |
Thick Stainless Steel + Baked Black Coating (Corrosion Resistant) |
| Color |
Matte Black / Heavy-duty finish |
| Kit Includes |
2 Toe Plates, 2 Dual-Lock Measuring Tapes, 1 pair of gloves, User Manual & Conversion Chart |
| Universal Bolt Hole Diameter |
14.5 mm (fits lug patterns: 5x4.5, 5x5, 5x5.5, 6x5.5, 8x6.5, 8x170mm) |
| Plate Dimensions (each, approx.) |
24.6" x 3.2" x 3.0" (625 x 81 x 76 mm) |
| Compatible Vehicles |
Trucks, SUVs, RVs, Jeeps, Volkswagens, UTVs/ATVs, daily cars (excluding very low chassis / oversized calipers) |
| Measurement Type |
Toe alignment — coaxial distance & wheel angle; dual tape slots for solo use |
| Storage Feature |
Wall-mountable — oval holes for quick hanging, saves workspace |
Frequently Asked Questions
Will this wheel alignment kit work on my lifted truck or off-road SUV?
Yes! The universal bolt pattern and heavy-duty stainless steel build are designed to handle larger tires, lifted suspensions, and off-road rigs like Jeeps, Ford Raptors, and Toyota Tundras. As long as your calipers don't extend far beyond the wheel studs (or you can temporarily remove oversized calipers), the kit works perfectly. Many off-roaders rely on this for field adjustments.
Do I need special skills or extra tools to use this alignment kit?

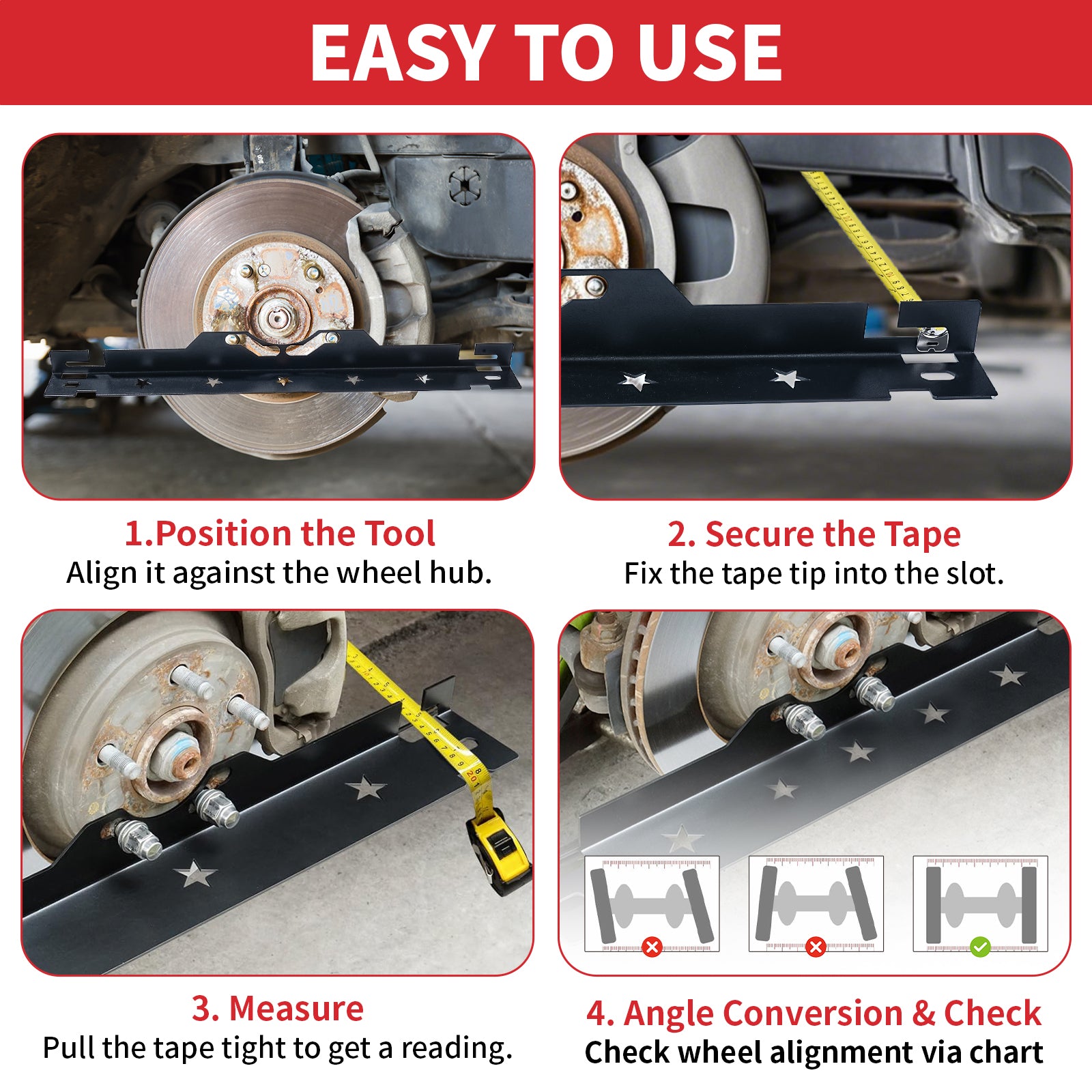

Not at all. The toe plates mount directly onto your wheel studs without any tools. The dual measuring tapes lock into the slots, so you can take measurements solo. The included user manual and conversion chart walk you through each step — if you can turn a wrench, you can dial in your alignment within 30 minutes.
How accurate are the toe measurements compared to a laser alignment machine?
Surprisingly accurate for DIY use. With proper setup (level ground, correct tire pressure), our toe plates deliver precision typically within 1/16" — enough to eliminate uneven tire wear and improve fuel economy. While professional racks offer additional metrics, this kit gives you the vast majority of the benefit for a fraction of the cost, perfect for routine maintenance and suspension work.
Can I store the alignment plates easily in my small garage?
Absolutely — the wall-mountable design is a game-changer. Each plate has oval mounting holes, so you can hang it on two sturdy hooks or screws. No need to take up shelf space. The black baked coating also prevents rust even in humid shops.
Is this alignment kit only for toe adjustments, or can it help with camber?
While the primary focus is precise toe alignment (the most common cause of tire wear), many DIYers also use the plates as a reference for camber checks by pairing them with a digital angle gauge. The toe plates give you a solid, repeatable base to measure camber angle changes — a versatile addition to any home mechanic's arsenal.
Does it work on low-profile sports cars or very low chassis vehicles?
We don't recommend this for extremely low vehicles (like slammed sedans) or cars with massive brake calipers that block stud mounting. However, for standard sedans, crossovers, trucks, SUVs, and lifted vehicles, it's a perfect match. Always check clearance before mounting.
How do I know if my vehicle's toe is out of spec?
Common signs include uneven or feathered tire wear on the inner or outer edges, the steering wheel sitting off-center when driving straight, or the vehicle pulling to one side. If you've recently replaced tie rods, control arms, or installed a lift kit, a toe check is always recommended before driving long distances.
🔧 Get your alignment dialed in today — add the Wheel Alignment Tool Kit to your cart and take the guesswork out of toe adjustment.
