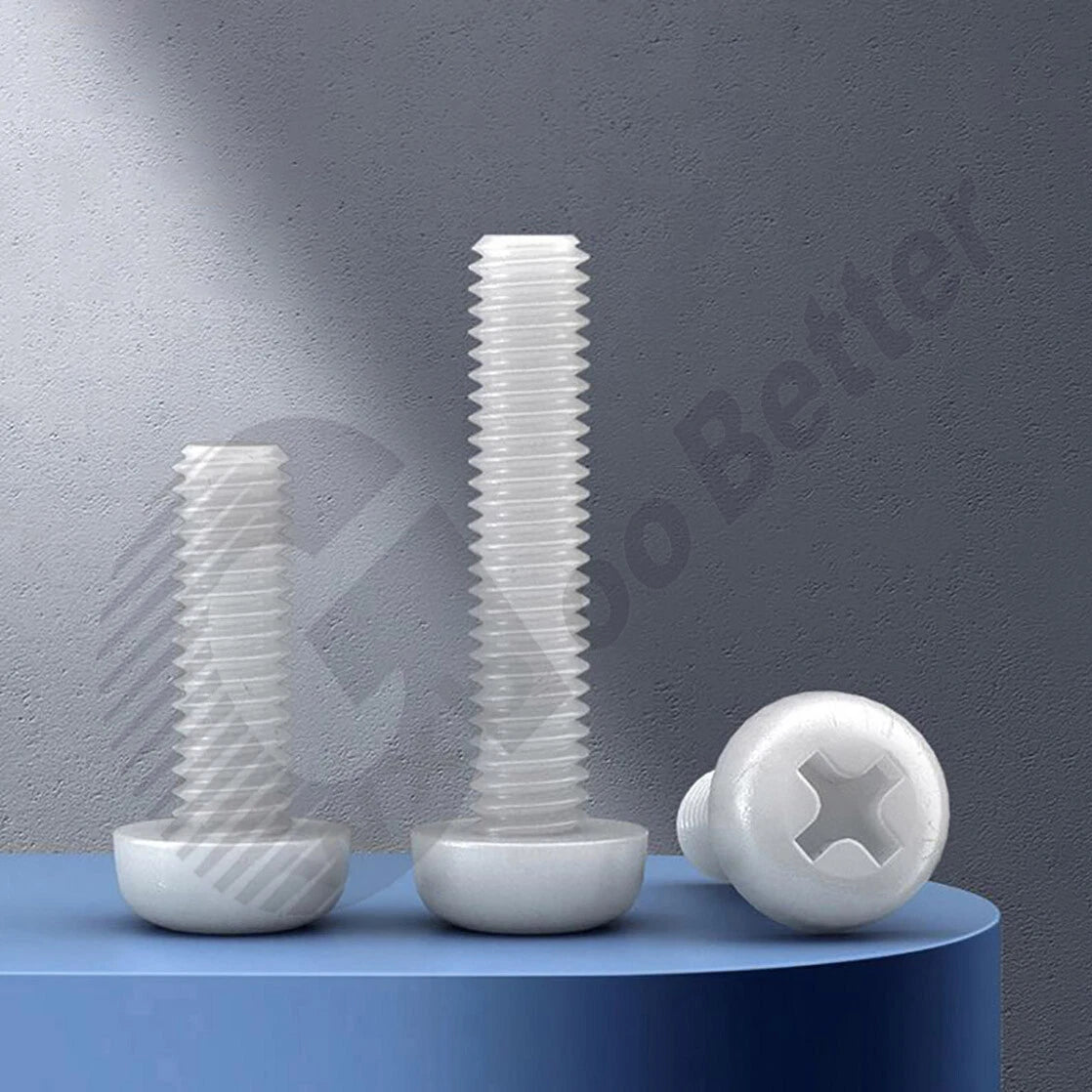

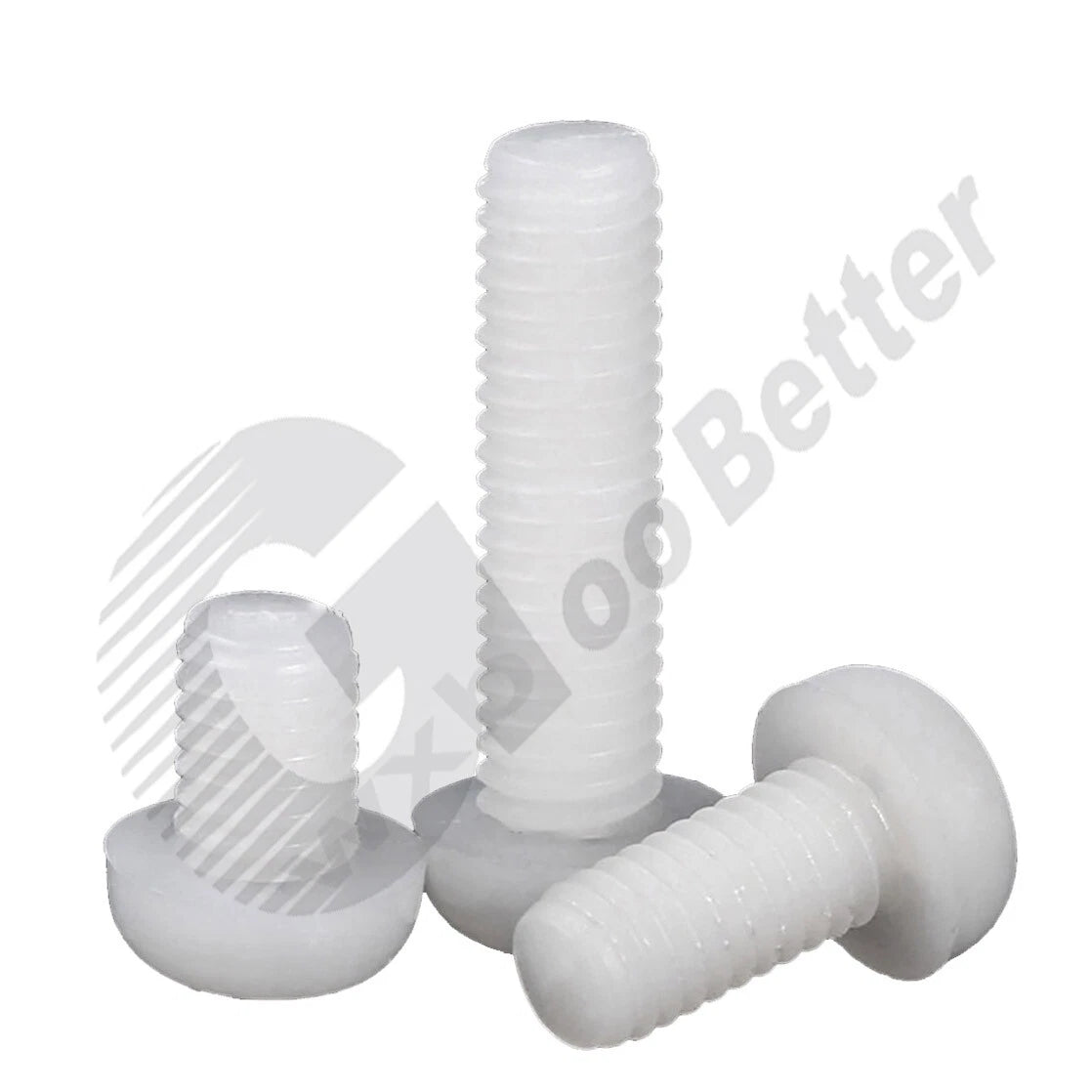

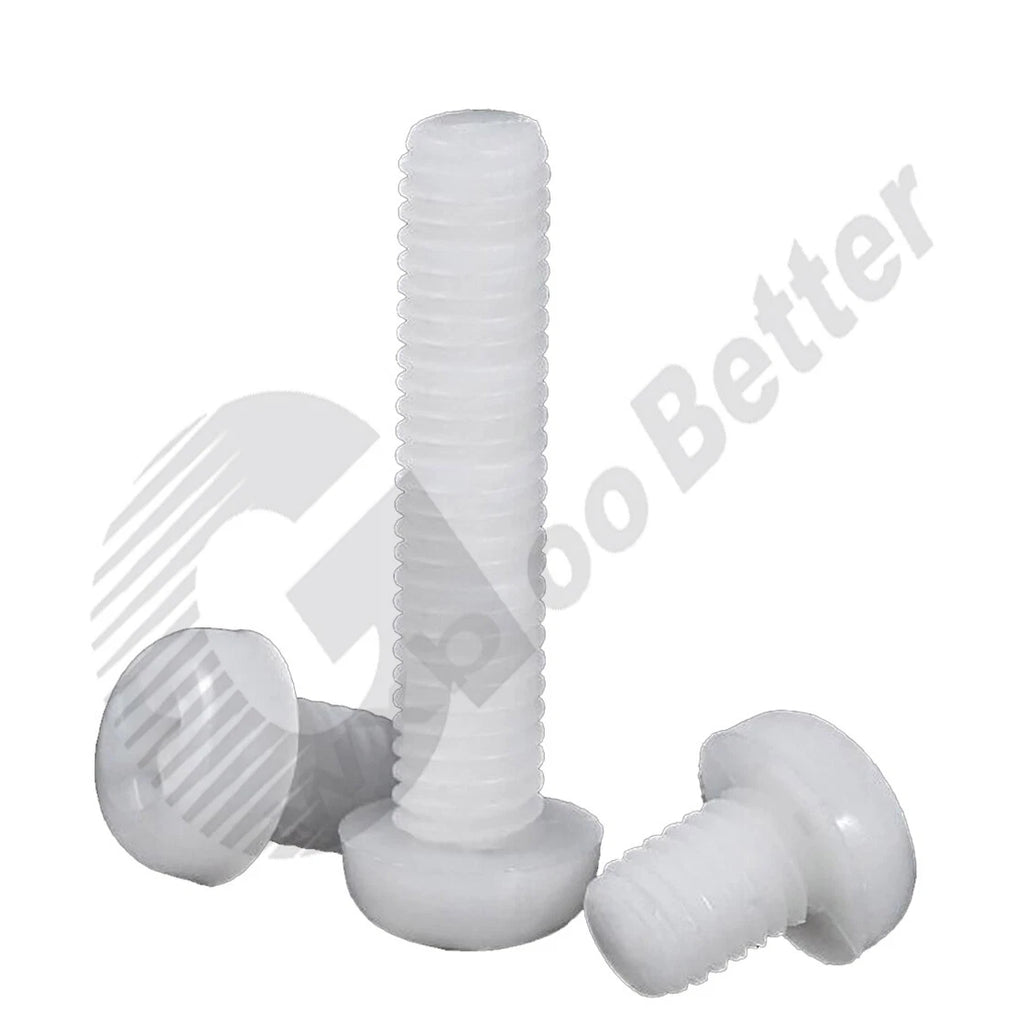

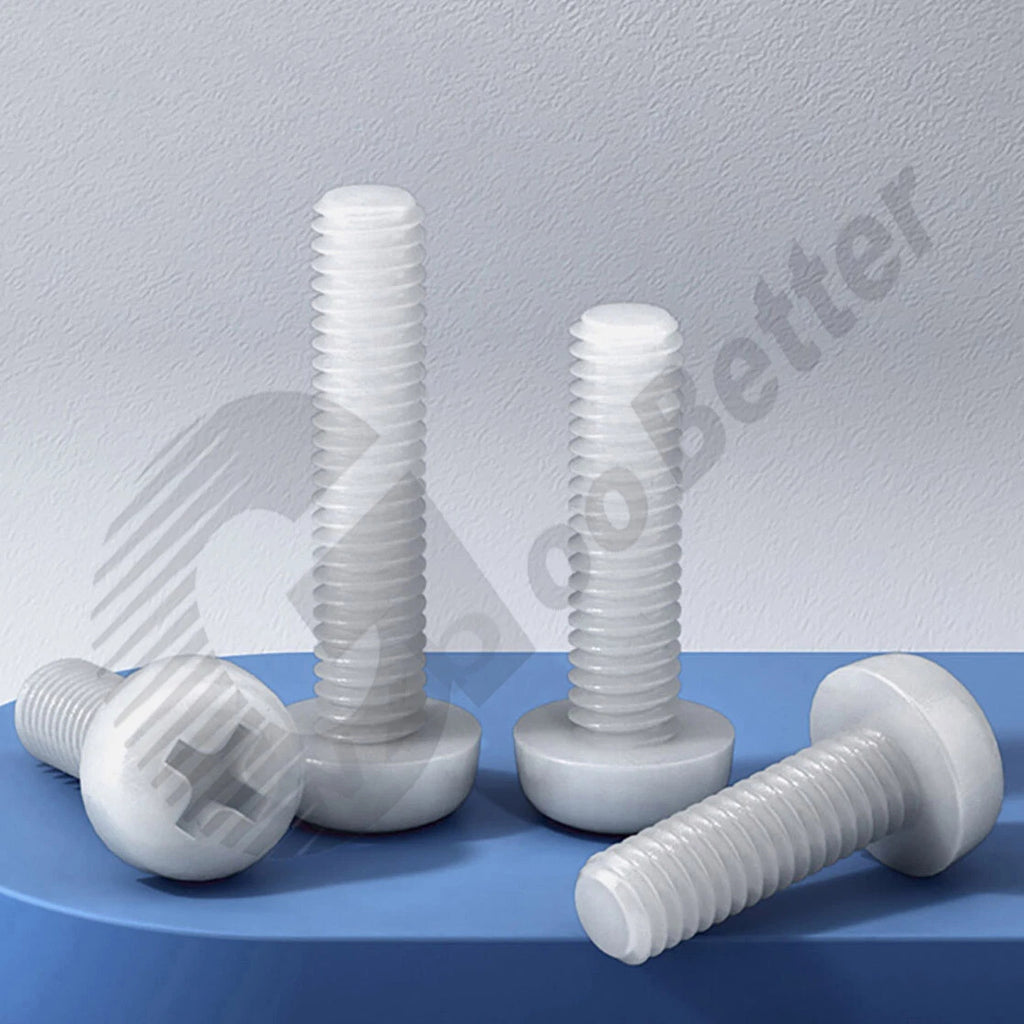

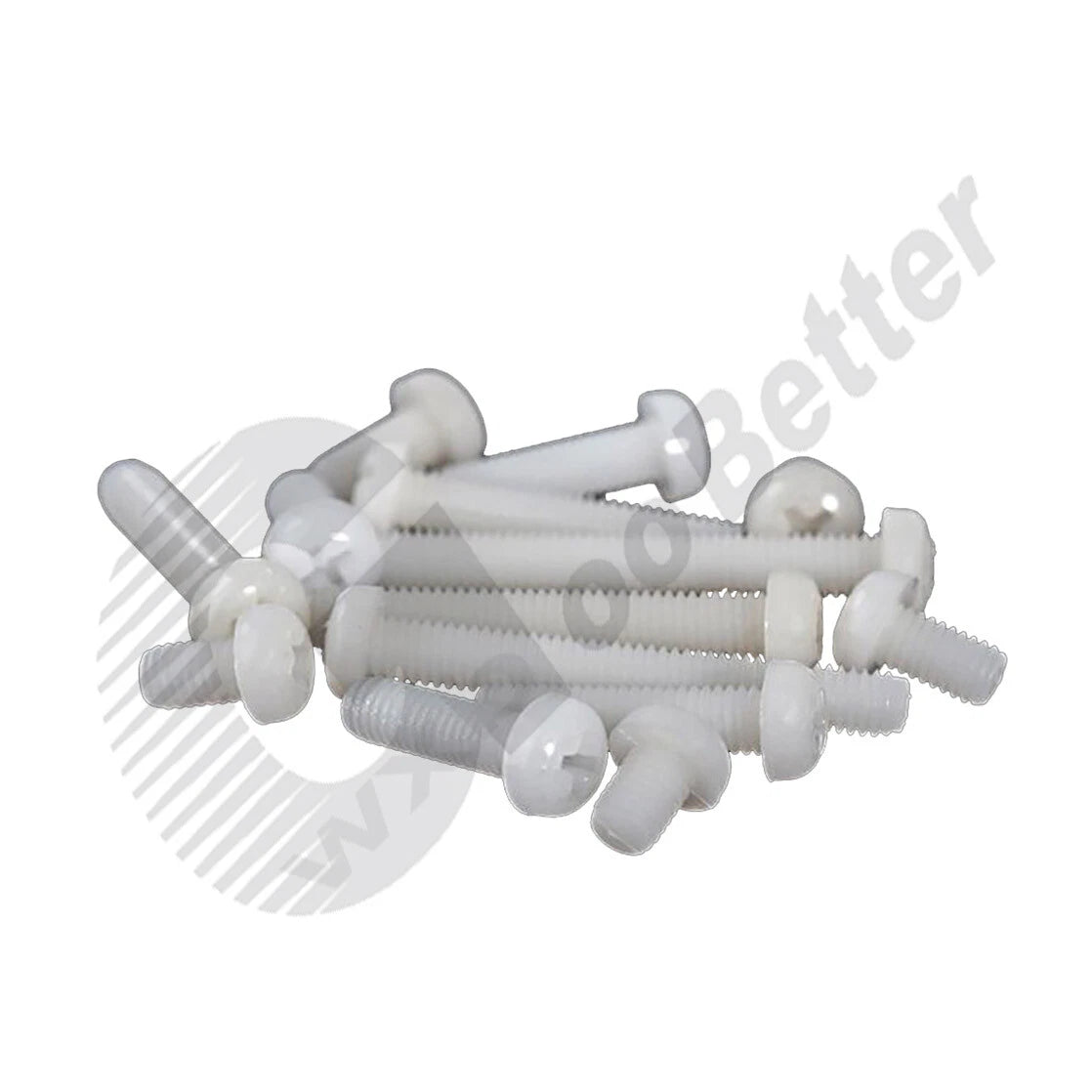

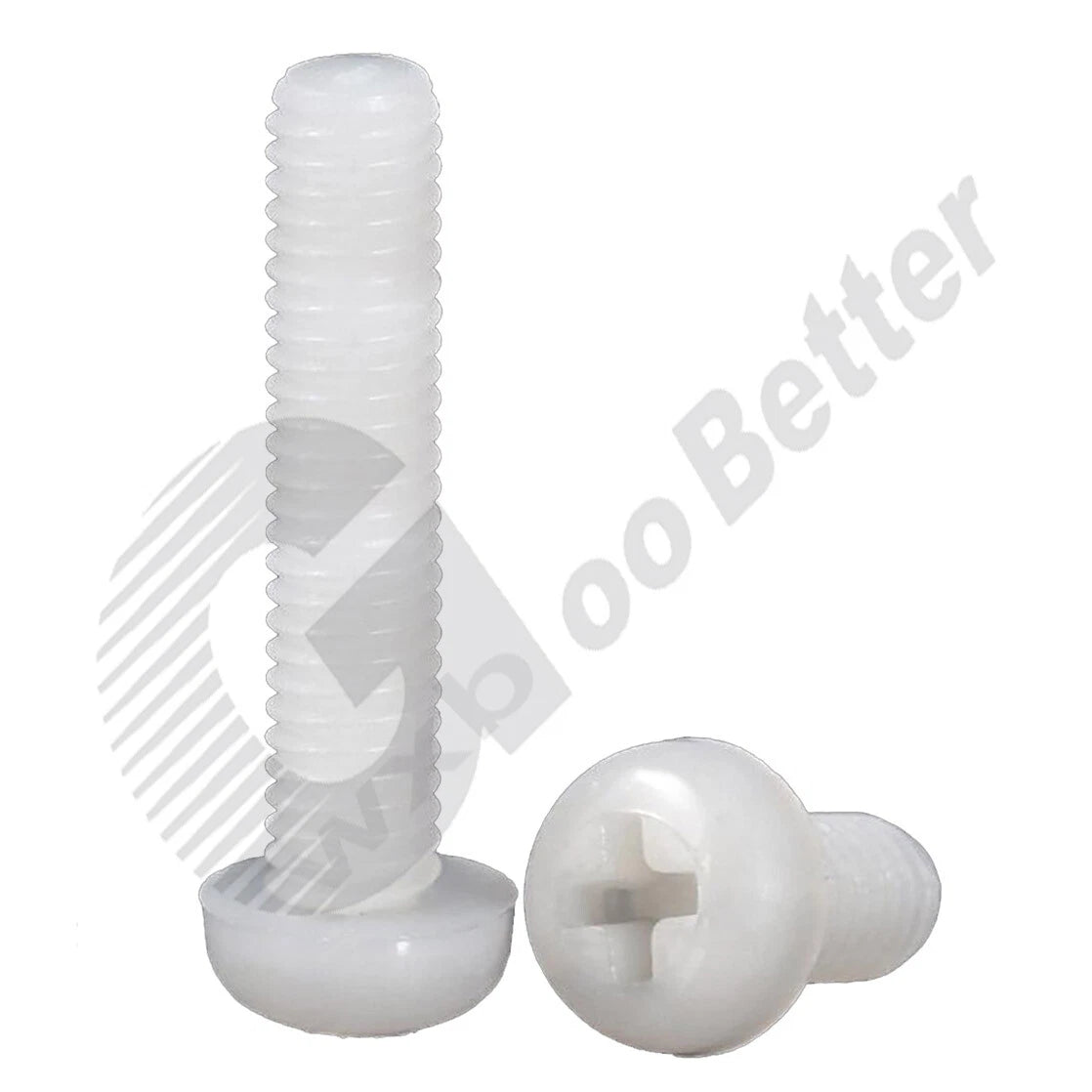

You’re mounting a PCB inside a marine radio, securing a battery box, or assembling a chemical sensor – and metal screws would short out or corrode. These white PA66 nylon round head screws are completely non‑conductive, non‑magnetic, and immune to rust. The low‑profile round pan head provides a wide bearing surface, ideal for plastic enclosures, thin wood, and soft materials. Phillips drive works with standard crosshead screwdrivers. Available in M5, M6, and M8 diameters with a full range of lengths from 8mm to 60mm (measured under the head). Fully threaded for maximum grip. Rated for continuous use up to 85°C, with good chemical and oil resistance. Perfect for electronics, medical devices, marine hardware, and any application where insulation or corrosion‑proofing is critical.

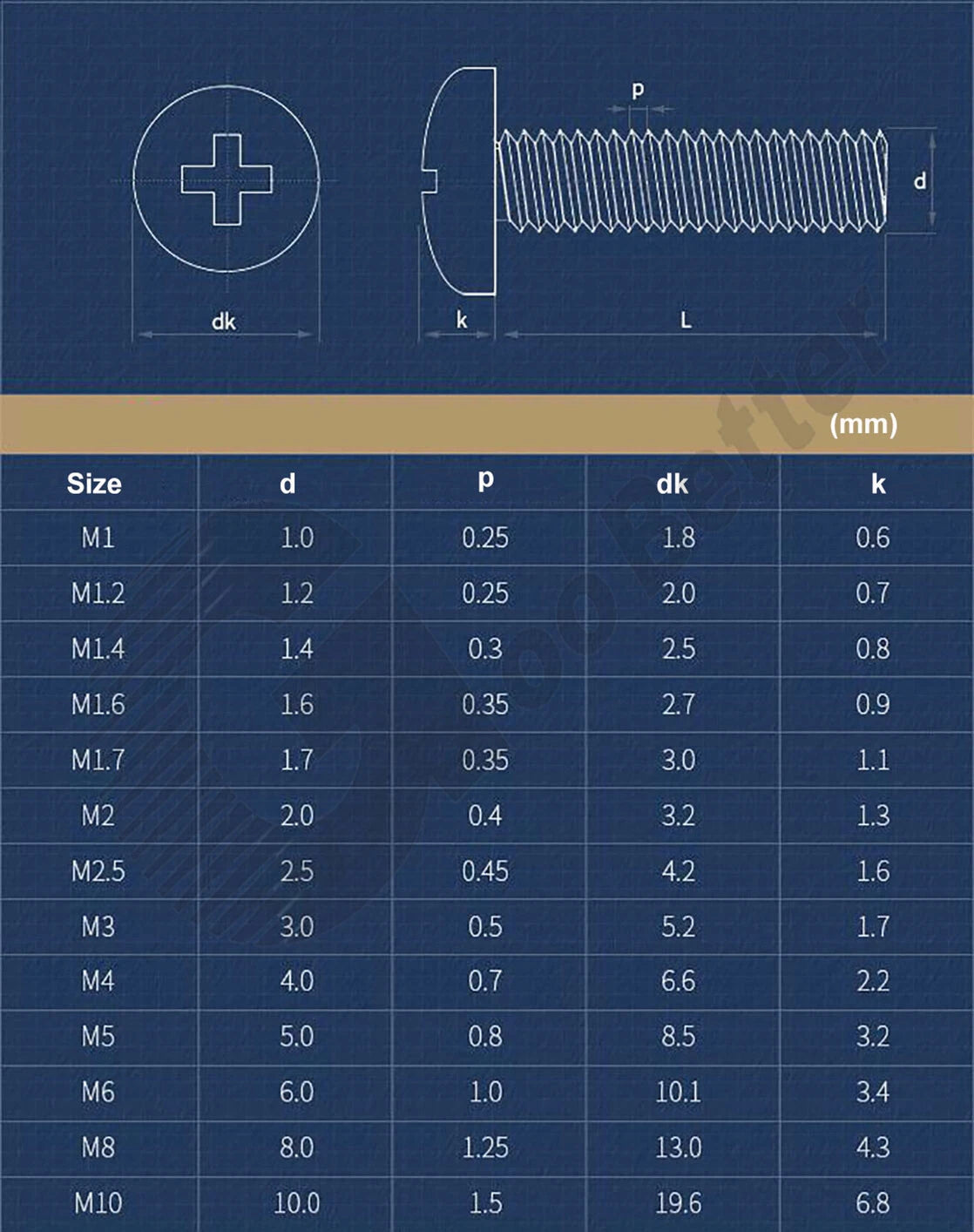

| Thread Diameter | Thread Pitch (mm) | Available Lengths (mm, under head) * | Head Style | Drive | Material |
|---|---|---|---|---|---|
| 📐 Length measured from underside of head to tip. Fully threaded. Select exact size from dropdown. | |||||
| M5 | 0.8 | 8, 10, 12, 15, 20, 25, 30, 35, 40, 50 | Round pan head | Phillips | White PA66 Nylon |
| M6 | 1.0 | 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50 | |||
| M8 | 1.25 | 10, 12, 15, 20, 25, 30, 35, 40, 45, 50, 60 | |||
* All screws are fully threaded with metric coarse pitch. Lengths are typical – exact availability may vary. Please allow minor manual measurement errors. Color may vary slightly due to monitor settings.
| Property | Value / Benefit |
|---|---|
| Material | PA66 (Nylon 66) – high mechanical strength, good toughness, wear resistant |
| Electrical insulation | Excellent – non‑conductive, safe for electronics |
| Corrosion resistance | Immune to rust, saltwater, oils, and many chemicals |
| Temperature range | -20°C to +85°C continuous; short peaks up to 120°C. UL94 V‑2 (self‑extinguishing) |
| Density | ~1.14 g/cm³ (about 1/5 weight of steel) |
| Moisture absorption | Nylon can absorb moisture and expand slightly. Keep in dry environments for critical tolerances. |
1. How do I measure the length of these round pan head screws?
For pan head screws, length is measured from the underside of the head (the flat bearing surface) to the tip. The head itself is NOT included. So an “M5 x 10mm” screw has a 10mm long threaded shaft under the head. All our lengths follow this standard.
2. Are these screws fully threaded? What about longer lengths like 60mm?
Yes – all M5, M6, and M8 screws in this range (up to 60mm) are fully threaded from under the head to the tip. This gives you maximum grip in blind holes or when using nuts.
3. Are nylon screws strong enough for structural applications?
Nylon screws have about 1/5 to 1/3 the tensile strength of steel. They are perfect for lightweight assemblies, electrical insulation, corrosion‑prone environments, and vibration‑damping. For heavy load‑bearing (e.g., a 50kg shelf), use metal. For PCB mounting, plastic enclosures, or battery terminals, nylon is ideal.
4. Can I use these screws outdoors? Will they yellow or become brittle?
White nylon is UV‑sensitive. For continuous outdoor sunlight exposure (months or years), the material may become brittle and discolor (yellowing). We recommend using them in shaded or indoor applications. For full outdoor use, consider black nylon (which has added UV stabilizers) or stainless steel.
5. Can I use a power drill to drive these screws?
Yes – but use a very low‑clutch setting (1–2) and low speed. Nylon threads can strip if over‑torqued. Hand tightening is recommended for final seating. The Phillips drive will slip before the screw breaks, but caution is advised.
6. Do you offer other colors like black or different sizes?
This listing is for white nylon in M5, M6, M8. We also carry black nylon and other metric sizes (M3, M4, M10, etc.) in our store – please check our other listings or contact us for availability.
