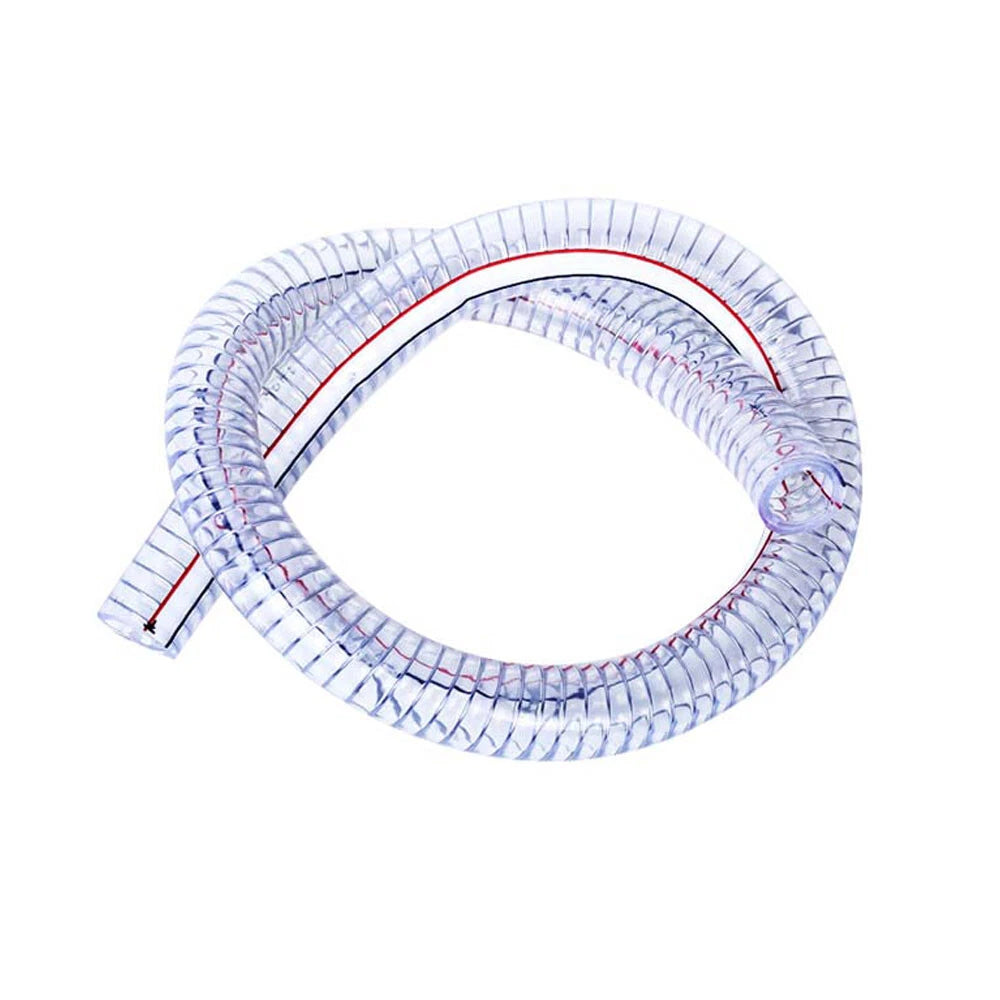

Wire Reinforced Braided Clear PVC Hose — ID 10mm to 40mm, Air Water Fuel Pipe

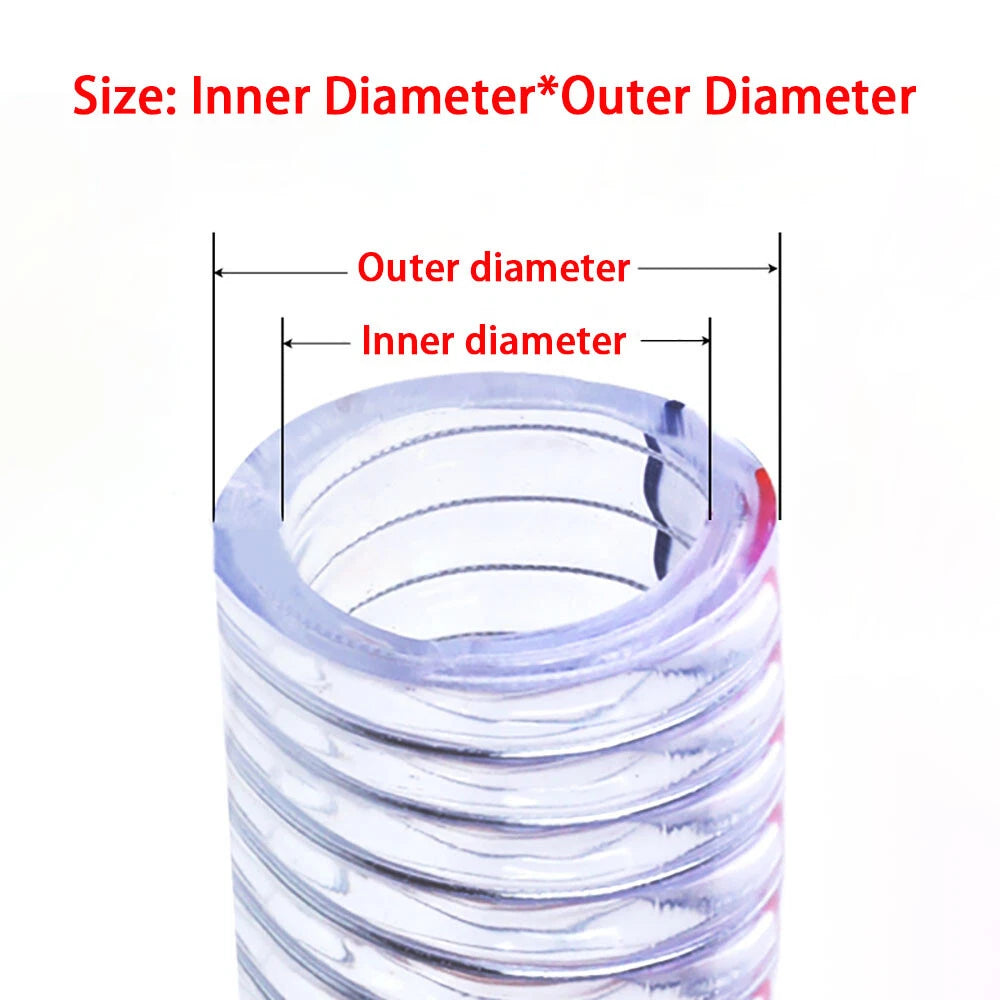

Match the hose ID (inner diameter) to the OD of your barb fitting or pipe stub. For example, if your barb fitting has a 16mm OD, select the 16mm × 21mm variant. Always measure the fitting you're connecting to — not the existing hose. If you're between sizes, generally size up to avoid cracking the hose end during installation. For inch-to-metric reference: 10mm ≈ 3/8", 13mm ≈ 1/2", 16mm ≈ 5/8", 19mm ≈ 3/4", 25mm ≈ 1", 32mm ≈ 1-1/4", 38mm ≈ 1-1/2", 40mm ≈ 1-9/16".

Wire-reinforced braided PVC hose is generally rated for working pressures in the range of 60–150 PSI, depending on the diameter and wall thickness. Smaller diameters typically support higher pressures; larger diameters have lower ratings. For safety-critical applications, contact us to confirm the rated working pressure for your specific size before ordering.

Standard clear PVC is not UV-stabilized and will typically become brittle or discolor with prolonged direct sunlight exposure. For outdoor installations, it is generally recommended to route the hose through conduit, wrap it with UV-protective tape, or run it through a shaded channel. For permanently exposed outdoor runs, contact us for guidance on UV-resistant alternatives.

Yes. The flexible PVC wall is designed to stretch slightly over standard barbed fittings — simply match the barb OD to the hose ID. Secure with a worm-drive hose clamp or a crimp ring for a leak-free connection. Both metric and inch-equivalent barb fittings are generally compatible. No adhesive or thread sealant is needed at the barb joint.

This hose is generally suitable for light fuel transfer applications such as diesel or kerosene in low-pressure gravity-feed or low-flow pump setups. It is not typically recommended for high-pressure gasoline fuel injection systems or for continuous contact with aromatic solvents. Always verify chemical compatibility with your specific fuel or fluid before installation. Contact us if you need confirmation for a specific application.

Use a sharp utility knife or a dedicated PVC tube cutter for a clean, square cut. Score around the circumference first, then cut through in one firm motion. Avoid sawing back and forth, which can fray the steel wire braid and leave a rough edge that prevents a proper seal against the fitting. A clean square cut is essential for a leak-free clamp connection.

Clear PVC hose with wire braid reinforcement is generally rated for use in temperatures ranging from approximately 32°F to 140°F (0°C to 60°C). Avoid use in steam lines, hot water systems above this range, or applications where the hose contacts surfaces that exceed 140°F. For higher-temperature requirements, contact us to discuss alternative hose materials.

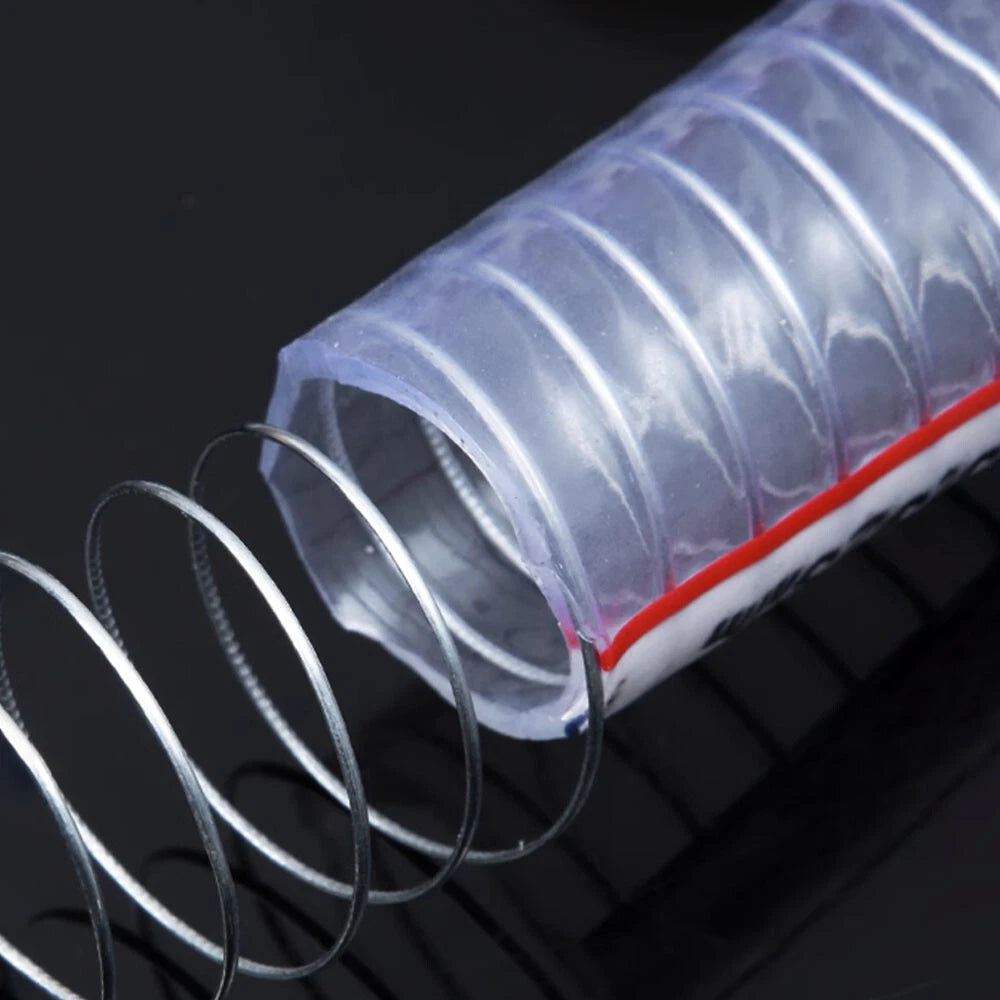

The spiral steel wire braid adds crush resistance and prevents collapse under suction, but it does reduce flexibility compared to plain PVC tubing. The hose remains flexible enough for most routing applications, but the minimum bend radius is typically larger than unreinforced tubing of the same diameter. In most cases, allow a bend radius of at least 3–5× the hose OD to avoid kinking at the wire coils.
