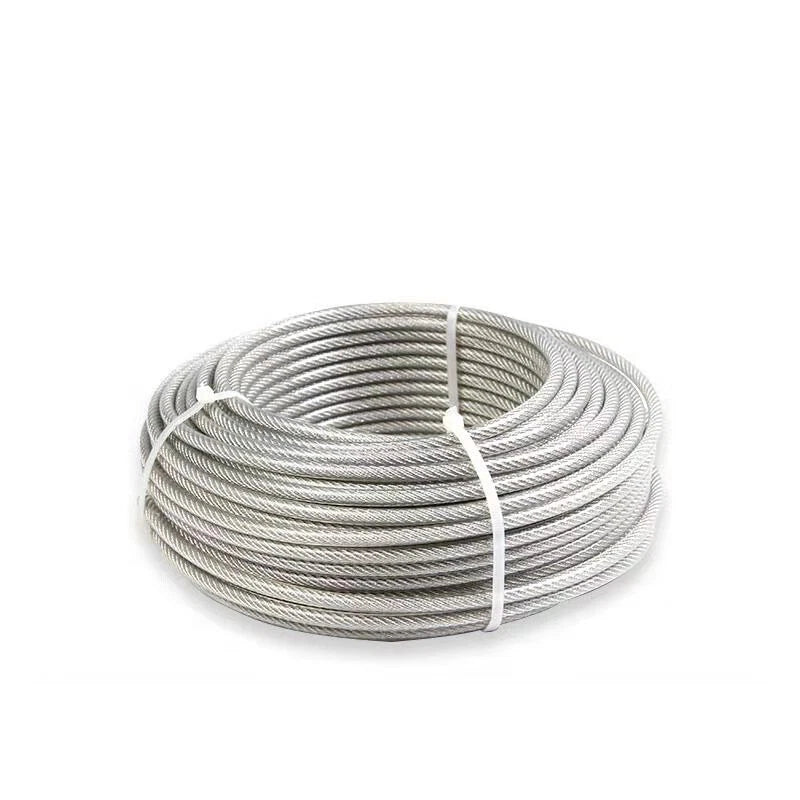

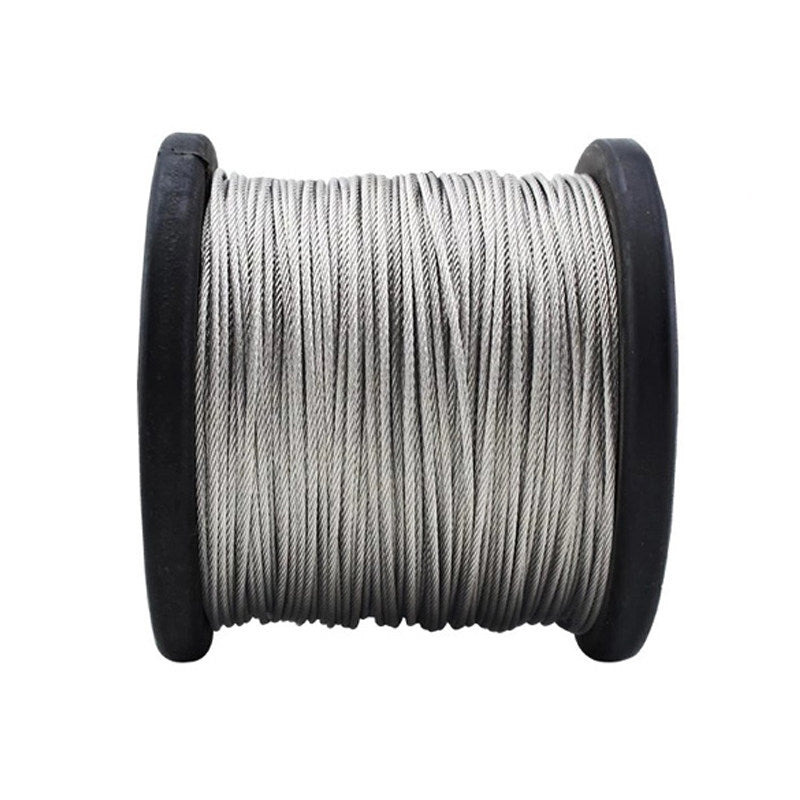

Product Name: Wire Rope 7x1

Specification: 0.3mm x 10m

Pack of: 1

Price:

$2.16 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Wire Rope Rigging Accessories — Complete Hardware Kit for Secure Cable Tensioning

When a loose cable or an under-tensioned wire rope puts your project at risk, you need rigging hardware that holds without compromise. Whether you are a DIY enthusiast building a deck railing, a rigger tensioning a stage truss, or a fabricator assembling a cable barrier, this comprehensive set of wire rope accessories gives you every component required to terminate, tension, and secure stainless steel cable in one place.

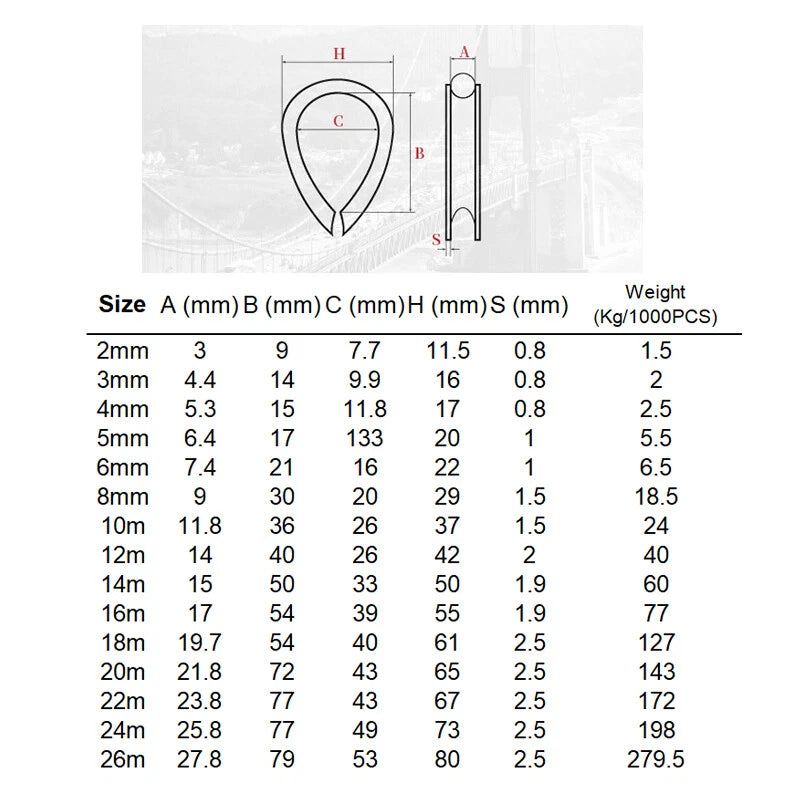

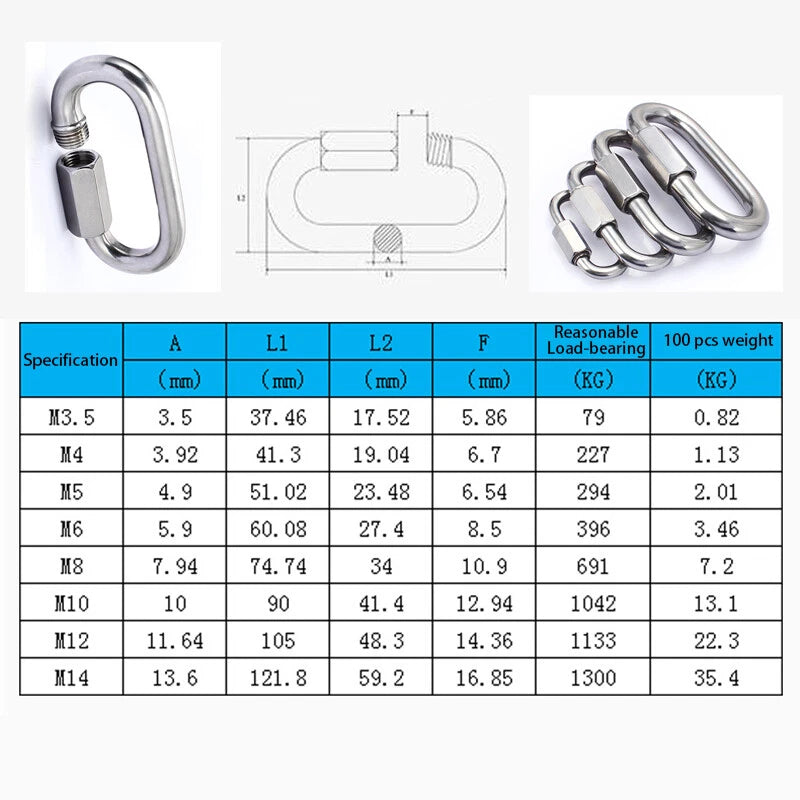

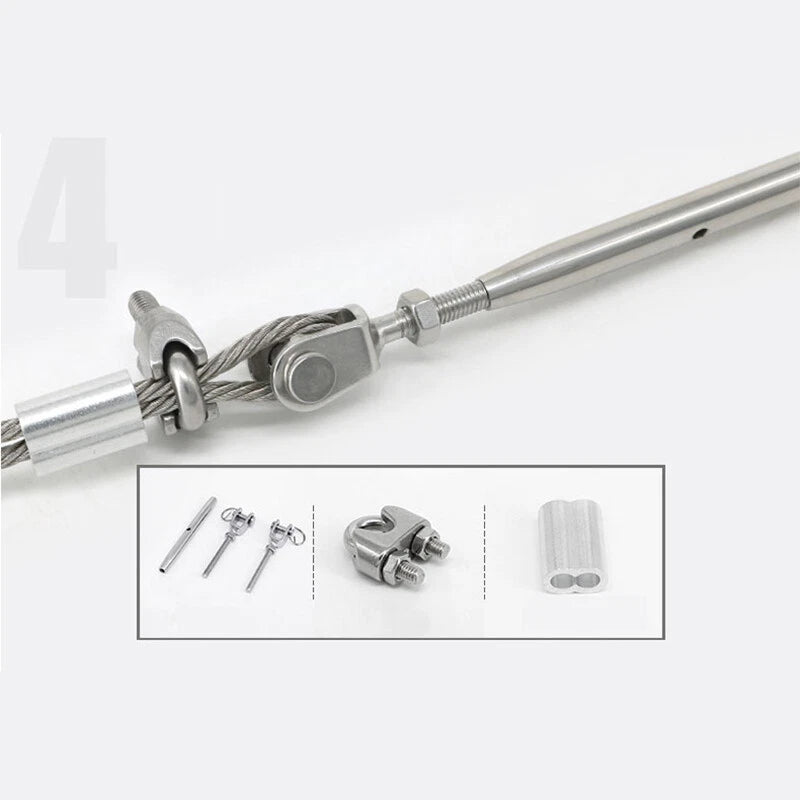

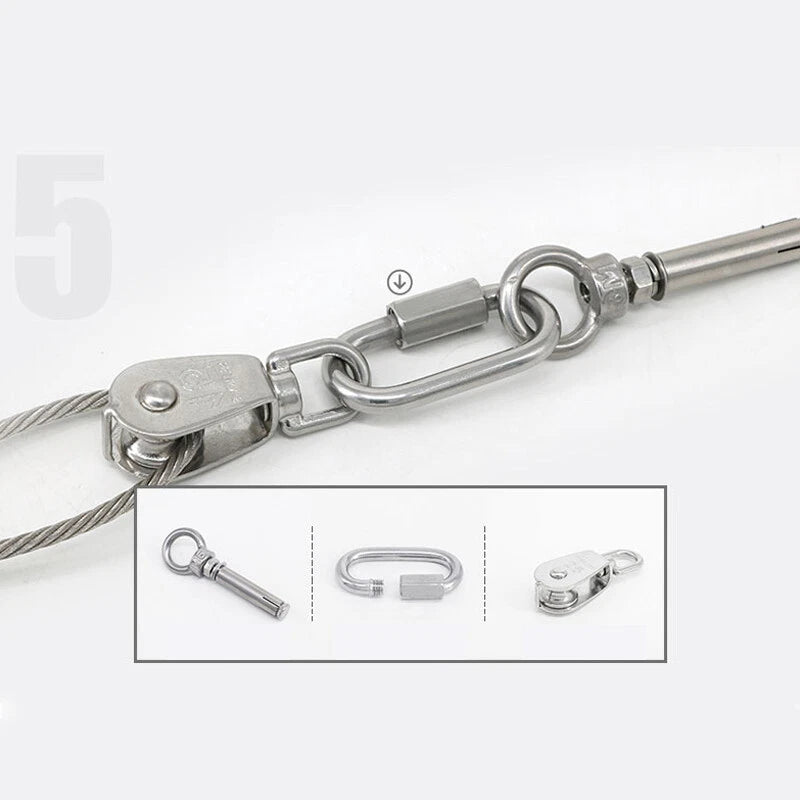

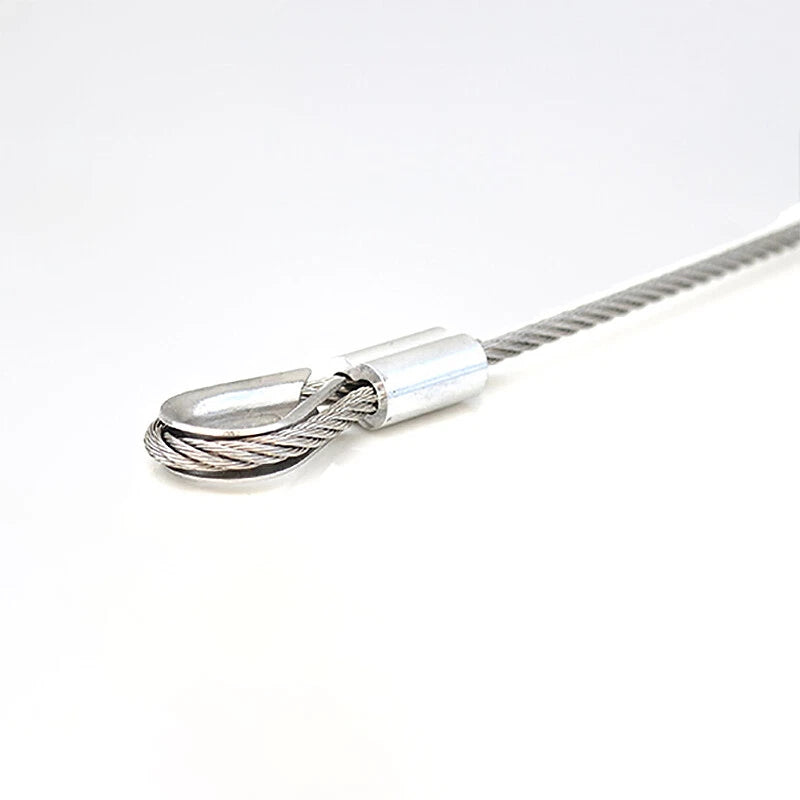

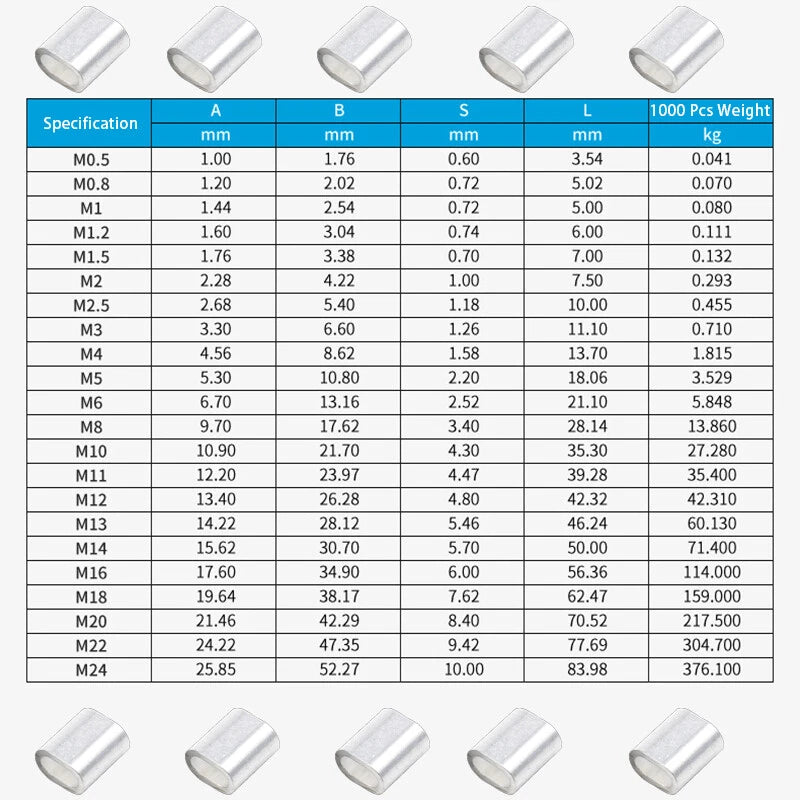

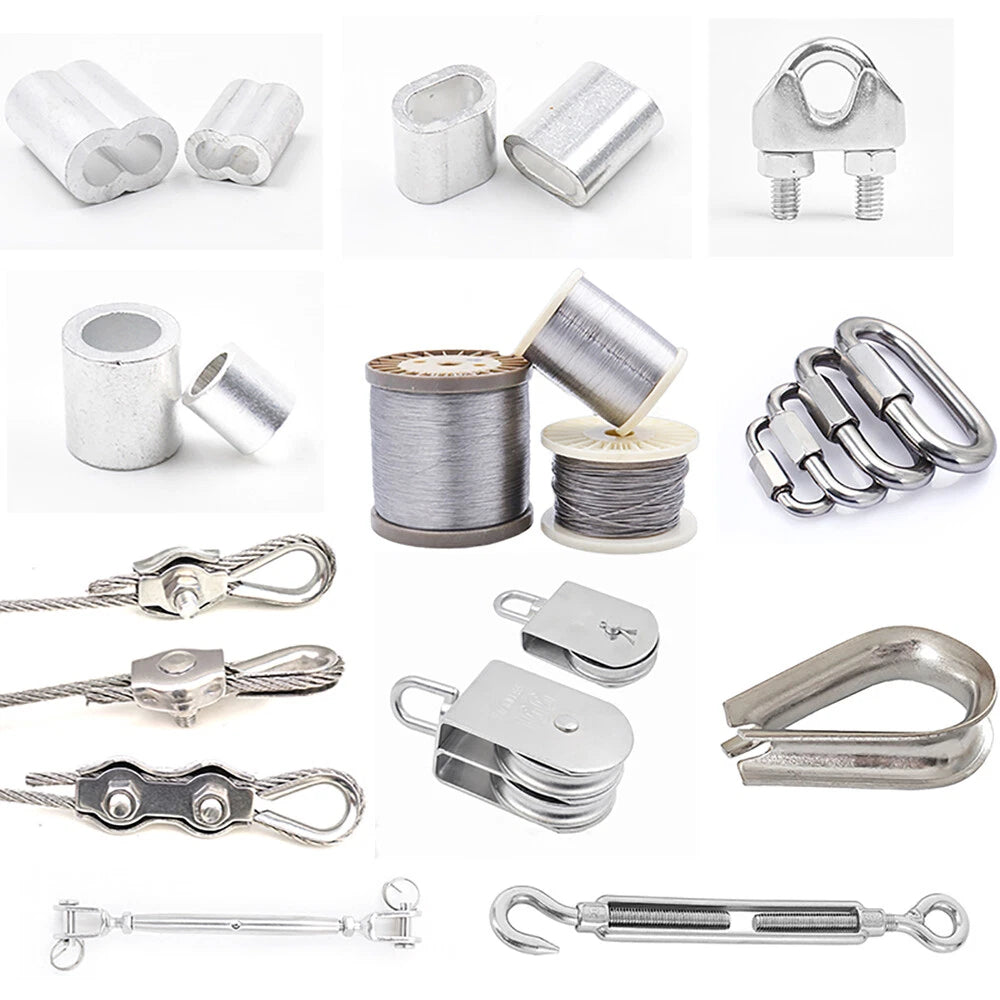

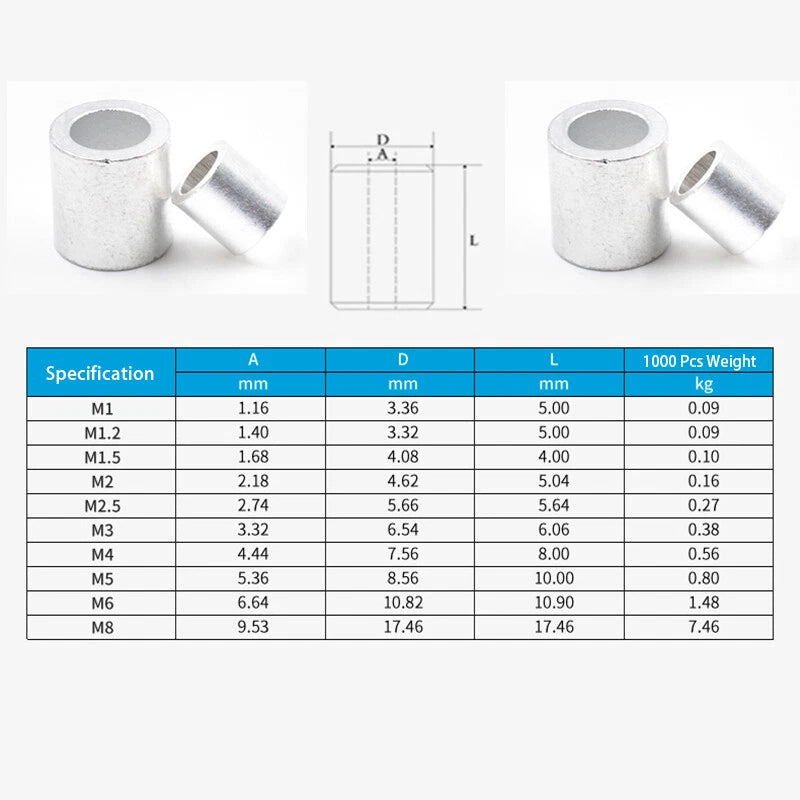

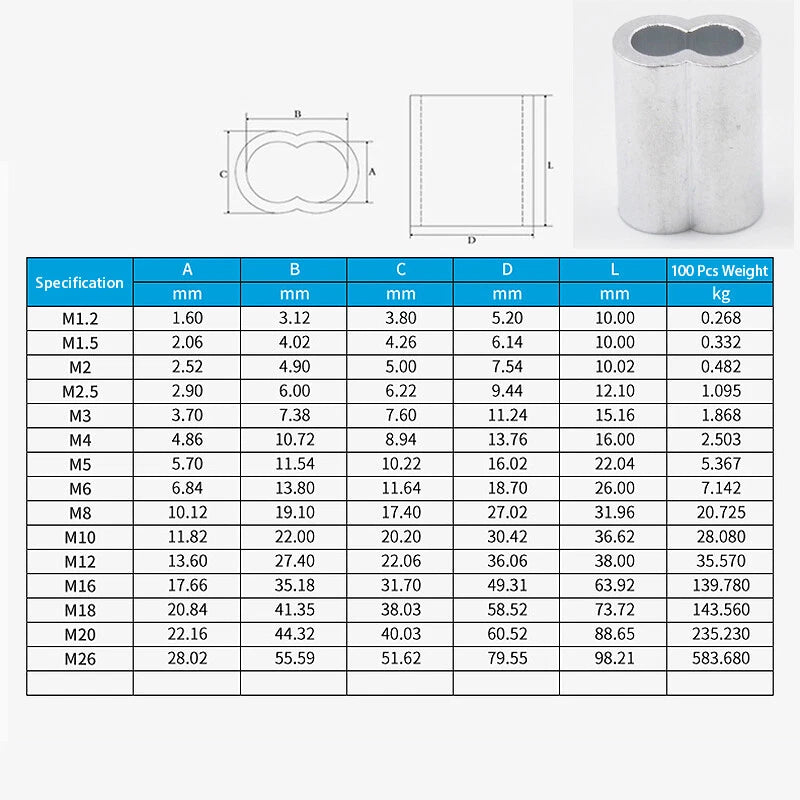

This listing covers a full range of wire rope rigging components manufactured from stainless steel (typically 304 or 316 grade depending on variant). Products include Wire Rope 7x1, 7x7, and 7x19 strand configurations in diameters from 0.3 mm (0.012 in) up to 20 mm (0.787 in), plus matching hardware: Thimbles (M2–M28), Simplex and Duplex Clamps (M2–M10), Swage Sleeves (M1–M12), Oval Sleeves (M0.5–M22), Round Sleeves (M1–M12), U-Bolt Clips (M2–M32), Turnbuckles in Eye-to-Eye / Hook-to-Hook / Hook-to-Eye / Jaw-to-Jaw configurations (M4–M24), Single and Double Wheel Pulleys (M15–M100), and Quick Links (M3.5–M14).

Typical applications include architectural cable railing systems requiring stainless wire rope tensioning hardware, marine rigging and sailboat standing rigging with corrosion-resistant swage sleeves, and industrial lifting or load-securing setups using wire rope clamps and turnbuckles for precise tension adjustment.

🔗 Compatibility: Designed for use with stainless steel wire rope. Match the hardware size (M-designation or mm diameter) to your rope diameter. 7x1 rope is rigid and suited for fixed runs; 7x7 offers moderate flexibility; 7x19 provides maximum flexibility for sheaves and pulleys.

✅ Key Features of These Wire Rope Rigging Accessories

🔩 Full Rigging System in One Listing

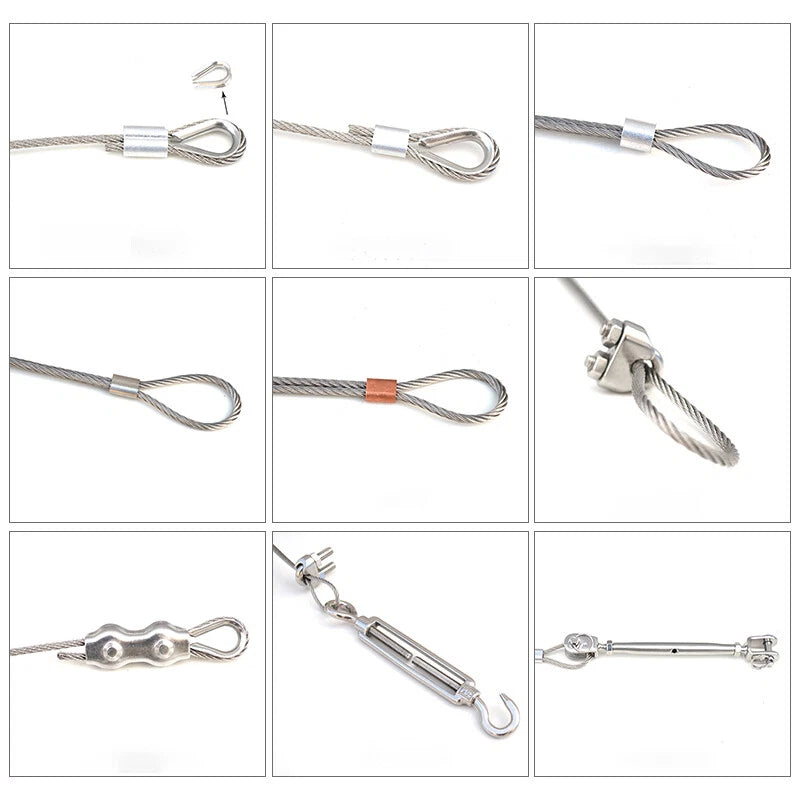

Wire rope (7x1, 7x7, 7x19), thimbles, clamps, sleeves, turnbuckles, pulleys, and quick links — every component needed to build a complete cable rigging assembly without sourcing from multiple suppliers.

🛡️ Stainless Steel Construction

Components are fabricated from stainless steel, offering resistance to oxidation and surface corrosion in both indoor and outdoor environments. Suitable for exposed architectural installations and damp conditions.

📐 Wide Size Range

Wire rope diameters from 0.3 mm to 20 mm (0.012–0.787 in); hardware M-sizes from M0.5 to M100 (pulleys). Covers light-duty model rigging through heavy structural cable applications.

⚙️ Multiple Strand Constructions

7x1 (rigid, low-stretch), 7x7 (semi-flexible, general purpose), and 7x19 (highly flexible, ideal for sheaves and repeated bending cycles) — select the construction that matches your load and flex requirements.

🔄 Turnbuckle Variety

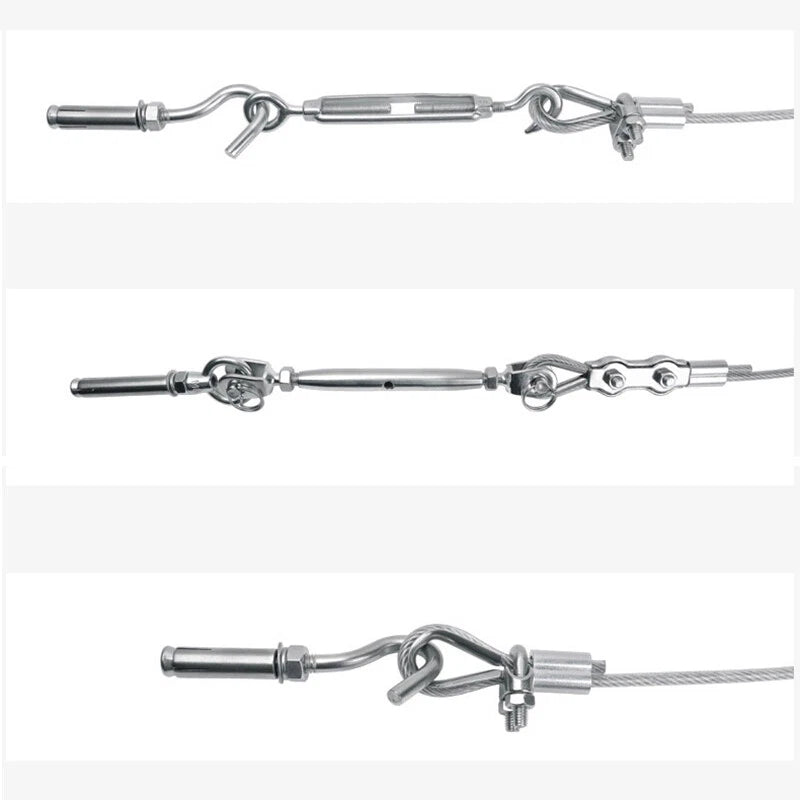

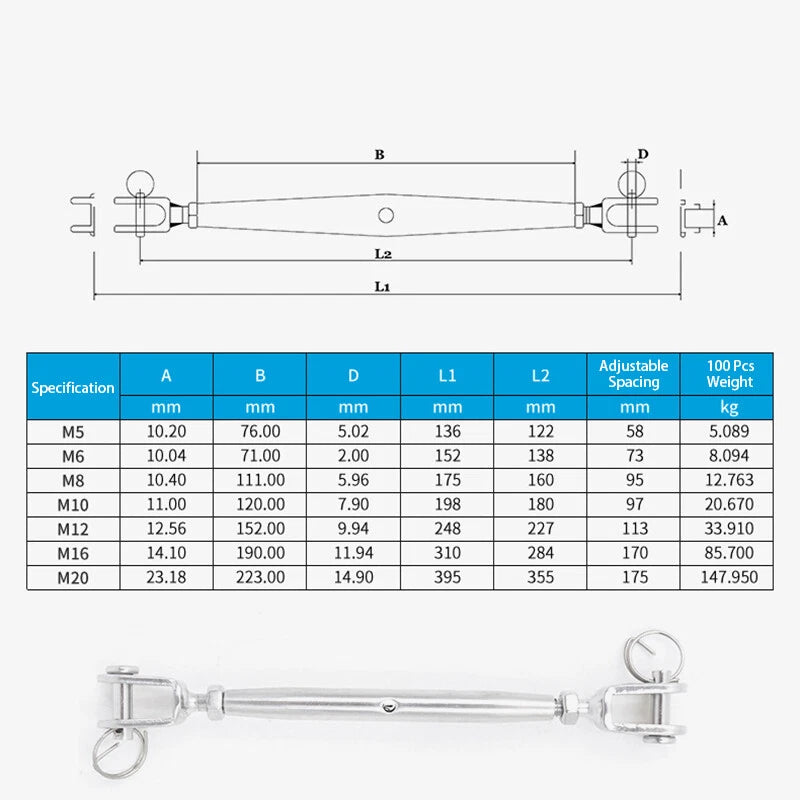

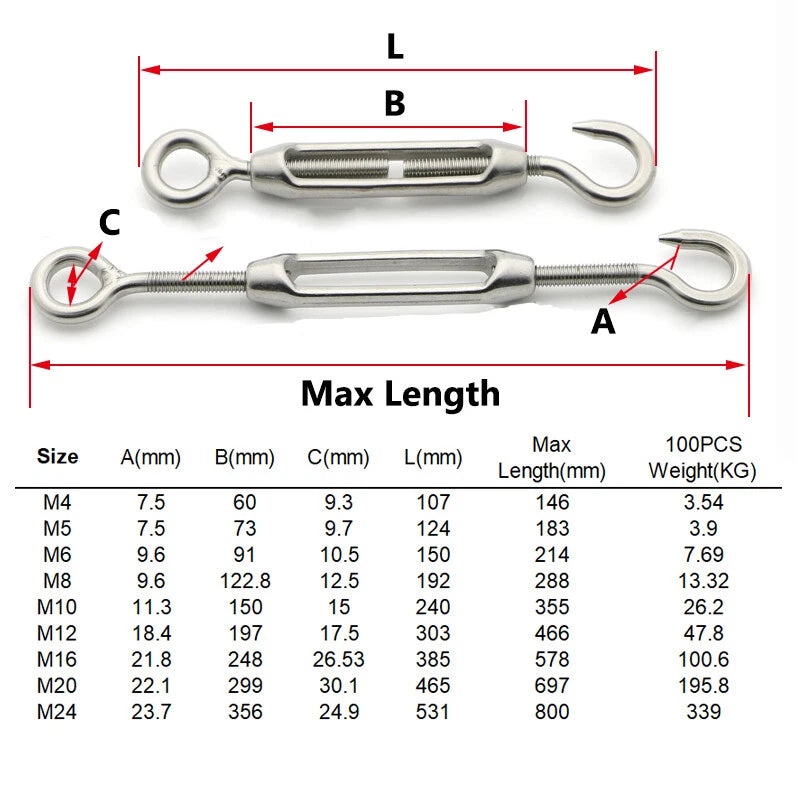

Four end-fitting configurations — Eye-to-Eye, Hook-to-Hook, Hook-to-Eye, and Jaw-to-Jaw — allow integration into virtually any rigging attachment point, from eye bolts to shackles to structural anchors.

📦 Flexible Pack Quantities

Available individually or in multi-packs (2 or 5 pieces depending on variant), making it practical to order exactly the quantity needed for your project without excess inventory.

📐 Technical Specifications — Wire Rope Rigging Hardware

Product Types Included	Wire Rope (7x1 / 7x7 / 7x19), Thimble, Simplex Clamp, Duplex Clamp, Swage Sleeves, Oval Sleeves, Round Sleeves, U-Bolt Clip, Turnbuckle (4 configurations), Single Wheel Pulley, Double Wheel Pulley, Quick Link
Material	Stainless Steel (grade varies by variant — typically 304 or 316)
Wire Rope Diameter Range	0.3 mm – 20 mm (0.012 in – 0.787 in)
Hardware Size Range	M0.5 – M100 (varies by component type)
Strand Constructions	7x1, 7x7, 7x19
Surface Finish	See variant options
Breaking Load	See variant options
Working Load Limit	See variant options
Pack Quantity	1 / 2 / 5 (varies by variant)
Compatibility	Stainless steel wire rope of matching diameter

❓ Frequently Asked Questions

How do I choose the correct hardware size for my wire rope?

Match the M-size or mm designation of the hardware to the outer diameter of your wire rope. For example, an M6 thimble or sleeve is designed for 6 mm diameter wire rope. When in doubt, size up by one increment to ensure the rope seats fully without binding.

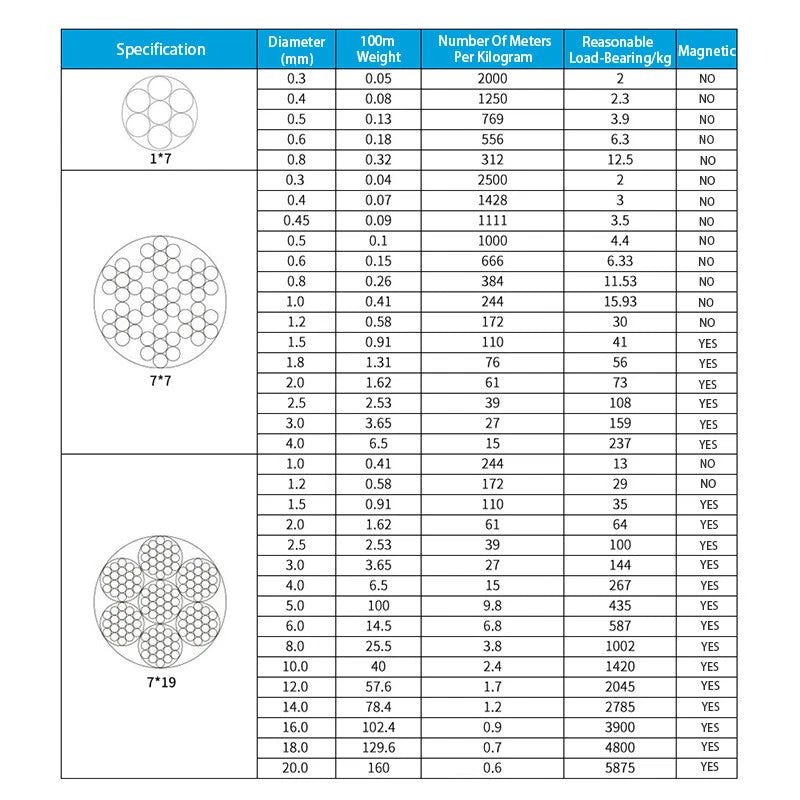

What is the difference between 7x1, 7x7, and 7x19 wire rope?

7x1 rope consists of 7 individual wires with no inner stranding — it is rigid, low-stretch, and suited for fixed straight runs such as architectural railings. 7x7 rope has 7 strands of 7 wires each, offering moderate flexibility for general rigging. 7x19 rope has 7 strands of 19 wires each, making it the most flexible construction and the correct choice for use over sheaves, pulleys, or anywhere the rope must bend repeatedly.

Are these components suitable for outdoor or marine use?

The components are manufactured from stainless steel, which provides good resistance to oxidation and atmospheric corrosion. For marine environments with continuous saltwater exposure, 316-grade stainless steel offers superior corrosion resistance compared to 304 grade. Please confirm the specific grade with the variant listing before ordering for saltwater applications.

What is the difference between Simplex and Duplex clamps?

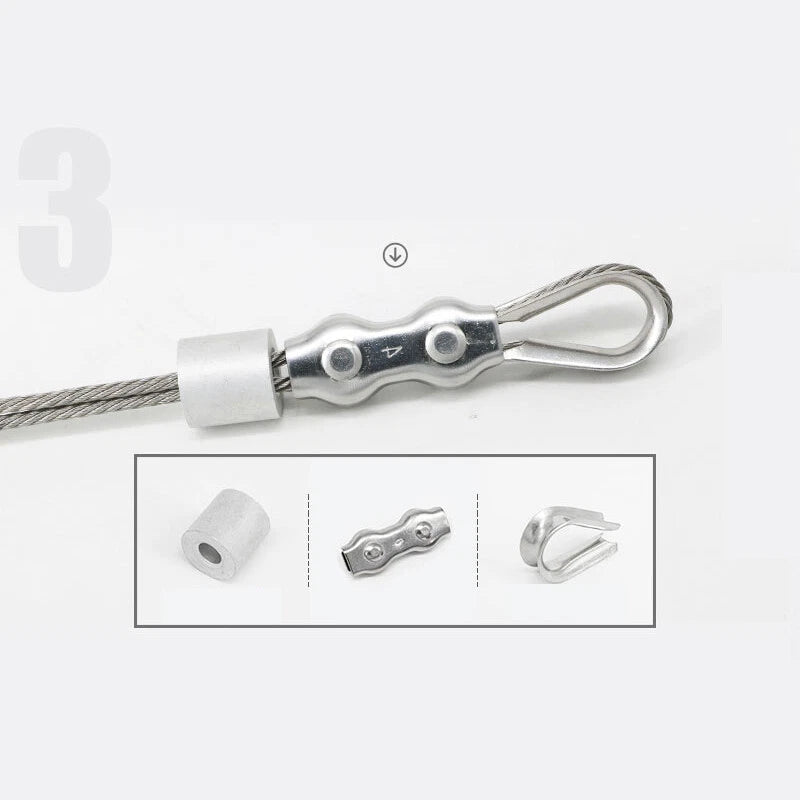

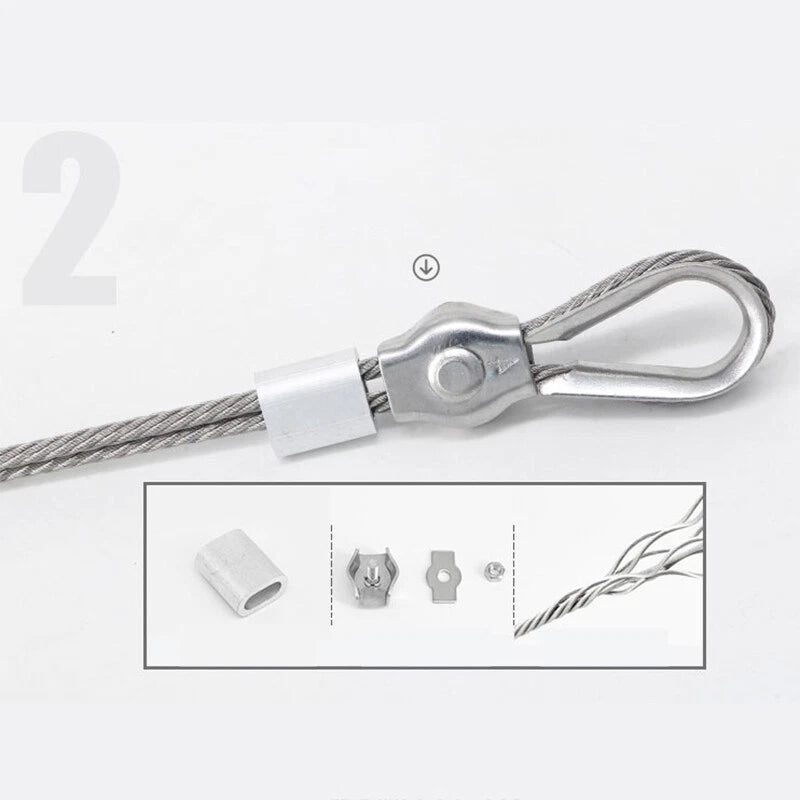

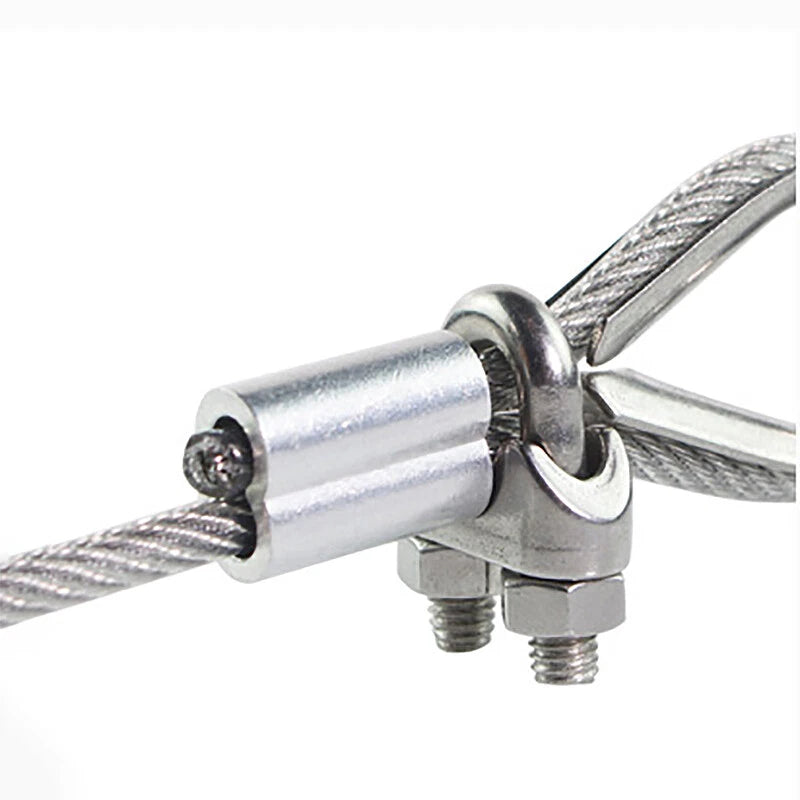

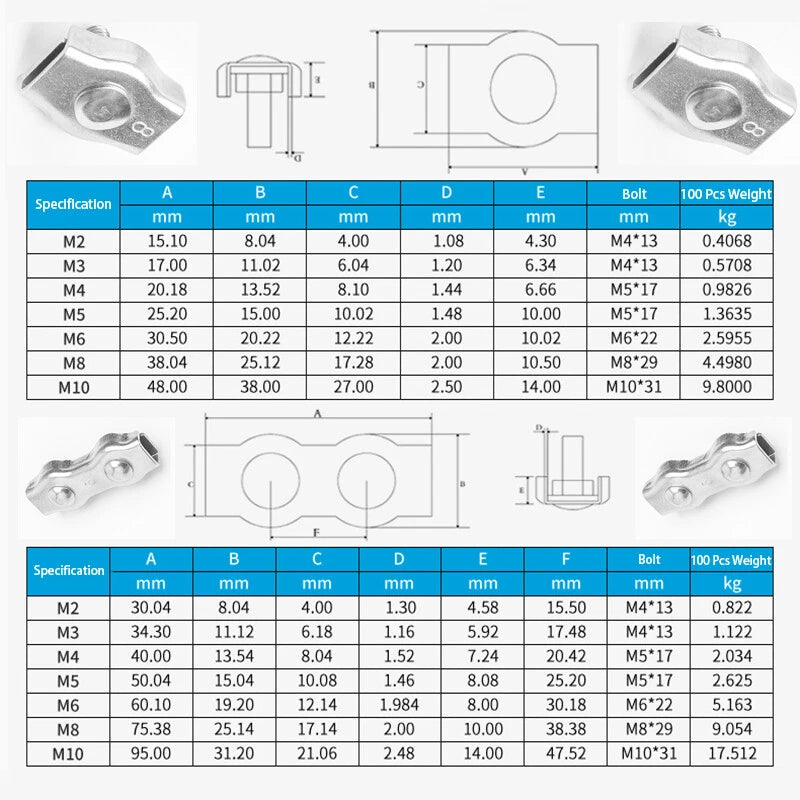

A Simplex (single saddle) clamp uses one U-bolt and saddle to grip the rope — it is compact and suited for lighter loads or space-constrained terminations. A Duplex clamp uses two U-bolts and a wider saddle, distributing the clamping force over a greater rope length for higher holding strength. For critical load-bearing terminations, Duplex clamps or swage sleeves are generally preferred.

How many clamps or sleeves do I need to terminate a wire rope safely?

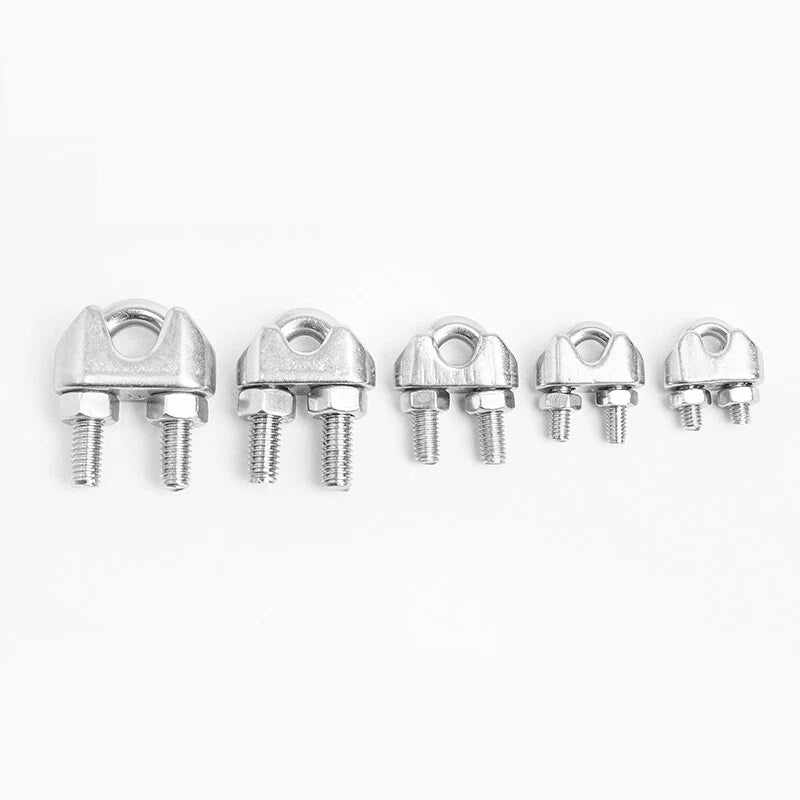

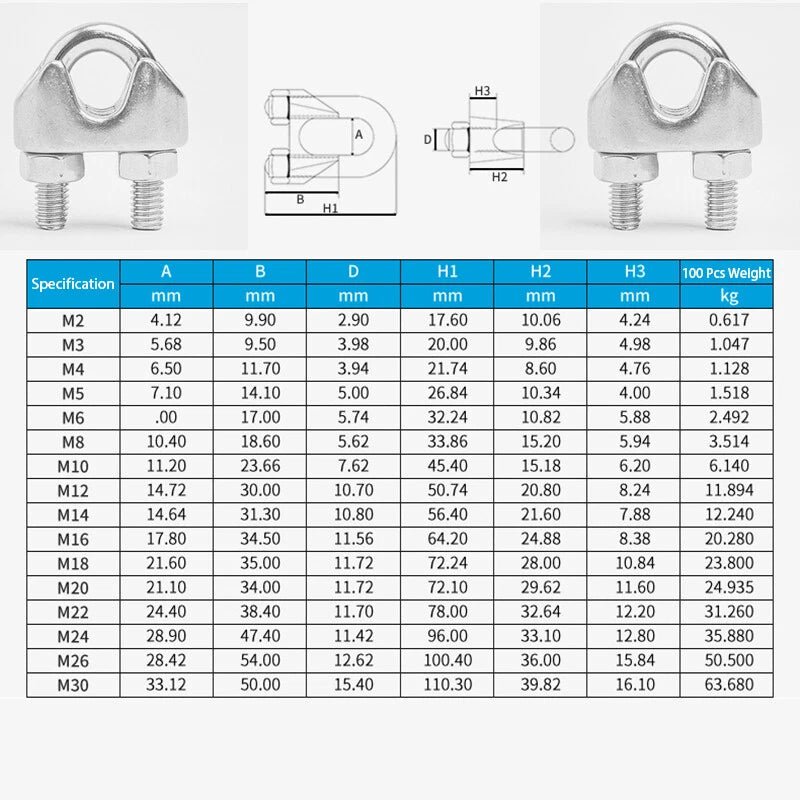

For U-bolt clips, industry guidelines typically recommend a minimum of 3 clips for rope diameters up to 19 mm, spaced at intervals of 6–7 rope diameters apart. For swage sleeves and oval/round sleeves, a single properly crimped sleeve is generally sufficient for the rated load. Always refer to the relevant rigging standard (e.g., DIN, ISO, or ASME B30.26) for your application.

Can I use these turnbuckles for tensioning deck cable railings?

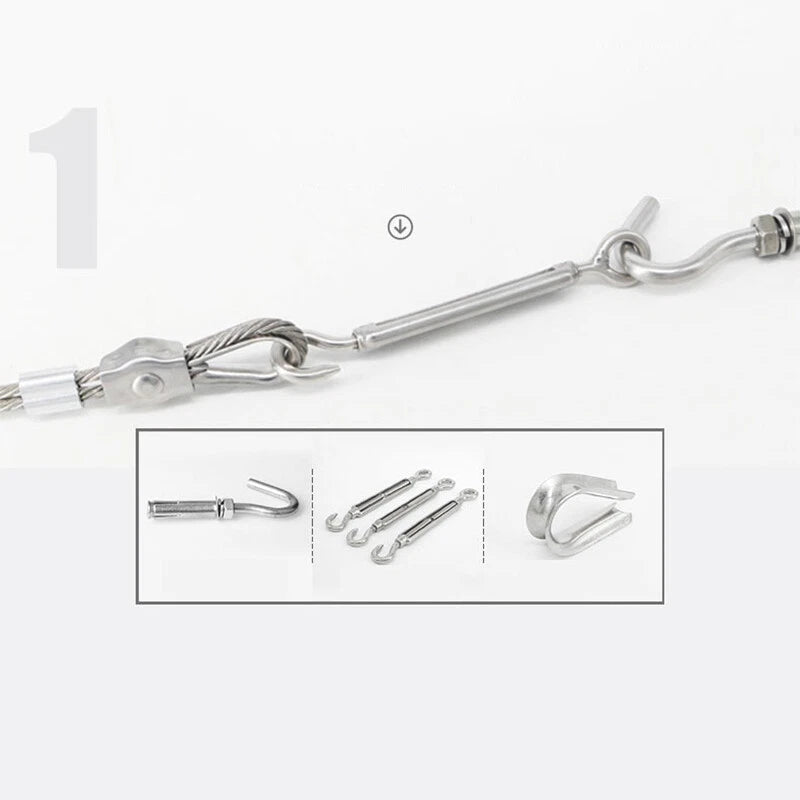

Yes. Turnbuckles in Eye-to-Eye or Hook-to-Eye configurations are commonly used in cable railing systems to apply and maintain tension in horizontal or diagonal wire rope runs. Select the turnbuckle size that matches your wire rope diameter and verify the working load limit meets or exceeds the design tension for your railing span.

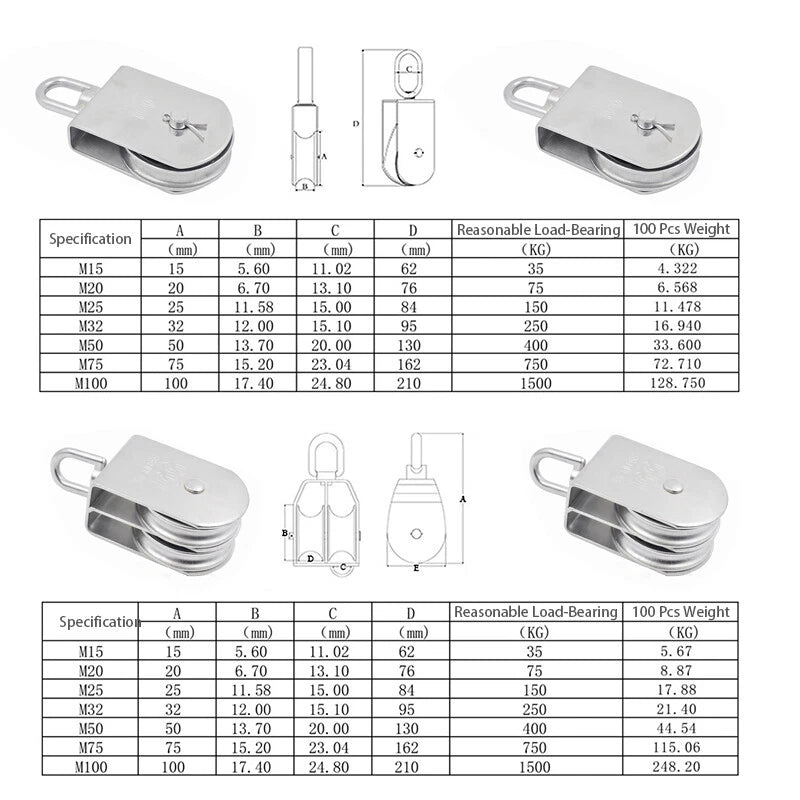

What is the working load limit of these pulleys?

Working load limits vary by pulley size (M15 through M100) and wheel configuration (single or double). Larger M-sizes carry higher rated loads. Please refer to the specific variant listing or contact us to confirm the working load limit for your selected pulley size before use in lifting or load-bearing applications.
