XL Rubber Timing Belt — Closed Loop Synchronous Drive for Precise Motion Control

When a slipping V-belt or a stretched chain causes your CNC router to lose steps, your 3D printer to skip layers, or your automation project to fall out of sync, the fix is a properly sized synchronous drive belt. This XL rubber timing belt is designed for makers, engineers, and DIY builders who need reliable, slip-free power transmission without the cost of industrial suppliers.

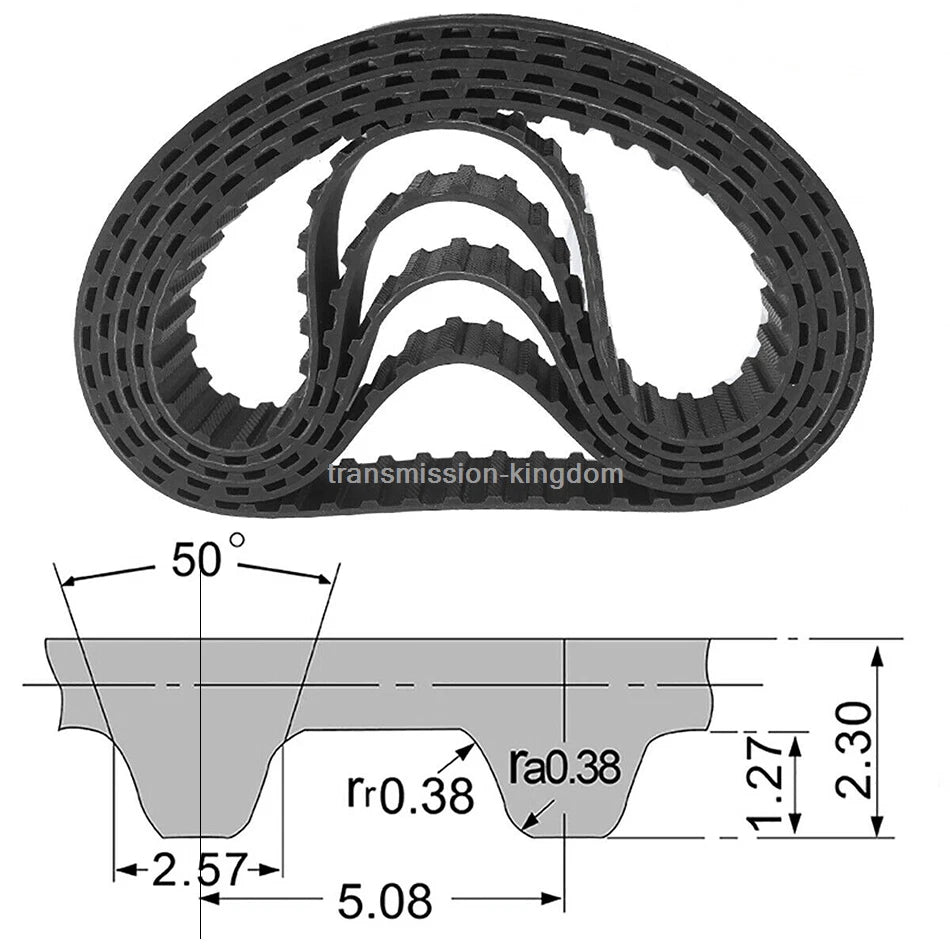

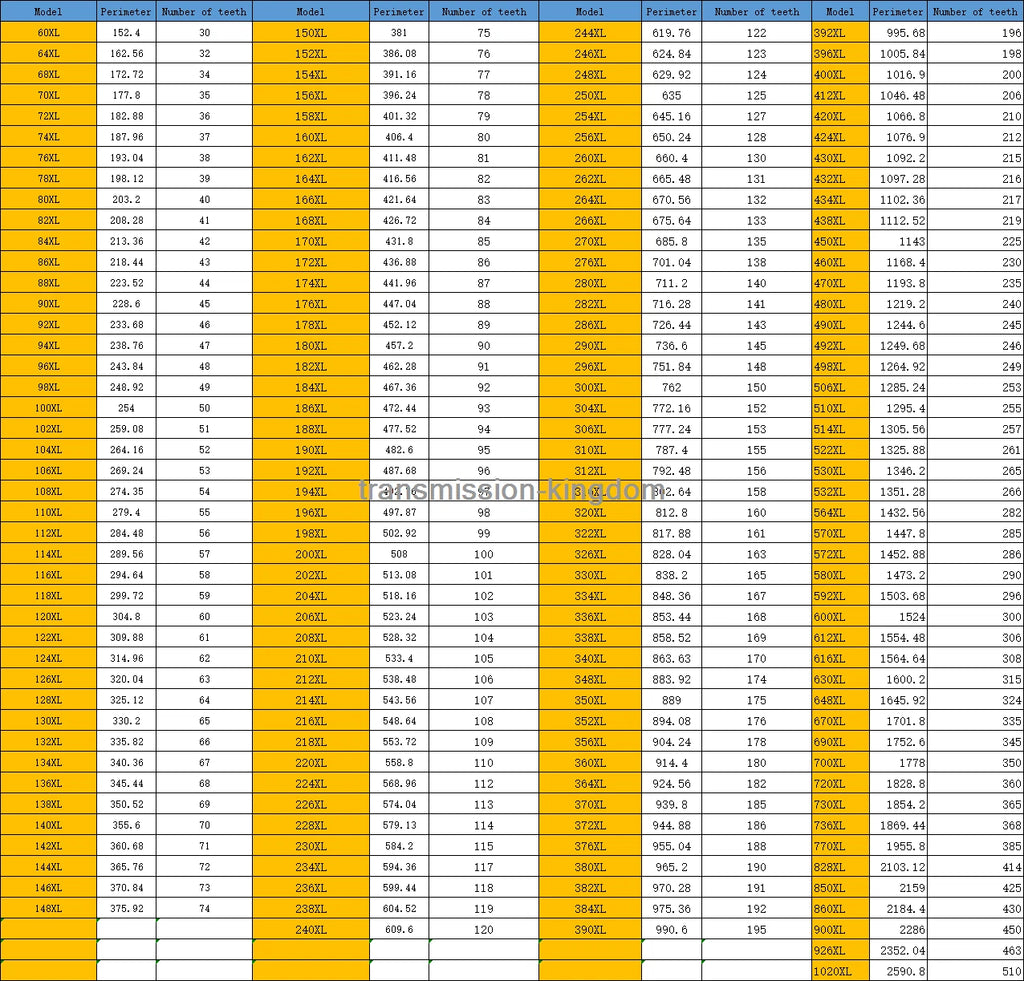

Each belt is a single-piece closed-loop (endless) construction made from rubber with a standard XL tooth profile. The tooth pitch is 5.08mm (0.200 inches), and the belt width is 10mm (≈3/8 inches) across all variants. Circumference options range from 60mm (≈2.4 inches) to 1020mm (≈40.2 inches), covering the vast majority of light-duty drive configurations. The number in the variant name — for example, XL-200 — indicates the outer circumference in millimeters.

Typical use cases include 3D printer drive systems (X/Y axis belts), CNC router and laser cutter feed drives, small conveyor and indexing mechanisms, and DIY robotics or automation builds where a synchronous XL closed-loop timing belt is specified.

ℹ️ Compatibility: Fits all standard XL timing pulleys (5.08mm / 0.200" pitch). Belt width is 10mm — confirm your pulley flange width before ordering. Select circumference from the variant dropdown above.
⚠️ Size confirmation: The variant number equals the belt's outer circumference in mm. If you are unsure of your required circumference, measure your existing belt or calculate using your pulley center-to-center distance before purchasing.

✅ Key Features of These XL Closed-Loop Rubber Timing Belts

  • 🔁Closed-Loop Endless Construction — Single-piece seamless loop eliminates joint weak points, delivering consistent tension and reliable synchronous drive performance across the full belt circumference.
  • 📐Standard XL Tooth Profile (5.08mm Pitch) — Conforms to the widely adopted XL standard, ensuring direct compatibility with XL timing pulleys used in 3D printers, CNC routers, and light automation equipment.
  • 📏Wide Size Selection — 60mm to 1020mm Circumference — With 190+ circumference variants available in a single listing, you can find the exact closed-loop XL timing belt size your drive system requires without custom fabrication.
  • ⚙️10mm Belt Width for Compact Drive Systems — The 10mm width suits the majority of light-duty XL pulley configurations, balancing load capacity with the compact footprint needed in 3D printer frames and CNC gantries.
  • 🔩Rubber Compound for Flexibility and Grip — Rubber construction provides the tooth flexibility needed for smooth engagement with XL pulleys, reducing noise and vibration compared to rigid belt materials in low-speed synchronous drive applications.
  • 🚀Drop-In Replacement for Common Drive Belts — Designed as a direct replacement for worn or broken XL timing belts in existing equipment. Match the circumference number on your old belt to the variant name and order a like-for-like replacement.

📐 Technical Specifications — XL Rubber Closed-Loop Timing Belt

Belt Profile XL (Extra Light)
Tooth Pitch 5.08mm (0.200 inches)
Tooth Height typically 2.3mm (≈0.09 inches)
Belt Width 10mm (≈3/8 inches) — all variants
Circumference Range 60mm (≈2.4") to 1020mm (≈40.2") — see variant options
Belt Type Closed-loop (endless / seamless)
Material Rubber (neoprene-type compound)
Reinforcement See variant options / Contact us to confirm
Compatible Pulley Standard Standard XL timing pulley (5.08mm pitch)
Typical Application Load Light-to-medium duty (typically 50–150 N tensile)
Operating Temperature typically –20°C to +80°C (–4°F to +176°F)
Color Black

❓ Frequently Asked Questions

How do I choose the right circumference (length) for my XL timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: C = 2 × center distance + (π × pulley pitch diameter). The number in the variant name (e.g., XL-200) represents the belt's outer circumference in millimeters — XL-200 is 200mm (≈7.87 inches). When in doubt, size up slightly; a belt that is slightly loose can be tensioned, but one that is too short cannot be installed.

What does 'XL' mean in the belt designation?

'XL' stands for Extra Light — a standardized tooth pitch profile with a pitch of 5.08mm (0.200 inches). This is one of the most common belt profiles in light-duty power transmission and is widely used in 3D printers, CNC routers, laser cutters, and small automation equipment. It is not interchangeable with MXL, L, or GT2 profiles.

What load or torque can this timing belt handle?

XL rubber timing belts are generally suited for light-to-medium duty applications. Typical tensile load capacity is in the range of 50–150 N depending on belt length and operating speed. For high-torque or heavy industrial use, consider an L or H profile belt. Always verify load requirements against your specific application before ordering.

Can this belt be used outdoors or in wet/oily environments?

Rubber timing belts generally offer moderate resistance to moisture and mild environmental exposure. However, prolonged immersion in water, contact with oils or solvents, or extended UV exposure can degrade the rubber compound over time. For outdoor or chemically exposed environments, a neoprene or polyurethane belt is typically more durable. Contact us to confirm suitability for your specific conditions.

Will this belt fit standard XL timing pulleys?

Yes. This belt follows the standard XL tooth profile (5.08mm pitch) and is compatible with any standard XL timing pulley. The belt width is 10mm, so your pulley flanges should accommodate at least 10mm of belt width. Always confirm pulley specifications — particularly flange width and tooth count — before ordering.

How do I read the variant name — what does 'XL-200' mean?

The number after 'XL-' or 'XL' represents the belt's outer circumference in millimeters. For example, XL-200 = 200mm circumference (≈7.87 inches). The width is fixed at 10mm for all variants in this listing. Select the circumference that matches your drive system's requirements. If your existing belt has a part number stamped on it, the circumference in mm is typically part of that number.

What is the difference between a closed-loop belt and an open-end belt?

A closed-loop (endless) belt is manufactured as a single continuous loop with no seam or joint. This provides consistent tension distribution and eliminates the weak point that a joined or laced belt would have. Open-end belts are sold by the foot and must be cut and joined on-site. For most precision drive applications — including 3D printers and CNC machines — a closed-loop belt is preferred for reliability and positional accuracy.
