XL Timing Belt 10mm Width — Reliable Closed-Loop Synchronous Drive for Precision Motion Systems

When a slipping V-belt or worn drive belt causes positioning errors, missed steps, or unexpected downtime, the fix starts with the right synchronous belt. This rubber XL timing belt with 10mm width is built for engineers, makers, and repair technicians who need a dependable closed-loop drive solution across a wide range of machine sizes — from compact desktop CNC routers to mid-size conveyor and automation equipment.

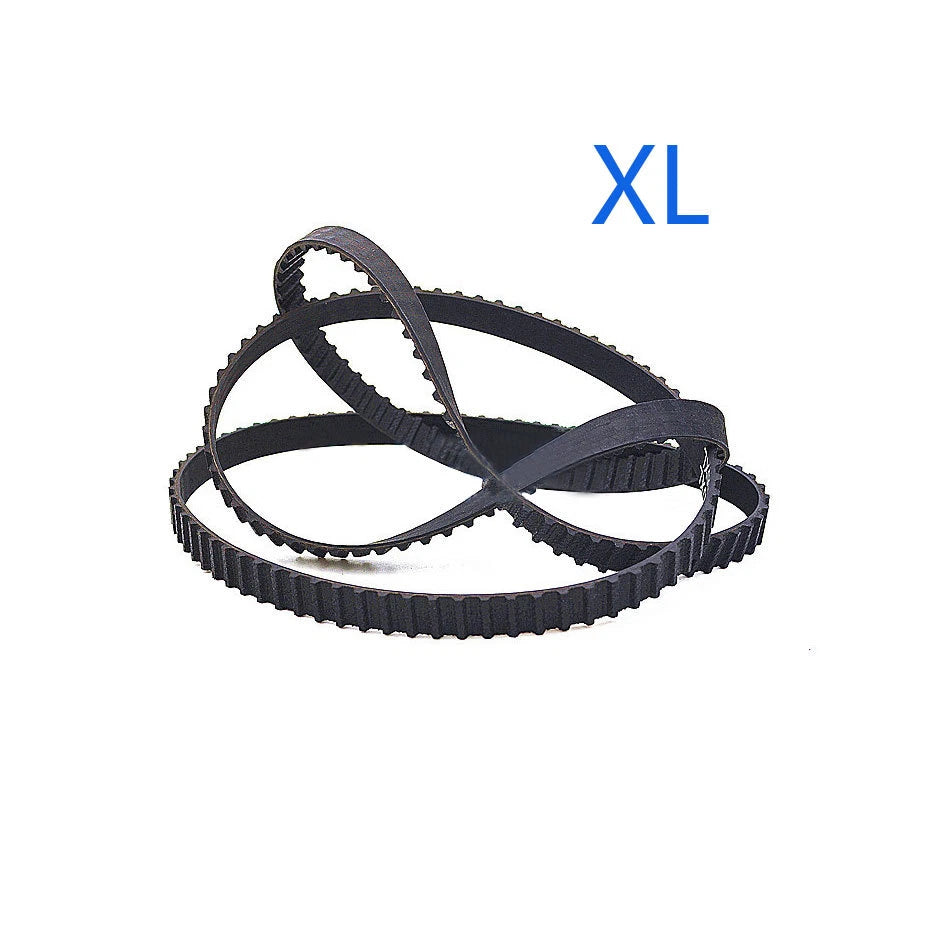

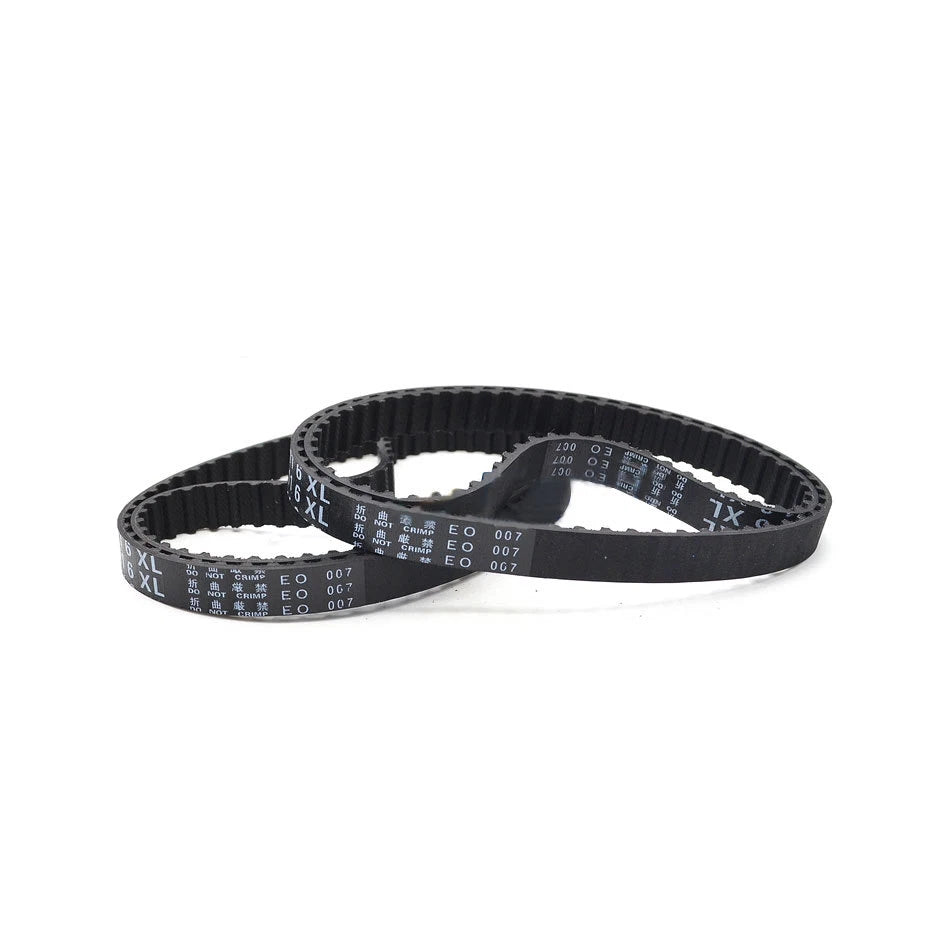

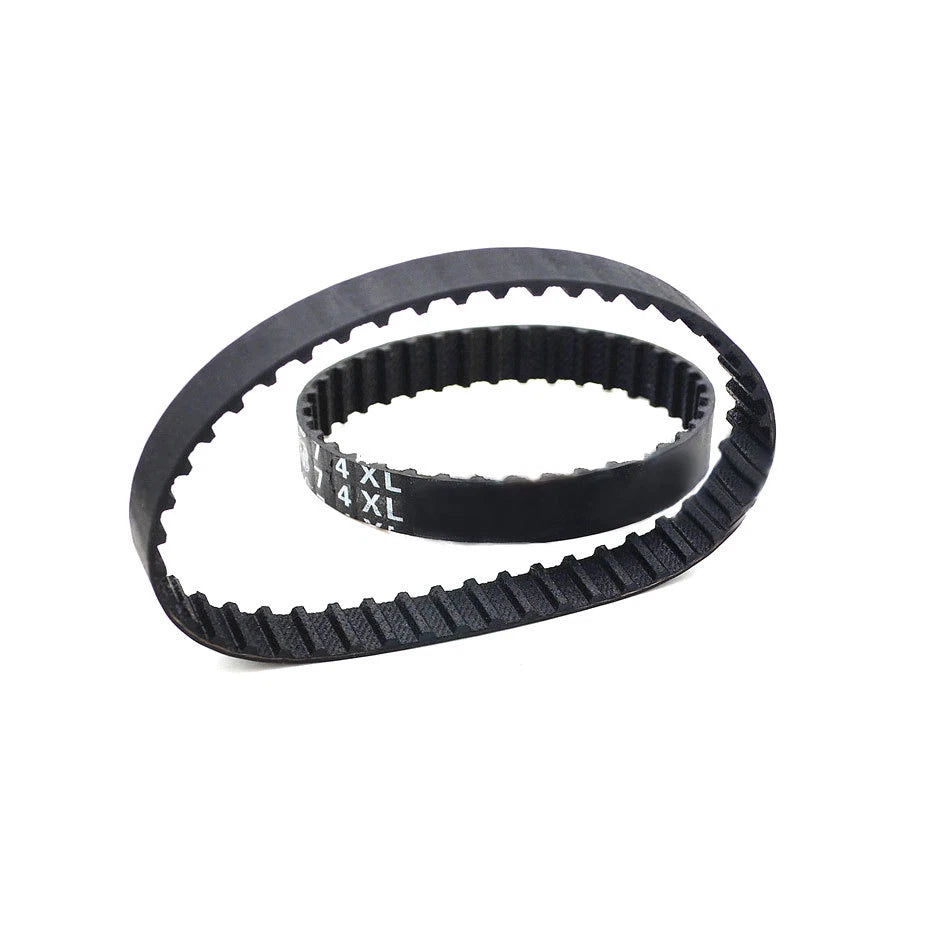

Each belt is a single closed-loop (endless) rubber synchronous belt with an XL tooth profile — pitch of 5.08mm (0.200"). The belt width is 10mm (≈3/8"), and available loop circumferences span from 50XL (≈127mm / ≈5.0") up to 1020XL (≈2591mm / ≈102.0"), covering an exceptionally wide range of drive configurations. The rubber compound provides flexibility and grip across the tooth profile, with fiber reinforcement typically integrated into the tension member for dimensional stability under load.

Typical use cases include CNC machine axis drives and lead-screw synchronization, 3D printer X/Y motion systems requiring a closed-loop XL timing belt replacement, light industrial conveyor timing drives, and DIY automation projects using standard XL pitch pulleys. The standardized XL tooth profile ensures straightforward interchangeability with off-the-shelf XL pulleys available from most industrial suppliers.

ℹ️ Compatibility: Designed for standard XL pitch pulleys (5.08mm / 0.200" tooth pitch) with a 10mm-wide groove. Confirm your pulley's tooth profile and groove width before ordering.
⚠️ Size Selection: The size number equals the outer circumference in tenths of an inch (e.g., 200XL = 20.0" ≈ 508mm outer circumference). Measure your existing belt or calculate your required loop length before selecting a variant.

✅ Key Features of These XL Timing Belts

  • 🔁Closed-Loop Endless Construction — Seamless single-loop design eliminates joints and fasteners, providing smooth, consistent power transmission without vibration spikes common in spliced belts.
  • 📐Standard XL Tooth Profile (5.08mm Pitch) — Conforms to the widely adopted XL pitch standard, ensuring direct compatibility with XL timing pulleys used in CNC drives, 3D printers, and light industrial synchronous drive systems.
  • 📏Wide Size Range — 50XL to 1020XL — Over 180 size options in a single product listing, covering loop circumferences from approximately 127mm (5") to 2591mm (102"), reducing the need to source from multiple suppliers.
  • ⚙️10mm Belt Width for Balanced Load Distribution — The 10mm (≈3/8") width suits light-to-medium duty drives, providing adequate tooth engagement area for typical CNC axis and conveyor timing belt replacement applications.
  • 🧱Rubber Compound with Fiber Tension Member — The rubber body offers flexibility and tooth grip, while the internal fiber reinforcement generally maintains belt length stability under operating tension, reducing stretch-related positioning drift.
  • 🔧Drop-In Replacement for Standard XL Drive Systems — Standardized tooth geometry means this belt typically installs directly onto existing XL pulleys without modification, making it a practical closed-loop synchronous belt replacement for maintenance and repair tasks.

📐 Technical Specifications — XL Timing Belt (Rubber, 10mm Width)

Belt Series XL (Extra Light)
Tooth Pitch 5.08mm (0.200")
Belt Width 10mm (≈3/8")
Belt Type Closed Loop (Endless Synchronous Belt)
Material Rubber with fiber tension cord (typically neoprene or EPDM rubber body)

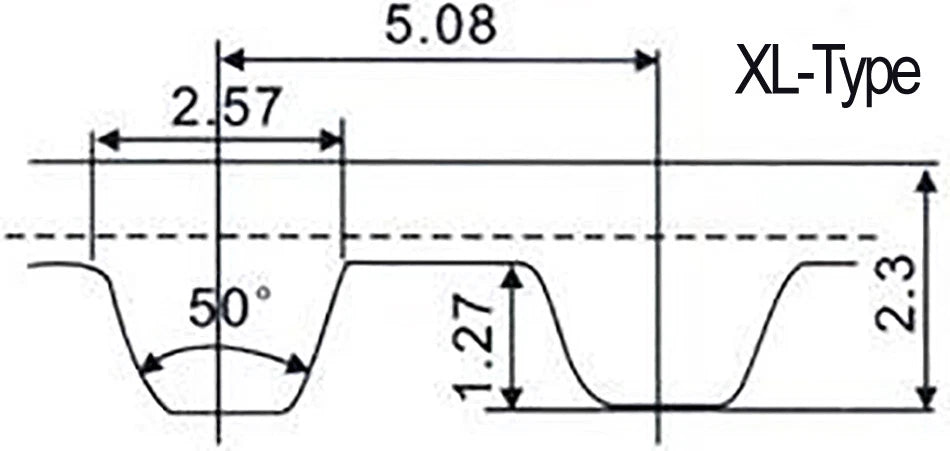

Tooth Profile XL trapezoidal (standard)

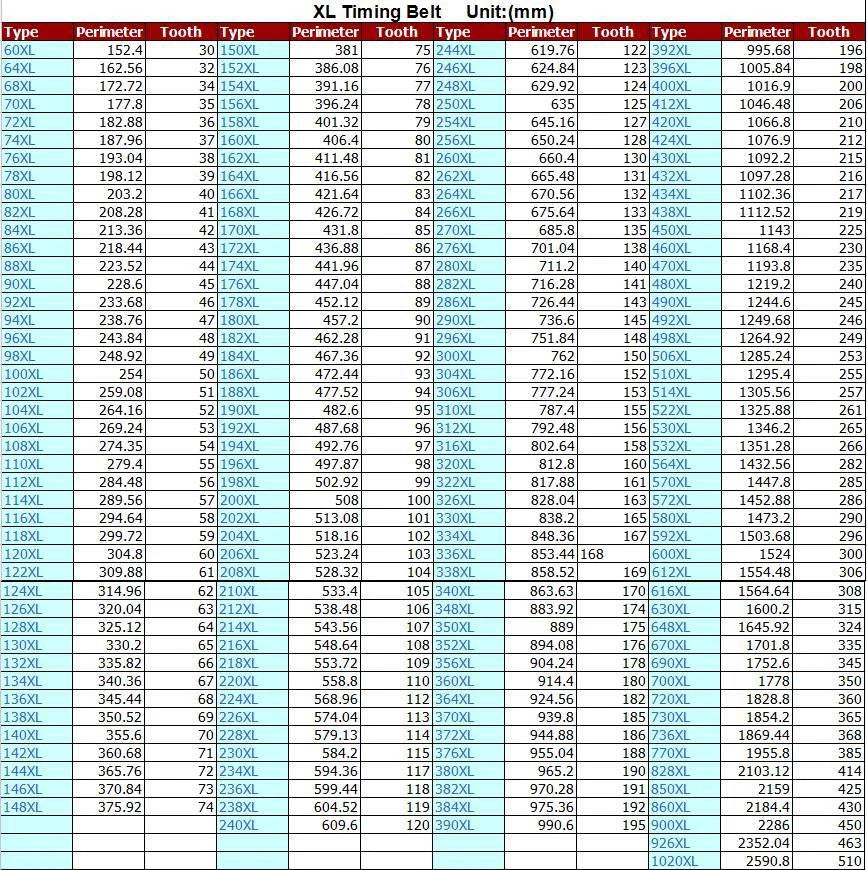

Available Sizes 50XL to 1020XL (outer circumference in tenths of an inch — see variant options)
Outer Circumference Range Approx. 127mm (5.0") — 2591mm (102.0") depending on selected size
Compatible Pulleys Standard XL pitch pulleys, 10mm groove width
Duty Rating Light to medium duty (see variant options for specific size)
Color / Finish See variant options
Operating Temperature Contact us to confirm
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right XL timing belt size?

The size number represents the belt's outer circumference in tenths of an inch — so 100XL is typically 10.0 inches (≈254mm) in outer circumference. To select the correct size, measure your existing belt around the outside, or calculate the required loop length based on your center distance and pulley pitch diameters. Then choose the closest matching variant. When in doubt, size up slightly rather than down to avoid over-tensioning.

What does 'XL' mean in timing belt sizing?

XL stands for Extra Light pitch. XL timing belts have a standardized tooth pitch of 5.08mm (0.200 inches). This is one of the most common pitch standards in light-duty power transmission, widely used in CNC machines, 3D printers, plotters, and small conveyor systems. The XL designation is consistent across manufacturers, so an XL belt will generally fit any XL pulley of the same width.

What is the load capacity of this rubber XL timing belt?

XL series rubber timing belts are generally rated for light-to-medium duty applications. Exact load ratings depend on belt length, pulley diameter, number of teeth in mesh, and operating speed. For high-torque or continuous industrial use, consult your system's design specifications and compare against the belt's rated tensile strength before ordering. Contact us to confirm specific load data for your application.

Can this timing belt be used outdoors or in wet environments?

Rubber XL timing belts generally offer moderate resistance to moisture and mild environmental exposure, making them suitable for most indoor and semi-protected outdoor applications. However, they are not typically rated for prolonged submersion or highly corrosive chemical environments. For outdoor or harsh-environment use, verify the belt's material specifications against your operating conditions before installation.

What pulleys are compatible with this XL timing belt?

This belt is designed for standard XL pitch pulleys with a 5.08mm (0.200") tooth pitch and a 10mm belt width groove. It is compatible with XL series timing pulleys commonly available in aluminum, steel, and engineering plastic. Always verify the pulley's tooth profile (XL trapezoidal) and groove width (10mm) before installation to ensure proper tooth engagement and belt tracking.

How do I convert the XL belt size number to millimeters?

Multiply the size number by 0.254 to get the outer circumference in millimeters. For example: 200XL = 200 × 0.254 = 50.8mm outer circumference. To convert to inches, divide the size number by 10 (200XL ≈ 20.0 inches outer circumference). This formula applies consistently across all XL belt sizes in this listing, from 50XL (≈12.7mm / ≈0.5") up to 1020XL (≈259.1mm / ≈10.2" — note: this is the per-unit pitch circumference; full loop circumference is larger).

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) synchronous belt. It forms a continuous loop with no seam, joint, or fastener, making it suitable for direct installation on timing pulleys without splicing hardware. This construction is standard for synchronous drive applications where consistent tooth pitch and smooth operation are required.
